Rocker Switch Drawing
What is a Wired Rocker Switch?

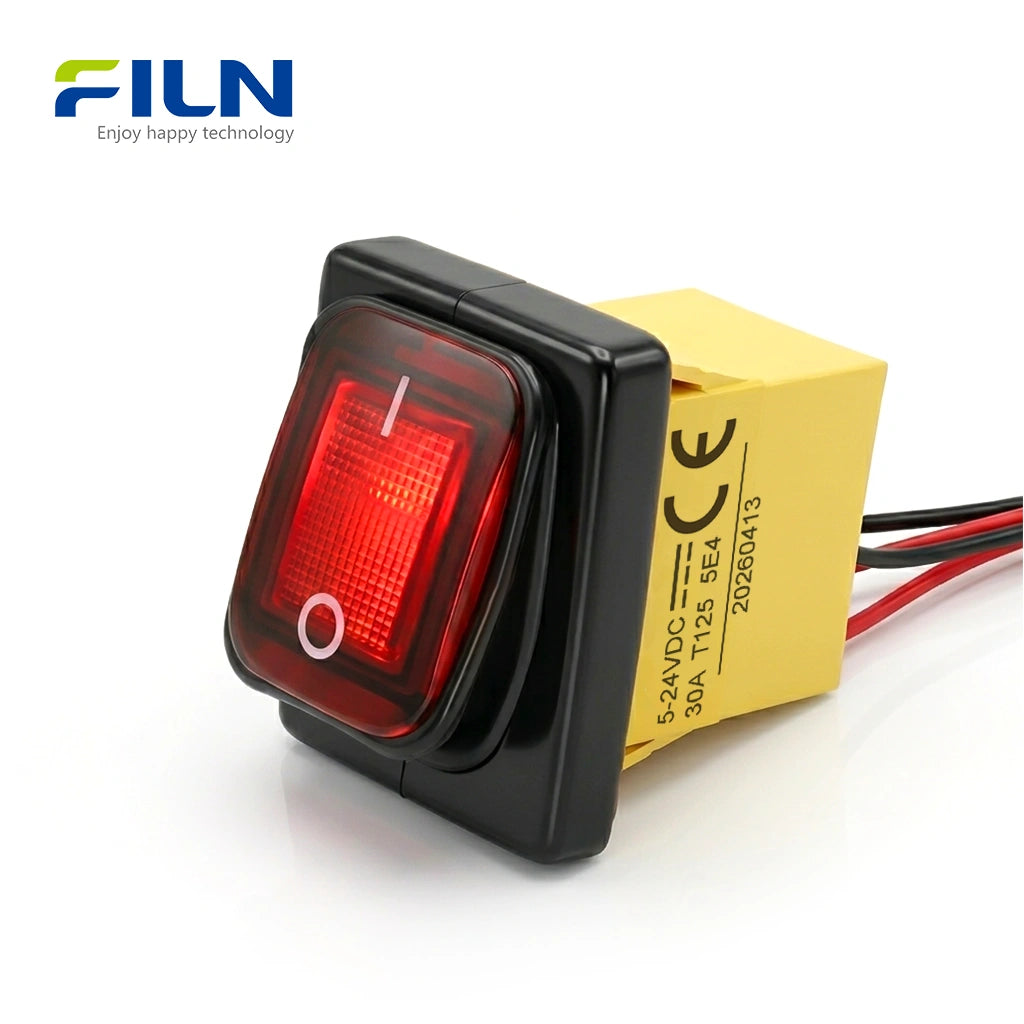

A wired rocker switch is a pre-terminated electrical control component featuring integrated lead wires for simplified installation. This KCD4 series model uses a pivoting "rocker" mechanism to manage power flow. Unlike standard terminal switches, this version comes with 15cm wires that are internally sealed with epoxy resin, providing superior IP65 waterproof protection and a "plug-and-play" experience for industrial wiring systems.
Industrial Product Overview

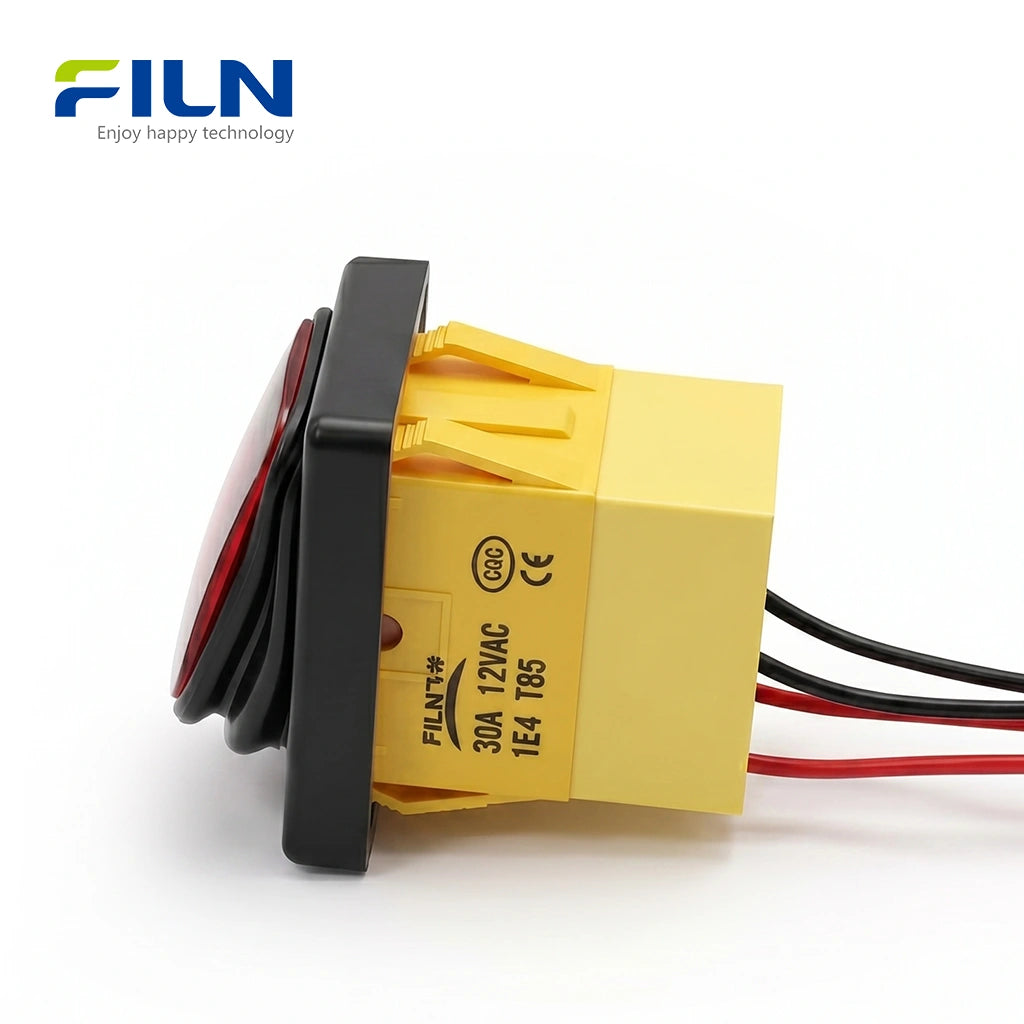

The FILN FL3-KCD4-0125-21 is a high-performance wired rocker switch designed for rapid deployment in demanding environments. Featuring a standard 30x22mm rectangular mounting hole and a framed design, it offers a sleek transparent plastic surface that is both fashionable and easy to clean. This switch is pre-wired with 4 leads, allowing for immediate connection without crimping terminals. With certifications like UL, CE, VDE, and ISO9001, it supports 5V-24V or 110V-220V applications. The illuminated KCD4 design ensures high visibility in dark environments, while the sealed tail design provides excellent moisture resistance for outdoor use.
2-Position Switch Function Comparison
| Function | Circuit Logic | Best Application |
|---|---|---|
| Latching ON-OFF | Stays in the pressed position. | Main power control for machinery and kitchen appliances. |
| Momentary (ON)-OFF | Returns to OFF when released. | Reset buttons, horns, or motor inching controls. |
Quick Specifications
| Model / Series | FL3-KCD4-0125-21 / KCD4 |
| Mounting Cutout | 30mm x 22mm (1.18" x 0.86") |

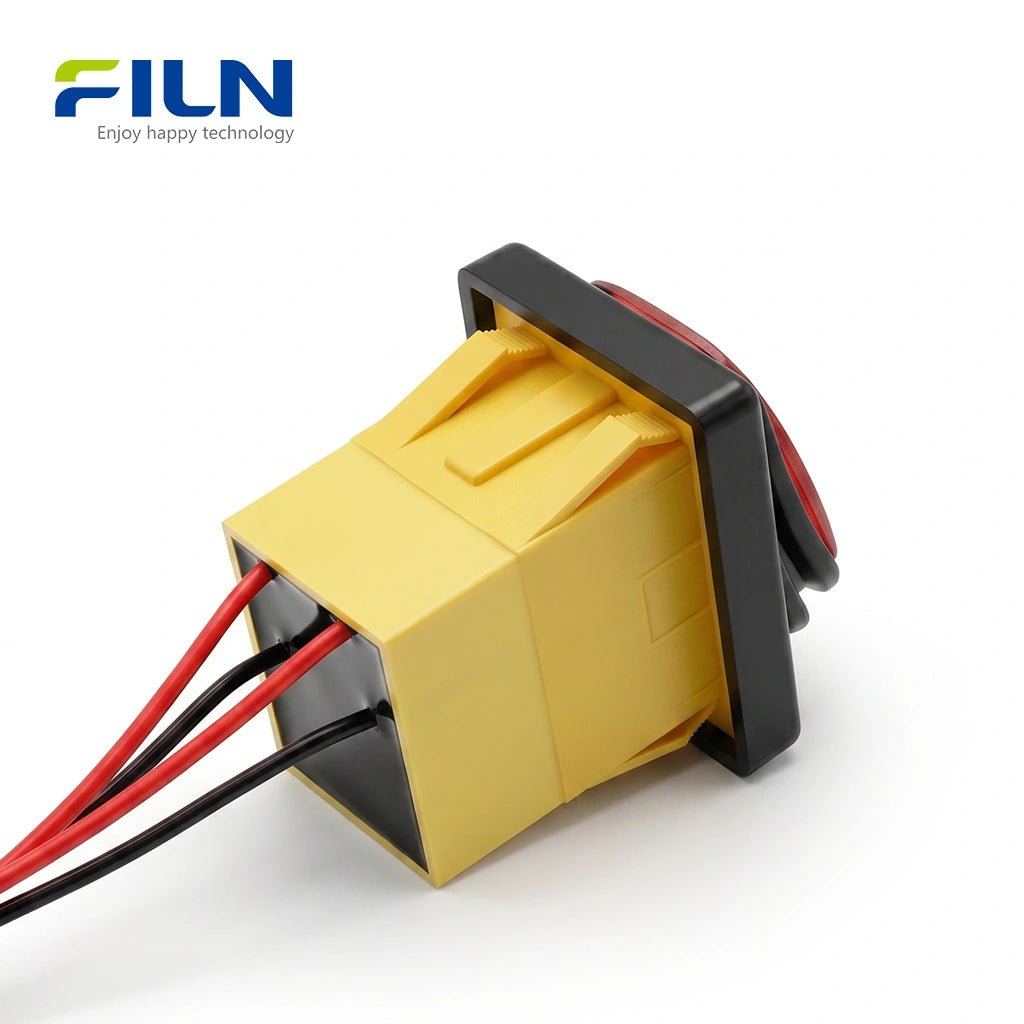

| Wiring Type | 4-Wire (4PIN) Lead Wires |
| Standard Wire Length | 15cm (Customizable) |
| Switch Function | ON-OFF (2-Position) |
| Frame Style | With Frame (Enhanced Protection) |

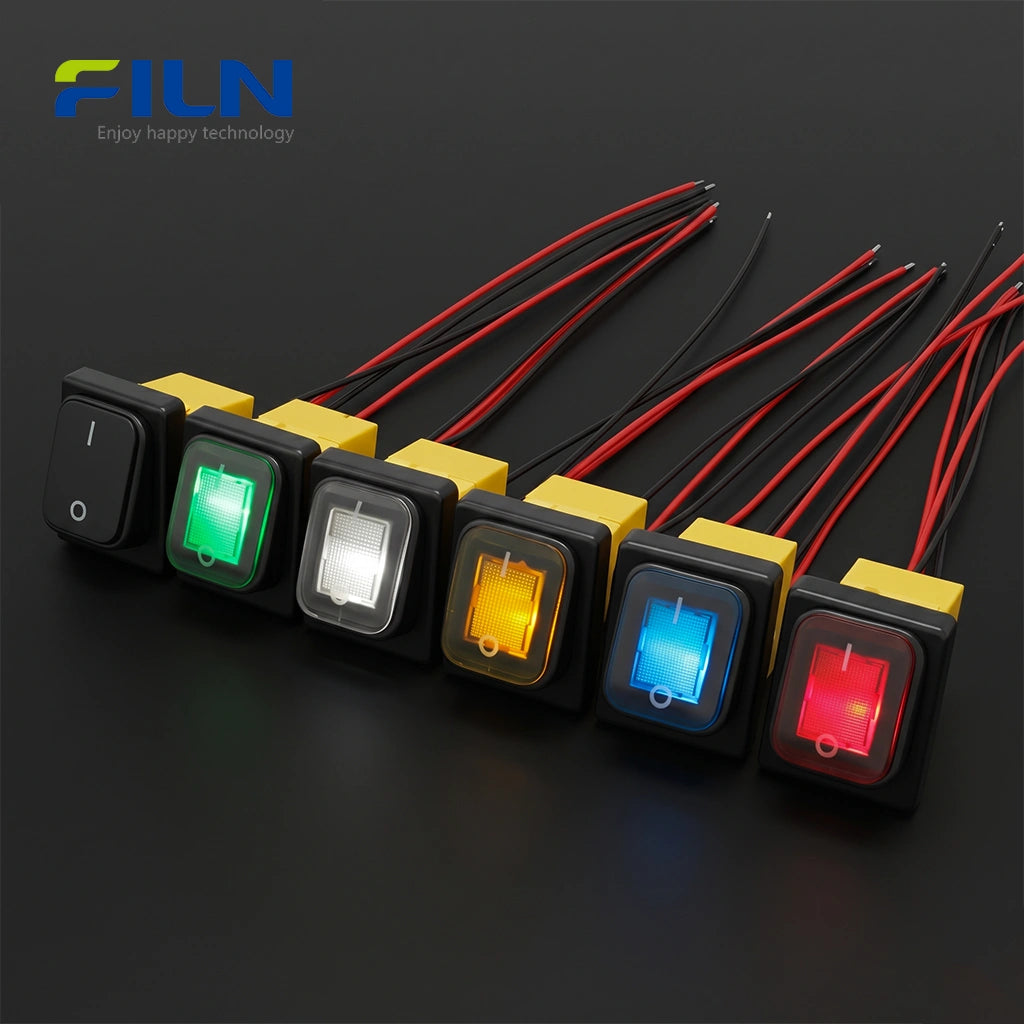

| LED Colors | Red, Green, Yellow, Blue, White |
Performance & Electrical Parameters
| Technical Metric | Specification Value |
|---|---|
| Rated Load |
16A 250VAC
|
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA / 60s |
| Operating Temperature | -40°C to +125°C |
| Protection Rating | IP65 Waterproof (Glue-Sealed Tail) |
| Electrical Life | 10,000 Cycles |
Component Materials
| Part Name | Material Detail |
|---|---|
| Switch Actuator | Fashionable Transparent PC (Easy to Clean) |
| Housing & Base | High-Heat PA66 Nylon |
| Sealing Material | Waterproof Epoxy Glue Seal |
| Internal Contacts | AgCdO12 (Silver Alloy) |
| Wiring Leads | 15cm Copper Core Standard Wire |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 15A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Why Choose Wired Framed Rocker Switches?
FILN's wired rocker switch with a white frame provides the ultimate combination of aesthetics and functionality.
Superior Sealing & Safety

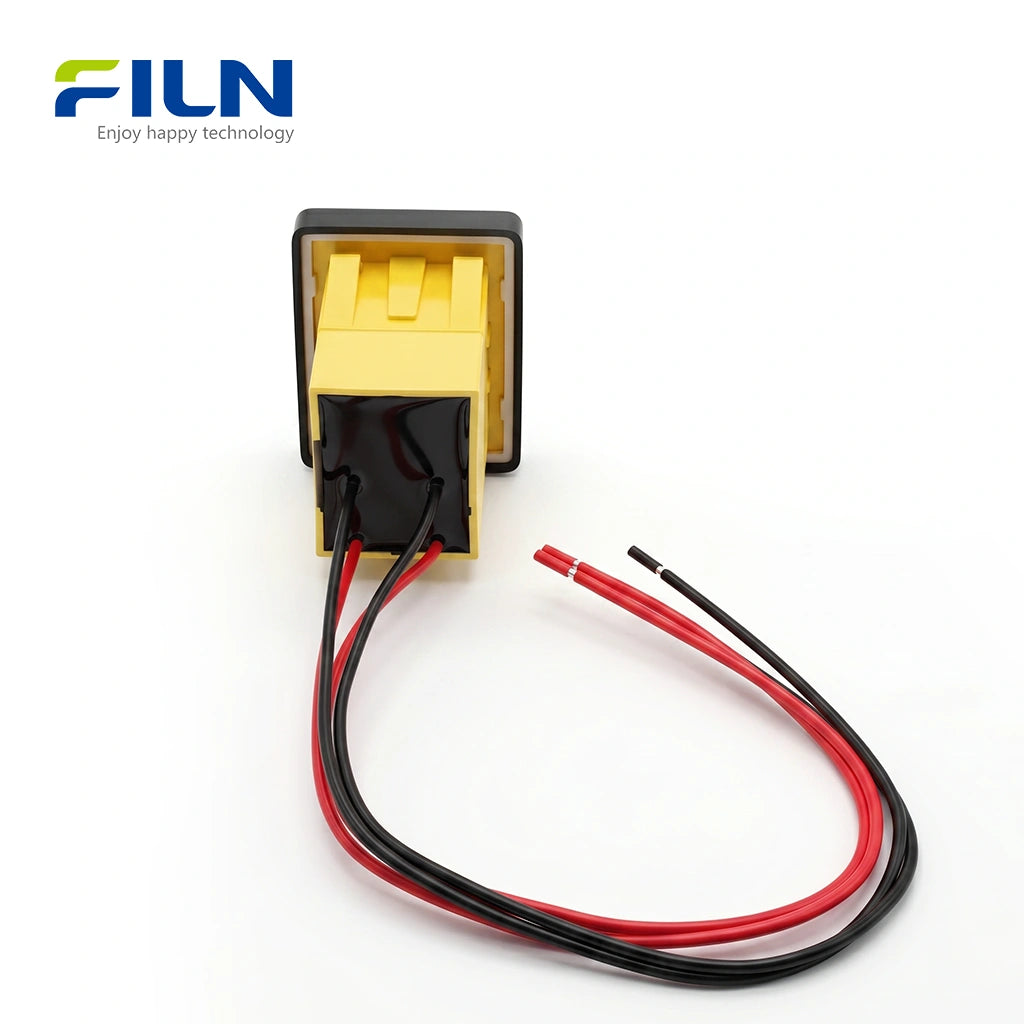

The tail of this switch is glue-sealed to prevent moisture ingress through the wiring path. This, combined with the IP65 rating, makes it perfect for outdoor panels. The framed design ensures the switch sits flush, hiding uneven panel cutouts.
Modern Style & Ease of Use
The transparent plastic surface is not only stylish but also remarkably easy to maintain. Unlike matte finishes, it doesn't trap oils. The illuminated KCD4 design provides a bright guide in pitch-black conditions, unlike non-lighted black switches which are better suited for versatile, well-lit panel designs.
Industrial & Commercial Applications
This wired rocker switch is widely used in power control for any electrified equipment requiring a reliable ON-OFF toggle:
- Outdoor Equipment: Marine dashboards, irrigation controls.
- Commercial Kitchens: Deep fryers, ovens, and blenders.
- Medical Systems: Sterilizers, nursing beds.
- Power Distribution: PDU units, industrial control boxes.
- Transportation: RV auxiliary lighting, bus interior controls.
Complete Rocker Switch Wiring Diagram and Connection Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Snap-In Installation Steps
- Panel Cutout: Prepare a 30mm x 22mm rectangular hole in your mounting panel.
- Switch Placement: Pass the 15cm lead wires through the hole first.
- Secure Mounting: Push the switch body into the cutout. The snap-in side clips will lock it firmly to the panel.
- Final Wiring: Connect the 4 pre-stripped wires to your power source and load according to the wiring diagram. No terminal crimping required!
FILN Factory Customization
Buy directly from the factory for maximum reliability and value. We support full customization for bulk industrial orders.
- No MOQ Requirements
- Custom Wire Lengths (e.g. 30cm, 50cm)
- Voltage: 5V-24V / 110V-220V
- Custom Connector Termination
- Fast Global Shipping
Frequently Asked Questions (FAQ)
Q1: Why is the transparent surface of the 4-pin LED switch better?
A: It is more fashionable and much easier to clean. In dark environments, the transparent surface allows the LED light to provide a bright, clear status indicator.
Q2: Does this 30x22mm KCD4 switch come with a frame?
A: Yes, this model is a framed version, which provides better structural rigidity and a cleaner installation look by covering panel gaps.
Q3: Can I use this for 220V AC industrial machinery?
A: Absolutely. It is rated for 30A 250VAC, making it suitable for high-current industrial equipment.
Q4: Is the wire tail sealed?
A: Yes, the tail is injection-sealed with glue, which significantly improves the waterproof performance compared to standard open-terminal switches.
Q5: Can I request a 24V LED for automotive use?
A: Yes, FILN provides custom LED voltages including 12V, 24V, 110V, and 220V.
Q6: How do I install this 4-wire switch?
A: Use the snap-in method. Prepare the 30x22mm cutout, push the switch in, and connect the pre-terminated 15cm wires.
Q7: What is the benefit of the wired version?
A: It saves significant time during assembly as you don't need to crimp terminals or solder leads onto the switch yourself.
Q8: What LED colors are available?
A: We offer Red, Green, Yellow, Blue, and White (RGYBW) options.
Q9: Is it suitable for outdoor applications?
A: Yes, the IP65 rating and sealed wiring make it an ideal waterproof solution for outdoor control panels.
Q10: Can the wire be longer than 15cm?
A: Yes, FILN factory offers customization for any wire length to match your specific wiring harness requirements.
