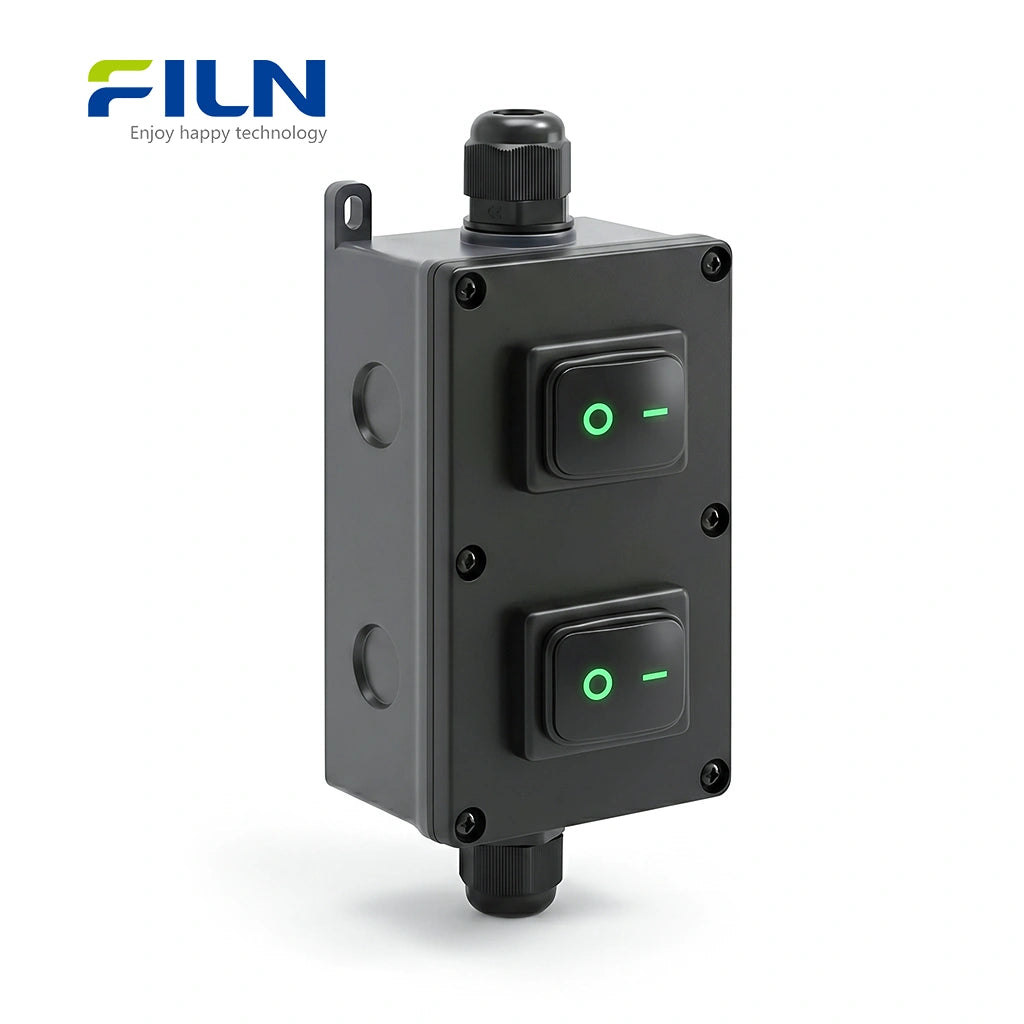

What is a Waterproof Junction Box Outdoor?
A waterproof junction box outdoor is a specialized industrial electrical enclosure designed to house and protect wiring connections and switches from environmental hazards such as moisture, dust, and debris. This specific model, WB3-2T-2D401-2, integrates two high-performance KCD4 rocker switches into a rugged black plastic housing. Engineered for heavy-duty applications, it features a 30A high current capacity and IP65 protection, ensuring reliable industrial power control in harsh conditions. The double switch weatherproof enclosure design allows for independent control of two separate circuits within a single compact unit.
Product Overview

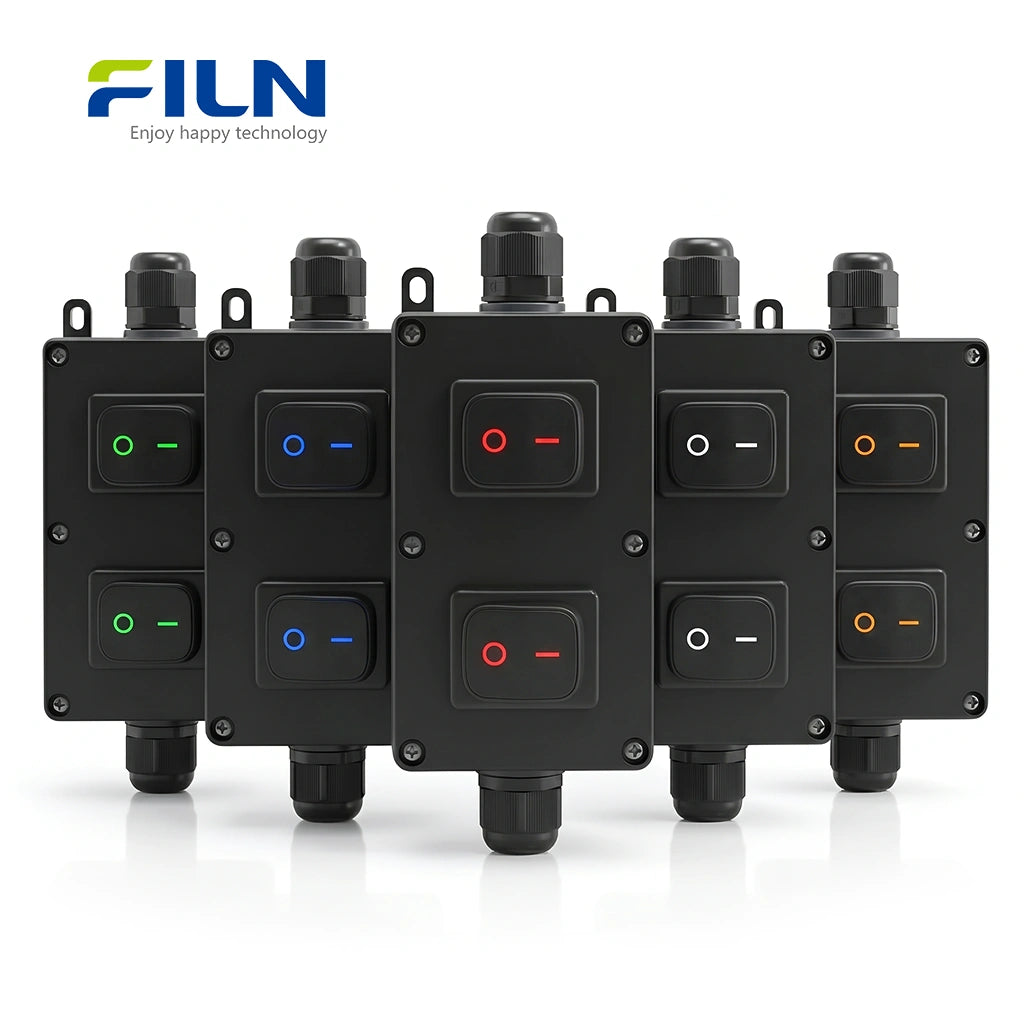

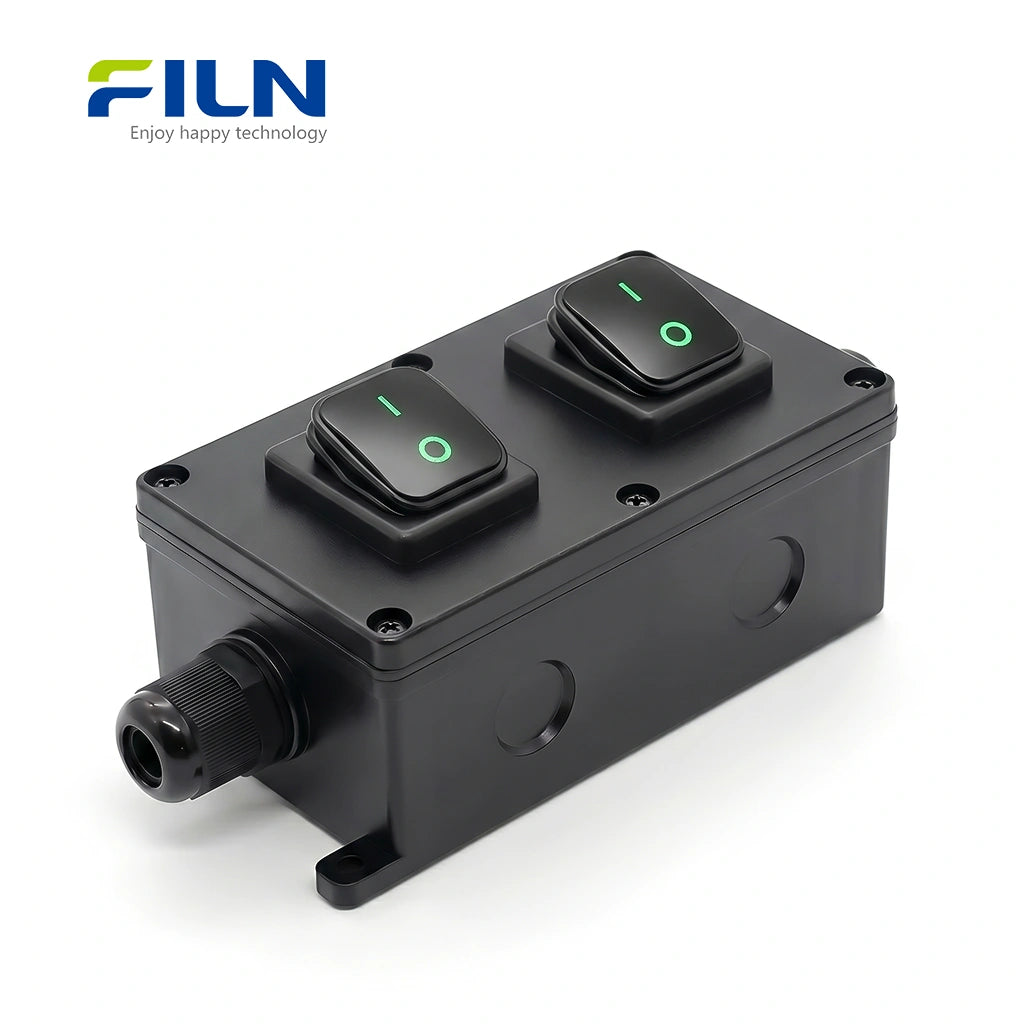

The FILN WB3 series represents a Double Switch Weatherproof Enclosure tailored for B2B industrial purchase intent. Each unit is equipped with KCD4-rocker-switch-wiring optimized for 4-pin screw terminal stability. These 22x30mm-panel-mount-switch components feature a black painted surface for a sleek aesthetic and LED-illuminated-rocker-switch-220V capability for high visibility in dark environments. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this IP65-outdoor-electrical-enclosure is ideal for 30A-high-current-rocker-switch demands in outdoor lighting, marine equipment, and factory machinery. The snap-in installation ensures the DPST-on-off-rocker-switch-waterproof remains securely fixed under vibration.
Quick Specifications
| Model Number | WB3-2T-2D401-2 |
|---|---|
| Waterproof Connector | PG11 |
| Wiring Configuration | Line-in / Line-out (L-in, L-out) |
| Installation Size | 22 x 30 mm / 0.86 x 1.18 inch |
| Switch Function | ON-OFF (2-Position) |
| LED Colors | Red / Green / Yellow / Blue / White |
| Head Shape | Rectangular / Square Design |
| Terminal Type | 4-Pin Screw Terminal |
Performance Parameters
| Rated Voltage | 30A 250VAC / 18(12)A 125VAC |
|---|---|
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Electrical Endurance | 10,000 Cycles |
| Ambient Temperature | -40°C to +125°C |
| Protection Degree | IP65 |
| Certifications | UL, CE, VDE, RoHS, SGS, ISO9001 |
Component Materials
| Component Name | Material |
|---|---|
| Transparent Sheet / Light Guiding Part | Polycarbonate (PC) |
| Holder / Up Base / Middle Base | ABS High Impact |
| Bottom Base | PA66 Nylon |
| Waterproof Cover / Washer | NBR Rubber |
| Pins / Terminals / Spring Board | H62 Brass |
| Contact Material | AgCdO12 (Silver Alloy) |
| Spring | 72# Spring Steel |
| Lamp Component | High-Brightness LED |
General Characteristics
| Application | General use range of KCD4 series rocker switches. |
| Operating / Storage Temp | -40℃ to +125℃ |
| Relative Humidity | 45% to 85% |
| Test Conditions | Temp: 5-35℃, Humidity: 45-85%, Pressure: 86-106Kpa |
Mechanical & Electrical Testing Standards
| Electrical Property | |
|---|---|
| Contact Resistance | Measured at 1KHz small currents; Requirement: ≤50mΩ |
| Dielectric Strength | 1500VAC 60s (Terminals), 3000VAC 60s (Housing); No breakdown. |
| Mechanical Behavior | |
| Terminal Strength | 80N static load for 60s; No damage or loosening. |
| Solderability | 235±5℃ for 3s; >90% coverage. |
| Durability & Environment | |
| Mechanical Life | 20,000 cycles (No load); 60 operations/min. |
| Thermostability | 125±2℃ for 72 hours; Structure remains intact. |

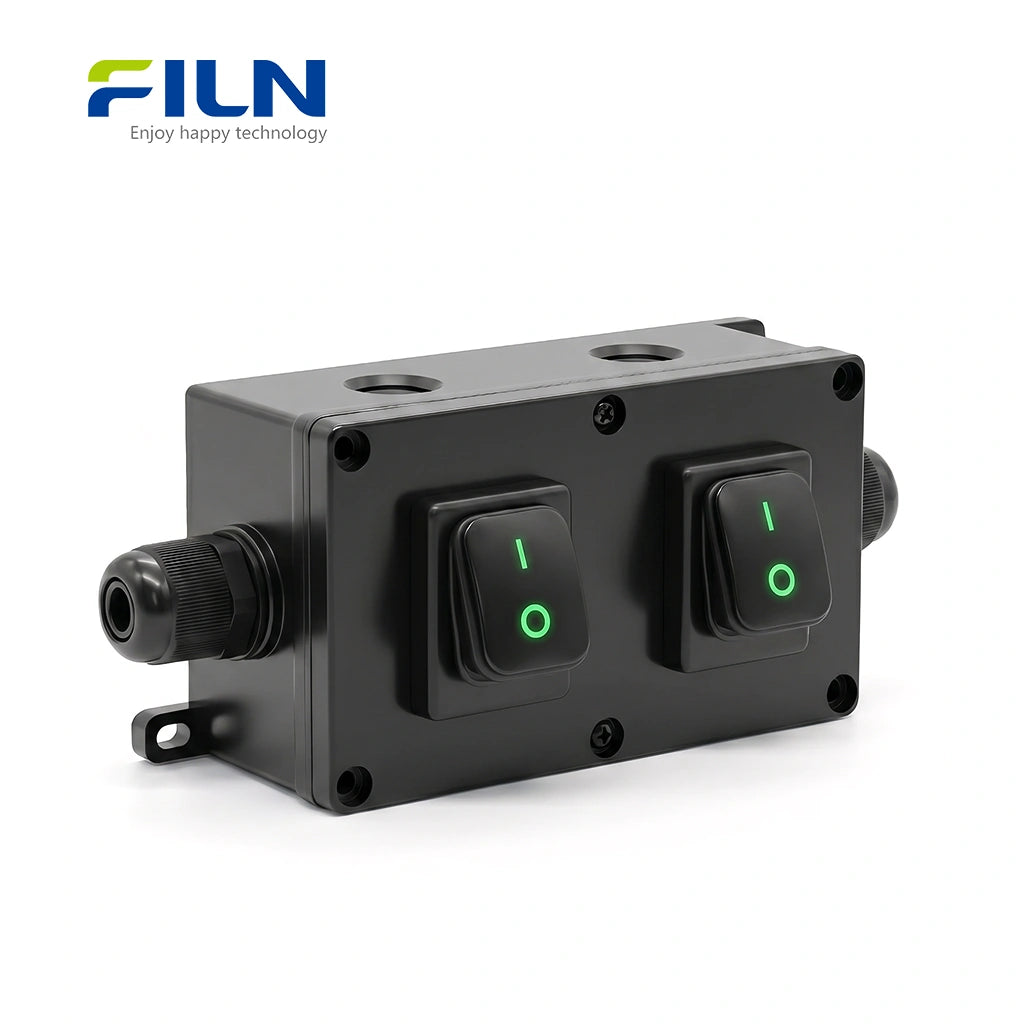

Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Applications of Waterproof Enclosures
- Outdoor Lighting & Landscaping: Controls lawn lamps and fountain pumps with DPST-on-off-rocker-switch-waterproof reliability.
- RV & Marine Retrofitting: Perfect for bilge pump control and 12V/24V power distribution in high-salt environments.
- Industrial Equipment: Used in high-pressure washers and industrial conveyors as an emergency start-stop unit.
- Agriculture: High-humidity greenhouse fan control and irrigation valve management.
How to Install and Wire a KCD4 Rocker Switch in a Waterproof Junction Box
1. Installing the KCD4 Rocker Switch into the Panel
The KCD4 rocker switch is designed for quick panel mounting with a secure snap-in structure. Follow these steps to properly install the switch into your waterproof junction box panel:
- Locate the standard 22×30mm cut-out on the junction box panel.
- Align the rocker switch with the opening, ensuring correct orientation (ON/OFF marking direction).
- Press the switch firmly into the cut-out until the side retaining clips snap into place.
- Check that the switch sits flush with the panel and does not move or loosen.
This snap-fit design ensures a stable installation without additional screws, making it ideal for industrial and DIY electrical applications.
2. Wiring the 4-Pin Screw Terminal Rocker Switch
This 4-pin KCD4 rocker switch uses screw terminals for secure and reliable electrical connections. It is suitable for AC power control, appliances, and equipment requiring stable current transmission.
- Insert the electrical wires through the PG11 waterproof cable gland before wiring.
- Strip approximately 5–7mm of insulation from each wire to expose the conductor.
- Loosen the screw terminals using a screwdriver.
- Wrap or insert the exposed wire firmly around the metal terminal post.
- Tighten each screw securely to ensure strong electrical contact and vibration resistance.
- Double-check wiring configuration (Line/Load) according to your circuit requirements.
The screw terminal design provides excellent conductivity and is safer than push-fit connections, especially in high-load or outdoor environments.

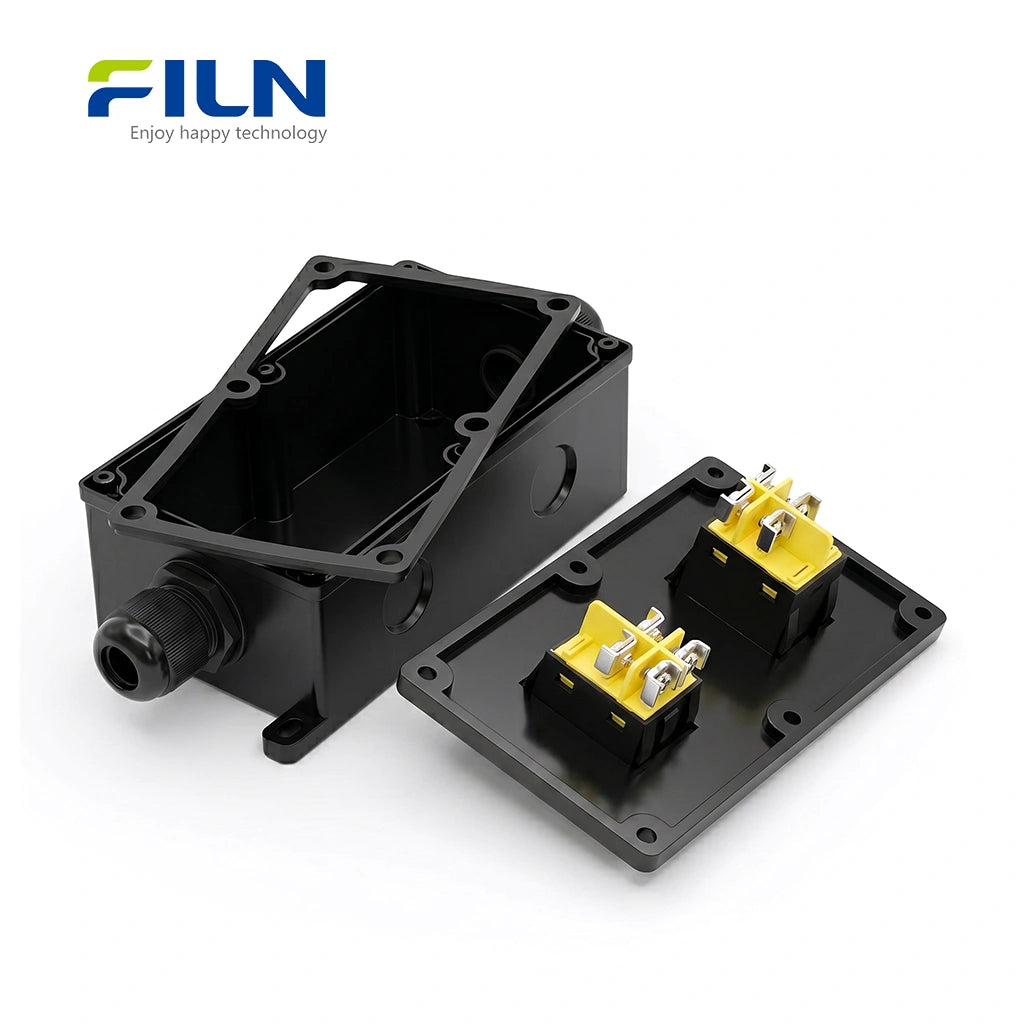

3. Assembling the Waterproof Junction Box (IP65)
After installing and wiring the rocker switch, complete the assembly of the waterproof junction box to ensure full protection against dust and water.
- Carefully arrange all internal wiring to avoid pinching or interference.
- Place the gasket correctly along the enclosure edge to maintain waterproof sealing.
- Close the junction box lid securely.
- Tighten all enclosure screws evenly to ensure uniform pressure on the seal.
- Firmly tighten the PG11 cable gland nut to compress the sealing ring around the cable.
- Verify that the enclosure meets IP65 waterproof standards with no visible gaps.
Proper assembly is critical to ensure long-term durability, especially in outdoor, humid, or industrial environments.
How to Wire a 4-Pin Screw Terminal Switch
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Rocker Switch Function Comparison
| Function Type | Description | Application |
|---|---|---|
| ON-OFF (2 Gear) | Standard power control; circuit remains open or closed. | Lights, Pumps, Motors |
| (ON)-OFF (Momentary) | Springs back to OFF when released. | Horns, Reset Triggers |
| ON-OFF-ON (3 Gear) | Controls two separate loads or motor direction. | Winches, Reversible Fans |
Industry Knowledge: How Junction Boxes Work
A waterproof junction box outdoor serves as a protective hub for electrical nodes. In industrial systems, it prevents "bridging" or short circuits caused by humidity. The box works by creating a mechanical barrier (ABS/PC shell) and a secondary seal (Rubber Gasket). When a 30A-high-current-rocker-switch is mounted, the internal 4-pin-rocker-switch-connection-guide ensures that the Line and Neutral are safely managed. The illuminated LED provides an immediate visual diagnostic of the circuit's status, which is critical for safety in industrial-power-control-junction-box environments.
Factory Direct Supply & Customization
FILN is a world-leading manufacturer of industrial switches and enclosures. We offer No MOQ and Fast Global Shipping.
- Voltage Customization: 5V, 12V, 24V, 110V, 220V, 380V options.
- Custom Wiring: Pre-soldered leads or specific wire lengths.
- Certifications: Full CE and RoHS compliance.
FILN Official Website: www.filn.com
Contact Email: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. What is a 4-pin KCD4 rocker switch?
A KCD4 4-pin rocker switch is a Double Pole Single Throw (DPST) device that controls both the live and neutral lines simultaneously, providing complete circuit isolation in the OFF position.
2. Can I use this junction box for a 220V outdoor pump?
Yes, with a 30A rating and IP65 waterproofing, it is perfectly suited for 220V outdoor industrial or gardening pump systems.
3. How does the screw terminal improve installation?
The screw terminal allows for a secure mechanical connection without the need for soldering, making it easier to maintain or replace in the field.
4. Is the LED light in the rocker switch replaceable?
No, the high-efficiency LED is integrated into the switch body for maximum durability and moisture resistance.
5. What is the difference between IP65 and IP67?
IP65 protects against water jets from any direction, while IP67 allows for temporary immersion. This box is IP65 rated, ideal for rain and spray environments.
6. Does the KCD4 switch fit into a standard 22x30mm hole?
Yes, the industry-standard mounting size for KCD4 series is 22x30mm, ensuring compatibility with existing panels.
7. Are these switches CE and UL certified?
Yes, all FILN rocker switches undergo rigorous testing and carry CE, UL, VDE, and RoHS certifications.
8. Can I order a junction box with different LED colors?
Absolutely. We offer Red, Green, Yellow, Blue, and White LED options to match your interface design.
9. What material is the junction box enclosure?
The enclosure is made of high-impact ABS or PC, providing excellent resistance to physical shock and UV exposure.
10. How do I seal the cable entry points?
The PG11 waterproof connectors included with the box use a compression nut and rubber seal to secure the cable and prevent water ingress.
