Junction Box Drawing
What is a Waterproof Junction Box?
A waterproof junction box is a specialized electrical enclosure designed to protect wiring connections and switch interfaces from moisture, dust, and environmental contaminants. In industrial and marine applications, these units provide a secure housing for components like the KCD4 rocker switch, ensuring circuit integrity in harsh conditions. The WB1-2T-D401-082 model integrates a high-current 30A switch within a sealed ABS housing to prevent electrical failure due to oxidation or water ingress.

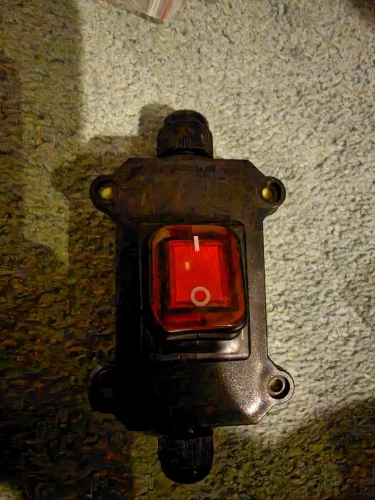

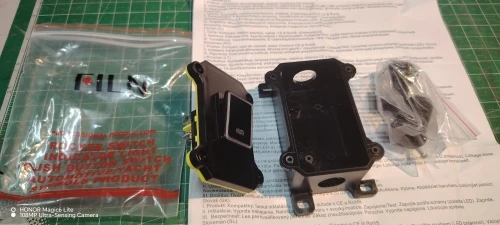

Product Overview

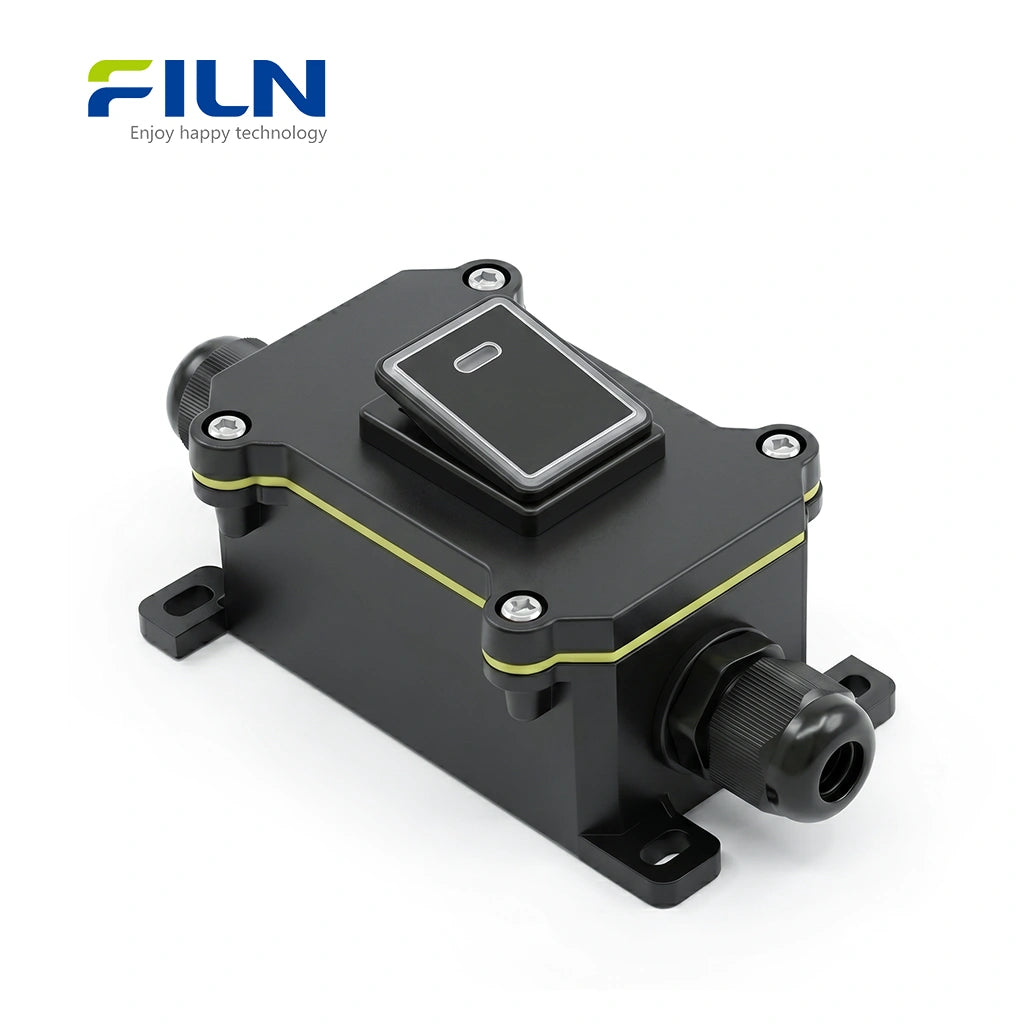

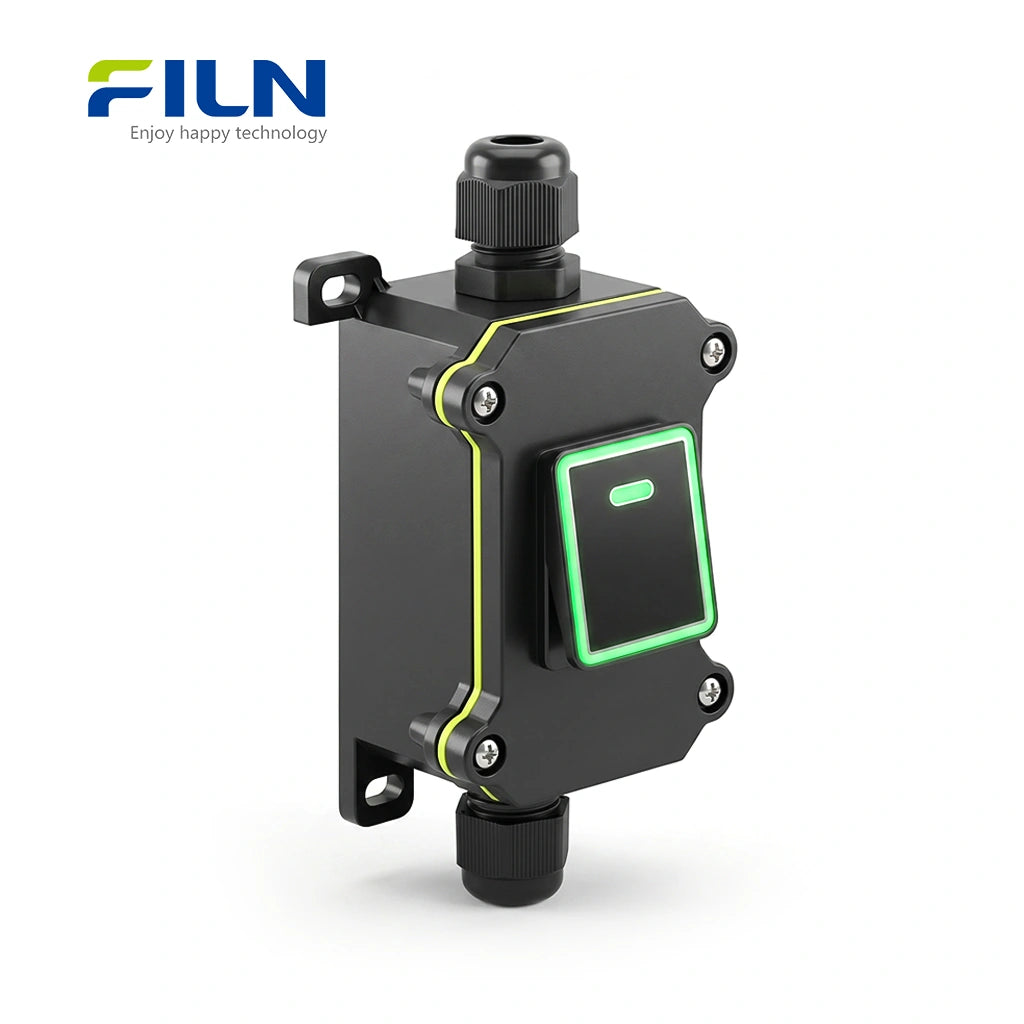

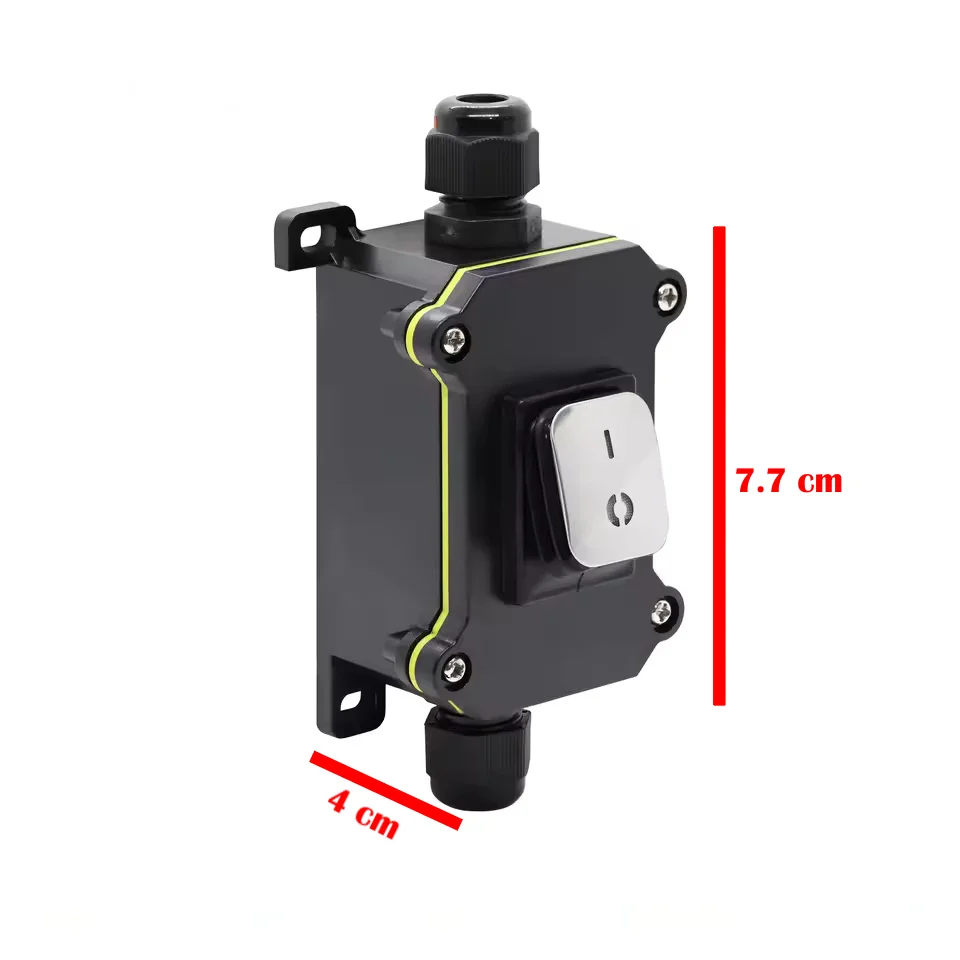

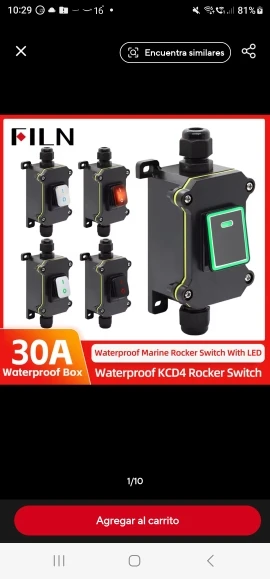

The FILN WB1-2T-D401-082 is a heavy-duty waterproof junction box engineered for reliability. This unit features a 30A high-current rocker switch with a stainless steel aluminum surface, providing superior tactile feedback and an aesthetic finish. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it is designed for demanding industries such as marine, RV, and outdoor landscaping. The switch uses a 22x30mm mounting size and 4-pin screw terminals for secure, vibration-resistant wiring. Whether in a dark engine room or an outdoor garden, the illuminated LED (RGYBW colors) ensures high visibility and operational safety.
Quick Specifications
| Junction Box Model | WB1-2T-D401-082 |
| Waterproof Connector | PG9 |
| Wiring Configuration | Line-in / Line-out (L-in, L-out) |
| Mounting Size | 22 x 30 mm (0.86 x 1.18 inch) |
| Switch Function | ON-OFF (2 Position) |

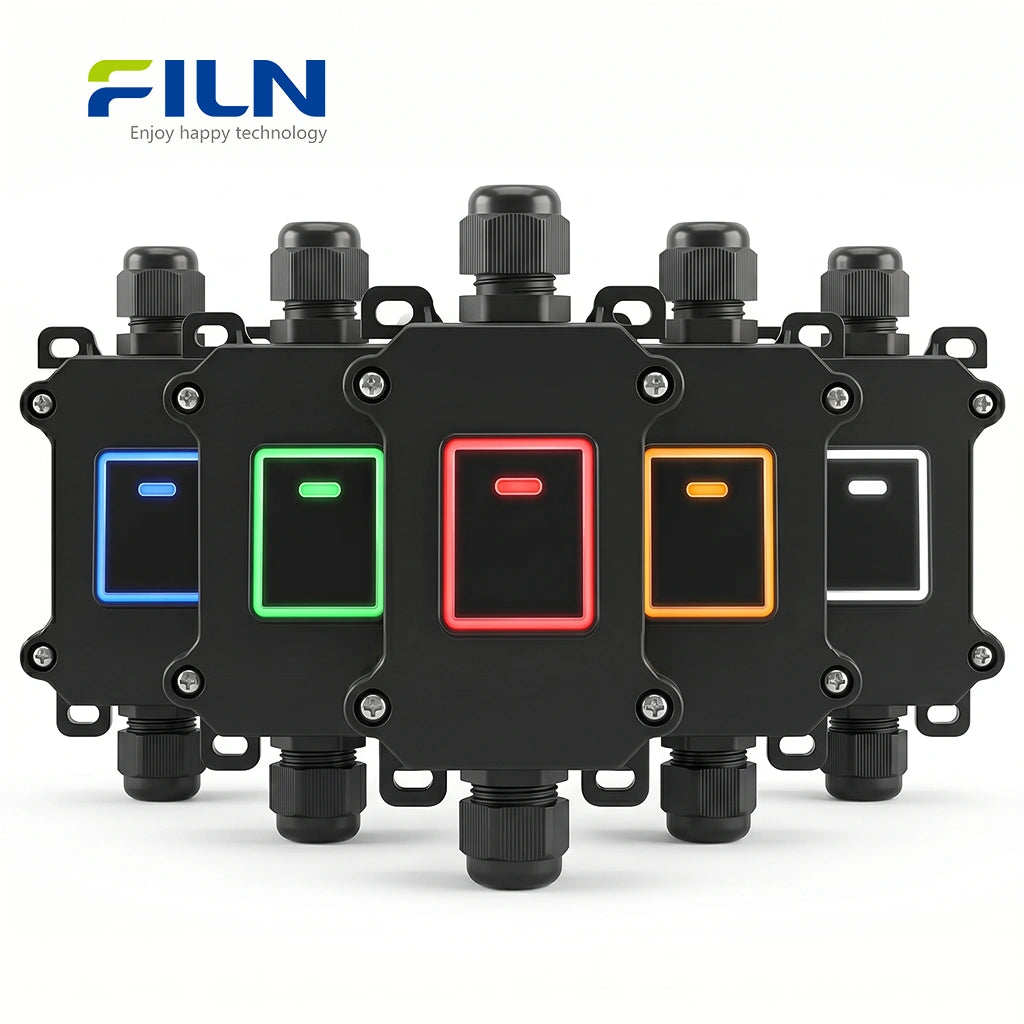

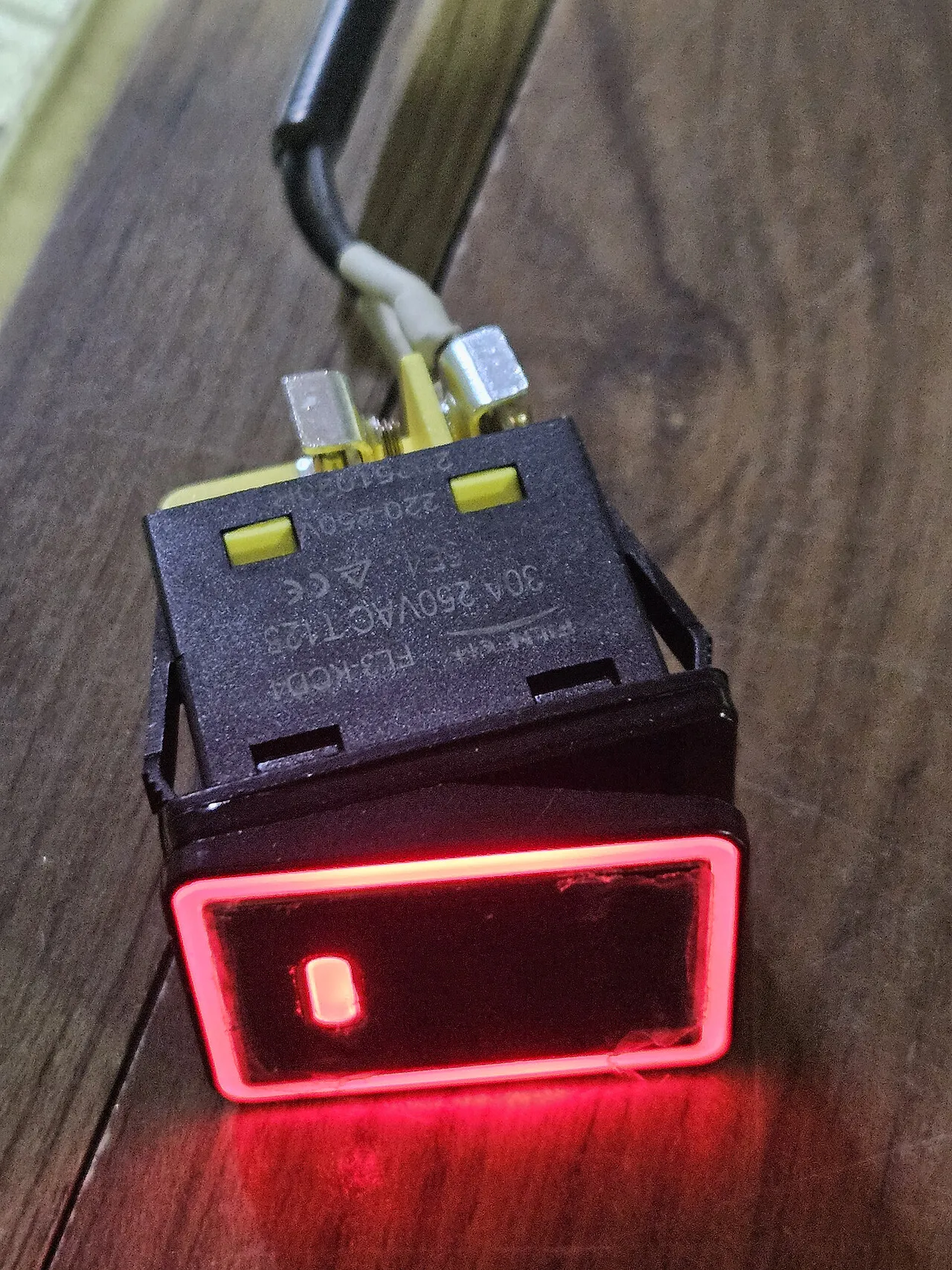

| LED Colors | Red / Green / Yellow / Blue / White |
| Terminal Type | 4-PIN Screw Foot |
Electrical Performance Parameters
| Technical Parameter | Value / Specification |
|---|---|

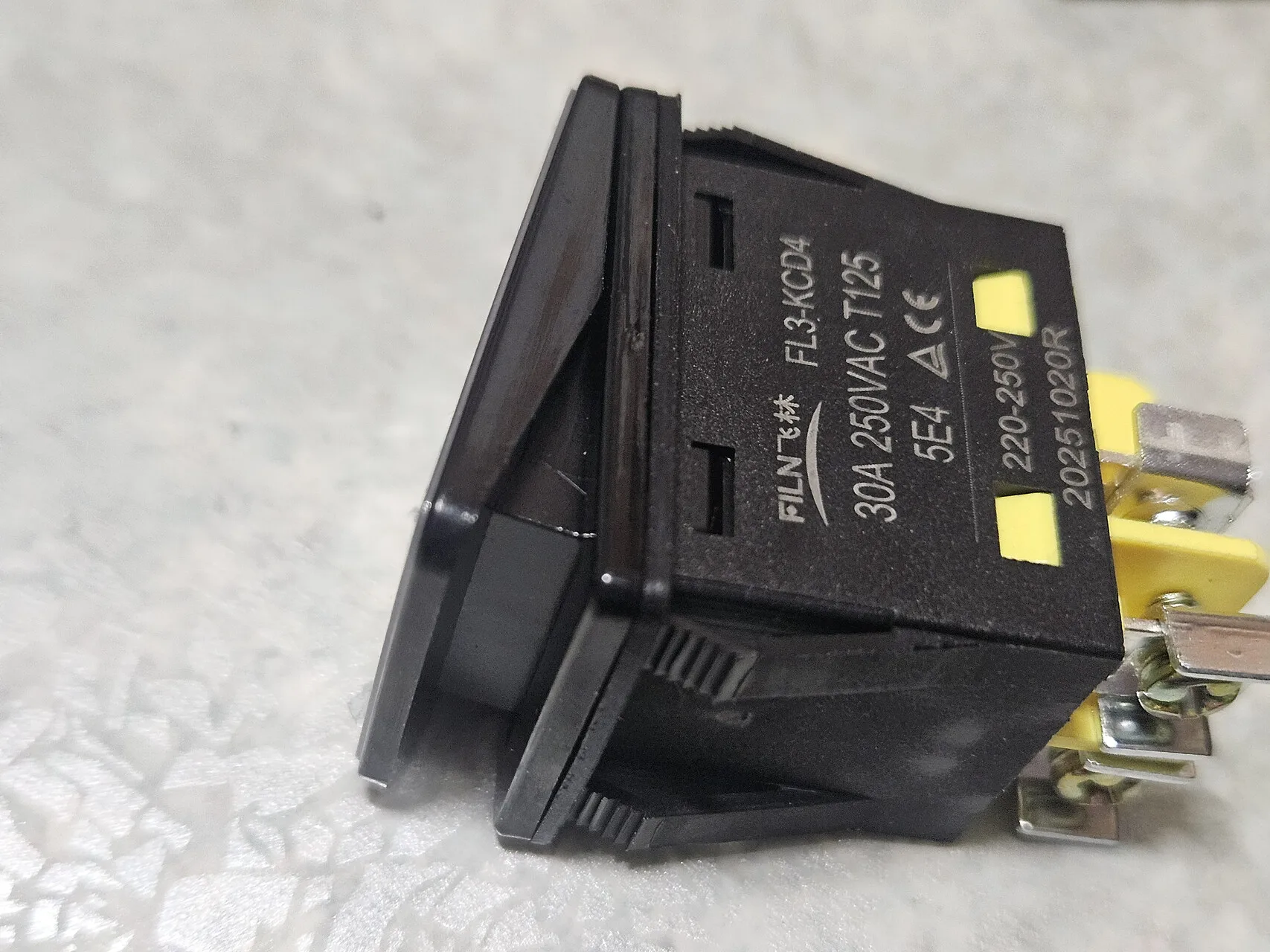

| Rated Voltage/Current | 30A 250VAC / 18(12)A 125VAC |
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Electrical Endurance | 10,000 Cycles |
| Operating Temperature | -40°C to +125°C |
| Protection Degree | IP65 Waterproof |
| Certifications | CE, RoHS, UL, VDE, SGS, ISO9001 |
Component Materials
| Accessory Name | Material |
| Transparent Sheet / Light Guide | Polycarbonate (PC) |
| Switch Base / Up Case | High-Heat PA66 / ABS |
| Waterproof Cover / Washer | Rubber |
| Terminal Pins / Spring Board | H62 Brass |
| Contact Point | AgCdO12 (Silver Alloy) |
| Spring / Iron Case | 72# Spring Steel / 08F Iron |
General & Mechanical Characteristics
| Test Project | Conditions & Requirements |
|---|---|
| Operating Force | Measured perpendicular to operation; custom force available upon request. |
| Terminal Strength | 80N static load applied for 60s; no damage or loosening allowed. |
| Solderability | 235±5℃ for 3s; 90% surface coverage required. |
| Durability | Mechanical Life: 20,000 cycles; Electrical Life: 10,000 cycles. |
| Environmental Resistance | Resistant to high heat (125℃), humidity (95% RH), and low temp (-40℃). |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |

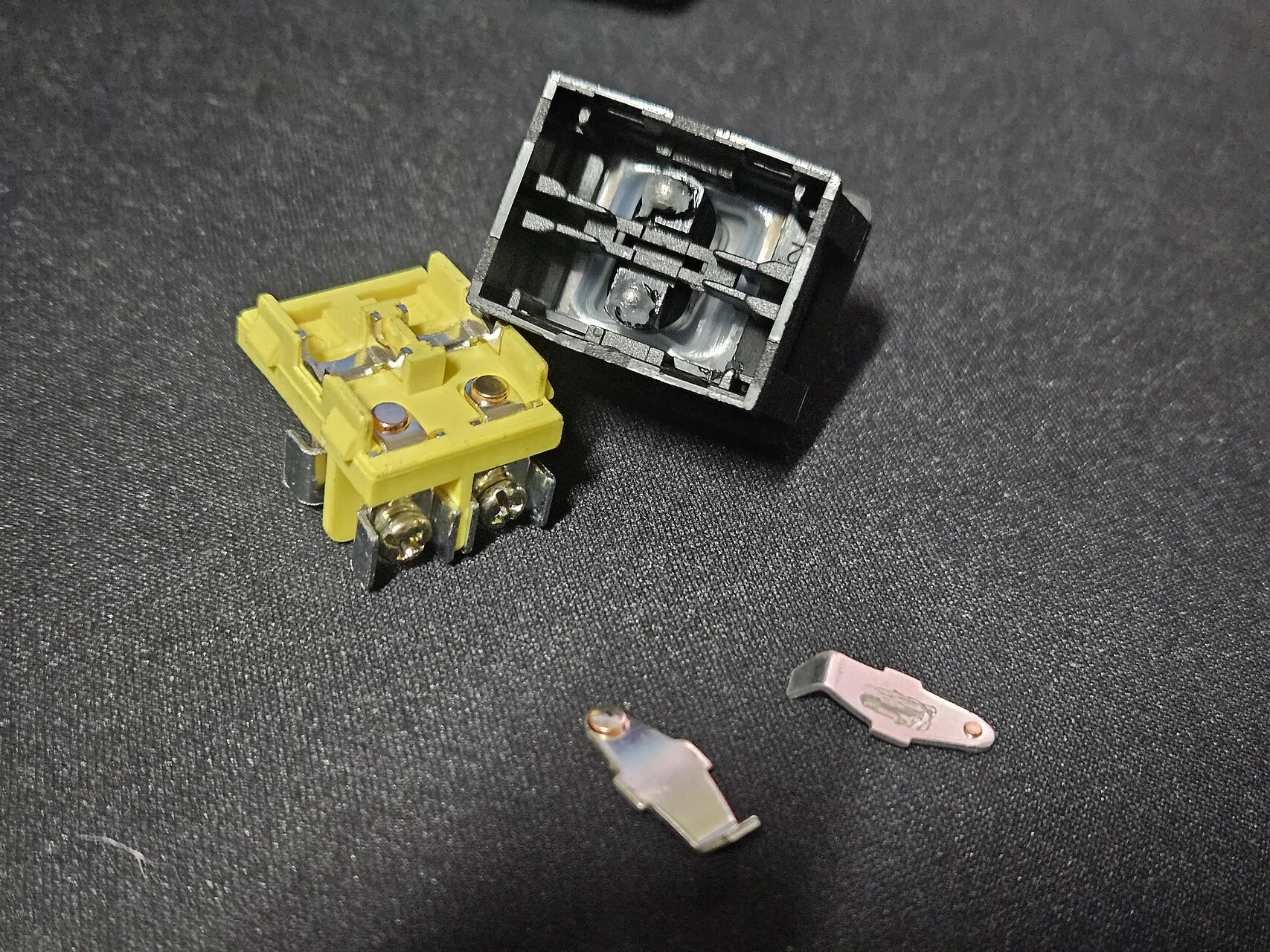

| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.

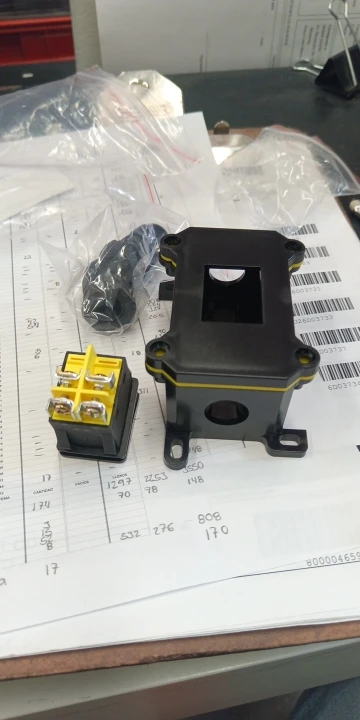

How to Install and Wire a KCD4 Rocker Switch in a Waterproof Junction Box

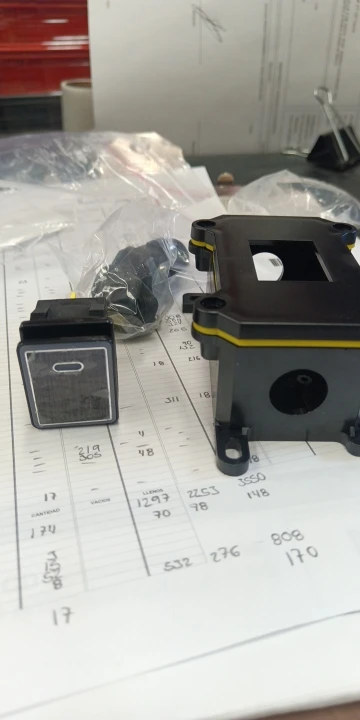

1. Installing the KCD4 Rocker Switch into the Panel
The KCD4 rocker switch is designed for quick panel mounting with a secure snap-in structure. Follow these steps to properly install the switch into your waterproof junction box panel:
- Locate the standard 22×30mm cut-out on the junction box panel.
- Align the rocker switch with the opening, ensuring correct orientation (ON/OFF marking direction).
- Press the switch firmly into the cut-out until the side retaining clips snap into place.
- Check that the switch sits flush with the panel and does not move or loosen.
This snap-fit design ensures a stable installation without additional screws, making it ideal for industrial and DIY electrical applications.

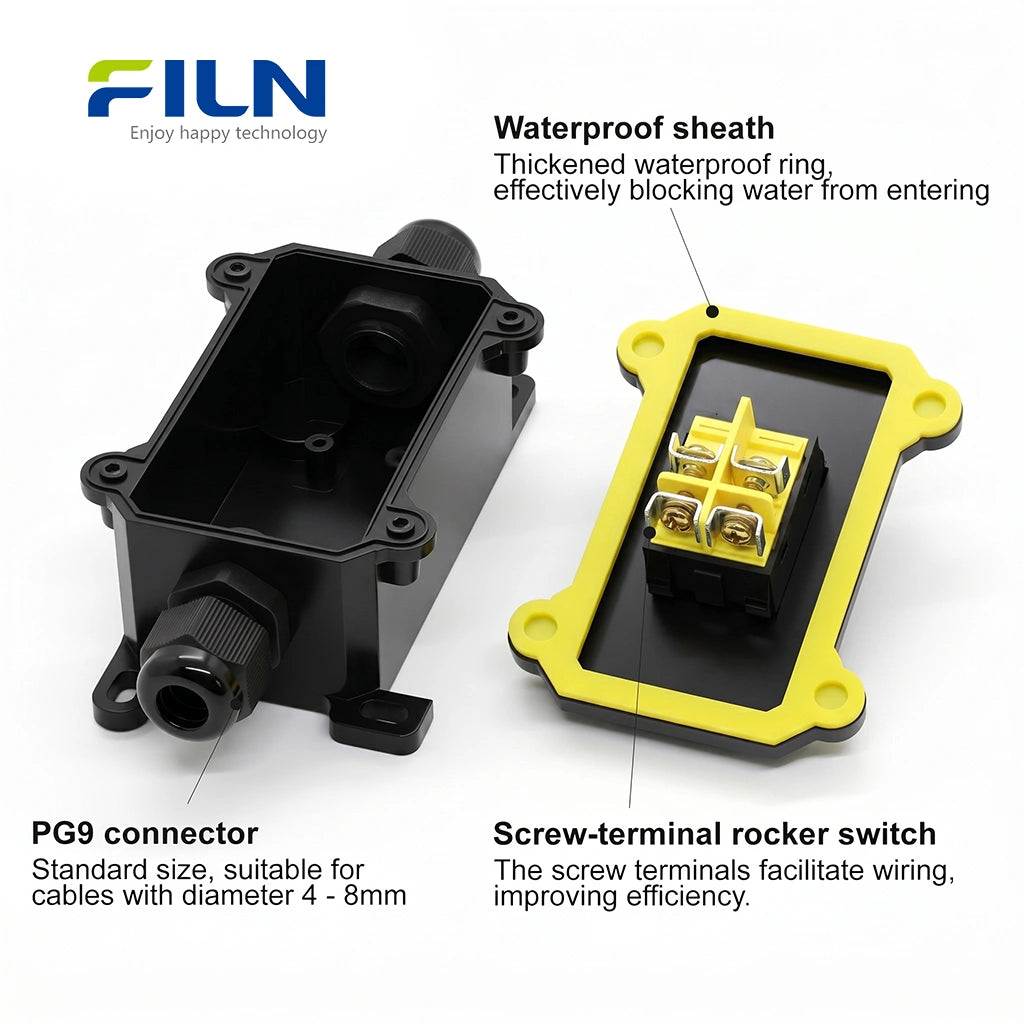

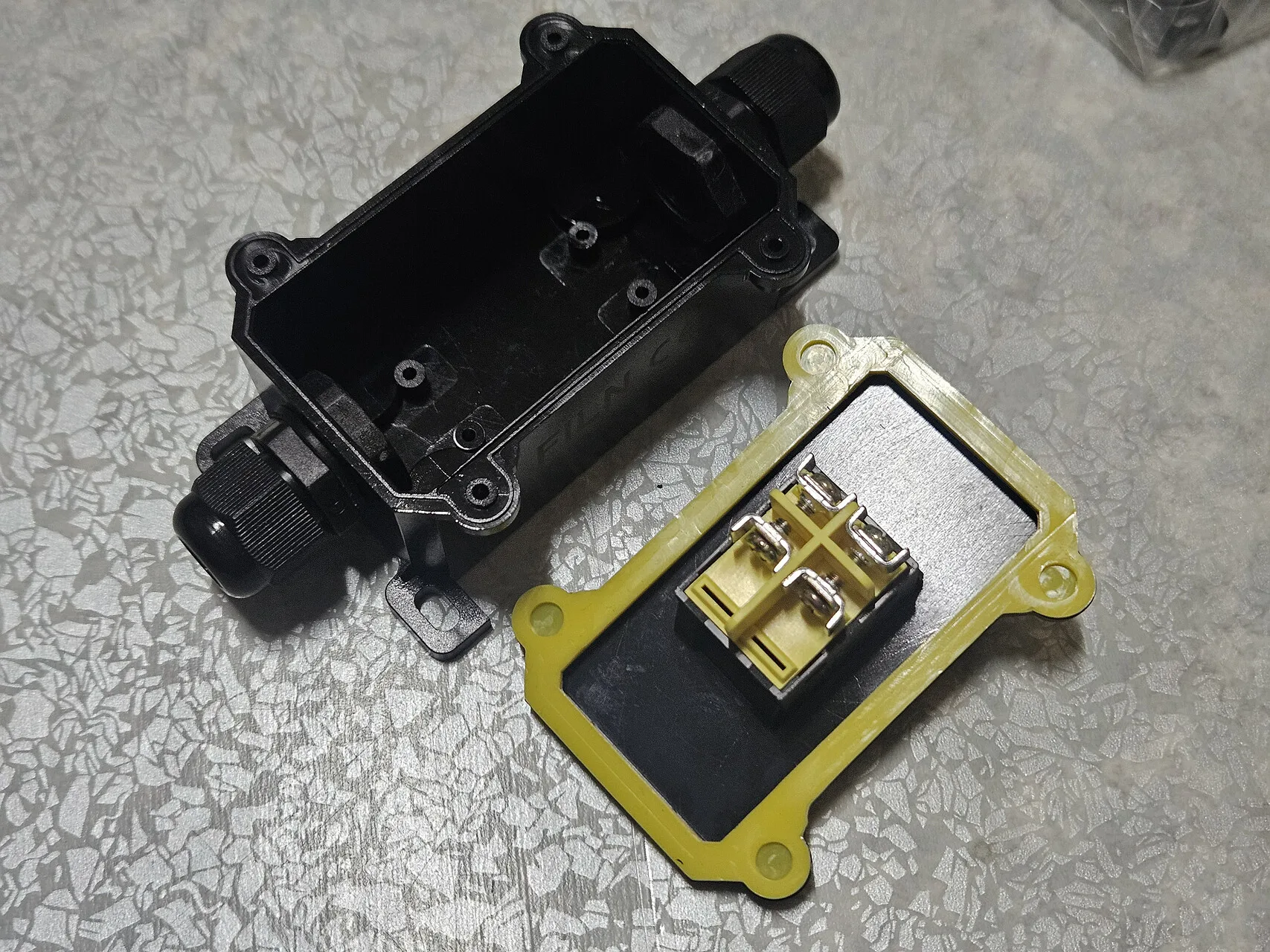

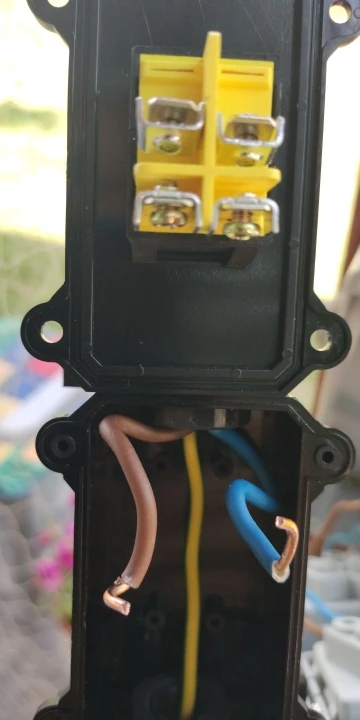

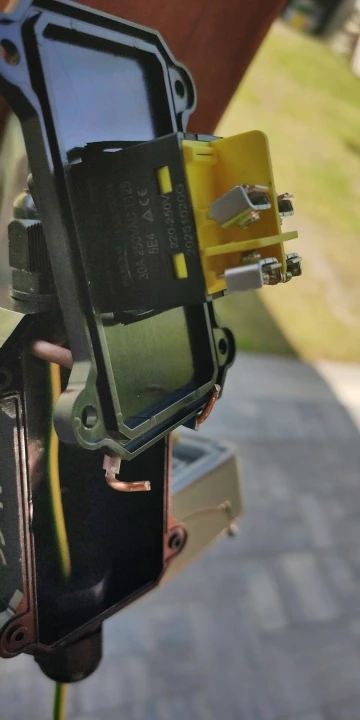

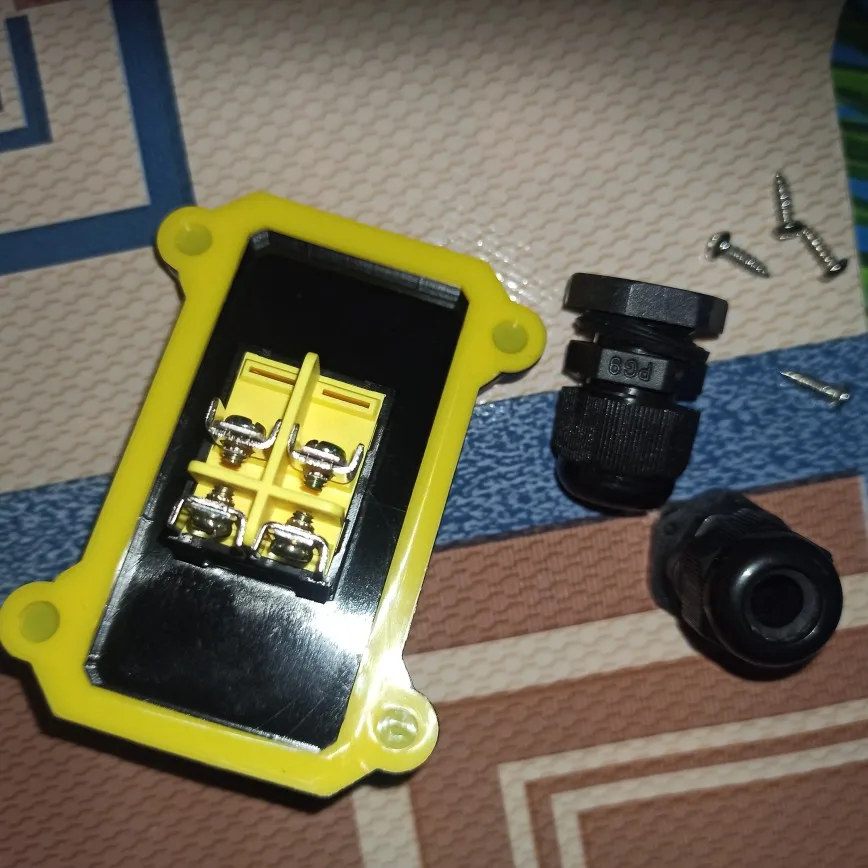

2. Wiring the 4-Pin Screw Terminal Rocker Switch
This 4-pin KCD4 rocker switch uses screw terminals for secure and reliable electrical connections. It is suitable for AC power control, appliances, and equipment requiring stable current transmission.

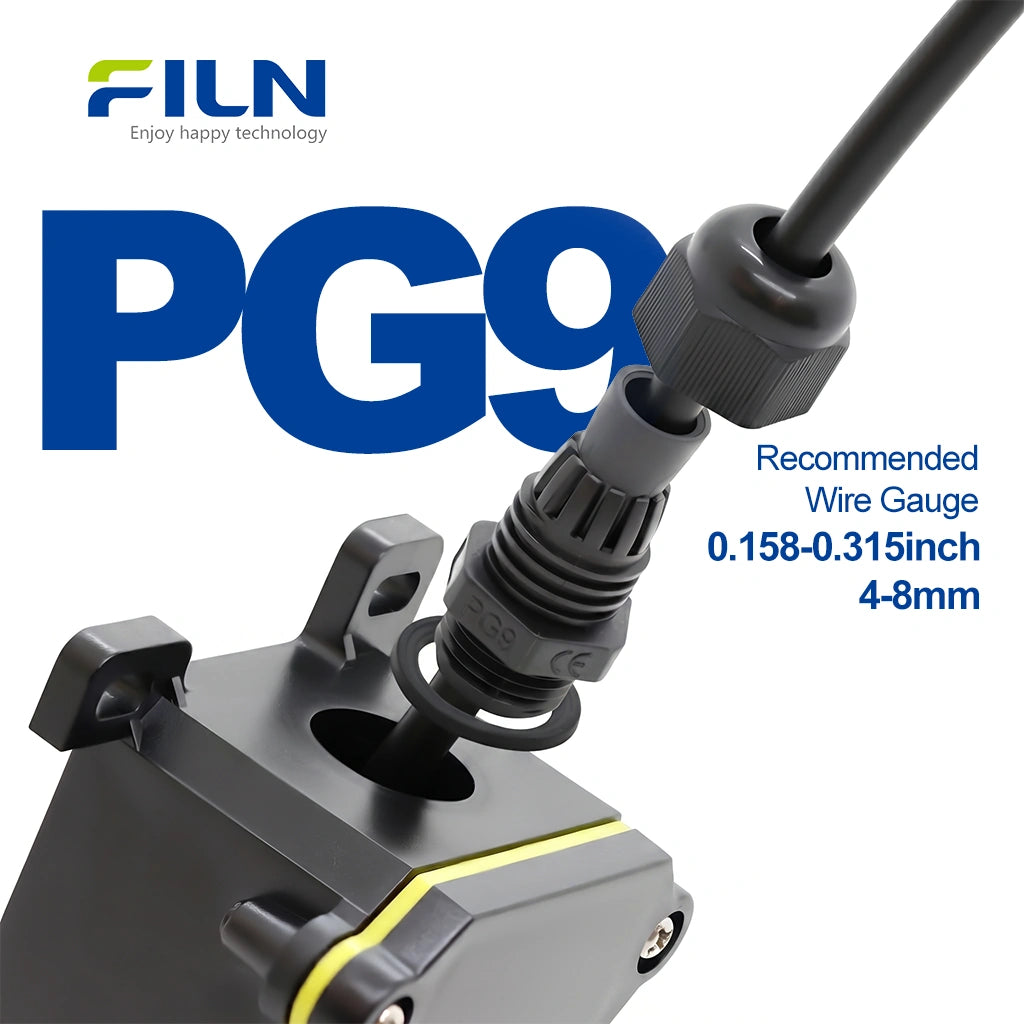

- Insert the electrical wires through the PG9 waterproof cable gland before wiring.
- Strip approximately 5–7mm of insulation from each wire to expose the conductor.
- Loosen the screw terminals using a screwdriver.
- Wrap or insert the exposed wire firmly around the metal terminal post.
- Tighten each screw securely to ensure strong electrical contact and vibration resistance.
- Double-check wiring configuration (Line/Load) according to your circuit requirements.
The screw terminal design provides excellent conductivity and is safer than push-fit connections, especially in high-load or outdoor environments.

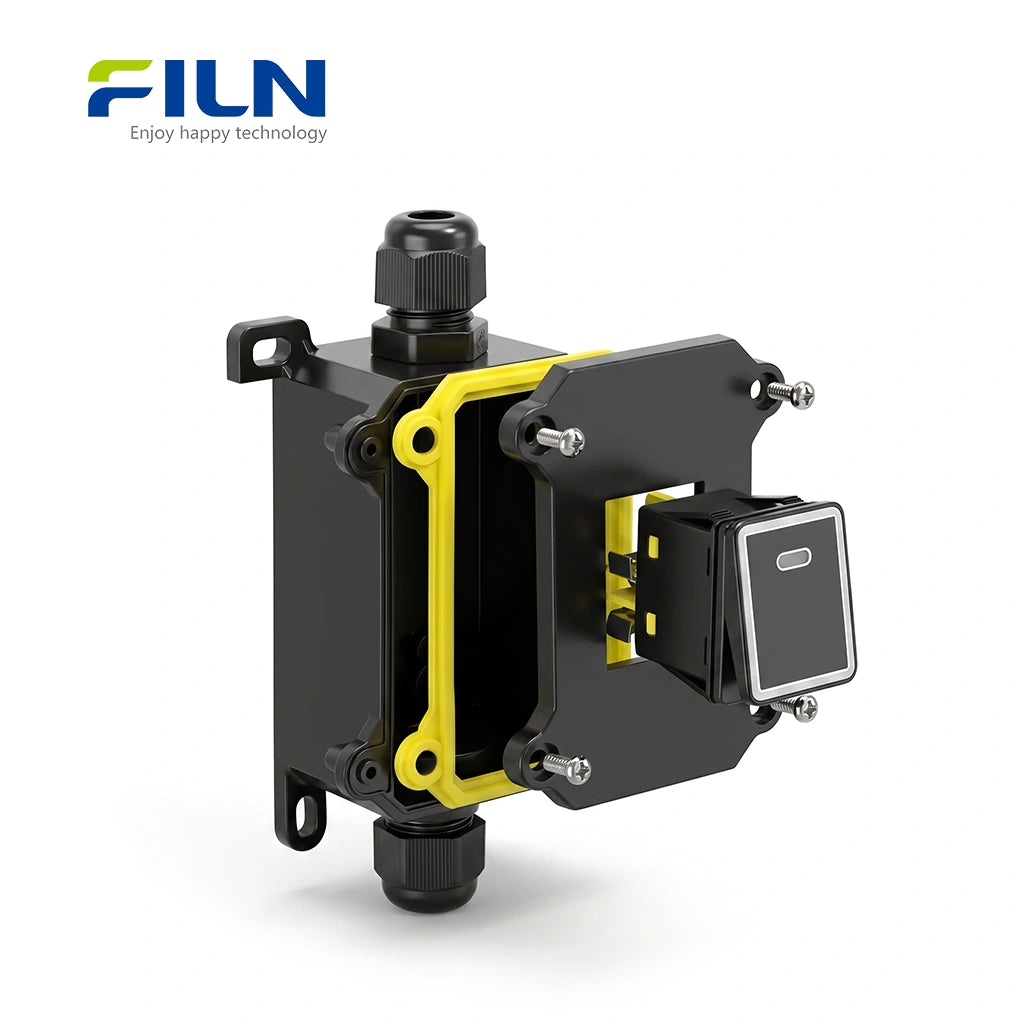

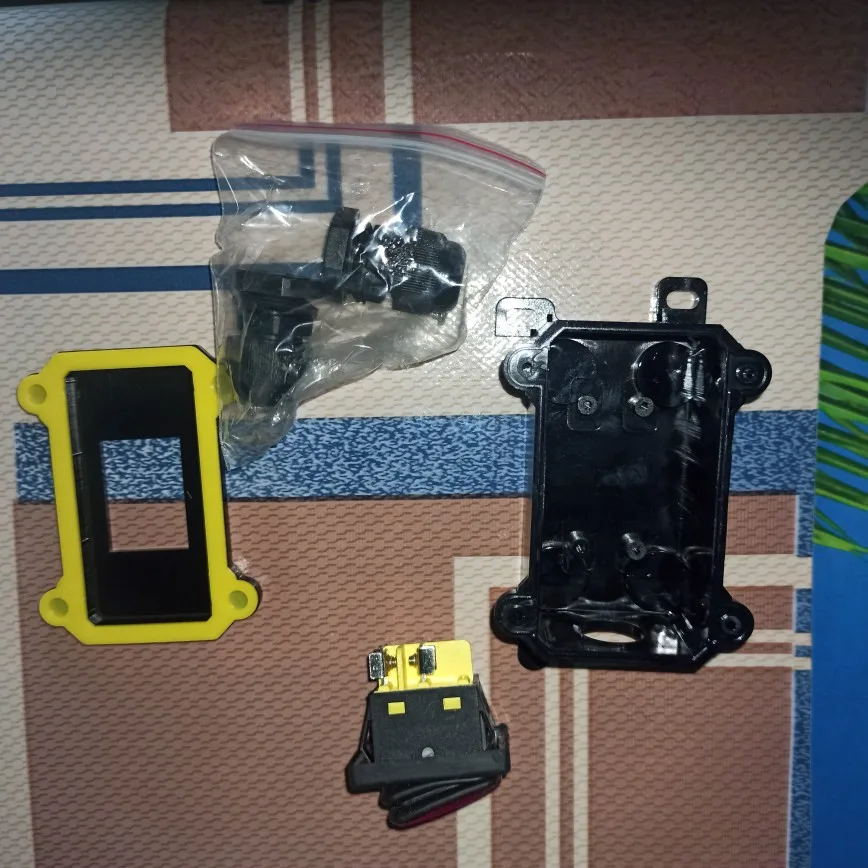

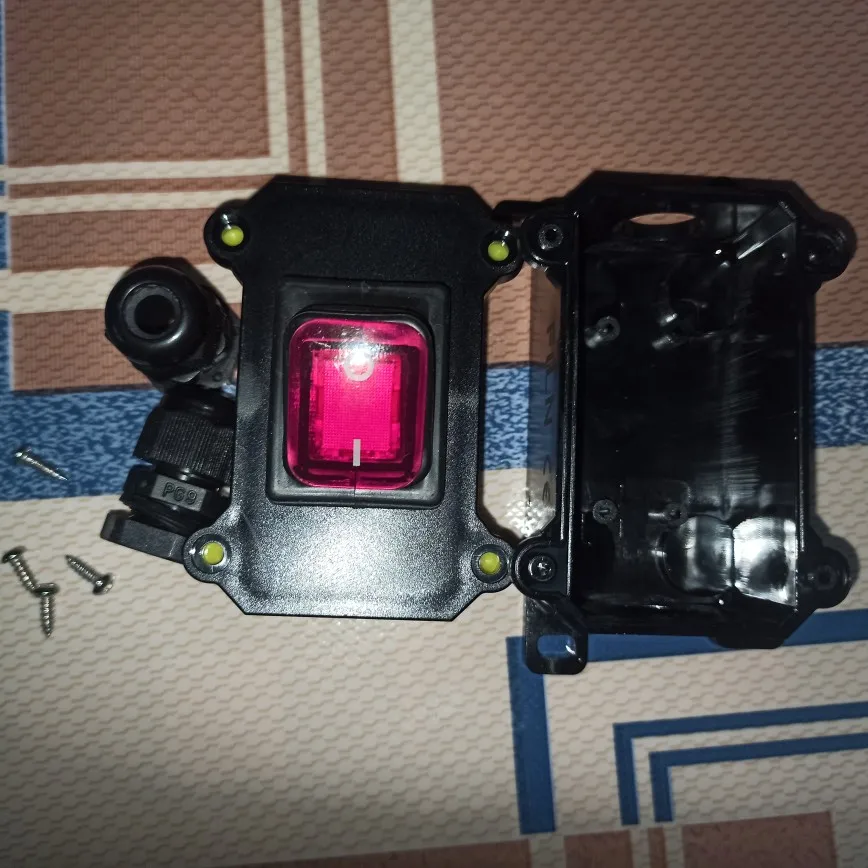

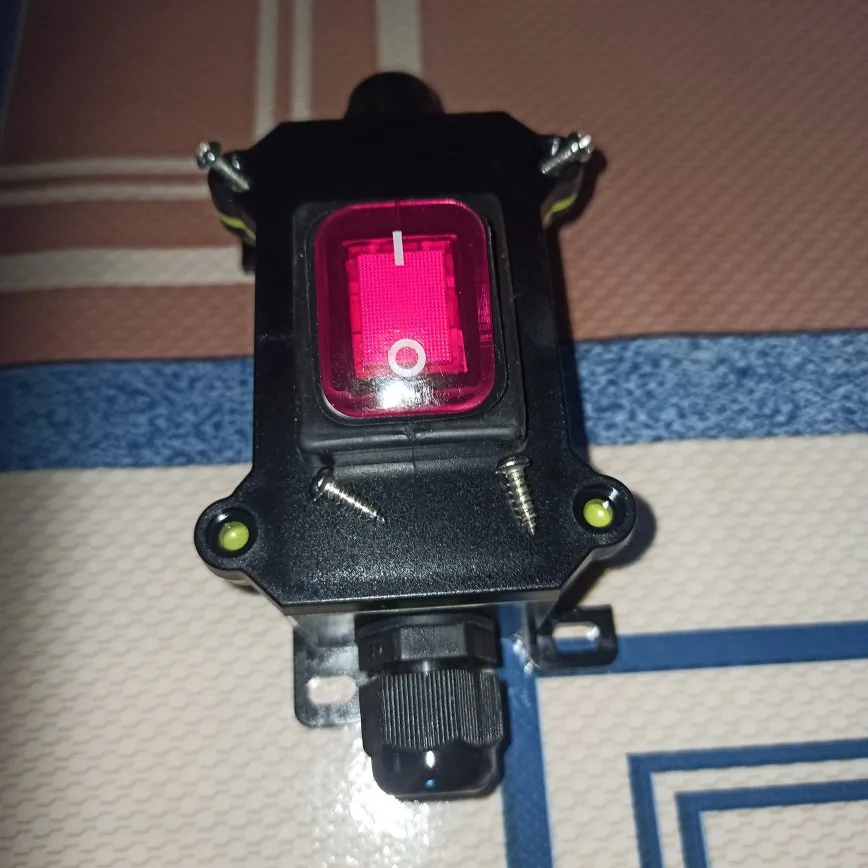

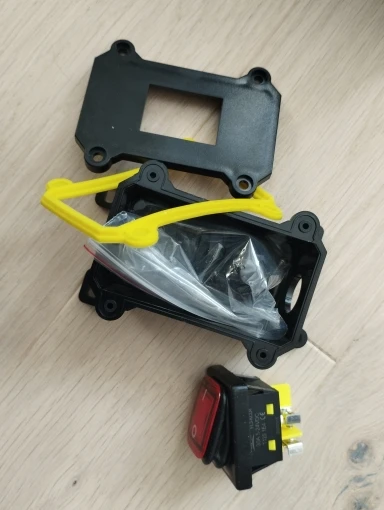

3. Assembling the Waterproof Junction Box (IP65)
After installing and wiring the rocker switch, complete the assembly of the waterproof junction box to ensure full protection against dust and water.
- Carefully arrange all internal wiring to avoid pinching or interference.
- Place the gasket correctly along the enclosure edge to maintain waterproof sealing.
- Close the junction box lid securely.
- Tighten all enclosure screws evenly to ensure uniform pressure on the seal.
- Firmly tighten the PG9 cable gland nut to compress the sealing ring around the cable.
- Verify that the enclosure meets IP65 waterproof standards with no visible gaps.
Proper assembly is critical to ensure long-term durability, especially in outdoor, humid, or industrial environments.
Industry Knowledge: How Junction Boxes Function
A junction box serves as a localized hub for electrical safety. It functions by isolating electrical junctions from the outside atmosphere, preventing accidental contact and reducing fire hazards caused by short circuits. By integrating a 30A KCD4 rocker switch, the junction box transitions from a passive terminal enclosure to an active control point. The snap-in installation method allows for rapid replacement, while the IP65 rating ensures the internal screw terminals remain corrosion-free even in moisture-heavy environments like agricultural greenhouses or marine decks.
FILN Factory Direct Supply
As a leading manufacturer, FILN offers direct procurement benefits for industrial clients:
- No MOQ Requirements
- Fast Global Shipping
- Custom LED Voltage (5V-220V)
- Wire Length Customization
- Connector Customization (PG9/PG11)
- CE / RoHS Certified Quality
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
Q1: What is a KCD4 waterproof rocker switch used for?
A: It is used for high-current (30A) control in marine, industrial, and outdoor landscape environments where moisture protection is required.
A: It is used for high-current (30A) control in marine, industrial, and outdoor landscape environments where moisture protection is required.
Q2: What is the mounting size for this KCD4 4-pin switch?
A: The industry-standard mounting size is 22x30mm for a snap-in installation.
A: The industry-standard mounting size is 22x30mm for a snap-in installation.
Q3: Are the terminals screw-type or plug-in?
A: This specific model features 4-pin screw terminals for the most secure and reliable industrial connection.
A: This specific model features 4-pin screw terminals for the most secure and reliable industrial connection.
Q4: Can the LED color be customized?
A: Yes, FILN offers Red, Green, Yellow, Blue, and White LED options.
A: Yes, FILN offers Red, Green, Yellow, Blue, and White LED options.
Q5: What is the benefit of a stainless steel aluminum surface?
A: It provides enhanced durability against wear and gives the control panel a professional, high-end industrial look.
A: It provides enhanced durability against wear and gives the control panel a professional, high-end industrial look.
