Executive Summary

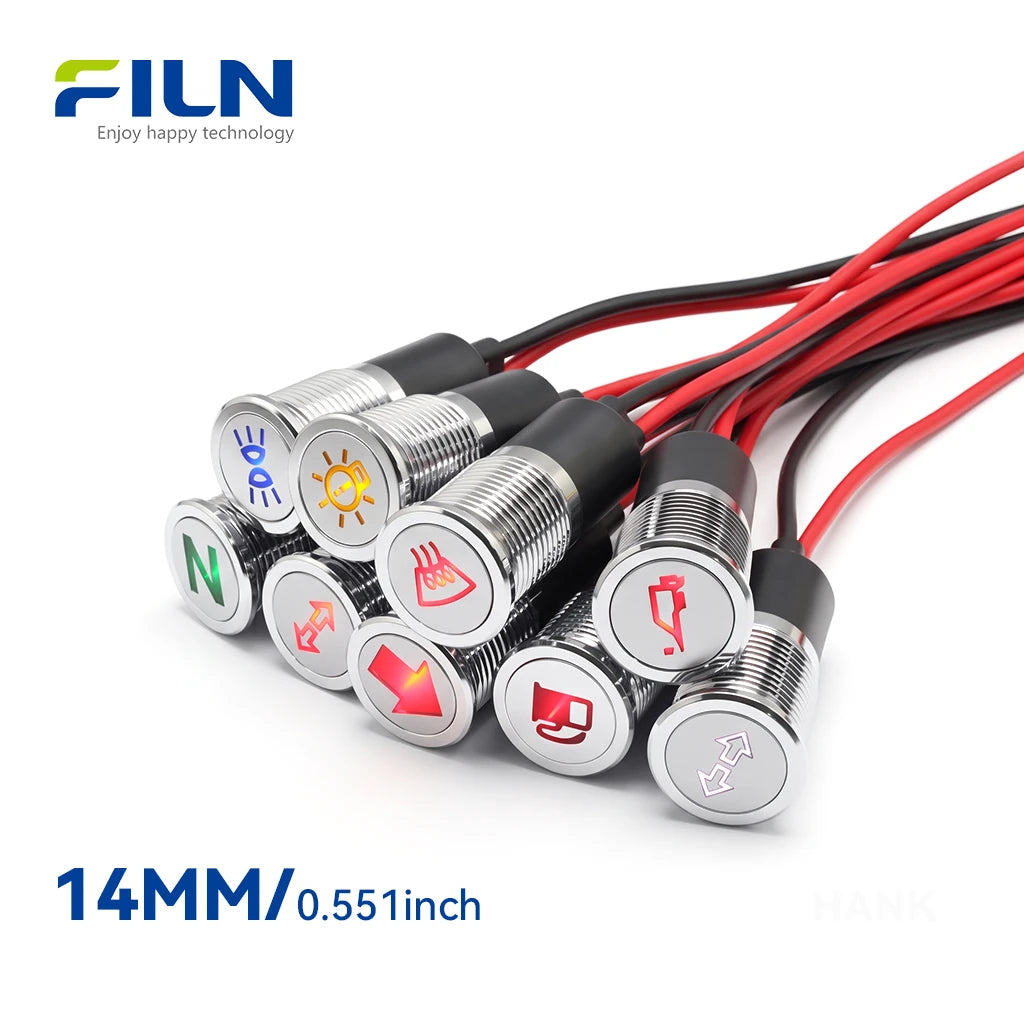

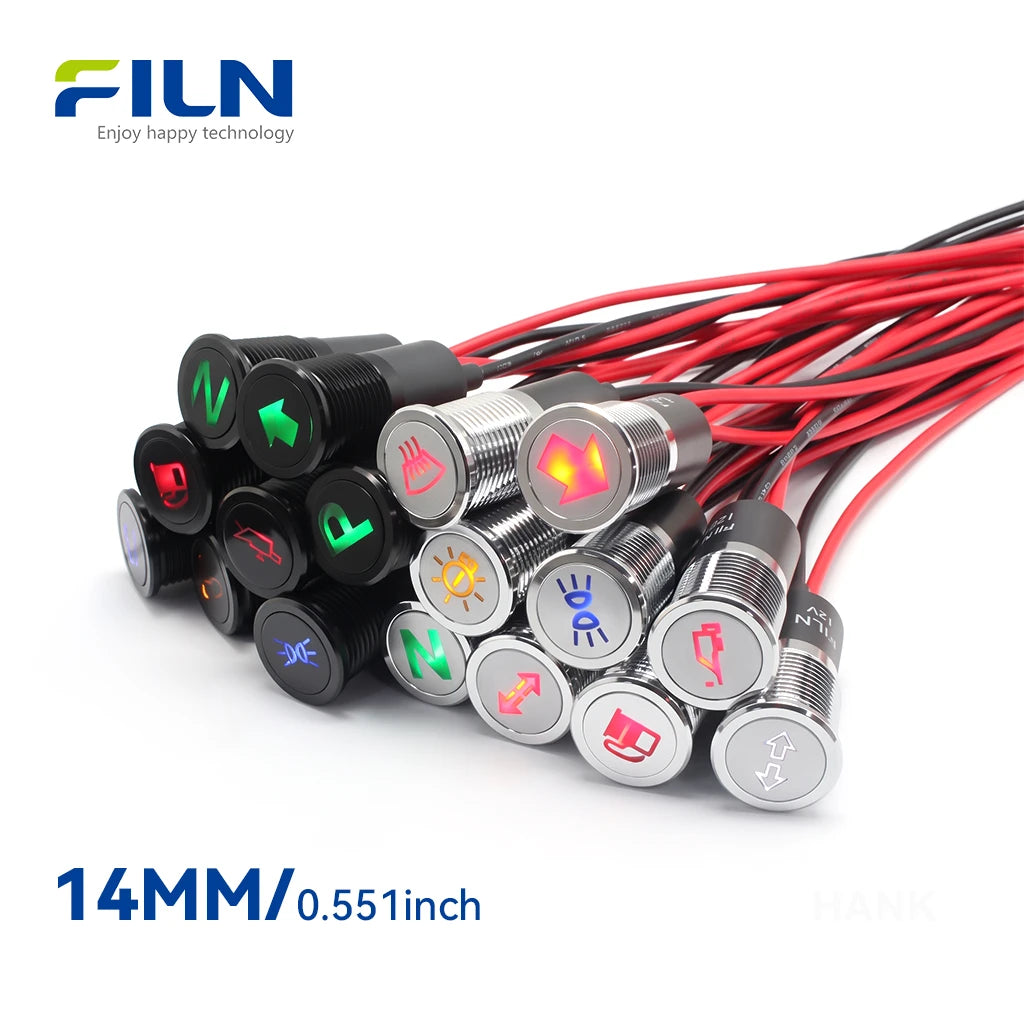

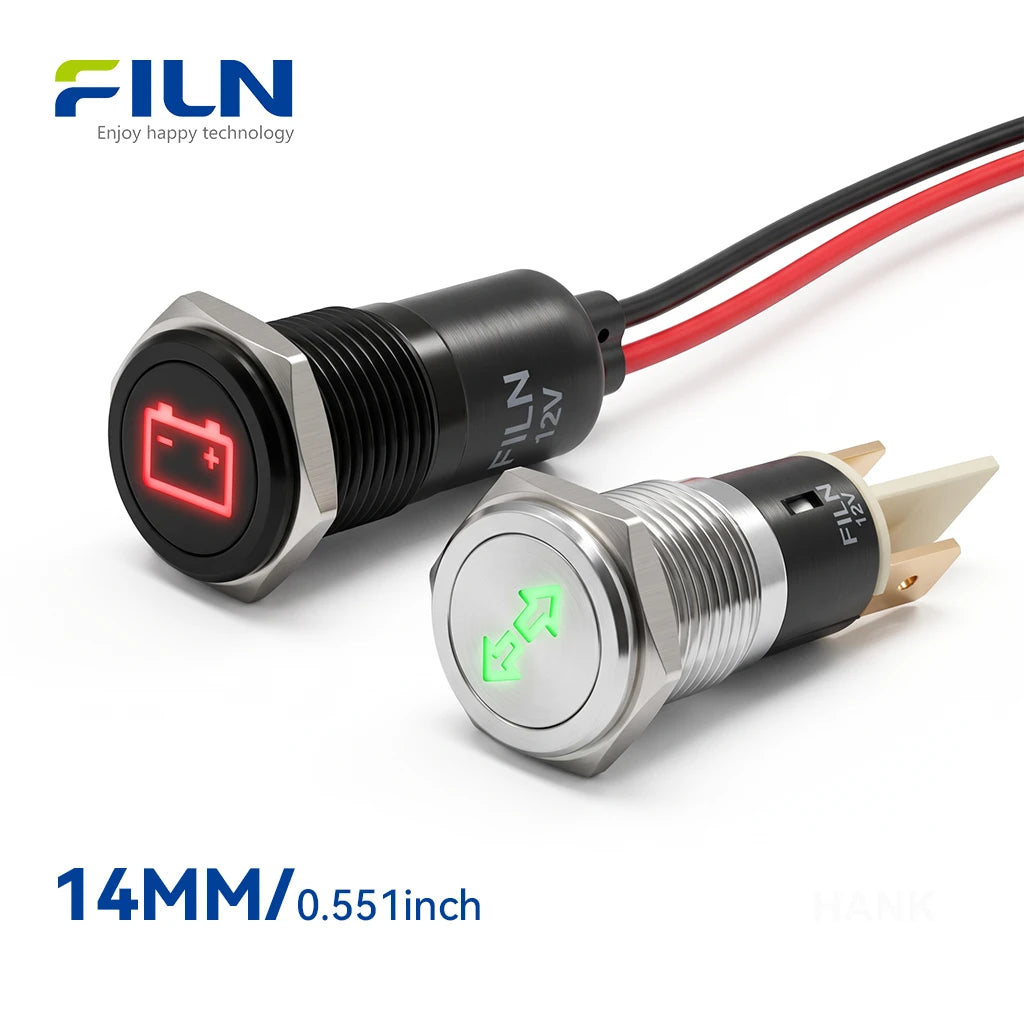

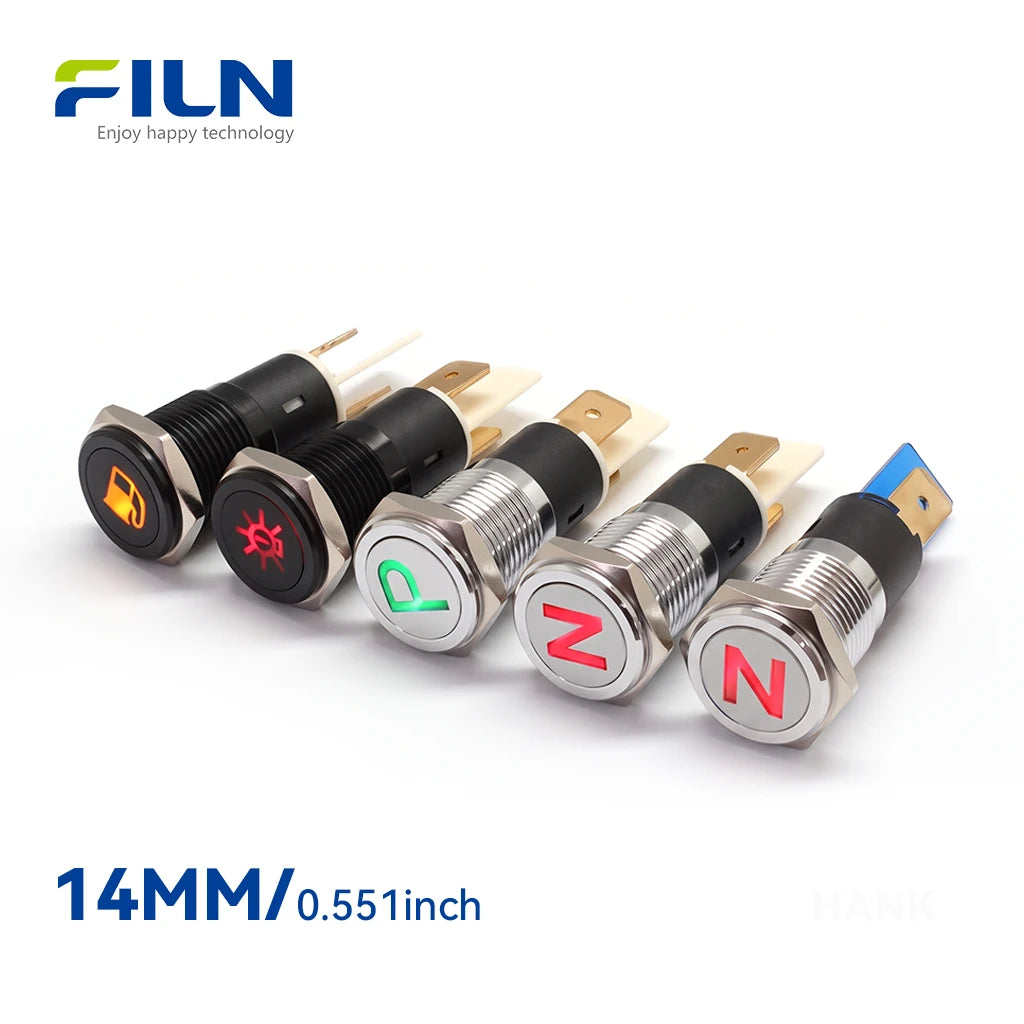

The universal car symbol LED pilot light is a robust, 14mm metal panel-mount indicator designed for automotive dashboards, industrial control panels, and electrical machinery. Manufactured by FILN as a direct factory supplier, this component provides reliable status and fault signaling with custom graphic symbols. It is engineered for industrial equipment manufacturers, control panel builders, and automotive customizers seeking wholesale, bulk, or custom configurations. Key specifications include a 14mm mounting hole, 12V operating voltage, 2PIN connections via wire leads or pin terminals, and IP65 waterproof protection using a silicone O-ring. Buyers should confirm voltage requirements, symbol laser-etching, and wiring options prior to bulk ordering. FILN offers comprehensive OEM, ODM, and engineering support for global B2B clients.

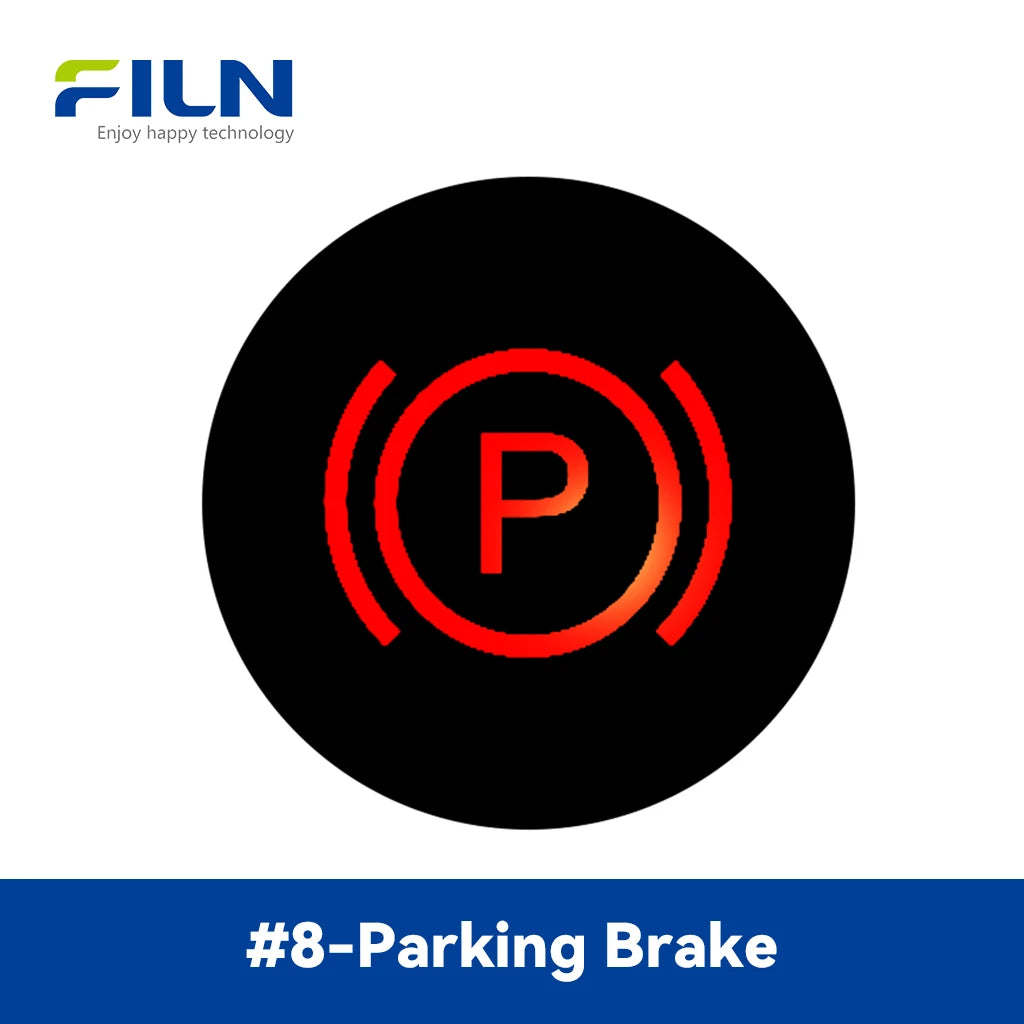

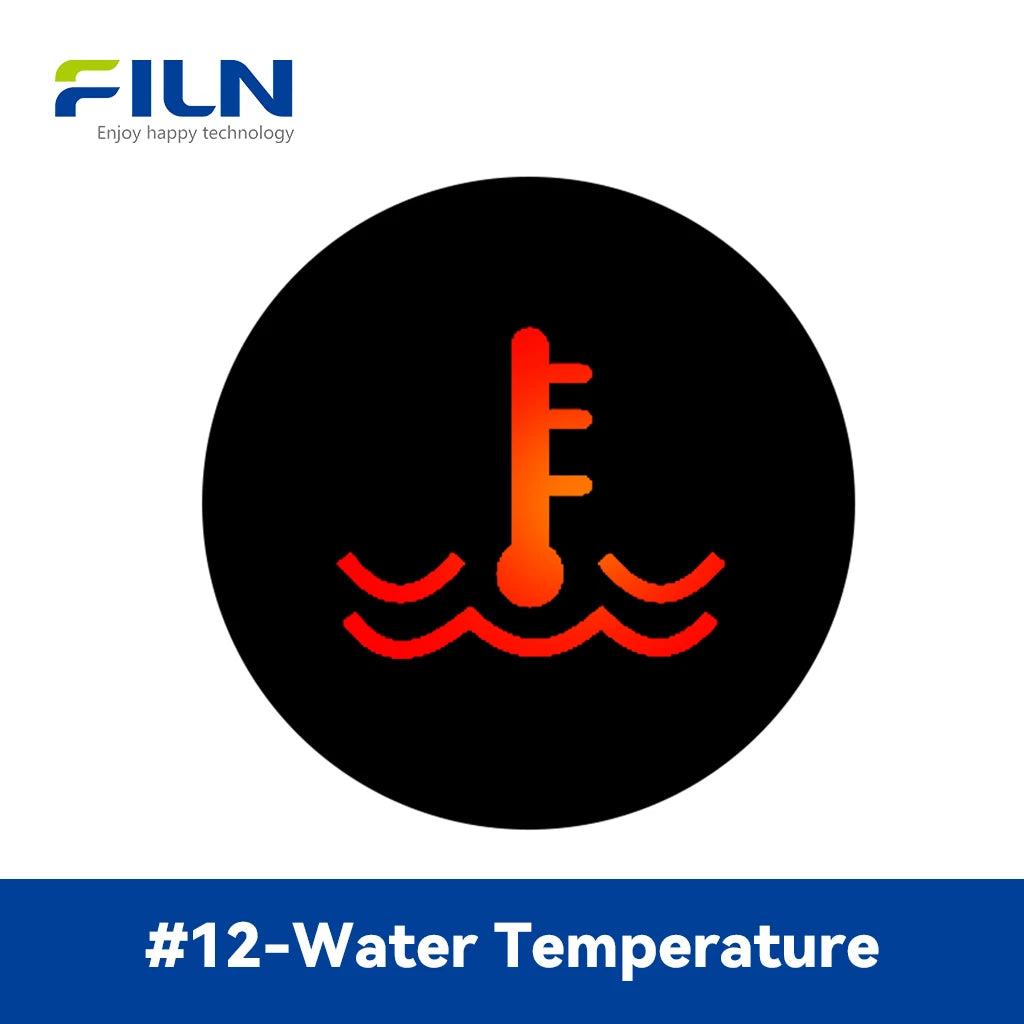

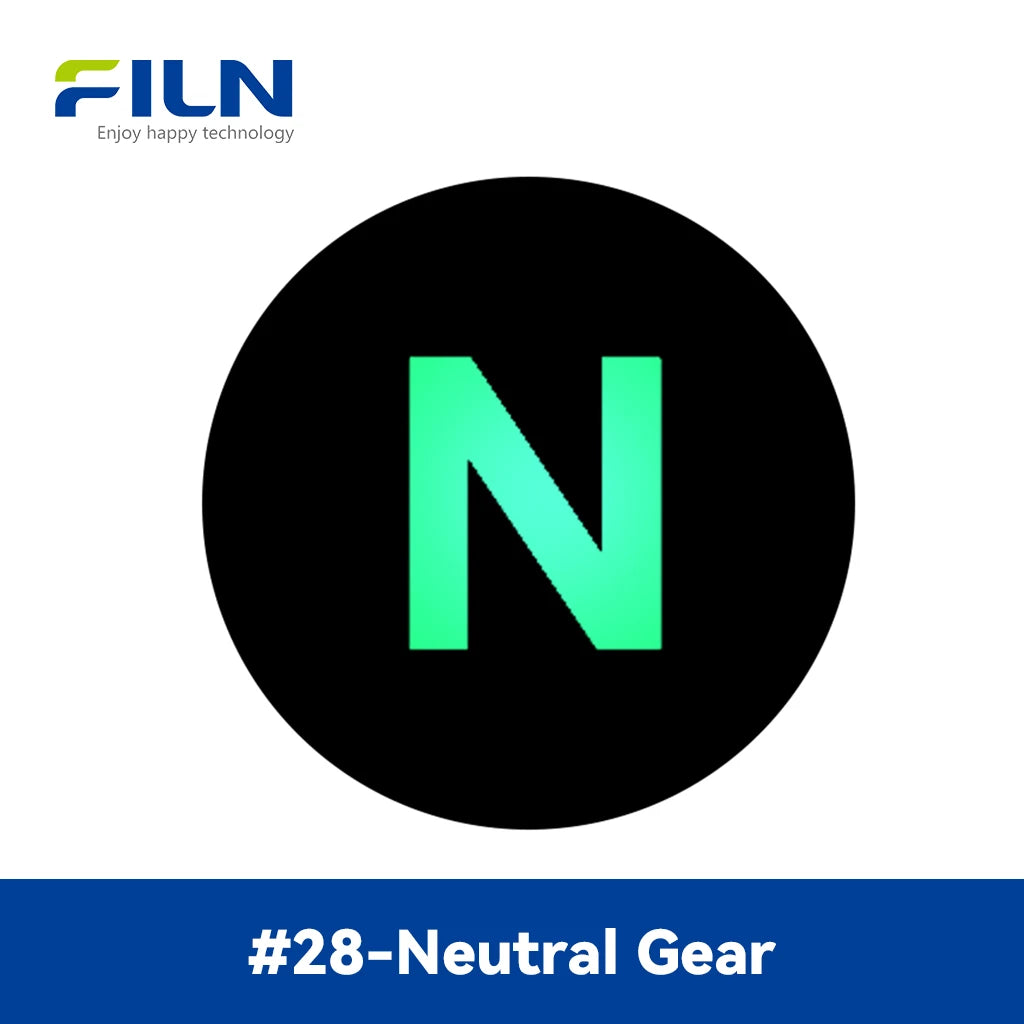

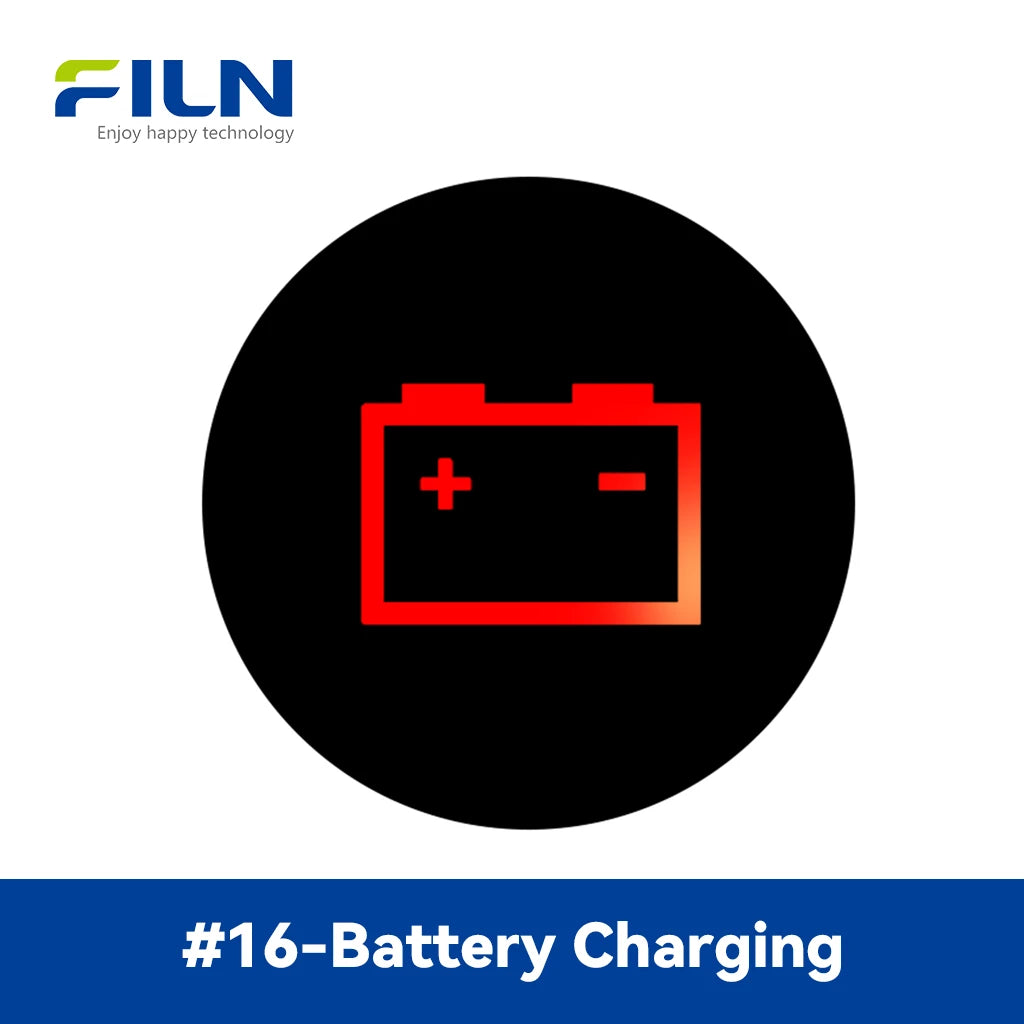

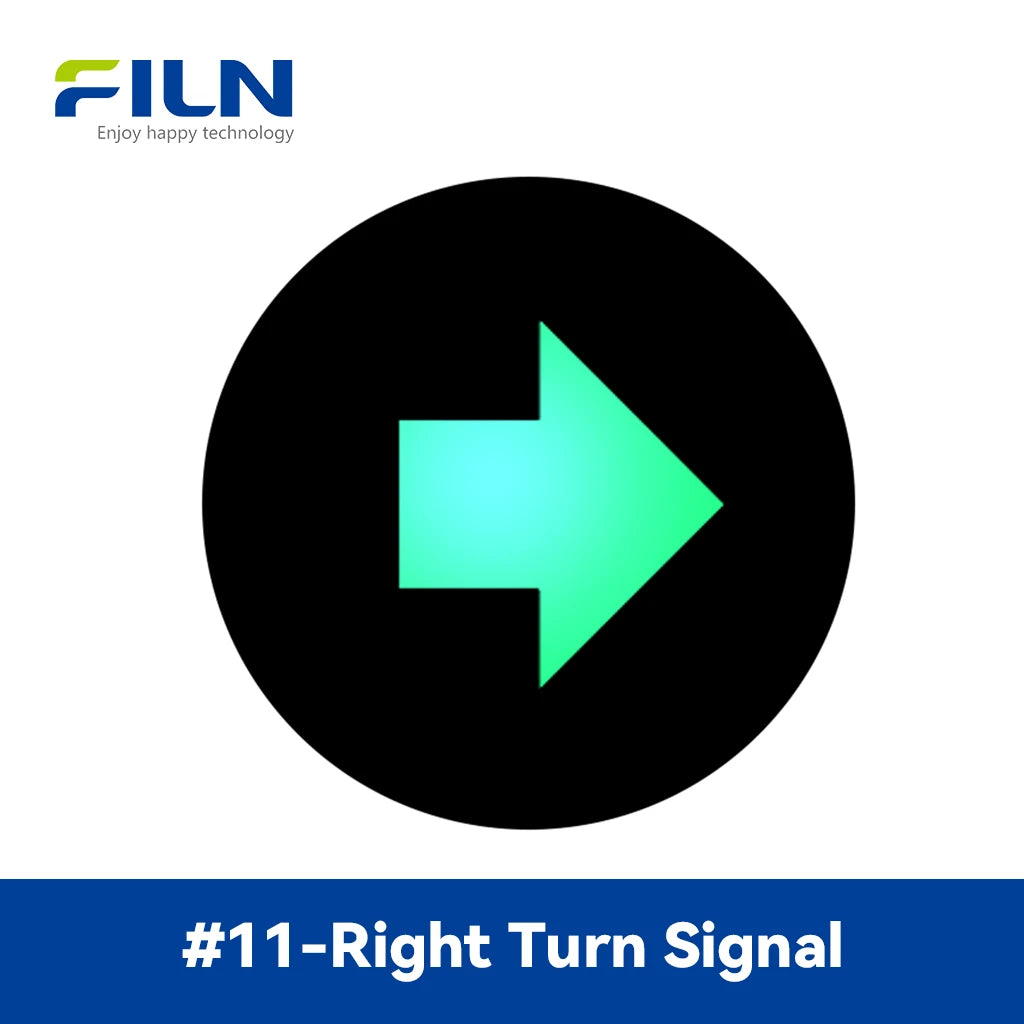

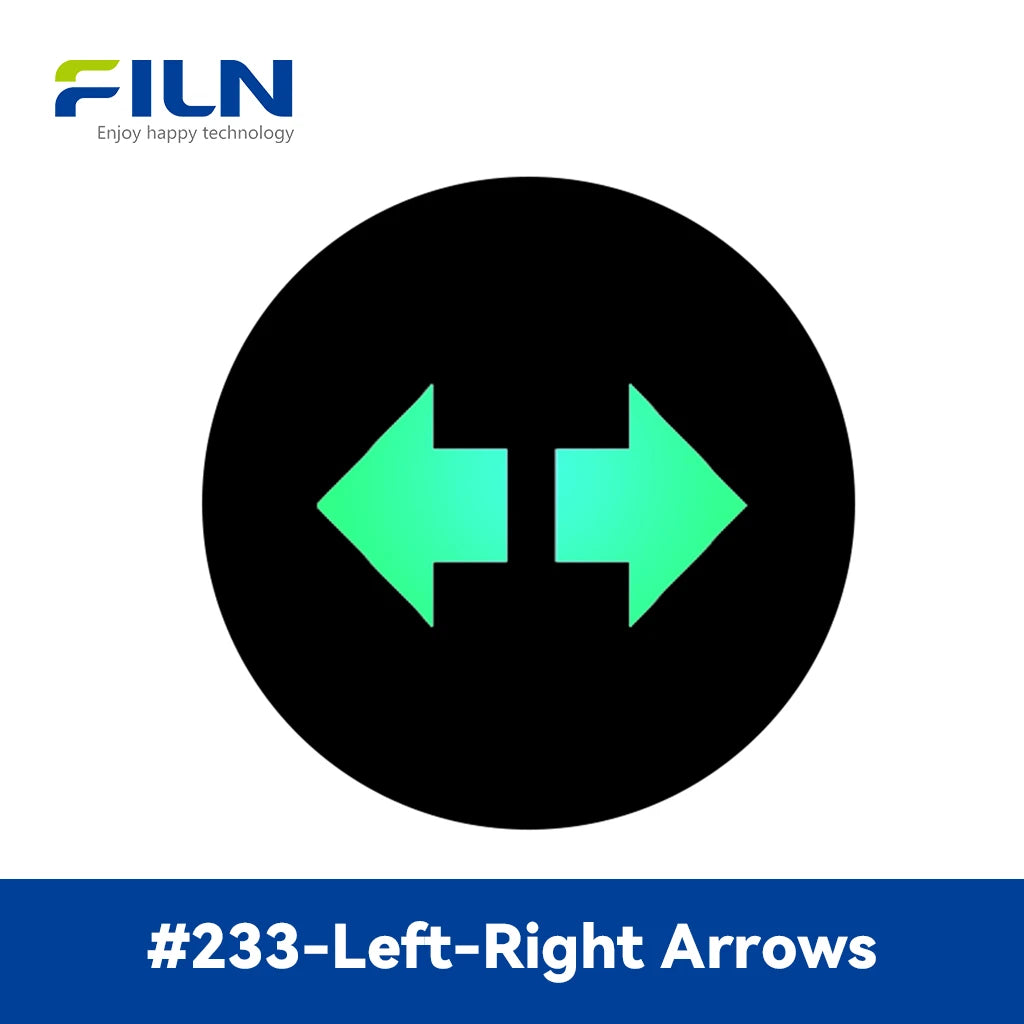

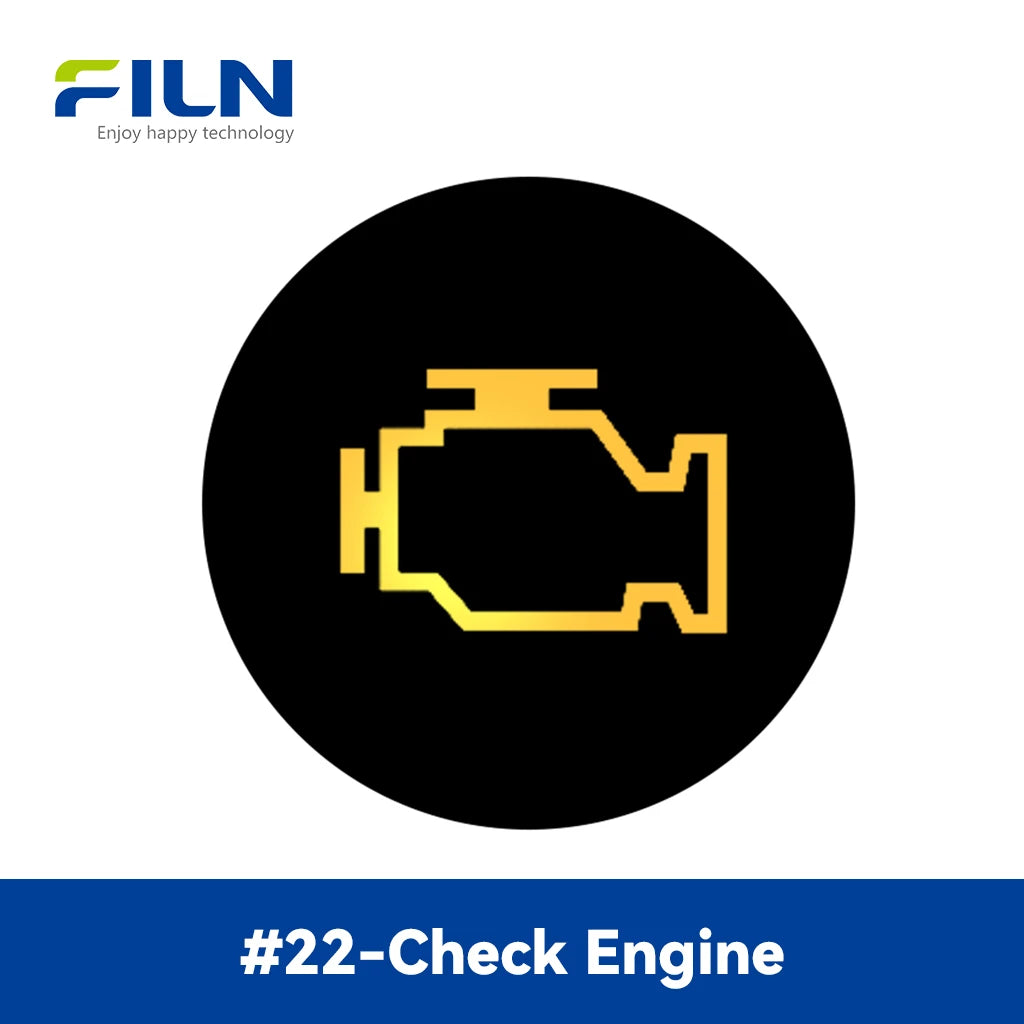

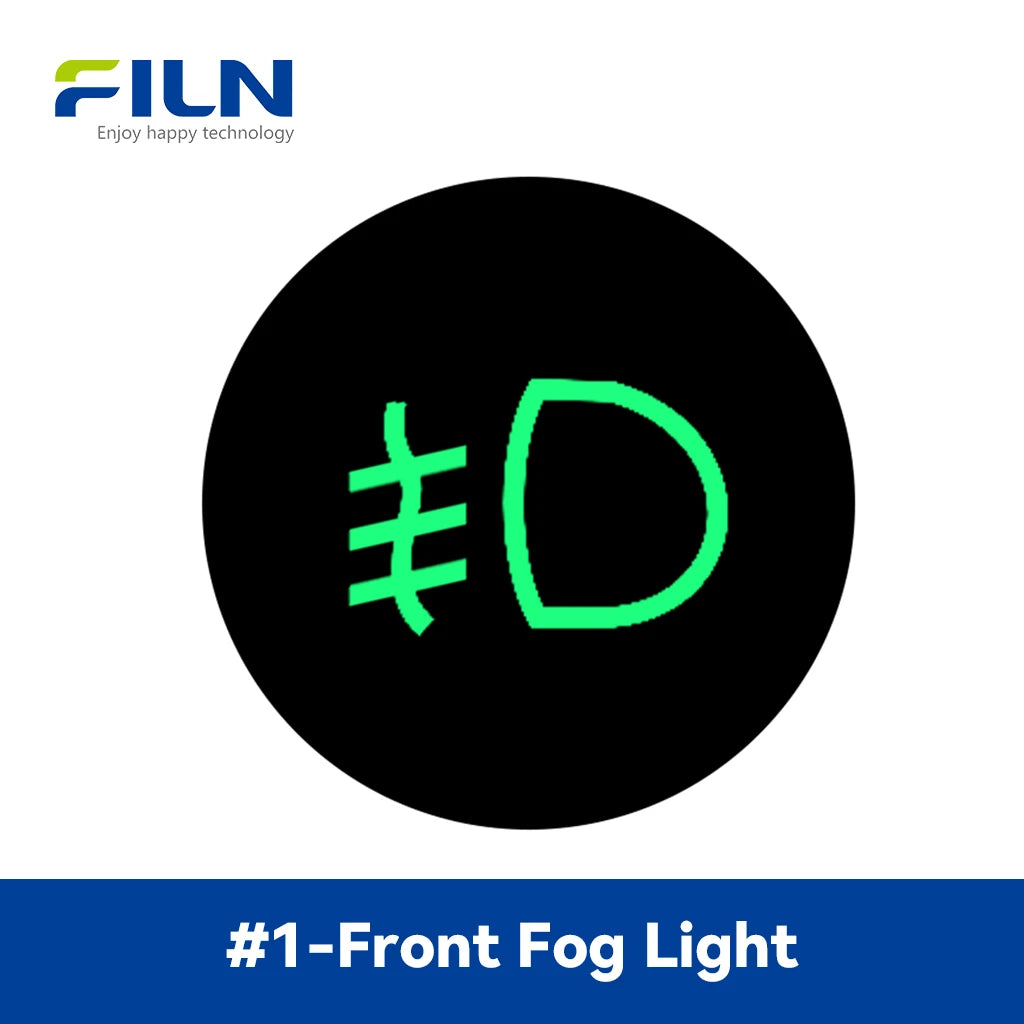

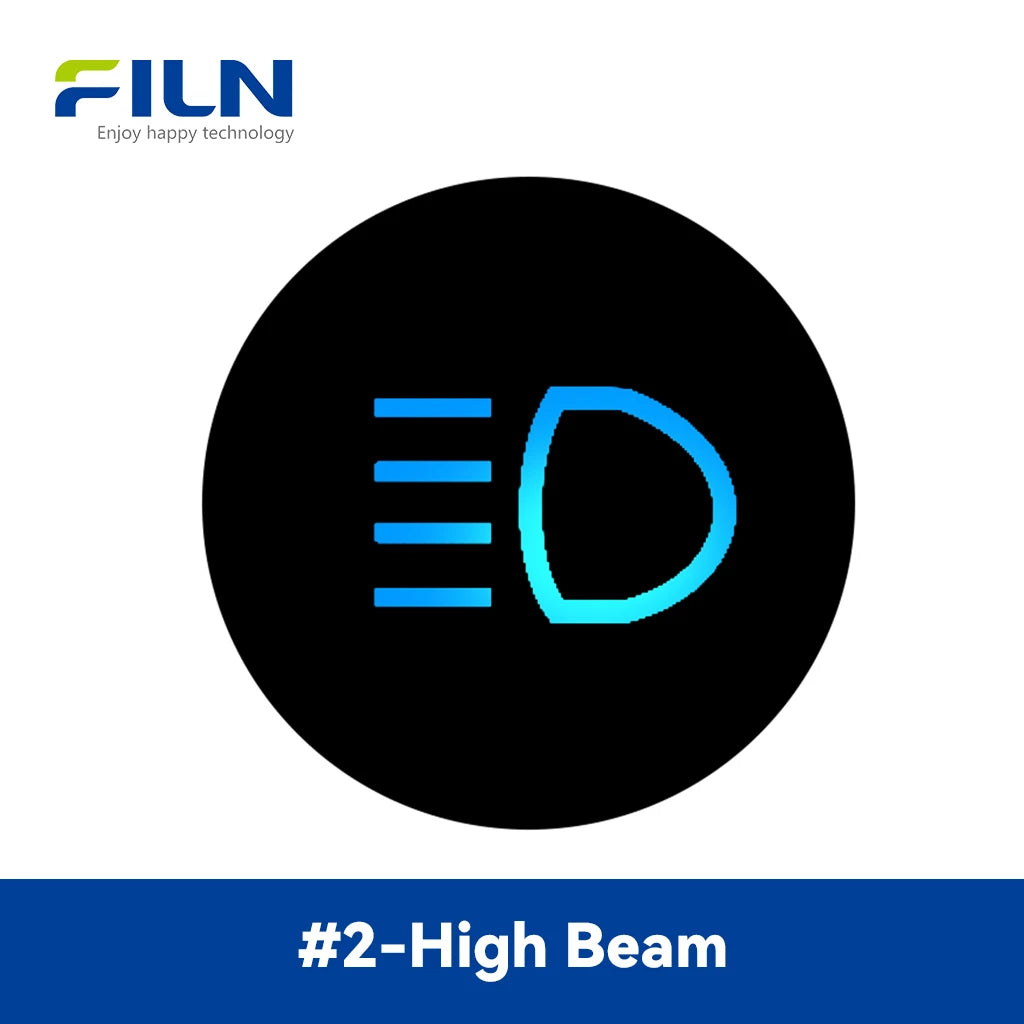

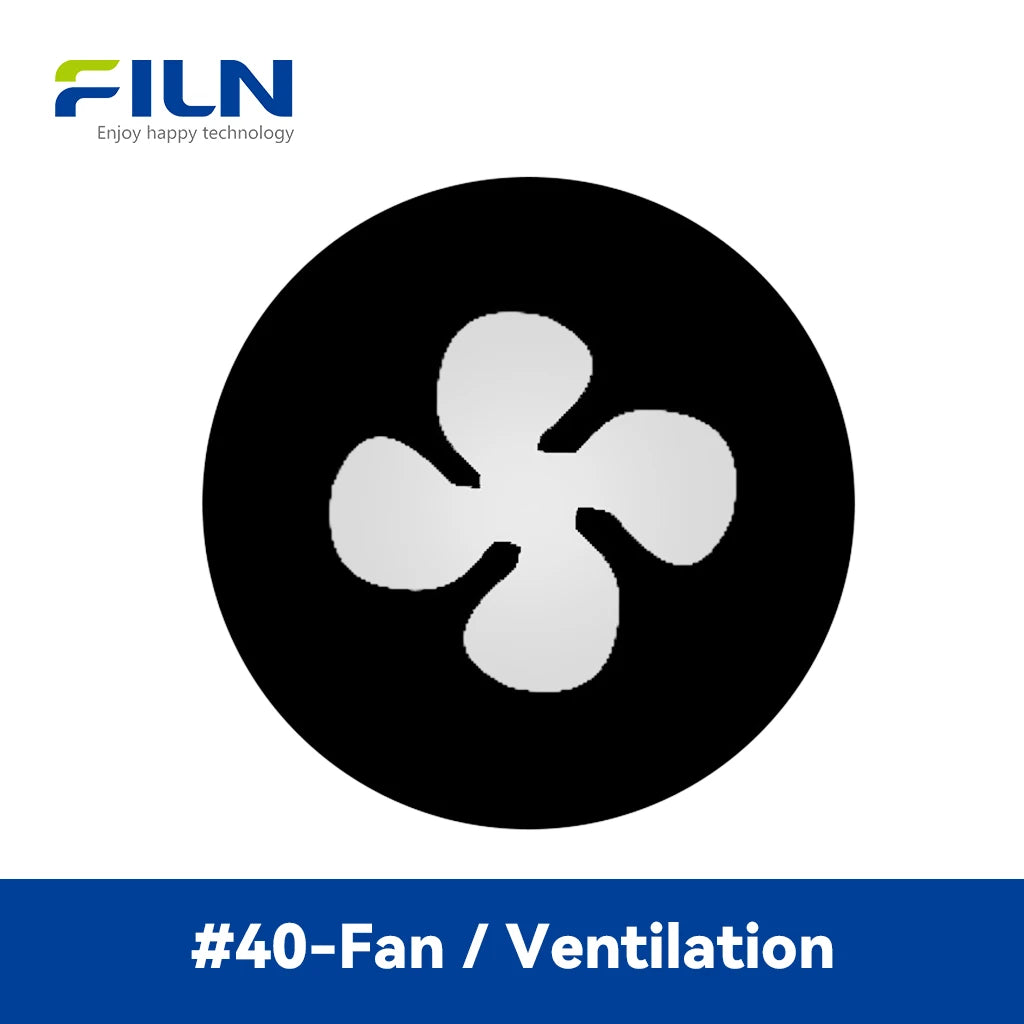

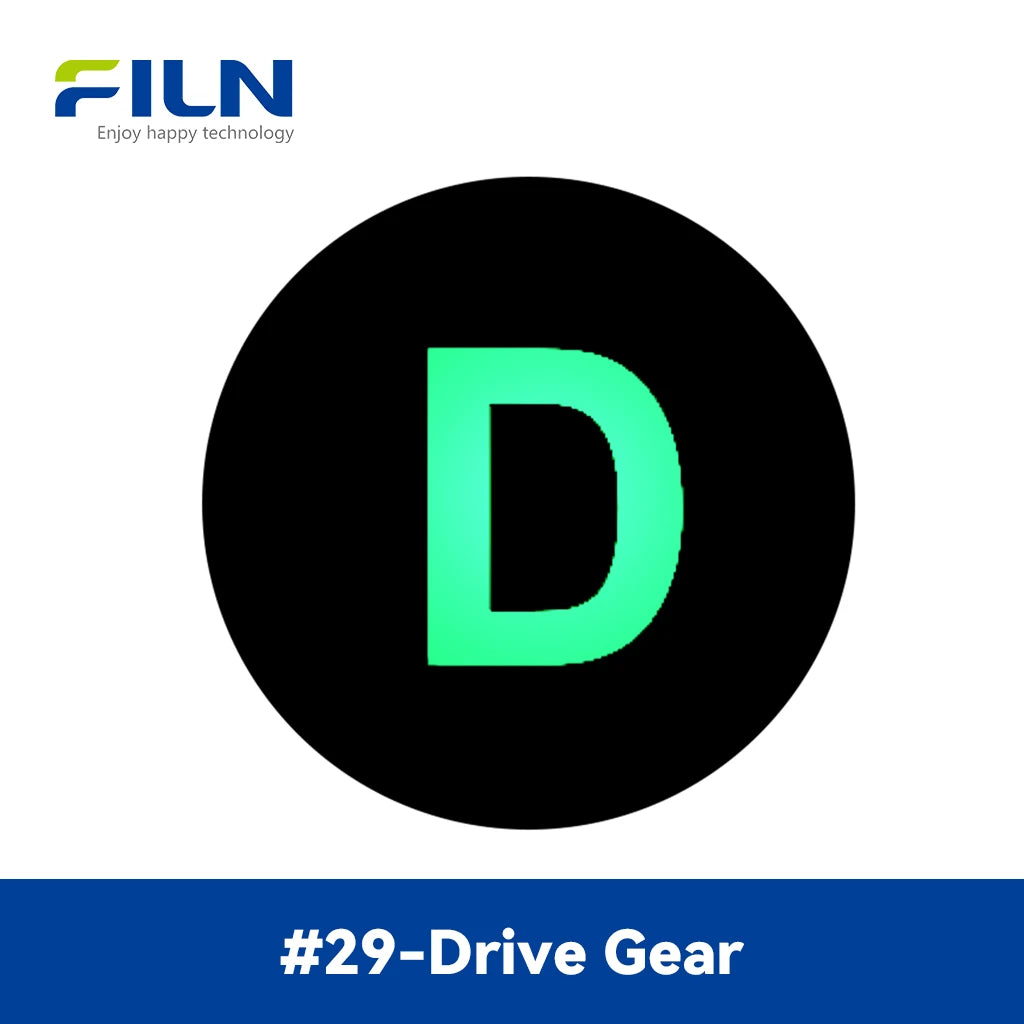

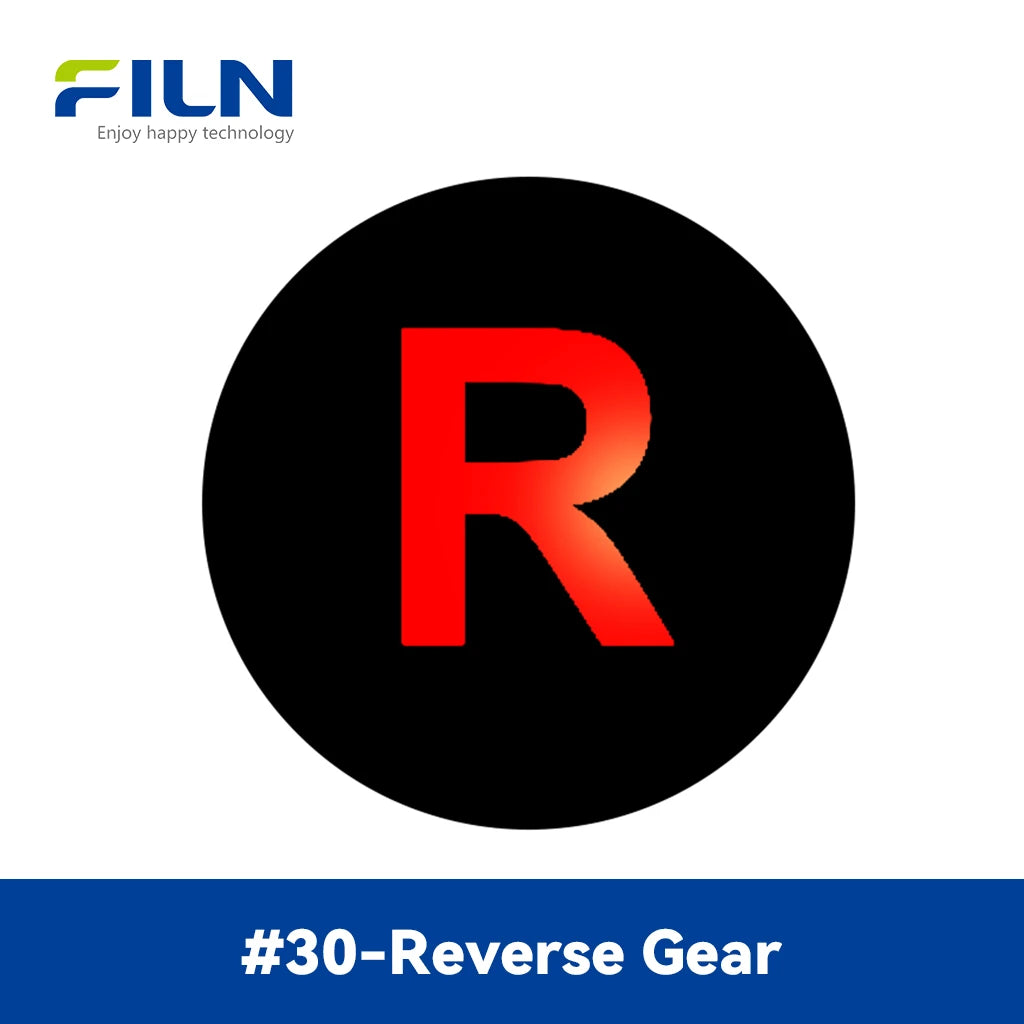

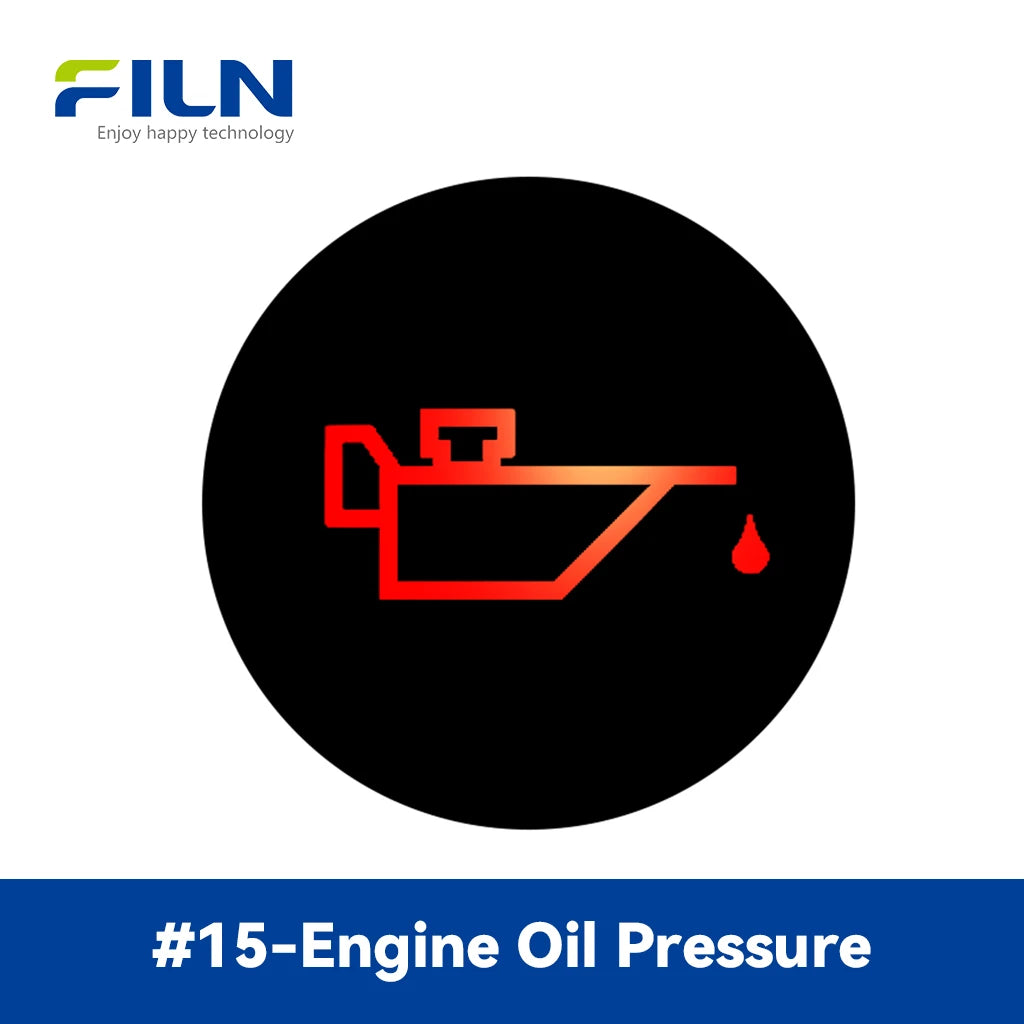

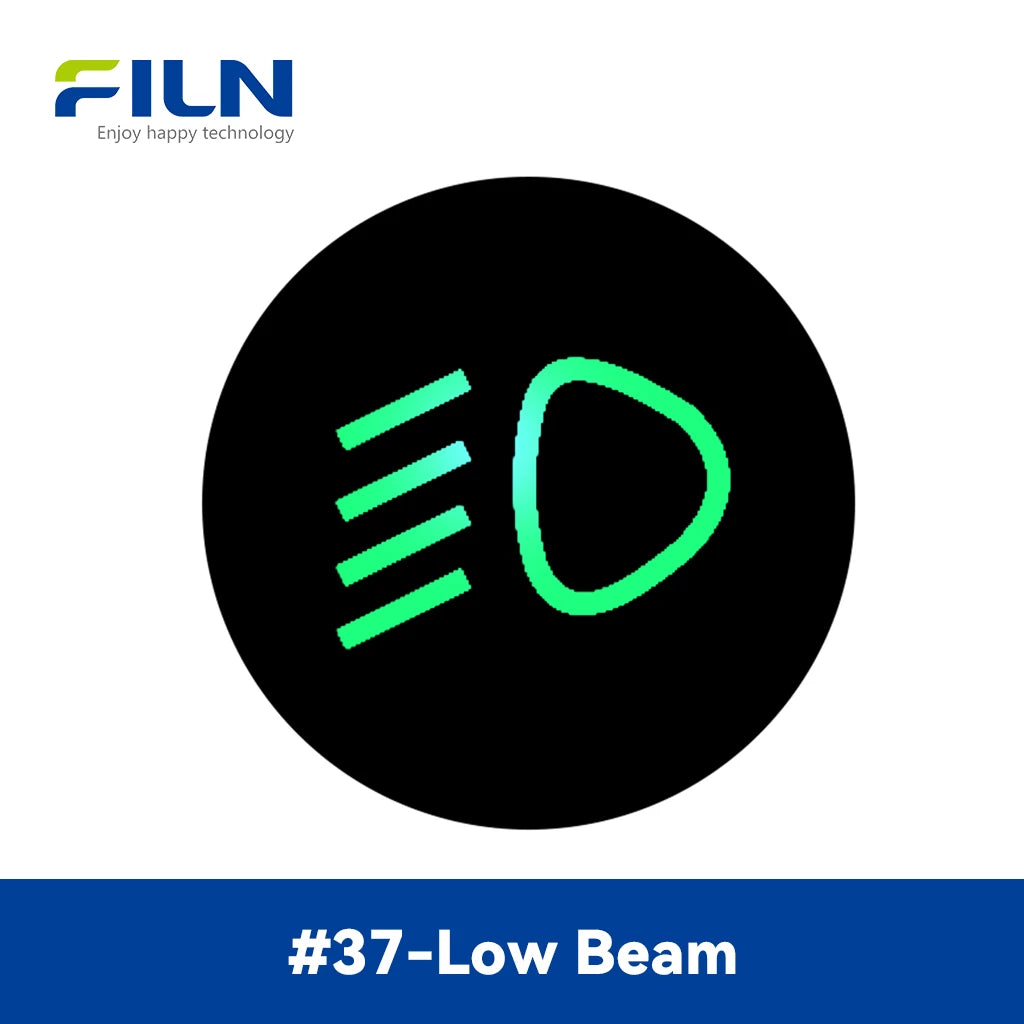

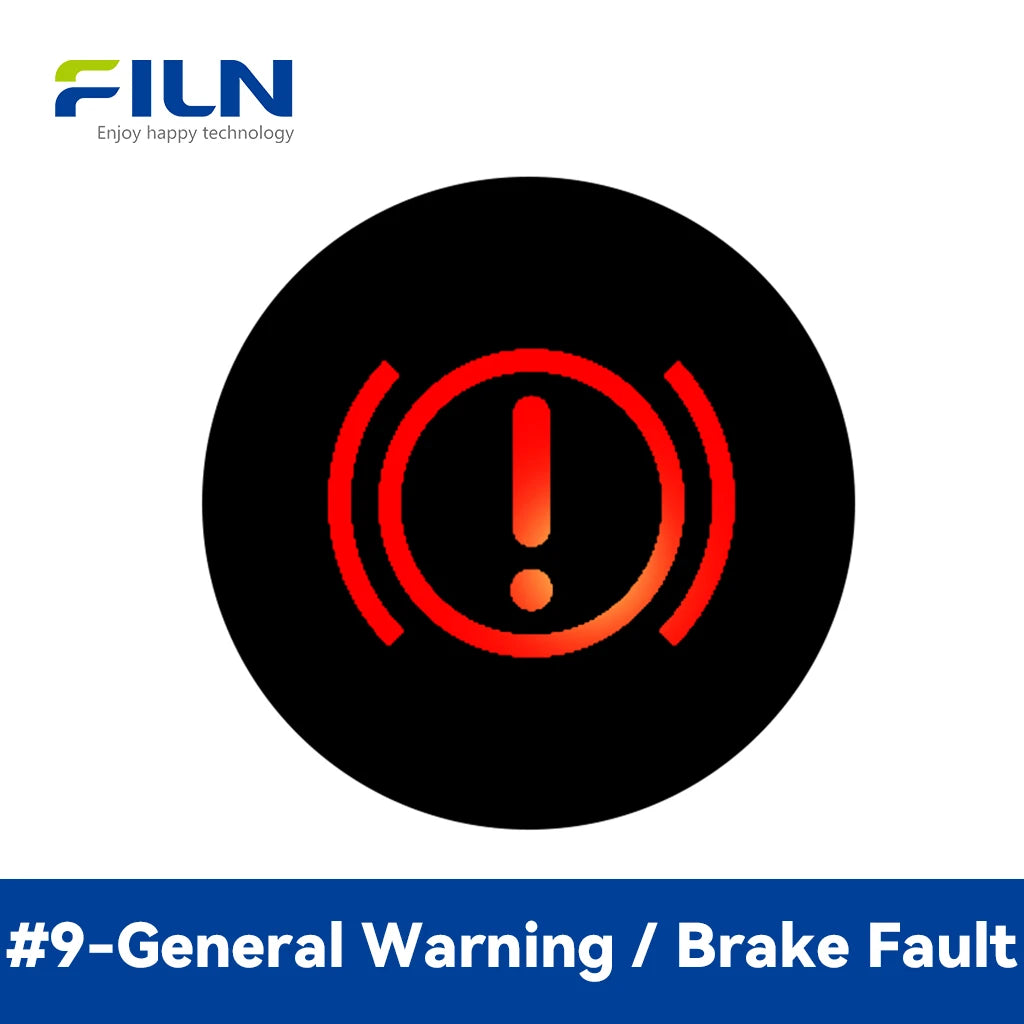

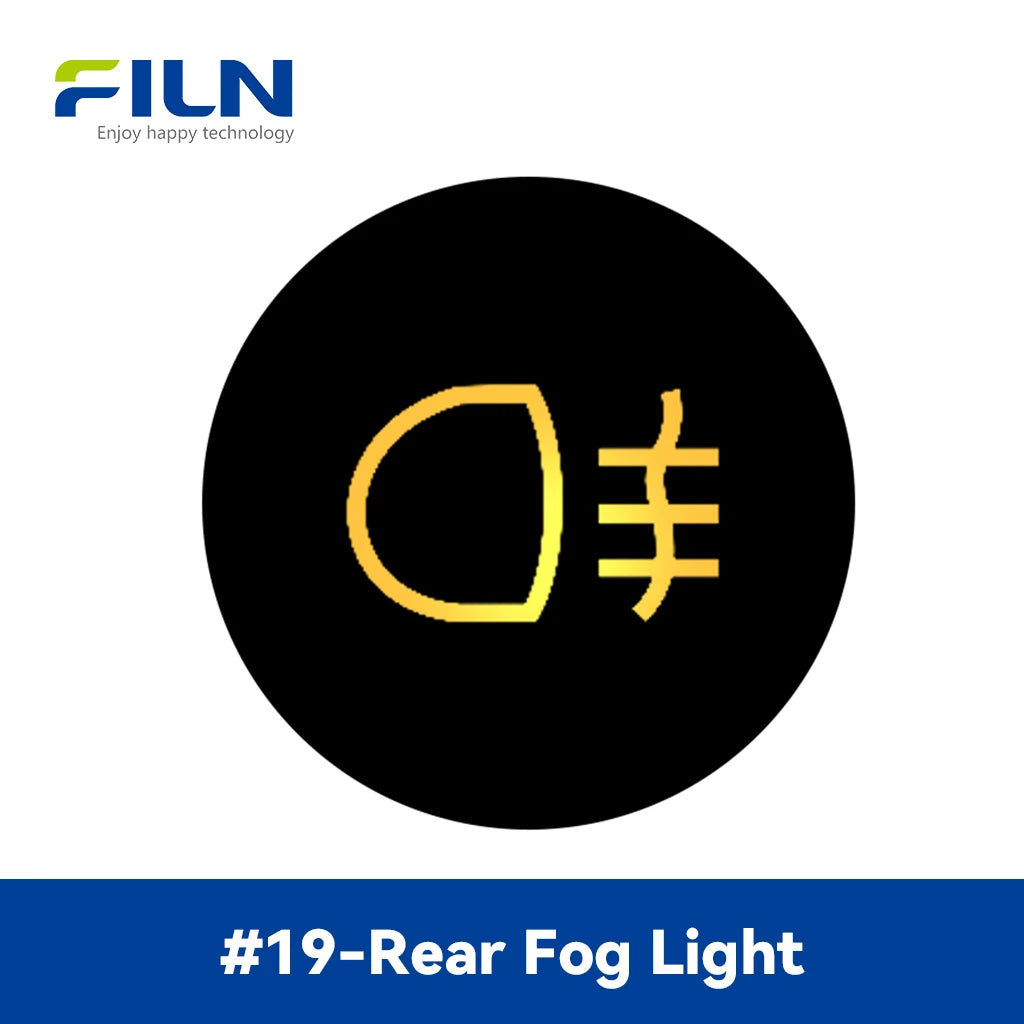

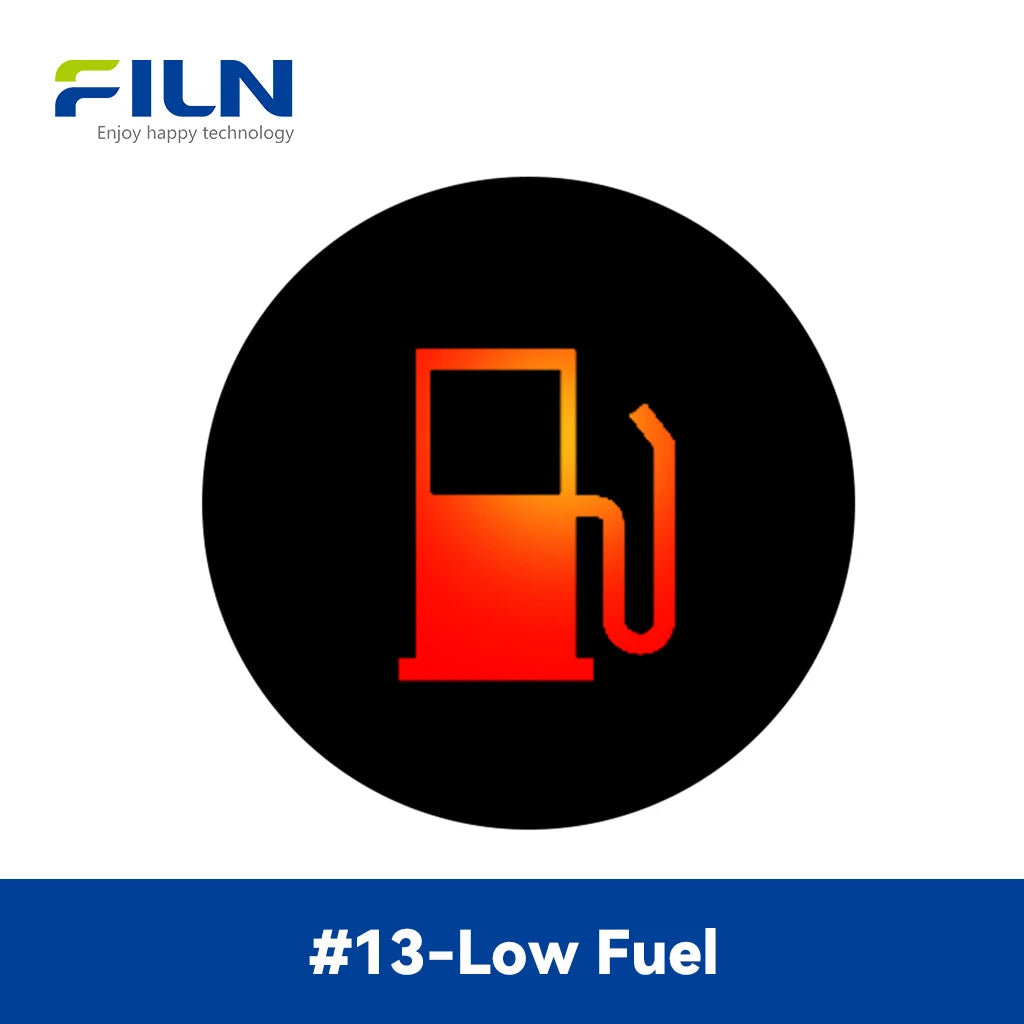

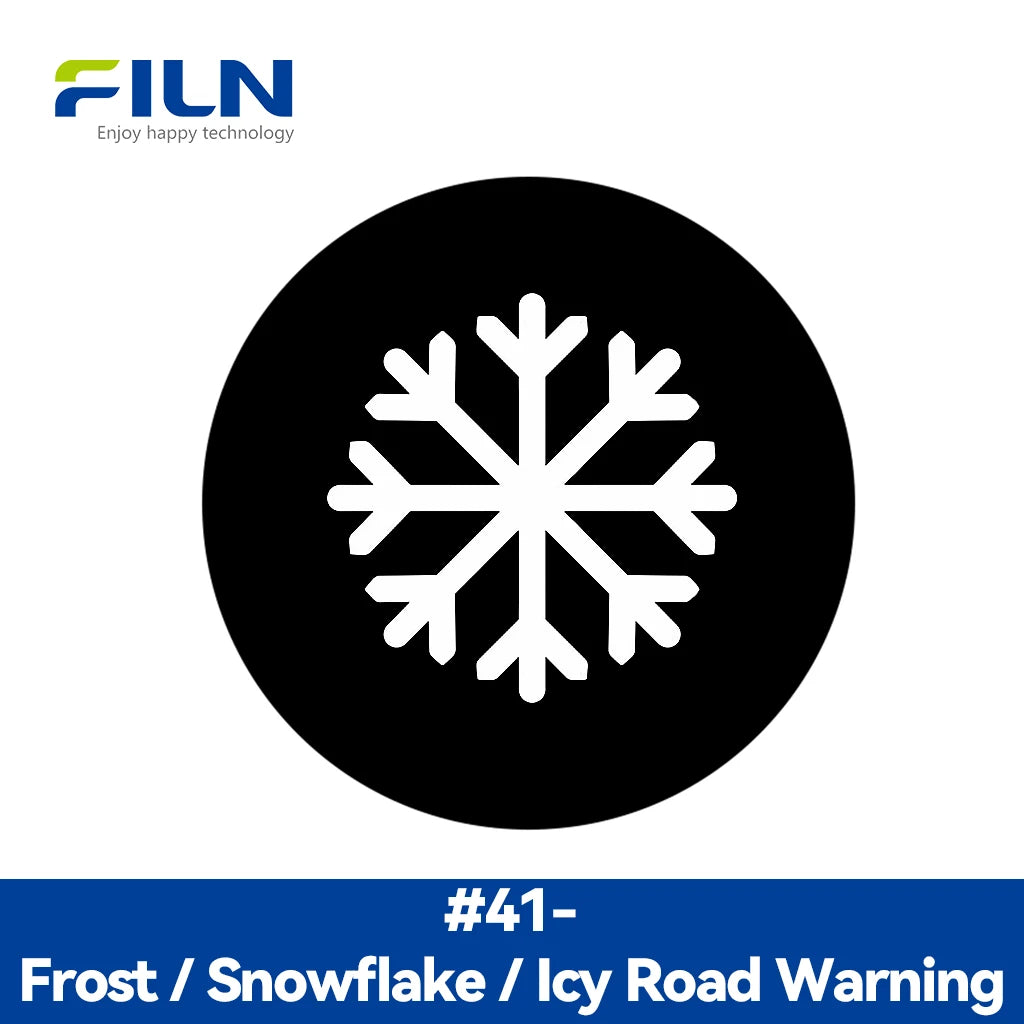

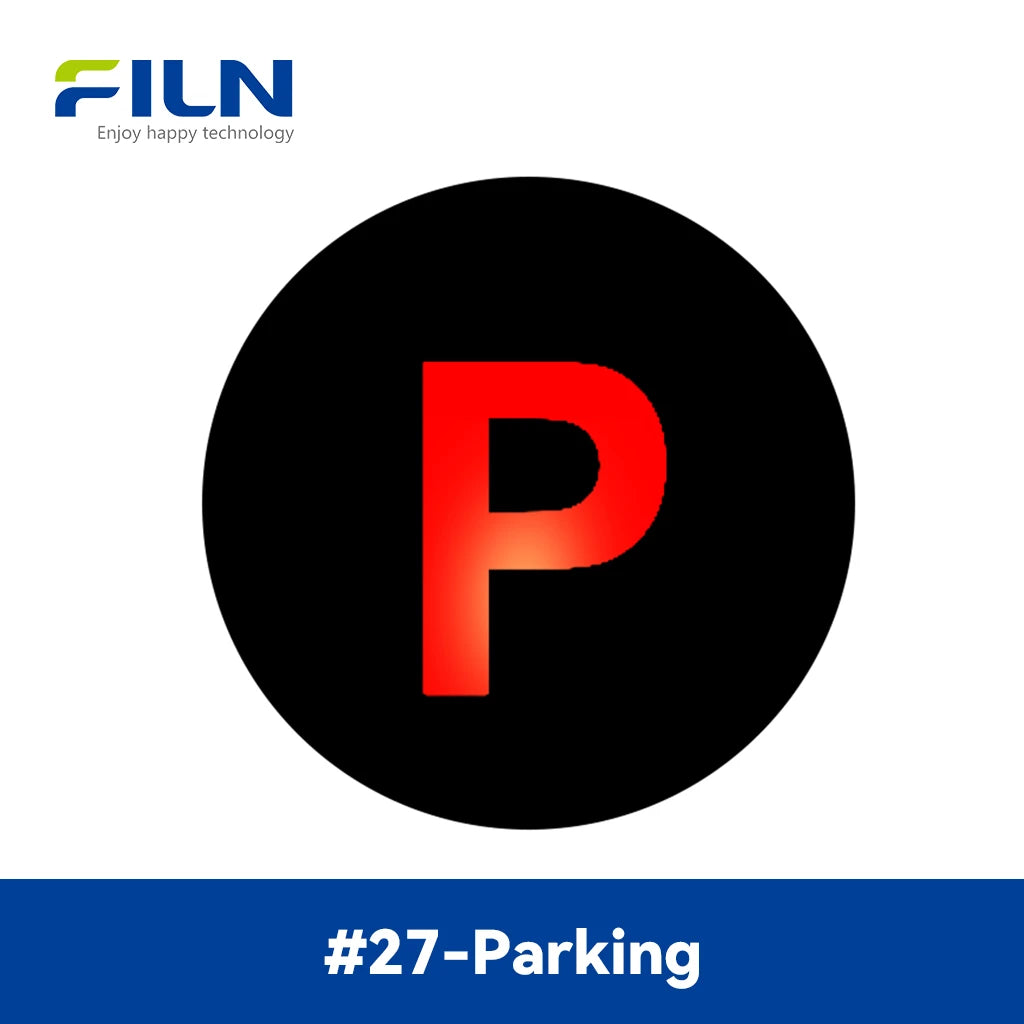

14mm Automotive Symbol Meaning Guide

The guide below expands the original symbol reference into a buyer-friendly explanation. Symbol Name tells you what the graphic represents, Meaning explains what the symbol communicates, and Why It Illuminates describes the type of electrical or control condition that normally activates the indicator.

Key Takeaways

• Product Identity: 14mm universal car symbol LED pilot light, designated under model FL1M-14FW-1 (wire lead) or FL1M-14FJ-1 (pin terminal).

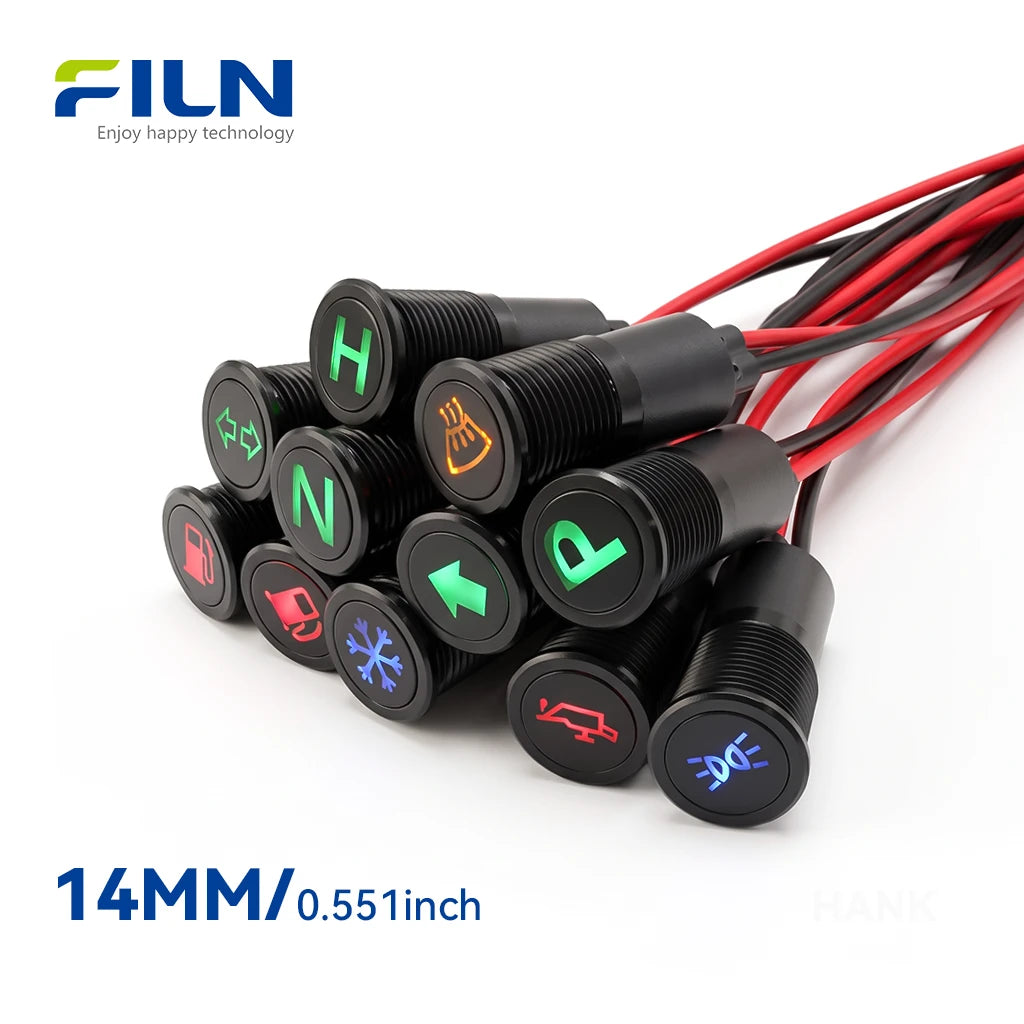

• Physical Construction: Durable metal housing available in black-plated zinc-aluminum alloy or silver finish, offering superior hardness compared to standard plastic indicators.
• Electrical Rating: Operates at a standard 12V voltage using an energy-efficient non-polar LED module drawing approximately 20mA.
• Environmental Protection: Achieves a minimum IP65 waterproof and dustproof rating when installed with the included silicone sealing O-ring.

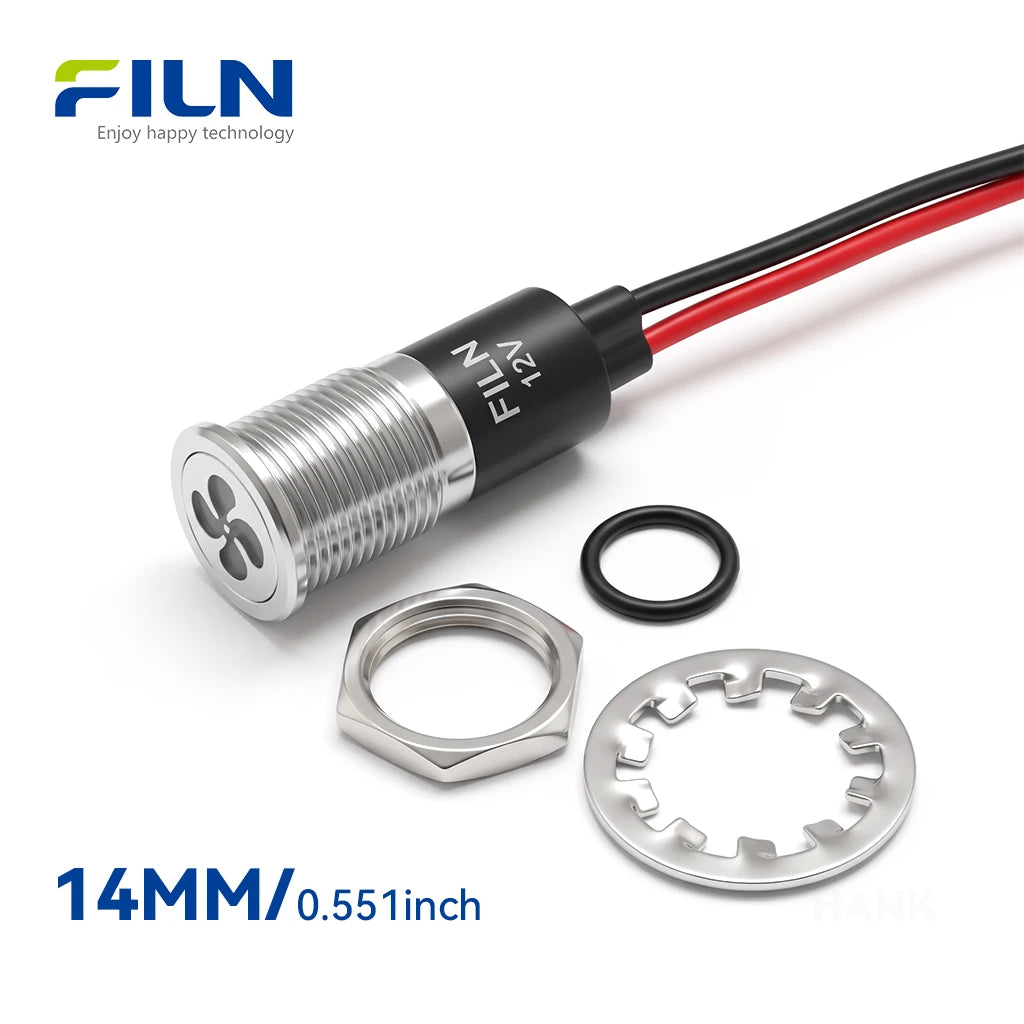

• Mounting & Installation: Single-hole 14mm threaded barrel design secured via a rear metal lock washer and hex nut for secure panel anchoring.
• Wiring Flexibility: Available in 2PIN wire lead configurations (20cm standard length) or 2PIN pin terminals to suit varied assembly environments.
• Visual Indication: Flat head design featuring crisp, laser-etched ISO/SAE automotive symbols illuminated by high-brightness LEDs in Red, Green, Yellow, Blue, White, bi-color, or tri-color variants.
• Target Applications: Widely utilized in automotive dashboard modifications, industrial automation control cabinets, test equipment, marine consoles, and renewable energy systems.
• B2B Sourcing: Backed by direct manufacturer support from FILN, accommodating custom symbol engraving, bulk wholesale orders, and OEM/ODM specifications.
• Quality & Compliance: Manufactured under ISO9001 standards with CE, VDE, RoHS, and CCC compliance for international industrial markets.

What is a Universal Car Symbol LED Pilot Light?

A universal car symbol LED pilot light is a specialized electrical status indicator designed to communicate functional states, operational readiness, or system warnings on equipment interfaces. Structurally, FILN manufactures these indicators using high-strength metal housings—specifically copper alloy or zinc-aluminum alloy—paired with an internal high-brightness LED luminescent source, a protective PC lens, and a carbon film resistor. Unlike fragile plastic alternatives, metal indicator lights offer exceptional structural rigidity, impact resistance, and thermal durability, making them ideal for high-vibration and demanding industrial environments.

FILN produces indicator lights across a broad dimensional range from 6mm to 30mm, featuring flexible connection options including solder pin terminals and direct wire leads. Specifically for the 14mm metal indicator series, users can select from flat head, prominent head, and recessed head outer profiles tailored to specific aesthetic and ergonomic installation requirements. The incorporation of international automotive and industrial symbols onto the flat head surface enables operators to instantly recognize system statuses such as oil pressure, battery charge, lighting faults, or emergency warnings without text translation barriers.

The industrial value of these pilot lights lies in their ability to minimize equipment downtime by providing clear, unambiguous visual feedback. Operating on an integrated LED semiconductor principle, they convert electrical energy directly into photon emission with minimal heat generation and a long operational lifespan exceeding 50,000 hours. Typical applications span automotive dashboard modifications, heavy machinery control desks, CNC machine tools, and electrical power distribution boards. To explore our comprehensive catalog, please visit our LED indicator light product page.

Product Overview

The universal car symbol LED pilot light is a precision-engineered human-machine interface (HMI) signaling device designed to integrate seamlessly into control panels and vehicle dashboards. The device functions by routing electrical current through a built-in current-limiting resistor to a solid-state LED chip, which emits light through a laser-etched symbol lens. Mechanically, the assembly relies on a threaded metal barrel locked securely against an equipment panel by a robust nut and stainless steel lock washer.

Electrically, the unit utilizes a non-polar LED configuration, permitting installation without strict regard for circuit polarity, which streamlines wiring during large-scale control panel assembly. Industrial advantages include high resistance to mechanical shock, immunity to environmental degradation from UV exposure or oil splashing, and long-term operational stability. Certified to CE, VDE, RoHS, ISO9001, and CCC standards, FILN's metal indicator lights serve OEM equipment manufacturers and system integrators who demand uncompromising safety and reliable performance across industrial automation, transportation, and power distribution sectors.

Quick Specifications

Performance Parameters

Component Materials

The structural integrity and environmental resilience of FILN metal pilot lights depend on carefully selected industrial-grade materials. Each component is engineered to withstand mechanical wear, electrical stress, and corrosive operational conditions.

Environmental Performance

This specification defines the general operating parameters for the universal car symbol LED pilot light series under rigorous environmental conditions.

LED Specification & Characteristics

Absolute maximum ratings define the safe operating limits of the internal LED chip to prevent permanent damage.

Electro-optical characteristics measured at an ambient temperature of Ta = 25°C:

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under standardized atmospheric conditions:

• Ambient Temperature: 5℃ ~ 35℃
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement is ±15%, and voltage measurement tolerance is ±0.1V.

Applications by Industry

Universal car symbol LED pilot lights feature high-strength copper alloy or stainless steel metal housings with outstanding impact resistance and IP67 waterproof/dustproof protection, serving both industrial and high-end commercial sectors. While plastic indicators degrade, crack, or warp under long-term exposure, metal pilot lights adapt seamlessly to harsh operating environments, frequent operation, and high-reliability requirements across multiple industries:

1. Industrial Automation & Machinery Manufacturing

This sector represents the primary application arena where workshops experience continuous mechanical vibration, oil splashes, and particulate impact.

• CNC Machine Tools & Machining Centers: Control panels utilize red, green, and yellow metal indicator lights where green denotes normal operation, yellow signifies standby or warning, and red indicates emergency stop or system fault. Metal housings resist cutting fluids and metallic debris corrosion.
• Automation Production Line Control Cabinets: Large power distribution and PLC cabinets integrate 6mm and 8mm metal indicator lights compatible with AC220V and DC24V to display power status clearly.
• Hydraulic & Pneumatic Equipment: Applied in oil pump status monitoring and pressure limit warnings; wire-integrated metal indicators feature robust internal LED and resistor mountings that withstand severe vibration without wire detachment.

2. Outdoor Power & Renewable Energy Distribution Systems

Outdoor equipment endures year-round sun exposure, precipitation, and extreme thermal fluctuations, demanding strict weatherproofing and thermal stability.

• EV Charging Stations: Outdoor DC and AC charging piles are equipped with flat-head metal status indicators where flashing blue/green indicates charging, steady green indicates completion, and flashing red indicates leakage or ground faults. IP67 waterproof protection ensures reliable public deployment.
• Outdoor Distribution Boxes & Solar Combiner Boxes: Photovoltaic stations and municipal enclosures utilize status lights to display high-voltage switching and inverter status across a -40℃ to 80℃ temperature range.

3. Rail Transit, Utility Vehicles & Marine Equipment

Vehicles and marine vessels experience heavy shock and vibration alongside severe salt-fog corrosion.

• Utility Vehicle Control Consoles: Excavator, crane, and bulldozer dashboards utilize indicator lamps for oil pressure, coolant temperature, headlamp status, and braking faults in dusty, high-vibration conditions.
• Marine & Port Control Equipment: Bridge instruments and deck control boxes use electroplated stainless steel metal indicators to resist marine salt-fog corrosion while silicone gaskets prevent seawater ingress.

4. Commercial Vending & Public Security Facilities

Public equipment is prone to impact and vandalism where plastic fixtures easily break.

• Vending & Ticketing Machines: Paired with vandal-resistant metal pushbutton switches to indicate coin insertion, dispensing, and change status.
• Fuel Dispenser Panels: Hazardous explosive environments require robust electrical isolation, which metal housings achieve effectively.
• Outdoor Access Control & Intercoms: Stainless steel intercom panels use red and green indicators to denote locked or unlocked door states.

5. Medical Equipment & Food Processing Machinery

Industries requiring frequent washdowns and chemical sanitization demand high standards of cleanliness.

• Food Bottling & Packaging Equipment: Daily high-pressure hot water and chemical washdowns are resisted by IP67 metal pilot lights, preventing internal component corrosion.
• Medical Sterilization Units: Autoclaves utilize indicator lights to distinguish heating, sterilization, and exhaust phases.

Summary: While plastic indicators yellow and become brittle outdoors, and constant vibration loosens standard pin connections, FILN's metal pilot lights feature copper alloy shells, silicone waterproof O-rings, and tail-integrated wiring structures to provide a robust solution for industrial stability.

LED Indicator Color Meanings & Application Guide

Indicator light colors convey critical operational statuses across control panels and automotive dashboards. Below is an overview of the five primary LED colors utilized in industrial design:

• Red: Commonly denotes danger, emergency stop, fault conditions, or critical warnings (e.g., engine check, low oil pressure, emergency shutdown).
• Green: Typically signifies normal operation, safe conditions, power ON, or active status (e.g., system ready, drive gear engaged, charging complete).
• Yellow / Amber: Indicates caution, standby mode, pre-heating cycles, or non-critical warnings requiring operator attention (e.g., low fuel, glow plug pre-heat).
• Blue: Used for informational status, high-beam headlights, active auxiliary systems, or specific operational modes (e.g., cruise control, active cooling).
• White: Denotes general illumination, neutral status, or auxiliary system readiness without inherent alarm connotations.

Note: Indicator color conventions may vary depending on specific equipment manufacturer guidelines, control system design standards, and regional regulations. FILN also supplies customizable dual-color and tri-color configurations upon request.

Installation Guide

Proper installation ensures optimal mechanical stability and IP65/IP67 waterproof sealing for FILN metal indicator lights. Follow these structured steps:

1. Safety Preparation: Ensure all power sources connected to the installation circuit are completely de-energized to prevent electrical shock.
2. Panel Preparation: Measure and drill a precise 14mm circular mounting hole in the target equipment panel or vehicle dashboard using appropriate metal-cutting tools. Remove any burrs or sharp edges.
3. Gasket Placement: Slide the provided silicone waterproof O-ring onto the threaded barrel of the indicator light to ensure a secure environmental seal against the panel surface.
4. Insert Indicator: Insert the metal indicator light from the front side (exterior) of the panel through the drilled 14mm hole, ensuring correct visual orientation of the laser-etched symbol.
5. Secure Fastener: From the rear side of the panel, thread the stainless steel lock washer and the copper alloy mounting nut onto the barrel. Tighten firmly to compress the O-ring and prevent rotation.
6. Electrical Connection: Connect the 2PIN wires or pin terminals to your power source. Because FILN uses a non-polar LED design, circuit polarity is flexible.
7. Post-Installation Inspection: Verify mechanical rigidity, check that the symbol is level, and test electrical continuity and illumination before restoring power.

Technical Note: Exact installation tolerances depend on panel thickness (recommended max. 6mm). For custom mounting requirements, consult FILN engineering.

Wiring Guide & Connection Methods

FILN offers two primary connection configurations for the 14mm metal indicator series: wire-lead type (FL1M-14FW-1) and pin-terminal type (FL1M-14FJ-1). Each method requires specific handling to ensure stable electrical performance:

• Wire-Lead Indicators (FL1M-14FW-1): Equipped with pre-attached 20cm PVC insulated copper lead wires. These can be connected to the main circuit using quick-link wire connectors, soldered securely, or insulated with professional electrical tape and heat-shrink tubing to guarantee mechanical and electrical stability.

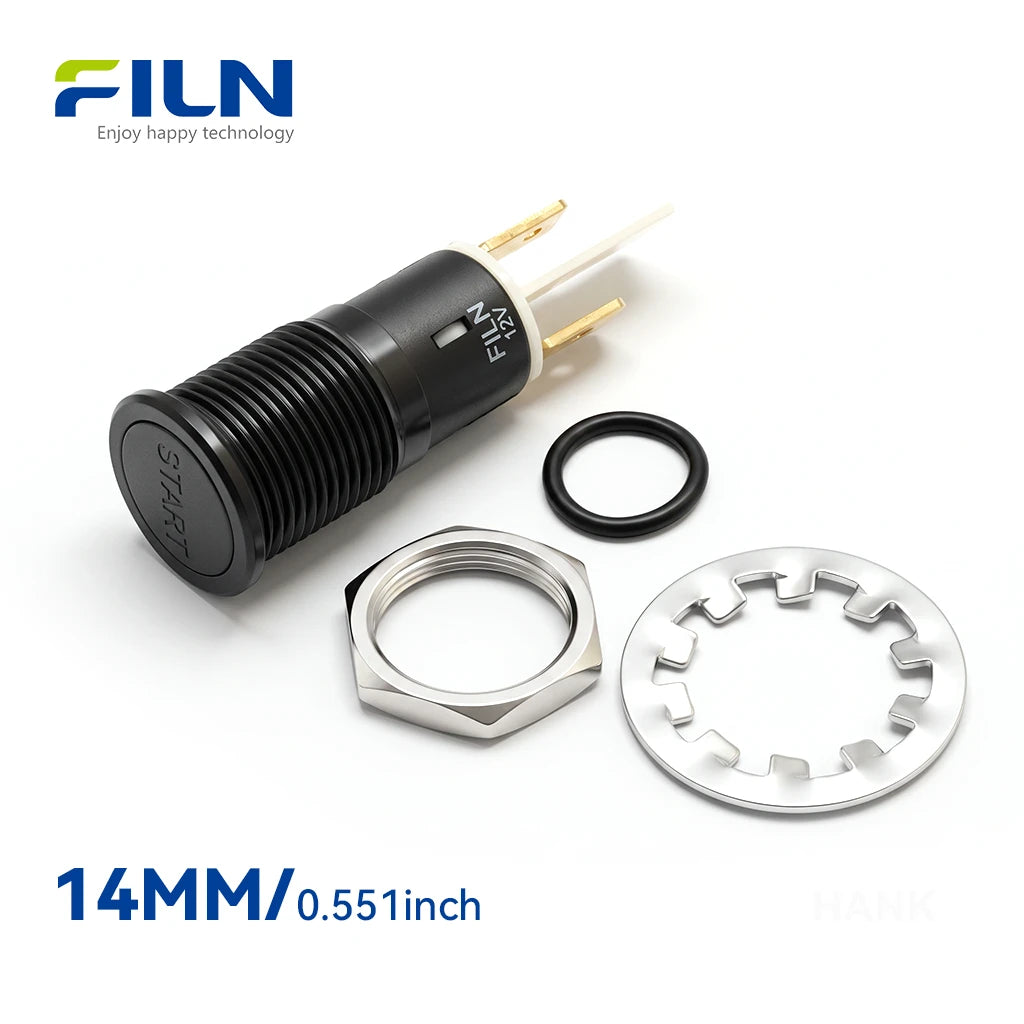

• Pin-Terminal Indicators (FL1M-14FJ-1): Feature 2PIN solder/quick-disconnect tabs. Installers should attach matching insulated receptacles (female spade connectors) or solder wires directly to the pins, followed by heat shrink insulation.
• Non-Polar Circuitry: These indicator lights feature integrated rectification and resistance, allowing connection without strict regard for positive (+) and negative (-) polarity.

Safety Warning: Always ensure that power is completely cut off and circuits are de-energized before performing any wiring or electrical installation.

Industry Knowledge Center

Metal pilot lights serve as vital interface components in industrial control architecture. Understanding their operational principles and maintenance requirements helps engineers prevent common failure modes such as faint glowing (phantom illumination caused by leakage current in solid-state control outputs), terminal oxidation, or mechanical loosening from continuous vibration. Selecting components backed by strict quality testing and IP67 sealing ensures long-term operational reliability across automotive and industrial applications.

Buyer Decision Guide & Specifications

Selecting the correct indicator light requires evaluating several physical and electrical parameters against your application environment:

• Mounting Hole Size: 14mm physical cutout compatibility.
• Voltage Rating: 12V DC/AC electrical compatibility.
• LED Color & Symbol: ISO/SAE standard symbols and color semantics.
• Ingress Protection: IP65/IP67 for dust and moisture resistance.
• Material Selection: FILN offers brass nickel-plated, stainless steel, and zinc-aluminum alloy housings.

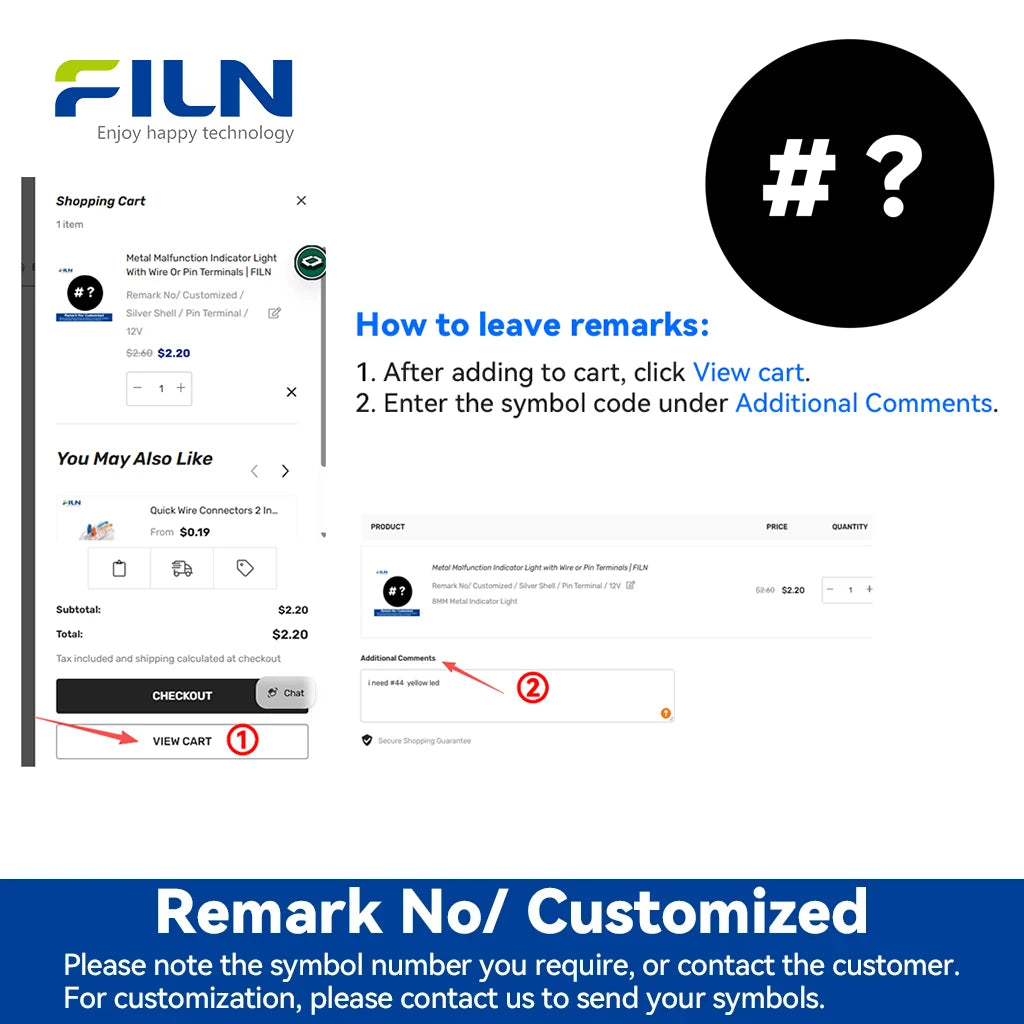

RFQ Checklist for Procurement Managers

Providing these specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements efficiently:

• Product Type & Model (e.g., FL1M-14FW-1)
• Mounting Hole Size (14mm)
• Voltage (12V) & Current Type (AC/DC)
• LED Color and Required Symbol Code
• Head Type & Housing Material (Zinc Alloy / Stainless Steel)
• Wiring Method (Wire lead length or pin terminal)
• Waterproof Requirement (IP65/IP67)
• Target Market & Application Environment
• Quantity & Packaging Requirements
• OEM / Custom Logo Requirements

FILN Manufacturing & Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd. (brand name FILN), established in 2006 in Wenzhou, Zhejiang, is a professional electrical switch and indicator manufacturer integrating research, development, production, and sales. FILN operates a modern 10,000 m² facility featuring 20+ advanced production lines and an independent testing laboratory. Guided by rigorous ISO9001 quality management systems, FILN delivers reliable electrical performance and continuous product innovation for clients in over 100 countries.

Production Capabilities: Specializes in indicator lights, push button switches, rocker switches, toggle switches, and other small electrical components, along with comprehensive OEM/ODM custom manufacturing services.

Quality & Compliance: Certified to ISO9001, CE, VDE, RoHS, SGS, UL, IP65, and TUV standards.

Export Markets: Global distribution across North America, Europe, Asia-Pacific, and South America.

Manufacturing Advantages: Direct engineering consultation, expert custom solution design, small-batch support, and robust mass-production capacity.
