Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

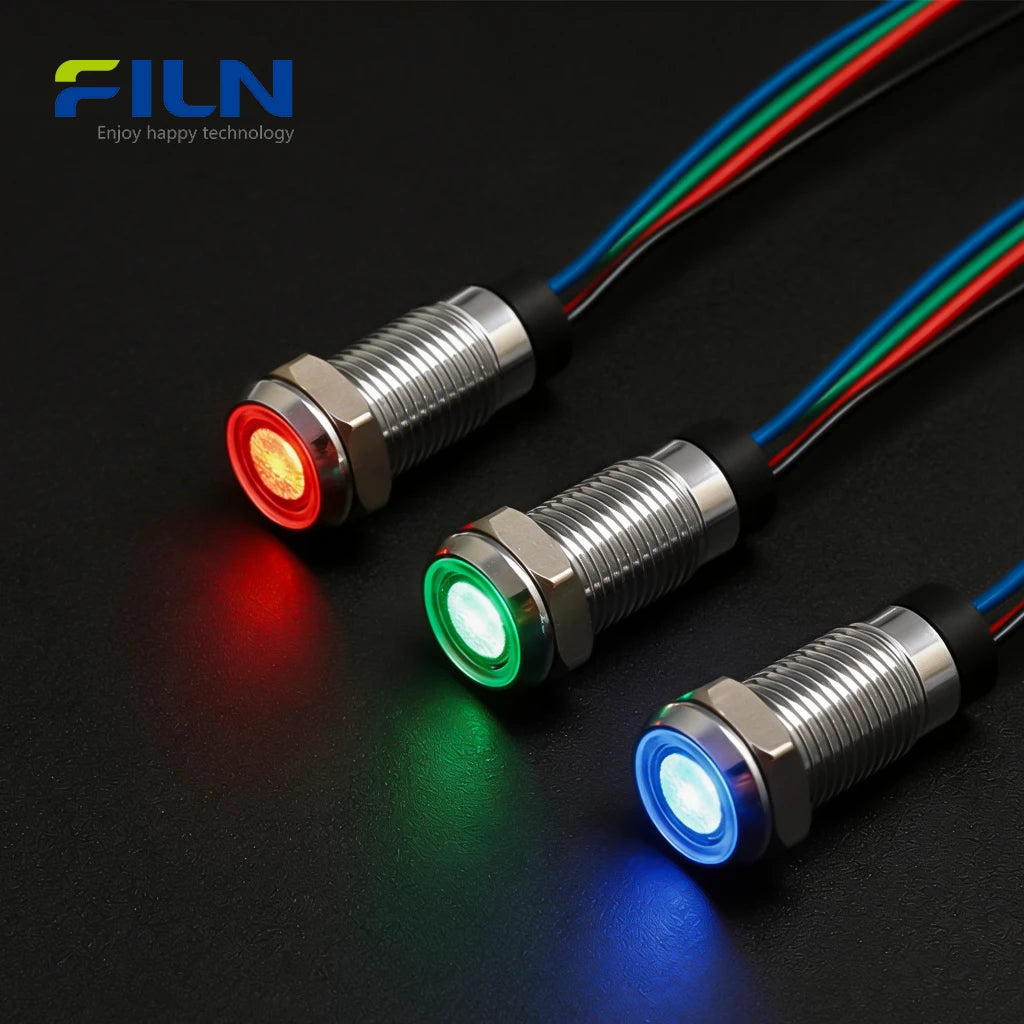

Product Overview

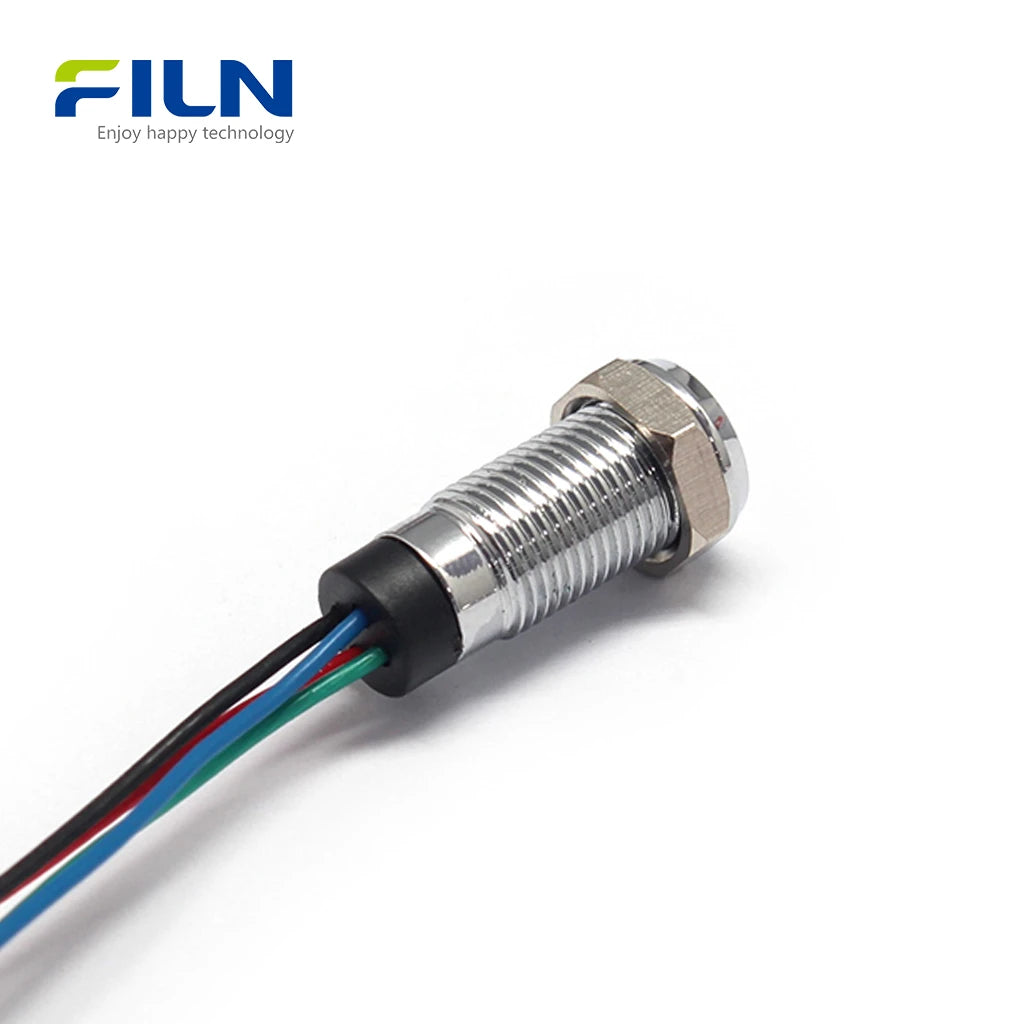

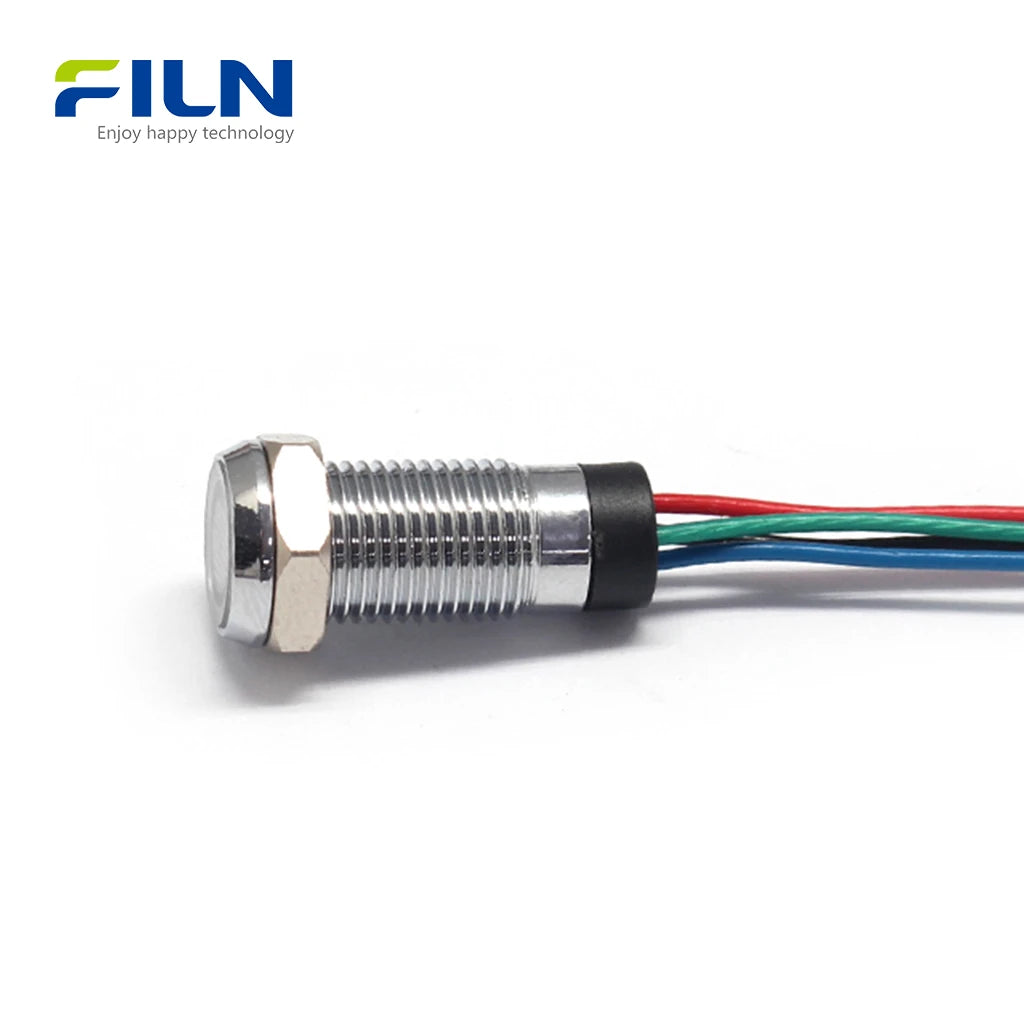

The Tri-color LED Signal Lamp (Model: FL1M-08FW-T-1) is a high-precision 8mm metal flat head indicator designed for multi-state status signaling. Featuring advanced RGB or RGY LED configurations, this lamp allows for three distinct colors in a single compact housing, available in Common Anode or Common Cathode versions. With an IP67 waterproof rating and a durable silver or black chrome finish, it is engineered for extreme environments. This versatile Tri-color LED Signal Lamp is ideal for industrial control panels, CNC machinery, and high-end automation equipment where visual clarity and space-saving design are critical.
Quick Specifications
| Mounting Hole | 8mm (0.31 inch) |
|---|---|
| Voltage Options | 12V, 24V, 110V, 220V (Customizable) |

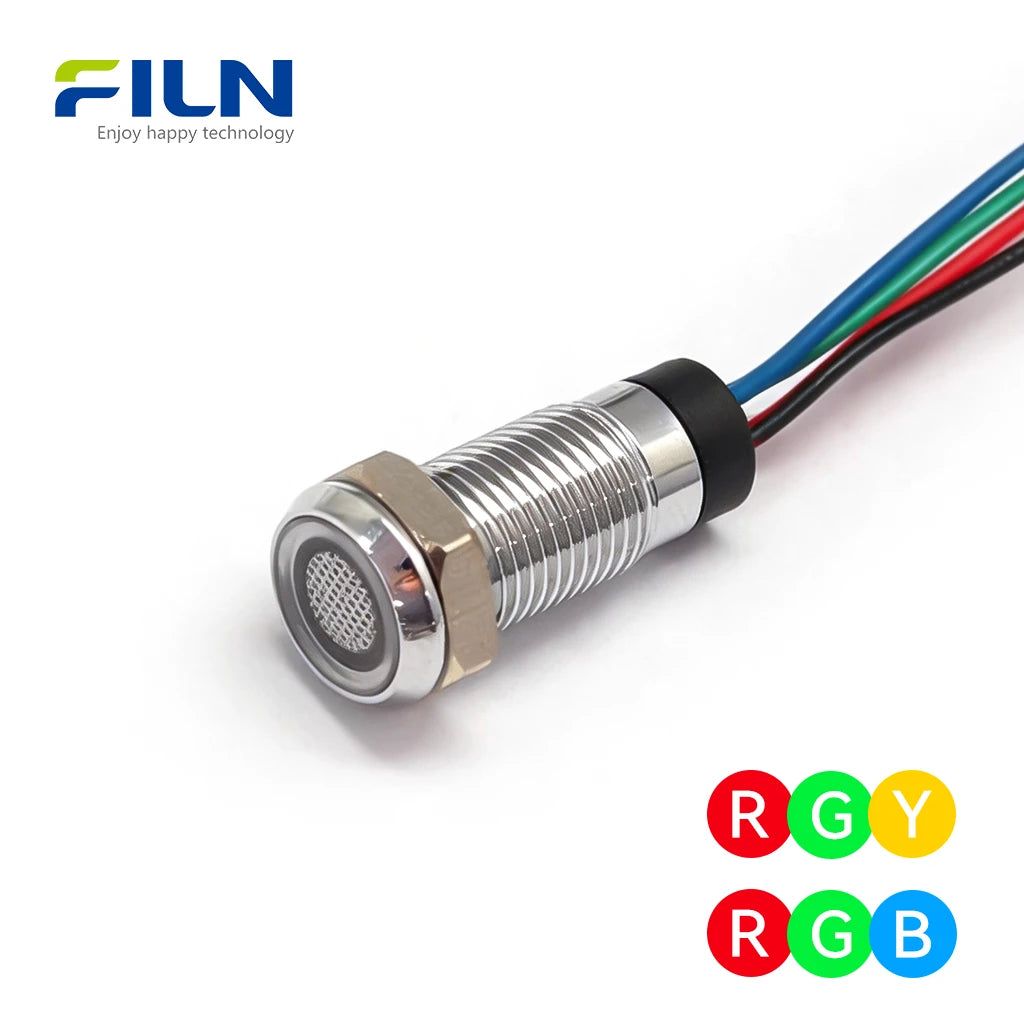

| LED Color | Tri-color (RGB / RGY) |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead (15cm standard) |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | 3V - 220V (Customized) |
|---|---|
| Frequency (AC) | 50Hz ～ 60Hz |
| Rated Current | ≤ 20mA |
Component Materials
| Housing | Nickel-plated Brass / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone (O-Ring included) |
| Wire Material | UL1007 22AWG (15cm) |
General Characteristics
| Operating Temperature | -40℃ ～ 80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Storage Temperature | -40℃ ～ 85℃ |
| Air Pressure | 86 ～ 106Kpa |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥ 100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Key Features
- Tri-color Versatility: Supports RGB or RGY combinations in one 8mm housing.
- Industrial Durability: IP67 rated, resistant to water, oil, and dust.

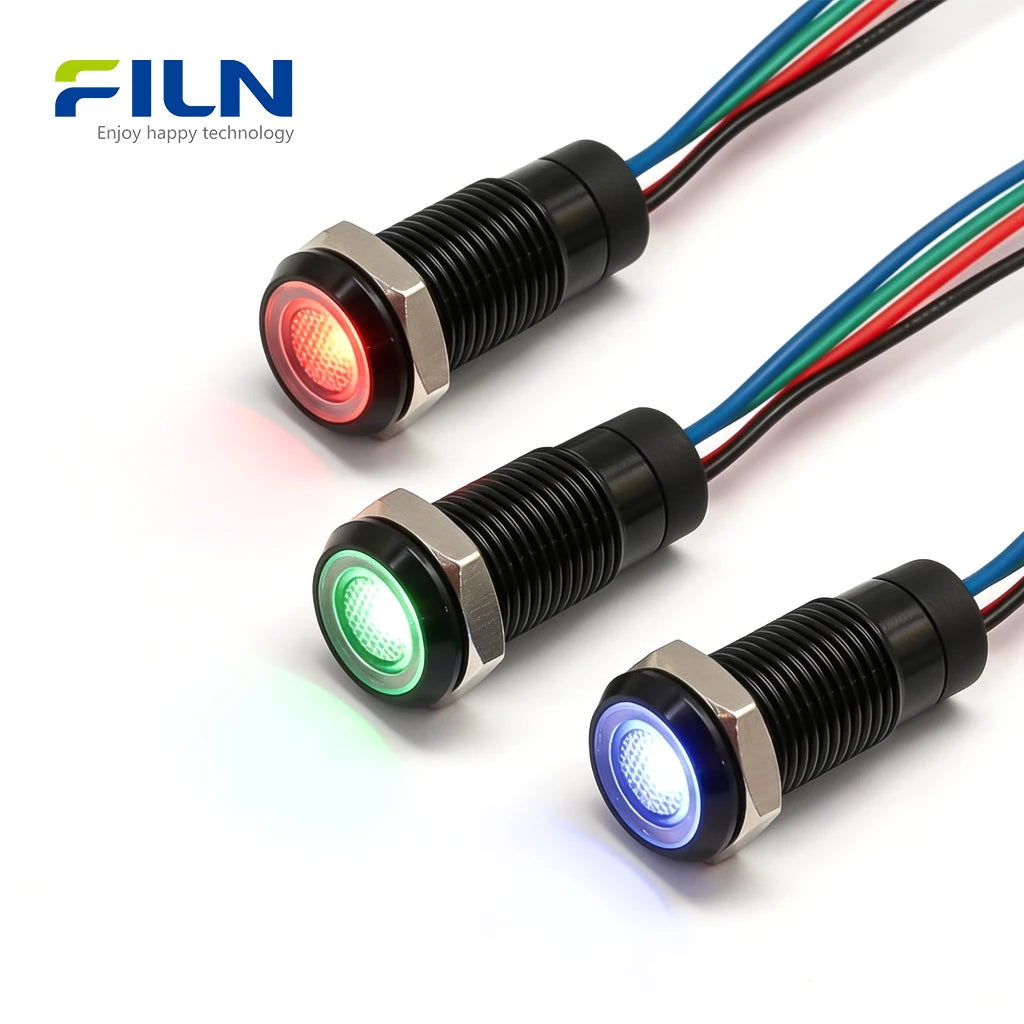

- Premium Build: Metal flat head design with options for silver or black finishes.
- Plug-and-Play: Pre-wired with 15cm leads for rapid deployment.
- Flexible Polarity: Choose between Common Anode or Common Cathode to fit your circuit.
Industrial & Commercial Applications
- Industrial Control Panels & Automation systems
- CNC Machinery & Metalworking equipment
- Electrical Cabinets & Power Distribution
- Marine Systems & Professional Audio Equipment
- Medical Devices requiring multi-state status indicators
- Smart Home Hubs and Custom PC Mods
Installation Guide
- Drill an 8mm (M8) hole into the desired mounting panel.
- Slide the O-ring onto the lamp body to ensure a waterproof seal.

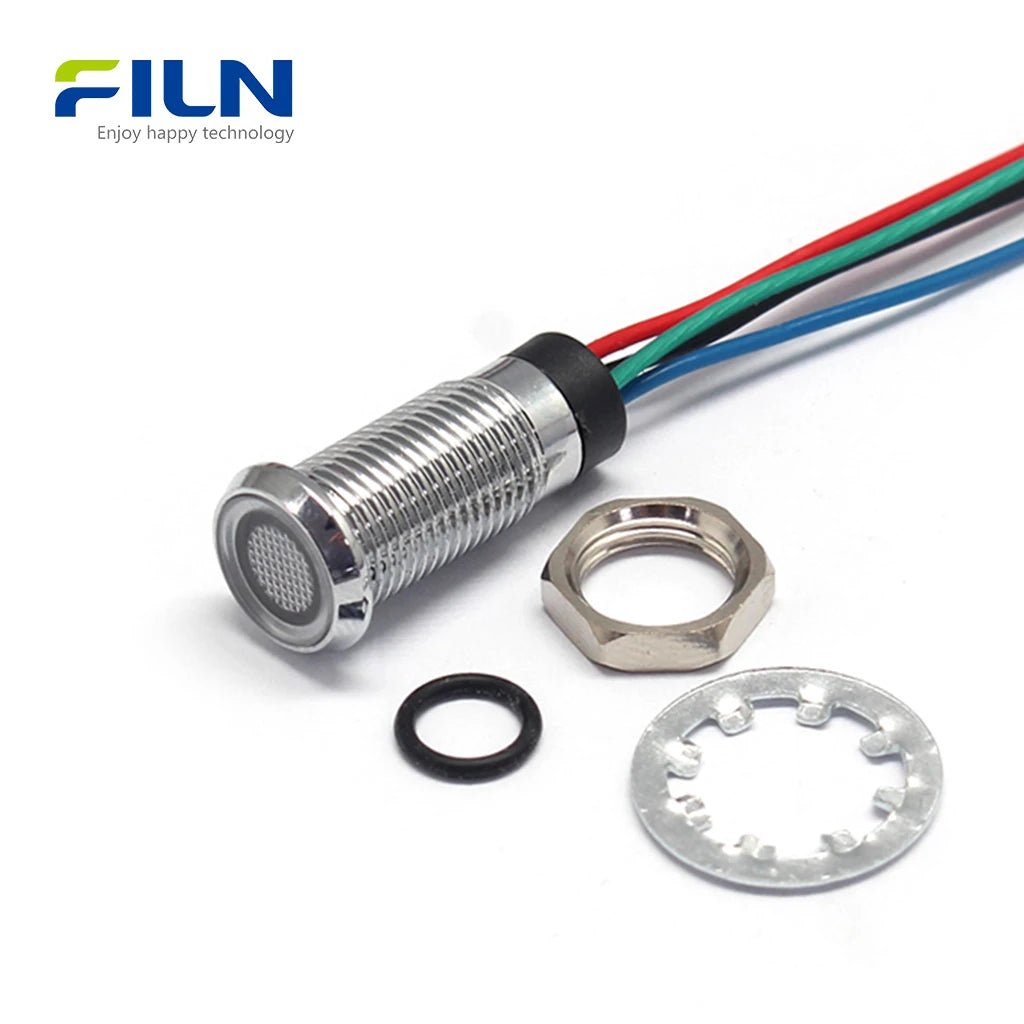

- Insert the Tri-color LED Signal Lamp through the front of the panel.
- Secure the lamp from the rear using the provided M8 nut (smooth threading).
- Connect the 15cm wire leads according to your Common Anode/Cathode wiring diagram.
What Is a Tri-color LED Signal Lamp?
A Tri-color LED Signal Lamp is an advanced optoelectronic component that integrates three different light-emitting diodes (typically Red, Green, and Blue or Yellow) into a single metal housing. Unlike standard single-color indicators, the tri-color version provides complex status feedback—such as "Ready" (Green), "Processing" (Yellow), and "Error" (Red)—using a single 8mm mounting hole. This significantly reduces panel clutter while providing clear, intuitive machine-to-human communication in industrial and commercial environments.
FILN Factory Direct Advantage
- ✅ Customization: Voltage, wire length, and connector types made to order.
- ✅ Quality Control: Factory direct pricing with rigorous IP67 testing.
- ✅ Global Logistics: Fast international shipping for B2B bulk orders.
- ✅ Support: Expert technical assistance for wiring and integration.
Official Website: www.filn.com
Email Inquiry: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the difference between Wire Lead and Pin terminals?
A: Wire lead type (this model) comes with 15cm pre-soldered wires for easy connection, while pin terminals require soldering or quick-connect headers during installation.
Q2: Can I get this indicator in 220V AC?
A: Yes, we support customized voltages from 12V to 220V for all tri-color signal lamps.
Q3: How do I choose between Common Anode and Common Cathode?
A: Choose Common Anode if your circuit switches the negative side (Ground); choose Common Cathode if your circuit switches the positive side.
Q4: Is the 8mm size suitable for outdoor use?
A: Absolutely. Our IP67 rating ensures the lamp is fully protected against dust and immersion in water up to 1 meter.
Q5: Does it come with mounting accessories?
A: Yes, every lamp includes a high-quality O-ring and an M8 nut for a secure, waterproof fit.
