Product Overview

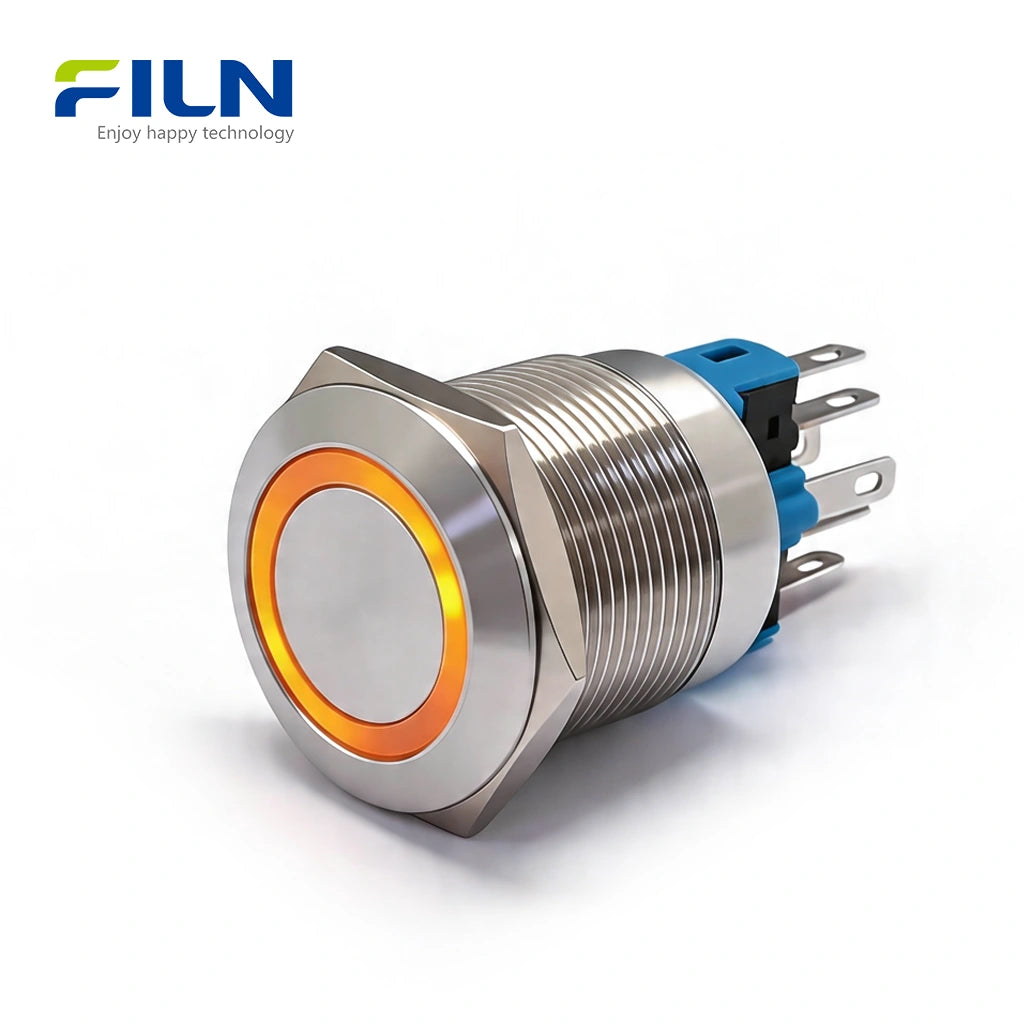

The button push switch (Model: FLM22-FJ-2-EX000) is a premium industrial component designed for high-performance electrical control. Featuring a 22mm mounting diameter and a high-grade stainless steel shell, this switch offers unparalleled durability. Its 6-pin terminal design ensures stable connections for both momentary and latching functions. As a leading factory, FILN ensures all products meet rigorous ISO9001, CE, VDE, RoHS, SGS, and UL certifications. This 22mm-stainless-steel-button-push-switch is widely used in automation, CNC machinery, and marine panels, providing an IP65 waterproof rating to withstand harsh industrial environments. The ring-illuminated LED enhances visibility, making it an essential ring-illuminated-metal-push-button-12v solution for dark operating conditions.
Quick Specifications
| Model Number | FLM22-FJ-2-EX000 |
|---|---|
| Mounting Diameter | 22mm / 0.87 inch |
| Function | Momentary / Latching (Selectable) |
| LED Colors | Red, Green, Yellow, Blue, White |
| Button Head Style | Flat Head |
| Wiring Method | 6-Pin Terminal (Fast Connection) |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC (12V-220V Customizable) |
|---|---|
| Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) |
| Insulation Resistance | ≥ 1000MΩ |
| LED Voltage Range | 3V - 220V |
Looking for more options?
EXPLORE ALL PUSH BUTTON SWITCHES →Component Materials
| Button Material | 304 Stainless Steel |
|---|---|
| Housing Material | Silver Stainless Steel Shell |
| Terminals | H62 Brass Alloy (6-Pin) |
| Contacts | Silver Contact AgCdO12 |
| Sealing | Silicone Waterproof Ring |
General Characteristics
| Operating Temp | -25°C to +85°C |
|---|---|
| Ingress Protection | IP65 Waterproof |
| Mechanical Life | 500,000 Cycles |
| Impact Protection | IK08 |
Comparison: Pin vs. Screw vs. Pre-wired
| Terminal Type | Installation Speed | Main Advantage |
|---|---|---|
| 6-Pin Terminal | Very High | Compact, stable for complex circuits. |
| Screw Terminal | Medium | No soldering required, high torque. |
| Pre-wired | Instant | Plug-and-play, best for waterproofing. |

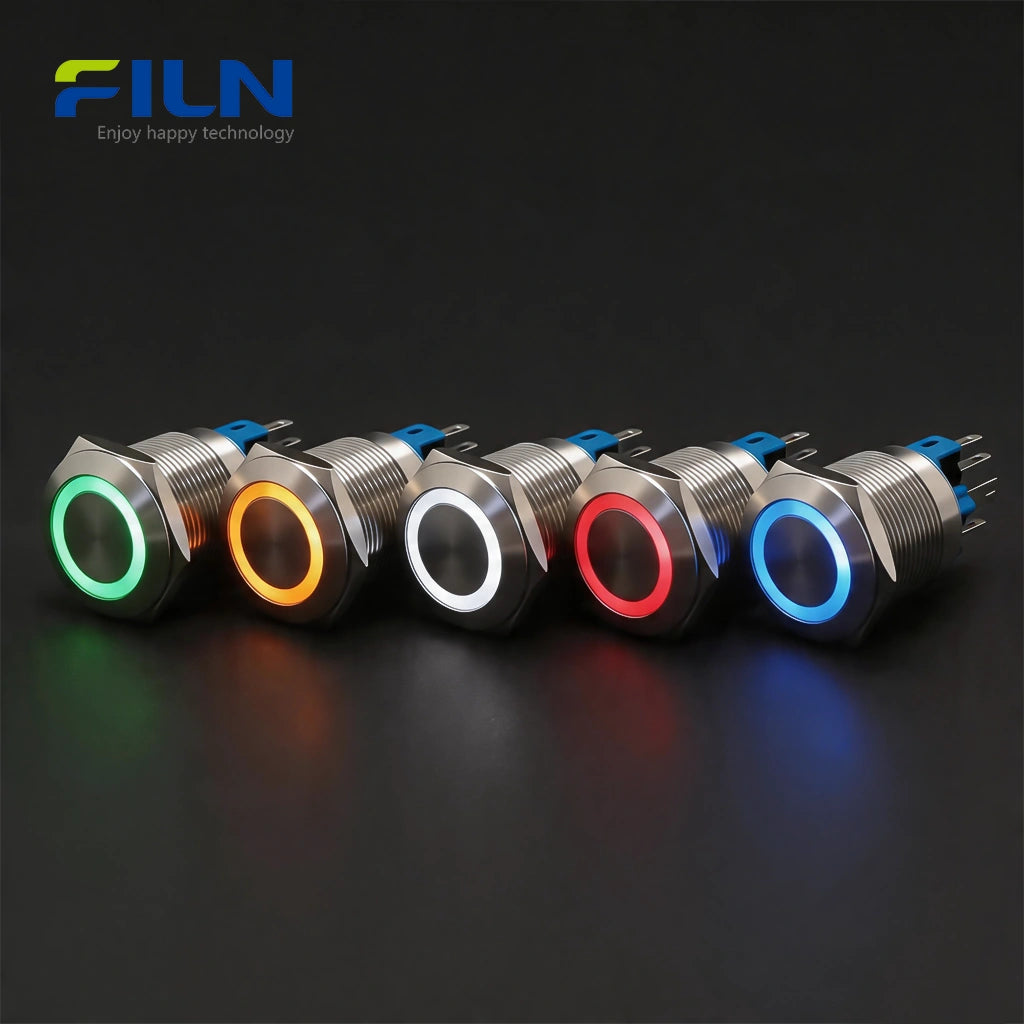

LED Indicator Advantages

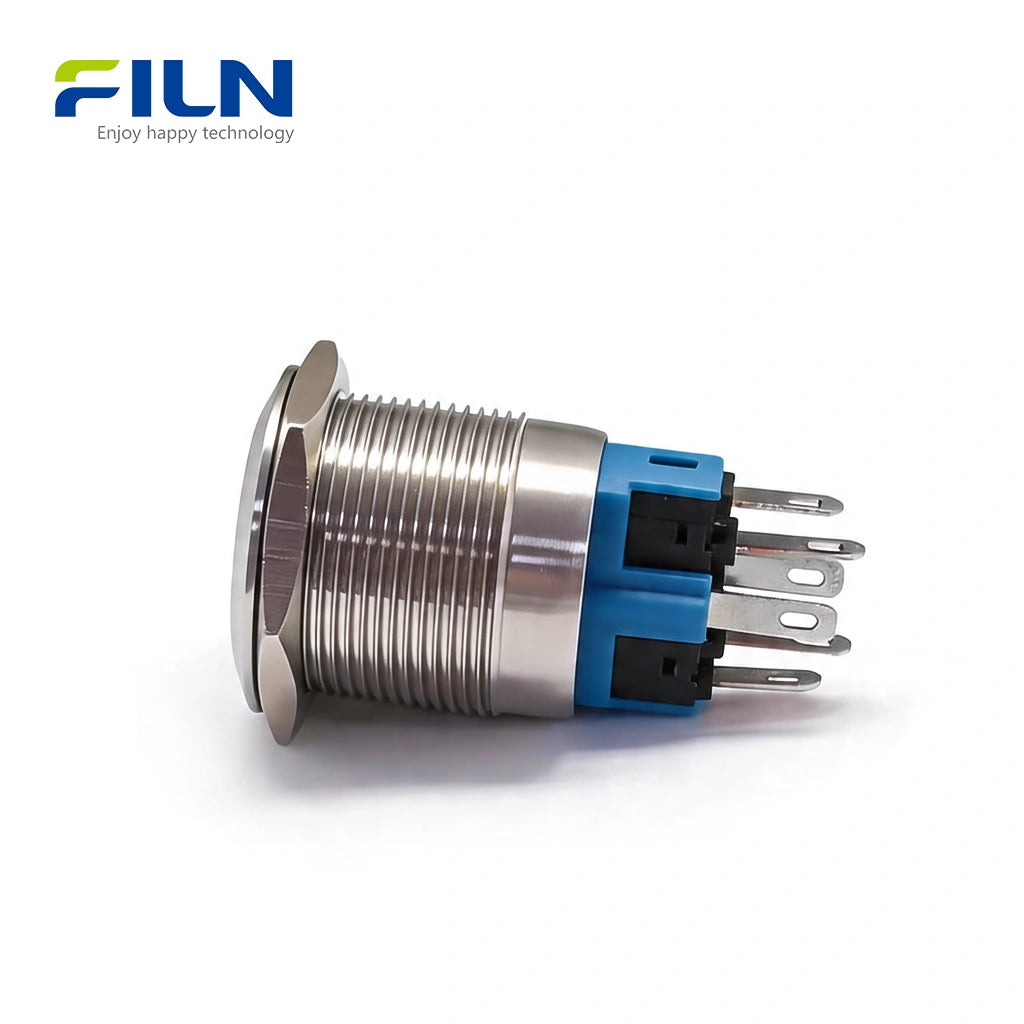

The ring LED design of the 22mm-panel-mount-momentary-control-switch provides essential benefits in industrial settings. In dark or high-stress environments, a glowing LED allows for immediate identification of control states. This reduces operational errors and improves overall machine safety.
- Red: Emergency stop or system failure status.
- Green: Normal operation or "Ready" state.
- Yellow: Caution, standby, or maintenance alert.
- Blue: Specific programmed function or system active.
- White: Power status indicator or high-brightness backlight.
Key Features
1. Industrial-Grade Protection
With IP65 and IK08 ratings, this switch is a perfect vandal-resistant-flat-head-push-switch. It is designed to handle high-impact environments and prevent water or dust ingress into the control panel.
2. Versatile 6-Pin Wiring

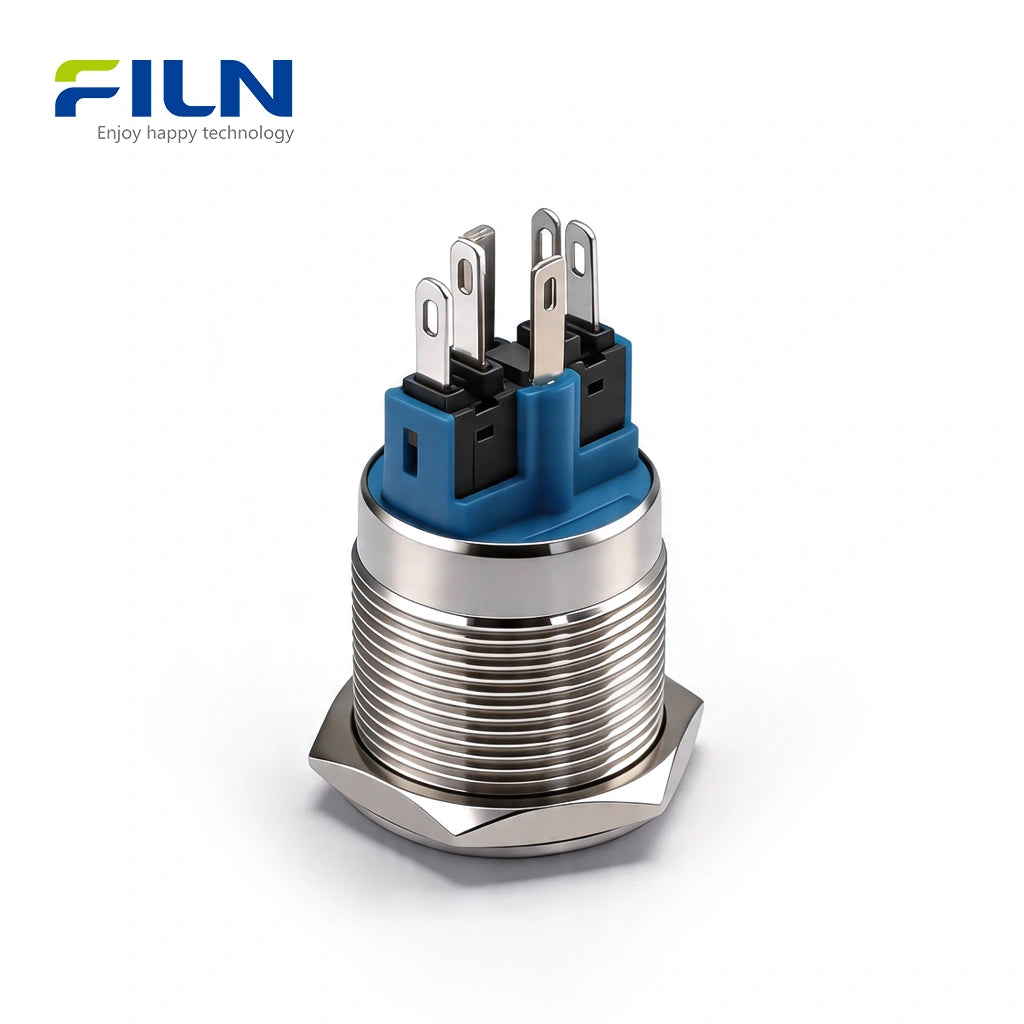

The 6-pin configuration allows for 1NO1NC (Normally Open/Normally Closed) circuits with independent LED power pins, making it a highly flexible 6-pin-momentary-push-button-with-led.
3. Stainless Steel Longevity

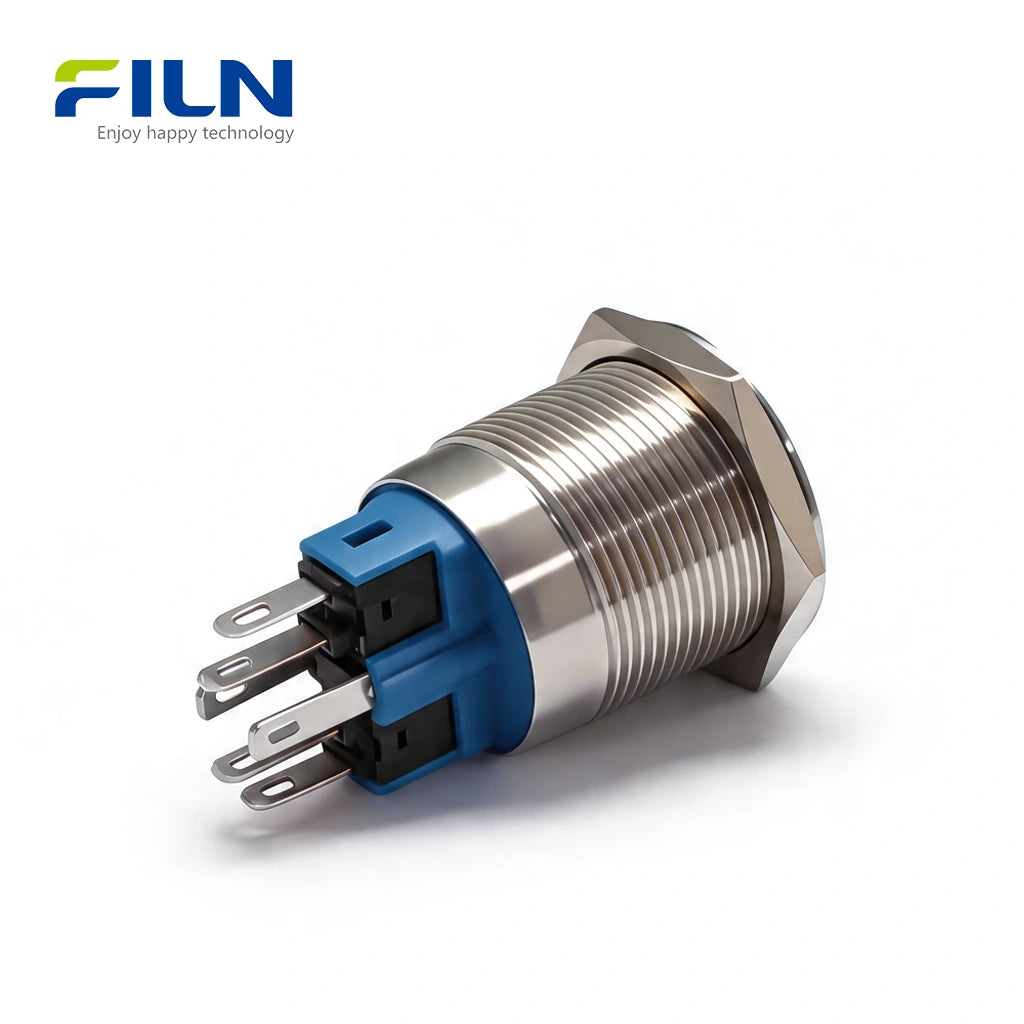

Crafted from 304 stainless steel, the shell prevents rust and chemical corrosion, ensuring a mechanical life of 500,000 cycles for the heavy-duty-22mm-electrical-panel-button.
Applications
The button push switch is universal in modern electrical design. Every electrical device requires a switch to manage circuit connectivity. This 22mm model is perfect for:
- Industrial CNC Machinery Panels
- Automation Systems & Control Cabinets
- Marine Control Consoles
- Security & Access Control Systems

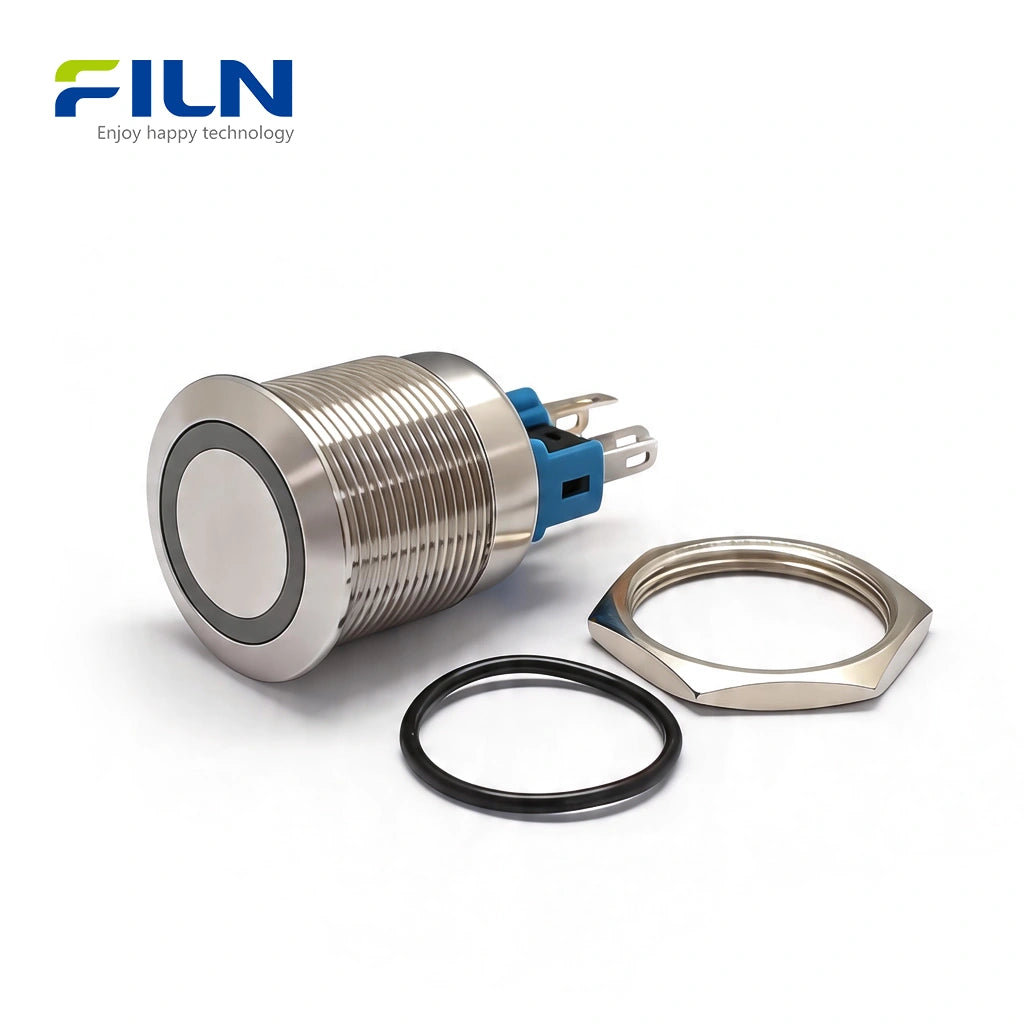

Installation Guide
- Drilling: Drill a 22mm diameter hole in your panel.
- Insertion: Place the button switch into the hole from the front side.
- Fixing: Screw the metal nut onto the back of the switch to secure it against the panel.
- Wiring: Connect the 6-pin terminals according to your circuit diagram.
Factory Direct Supply
FILN provides direct industrial solutions with no MOQ. Benefit from:
- ✅ Fast Shipping: Global logistics for urgent needs.
- ✅ Full Customization: Logo, voltage, and wire length.
- ✅ Certified Quality: CE, RoHS, and UL listed.
Official Site: www.filn.com
Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Does this 6-pin switch include LED terminals?
Yes, the 6-pin configuration includes 2 pins for the LED power and 4 pins for the 1NO1NC switch contacts.
2. Is the 22mm-stainless-steel-button-push-switch resistant to chemicals?
Yes, the 304 stainless steel shell provides excellent resistance to most industrial chemicals and saltwater.
3. Can I get a 110V version of this button push switch?
Absolutely. We offer 12V-24V as standard, but 110V-220V AC LED versions are always in stock.
4. What is the difference between momentary and latching?
Momentary resets once released (like a horn); latching stays in place until pressed again (like a light switch).
5. Can I order this 6-pin switch with pre-attached wires?
Yes, FILN offers custom wire lead soldering services for all terminal types.
6. Is this industrial-waterproof-22mm-latching-switch suitable for outdoor use?
Yes, the IP65 rating ensures it is protected against rain and dust.
7. What mounting hole size is required?
This switch requires a standard 22mm (7/8 inch) mounting hole.
8. Does the ring-illuminated-metal-push-button-12v require a resistor?
No, the resistor is built-in. You can connect it directly to your 12V power source.
9. Are the contacts silver or copper?
We use high-conductivity AgCdO12 silver contacts to ensure a long electrical life.
10. Does FILN provide technical drawings for the FLM22-FJ-2-EX000?
Yes, please contact our sales team at inquiry@cnylin.com.cn for CAD files and specifications.
