Button Switch Drawing
Product Overview

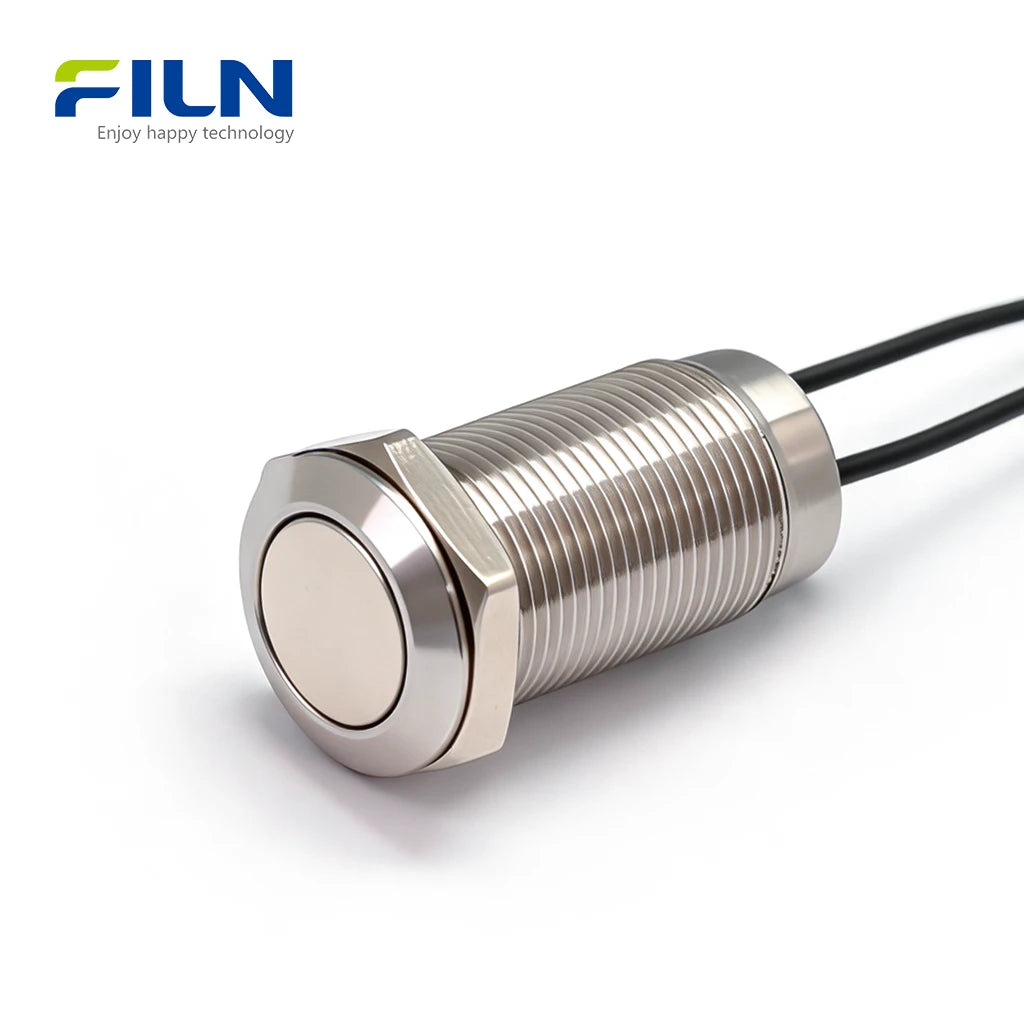

The small switches push button (Model: FLM12-FW-1) is a premium 12mm industrial control component designed for high-reliability circuit management. Manufactured by FILN, this 304 Stainless Steel switch features a sleek flat head design and an IP65 waterproof rating. With its pre-wired 15cm leads and specialized glue-sealing technology, it effectively prevents moisture and dust from entering the internal mechanism. This small switches push button is essential for any powered equipment requiring a robust interface for circuit breaking or functional triggering. Our factory ensures top-tier quality with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, making it the preferred choice for automation, marine, and medical industries.
Quick Specifications
| Model Number | FLM12-FW-1 | Mounting Size | 12mm / 0.47" |
| Switch Function | Momentary / Latching | Actuator Shape | Flat Head |
| LED Color | None (Non-illuminated) | Wiring Method | Pre-wired (15cm / 2-Wires) |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC | Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) | Insulation Resistance | ≥ 1000MΩ |
| Contact Resistance | < 50mΩ | Dielectric Strength | 1800V |
| LED Indicator (If applicable) | 3V - 220V (< 20mA) | Certification | ISO9001, CE, RoHS, UL, SGS |
Component Materials
| Actuator (Button) | 304 Stainless Steel / 6063 Aluminum Alloy |
| Shell/Sleeve | H59 Brass / 304 Stainless Steel / 6063 Aluminum Alloy |
| Light Guide (LED models) | PC Plastic |
| Pins/Terminals | H62 Copper Alloy |
| Base | PA66+GF20% Flame Retardant Nylon |
| Contact Points | Silver Contact AgCdO12 |
| Sealing | SIL Silicone Waterproof Ring & Glue Filling |
General Characteristics
| Operating Temperature | -25°C to +85°C |
| Protection Level | IP65 (Head), IK08 |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles (3A) / 50,000 Cycles (5A) |
Key Features
1. Superior Protection & Reliability: Unlike standard IP40 plastic switches, this small switches push button features an IP65 & IK08 rating. Its rugged 304 stainless steel construction ensures it survives impacts and harsh chemical exposure.
2. High Current Capacity: While many 12mm buttons are limited to 2A, the FLM12-FW-1 supports up to 5A 250V, allowing for direct control of power-hungry equipment without needing extra relays.
3. Advanced Sealing Technology: The tail is sealed with epoxy glue, creating a permanent moisture barrier. This prevents condensation from entering the switch body, extending electrical life significantly in humid conditions.
4. Effortless Wiring: Pre-wired with 15cm high-quality copper leads, this switch eliminates the need for precision soldering on-site, drastically reducing assembly time for manufacturers.
5. Space-Saving Design: With a mounting diameter of just 12mm, it is the perfect solution for compact control panels, medical instruments, and handheld industrial tools.
Industry Applications
- Industrial control panels
- CNC precision machinery
- Automation sensor triggers
- Electrical cabinets & enclosures
- Marine & nautical equipment
- Professional medical devices
Installation Guide
- Panel Preparation: Drill a 12mm diameter hole in the desired position on your control panel.
- Insertion: Pass the wires through the hole and insert the switch actuator from the front side of the panel.
- Securing: Slide the metal hex nut over the wires from the back of the panel and screw it onto the threaded body. Tighten firmly to ensure the waterproof seal is compressed.
- Wiring: Connect the two pre-wired leads to your circuit. Since this is a non-polarized switch, wiring is simple and efficient.
Comparison of Terminal Types
| Terminal Type | Connection Method | Pros | Best For |
|---|---|---|---|
| Pre-wired (Pre-assembled) | Direct Wire Connection | Waterproof, zero soldering, saves time. | Outdoor/Marine equipment. |
| Pin Terminal | Soldering or Sockets | Low profile, replaceable wiring. | Internal PCBs. |
| Screw Terminal | Screw Clamping | Strong mechanical bond, no tools. | Heavy machinery vibration. |
Industry Knowledge
What is a small switches push button?
A small switches push button is a compact electrical control interface used to open or close a circuit manually. In industrial settings, these provide the "Start/Stop" logic for complex machines. The 12mm size is a global standard for space-saving panels where high durability is required.
Latching vs. Momentary Contrast:
| Feature | Momentary | Latching |
|---|---|---|
| Behavior | Active only while pressed. | Stays in "ON" state until pressed again. |
| Common Use | Horns, doorbells, PC power. | Main power, fog lights. |
Understanding LED Color Meanings:
While this model is non-lighted, FILN offers illuminated versions. Here is what the standard colors signify in industrial design:
- Red: Emergency stop or critical failure.
- Green: Normal operation or system ready.
- Blue: Specific instruction or mandatory operator action.
- Yellow/Amber: Warning or abnormal condition.
- White: Power status or neutral system information.
Factory Direct Supply - FILN
As a leading small switches push button manufacturer, FILN offers unmatched flexibility for B2B procurement:
- No MOQ: Support for small batch testing and prototyping.
- Global Logistics: Fast international shipping directly from our facility.
- Full Certification: All products meet CE, UL, and RoHS standards.
- Customization: We support custom wire lengths, connectors, and voltage ratings.
FILN Official Website: www.filn.com
Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the mounting hole size for this switch?
The required hole diameter is 12mm (approximately 0.47 inches).
2. Can I use this small switches push button outdoors?
Yes, the IP65 rating and glue-sealed tail make it highly resistant to rain and moisture.
3. How long are the pre-wired leads?
The standard length is 15cm, but FILN can customize this based on your requirements.
4. Does this switch stay down when pressed?
The FLM12-FW-1 is available in both momentary (returns after press) and latching (stays down) versions. Please specify your preference.
5. What material is used for the shell?
This model uses high-grade 304 Stainless Steel for maximum corrosion resistance.
6. Is it possible to get this switch with a custom connector?
Yes, we can pre-install JST, Molex, or other connectors to match your wiring harness.
7. What is the maximum voltage this button can handle?
It is rated for up to 250V AC, making it suitable for both DC circuits and household AC systems.
8. Does the silver contact really matter?
Yes, silver contacts reduce contact resistance (<50mΩ) and prevent arcing, which greatly extends the switch's life.
9. How do I clean the metal surface?
The 304 stainless steel can be cleaned with standard industrial alcohol or mild soap; it is highly resistant to staining.
10. Can I get a sample before a bulk order?
Yes, FILN provides free samples for quality verification to our B2B partners.
