Button Switch Drawing
Product Overview

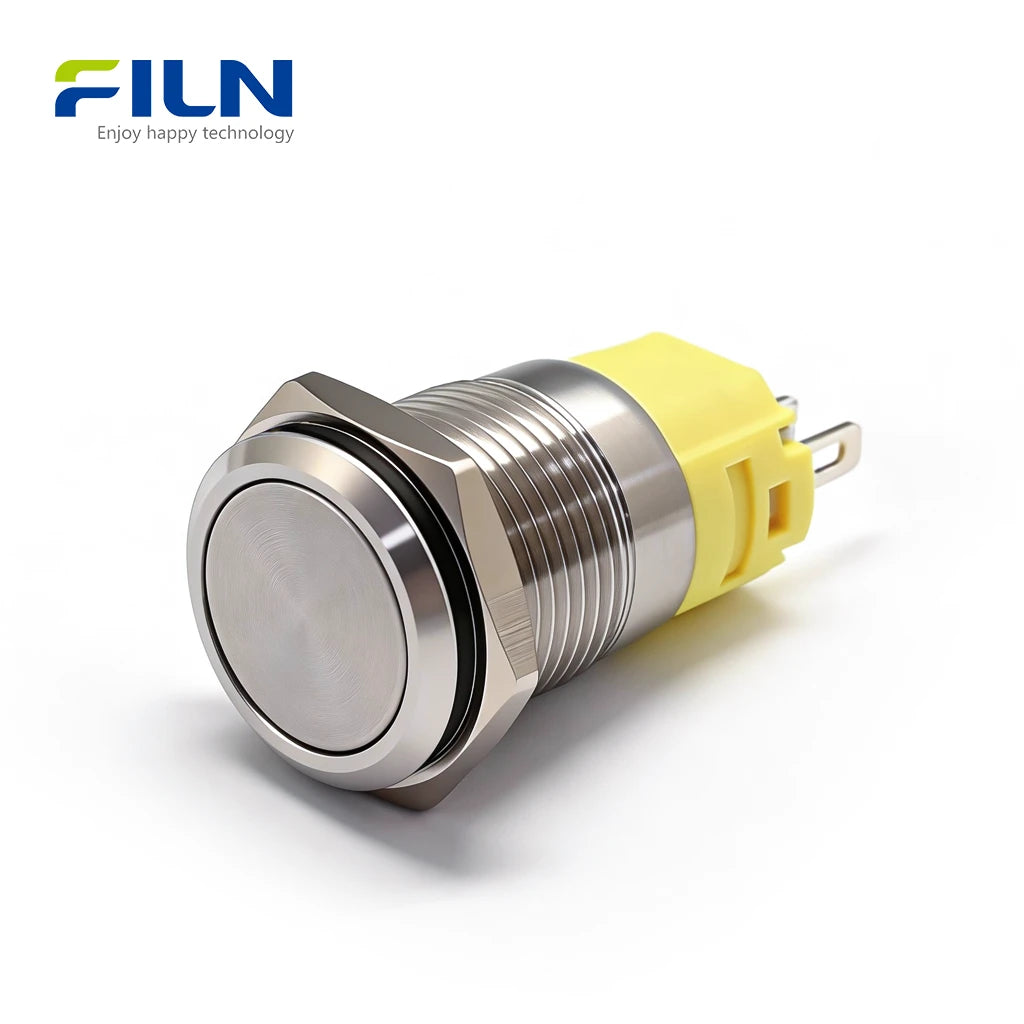

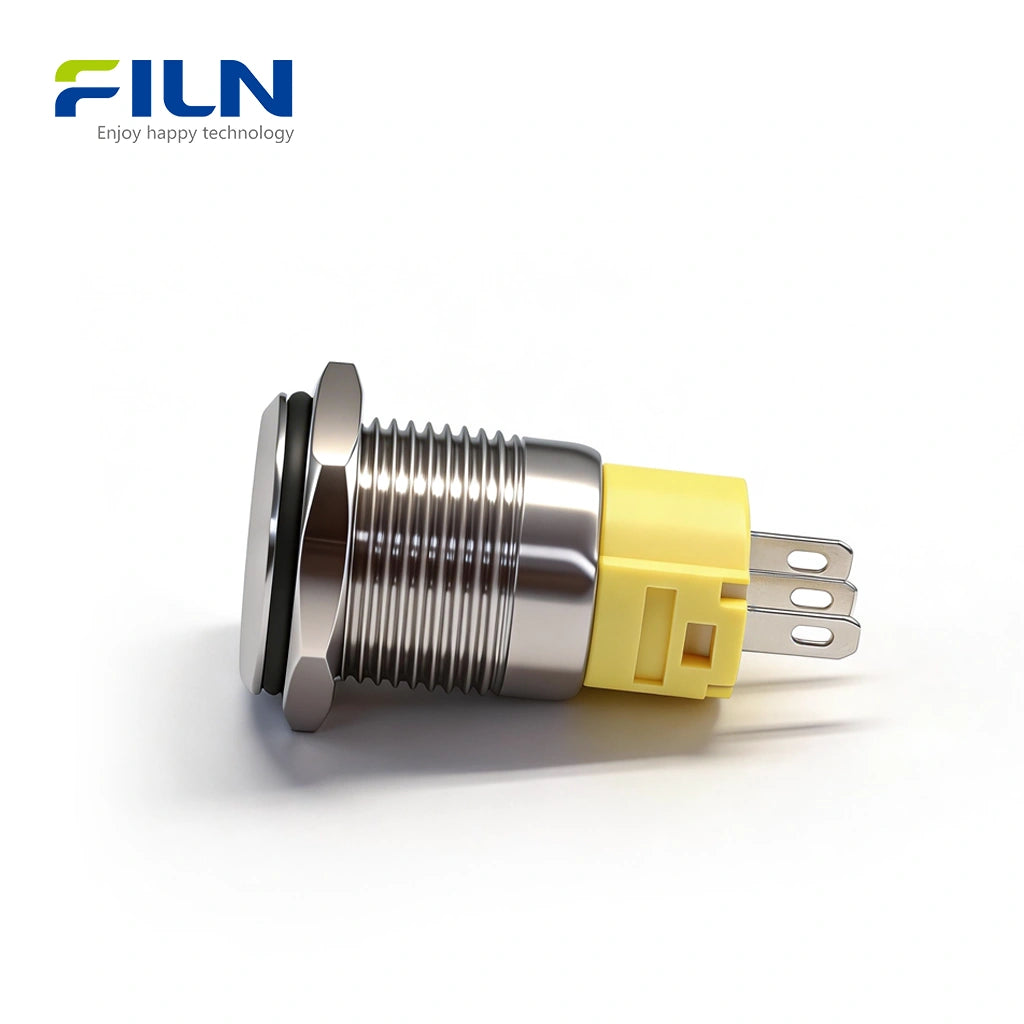

The FLM16-FJ-1-X is a high-performance round push button switch specifically engineered for industrial durability. This 16mm metal switch is available in both sleek silver stainless steel and elegant black anodized aluminum shells. Featuring a non-illuminated design, it focuses on pure tactile reliability and long-term stability. As a professional waterproof metal switch, it carries certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you require a momentary round switch for rapid triggering or a latching push button switch for circuit control, FILN provides the precision your equipment demands. This switch is widely used in industrial control panels, automation systems, and medical devices where a robust, high-quality stainless steel button is essential.
Quick Specifications
| Model Number | FLM16-FJ-1-X |
| Mounting Hole Size | 16mm (0.63 inch) |
| Function | Latching / Momentary |
| LED Lighting | None (Non-illuminated) |

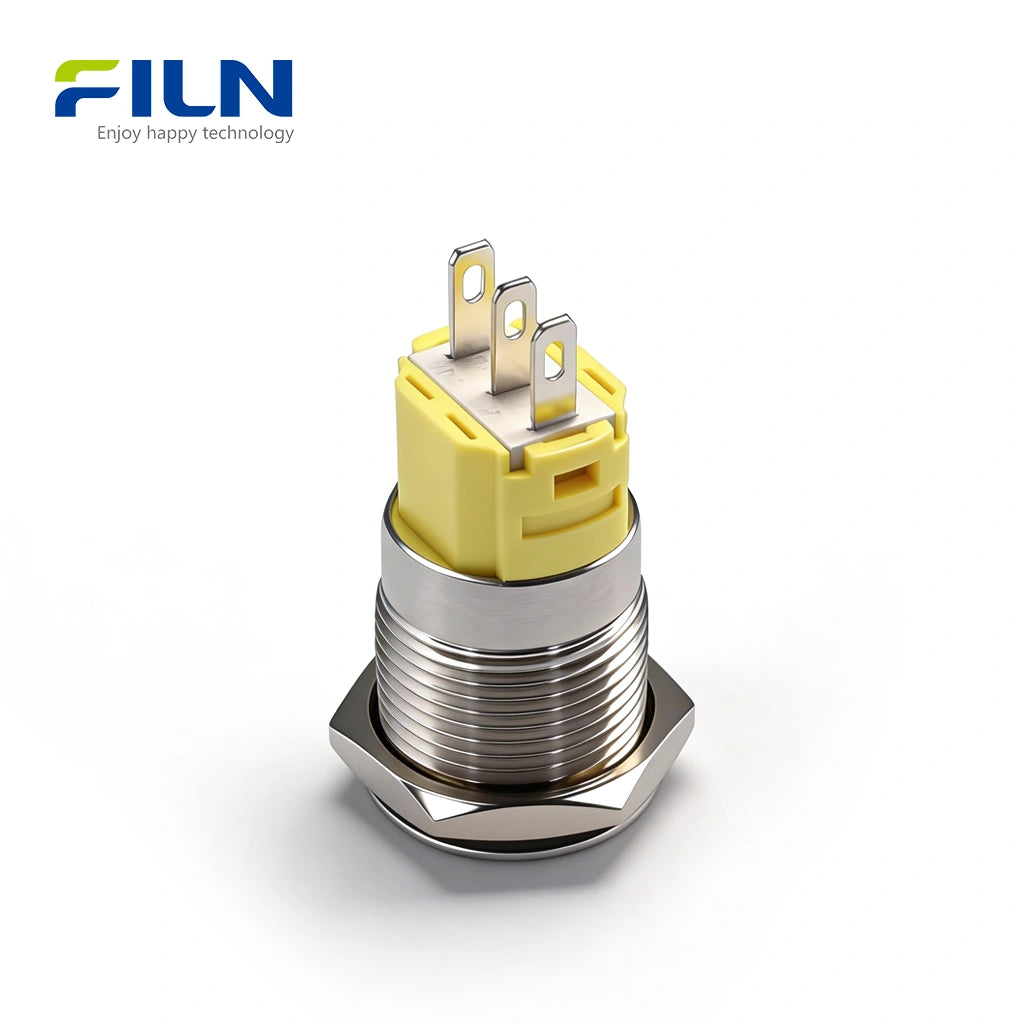

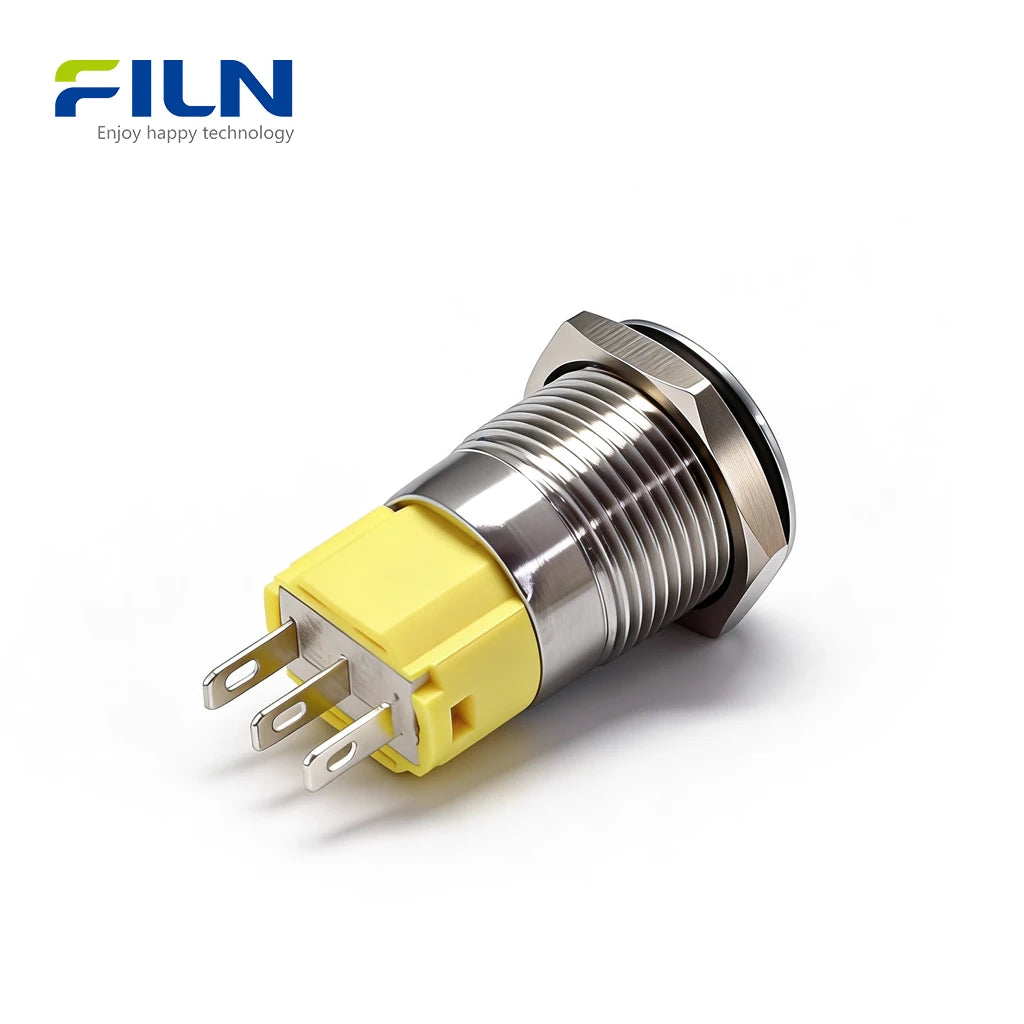

| Terminal Type | 3-PIN Pin Terminal (2.8x0.5mm) |
| Shell Material | 304 Stainless Steel / Black Aluminum |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC |
| Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) |
| Insulation Withstand | 1800V |
| Contact Resistance | < 50mΩ |
| Insulation Resistance | ≥ 1000MΩ |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Button | 304 Stainless Steel / 6063 Aluminum Alloy |
| Shell Sleeve | H59 Brass / 304 Stainless Steel / 6063 Aluminum Alloy |
| Pins | H62 Copper Alloy |
| Base | PA66+GF20% Flame Retardant Nylon |
| Contacts | Silver Contact AgCdO12 |
| Waterproof Ring | SIL Silicone |
General Characteristics
| Operating Temp | -25°C to +85°C |
| Protection Level | IP65, IK08 |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles (3A) / 50,000 Cycles (5A) |
Comparison: Pin vs. Screw vs. Pre-wired
| Type | Advantages | Best Use Case |
|---|---|---|
| Pin Terminal | Compact, supports quick-connect sockets, fast assembly. | PCB mounting, high-volume production. |
| Screw Terminal | No soldering required, high vibration resistance. | Heavy machinery, field maintenance. |
| Pre-wired | Ready to use, perfect waterproof sealing at the back. | DIY projects, outdoor equipment. |
💡 Add to Cart: Quick-Connect Wire Harness Socket
Key Features
1. Durability: IP65 and IK08 ratings ensure the switch survives harsh weather and mechanical impacts.
2. 5A Capacity: High-current rating (5A) allows for direct control of equipment without intermediate relays.
3. Premium Contacts: Silver contacts (AgCdO12) provide excellent conductivity and reduce arc erosion.
4. Installation Ease: Standard 2.8mm pins and threaded mounting make integration seamless for any panel.
Applications
The round push button switch is an essential component for controlling power flow in countless devices. Whether as a primary power switch or a functional trigger, it is found in Industrial control panels, CNC machines, Marine systems, and Electrical cabinets.
Installation Guide
- Prepare Panel: Cut a 16mm hole in the mounting panel.
- Insert Switch: Place the switch into the hole from the front.
- Secure: Tighten the metal hex nut from the back to fix it to the panel.
- Wiring: Connect the 5-PIN terminals to your circuit.
3-PIN Push Button Switch Wiring Guide
A 3-PIN switch consists of a Common (C), Normally Open (NO), and Normally Closed (NC) terminal. Use these connections to control whether a device turns on or off when pressed.
- C (Common): Power input terminal.
- NO (Normally Open): Connects only when pressed.
- NC (Normally Closed): Disconnects when pressed.
Method 1: Normally Open (NO) Connection
Logic: Device stays OFF by default and turns ON only when pressed.
- Wiring: Power (+) to C, Device (+) to NO.
- Applications: Door bells, PC power buttons, car horns, momentary starters.
Figure 1: Normally Open (NO) Wiring Diagram
Method 2: Normally Closed (NC) Connection
Logic: Device stays ON by default and turns OFF only when pressed.
- Wiring: Power (+) to C, Device (+) to NC.
- Applications: Emergency stops, limit switches, fridge door light control.
Figure 2: Normally Closed (NC) Wiring Diagram
| Terminals | Default | Action (Pressed) |
|---|---|---|
| C + NO | Device OFF | Device ON |
| C + NC | Device ON | Device OFF |
Industry Knowledge
The Importance of the Round Push Button Switch
In industrial automation, the 16mm round button is the "face" of the machine. Its round ergonomics allow for comfortable use, while the metal shell provides a premium aesthetic and tactile feedback that plastic alternatives cannot match.
Comparison: Latching vs. Momentary
| Type | Operation | Example |
|---|---|---|
| Momentary | Resets when released | Horn, Starter button |
| Latching | Locks in place (On/Off) | Main power switch |
FILN Factory Direct
We provide MOQ-free orders, fast lead times, and full customization including wire length and custom laser etching.
Request Free SampleOfficial Website: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the benefit of a 16mm round push button switch?
A: It offers a compact footprint (16mm) with high durability (IK08) and a professional appearance for panel mounting.
Q2: Can I get this in a different color?

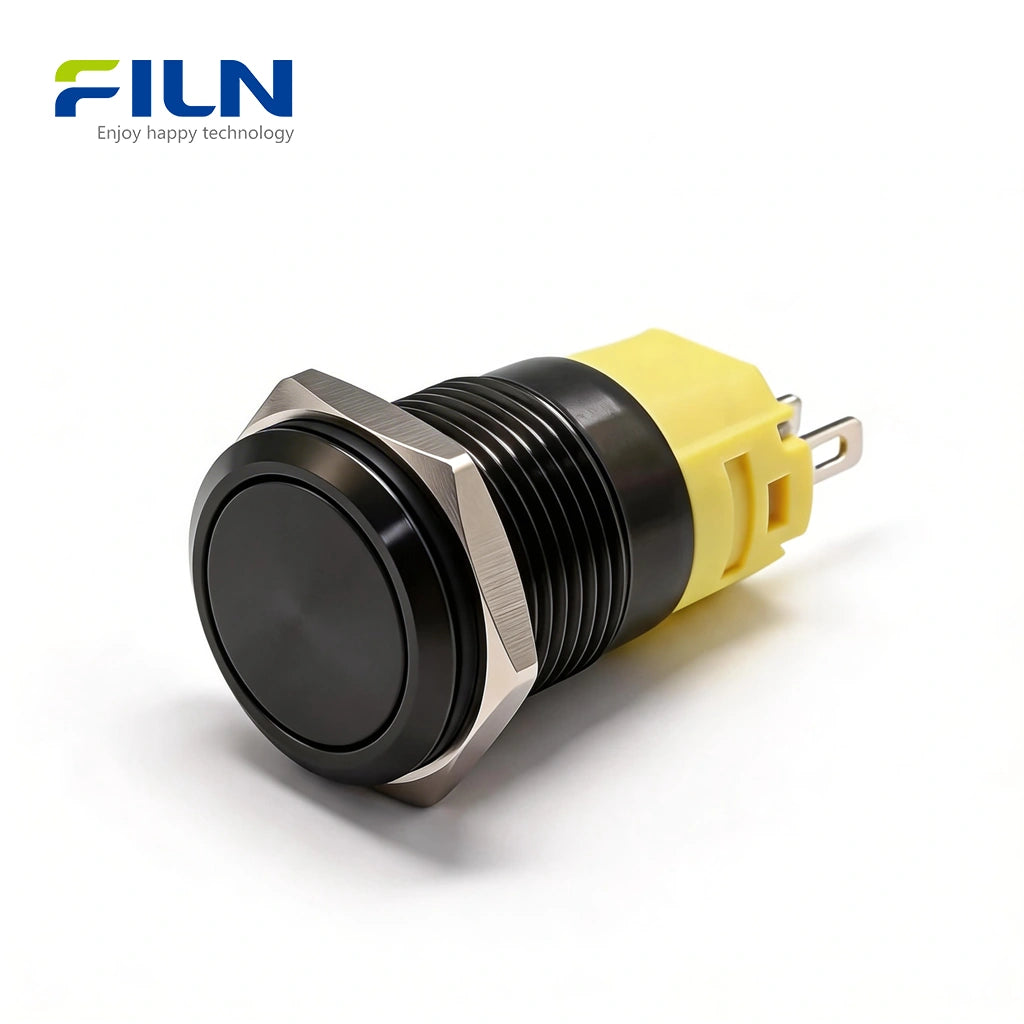

A: Yes, we offer standard silver (Stainless Steel) and black (Anodized Aluminum) finishes.
Q3: Is the switch waterproof?
A: Yes, it features an IP65 rating, making it splash-proof and dust-proof[cite: 39].
Q4: Do I need a socket for the pins?
A: While you can solder the pins, using our quick-connect harness makes maintenance much easier.
Q5: What are the LED color meanings (if ordered)?
A: Red = Stop/Danger, Green = Go/Normal, Yellow = Caution, Blue = Info, White = Power.
Q6: Is it possible to use this with 12V?
A: Yes, the switch contacts are rated up to 250V AC/36V DC, making 12V operation very safe.
Q7: What is the mechanical life?
A: It is designed to last over 500,000 cycles for momentary versions.
Q8: Can I customize the wire length?
A: Yes, FILN factory supports full wire and connector customization.
Q9: Is it resistant to impact?
A: Yes, it has an IK08 rating, meaning it can withstand high mechanical impact.
Q10: Does it come with a mounting nut?

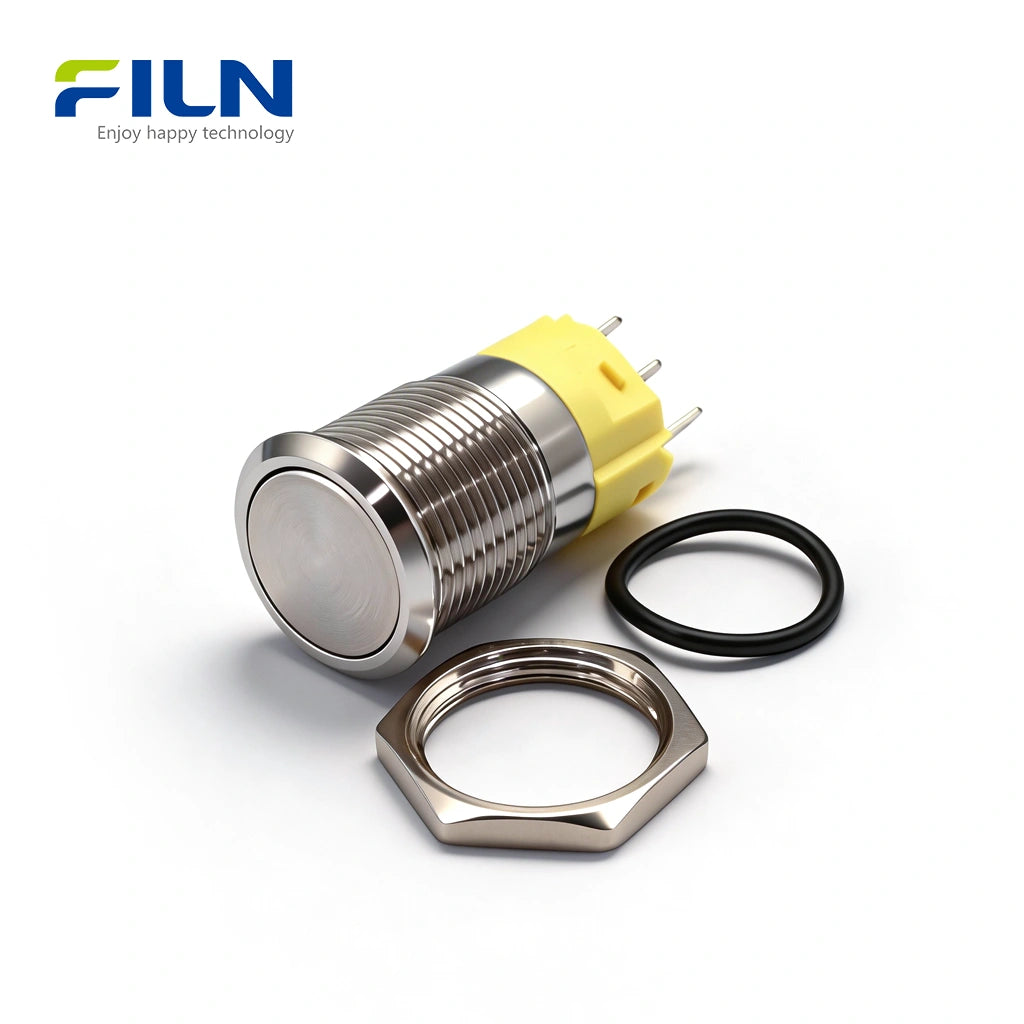

A: Yes, each switch includes a metal mounting nut and a silicone waterproof gasket.
