Rocker Switch Drawing
What are Rocker Switches 12V?
A rocker switch 12v is an electrical control device designed to open or close a circuit by a rocking motion. Specifically, the 12V designation refers to its optimized internal LED illumination system and contact rating for low-voltage DC applications, though high-quality models like the FL3-KCD4-030-21 are engineered to handle up to 250VAC. These switches serve as a standard interface for power management, enabling users to manually bridge or interrupt electricity flow to industrial machines or household appliances with high reliability.
Product Overview

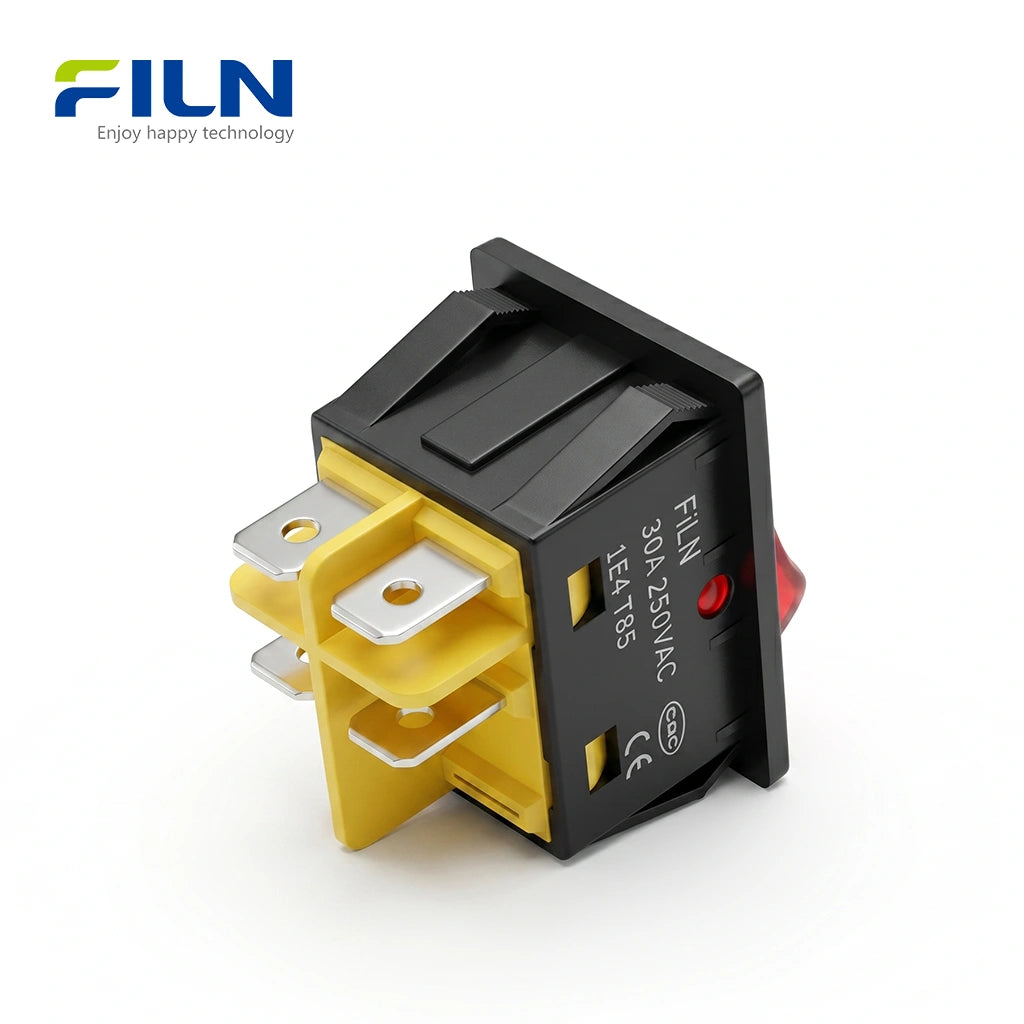

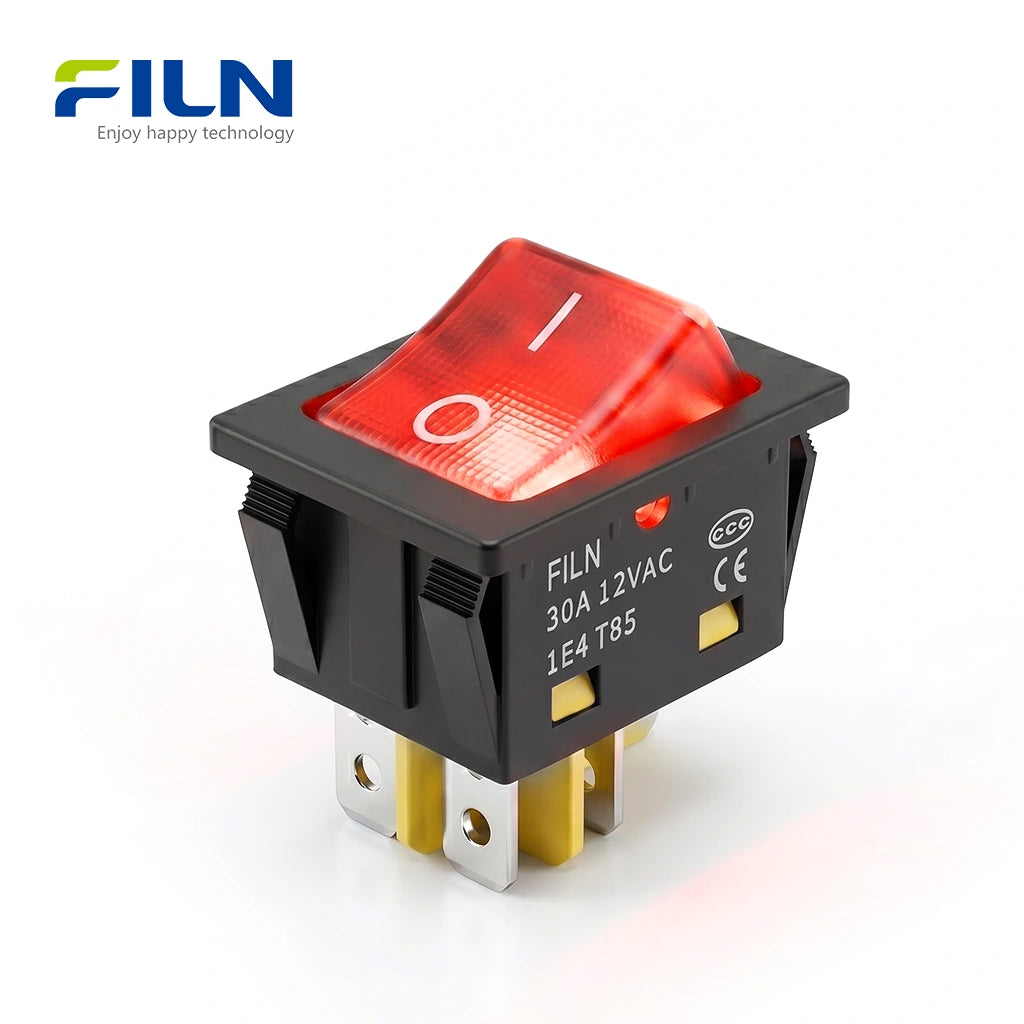

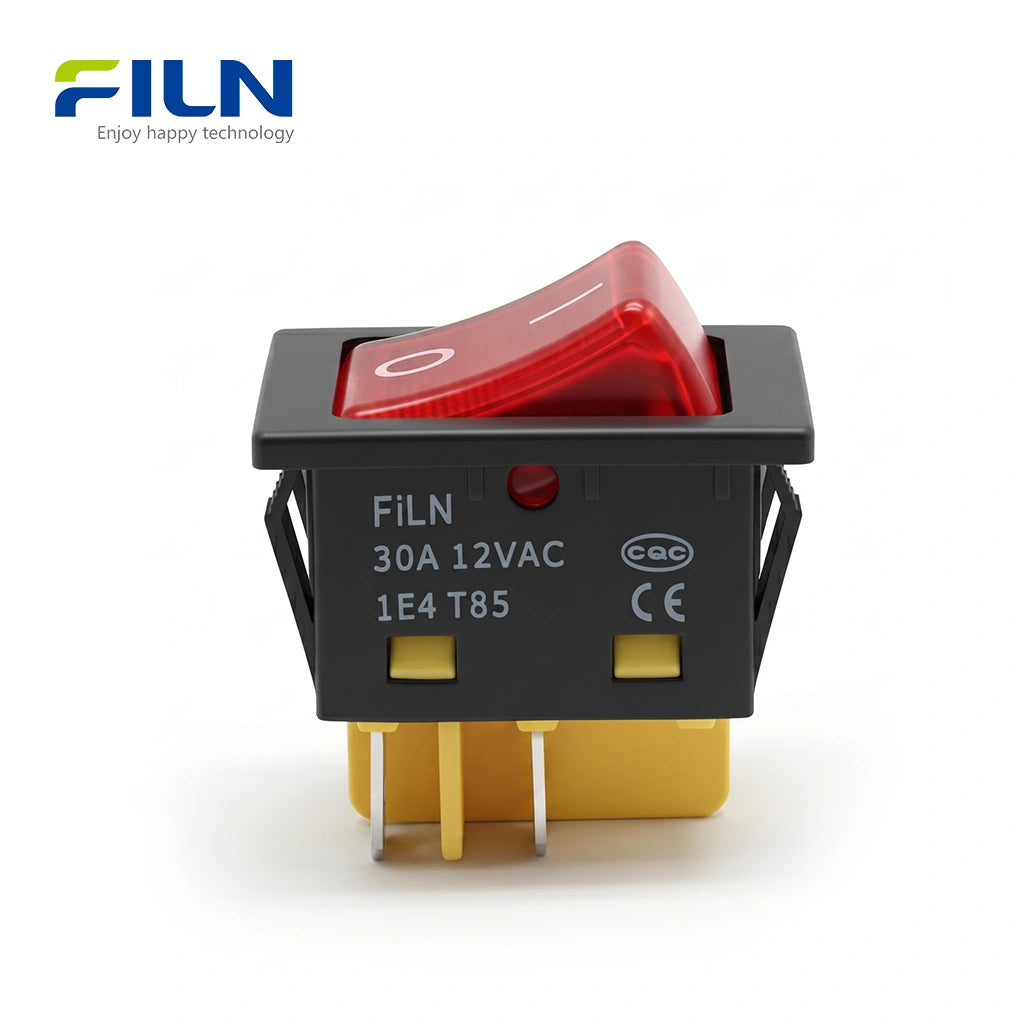

The FL3-KCD4-030-21 is a high-performance rocker switches 12v solution designed for heavy-duty industrial environments. This KCD4 rectangle rocker switch features a robust 4-pin design and 30A high current capacity. Certified with ISO9001, CE, VDE, RoHS, SGS, and UL, it ensures safety across global markets. The split-type construction allows for excellent thermal dissipation, making it ideal for high-current machinery and power-hungry appliances. Whether utilized in snap-in rocker switch installation or custom control panels, its IP65 potential with a cover ensures longevity in diverse industrial-waterproof-rocker-switch-ip65 applications.
Quick Specifications
| Model | FL3-KCD4-030-21 |
|---|---|
| Mounting Size | 30x22mm (1.18x0.87 inch) |
| Function | ON-OFF |

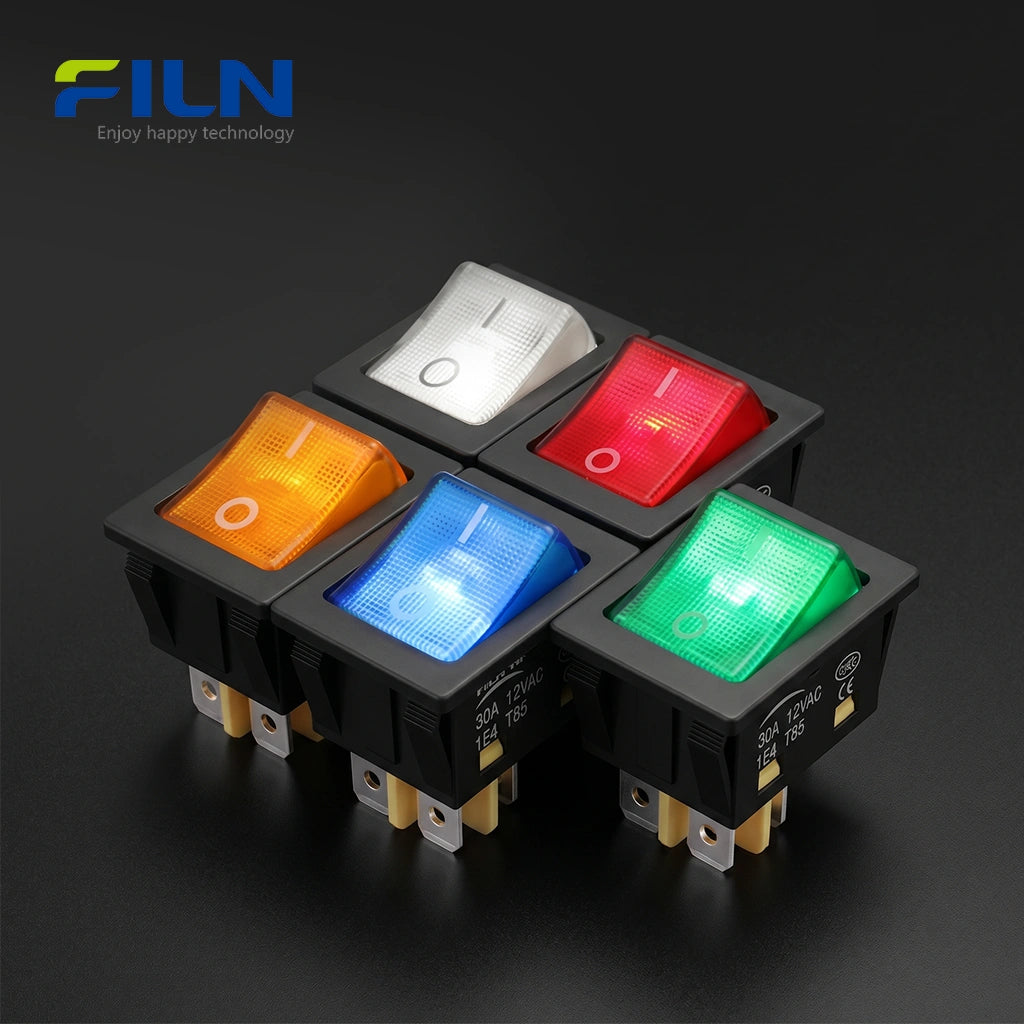

| LED Color | Red, Green, Yellow, Blue, White, or No Light |
| Appearance | Rectangle / KCD4 Style |

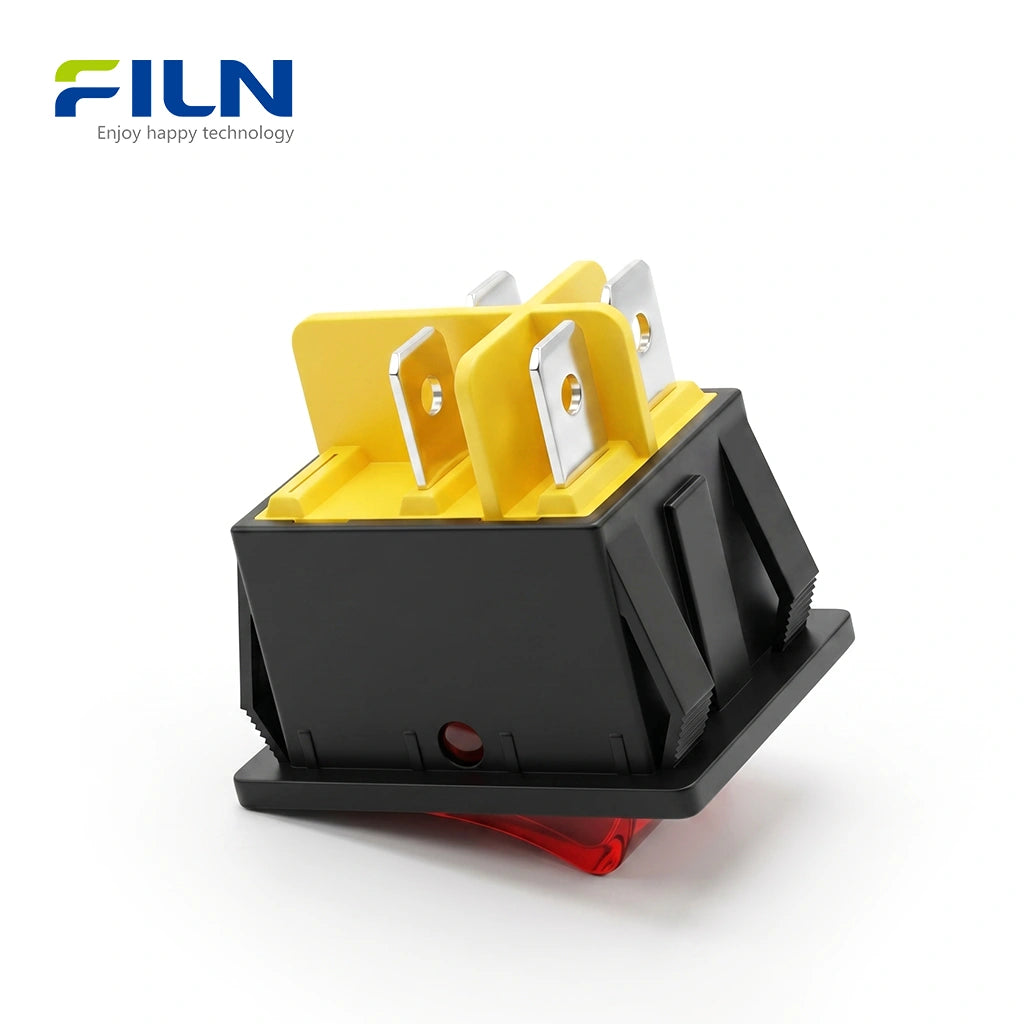

| Wiring Method | 4-Pin Spade Terminals |
Performance Parameters
| Function Type | ON-OFF / ON-ON / (ON)-OFF / ON-(OFF) / ON-(ON) |
|---|---|
| Rated Voltage | 30A 250VAC | 18(12)A 125VAC |
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ/500VDC |
| Dielectric Strength | 1500VAC/5mA 60s |
| Electrical Life | 10,000 cycles |
| Operating Temperature | -40°C to +125°C |
| Certifications | UL, CE, VDE, RoHS, SGS, ISO9001 |
Component Materials
| Part Name | Material |
| Transparent Sheet / Light Guide | Polycarbonate (PC) |
| Housing / Up Base | High-grade ABS |
| Bottom Base | PA66 (Nylon) |
| Pin / Spring Board | Brass H62 |
| Contact Material | Silver Alloy (AgCdO12) |
| Lamp Component | Industrial Grade LED |
Technical Specifications & Durability
| Test Item | Test Conditions | Requirement |
| Insulation Resistance | 500VDC for 60±5S | ≥100MΩ |
| Terminal Strength | 80N Static load for 60s | No damage, functional |
| Welding Heat Resistance | 260±5℃ for 3±1s | No body deformation |
| Mechanical Life | 60 operations/min (No load) | 20,000 Cycles |
Industrial & Commercial Applications
- Appliances: Coffee machines, air fryers, and water dispensers.
- Office Equipment: Printers, copiers, and PDU power management.
- Industrial Control: Distribution boxes, testing instruments, and factory machinery.
- Medical Devices: Centrifuges and ultrasound diagnostic equipment.
- Transportation: RV lighting, marine panels, and engineering vehicle controls.
Installation Guide
- Create a rectangular cutout on the panel (30x22mm).
- Insert the rocker switch through the top of the panel.
- Apply pressure until the dual side clips snap securely into place.
- Connect the 4-pin terminals using standard female spade connectors.
- Test the rocker motion and LED status under load.
Complete Rocker Switch Wiring Diagram and Connection Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Industry Knowledge: How Rocker Switches Work?
Rocker switches operate using a spring-loaded fulcrum mechanism. When the actuator is toggled, a moving contact (typically made of Silver Alloy AgCdO12) pivots to bridge two stationary terminals. The rectangle-on-off-rocker-switch-30x22mm design is specifically optimized for high-current throughput, ensuring that the contacts do not weld together under significant electrical arcing. This makes them safer for motors and inductive loads in industrial systems compared to smaller toggle switches.
Factory Direct Supply
FILN is a premier manufacturer specializing in kcd4-4-pin-rocker-switch-30a solutions. We offer:
- ✅ No MOQ (Minimum Order Quantity)
- ✅ Fast Lead Time & Global Shipping
- ✅ Comprehensive Customization (Voltage, Wires, Connectors)
FILN Official: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the difference between 4-pin and 2-pin rocker switches?
A 4-pin switch is a Double Pole (DPST) design allowing simultaneous control of two lines (Hot and Neutral), whereas a 2-pin is Single Pole (SPST).
2. Can I use these rocker switches 12v for 220V AC?
Yes, the FL3-KCD4-030-21 is rated up to 30A 250VAC, making it extremely versatile for both DC and AC systems.
3. How do I achieve an industrial-waterproof-rocker-switch-ip65 rating?
By installing the optional silicone waterproof cover over the rectangular actuator, the assembly reaches IP65 protection.

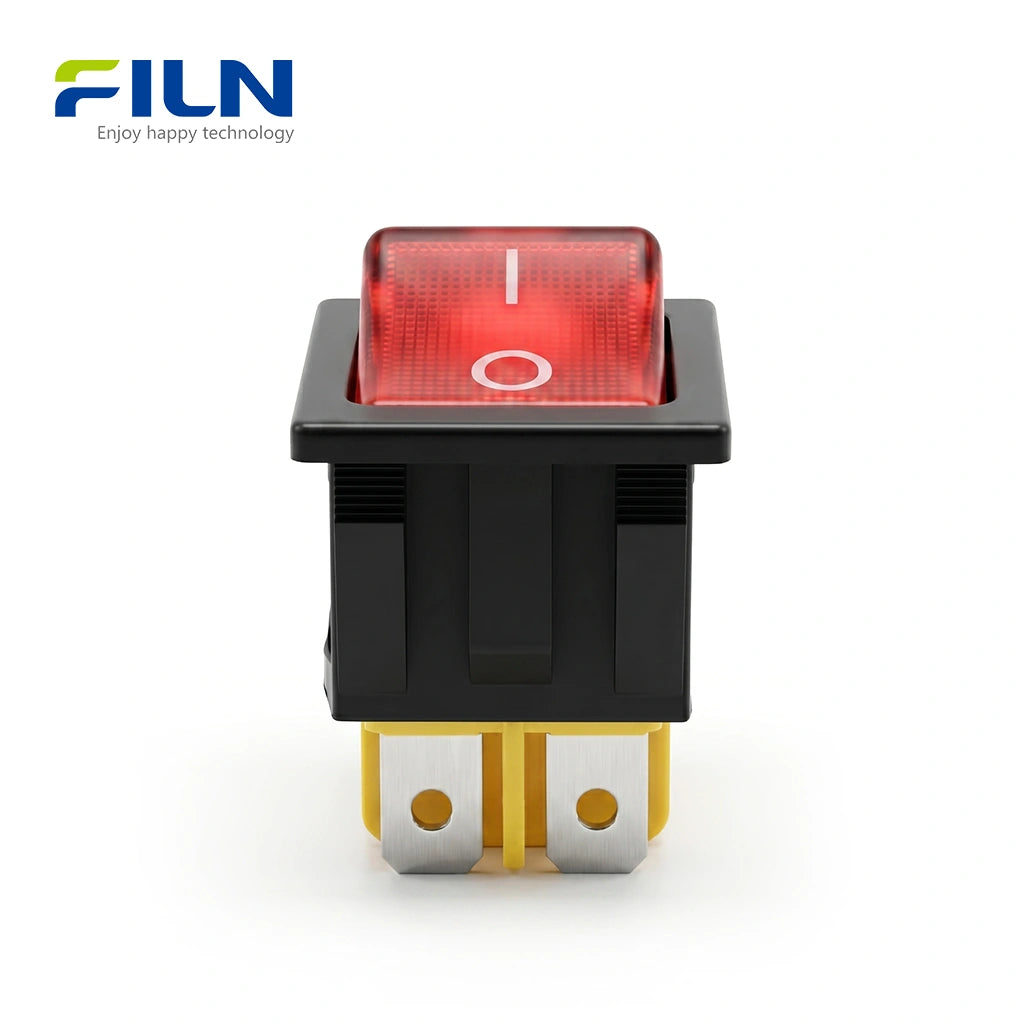

4. What is the benefit of a red-led-rocker-switch-250vac?
The LED provides clear visual confirmation in dark environments, improving operator safety and equipment monitoring.
5. Is there a minimum order for custom boat-rocker-switch-replacement-kcd4?
No, FILN supports industrial clients with no MOQ, allowing for small-batch testing and replacement orders.
6. What mounting hole size is required?
A standard 30x22mm cutout is needed for the KCD4 series.
7. Are the contacts made of silver?
Yes, we use AgCdO12 silver contacts for superior conductivity and heat resistance.
8. Does the switch handle high current?
Absolutely, it is rated for 30A, which is higher than typical 10A-16A consumer switches.
9. How long does the switch last?
It has an electrical life of at least 10,000 cycles and a mechanical life of 20,000 cycles.
10. Does FILN provide custom wiring?
Yes, we provide filn-custom-rocker-switch-factory services including pre-soldered wires and specific connectors.
