Product Overview

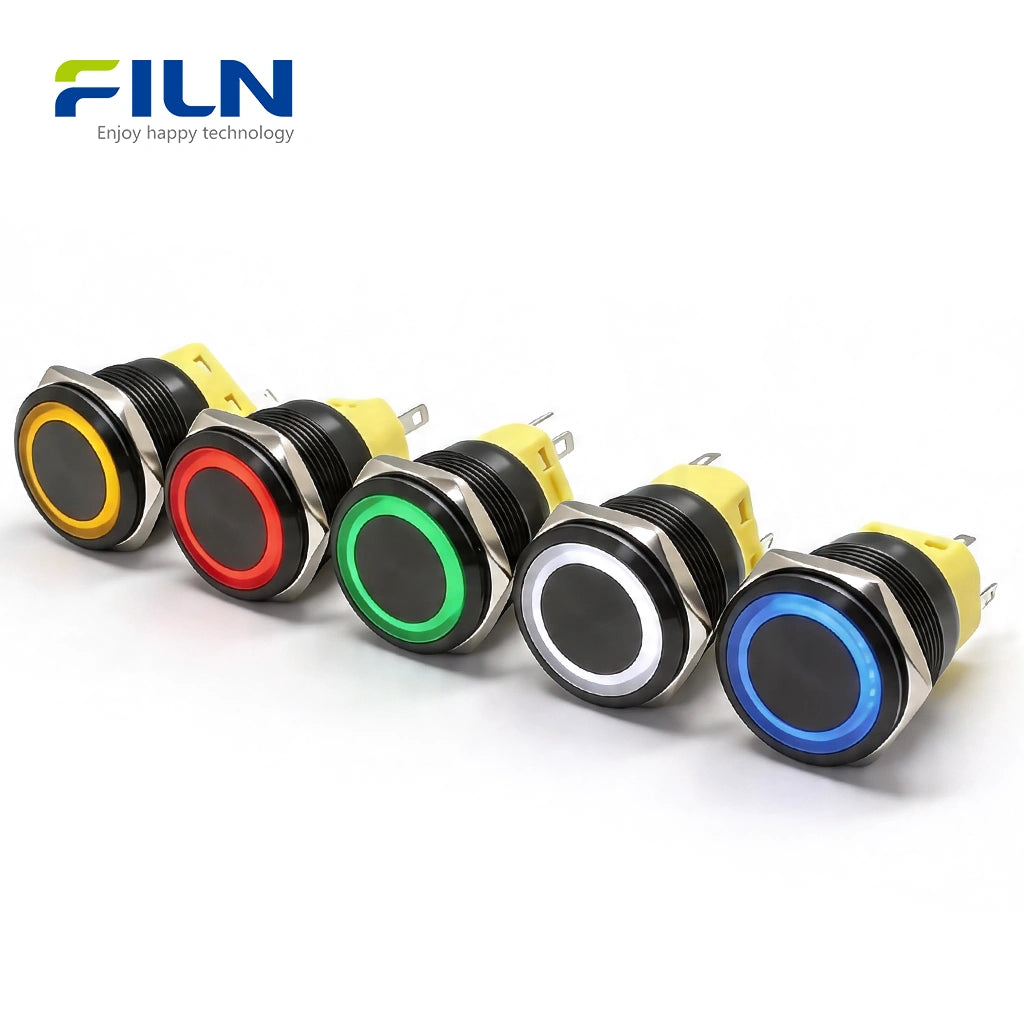

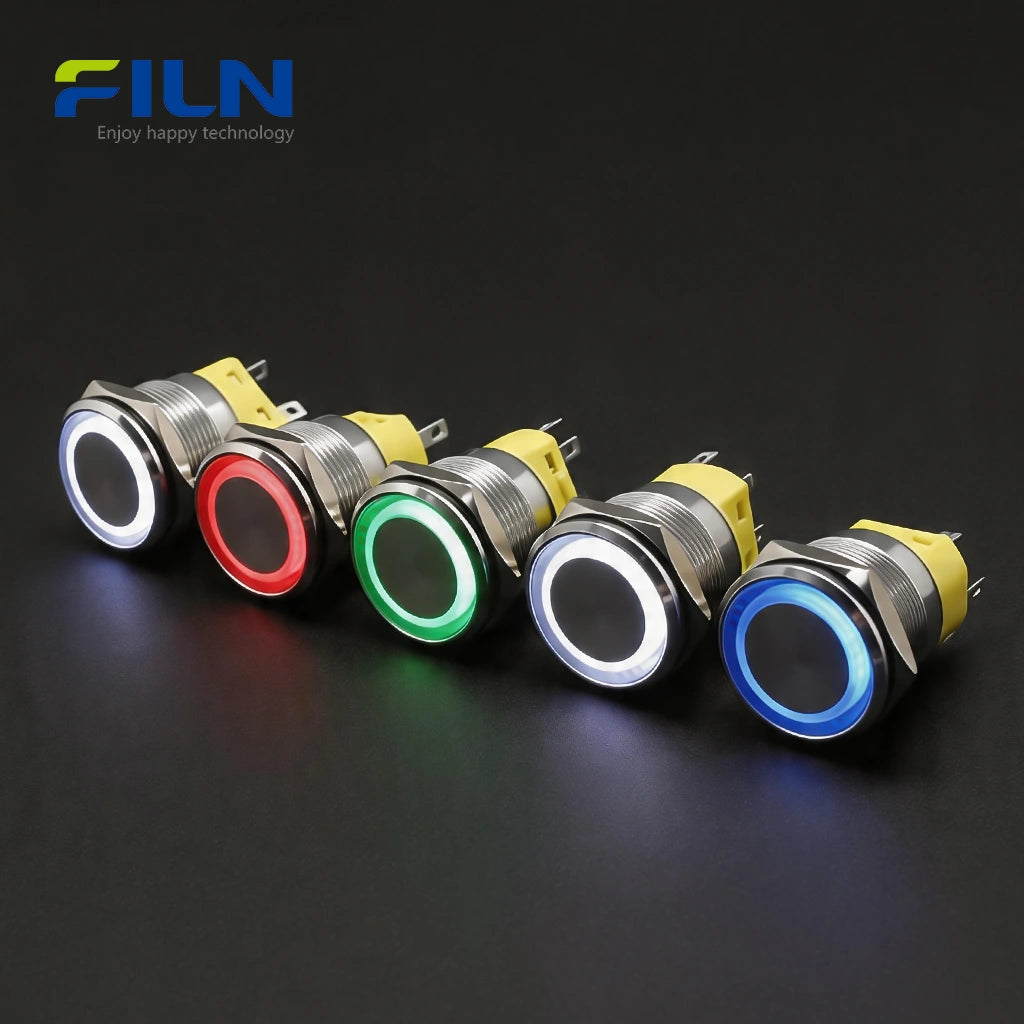

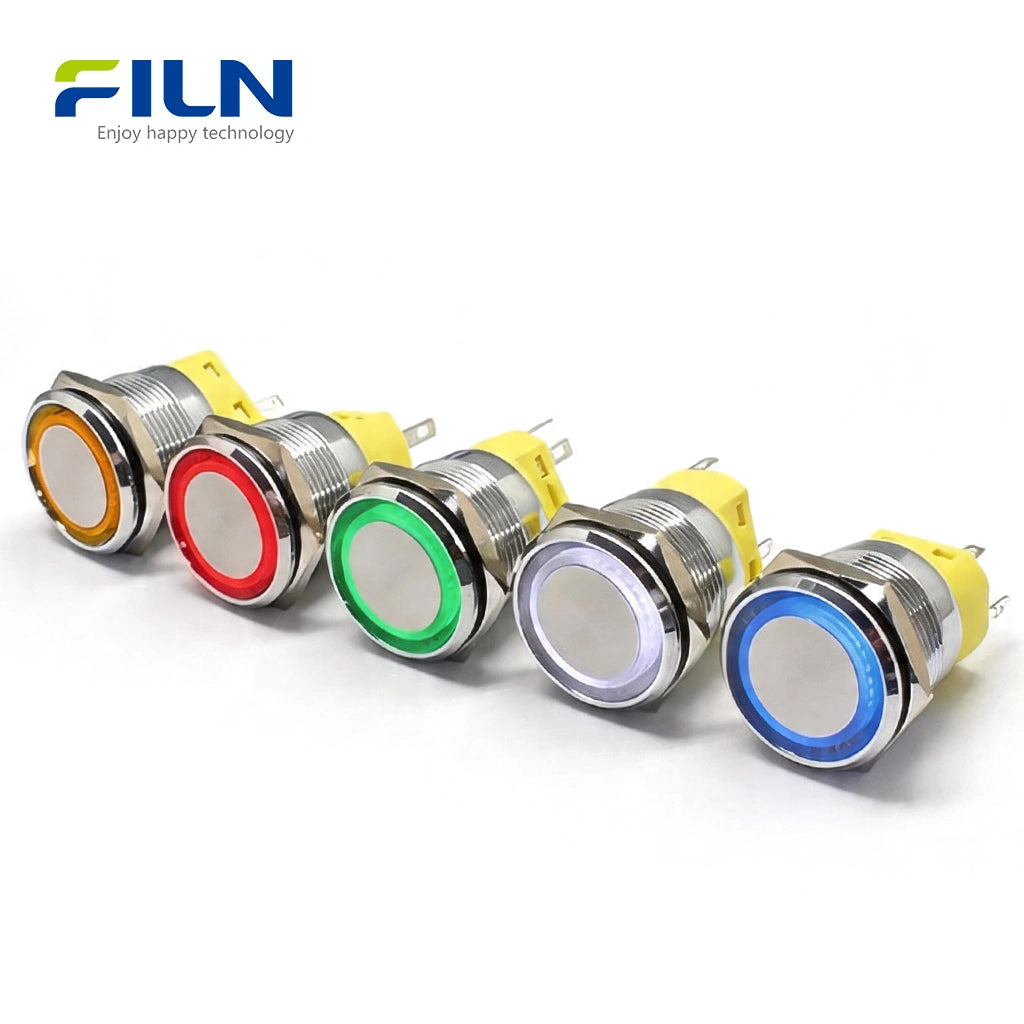

The FLM22-FJ-1-C series features premium 22mm push button switches designed for high-performance industrial applications. Manufactured by FILN, a leading factory specializing in customized metal switches, these components carry world-class certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you require a stainless steel industrial switch for marine environments or a black aluminum push button for sleek control panels, this 5-pin terminal switch provides unmatched reliability. Key advantages include ring-led illumination for status feedback and a choice between momentary and latching functions. These waterproof LED button switches are ideal for automation equipment, CNC machines, and medical devices.
Quick Specifications
| Model Number | FLM22-FJ-1-C |
|---|---|
| Mounting Hole Size | 22mm (approx. 0.87 inch) |
| Operation Type | Latching (Stay ON) / Momentary (Pulse) |
| LED Colors | R/G/Y/B/W (Bi-color/Tri-color customizable) |
| Button Shape | Concave Head (Indented) |

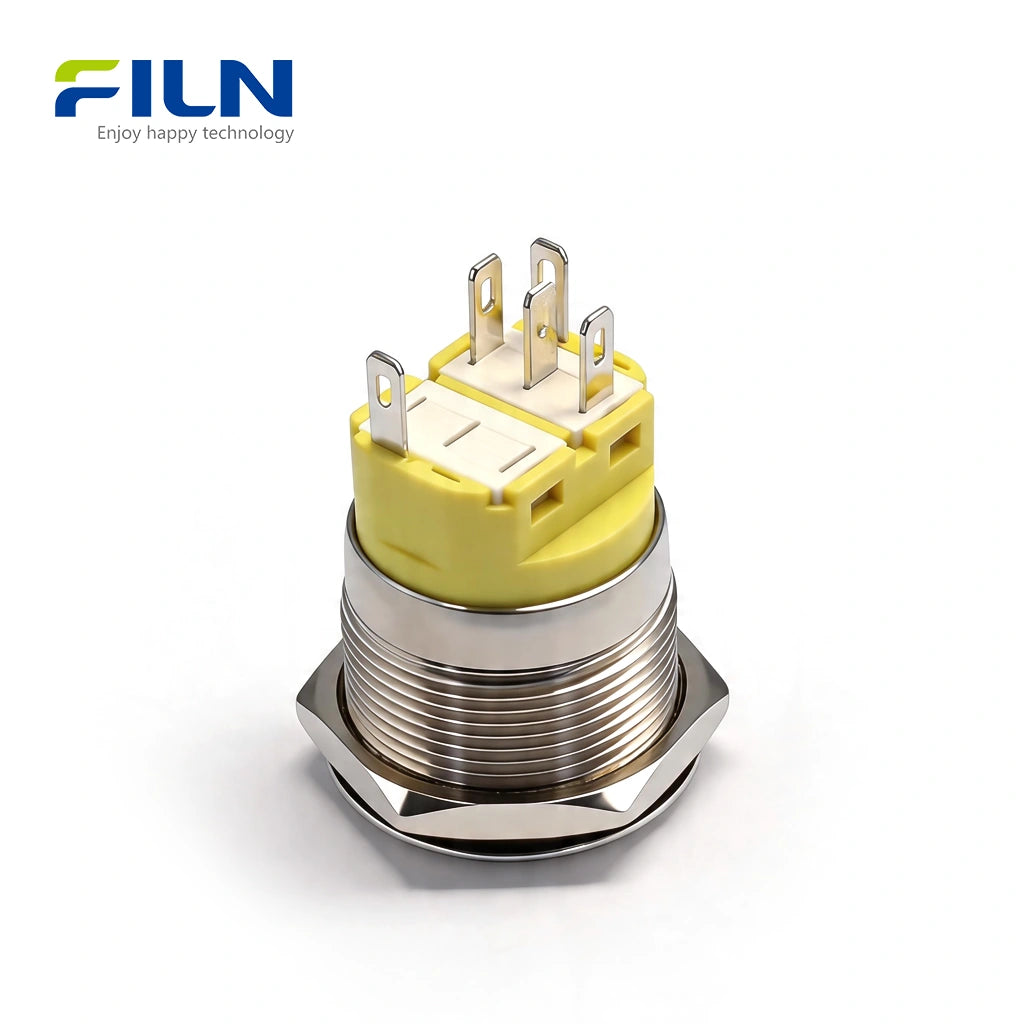

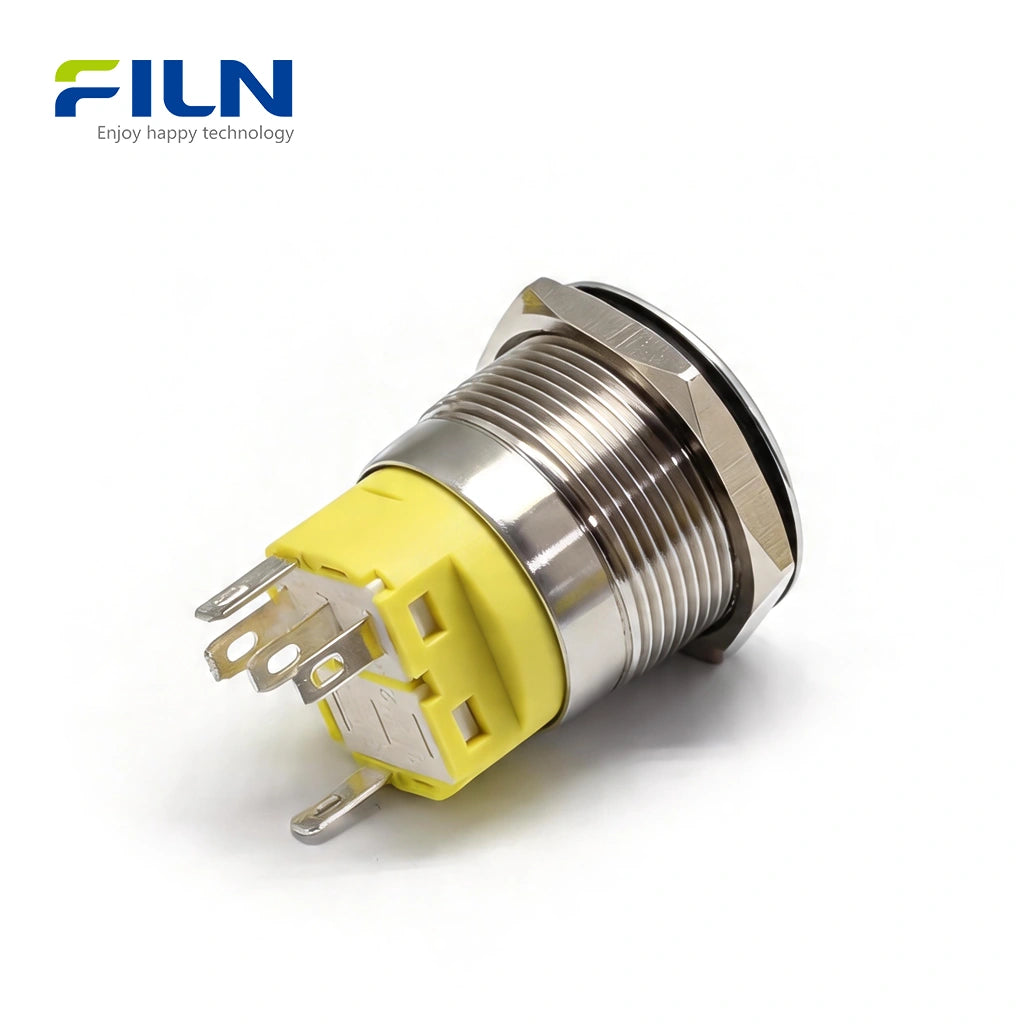

| Terminal Type | 5-Pin Solder/Plug-in Terminal |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC |
|---|---|
| Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) |
| Insulation Resistance | ≥ 1000MΩ |
| Contact Resistance | < 50mΩ |
| Dielectric Strength | 1800V |
| LED Voltage Range | 3V - 220V (12V/24V/110V/220V common) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Button Actuator | 304 Stainless Steel / 6063 Aluminum Alloy |
|---|---|
| Housing Body | H59 Brass / 304 Stainless / Black Anodized Aluminum |
| Lens / Diffuser | PC (Polycarbonate) Plastic |
| Terminals | H62 Copper Alloy (Silver Plated) |
| Base Material | PA66+GF20% Flame Retardant Nylon |
| Contact Material | Silver Alloy (AgCdO12) |
| Sealing Ring | SIL Silicone (IP65 rated) |
General Characteristics
| Operating Temperature | -25°C to +85°C |
|---|---|
| Protection Level | IP65 Waterproof, IK08 Vandal Resistant |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 50,000 - 100,000 Cycles |
LED Specification & Color Meaning
Using illuminated push button wiring helps operators identify machine status instantly:

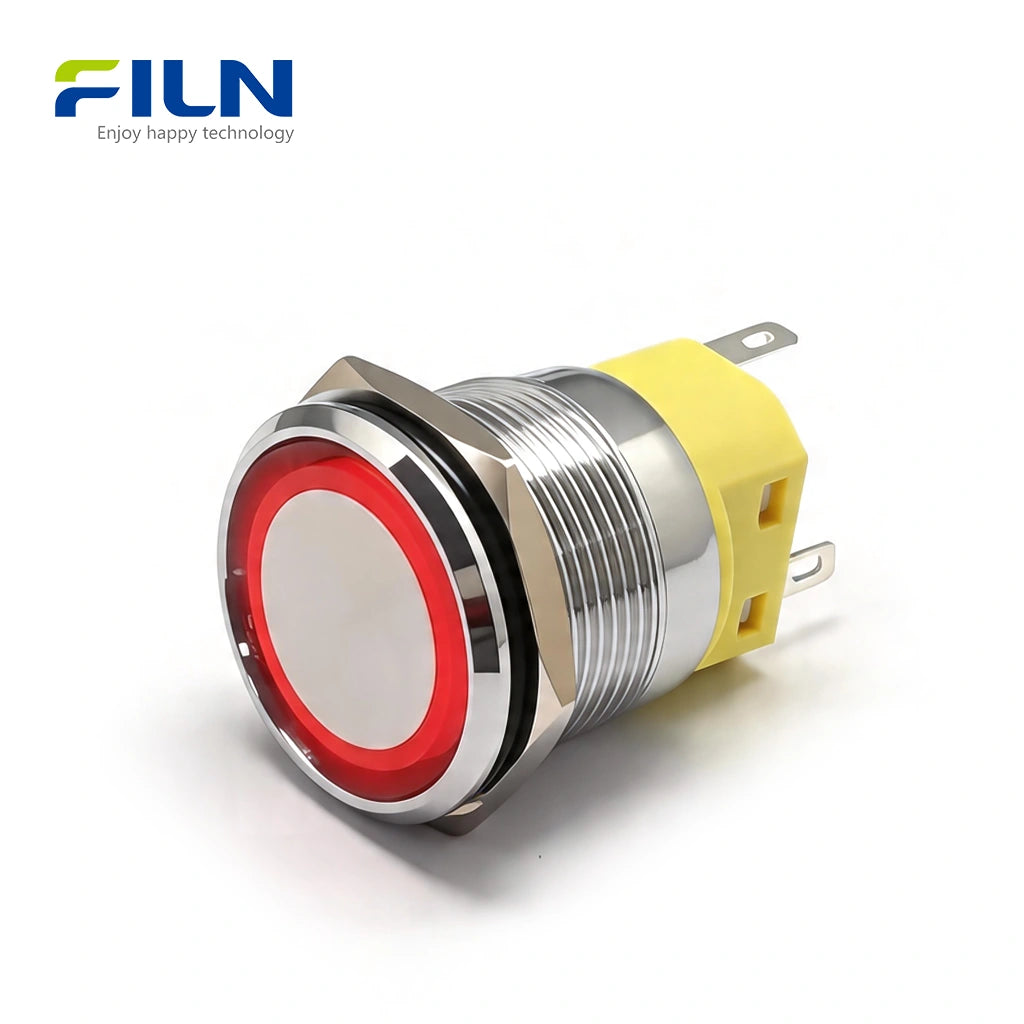

- Red (R): Emergency, Stop, or Fault condition.
- Green (G): Normal operation, Start, or Safe status.
- Blue (B): Manual override or specific function indication.
- Yellow (Y): Warning or Standby mode.
- White (W): Neutral power indicator or illumination in dark areas.
| Forward Current | 20mA (Typical) |
|---|---|
| Luminous Flux | 4.8 lm |
| Color Temperature (White) | 8400K |
| Wave Length (Green) | 520.7 nm |
Key Features
1. Superior Protection & Durability: With an IP65 & IK08 rating, this 22mm metal push button switch is resistant to water, dust, and physical impact, making it perfect for outdoor or harsh industrial environments.
2. Optimized Electrical Load: Rated at 5A 250V AC/DC, it handles higher power than standard 2A switches, often eliminating the need for additional relays.
3. Premium Material Choices: Available in 304 Stainless Steel or Black Aluminum, utilizing Silver Alloy contacts to minimize contact resistance (<50mΩ).
4. Wiring Convenience: The 5-pin terminal design supports both soldering and plug-in connectors. For rapid assembly, we recommend the FILN Push Button Wire Connector.
5. Ultra-Compact Design: A total length of ~26.5mm allows installation in shallow enclosures or handheld devices where space is at a premium.
Industrial Applications
These switches are used globally across various sectors:
- Industrial control panels
- CNC machines
- Automation equipment
- Electrical cabinets
- Marine & Naval systems
- Medical devices
- Access control systems
- Food processing machinery
Installation Guide
- Panel Cutout: Drill a 22mm diameter hole in your control panel.
- Insert Switch: Place the button from the front of the panel through the hole.

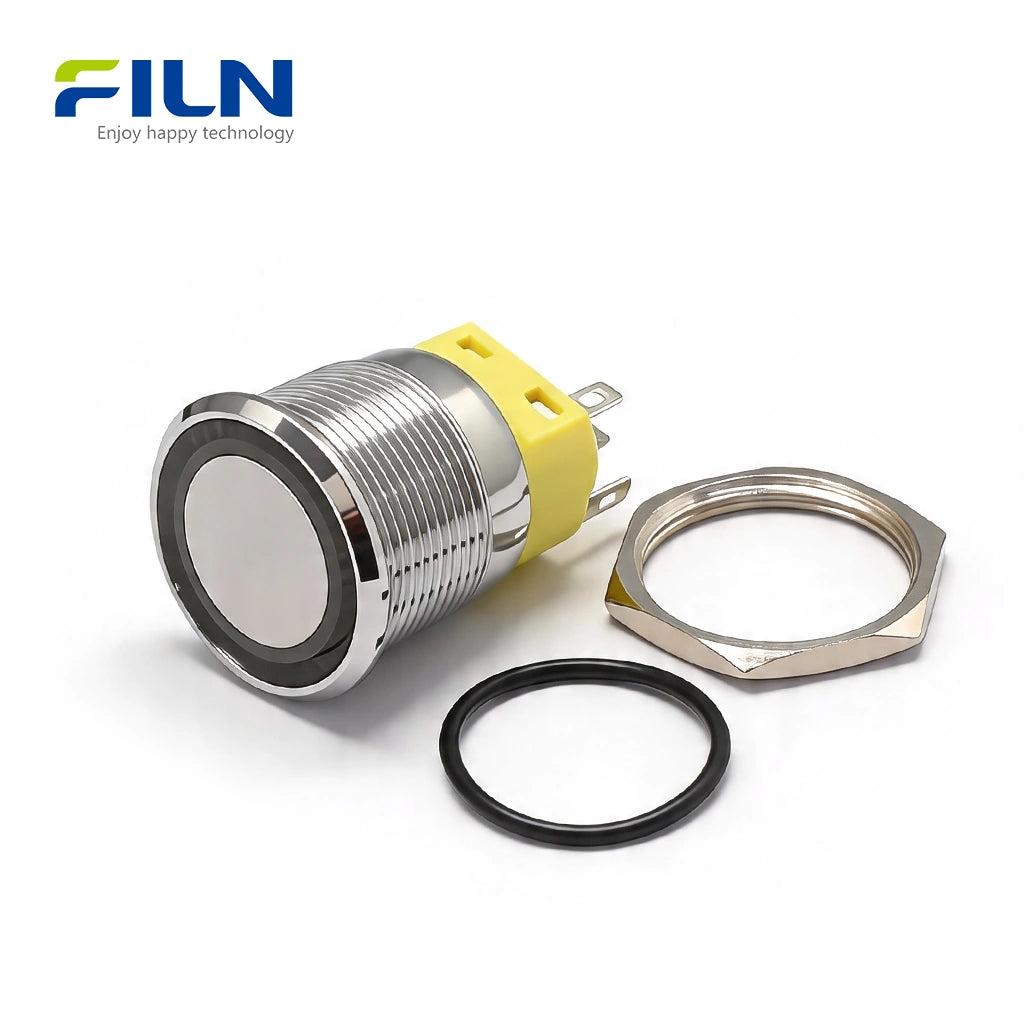

- Secure Nut: Slide the O-ring onto the switch body and tighten the metal hex nut from the back to fix it.
- Wiring: Connect wires to the 5-pin terminals via soldering or a quick-connect socket.
5 Pin Push Button Switch Wiring Diagram
A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.
1. Normal OFF, Sync LED (NO Connection)
Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.
- Application: Standard start switches where the light indicates the system is running.
- State: Static (LED Out, Device Off) → Pressed (LED On, Device On).
2. Normal ON, Sync LED (NC Connection)
Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.
- Application: Stop buttons or emergency cut-off switches.
- State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).
3. Normal OFF, Constant LED (NO Connection)
Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.
- Application: Power switches in dark environments or access control buttons.
- State: Static (LED On, Device Off) → Pressed (LED On, Device On).
4. Normal ON, Constant LED (NC Connection)
Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.
- Application: Monitoring systems or security alarms that require constant power indication.
- State: Static (LED On, Device On) → Pressed (LED On, Device Stop).
| Mode | LED Behavior | Device (Idle) |
|---|---|---|
| NO Sync | Lights up when pressed | OFF |
| NC Sync | Turns off when pressed | ON |
| Constant | Always ON (Backlight) | User Choice |
Industry Knowledge
1. What are Push Button Switches?
A push button switch is a simple mechanism used to control some aspect of a machine or a process. In industrial settings, they act as the interface between the human operator and the machine's electrical logic, allowing for manual start/stop or mode selection.
2. Latching vs. Momentary: What is the difference?
| Feature | Momentary | Latching |
|---|---|---|
| Action | Springs back when released | Stays in place (Click ON/OFF) |
| Best Use | Horns, Doorbell, Starters | Main Power, Lights, Fans |
Terminal Type Comparison
| Terminal Type | Pros | Cons |
|---|---|---|
| Pin Terminal (This Model) | Fast plug-in, clean wiring | Requires connector or solder |
| Screw Terminal | No soldering needed | Takes up more space |
| Pre-wired | Ready to install | Fixed wire length |
FILN Factory Direct Supply
- ✅ No MOQ (1 piece order accepted)
- ✅ Fast Lead Time (Global Shipping)
- ✅ Customization: Voltage, Wire Length, Connectors
- ✅ Full Certifications: CE, RoHS, UL
Official Website: www.filn.com
Contact Email: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Is this 22mm metal push button switch waterproof?
A: Yes, it is IP65 rated, making it waterproof and dustproof for industrial use.
Q2: Can I get a 110V LED version?
A: Absolutely. FILN supports custom voltages from 3V to 220V AC/DC.
Q3: What is the difference between a 5-pin and 4-pin switch?
A: 5-pin switches include both NO and NC contacts, whereas 4-pin usually only has NO or shared pins.
Q4: Do you offer the black aluminum finish?
A: Yes, we offer both 304 stainless steel and black anodized aluminum options.
Q5: How do I wire it so the LED is always ON?
A: Connect the LED (+) and (-) pins directly to your power source.
Q6: Is this switch momentary or latching?
A: We offer both. Model FLM22-FJ-1-C can be ordered as either momentary or latching.
Q7: Does it come with the wiring socket?
A: The socket is sold separately but highly recommended for fast installation.
Q8: What is the mechanical life of these waterproof LED button switches?
A: It has a mechanical life of over 500,000 cycles.
Q9: Can I use this for marine applications?
A: Yes, the 304 stainless steel version is excellent for resisting salt spray corrosion.
Q10: Are there other sizes available?
A: Yes, FILN manufactures 8mm to 40mm metal push buttons.
