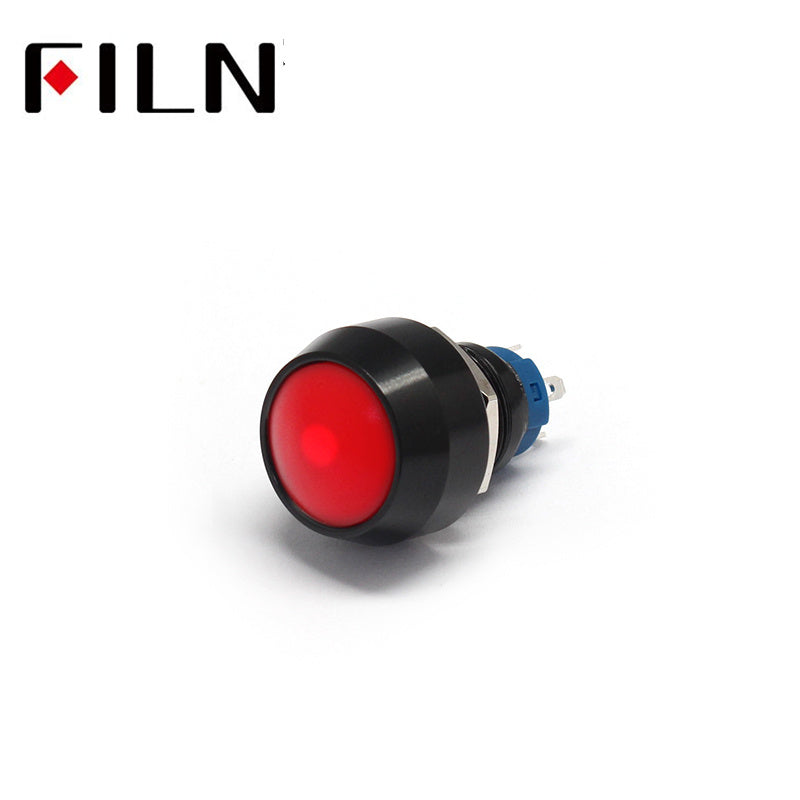

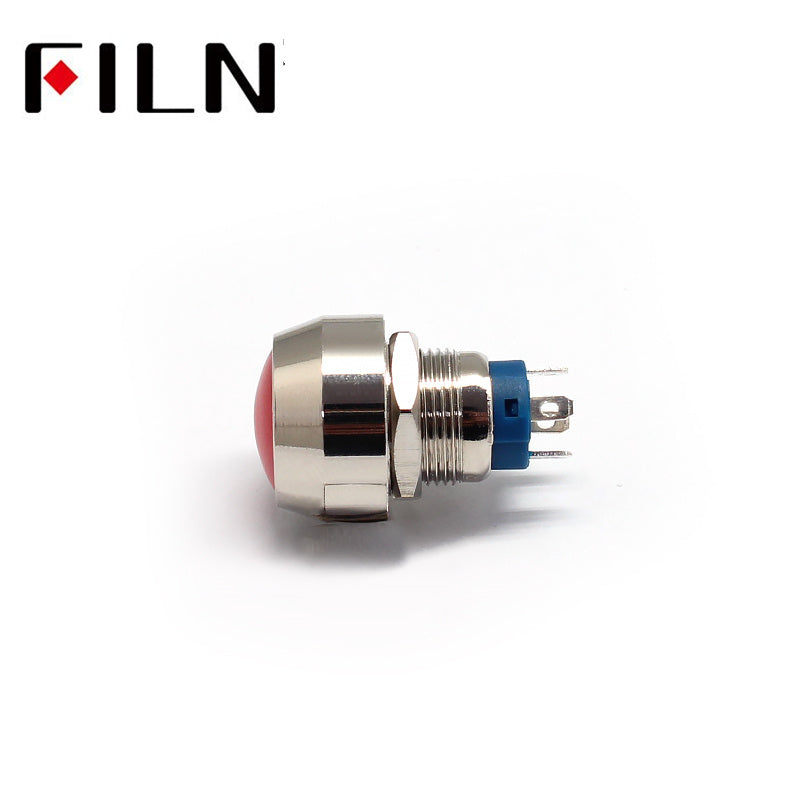

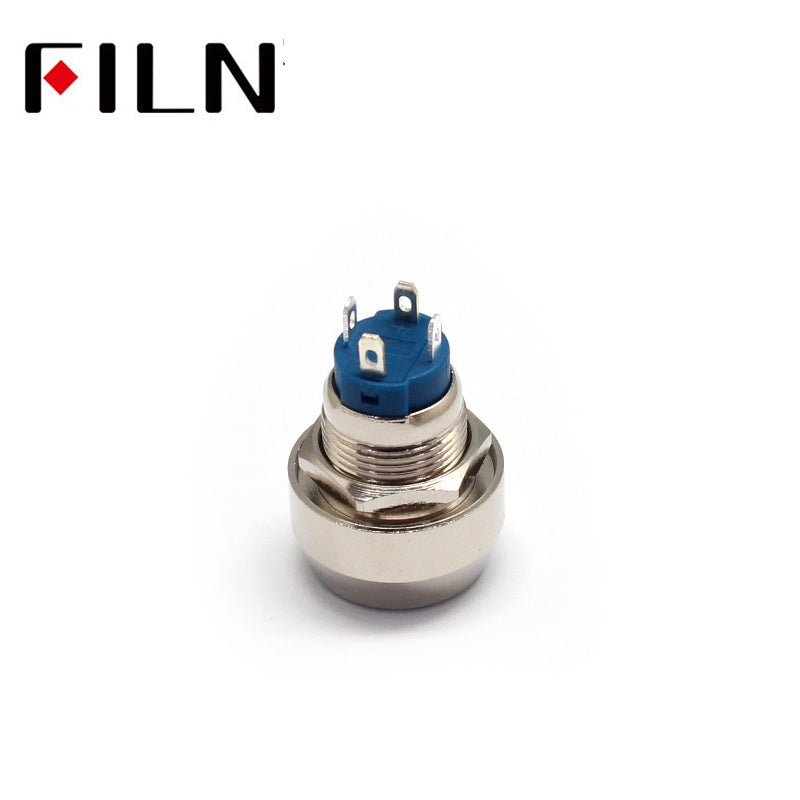

4PIN 12MM 12V 3A Red Momentary Latching waterproof push button switch

Black shell


  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery

FLM12-FW-1 Push Button Switch Product Introduction

The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

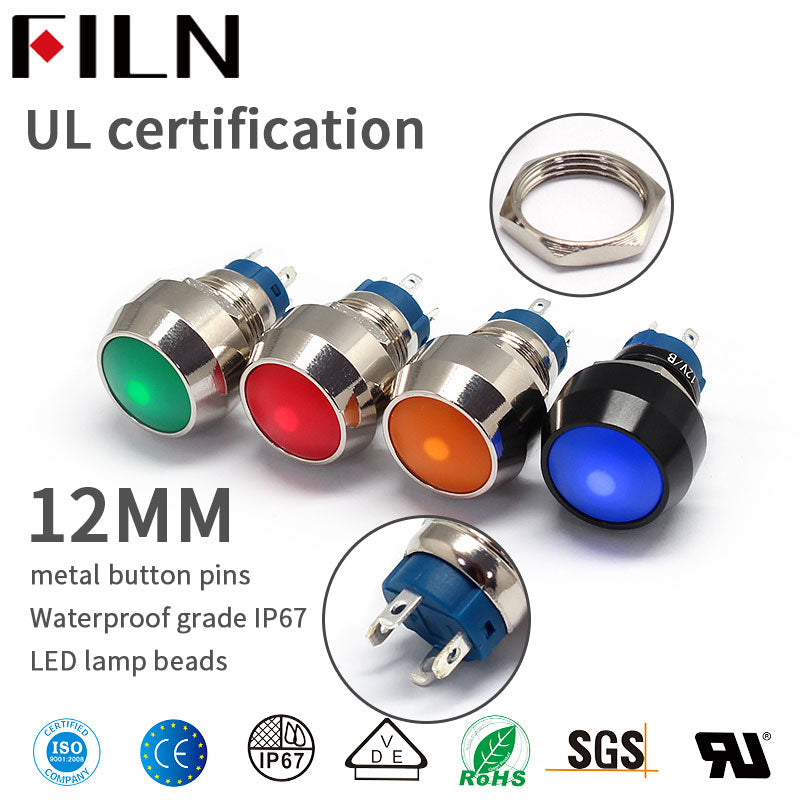

The waterproof rating of the push button switch is IP67, and the mounting hole size is 12MM.

The voltage of the push button switch can be 6V, 12V, 24V, 110V, 220V, 250V, 380V, etc.

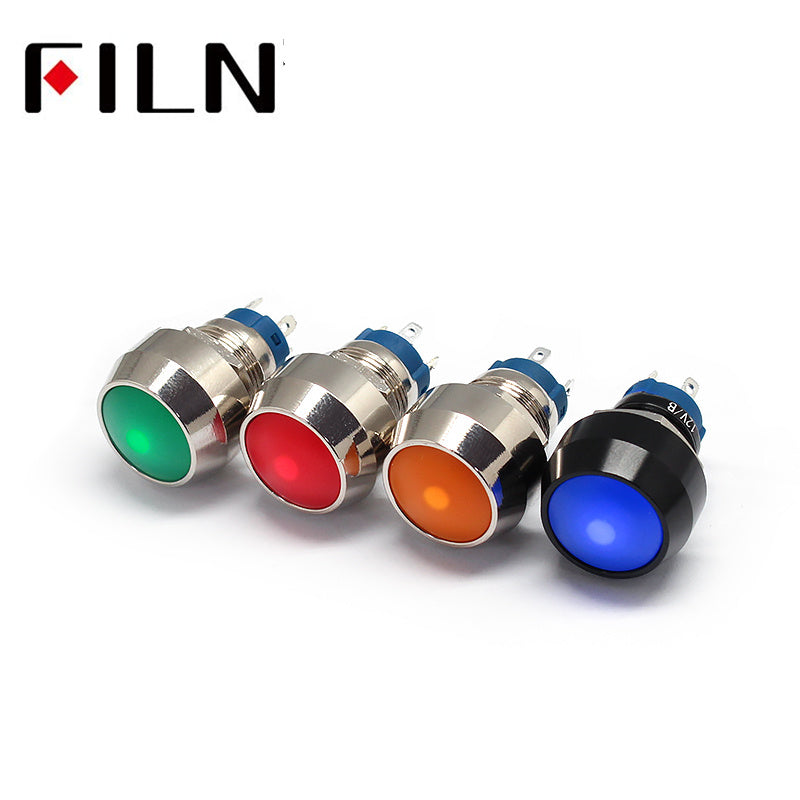

12MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production series FLYM12-BJ-1-E Light guide button PC plastic
button shape round actuator 304 Stainless steel
button led color Red orange green blue Housing sleeve H59 nickel plated brass
Mechanical life The 300 thousand time Button pin H62 Copper alloy
electrical life The 100 thousand time rubber ring SIL silica gel
protection level IP65 IK09 nut H59 nickel plated brass
Rated voltage 36V DC housing PA66+GF20% nylon
rated current 2A Light source LED
rated power 36W Resistor Metal film
Operating temperature -20℃~+55℃ contact AgCdO12
