Button Switch Drawing
Product Overview

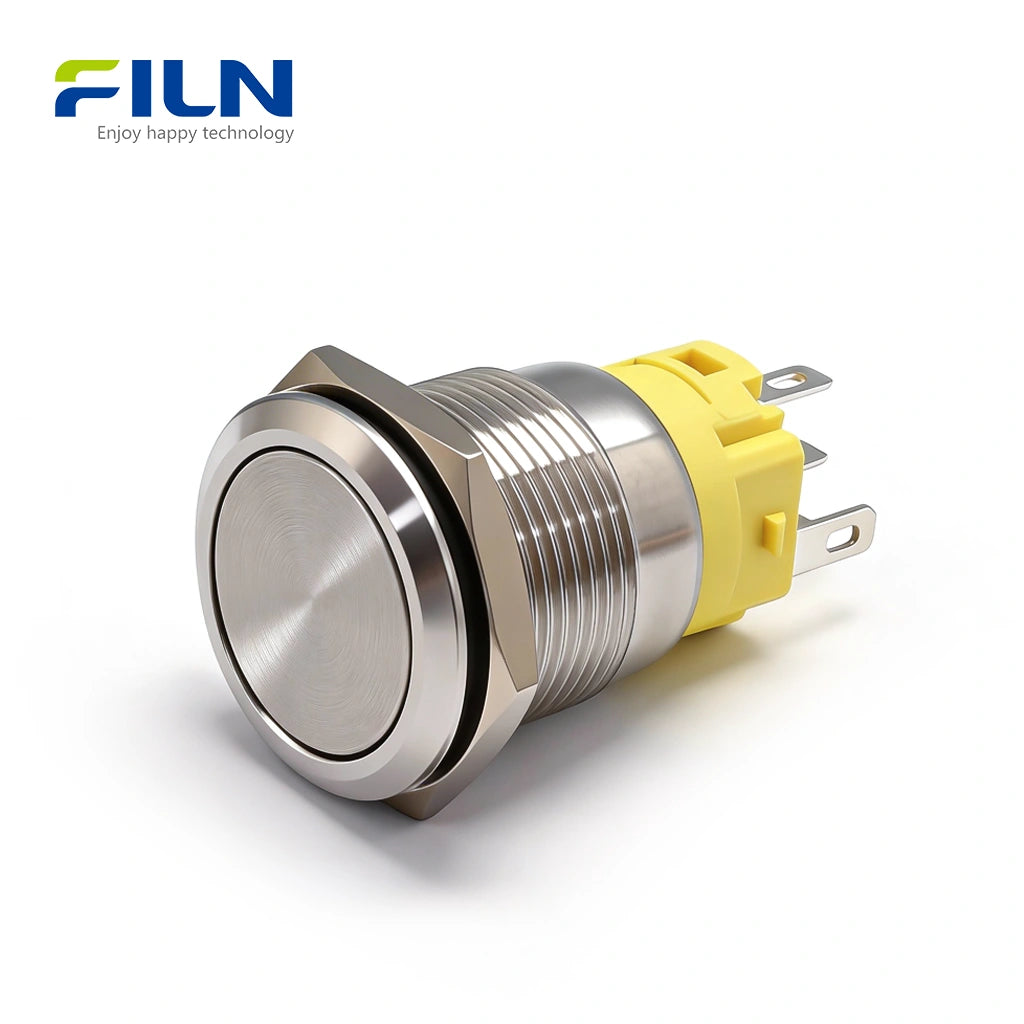

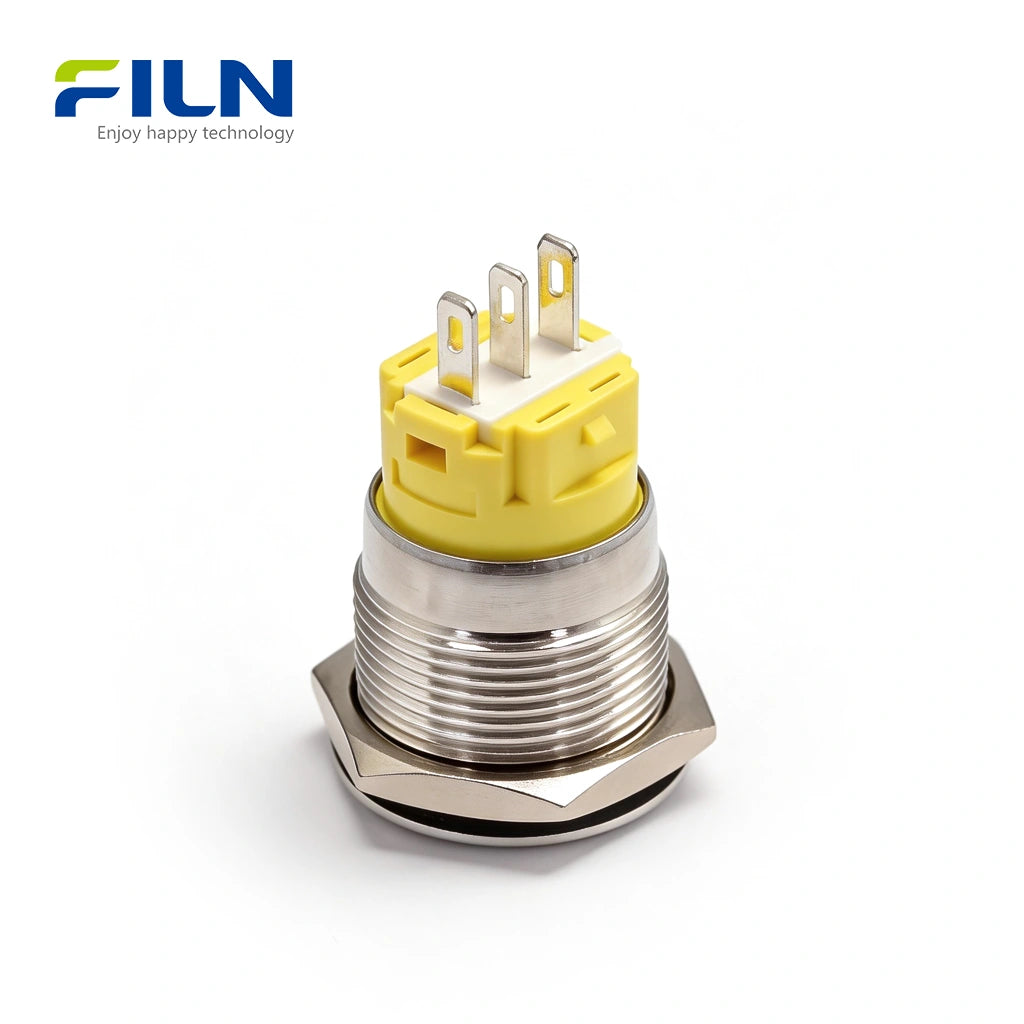

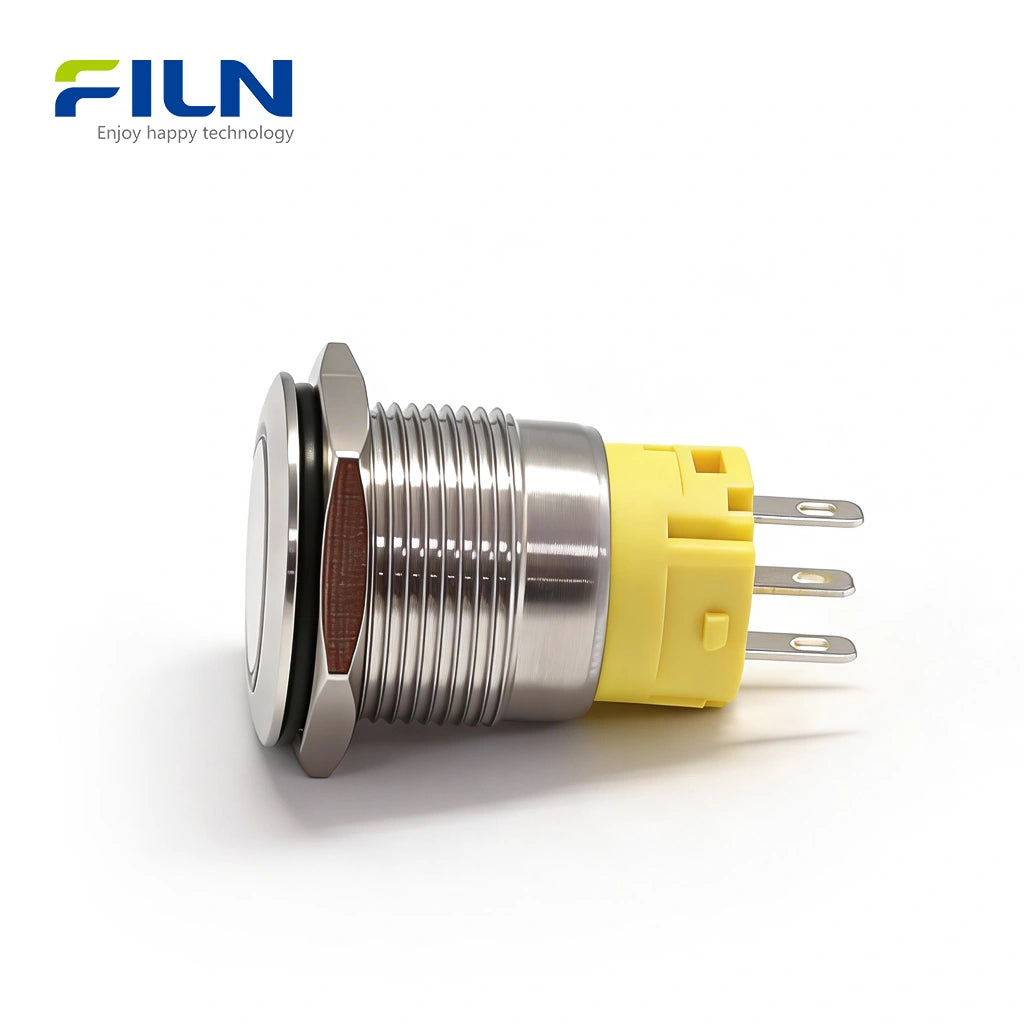

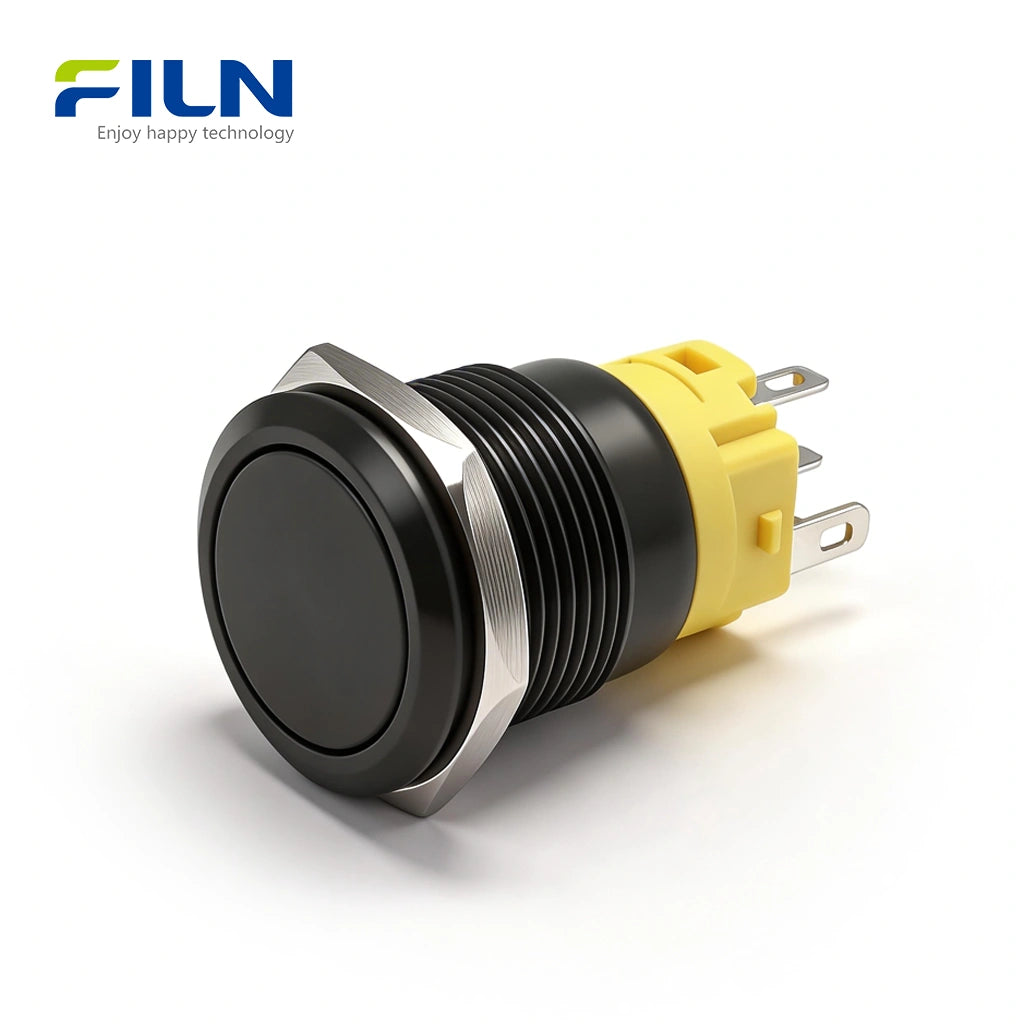

The 19mm push button latching switch (Model: FLM19-FJ-1) is a high-performance industrial component designed for durability and precision. Manufactured by FILN, a leading factory in switch technology, this product carries prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you require a zinc alloy black push button for aesthetic integration or a stainless steel push button switch for harsh environments, the FLM19-FJ-1 series offers unmatched reliability. These 3-pin terminal button switches are ideal for industrial control panels, medical devices, and marine systems, providing both latching and momentary functionalities to suit various circuit requirements.
Quick Specifications
| Model Number | FLM19-FJ-1 |
| Mounting Hole Size | 19mm (0.75 inch) |
| Function | Latching / Momentary (Available) |
| Illumination | Non-Illuminated (No LED) |
| Actuator Shape | Flat Head |

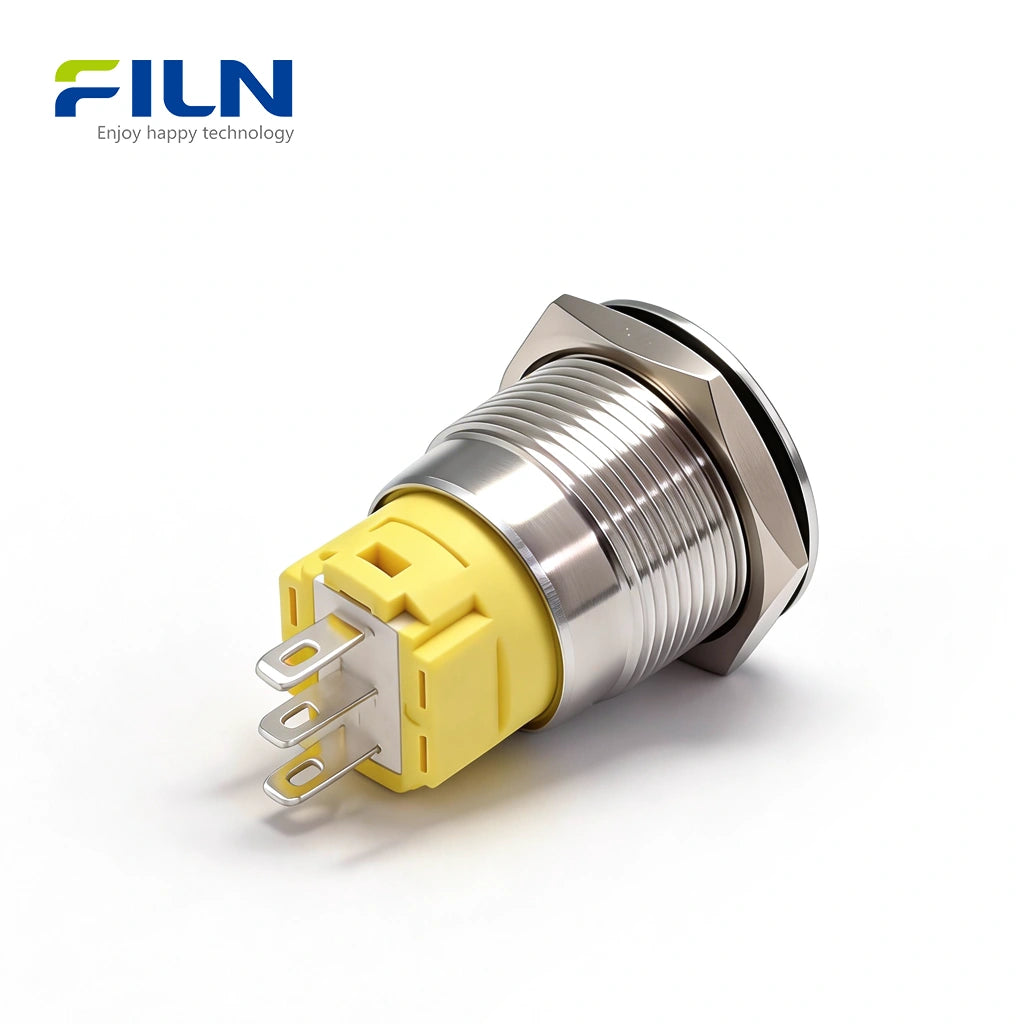

| Terminal Type | 3-PIN Pin Terminal (2.8 x 0.5mm) |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC | Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) | Insulation Resistance | ≥ 1000MΩ |
| Contact Resistance | < 50mΩ | Dielectric Strength | 1800V |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL, IP65 | ||
Terminal Type Comparison
| Feature | Pin Terminal (This Product) | Screw Terminal | Pre-wired |
|---|---|---|---|
| Wiring Speed | Fast (with Socket) | Medium | Immediate |
| Durability | High (Stable connection) | High | Medium |
| Best Use Case | Mass Production / PCBs | Field Maintenance | Space Constrained |
Pro Tip: This switch can be paired with our customized wire harness for even faster installation. [Shop Wire Connectors Here]
Component Materials
| Button Actuator | 304 Stainless Steel / 6063 Aluminum Alloy |
| Housing Sleeve | H59 Brass / 304 Stainless Steel / 6063 Aluminum Alloy |
| Button Pins | H62 Copper Alloy |
| Base | PA66+GF20% Flame Retardant Nylon |
| Contacts | Silver Contact AgCdO12 |
| Waterproof Ring | SIL Silicone |
Environmental & Life Parameters
| Operating Temperature | -25°C to +85°C |
| Protection Level | IP65 (Waterproof), IK08 (Impact Resistant) |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles (3A) / 50,000 Cycles (5A) |
Understanding LED Colors in Switches
Although this model is non-illuminated, FILN provides custom LED options. Here is what colors represent in industrial standards:
- Red: Danger, Emergency, or Stop.
- Green: Ready, Start, or Safe Condition.
- Blue: Special Action, Reset, or Manual Override.
- Yellow: Warning or Abnormality.
- White: Neutral power status or General Illumination.
Key Features
- Exceptional Protection: Rated IP65 and IK08, making it dust-tight, waterproof, and resistant to heavy impacts in harsh industrial settings.
- High Load Capacity: Supports 5A 250V AC/DC, allowing direct control of power equipment without additional relays.
- Premium Materials: Available in 304 Stainless Steel or Black Zinc Alloy. Silver contacts ensure low resistance and high conductivity.
- Compact Design: A total length of approximately 26.5mm ensures the switch fits into tight control panels and handheld devices.
- Versatile Mounting: Threaded installation with a metal nut ensures the switch stays secure in vibration-prone environments.
Applications
The versatility of the FLM19-FJ-1 series makes it suitable for diverse industries:
- Industrial Control Panels
- CNC Machinery
- Automation Equipment
- Electrical Cabinets
- Marine Systems
- Medical Devices
- Security Alarms
- Food Processing Equipment

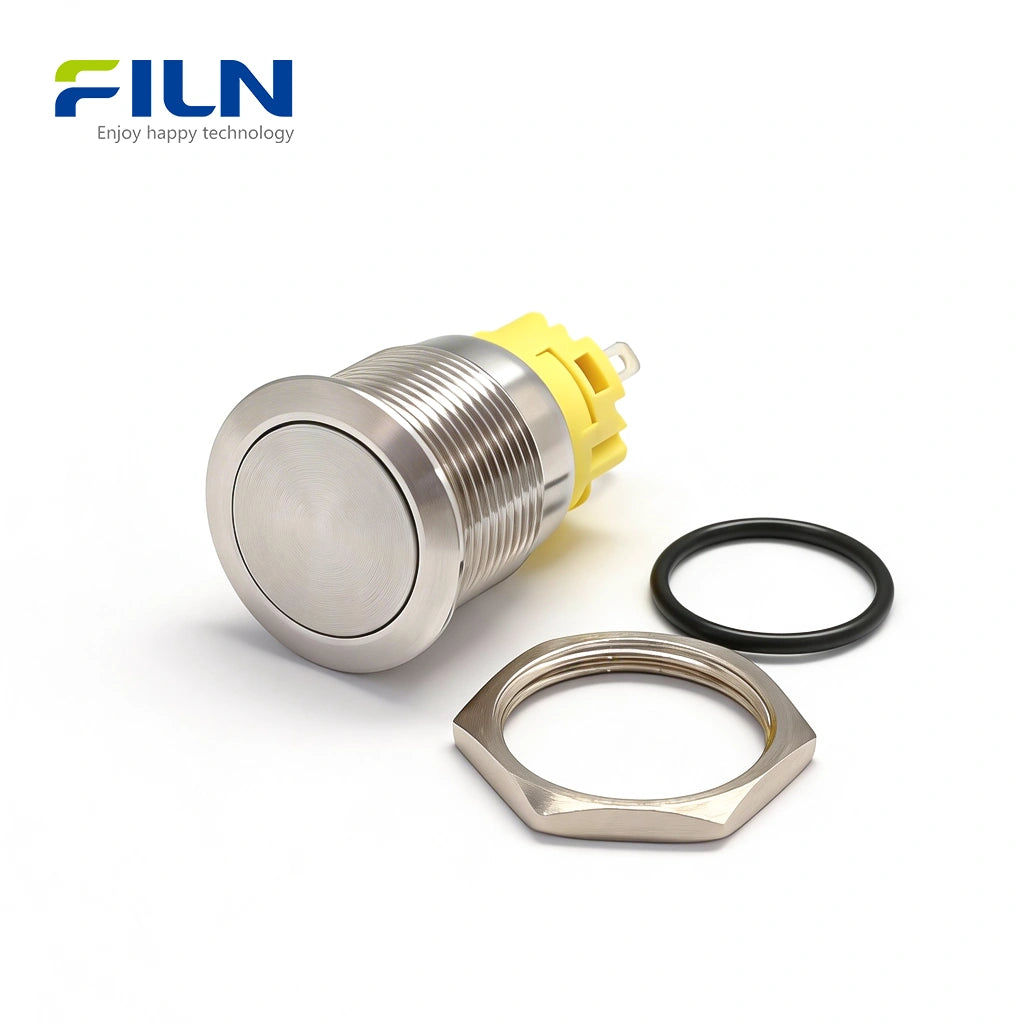

Installation Guide
- Drill a 19mm hole in the control panel.
- Insert the switch from the front of the panel.
- Slide the O-ring onto the switch body from behind.
- Thread and tighten the metal nut against the panel to secure the switch.
- Connect the wires to the 3-PIN terminals (Common, NO, or NC).
3 Pin Push Button Switch Wiring Diagram
A 3-PIN switch consists of a Common (C), Normally Open (NO), and Normally Closed (NC) terminal. Use these connections to control whether a device turns on or off when pressed.
- C (Common): Power input terminal.
- NO (Normally Open): Connects only when pressed.
- NC (Normally Closed): Disconnects when pressed.
Method 1: Normally Open (NO) Connection
Logic: Device stays OFF by default and turns ON only when pressed.
- Wiring: Power (+) to C, Device (+) to NO.
- Applications: Door bells, PC power buttons, car horns, momentary starters.
Figure 1: Normally Open (NO) Wiring Diagram
Method 2: Normally Closed (NC) Connection
Logic: Device stays ON by default and turns OFF only when pressed.
- Wiring: Power (+) to C, Device (+) to NC.
- Applications: Emergency stops, limit switches, fridge door light control.
Figure 2: Normally Closed (NC) Wiring Diagram
| Terminals | Default | Action (Pressed) |
|---|---|---|
| C + NO | Device OFF | Device ON |
| C + NC | Device ON | Device OFF |
Industry Knowledge
1. What is a 19mm Push Button Latching Switch?
In industrial automation, the 19mm push button latching switch acts as a physical interface for power management. A latching power switch 19mm maintains its state (staying depressed) once pushed, requiring a second push to release. This is crucial for equipment that needs to remain active without continuous manual pressure. The 19mm mounting diameter is an industry-standard size, ensuring compatibility with most commercial enclosures.
2. Latching vs. Momentary: Which do you need?
| Function | Action | Typical Use |
|---|---|---|
| Latching | Pushes and locks in place. Push again to release. | Power buttons, Main Light switches. |
| Momentary | Springs back immediately after being pressed. | Door bells, Horns, Reset buttons. |
Factory Direct Supply - FILN Advantage
- ✅ NO MOQ: Small orders welcome for startups and maintenance.
- ✅ Rapid Lead Time: Fast manufacturing and global shipping.
- ✅ Full Customization: Voltage, wire length, and connector options.
- ✅ Direct Support: Engineering consultation from our factory team.
Official Website: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. Is the 19mm push button latching switch waterproof?
Yes, it is IP65 rated, meaning it is protected against low-pressure water jets and dust.
2. Can I use this for DC and AC power?
Yes, it supports up to 36V DC and 250V AC at 5A.
3. What material should I choose: Zinc Alloy or Stainless Steel?
Zinc Alloy Black is great for aesthetics; Stainless Steel is best for high corrosion or medical environments.
4. Does FILN offer custom wire harnesses for these?
Yes, we provide pre-wired sockets to make your installation much faster.
5. What is the difference between a 3-pin and 5-pin button?
3-pin buttons are usually for simple switching; 5-pin buttons include two dedicated pins for LED lights.
6. Is this switch IK08 rated?
Yes, it has high impact resistance, perfect for industrial "anti-vandal" applications.
7. How do I install it on a panel?
Drill a 19mm hole, insert the switch, and tighten the included metal nut on the back.
8. Can I get a sample before a bulk order?
Yes, contact us at inquiry@cnylin.com.cn for sample requests.
9. Do these switches have UL certification?
Yes, our switches are UL, CE, and RoHS certified.
10. What is the mechanical life of the FLM19-FJ-1?
It is designed for up to 500,000 mechanical operations.
