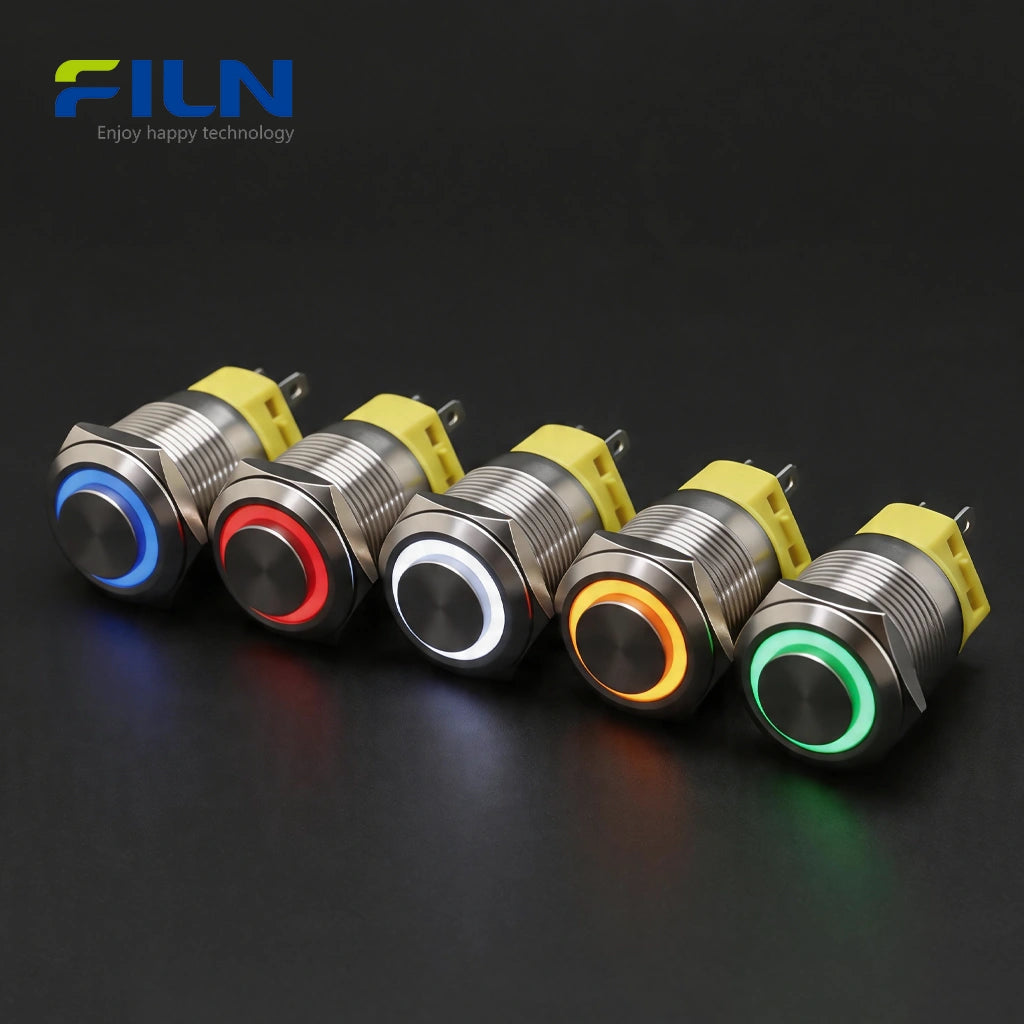

Push Button 12 Volt Switches 22mm Stainless Steel 5-Pin High Head with LED Ring FILN

Button Switch DrawingProduct Overview

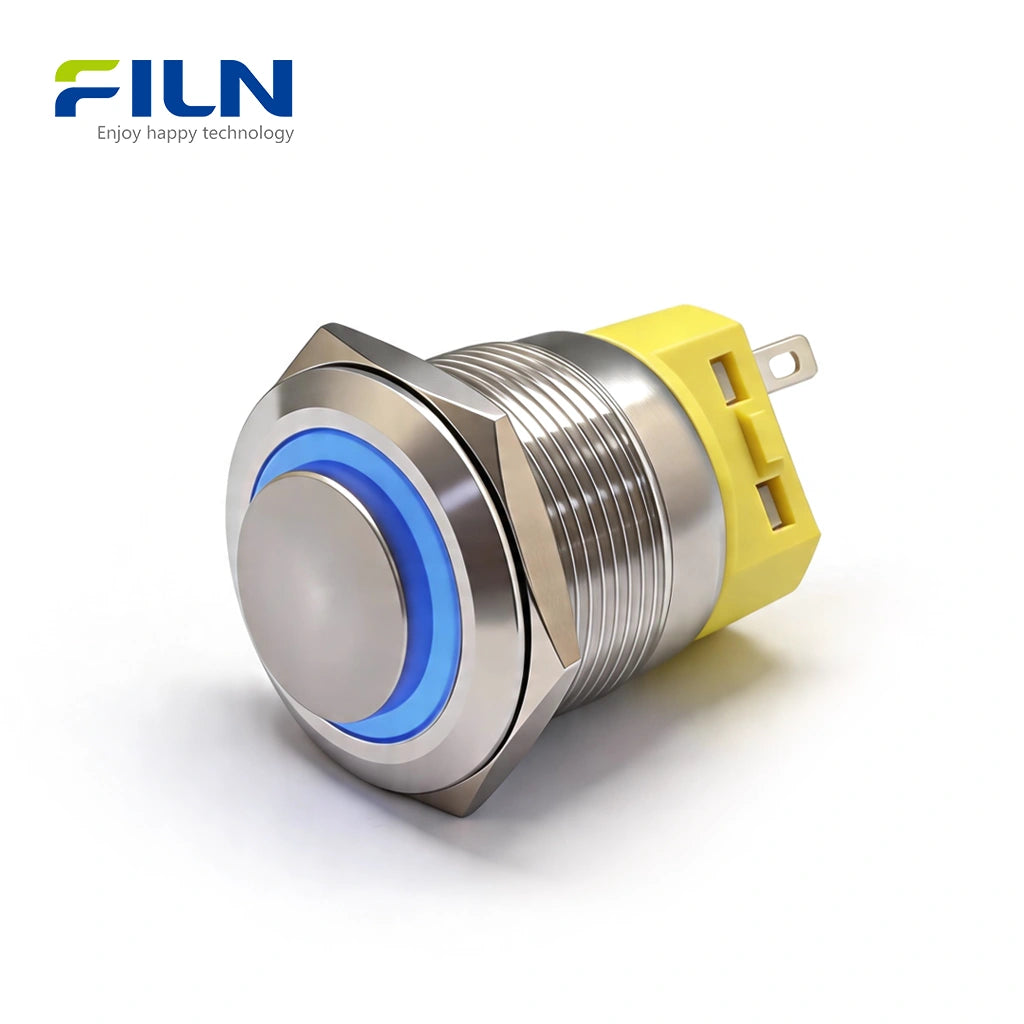

The push button 12 volt switches (Model: FLM22-HJ-1-E) by FILN are engineered for high-end industrial and commercial applications. This 22mm-momentary-push-button-12v features a distinctive high head design, which is specifically optimized for operators with larger hands (common in Western markets) to provide a superior tactile response and easier operation. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, these switches guarantee safety and reliability. Available in 304 stainless steel or black zinc-aluminum alloy, they are perfect for industrial control panels, automation equipment, and marine systems. Whether you need a 5-pin-latching-led-button or a momentary version, FILN provides robust solutions for every circuit control need.

Quick Specifications

Performance Parameters

Component Materials

General Characteristics

LED Specification & Color Meaning

The ring LED provides immediate visual status. Each color indicates standard industrial signals:

• Red (R): Stop, Danger, or Fault detection.
• Green (G): Safe, Ready, or System Running.
• Yellow (Y): Caution, Warning, or Standby.
• Blue (B): Mandatory Action or Cold/Status monitoring.
• White (W): Power indicator or neutral light.

Key Features

1. Ergonomic High Head Design: The raised actuator is designed for better ergonomics, making it ideal for operators wearing gloves or those with larger hands.
2. Extreme Protection (IP65 & IK08): Built to survive harsh environments, resisting water, dust, and heavy impacts.

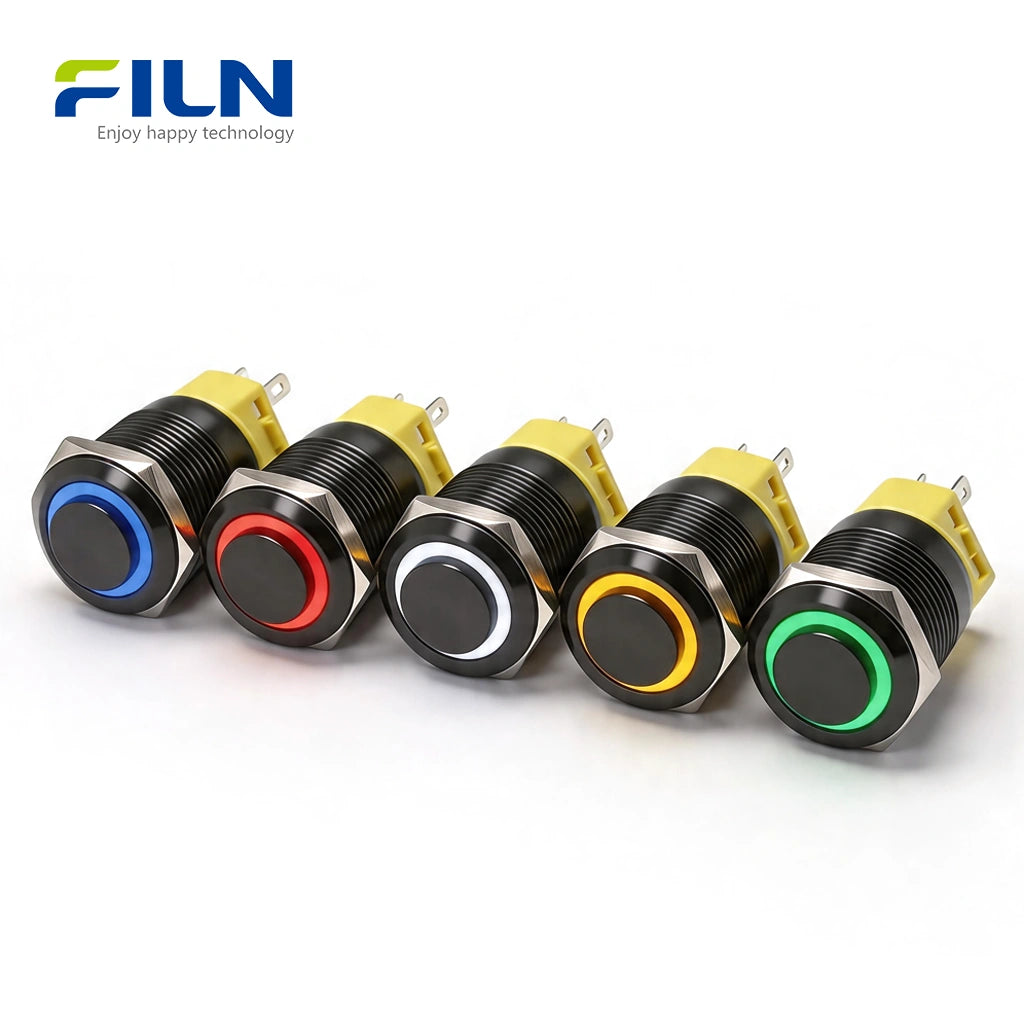

3. Premium Metal Finish: Choose between a high-grade 304 stainless steel or a sleek black zinc-aluminum alloy for superior aesthetics and corrosion resistance.
4. High Current Capacity: Handles up to 5A, allowing direct control of many devices without extra relays.
5. Long Life Silver Contacts: Ensures minimal contact resistance and maximum electrical life.

Terminal Type Comparison

Applications

These waterproof-industrial-control-switches are ubiquitous in modern technology. Any device requiring a manual interface for circuit control can benefit from these high-quality buttons:

• Industrial control panels: Power and function management.
• CNC machines: Precision start/stop and emergency signaling.
• Marine systems: Waterproof dashboard controls for boats.
• Medical devices: Reliable, easy-to-clean interfaces.
• Automation equipment: Durable buttons for high-frequency use.

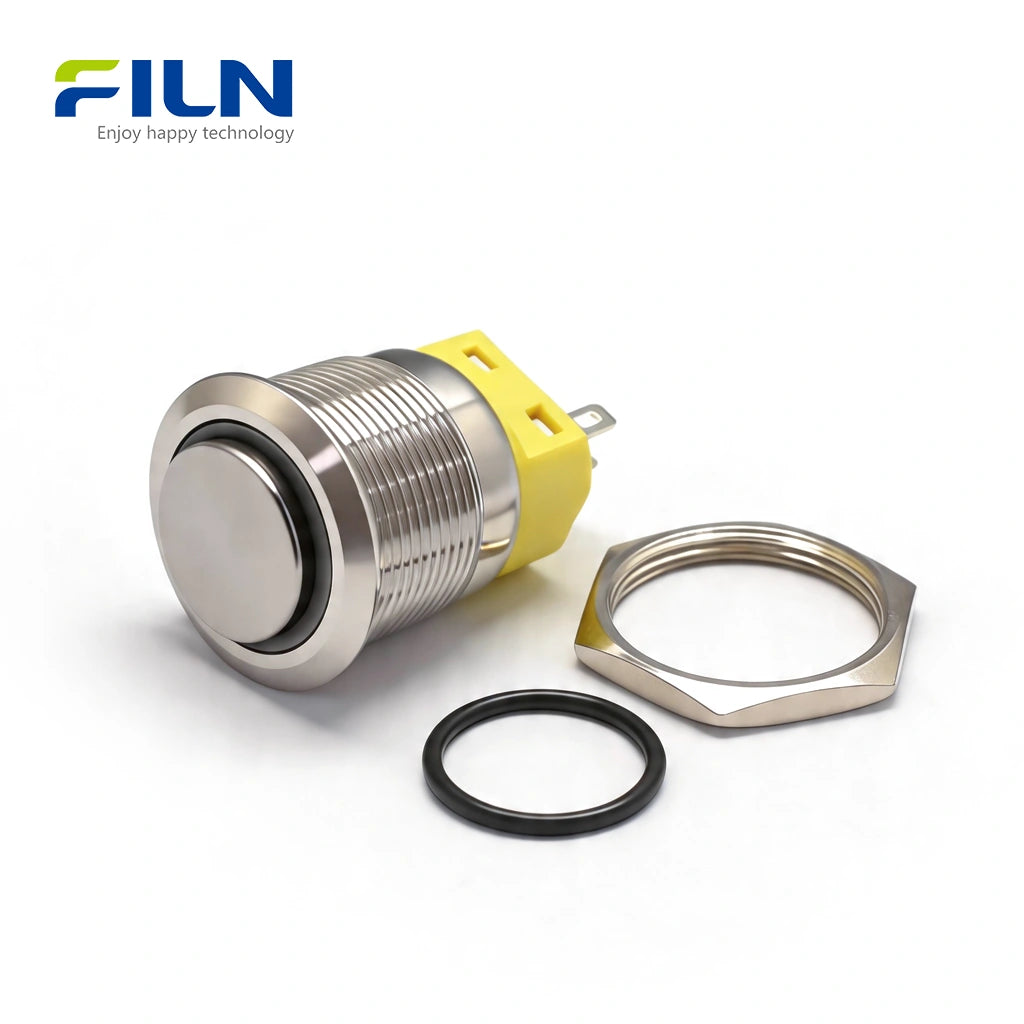

Installation Guide

1. Prepare a panel with a 22mm diameter hole.
2. Insert the switch through the hole from the front side.
3. Slide the rubber waterproof ring onto the switch body.
4. Tighten the metal nut from the back to secure the switch to the panel.
5. Complete the wiring according to your circuit requirements.

5-PIN LED Push Button Switch Wiring Guide

For efficient assembly, we recommend using our dedicated wire connector socket.

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

5-PIN LED Push Button Switch Wiring Guide

Factory Direct Supply - FILN Advantage

As a leading manufacturer, FILN offers unmatched customization and support for global B2B clients.

• ✅ No MOQ - Order exactly what you need.
• ✅ Fast Lead Time - Direct shipping from factory.
• ✅ Voltage Customization - 3V to 220V support.
• ✅ Free Samples - Available upon request.

Official Site: www.filn.com | Email: inquiry@cnylin.com.cn

High head buttons offer better leverage and are easier to press, especially for industrial operators wearing protective gear.

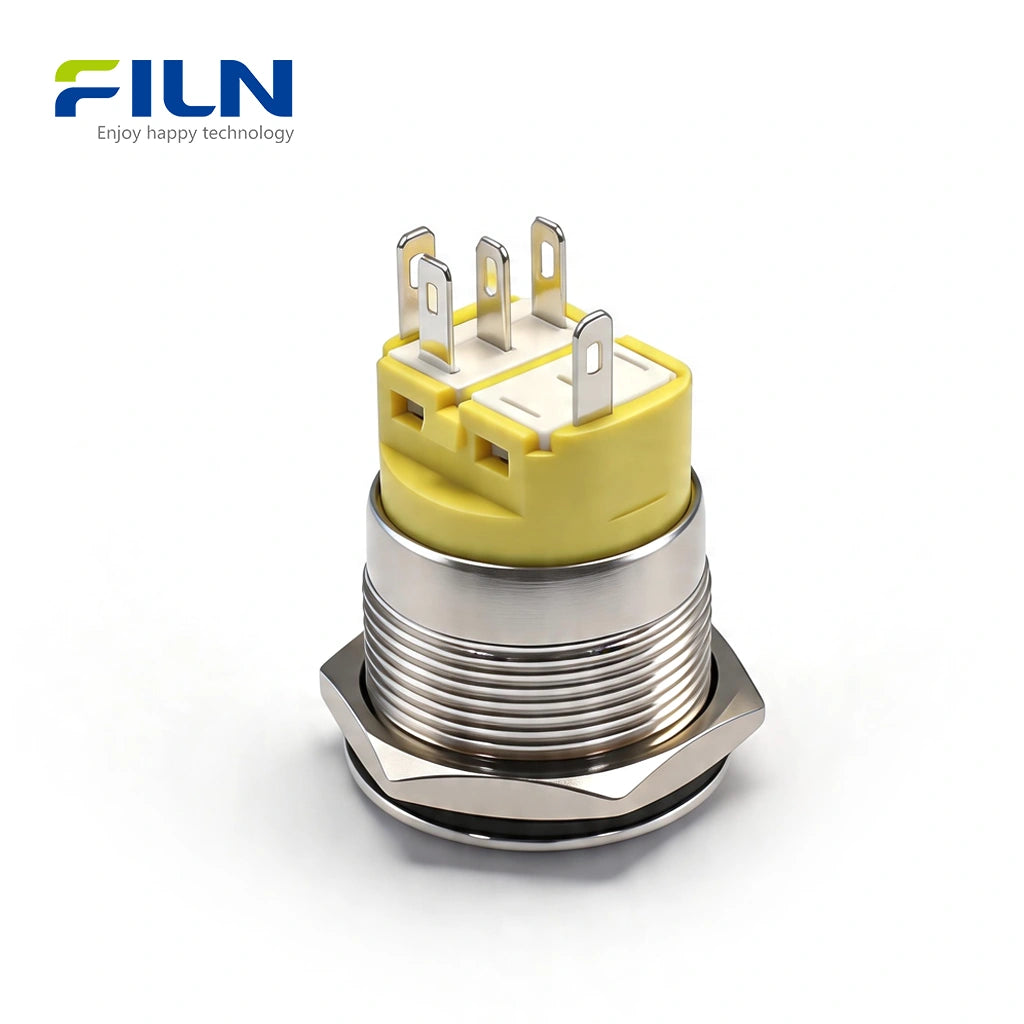

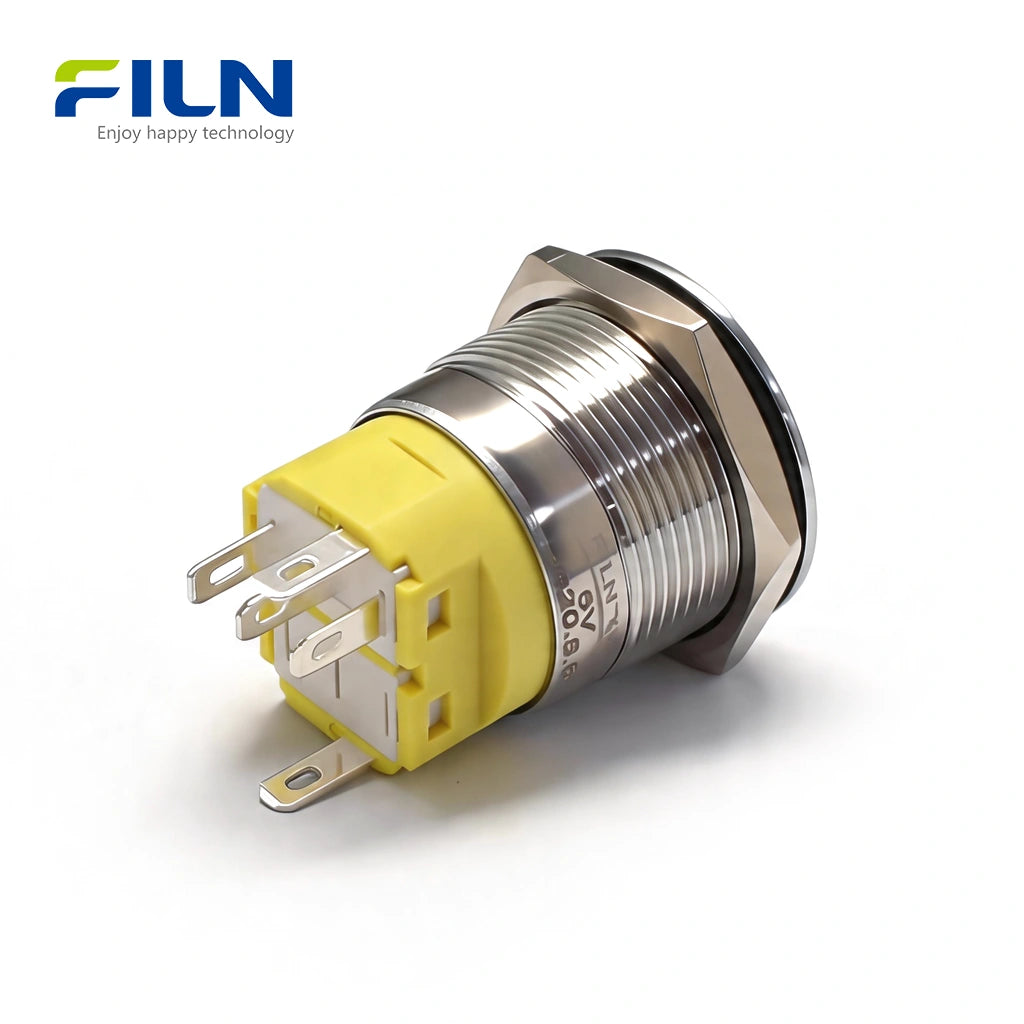

This model features a 5-pin configuration: two for the LED circuit and three for the switch circuit (C/NO/NC).

Yes, the switch is rated up to 250V AC, and we can customize the LED resistor for 110V or 220V use.

This depends on your wiring. You can wire it to be always on as a backlight or only when the circuit is active. [cite: 2]

Silver contacts provide superior conductivity and prevent oxidation, ensuring a longer electrical lifespan.

Absolutely. The IP65 rating and 304 stainless steel housing provide excellent protection against salt spray and moisture.

Yes, we provide matching quick-connect wire sockets to save you time and cost during assembly.

Yes, we offer a black zinc-aluminum alloy shell for a modern, matte aesthetic.

They are fully certified with CE, UL, VDE, RoHS, and ISO9001, meeting international industrial standards.

No, FILN supports industrial customization with no MOQ, even for specialized LED colors.
