Product Overview

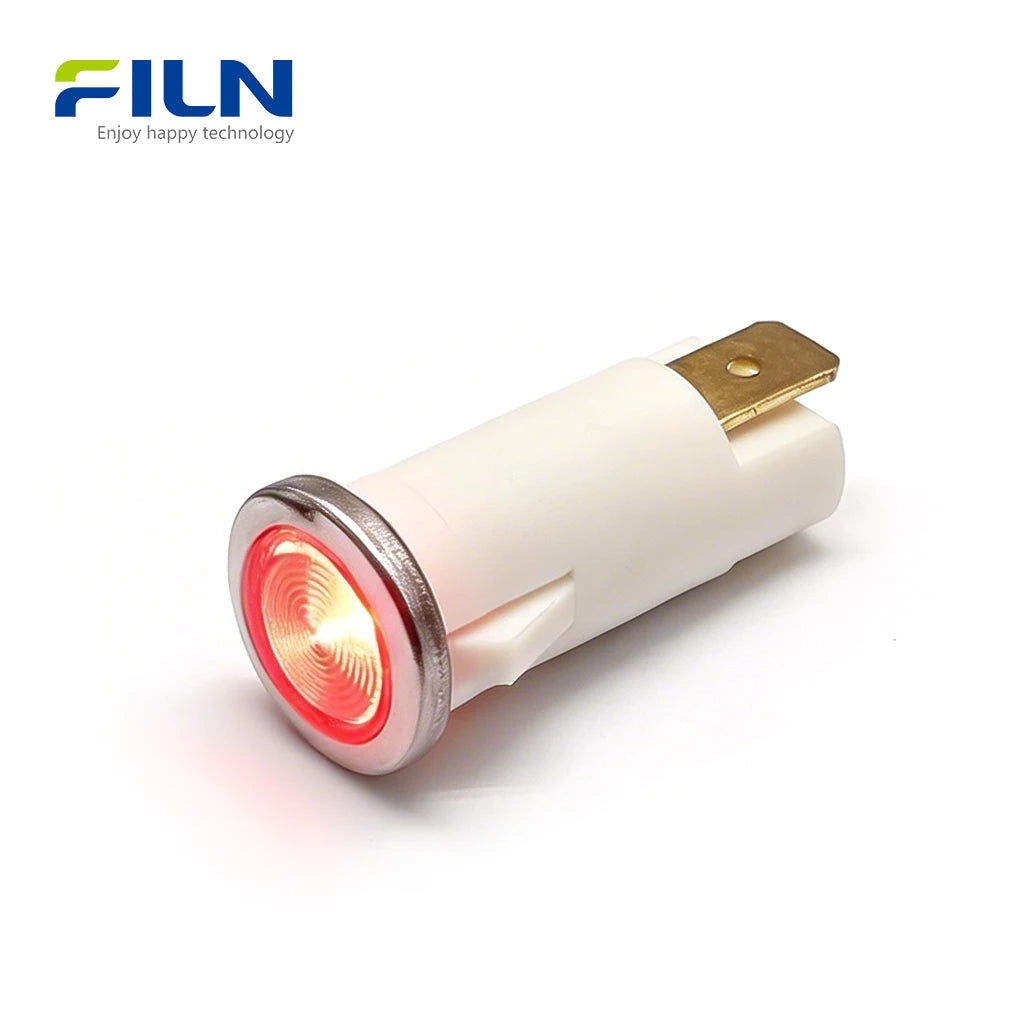

The FL1P-12.5QJ-2 red pilot light is a professional 12.5mm plastic indicator light designed for seamless panel integration. This circular indicator light is specifically engineered with a plastic shell, offering exceptional insulation and corrosion resistance compared to traditional metal versions. Featuring a 2-pin terminal (plug-in) design, it ensures rapid wiring and maintenance. These units are currently for sale and widely used in industrial control panels, automation equipment, and power distribution cabinets. With a long lifespan of 60,000 hours, our products are certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. You can purchase directly from our factory with customized voltage options ranging from 12V to 220V.
Quick Specifications
| Mounting Hole | 12.5mm / 0.49 inch |
|---|---|
| Voltage Options | 12V-24V, 110V-220V (Customized Support) |

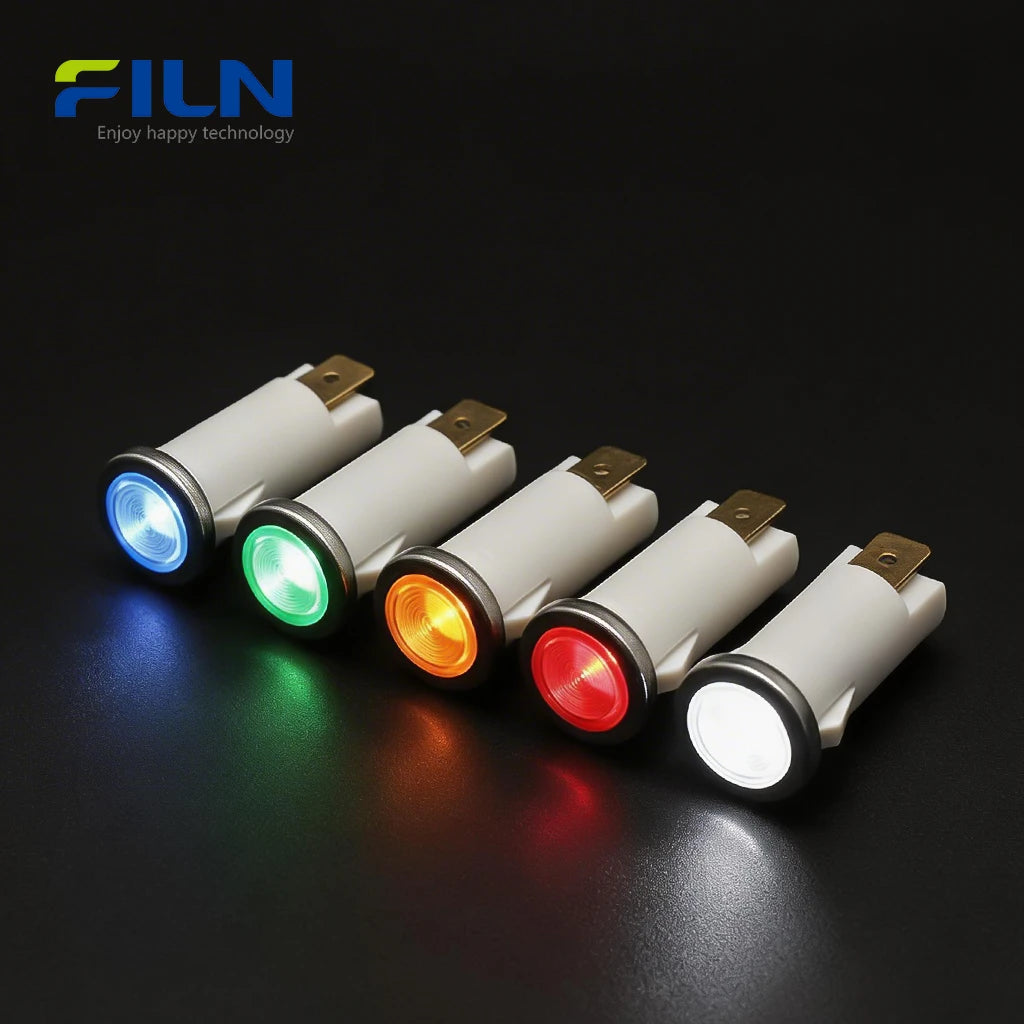

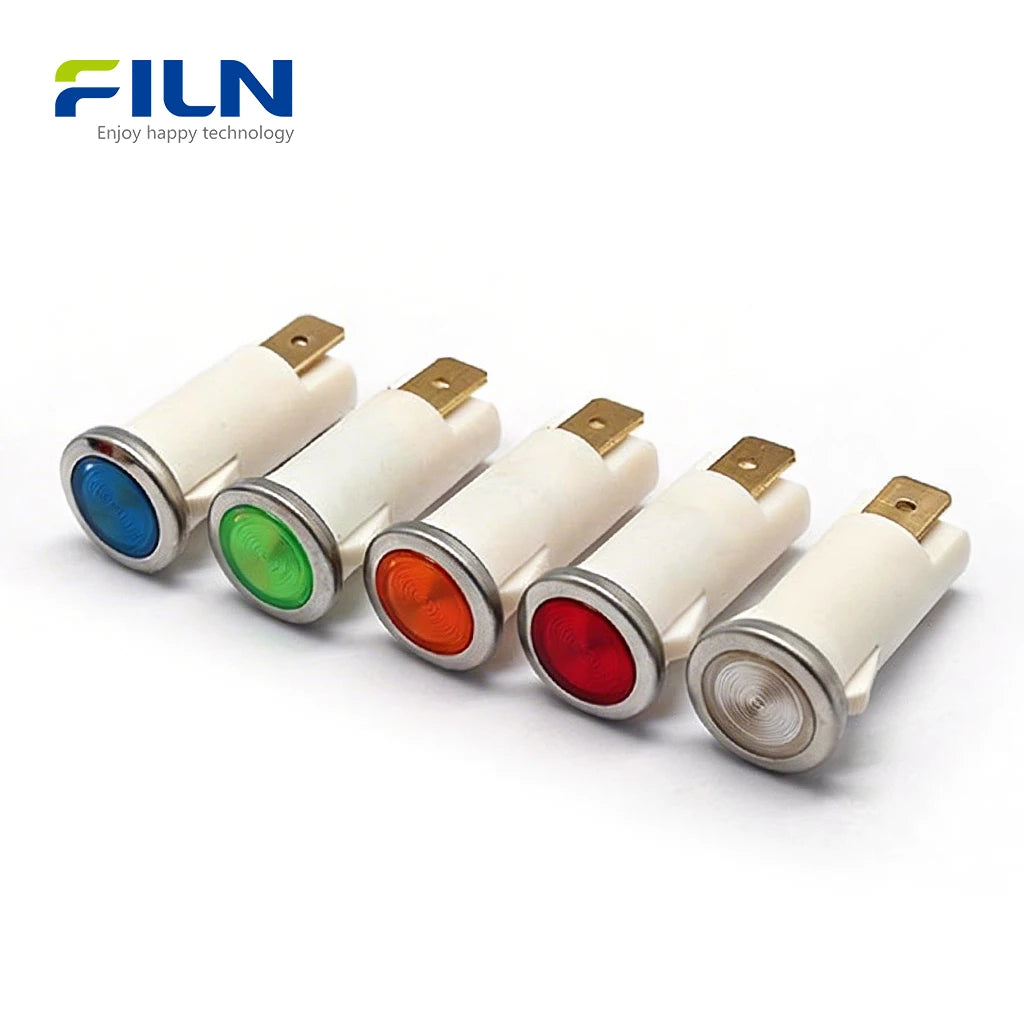

| LED Color | Red, Green, Yellow, Blue, White |

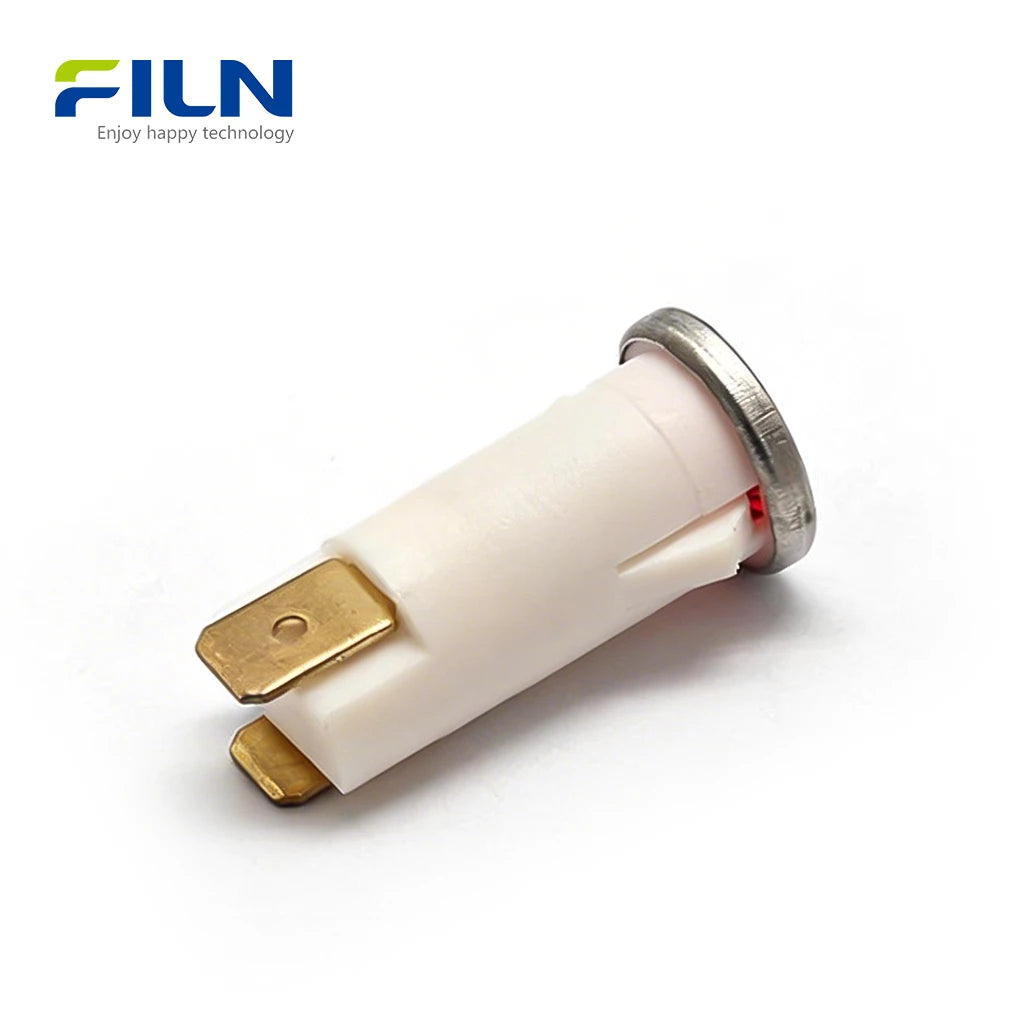

| Wiring Type | 2-Pin / 2.8mm Terminal Type |
| Installation Type | Snap-in Mounting (Non-waterproof) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥60,000 Hours |
Rated Working Parameters
| Rated Voltage | Customized (3V to 380V) |
|---|---|
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Part Name | Material |
|---|---|
| Shell (Housing) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | High-Transmittance PC |
| Luminescent Source | LED |
| Resistance | Carbon Film Resistance |
| 2.8mm Terminal | H59 Brass (Copper) |
General Characteristics
| Items | Parameter |
|---|---|
| Insulation and Voltage Resistance | 1800V/5s |
| Cold/Heat Resistance | -40℃ / +80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | 50,000 - 60,000 hours (30mA test) |
|---|
Resistant Performance
| High Temperature | 80℃ for 96h |
|---|---|
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- LED high brightness: Uniform red glow for clear status signaling.
- Long lifespan: Maintenance-free operation for over 6 years.
- Snap-in Mounting: No tools or nuts required for installation.

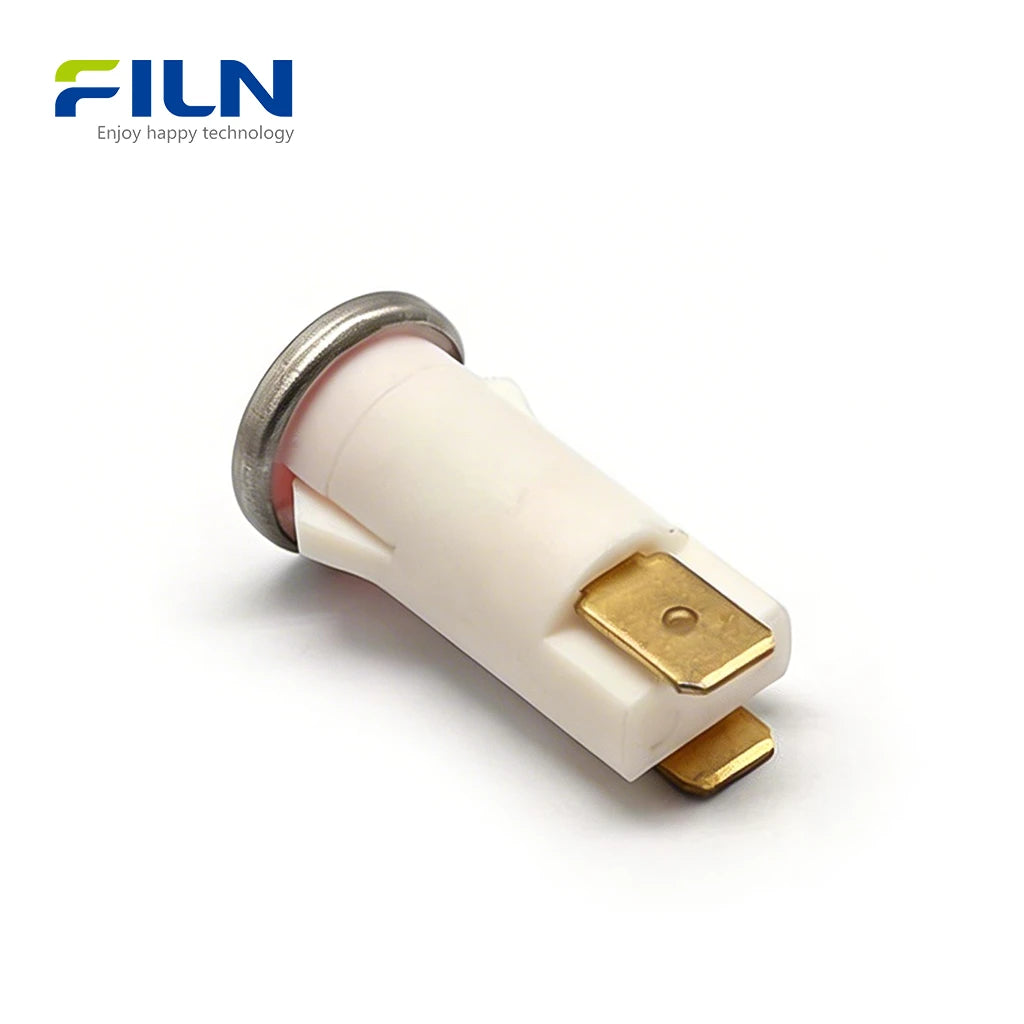

- 2-Pin Plug-in Design: Fast electrical connection with 2.8mm terminals.
- Industrial grade reliability: Flame-retardant plastic housing for safety.
Applications
This red pilot light is ideal for monitoring status in:
- Industrial control panels
- CNC machines and lathes
- Automation equipment
- Electrical cabinets
- Marine systems & Medical devices
Installation Guide (Snap-in)
- Drill: Create a 12.5mm hole in your control panel.
- Insert: Pass the red pilot light through the hole from the front.

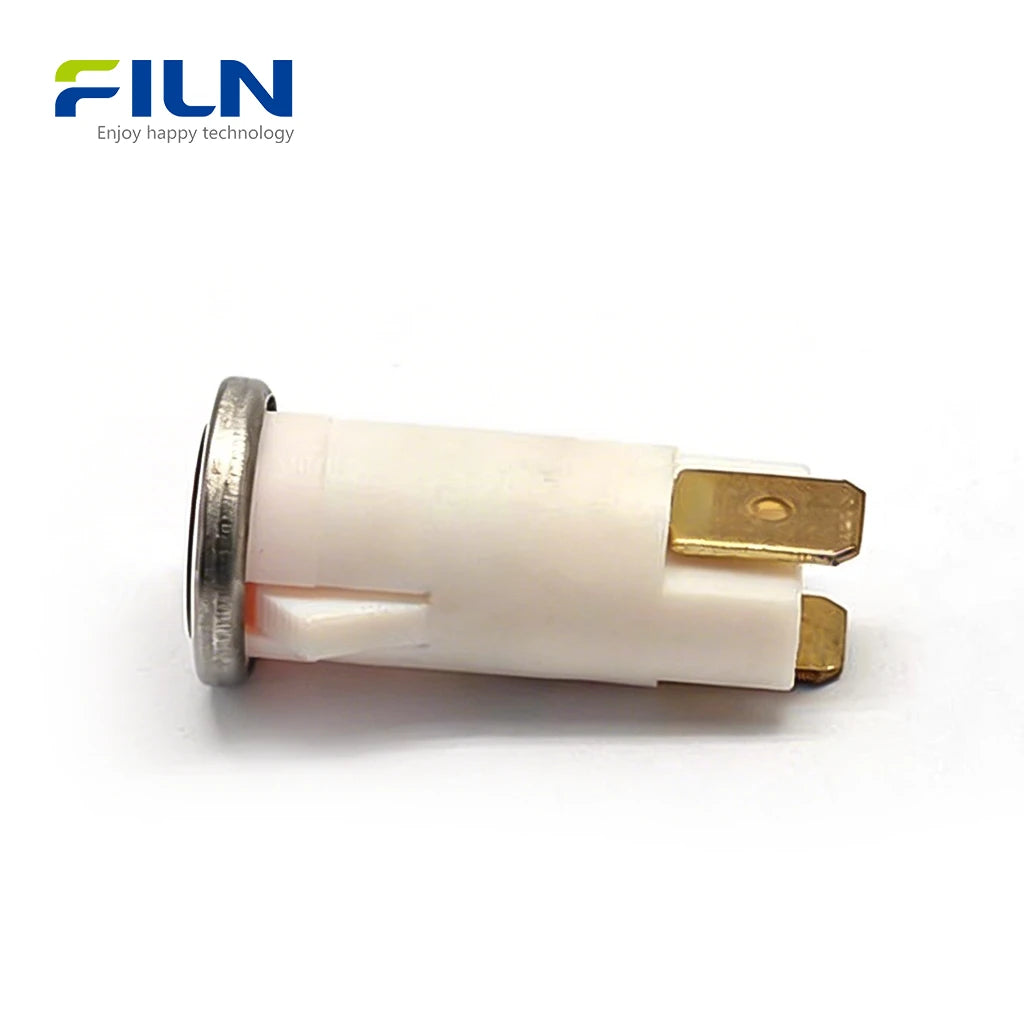

- Secure: Press firmly until the "ears" (clips) on both sides of the plastic shell lock onto the panel back.
- Connect: Plug your female terminals onto the 2.8mm 2-pin tail.
What Is a Red Pilot Light?
A red pilot light is a critical safety component in industrial environments. Its primary role is to indicate a system status—most commonly Warning, Fault, or Danger. Using a plastic pilot light electrical over metal offers superior insulation, preventing accidental electrical leakage to the panel surface.
Color Definitions in Industry:
- Red: Emergency, Failure, or System Off.
- Green: System Running, Normal, or Ready.
- Yellow: Warning, Abnormality, or Critical Parameter approaching.
- Blue: Special Action Required or specific status.
- White: Power Indicator or General monitoring.
Plug-in vs. Wire Leads: Plug-in (2-pin terminal) designs like the FL1P-12.5QJ-2 allow for much faster installation and replacement compared to wire-lead types, which require soldering or wire-nutting.
Factory Direct Supply from FILN
Purchase directly from the source for custom specifications:
- Factory Direct Wholesale
- Voltage Customization
- Cable Length Customization
- Connector Customization
- Fast Global Shipping
- Free Technical Support
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Is this red pilot light available for immediate purchase?
Yes, this 12.5mm red pilot light is currently for sale and ready for bulk shipping from our factory.
2. Can I use this for 220V AC applications?
Absolutely. We support both 12-24V DC and 110-220V AC voltage configurations.
3. Why choose a plastic shell over a metal shell?
Plastic indicators provide better electrical insulation, are lighter, and more cost-effective for indoor automation projects.
4. What is the benefit of the snap-in mount?
The snap-in design allows for "one-push" installation, saving significant labor time on production lines.
5. Are the 2-pin terminals standard?
Yes, they are 2.8mm terminals, compatible with most industrial female spade connectors.
6. Does FILN offer custom colors?
We provide Red, Green, Yellow, Blue, and White as standard, but we can customize lens patterns if needed.
7. What does the Red color specifically represent?
In most industrial standards, Red indicates an emergency stop, a fault, or that the system is de-energized.
8. Is this product certified for international use?
Yes, it carries UL, CE, VDE, and RoHS certifications for global compliance.
9. Can the wiring tail be customized with wires instead of pins?
Yes, FILN factory provides custom wire soldering services to meet your specific assembly needs.
10. How do the "ears" secure the light?
The plastic clips act as a tension spring that locks against the back of the panel, preventing the light from falling out or rotating.
