Product Overview

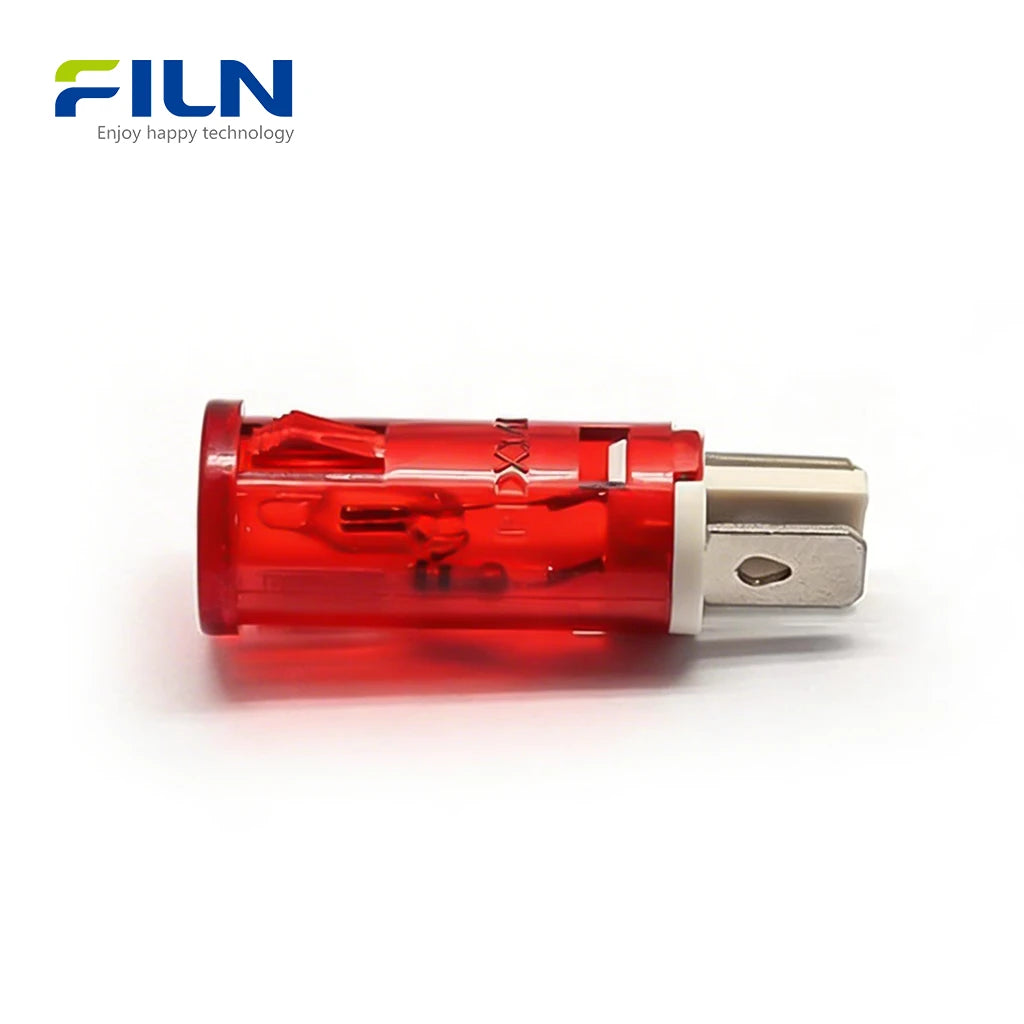

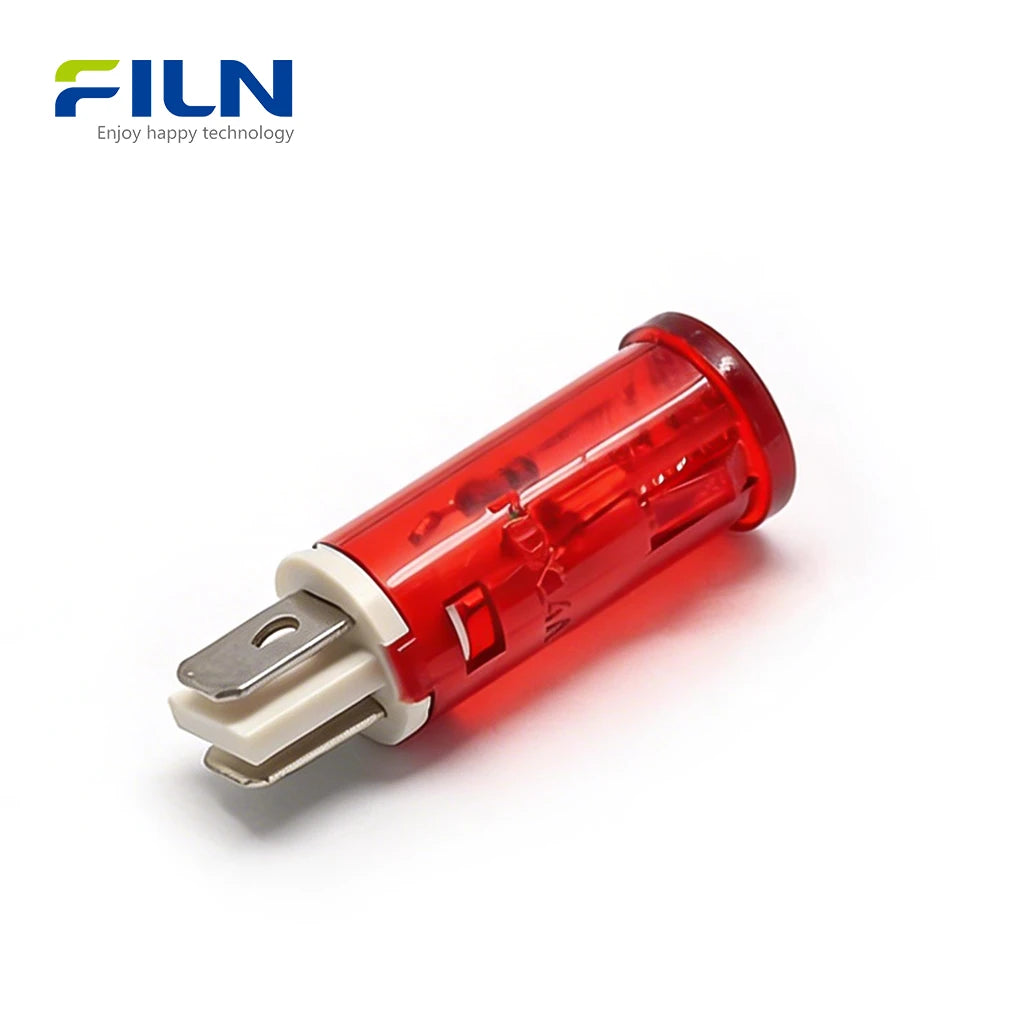

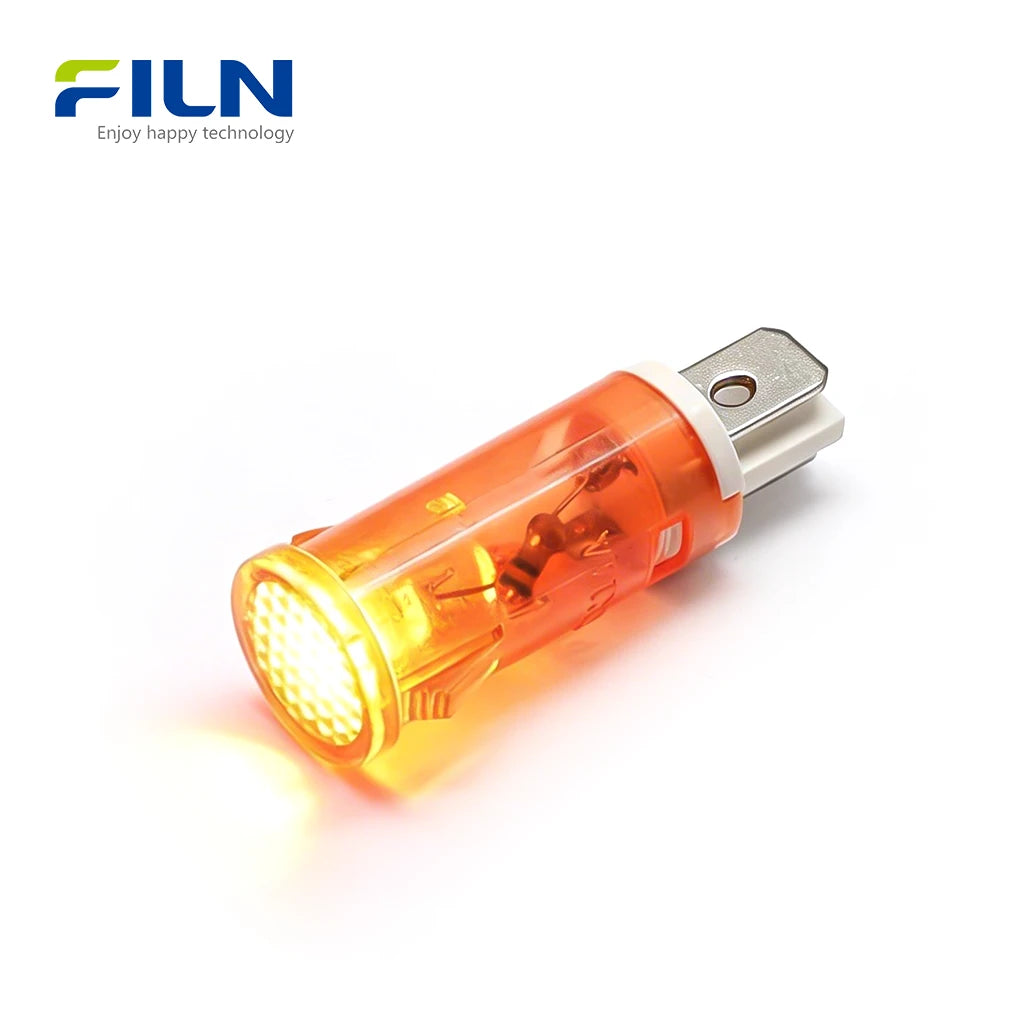

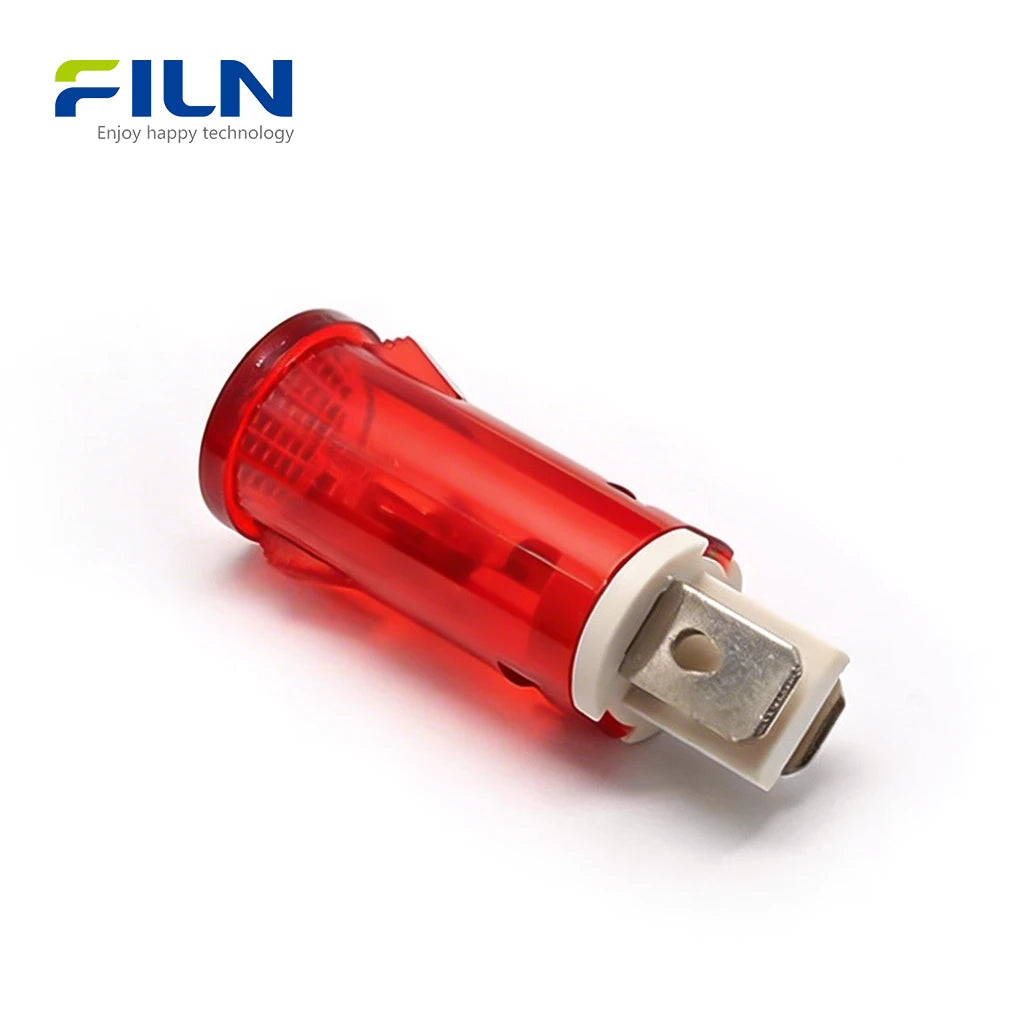

The FL1P-12.5QJ-1 plastic pilot light electrical is a high-performance 12.5mm signal lamp designed for industrial efficiency. Featuring a unique grid-patterned lens for enhanced brightness, this circular indicator light ensures maximum visibility. As a leading manufacturer, FILN provides these units for sale with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. These lights are ideal for industrial control panels, automation, and electrical cabinets. Compared to metal alternatives, our plastic pilot light electrical offers superior corrosion resistance, lightweight design, and cost-effectiveness while maintaining a 60,000-hour lifespan. Available in Red, Green, Yellow, Blue, and White, it supports 12V, 24V, 110V, and 220V applications.
Quick Specifications
| Mounting Hole | 12.5mm / 0.49 inch |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |

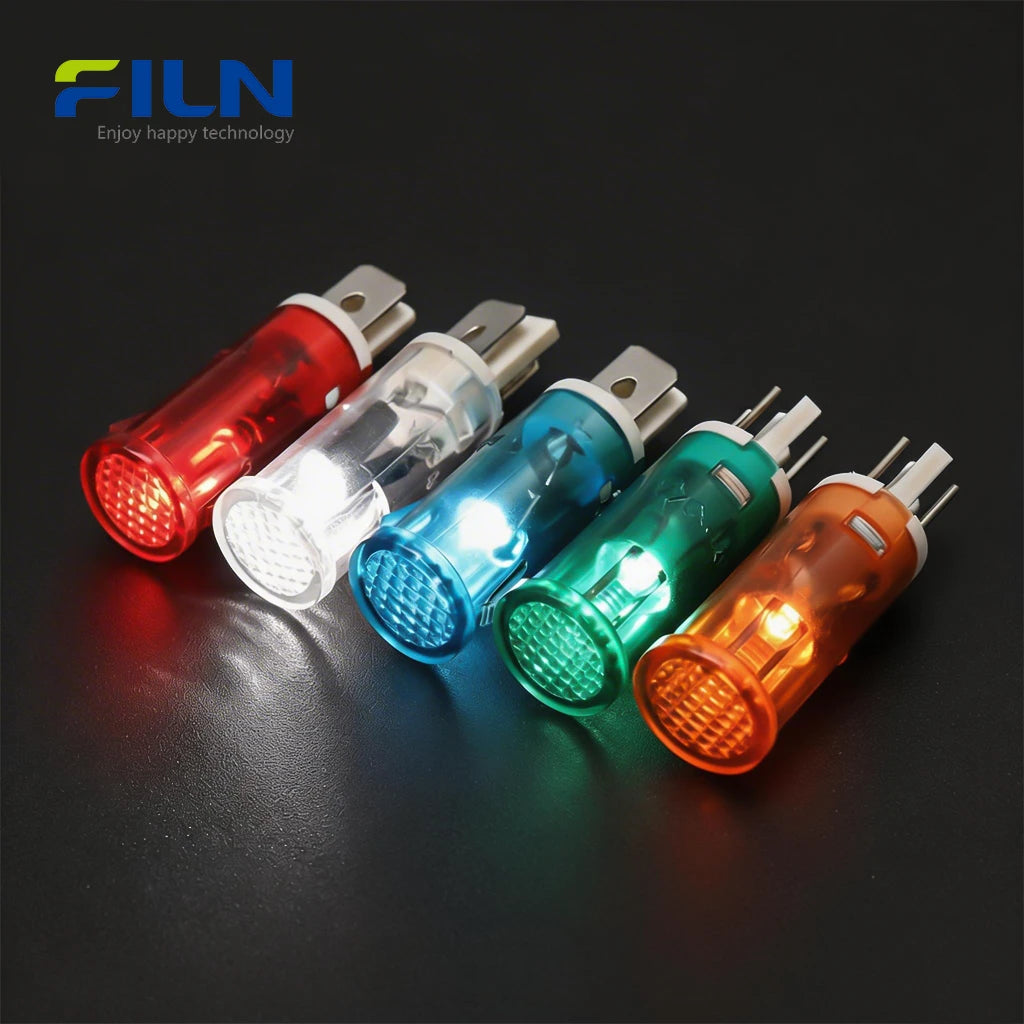

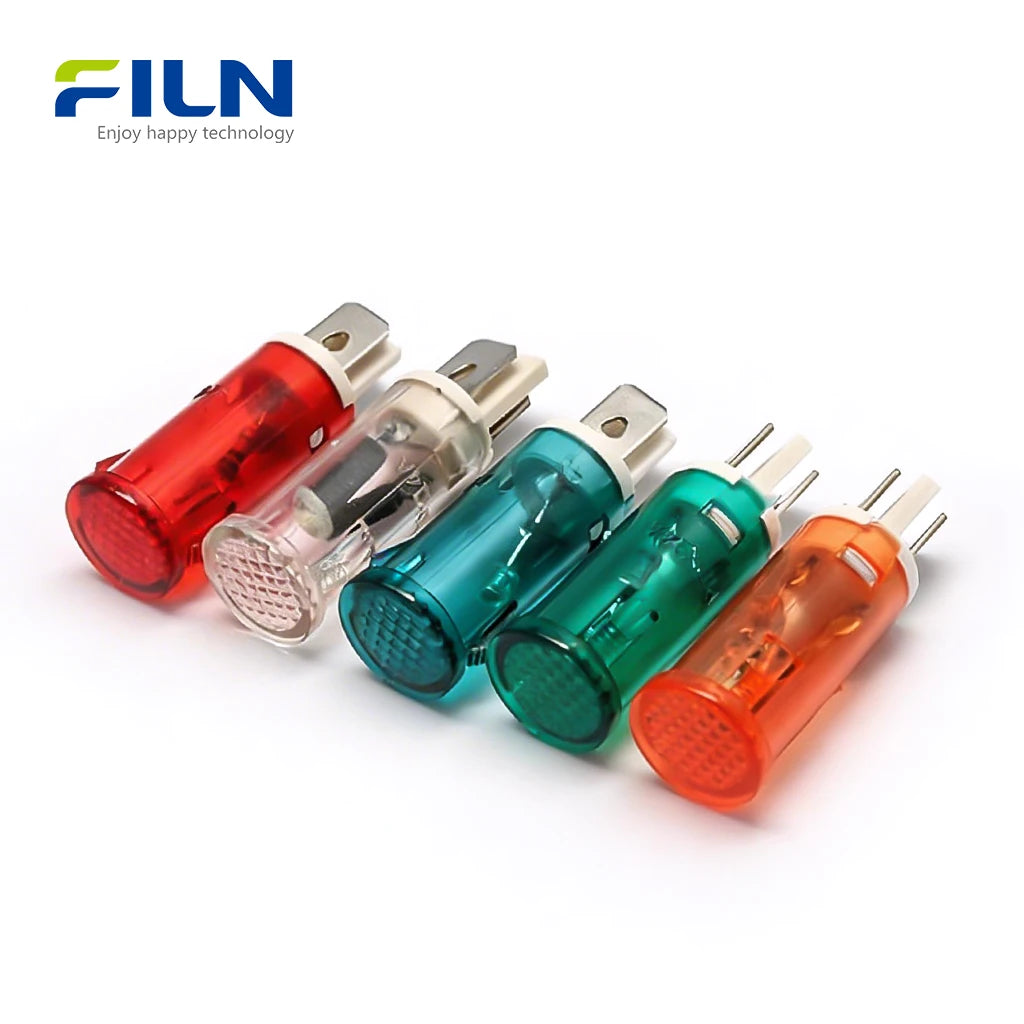

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 (Threaded) / Non-waterproof (Snap-in) |
| Wiring Type | 2-Pin Plug-in / Pin Terminal (2.8mm) |
| Installation Method | Snap-in Mounting |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Component Name | Material |
|---|---|
| Shell (Housing) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | PC (Polycarbonate) |
| Luminescent Source | High-Brightness LED |
| Resistance | Carbon Film Resistance |
| 2.8mm Terminal | H59 Brass (Copper) |
| Wire Specification (if applicable) | PVC (for wire lead type) |
Rated Working Parameters
| Rated Voltage | 3V - 380V (Customized) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Items | Parameter |
|---|---|
| Insulation and Voltage Resistance | 1800V/5s |
| Working Life | 60,000 Hours |
| Operating Temperature | -40℃ ～ +80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability & Resistant Performance
| High Temperature Resistance | 80℃ for 96 hours (No structural damage) |
|---|---|
| Low Temperature Resistance | -40℃ for 96 hours |
| Continuous Working Life | 50,000 - 60,000 Hours (Tested at 30mA) |
Key Features
- LED High Brightness: Grid-shaped lens design distributes light evenly and brilliantly.
- Snap-in Installation: Fast and tool-free mounting on panels with integrated side clips.
- Industrial Reliability: Made from flame-retardant PA66 material for extreme environments.
- Global Versatility: Supports a wide range of voltages from 12V to 220V.
- Convenient Wiring: Features 2.8mm pin terminals (2-pin) for rapid electrical connection.
Applications
The plastic pilot light electrical is essential for real-time status monitoring in:
- Power Distribution Cabinets & Control Boxes
- CNC Machinery and Industrial Automation Lines
- Household Appliances and Commercial Kitchen Equipment
- Medical Monitoring Devices
- Marine and Automotive Dashboards
Installation Guide (Snap-in Type)
- Prepare the panel by drilling a hole with a diameter of 12.5mm.
- Clean the area around the hole to ensure a secure fit.
- Insert the plastic indicator light from the front of the panel.
- Press down firmly until the side "ears" (retention clips) snap into place behind the panel.
- Connect the electrical wires to the 2.8mm pin terminals.
What Is a Plastic Pilot Light Electrical?
A plastic pilot light electrical is a visual signaling device used in electrical circuits to indicate the operating status of machinery. Unlike metal indicators, plastic versions offer superior insulation and are immune to rust, making them ideal for high-humidity environments.
Color Meanings in Industry:
- Red: Danger, Fault, or Emergency stop.
- Green: Safe, Ready, or Normal operation.
- Yellow: Warning or Abnormality.
- Blue: Mandatory action or Specific status.
- White: Power ON or neutral monitoring.
Choosing between pin terminals and wire leads: Pin terminals allow for modular connection using quick-disconnect terminals, while wire leads are better for permanent, soldered, or remote connections.
Factory Direct Supply from FILN
As a specialized factory, FILN offers direct wholesale and customization services:
- Factory Direct Pricing
- Voltage Customization
- Custom Wire Lengths
- Tailored Connectors
- Fast Global Shipping
- Free Samples Available
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy these 12.5mm plastic pilot lights online?
Yes, our indicator lights are for sale directly through our shopify store with bulk discounts available.
2. What is the benefit of the snap-in mounting?
It allows for much faster assembly on production lines compared to threaded nuts, reducing labor costs.
3. Do you support 110V and 220V AC for the same unit?
We manufacture specific internal resistors for different voltages to ensure maximum LED lifespan.
4. Is the plastic housing fireproof?
Yes, we use UL-grade PA66 nylon which is flame-retardant and highly durable.
5. Can you provide custom wire harnesses?
Absolutely. As a factory, we can weld wires and add connectors based on your schematics.
6. How bright is the grid-patterned lens?
The grid design refracts LED light, making it visible even in high-ambient light industrial settings.
7. Are these lights compatible with marine environments?
While they are corrosion-resistant, we recommend our IP65 threaded version for direct exposure to salt spray.
8. What certificates does FILN hold?
We are certified by CE, UL, VDE, RoHS, and ISO9001.
9. What colors are available for the plastic pilot light electrical?
Standard colors include Red, Green, Blue, Yellow, and White.
10. What is the difference between plastic and metal indicator lights?
Plastic is lighter, more affordable, and provides better insulation, whereas metal is for heavy-duty impact resistance.
