Product Overview

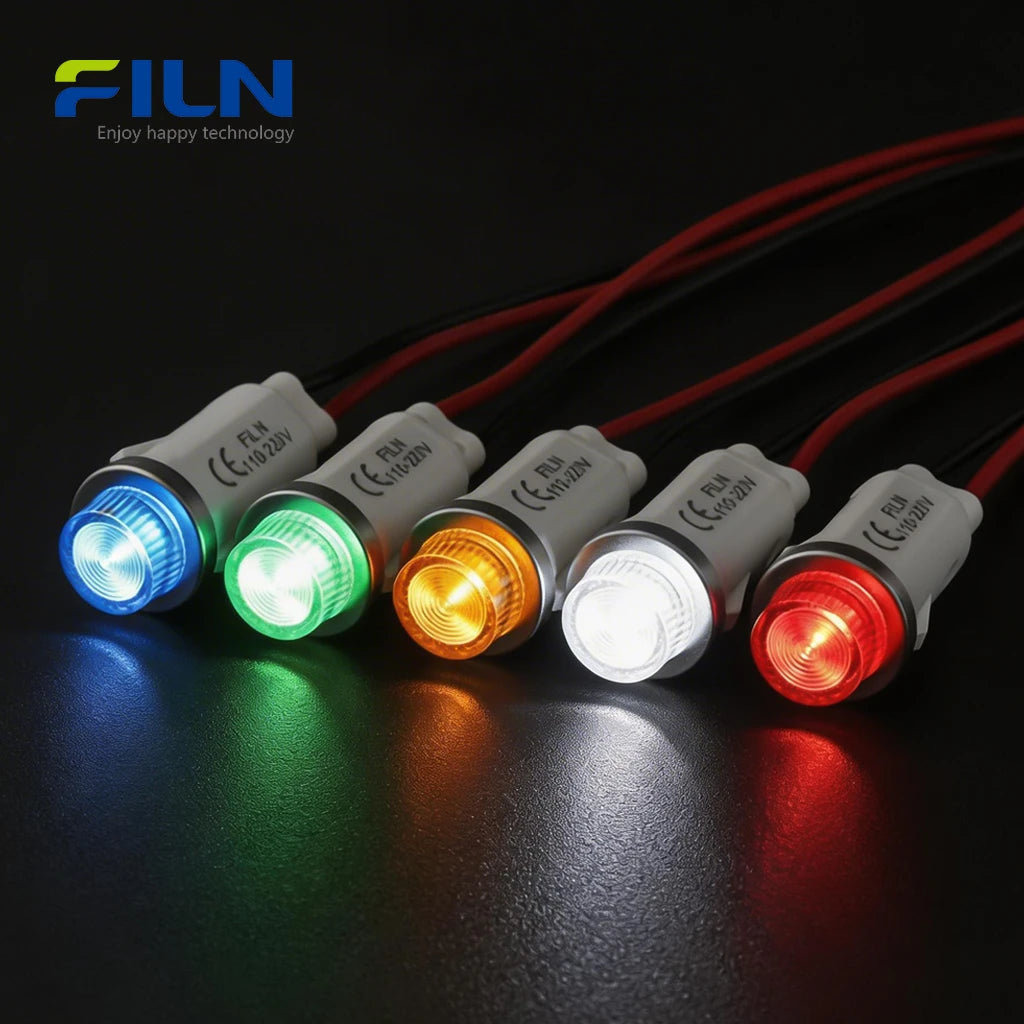

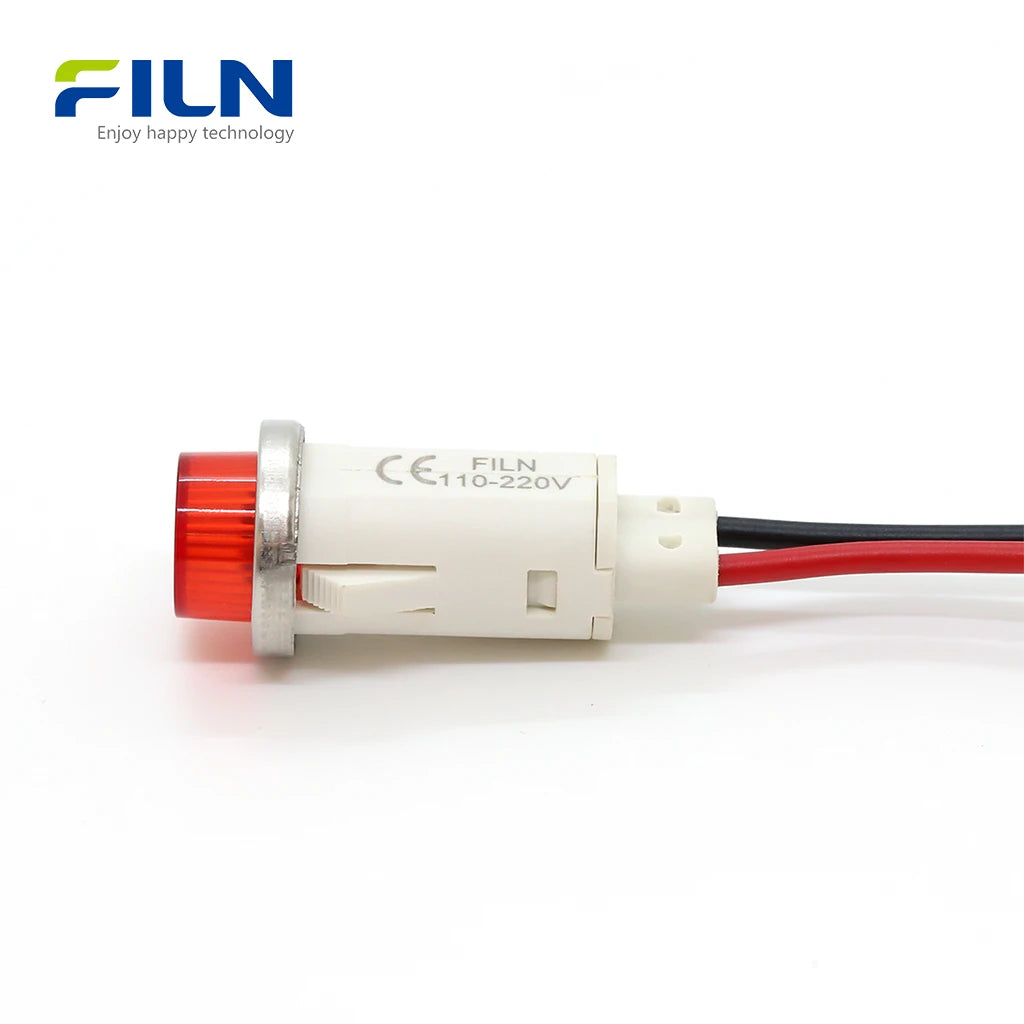

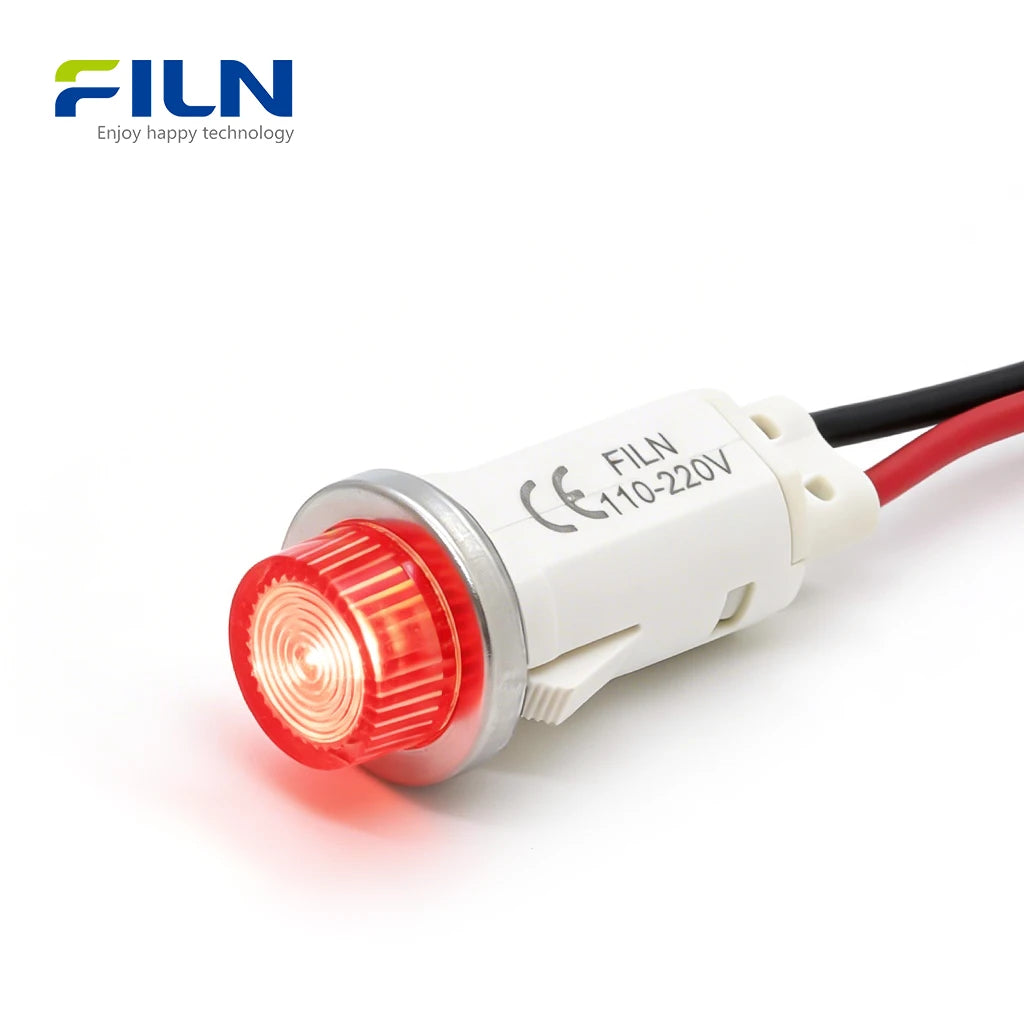

Professional grade pilot led lights are now for sale directly from the FILN factory. This 12.5mm FL1P-13QW-4 series features a durable PA66 plastic housing and a high-brightness LED. These plastic pilot led lights are widely used in industrial control panels, automation equipment, and power distribution cabinets. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, our indicators ensure global compliance and safety. The snap-in mounting design allows for rapid installation without additional tools, while the wire lead type tail (15cm standard) provides a secure electrical connection. Whether you need 12V, 24V, or 220V, these indicators offer a cost-effective, long-life solution for your machinery signal needs.
Quick Specifications
| Mounting Hole | 12.5mm / 0.49 inch |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 (Threaded) / Non-waterproof (Snap-in) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation Method | Snap-in Mounting |
| Wiring Type | Wire Lead (15cm PVC) |
| Certifications | UL, CE, RoHS, VDE, ISO9001 |
| Component Name | Material |
|---|---|
| Shell (Outer) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | PC (Polycarbonate) |
| Luminescent Source | High Brightness LED |
| Resistance | Carbon Film Resistance |
| 2.8mm Terminal | H59 Brass (For Pin Type) |
| Wire Specification | PVC Insulated Wire |
Rated Working Parameters
| Rated Voltage | Customized (3V-220V) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Flame Retardant PA66 |
| Lens | High Transparency PC |
| Seal Ring | Silicone (For Threaded types) |
| Terminal | Copper with Tin Plating |
| Wire Material | 1007 UL Standard PVC Wire |
General Characteristics
| Items | Parameter |
|---|---|
| Voltage Scope | 3V～250V |
| Rated Power | 0.2W |
| Insulation Resistance | 1800V/5s |
| Working Life | 60,000h |
| Color Availability | Red, Green, Blue, Yellow, White |
Operating Temp: -40℃～80℃ | Relative Humidity: ≤85% at +40℃
Ambient Temp: 5~35℃ | Air Pressure: 86~106Kpa
Electric Property
| Test Item | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | Test Condition: 30mA 1000h | Requirement: 50,000 hours |
Resistant Performance
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- LED high brightness: Clear visibility even in well-lit factory environments.
- Long lifespan: Maintenance-free operation for over 60,000 hours.
- Cost-Effective: Lightweight PA66 plastic indicator light for budget-friendly projects.
- Easy installation: Snap-in design allows for "push and lock" mounting.
- Industrial grade reliability: Vibration resistant with secure pre-wired lead design.
Applications
Our 12.5mm pilot led lights are essential for:
- Industrial control panels and distribution boxes.
- CNC machines and precision automation equipment.
- Electrical cabinets and household appliances.
- Marine systems and automotive dashboards.
- Medical devices requiring clear status signaling.

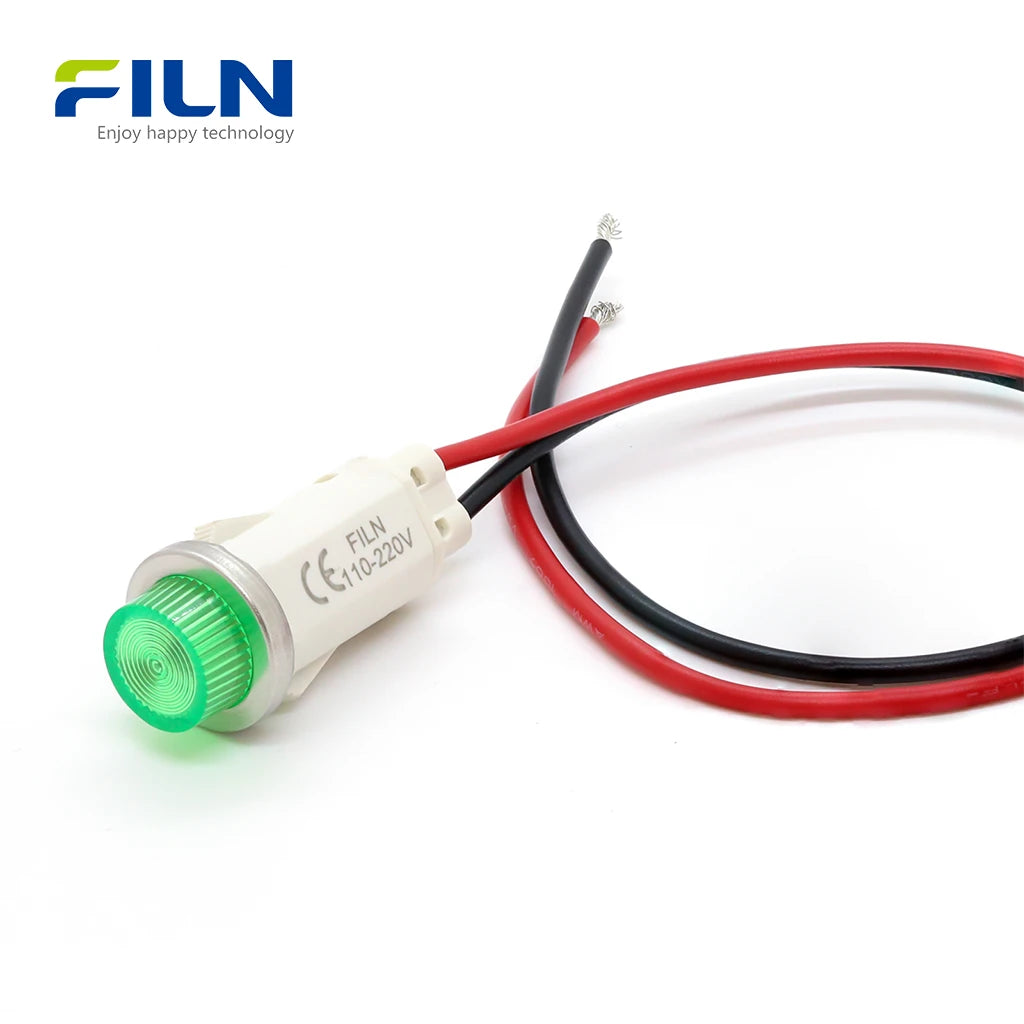

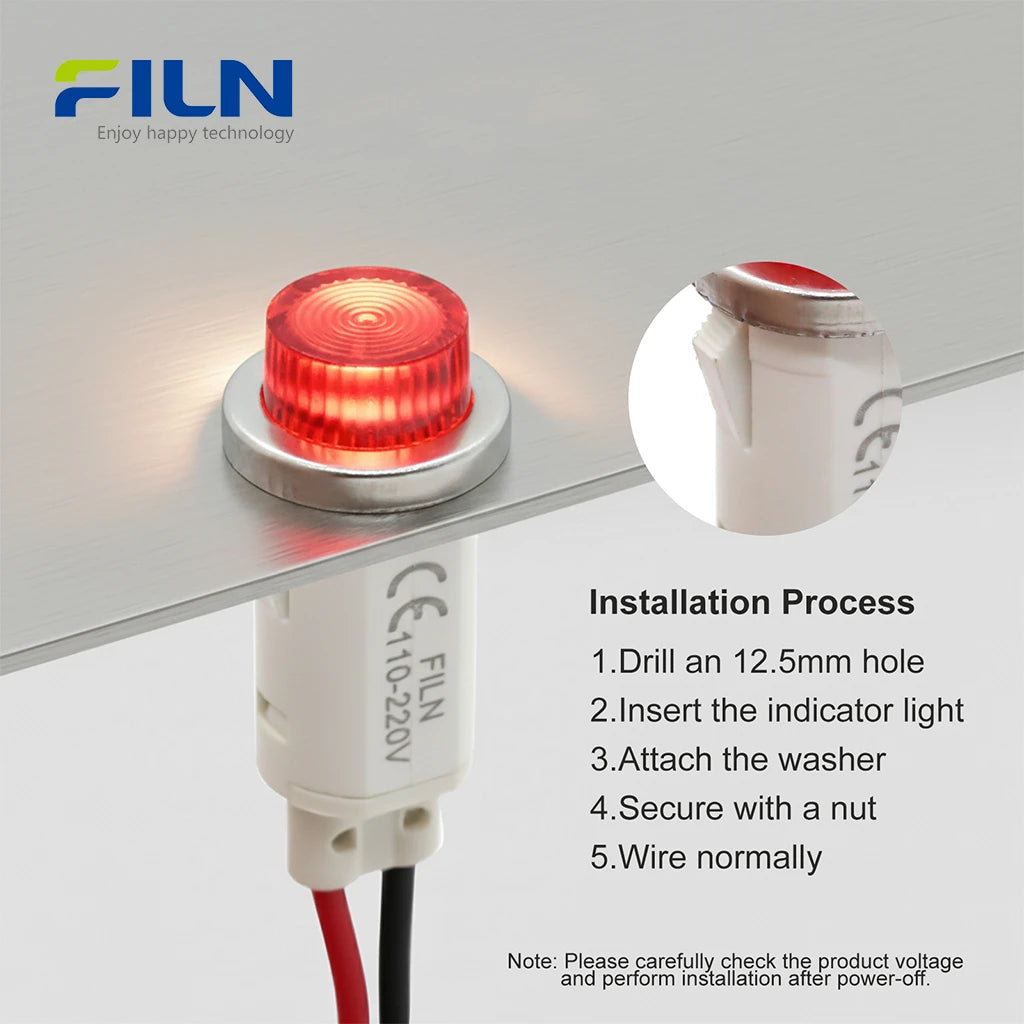

Installation Guide (Snap-in Type)
- Panel Preparation: Drill a 12.5mm (0.49 inch) hole in your control panel.
- Insert Light: Align the pilot led lights and push them into the hole from the front of the panel.
- Secure Fastening: The "ears" on both sides of the plastic shell will automatically spring out to lock the light in place.
- Wiring: Connect the 15cm wire leads to your power source (Ensure voltage match: 12V, 24V, or 220V).
What Is a Pilot LED Light?
A pilot led light is a critical visual signaling component used to indicate the operating status of an electrical circuit or machinery. Unlike traditional incandescent lamps, LED versions offer superior energy efficiency and durability.
Plastic vs. Metal: While metal indicators offer high impact resistance, plastic pilot led lights (made of PA66) are corrosion-resistant, lightweight, and provide excellent insulation, making them ideal for high-humidity or chemical environments.
Color Meanings:
• Red: Danger or Emergency (Stop).
• Green: Safe or Normal Operation (Go).
• Yellow: Warning or Abnormality.
• Blue: Specific mandatory action required.
• White: Power availability or neutral monitoring.
Factory Direct Supply
As a leading pilot led lights factory, FILN provides professional customization services for global B2B buyers:
- Voltage Customization: 3V to 380V available.
- Wire Customization: Adjust wire length or add specific connectors.
- Fast Global Shipping: Reliable logistics for bulk industrial orders.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy these pilot led lights for sale in bulk?
Yes, FILN is a direct factory offering wholesale prices for industrial orders.
2. What is the advantage of snap-in mounting?
It saves labor costs by eliminating the need for nuts, allowing for fast "push-to-install" on panels.
3. Are these lights available in 220V AC?
Yes, we support 12V, 24V, 110V, and 220V AC/DC configurations.
4. Is the PA66 plastic heat resistant?
Yes, PA66 nylon is high-temperature resistant up to 80℃ for continuous industrial use.
5. Can the wire lead length be longer than 15cm?
Absolutely. We provide custom wire lengths based on your specific cabinet requirements.

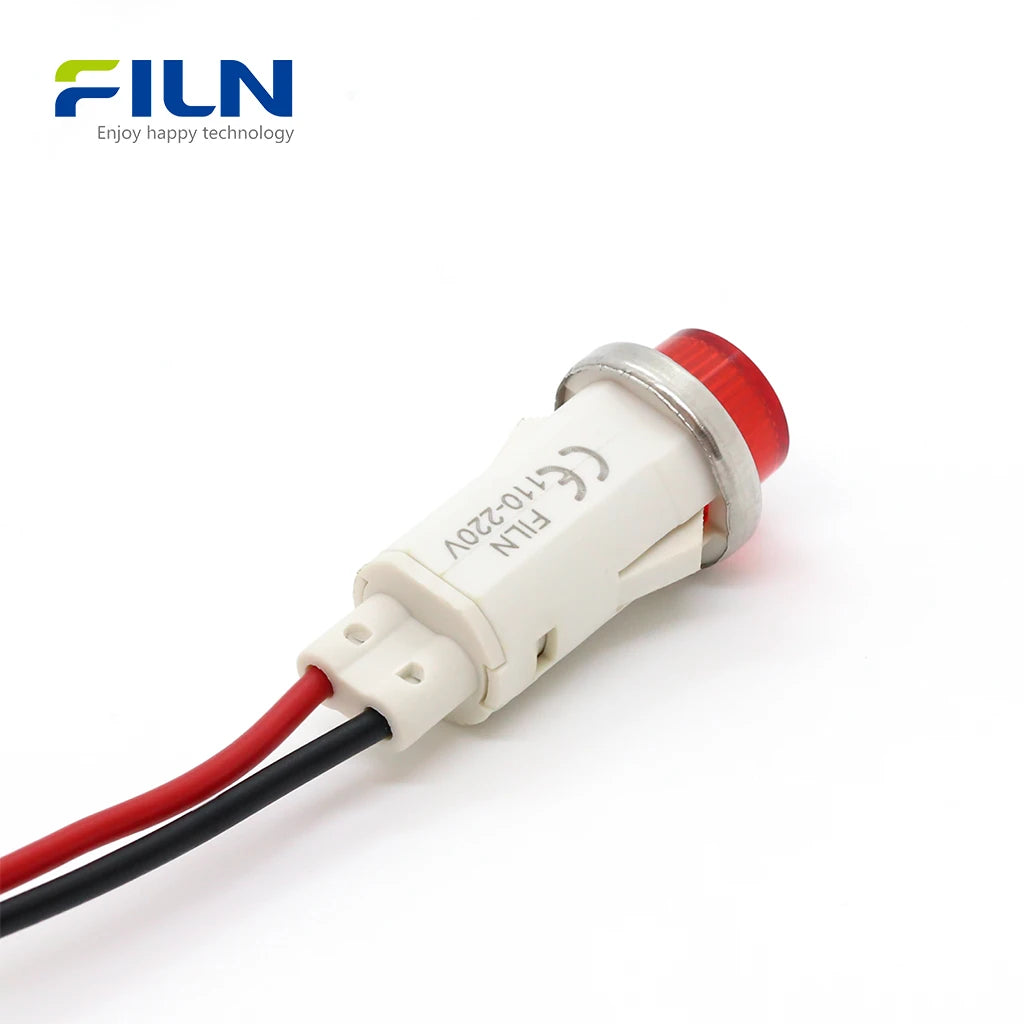

6. What is the difference between pin type and wire lead type?
Wire leads (pre-wired) are ready for immediate connection, while pin types require soldering or terminal connectors.
7. Do you provide samples for testing?
Yes, please contact our sales team at inquiry@cnylin.com.cn for samples.
8. Are these indicator lights UL certified?
Yes, FILN products carry UL, CE, and RoHS certifications for international safety.

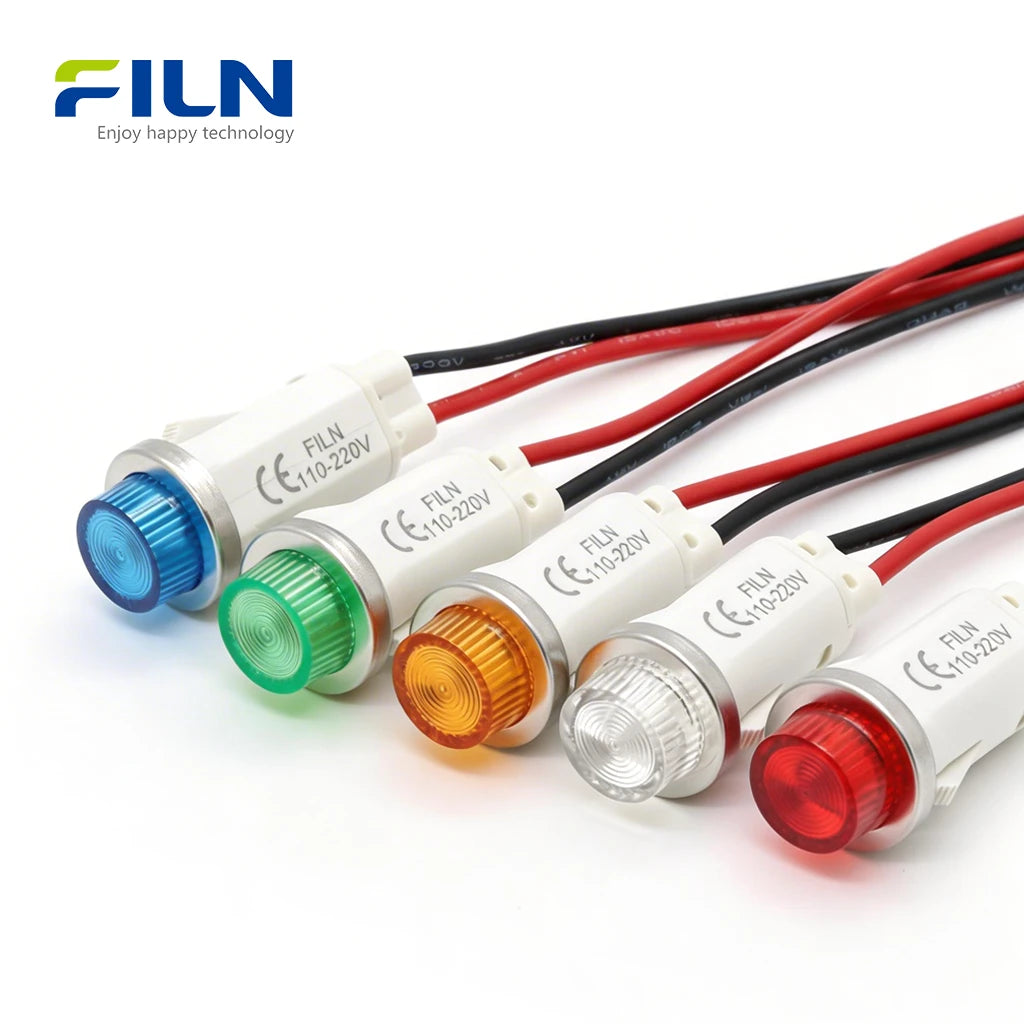

9. What colors are available for the 12.5mm indicator?
We offer Red, Green, Yellow, Blue, and White LED options.
10. How long does the LED last?
Our high-quality LEDs are rated for over 60,000 hours of continuous operation.
