Product Overview

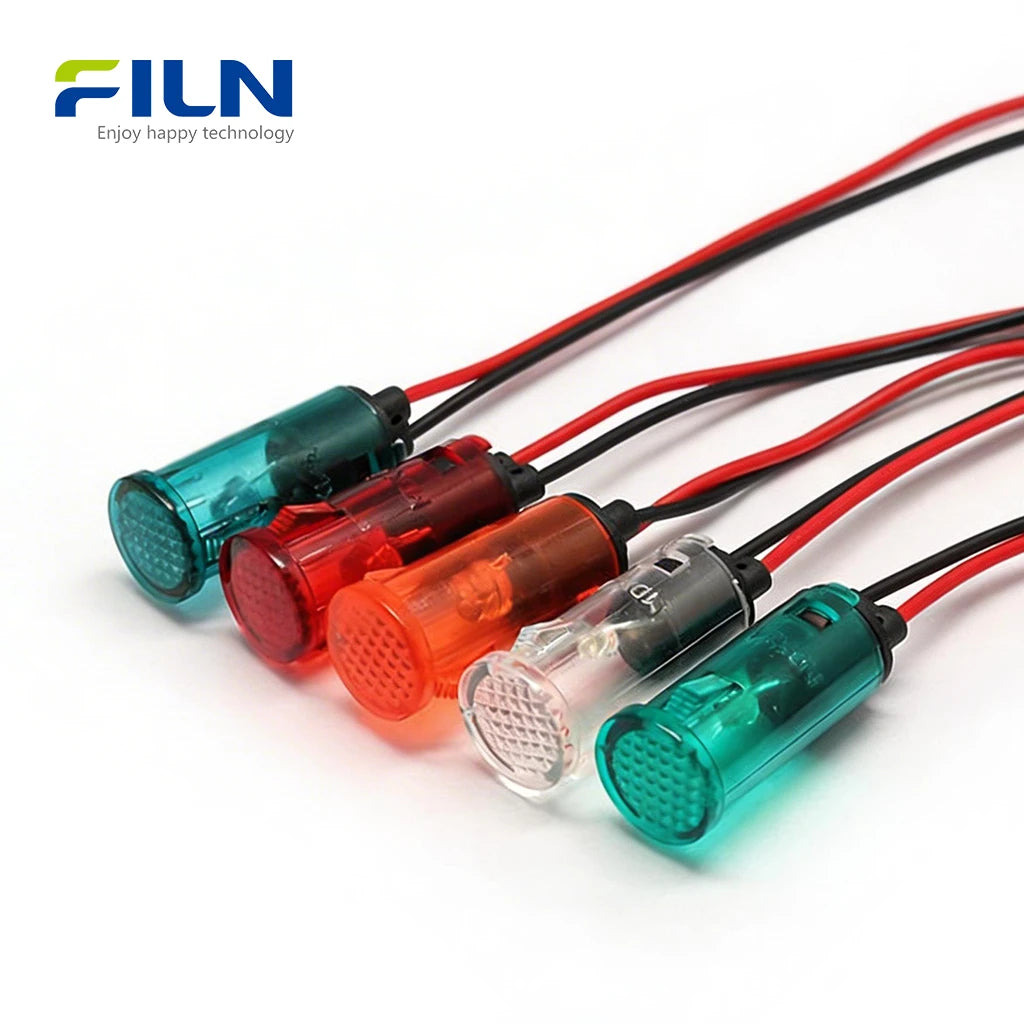

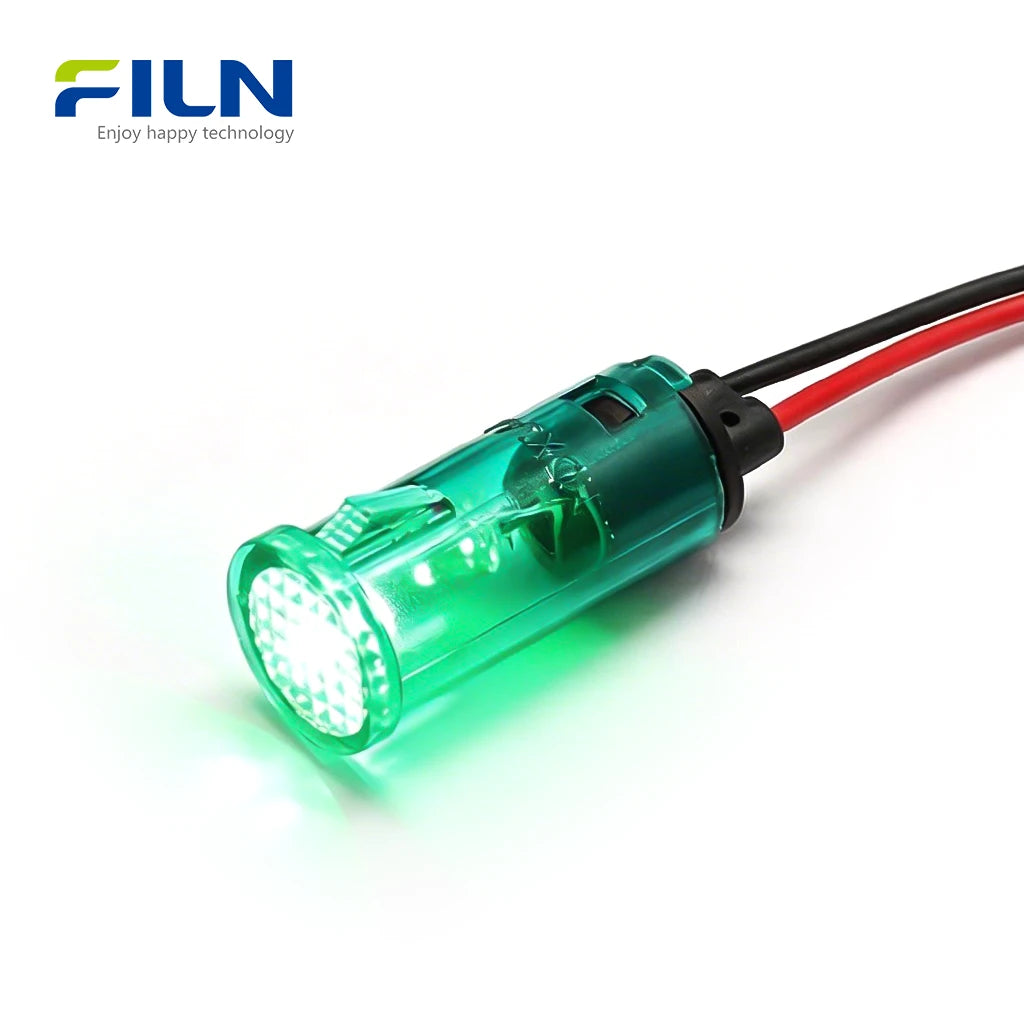

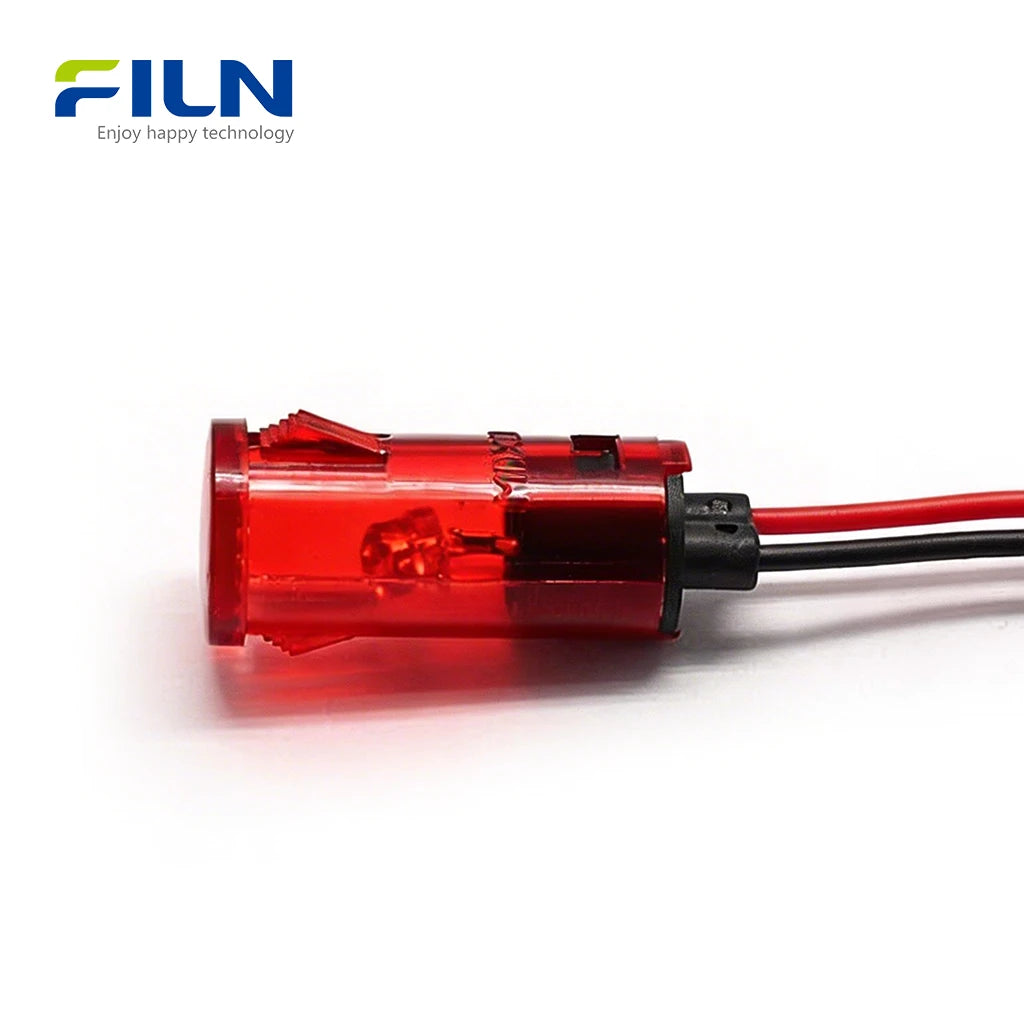

The FL1P-12.5QW-1 series features high-quality pilot led solutions designed for modern industrial environments. These 12.5mm plastic pilot led lights are crafted from premium PA66 Nylon, offering a lightweight yet durable housing that is for sale for direct factory purchase. Featuring a round high-head design, these indicators provide superior lateral visibility. The snap-in mounting system combined with a 15cm pre-wired lead ensures a tool-free, rapid installation. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, FILN indicators are built for reliability in automation, electrical cabinets, and CNC machinery. These units are currently available for sale with support for full voltage and wire length customization to meet your specific project needs.
Quick Specifications
| Mounting Hole | 12.5mm / 0.49 inch |
|---|---|
| Voltage | 12-24V, 110-220V (Customized Support) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Head IP65 (Threaded) / Non-waterproof (Snap-in) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation Method | Snap-in Mounting |
| Wiring Type | Wire Lead (15cm PVC Standard) |
Certifications: ISO9001, CE, VDE, RoHS, SGS, UL
Rated Working Parameters
| Rated Voltage | Customized (3V-380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Component Name | Material |
|---|---|
| Shell (Housing) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | Polycarbonate (PC) |
| Luminescent Source | High Brightness LED |
| Resistance | Carbon Film Resistance |
| Terminal (Wire) | 1007 PVC Wire (15cm) |
General Characteristics
| Insulation and Voltage Resistance | 1800V / 5s |
|---|---|
| Working Power | 0.2W |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Insulation Resistance | DC500V 1min ≥100MΩ |
|---|---|
| Dielectric Strength | 1500VAC / 5mA / 60s (No breakdown) |
Durability Characteristics
| Continuous Working Life | 30mA 1000h (Test Condition) |
|---|---|
| Expected Lifespan | 50,000 - 60,000 Hours |
Resistant Performance
| High Temperature Resistance | 80℃ for 96h |
| Low Temperature Resistance | -40℃ for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features

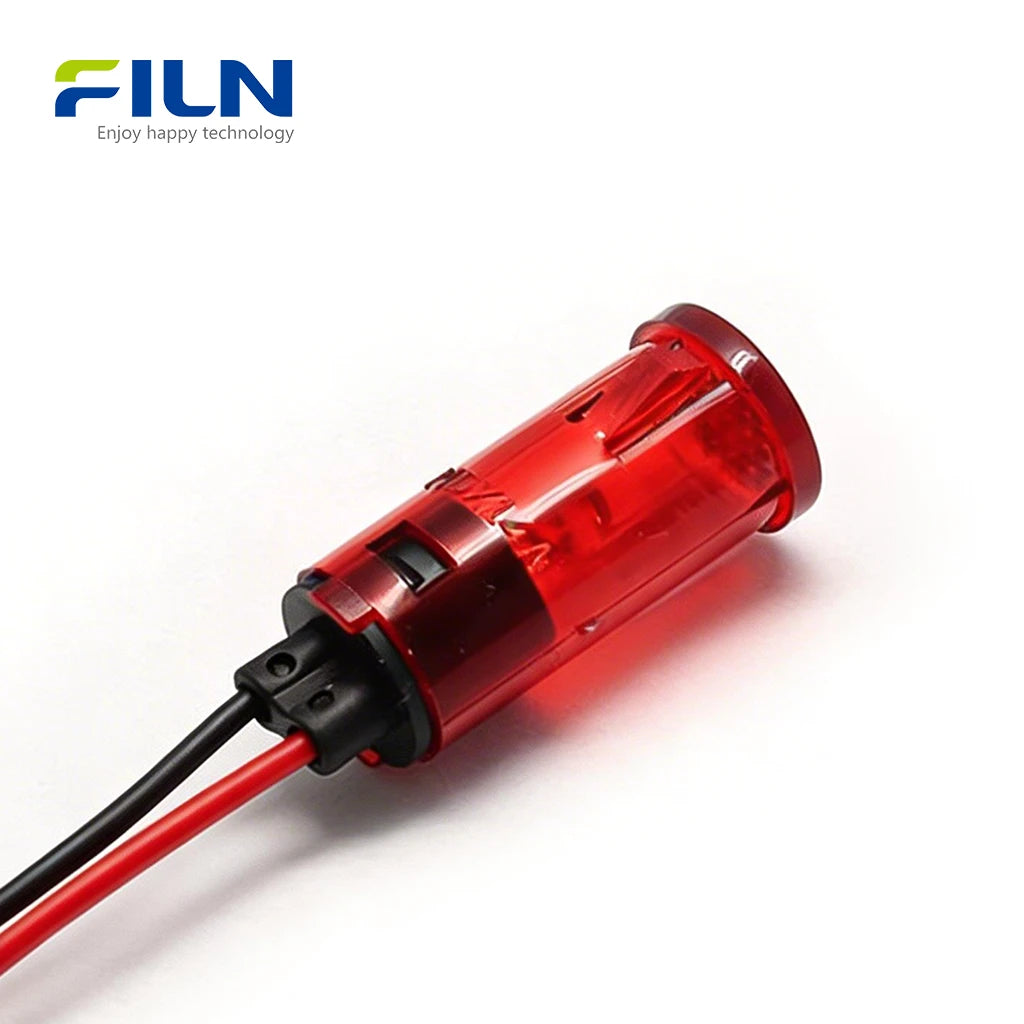

- LED high brightness: Round high-head lens maximizes light diffusion.
- Long lifespan: Maintenance-free for over 60,000 operating hours.

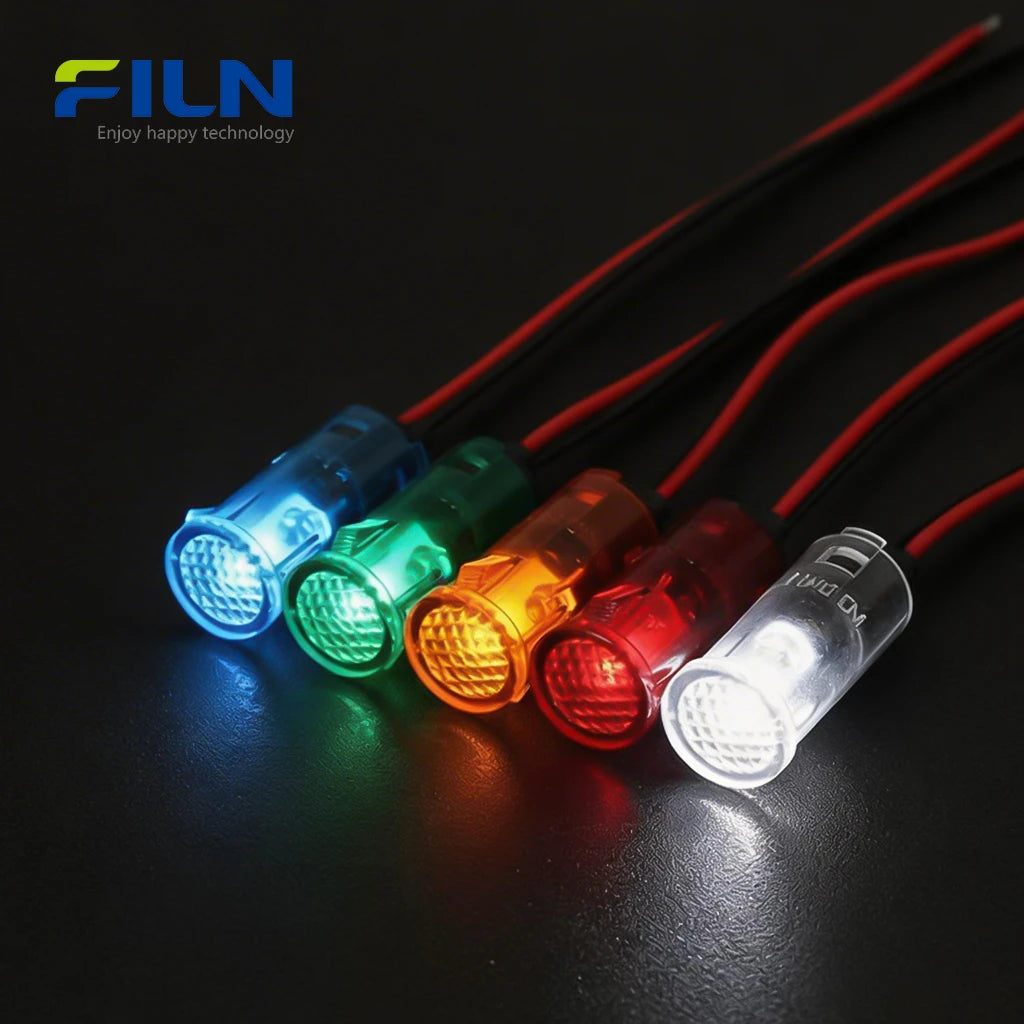

- Easy installation: Snap-in "ear" clips lock securely onto panels without nuts.
- Pre-wired Design: 15cm wire leads eliminate the need for manual soldering or terminals.
- PA66 Nylon Construction: Superior electrical insulation and chemical resistance.
Applications
- Industrial control panels and power status monitoring.
- CNC machines and heavy-duty manufacturing equipment.
- Electrical distribution cabinets and switchgear.
- Marine dashboards and automotive instrumentation.
- Medical and laboratory precision equipment.
Installation Guide
- Panel Cutout: Drill a 12.5mm precise hole on the target panel.
- Insert Light: Pass the wire leads through the hole and push the pilot led body from the front of the panel.
- Automatic Lock: The flexible "ears" on the sides of the housing will retract and spring out, securing the lamp.
- Wiring: Connect the 15cm PVC leads to your power source (ensure correct voltage 12V/24V/220V).
Industry Knowledge: Plastic vs. Metal Pilot LED
Choosing the right pilot led depends on your environment. Plastic indicators made of PA66 offer high insulation and corrosion resistance, perfect for environments where chemical exposure or weight is a concern. Metal indicators provide higher impact resistance (IK rating) for vandal-prone areas.
Wire Lead vs. Pin Type: Pre-wired pilot led lights (like our 15cm model) offer the fastest installation and superior vibration resistance as the wires are integrated. Pin types (terminals) offer more flexibility for modular replacement but require soldering or crimping.
Color Signification:
• Red: Emergency stop, danger, or circuit failure.
• Green: Safe state, normal operation, or system ready.
• Yellow: Warning, unusual temperature, or caution required.
• Blue: Specific mandatory action required by the operator.
• White: Power status monitoring or neutral circuit indication.
Factory Direct Supply
FILN is your direct source for high-performance signal solutions. We offer pilot led products for sale with full technical support.
- Voltage Customization: 3V to 380V available.
- Wire Length Customization: Pre-wired lengths tailored to your cabinet.
- Connector Customization: Quick-connectors can be pre-installed.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Are these 12.5mm pilot led lights for sale directly to small businesses?
Yes, FILN supports both high-volume industrial orders and smaller batch purchases for commercial projects.
Q2: Why use PA66 plastic instead of ABS?
PA66 (Nylon) provides much better heat resistance and structural strength than ABS, making it the industry standard for pilot led housings.
Q3: Can I get these in 24V DC for my truck dashboard?
Absolutely. We stock 12V and 24V DC units specifically for automotive and marine signal applications.
Q4: Is the 15cm wire length fixed?
No, we can customize the wire lead to any length (e.g., 50cm, 1m) at the factory during production.
Q5: Does the snap-in mount fit all panel thicknesses?
The snap-in ears are designed to accommodate standard industrial panels ranging from 0.8mm to 2mm thickness.
Q6: What certifications do FILN pilot led lights hold?
Our products are fully certified with UL, CE, RoHS, and VDE, ensuring compliance in any global market.
Q7: How do pre-wired indicators handle vibration?
The integrated wire design is superior to terminal types in high-vibration machinery as there are no screws to loosen over time.
Q8: What is the benefit of the round high-head design?
The raised lens allows the light to be seen from the side, providing a 180-degree visibility profile compared to flat-head lights.
Q9: Are these indicators visible in bright daylight?
Yes, we use high-brightness LEDs that remain clearly visible even under strong factory lighting.
Q10: Do you provide bulk discounts for 220V indicators?
Yes, as a factory direct supplier, FILN provides tiered pricing for bulk industrial procurement.
