Product Overview

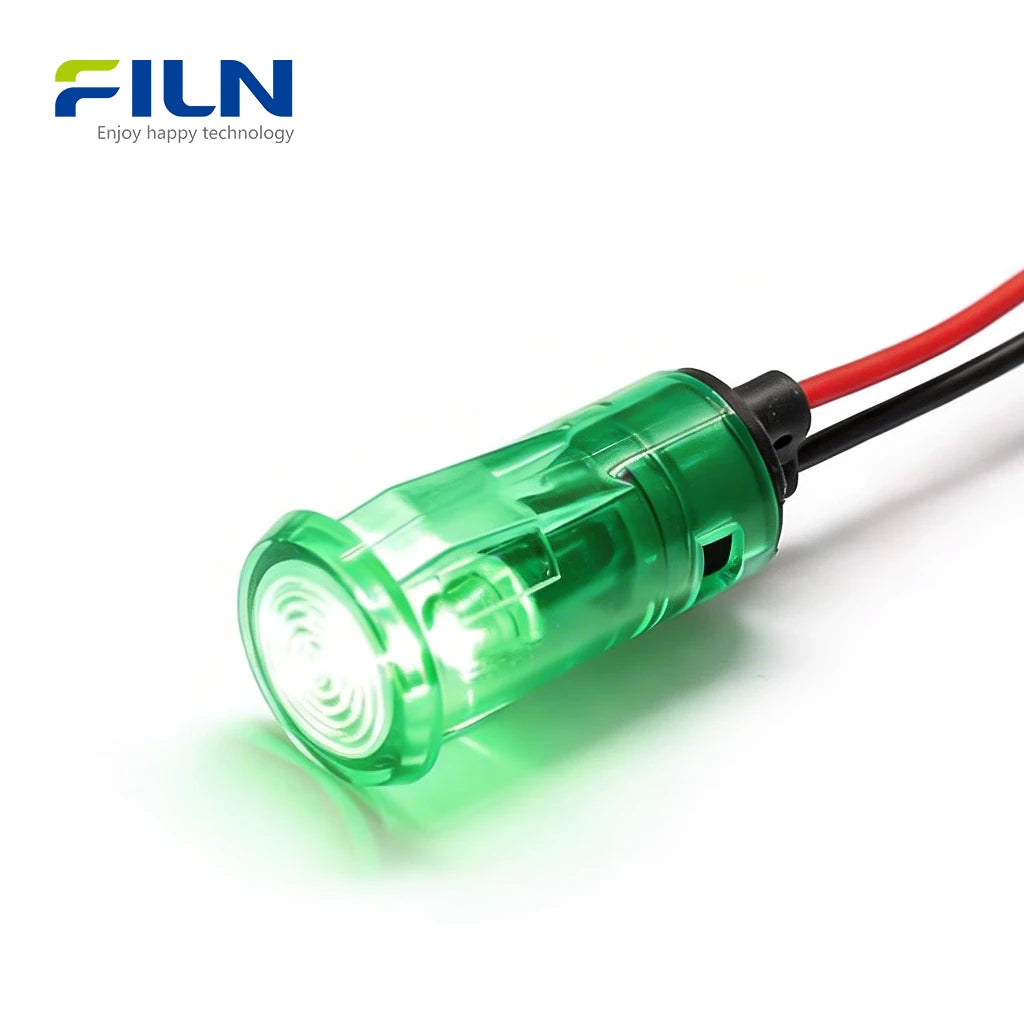

The FILN green light indicator (Model: FL1P-14QW-1) is a professional-grade 14mm plastic signal lamp designed for industrial reliability. This round head plastic pilot lamp features a high-brightness LED and a convenient snap-in mount design for rapid assembly. For those looking for a high-quality 14mm green light indicator for sale, this product offers superior visibility and durability. Our indicators carry prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Designed for industrial control panels, automation equipment, and electrical cabinets, it provides a cost-effective yet robust signaling solution. Whether you need 12V, 24V, 110V, or 220V, FILN provides custom voltage LED indicator lights to meet your exact specifications.
Quick Specifications
| Mounting Hole | 14mm (0.55 inch) |
|---|---|
| Voltage | 12V-24V, 110V-220V (Customized) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Snap-in type (Non-waterproof) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation Method | Snap-in Mounting |
| Wiring Type | Wire Lead (15cm Standard) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Rated Working Parameters
| Rated Voltage | Customized (3V to 380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Shell (Housing) | High-quality PA66 Nylon |
|---|---|
| Lamp Holder | Flame-retardant PA66 |
| Lampshade (Lens) | Transparent PC (Polycarbonate) |
| Luminescent Source | High-Intensity LED |
| Resistance | Carbon Film Resistance |
| Wire Material | PVC Insulated Copper Wire |
General Characteristics
| Items | Parameter |
|---|---|
| Voltage Range | 3V～250V |
| Rated Power | 0.2W |
| Insulation Resistance | 1800V / 5s |
| Working Temperature | -40℃ to +80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Continuous Working Life | Test: 30mA 1000h → Expectancy: 50,000+ hours |
|---|
Resistant Performance
| High Temperature Resistance | 80℃ for 96h (No deformation) |
| Low Temperature Resistance | -40℃ for 96h (No cracking) |
| Moisture Resistance | 40℃ 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- LED high brightness: Ensures clear visibility even in well-lit factory environments.
- Long lifespan: Maintenance-free operation for over 60,000 hours.
- Snap-in Mounting: Fast "plug-and-play" installation without additional tools or nuts.
- Integrated Wire Lead: 15cm PVC wires for direct and easy electrical connection.
- Industrial Grade Reliability: Built with flame-retardant PA66 material for safety.
Applications
- Industrial Control Panels: Status monitoring for machine operations.
- CNC Machines: Indicator light for operational safety and power status.
- Automation Equipment: Real-time signal feedback for robotic systems.
- Electrical Cabinets: Power distribution board signal displays.
- Marine & Medical: Durable signaling for demanding environments.
Installation Guide
- Drill a 14mm hole on your panel board.
- Insert the 14mm green light indicator from the top of the panel.
- Push until the side "snap-in clips" (ears) lock the indicator firmly in place.
- Connect the 15cm wire leads to your power source (Check voltage compatibility).
What Is a Green Light Indicator?
A green light indicator is a visual signaling device used in industrial environments to represent a "Normal," "Safe," or "Ready" status. In the 14mm plastic category, these devices offer several advantages:
Plastic vs. Metal: While metal indicators offer higher physical impact resistance, plastic LED signal lamps are lightweight, corrosion-resistant, and more cost-effective for indoor electronic applications.
Wiring: This model uses wire leads (pre-soldered wires) rather than pin terminals. Wire lead indicators are faster to install as they eliminate the need for manual soldering or terminal connectors, saving time on large-scale production lines.
Color Meanings:
• Green: Safe operation, system ready, or power ON.
• Red: Emergency stop, fault, or danger.
• Yellow: Warning or transitional status.
• Blue/White: Specific machine instructions or auxiliary status.
Factory Direct Supply
FILN is a leading manufacturer specializing in industrial indicators. We offer comprehensive customization options:
- Factory Direct Pricing
- Voltage Customization
- Wire Length Customization
- Connector Customization
- Fast Global Shipping
- B2B Bulk Discounts
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Is this 14mm green light indicator available for immediate sale?
A: Yes, we maintain stock for standard voltages and offer factory-direct shipping globally.
Q2: What is the benefit of the snap-in mount?
A: The snap-in design allows for tool-less installation, which significantly reduces labor time on assembly lines.
Q3: Can I customize the wire length?
A: Absolutely. While 15cm is standard, we can customize wire lengths from 5cm to 5 meters for B2B orders.
Q4: Do you provide UL certified indicators?
A: Yes, FILN products are UL, CE, and RoHS certified to meet international safety standards.
Q5: What is the difference between plastic and metal indicators?
A: Plastic indicators are lighter and more economical, while metal ones offer higher IP ratings and vandal resistance.
Q6: Does this indicator work with both AC and DC?
A: Yes, our LEDs are designed to handle both AC and DC within the specified voltage range.
Q7: Can I order a 220V green power indicator for industrial use?
A: Yes, we provide 220V versions specifically for electrical panel power status signaling.
Q8: Is the green LED bright enough for outdoor use?
A: It is high-intensity, but for direct sunlight, we recommend our specialized high-lumen series.
Q9: How do I know which mounting size I need?
A: This model requires a precise 14mm mounting hole. We also offer 8mm, 10mm, and 12mm versions.
Q10: What is the MOQ for custom voltage LED indicator lights?
A: We support small trial orders, but bulk discounts are available for larger factory orders.
