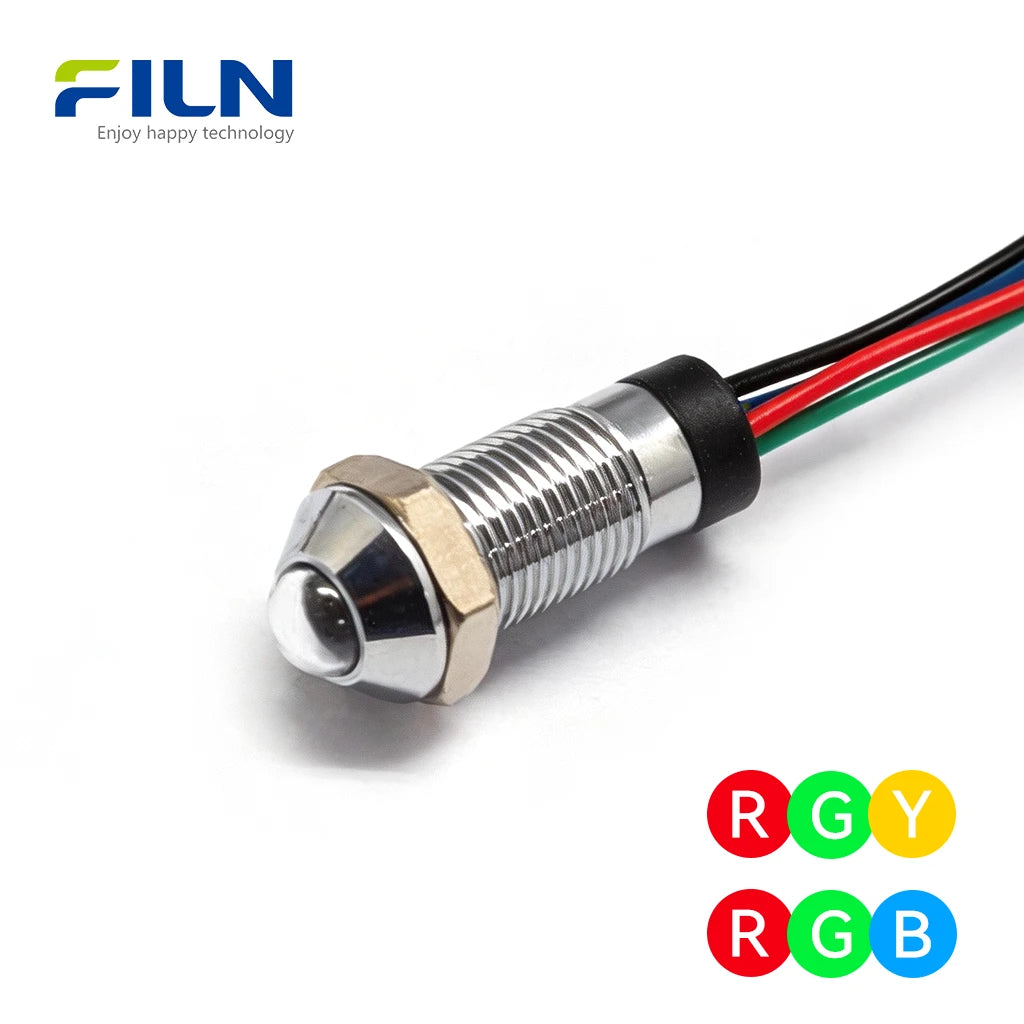

Product Overview: Panel Mount RGB Pilot Light
The Panel Mount RGB Pilot Light (Model: FL1M-08SW-T-1) is a high-performance 8mm metal indicator designed for precision status signaling. Featuring a high-head design and a robust IP67 waterproof rating, this multi-color LED is available in Common Anode (CA) or Common Cathode (CC) configurations, allowing for RGB or RGY color mixing. Built with a durable silver or black chrome shell, it comes pre-wired with 15cm leads for rapid deployment. Perfect for industrial control panels, marine systems, and automation equipment, this indicator ensures long-term reliability with a 50,000-hour lifespan.
Quick Specifications
| Mounting Hole | 8mm (0.31 inch) |
|---|---|
| Voltage | 12-24V / 110-220V (Customizable) |
| LED Color | RGB / RGY (Tri-color) |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | 15cm Wire Lead Type |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | Customizable (AC/DC) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass with Chrome (Silver/Black) |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone Rubber O-ring |
| Wire Material | UL Standard PVC/Teflon Lead |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Key Features
- LED High Brightness: Exceptional visibility even in high-ambient light environments.
- Long Lifespan: Rated for over 50,000 hours of continuous operation.
- IP67 Waterproof: Includes an M8 O-ring and nut for a vacuum-tight seal.
- Easy Installation: Pre-wired 15cm leads and smooth M8 threading for fast setup.

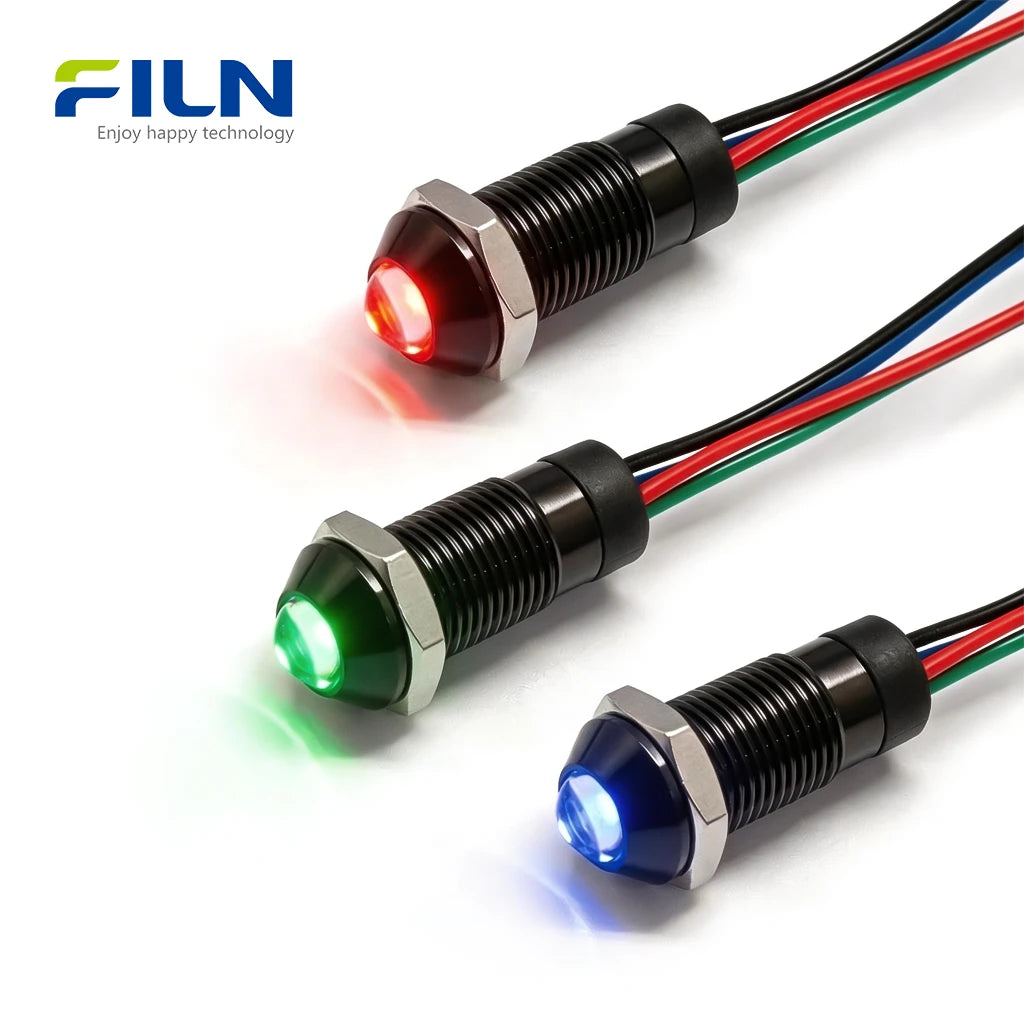

- Industrial Grade: Solid metal construction available in silver or black chrome finish.
Applications
- Industrial control panels & CNC machinery
- Marine dashboard systems & Boat electronics
- Automation equipment and robotics
- Custom PC builds and gaming peripherals
- Medical diagnostic devices
- Electrical power distribution cabinets
Installation Guide
- Drill an 8mm (M8) hole into your desired panel.
- Insert the RGB pilot light through the top of the panel.

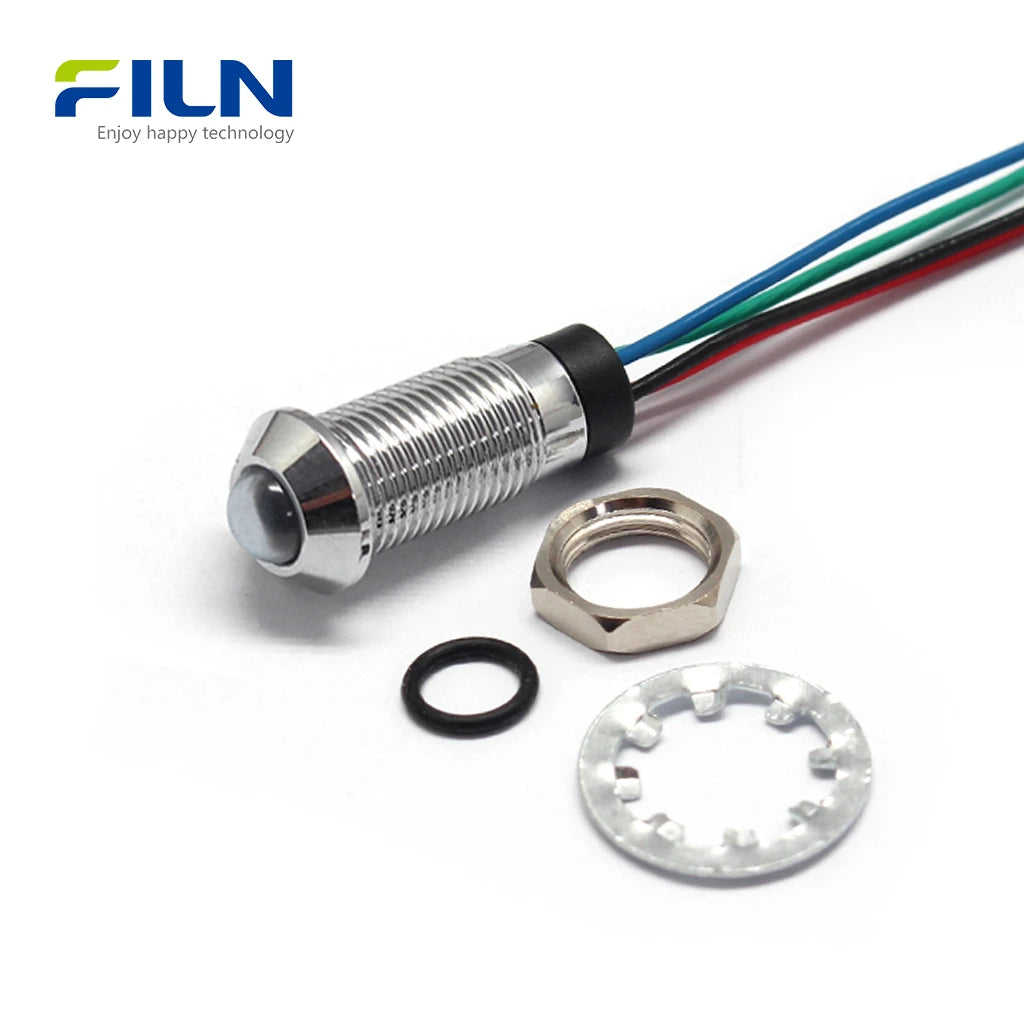

- Place the provided silicone O-ring between the light head and the panel for waterproofing.
- Secure the light from the back using the provided M8 nut.
- Connect the 15cm leads to your power source (Common Anode or Cathode).

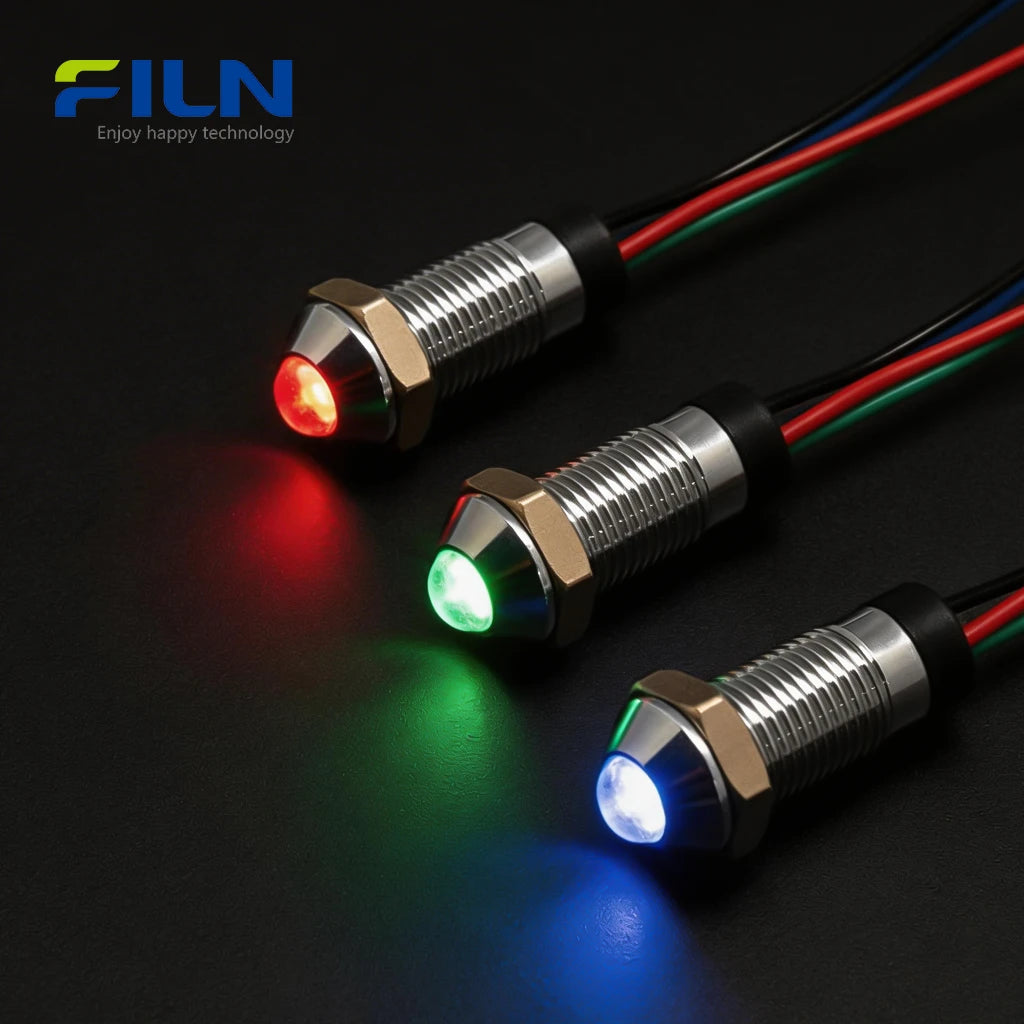

What Is an RGB Pilot Light?
An RGB Pilot Light is a multi-color signaling device that uses Red, Green, and Blue LED chips within a single 8mm housing. Unlike standard single-color indicators, RGB versions allow for complex status reporting. For instance, a CNC machine can show Green for "Running," Red for "Emergency Stop," and Blue for "Maintenance Required." The use of pre-wired leads versus traditional pin terminals significantly reduces installation time and prevents loose connections in high-vibration environments like marine or heavy industrial applications.
FILN Factory Direct Supply
- Customization: Voltage (3V-220V), Wire Length, and Connectors.
- Direct Pricing: No middlemen, ensuring the best B2B value.
- Fast Shipping: Global logistics for urgent project timelines.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the difference between Common Anode and Common Cathode RGB?
Common Anode shares a positive wire (+), while Common Cathode shares a negative wire (-). Your choice depends on your controller's circuit design.

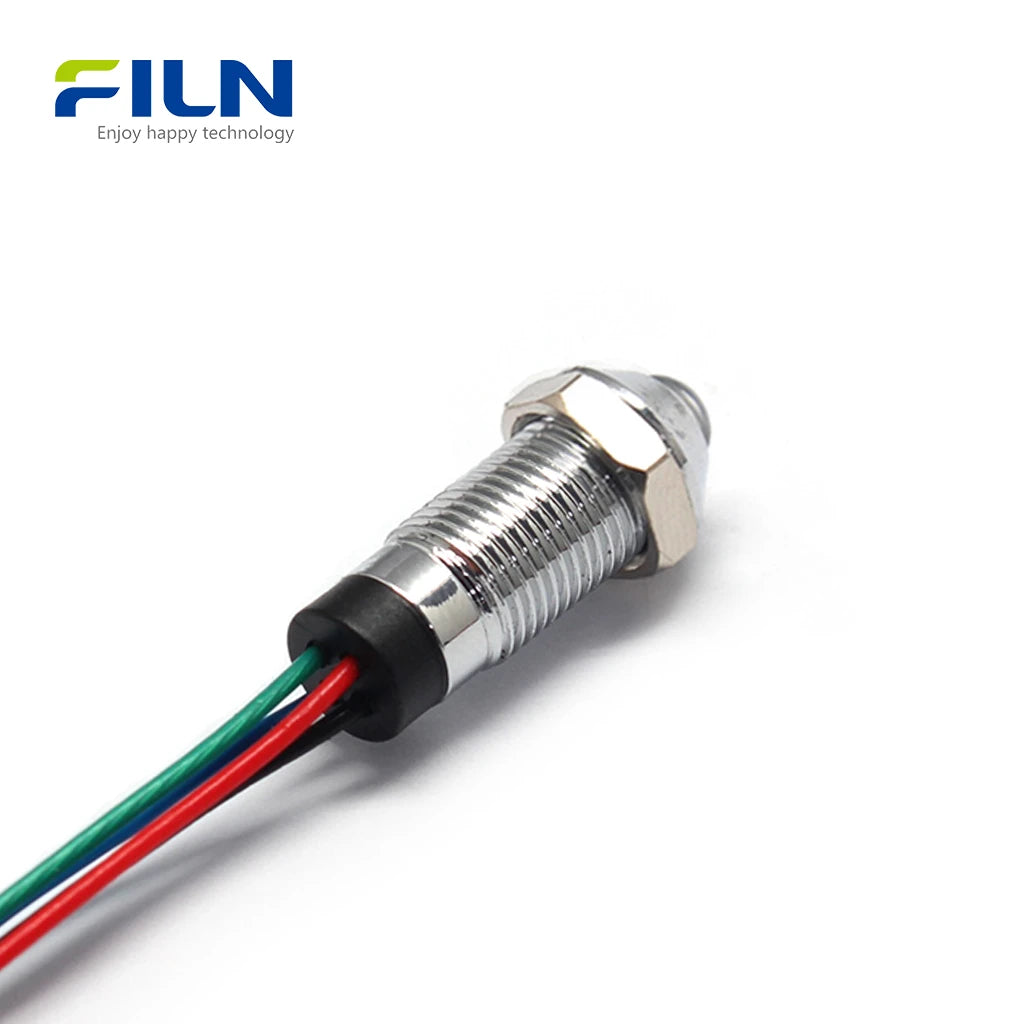

2. Can I use this 8mm RGB indicator for marine use?
Yes, with its IP67 rating and chrome-plated brass body, it is highly resistant to salt spray and water ingress.
3. Are the wires customizable?
Absolutely. While the standard length is 15cm, FILN can customize wire length and add specific connectors upon request.
4. Does it come with mounting hardware?
Yes, each unit includes a high-quality M8 nut and a waterproof O-ring.
5. Can I get a black shell instead of silver?
Yes, we offer both silver chrome and black anodized finishes for the housing.

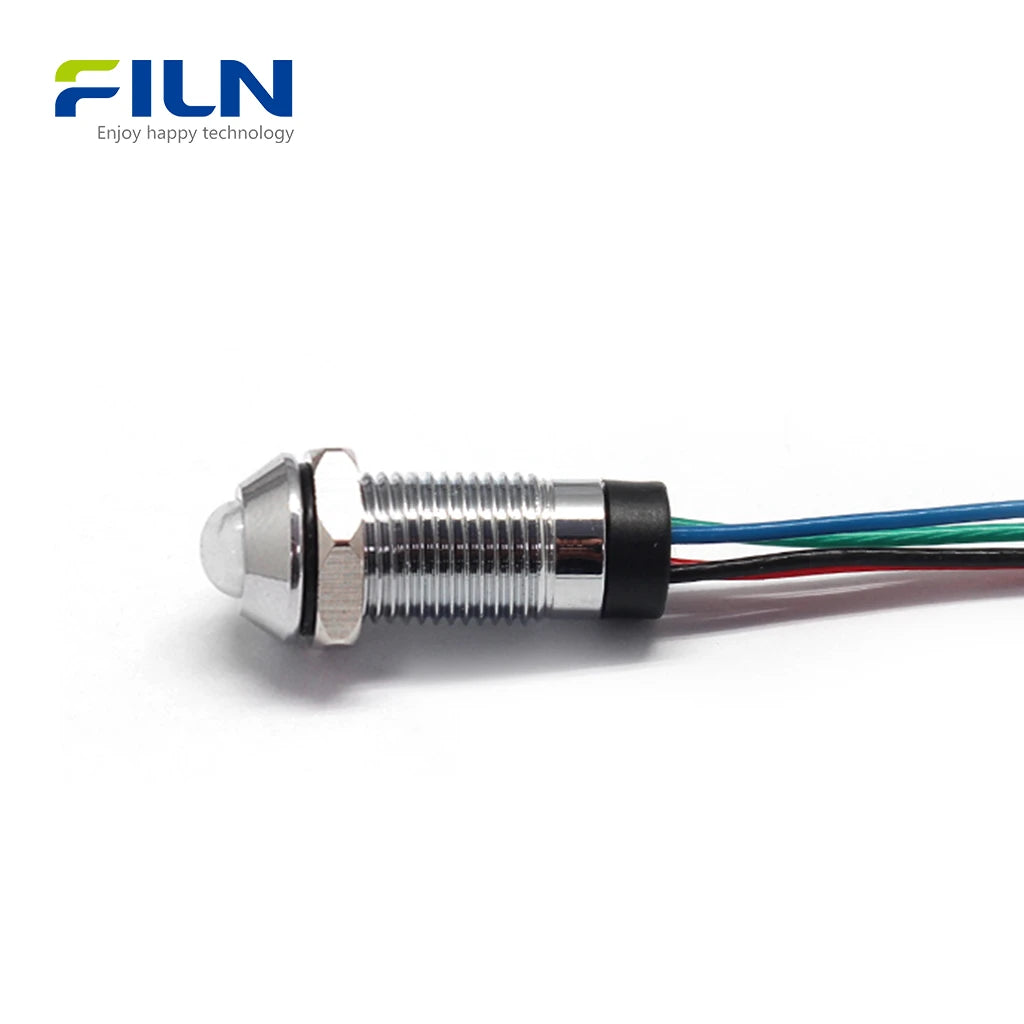

6. What is the benefit of the "High Head" design?
The high-head design provides better side-angle visibility compared to flat-head indicators.
7. How do I wire an RGB indicator?
The 4-wire system includes one common wire and three wires for Red, Green, and Blue respectively.
8. Is the LED replaceable?
No, the LED is integrated and sealed to ensure the IP67 waterproof rating.
9. Can this run on 220V AC?
Yes, we offer 110-220V versions with built-in resistors for direct mains connection.
10. Is the thread smooth for manual installation?
Yes, our precision-machined M8 threads ensure the nut can be easily tightened by hand or tool.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
