What is an Outdoor Junction Box with Rocker Switch?
An outdoor junction box is a protective electrical enclosure designed to house connections and control interfaces, such as the KCD4 rocker switch, in exposed environments. This specific unit functions as a centralized control point, integrating a 30A high-current rocker switch within an IP65-rated housing. It provides a secure, weatherproof barrier against moisture, dust, and UV exposure, ensuring that the 4-pin screw terminal switch remains operational under heavy industrial or marine loads. By utilizing a waterproof-rocker-switch-junction-box, users can safely manage power distribution for outdoor lighting, pumps, and machinery.
Product Overview

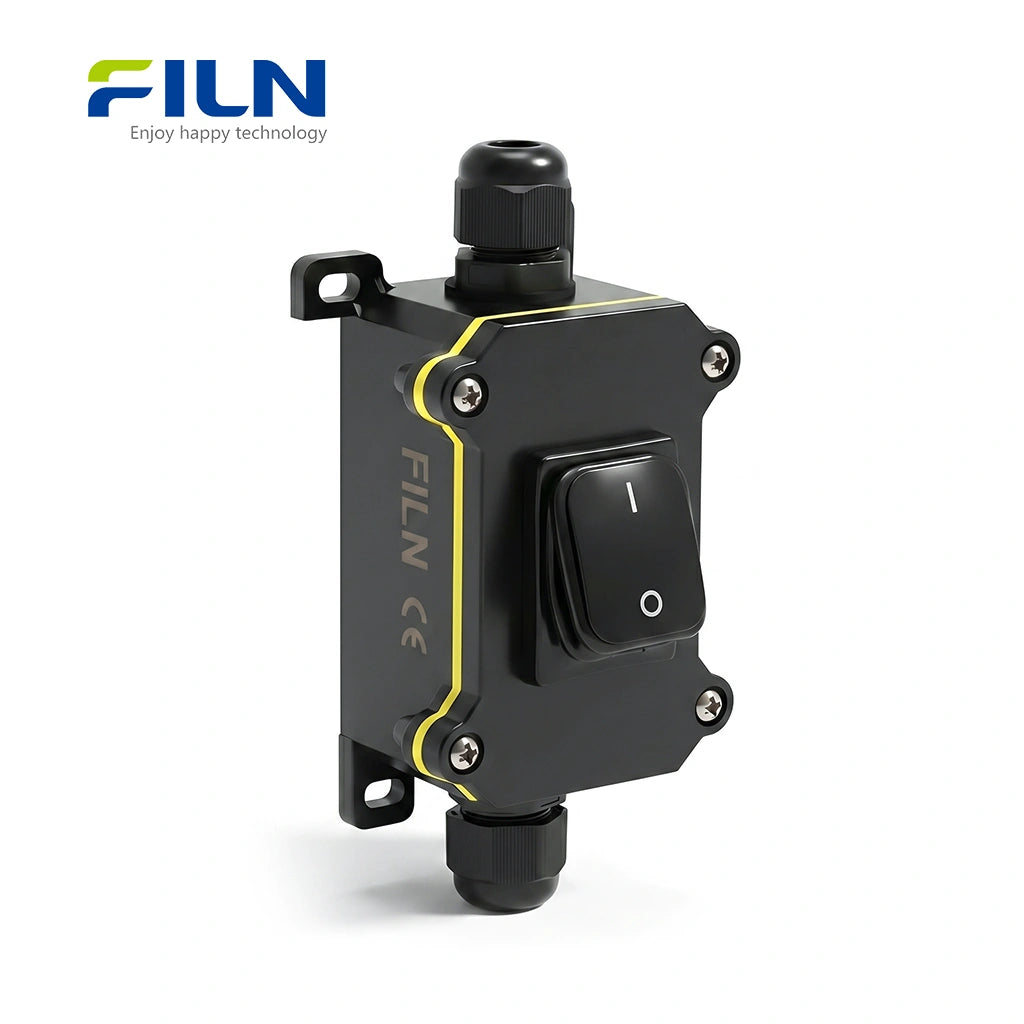

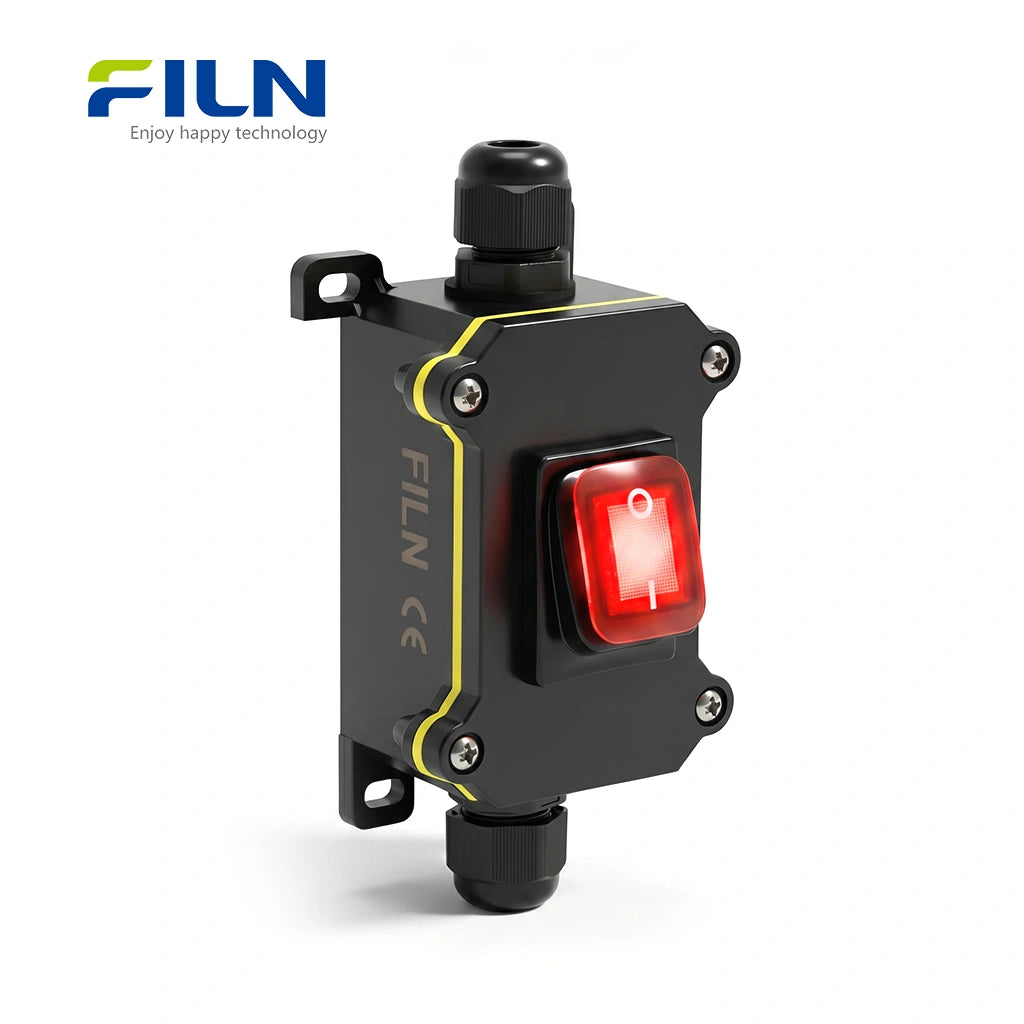

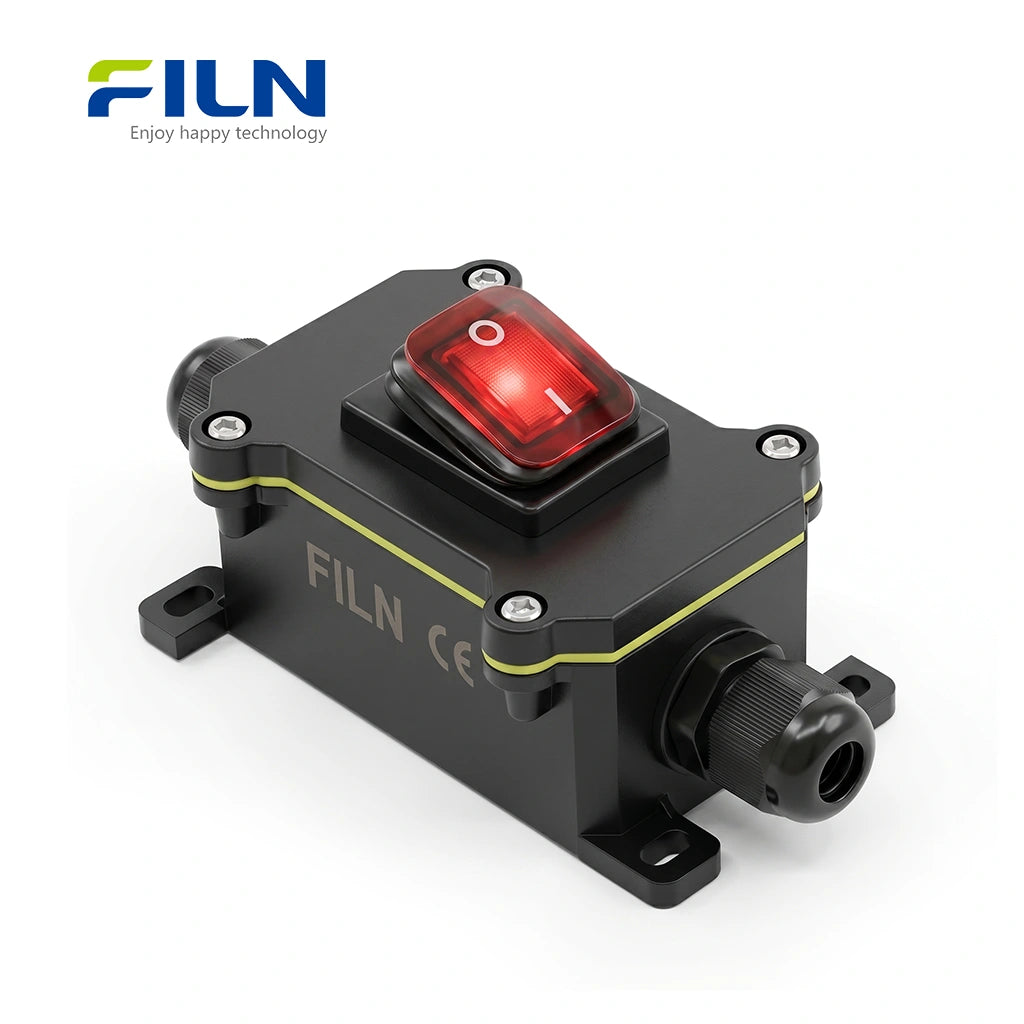

The FILN WB1 series outdoor junction box is an industrial-grade solution featuring a high-performance illuminated KCD4 rocker switch 22x30. Engineered for high-current 30A DPST rocker switch applications, this unit supports 12V, 24V, 110V, and 220V configurations. The ip65-weatherproof-electrical-enclosure is manufactured under ISO9001 standards and carries CE, VDE, RoHS, SGS, UL, and IP65 certifications. Primarily used in marine-grade-rocker-switch-housing setups and industrial-outdoor-power-control-box environments, it offers a 4-pin screw terminal switch for secure kcd4-30a-rocker-switch-wiring. The transparent plastic button provides clear 12v-24v-led-rocker-switch-box illumination for enhanced visibility in dark conditions.
Quick Specifications
| Model Number | WB1-2T-D401-0321-21 |
|---|---|
| Waterproof Connector | PG9 |
| Wiring Configuration | Line-in / Line-out (L-in, L-out) |
| Installation Size | 22mm x 30mm (0.87" x 1.18") |
| Switch Function | ON-OFF (2-Position) |

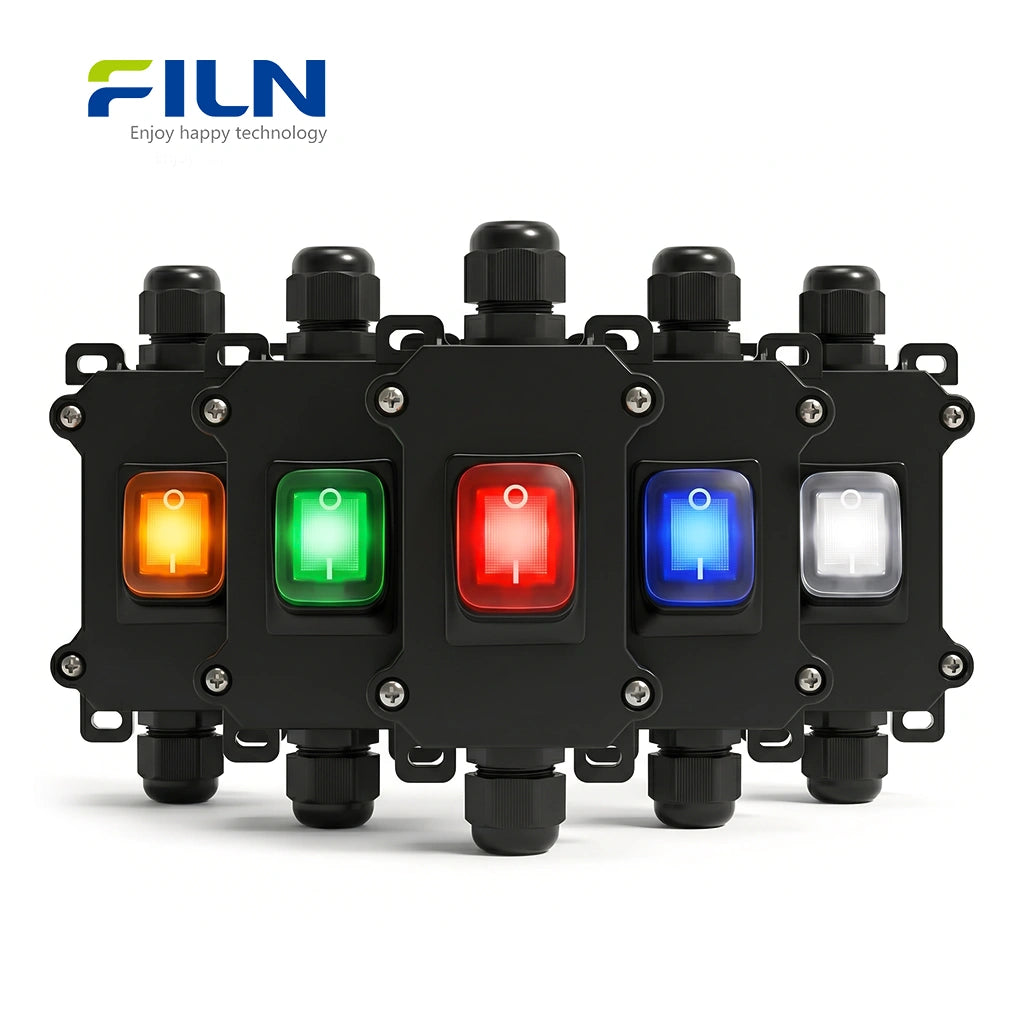

| LED Colors | None / Red / Green / Yellow / Blue / White |
| Head Shape | Rectangular / Square Profile |
| Termination | 4-Pin Screw Terminals |
Performance Parameters
| Rated Load | 30A 250VAC / 18(12)A 125VAC |
|---|---|
| Contact Resistance | ≤50mΩ (Initial) |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Electrical Endurance | 10,000 Cycles |
| Ambient Temperature | -40°C to +125°C |
| Protection Rating | IP65 Waterproof / Dustproof |
| Certifications | CE, UL, VDE, RoHS, SGS, ISO9001 |
Component Materials
| Component Name | Material Specification |
|---|---|
| Transparent Sheet / Light Guide | Polycarbonate (PC) |
| Main Holder / Up Base / Middle Base | High-Strength ABS |
| Bottom Base | Nylon PA66 (Heat Resistant) |
| Waterproof Cover / Washer | Industrial Grade Rubber |
| Pins / Spring Board | H62 Brass |
| Contacts | AgCdO12 (Silver Alloy) |
| Spring / Case | 72# Spring Steel / 08F Iron |
General Characteristics
| Scope of Application | General use for KCD4 series rocker switches in industrial and outdoor settings. |
|---|---|
| Operating Temperature | -40°C to +125°C |
| Relative Humidity | 45% to 85% RH |
| Air Pressure Range | 86kPa to 106kPa |
Detailed Engineering Performance
Electrical Property
| Project | Test Condition | Requirement |
|---|---|---|
| Contact Resistance | Measured at small currents at 1 KHz | ≤50mΩ |
| Insulation Resistance | 500VDC load for 60±5S between insulated terminals | ≥100MΩ |
| Dielectric Strength | 1500VAC/5mA/60S (terminal-terminal); 3000VAC (terminal-housing) | No breakdown/flashing |
Mechanical & Durability Behavior
| Project | Test Condition | Requirement |
|---|---|---|
| Terminal Strength | 80N static load applied for 60s | No damage, no fall off |
| Solderability | 235±5℃ molten tin tank for 3±0.5s | 90% surface coverage |
| Mechanical Life | 20,000 operations (60 ops/min, no load) | Retain 75% dielectric strength |
| Electrical Life | 10,000 operations (15 ops/min, rated load) | Retain 75% dielectric strength |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Global Industrial Applications
- 1. Outdoor Lighting & Landscaping: Perfect for waterproof-rocker-switch-junction-box use in gardens or fountains where rain and dust are constant factors.
- 2. RV, Marine & Boating: Essential for marine-grade-rocker-switch-housing in saltwater environments to prevent contact oxidation in bilge pumps and LED bars.
- 3. Industrial Machinery: Used as an industrial-outdoor-power-control-box for pressure washers and conveyor systems requiring IP65 protection.
- 4. Agriculture: Controls ventilation and irrigation in high-humidity greenhouses where frequent wash-downs occur.
How to Install and Wire a KCD4 Rocker Switch in a Waterproof Junction Box

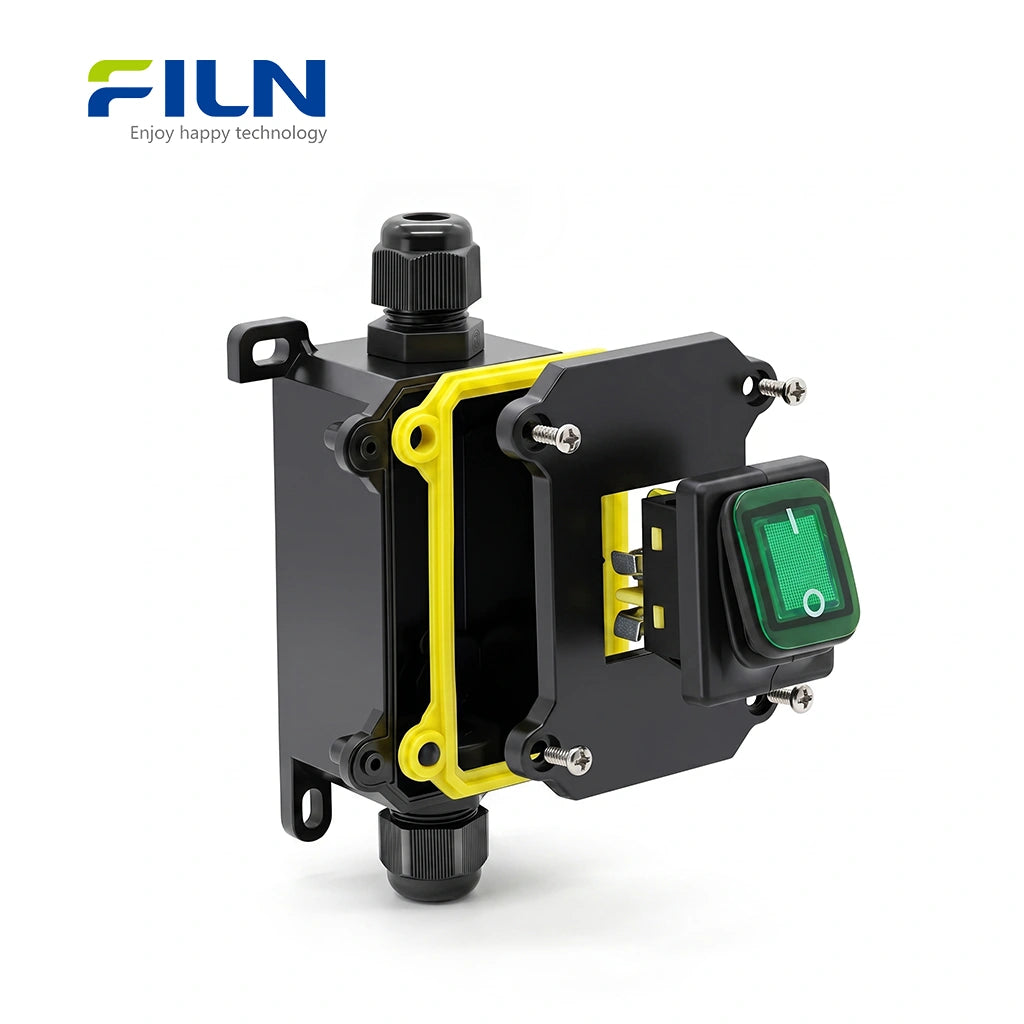

1. Installing the KCD4 Rocker Switch into the Panel
The KCD4 rocker switch is designed for quick panel mounting with a secure snap-in structure. Follow these steps to properly install the switch into your waterproof junction box panel:
- Locate the standard 22×30mm cut-out on the junction box panel.
- Align the rocker switch with the opening, ensuring correct orientation (ON/OFF marking direction).
- Press the switch firmly into the cut-out until the side retaining clips snap into place.
- Check that the switch sits flush with the panel and does not move or loosen.
This snap-fit design ensures a stable installation without additional screws, making it ideal for industrial and DIY electrical applications.

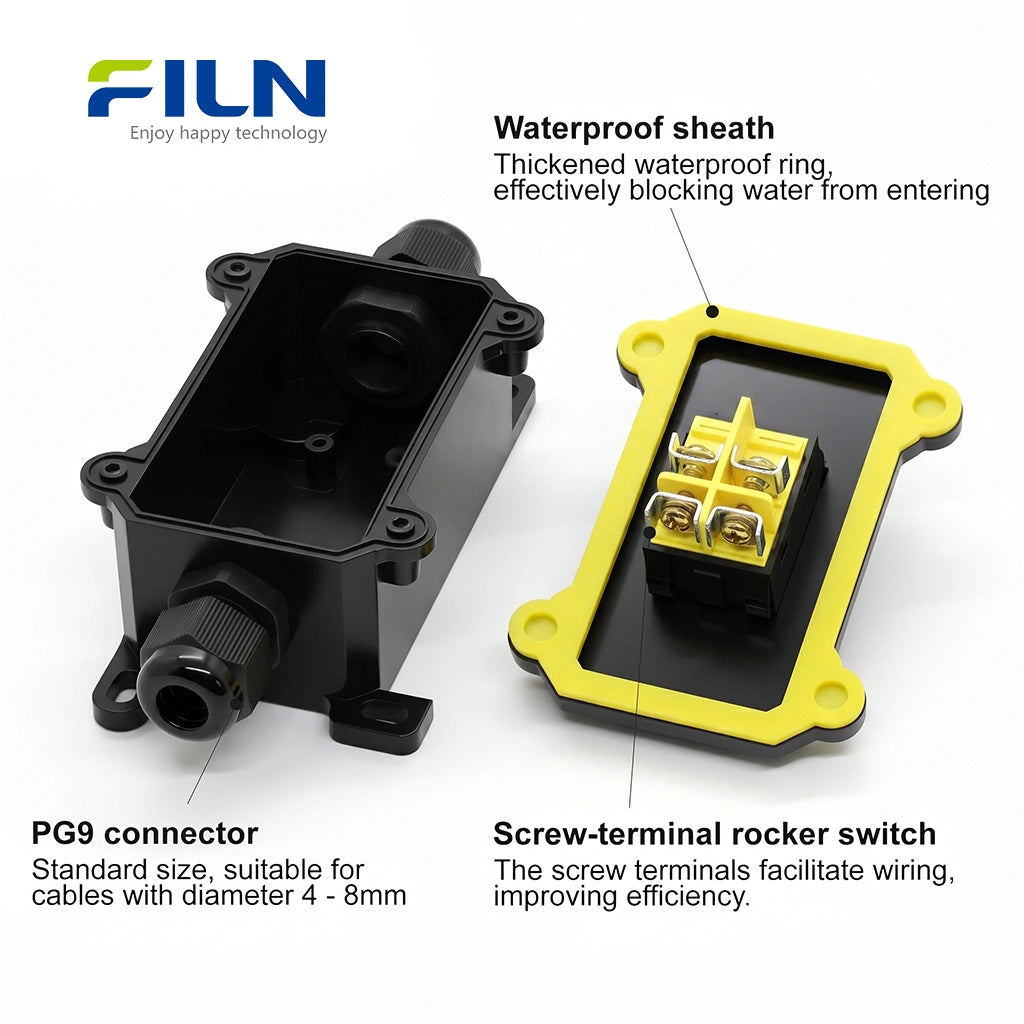

2. Wiring the 4-Pin Screw Terminal Rocker Switch
This 4-pin KCD4 rocker switch uses screw terminals for secure and reliable electrical connections. It is suitable for AC power control, appliances, and equipment requiring stable current transmission.
- Insert the electrical wires through the PG9 waterproof cable gland before wiring.
- Strip approximately 5–7mm of insulation from each wire to expose the conductor.
- Loosen the screw terminals using a screwdriver.
- Wrap or insert the exposed wire firmly around the metal terminal post.
- Tighten each screw securely to ensure strong electrical contact and vibration resistance.
- Double-check wiring configuration (Line/Load) according to your circuit requirements.
The screw terminal design provides excellent conductivity and is safer than push-fit connections, especially in high-load or outdoor environments.

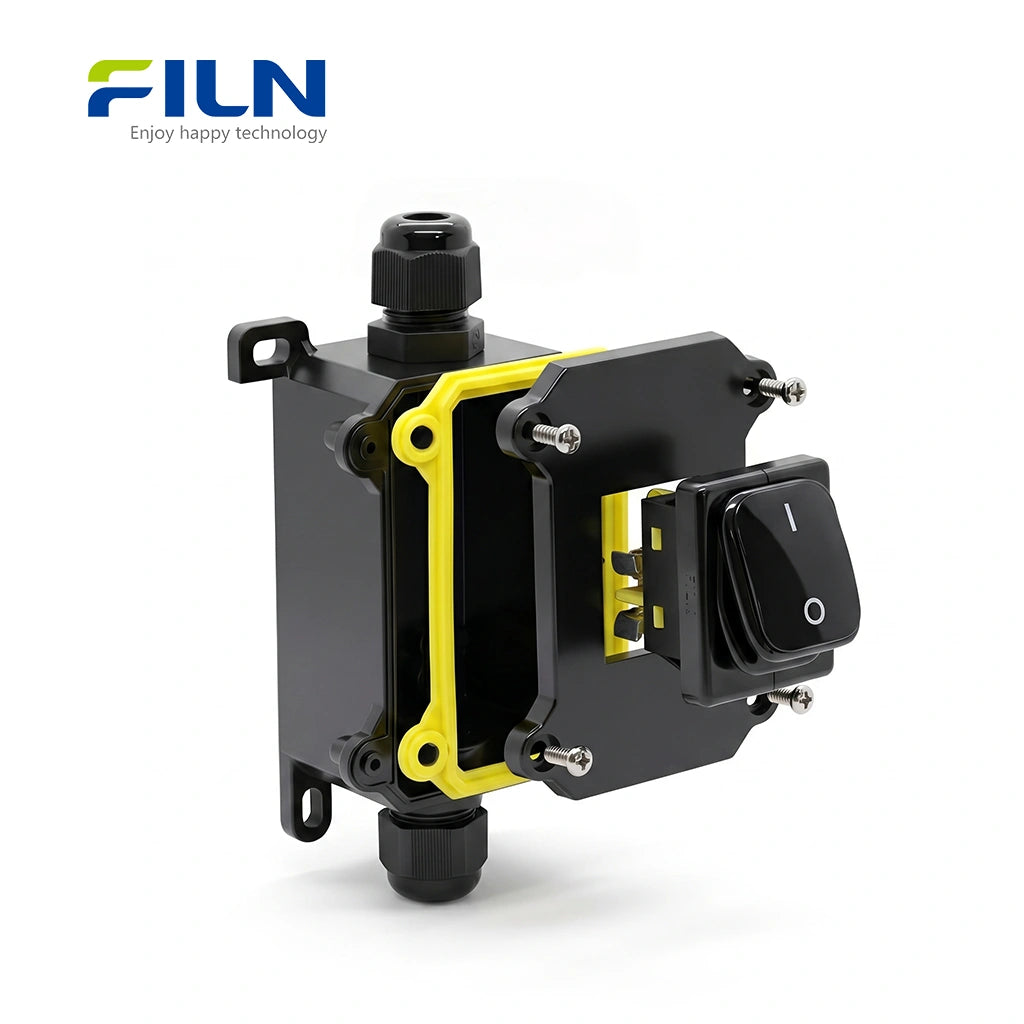

3. Assembling the Waterproof Junction Box (IP65)
After installing and wiring the rocker switch, complete the assembly of the waterproof junction box to ensure full protection against dust and water.
- Carefully arrange all internal wiring to avoid pinching or interference.
- Place the gasket correctly along the enclosure edge to maintain waterproof sealing.
- Close the junction box lid securely.
- Tighten all enclosure screws evenly to ensure uniform pressure on the seal.
- Firmly tighten the PG9 cable gland nut to compress the sealing ring around the cable.
- Verify that the enclosure meets IP65 waterproof standards with no visible gaps.
Proper assembly is critical to ensure long-term durability, especially in outdoor, humid, or industrial environments.
Looking for more variations?
View Full Waterproof Junction Box CollectionIndustry Knowledge: How a Junction Box Works
In industrial electrical engineering, a junction box with a rocker switch serves as both a distribution node and a user interface. Mechanically, the box provides a static environment that isolates electrical arcs (produced during high-current switching) from the external atmosphere. The 4-pin screw terminal switch allows for Double Pole Single Throw (DPST) functionality, enabling the simultaneous disconnection of both Hot and Neutral lines for maximum safety. This is critical in 12v-24v-led-rocker-switch-box configurations where maintaining circuit integrity against environmental vibration is paramount.
FILN Factory Direct Supply
FILN is a global leader in industrial switch manufacturing. We provide No MOQ, Fast Global Shipping, and full customization for B2B partners. Whether you need voltage customization (12V-220V) or wire length adjustment, we deliver certified solutions.
- Voltage Support: 12V, 24V, 110V, 220V
- Certification: CE / RoHS / UL / VDE / IP65
- Lead Time: Rapid production and dispatch
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
KCD4 Rocker Switch & Junction Box FAQ
Q: What is a KCD4 rocker switch?
A: It is a standard 22x30mm rectangular switch capable of handling 30A high-current loads, commonly used in industrial and marine gear.
Q: Is this outdoor junction box truly weatherproof?
A: Yes, the IP65 rating ensures protection against rain, splashing water, and dust, making it ideal for outdoor installations.
Q: How does the 4-pin screw terminal improve wiring?
A: Unlike slide-on terminals, screw terminals allow you to wrap the wire around a post for a high-torque, vibration-resistant connection.
Q: Are there different LED colors available?
A: We offer Red, Green, Yellow, Blue, and White LED options, as well as non-illuminated versions for simple power control.
Q: What are the main applications?
A: High-pressure washers, marine bilge pumps, outdoor garden lights, and industrial conveyor systems.
