Button Switch Drawing
Product Overview

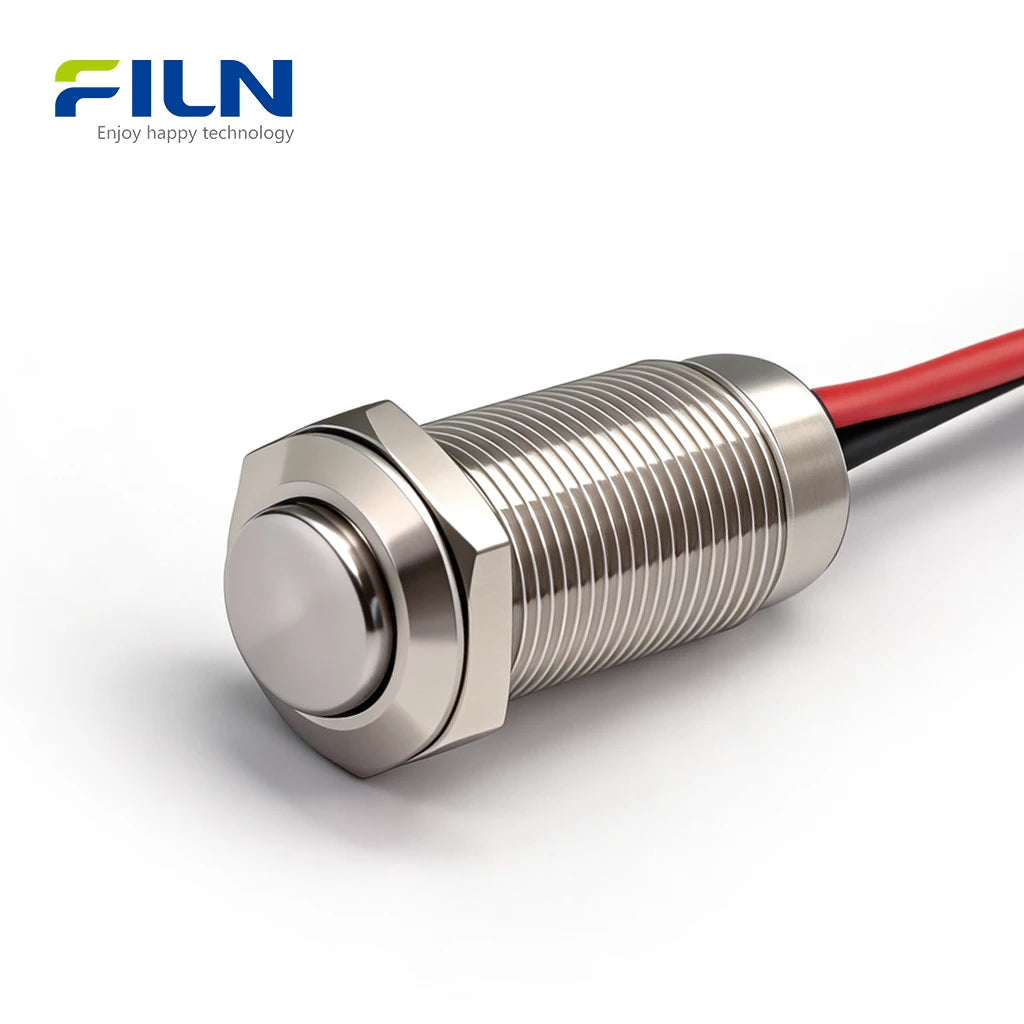

The mini push button switch on off (Model: FLM12-HW-1) is a high-performance industrial control component engineered for durability and reliability. Manufactured by FILN, a professional factory with certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this 12mm metal switch is designed for demanding environments. Featuring a 304 stainless steel high-head design and a pre-wired tail sealed with glue, it provides excellent protection against moisture and dust. This sealed push button switch is widely used in industrial automation, medical devices, and marine systems, offering a long service life and easy threaded installation.
Quick Specifications
| Model | FLM12-HW-1 | Mounting Size | 12mm (0.47") |
| Function | Momentary / Latching | LED Color | None (Non-Illuminated) |
| Actuator Type | High Head | Wiring Method | Pre-wired (15cm / 2 Wires) |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC | Rated Current | 5A |
| Contact Resistance | ≤ 50mΩ | Insulation Resistance | ≥ 1000MΩ |
| Dielectric Strength | 1800V AC | Product Certifications | ISO9001, CE, UL, RoHS, SGS |
Component Materials
| Component | Material Description |
|---|---|
| Actuator | 304 Stainless Steel / 6063 Aluminum Alloy |
| Body Shell | H59 Brass / 304 Stainless Steel |
| Base | PA66+GF20% Flame Retardant Nylon |
| Contacts | Silver Contact (AgCdO12) |
| Waterproof Ring | SIL Silicone |
Terminal Type Comparison
| Type | Pros | Cons |
|---|---|---|
| Pre-wired (This Product) | IP67/68 sealed, prevents moisture, fastest installation. | Fixed wire length. |
| Pin Terminal | Easy to replace, supports quick connectors. | Requires soldering or specific sockets. |
| Screw Terminal | No soldering needed, very secure connection. | Larger size, slower assembly. |
Key Features
1. Superior Protection & Durability: Rated IP65 and IK08, this switch is waterproof, dustproof, and impact-resistant, making it ideal for weather resistant push button applications in outdoor or harsh industrial settings.
2. High Load Capacity: Despite its 12mm size, it supports a high rated current of 5A 250V AC, allowing direct control of higher power devices without intermediate relays.
3. Premium Material Selection: The 304 stainless steel shell provides extreme corrosion resistance, essential for medical and food-grade industries.
4. Effortless Installation: The pre-wired push button switch design with 15cm leads and glue-sealed tail saves labor time and guarantees a waterproof seal.
5. Ultra-Compact Structure: The short-body design is perfect for space-constrained control panels in handheld devices or small distribution boxes.
Applications
- Industrial control panels
- CNC machines
- Automation equipment
- Electrical cabinets
- Marine systems
- Medical devices
Installation Guide
- Drill a 12mm hole on the panel surface.
- Insert the switch actuator from the front side of the panel.
- Secure the switch by tightening the metal hex nut from the back.
- Connect the two pre-wired leads to your circuit (normally open configuration).
Wiring Guide
This 2-wire pre-wired switch functions as a standard Normally Open (NO) circuit. Connection is straightforward: simply place the switch in series with your load.
Logic: Device stays OFF by default and turns ON only when the high head metal button is pressed.
- Wire 1: Connect to Power Positive (+).
- Wire 2: Connect to the Load/Device Positive.
Understanding LED Color Indicators
| Color | Typical Meaning in Industrial Systems |
|---|---|
| Red | Emergency, Stop, or Fault condition. |
| Green | Normal Operation, Start, or Safe to proceed. |
| Blue | Required Action, Reset, or specific mode indicator. |
| Yellow/Amber | Warning, Abnormal state but not immediate danger. |
| White | Power Status, Neutral information, or general lighting. |
Industry Knowledge
What is a mini push button switch on off?
A mini push button switch on off is a compact electrical mechanism used to control the flow of electricity through a circuit. In industrial machinery, it serves as the primary interface between the human operator and the machine's logic. These switches are vital for initiating sequences, stopping operations, or toggling specific functions.
Latching vs. Momentary: What is the difference?
| Type | Behavior | Typical Application |
|---|---|---|
| Momentary | Stays active only while being pressed. Returns to original state upon release. | Doorbell, PC Power Button, Horn. |
| Latching | Stays in the new position after being pressed (like a light switch). Requires a second press to reset. | Main Power Switch, Fog Lights. |
Factory Direct Supply - FILN
FILN is a world-class factory specializing in small tactile power switch solutions. We provide:
- No MOQ: Small orders welcome for prototyping or maintenance.
- Fast Delivery: Optimized supply chain for global shipping.
- Full Customization: Wire length, voltage (3V-220V), and connector customization.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Is this 12mm switch waterproof?
Yes, it is rated IP65 and the tail is sealed with glue, making it a weather resistant push button.
2. Can I use this for 220V AC?
Yes, the switch is rated for up to 250V AC at 5A.
3. What is the wire length?
Standard length is 15cm (approx. 6 inches), but FILN offers customization for any length.
4. Does the switch have an LED?
The FLM12-HW-1 is a non-illuminated stainless steel mini switch. We offer illuminated versions in the same 12mm size.
5. What is the benefit of a 304 Stainless Steel shell?
It offers superior corrosion and rust resistance compared to brass or aluminum.
6. Is it a momentary or latching switch?
The default is momentary, but latching functions are available upon request.
7. How do I install it on a panel?
It uses threaded installation. Drill a 12mm hole, insert, and tighten the nut.
8. What is the mechanical life of this switch?
It has a mechanical life of 500,000 cycles, ensuring long service life.
9. Can FILN provide certificates for customs?
Yes, we provide CE, UL, and RoHS certificates with every order.
10. Does this switch work for automotive applications?
Absolutely. It is a popular 12mm industrial control button for car dashboards and marine panels.
