Product Executive Summary

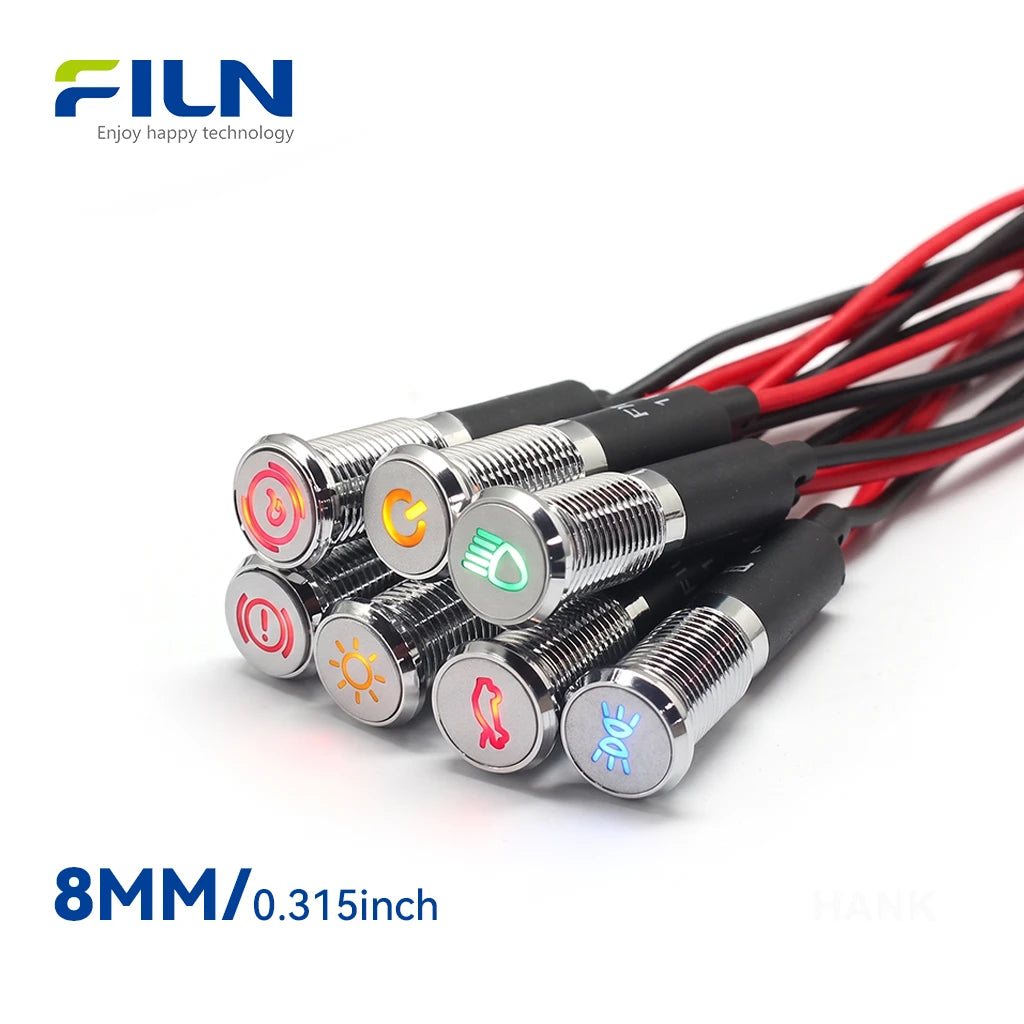

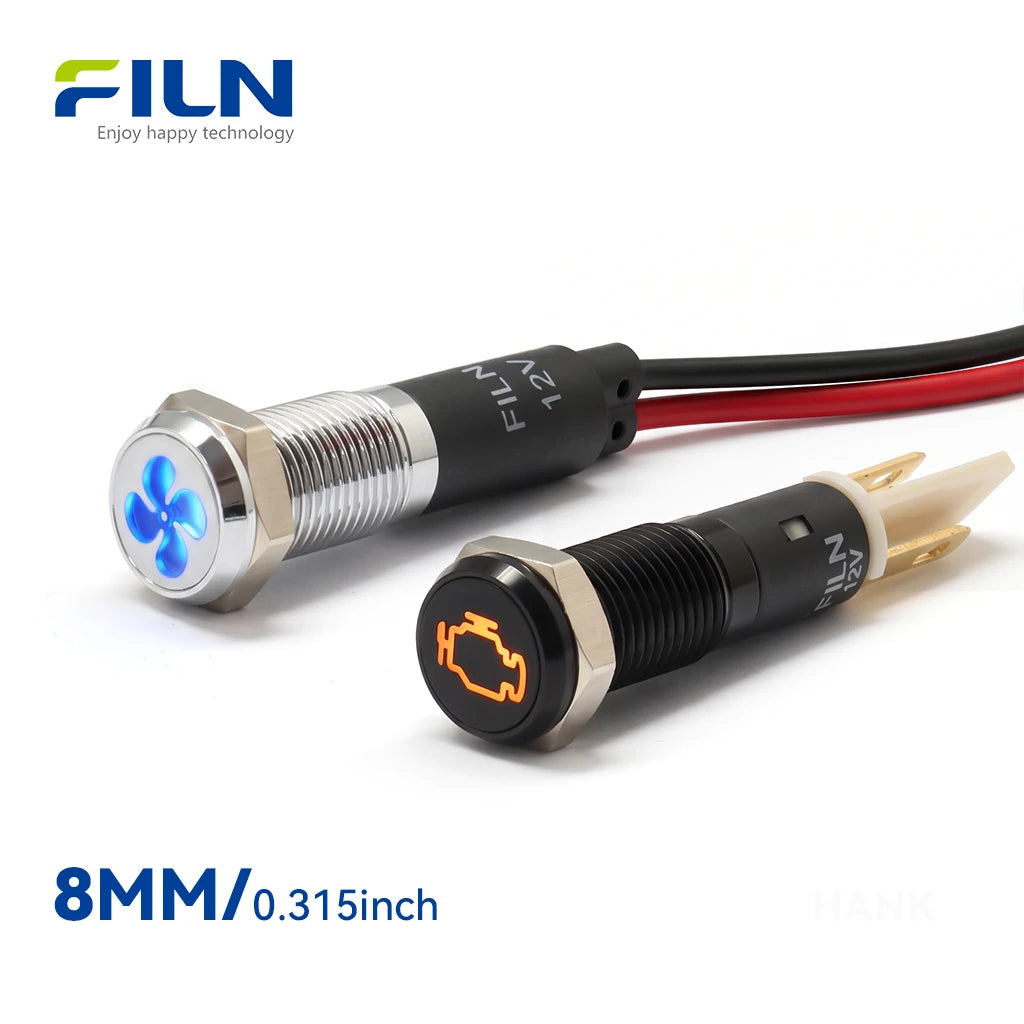

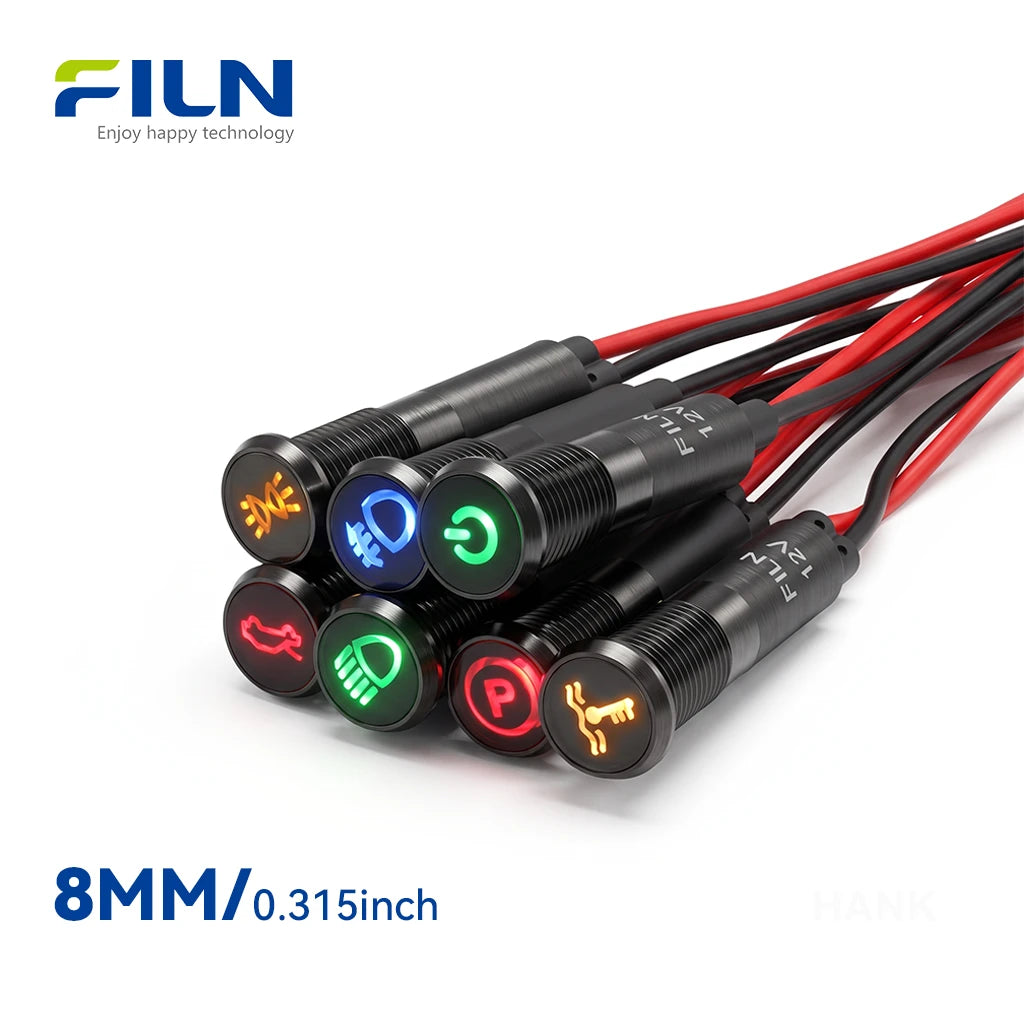

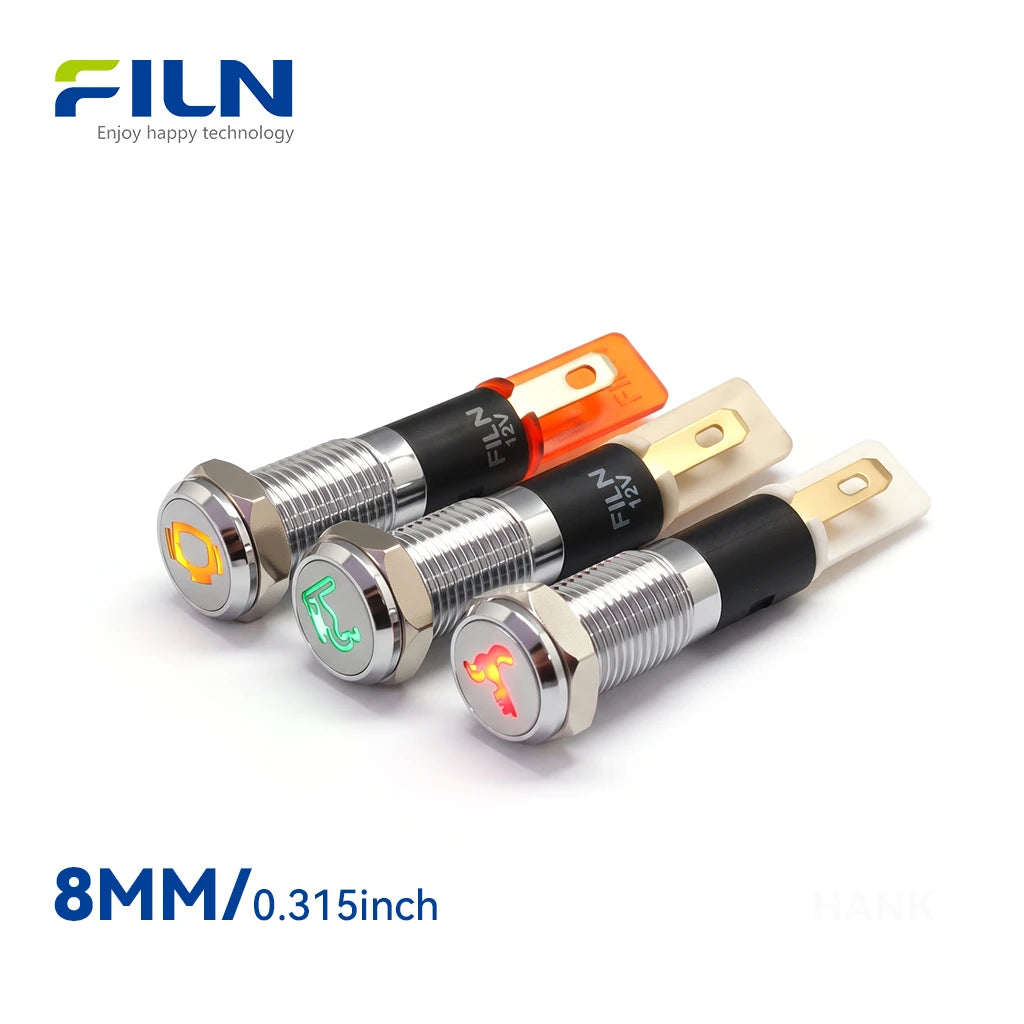

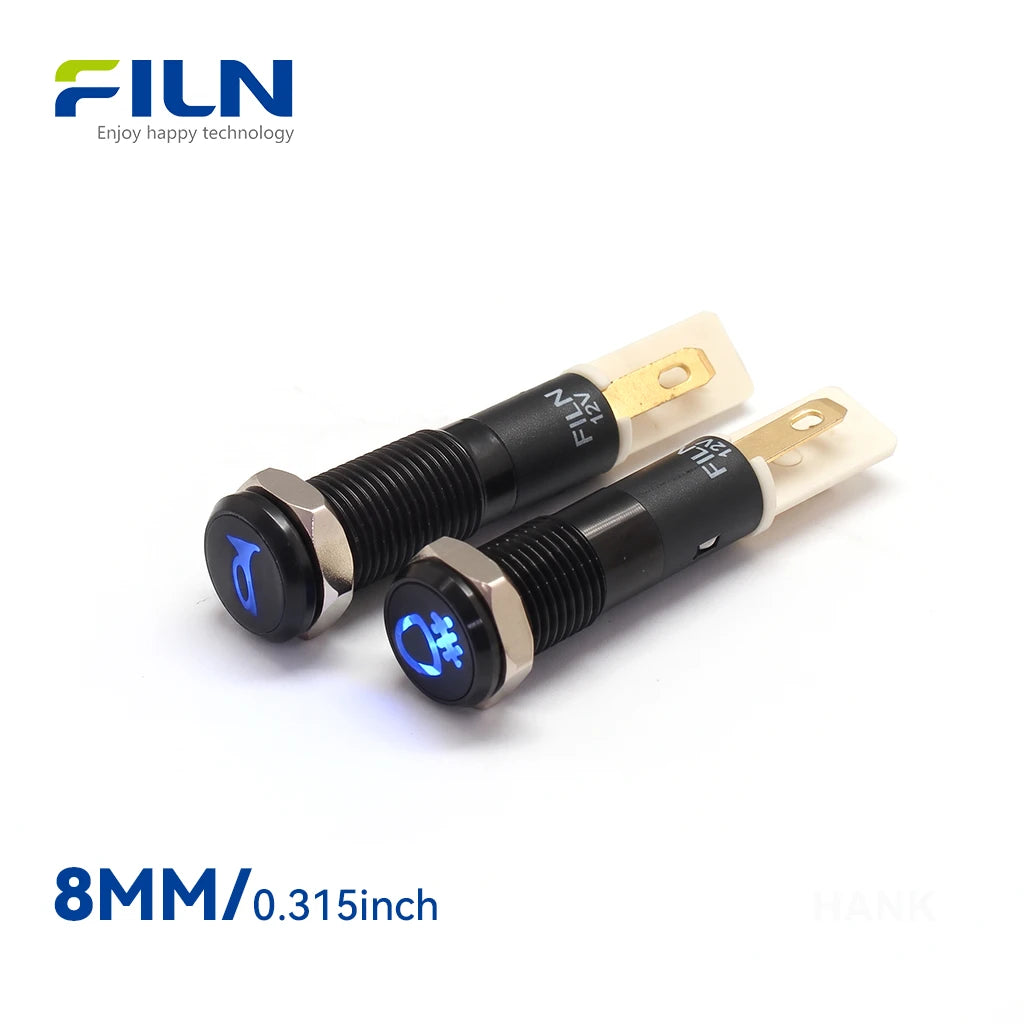

The FILN 8mm Malfunction Indicator Light (Models FL1M-08FW-1 wire lead and FL1M-08FJ-1 pin terminal) is a compact, high-durability 12V LED signal lamp designed for critical status monitoring across automotive dashboards, electrical control panels, marine consoles, and industrial automation machinery. Engineered with a rugged metallic housing—available in black-plated zinc-aluminum alloy or nickel-plated brass—this flat-head indicator features high-precision laser-etched ISO and automotive failure symbols that remain sharp and clear under intense illumination.
To solve common field failures associated with plastic indicators, such as thermal degradation, UV cracking, and mechanical shear, FILN incorporates a non-polar internal LED structure and robust IP65/IP67 silicone O-ring sealing. Available directly from our ISO9001-certified factory in bulk, wholesale, OEM, and ODM configurations, buyers can request custom wiring lengths, proprietary symbol graphics, specialized voltage ratings from 3V to 480V, and pre-assembled quick-connect wire harnesses. Before placing bulk production orders, engineering buyers should verify panel cutout dimensions (8mm / 0.315 in), required operating voltage, symbol identifier code, and preferred termination style with FILN technical support.
Key Takeaways & Technical Highlights

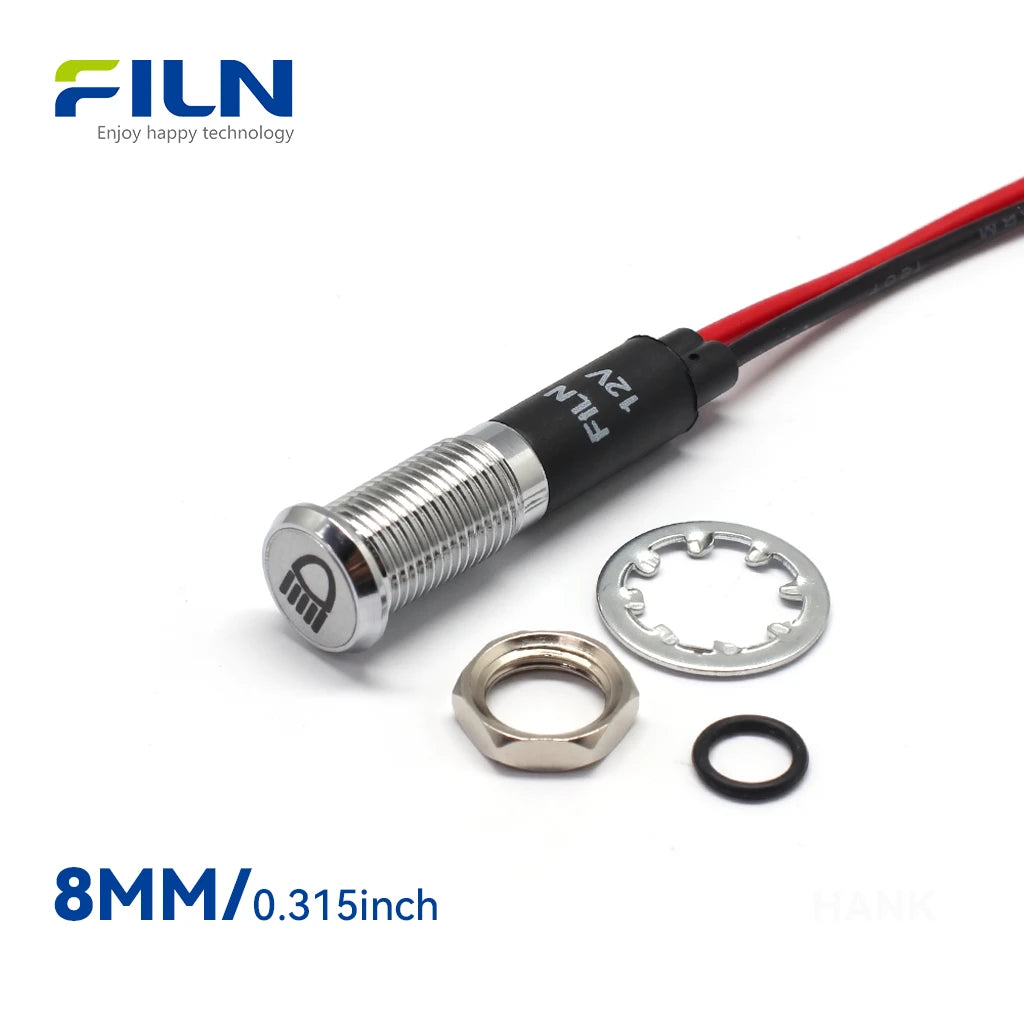

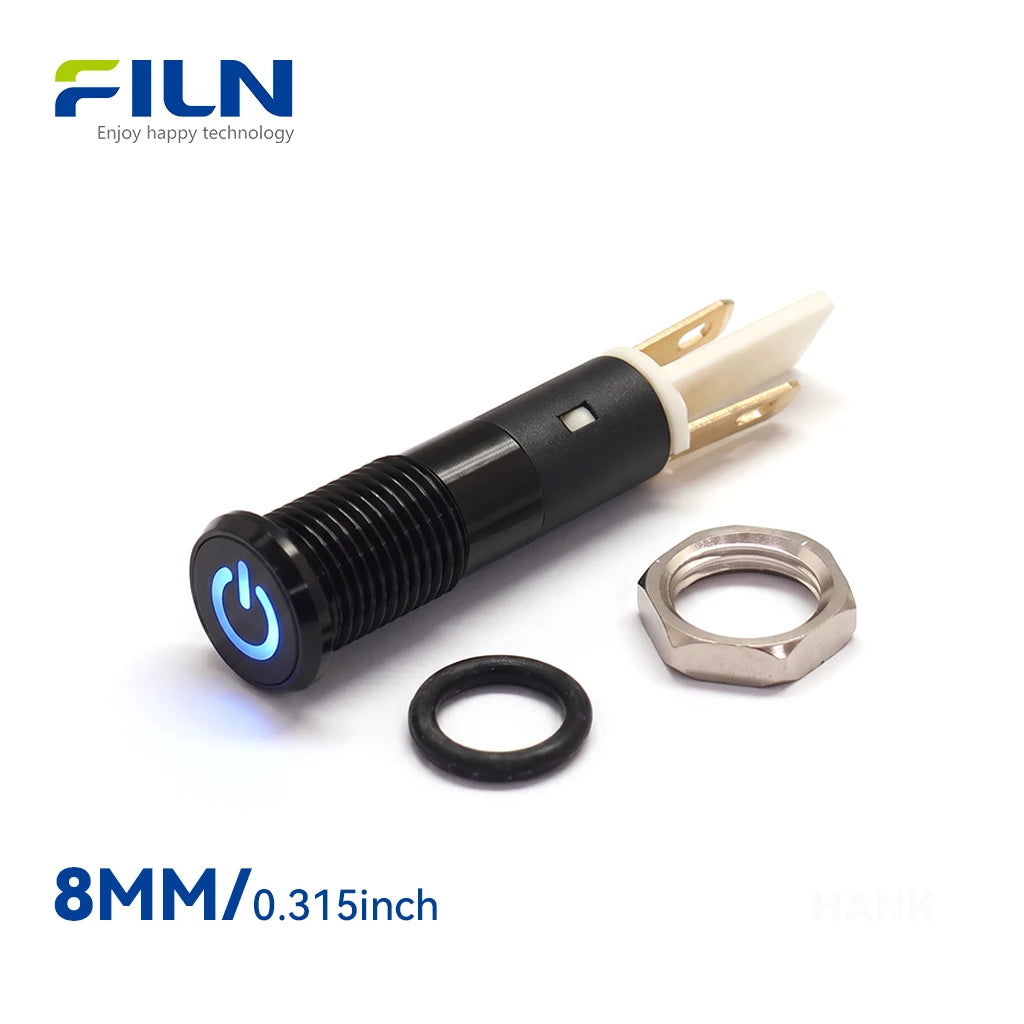

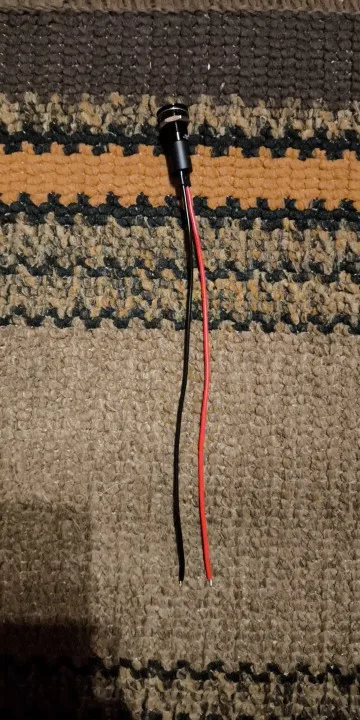

- Dual Termination Configurations: Offered in FL1M-08FW-1 (integrated 20cm 2PIN wire leads) and FL1M-08FJ-1 (solder/quick-connect 2PIN terminals) to match automated production or manual field assembly.
- Standard 8mm Panel Cutout: Designed for compact 8mm (0.315 inch) mounting holes with a secure single-nut threaded body for tight space constraints.
- Rugged Metallic Construction: Heavy-duty copper alloy or black-plated zinc-aluminum alloy shell provides superior impact resistance over fragile plastic indicators.
- Non-Polar Circuitry: Bi-directional non-polar internal LED drive allows hassle-free 12V AC/DC connection without risk of reverse-polarity failure.
- IP65/IP67 Environmental Protection: Supplied silicone sealing washer prevents ingress of water, oil, dust, and washdown spray in harsh industrial and outdoor environments.
- Laser-Etched Symbol Customization: Supports over 100 standard automotive dashboard and industrial fault symbols, as well as OEM-custom graphics.
- Wide Color Spectrum: Available in Red, Green, Yellow, Blue, White, as well as custom dual-color and tri-color LED combinations.
- Factory-Direct Customization: Full OEM/ODM technical support from FILN engineering, including wire harness customization, custom voltages (3V–480V), and prototype samples.
What is a Malfunction Indicator Light?
A malfunction indicator light is a specialized panel-mounted visual signaling device engineered to communicate operational status, system warnings, and fault conditions to equipment operators. In modern control systems, a malfunction indicator light converts electrical alarm signals from microcontrollers, sensors, engine control units (ECUs), or relays into instantly recognizable optical feedback.
FILN manufactures a comprehensive portfolio of industrial signal indicators, categorised primarily into robust metal indicator lights and cost-effective plastic indicator lights. Mounting hole dimensions range from compact 6mm cutouts up to heavy-duty 30mm industrial standards. For connection flexibility, units are offered with either direct soldered pin terminals or integrated wire leads.
To satisfy diverse visual panel architectures, FILN metal indicator lights feature three distinct lens head geometries: flat head, prominent/convex head, and concave head. The flat-head symbol variant highlighted here is specifically designed for flush panel integration, offering high symbol legibility and physical protection against accidental impacts.
Explore Our Full Range of Metal Signal Lamps
Looking for different mounting sizes, voltages, or head styles? View FILN's complete catalog of industrial metal LED indicator lights.
Product Overview & Engineering Architecture
The 8mm FILN malfunction indicator light combines high-grade metal machining with solid-state LED reliability. Constructed with a precision-threaded metal housing and high-transmittance polycarbonate (PC) lens, each unit houses a surface-mounted LED chip coupled with an internal current-limiting resistor calibrated for stable 12V operation.
Electrically, the indicator incorporates a non-polar circuit design, eliminating terminal orientation errors during high-speed panel wiring. Mechanically, the threaded barrel passes through an 8mm panel cutout and is secured from behind using a heavy-duty M8 hex nut and stainless steel lock washer. An exterior silicone O-ring compresses tightly against the front panel face to maintain an IP65/IP67 seal against dust and liquid intrusion.
Unlike standard indicator lights that rely on external stickers or unlit silk-screening, FILN utilizes advanced laser etching directly onto the internal lens layer. When dormant, the symbol remains clean and legible; when energized, the high-brightness LED projects light uniformly through the etched graphic, creating a high-contrast fault warning that is easily visible in daylight or low-light cabin environments.
Quick Technical Specifications
| Specification Parameter | Detailed Technical Specification |
|---|---|
| Product Description | Metal malfunction indicator light with laser-etched fault symbol |
| Indicator Light Models | FL1M-08FW-1 (2PIN Wire Lead) / FL1M-08FJ-1 (2PIN Solder Terminal) |

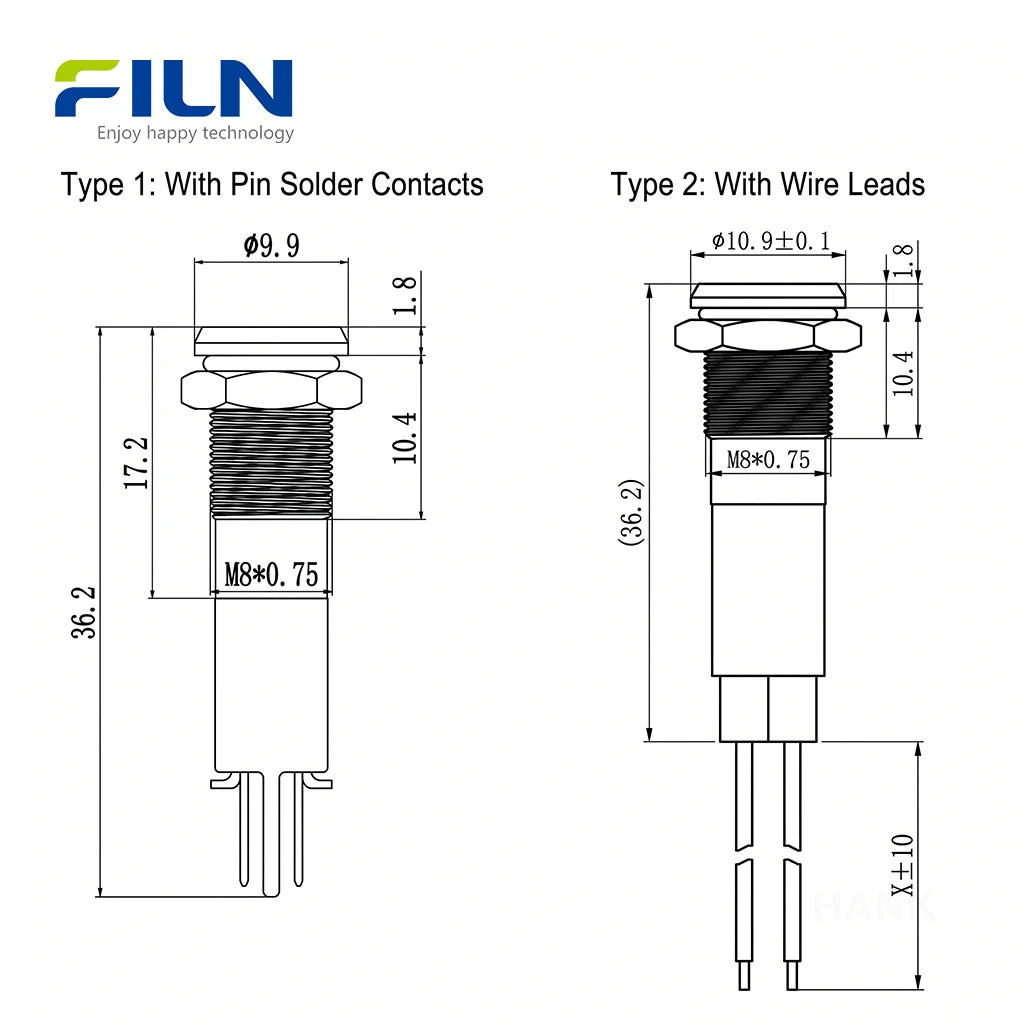

| Mounting Hole Size | 8mm / 0.315 inches (M8 x 0.75 thread) |
| Operating Voltage | 12V DC/AC (Supports 3V–480V range upon request) |
| LED Color Options | Red, Green, Yellow, Blue, White, Dual-Color, Tri-Color |
| Waterproof Ingress Protection | IP65 / IP67 (Front panel sealing with O-ring) |
| Wiring Termination Type | Integrated PVC Wire Leads (20cm std.) or 2PIN Solder/Quick-Connect Terminals |
| Head Geometry | Flat head with illuminated custom graphic symbol |
| Surface Quality Finish | Smooth, uniform surface free of burrs, oxidation, micro-cracks, or coating defects |
| Assembly Fit Tolerances | Head and base assemblies tightly press-fitted with zero rotation, detachment, tilt, or axial deformation |
Electrical & Mechanical Performance Parameters
| Performance Metric | Rated Specification Value |
|---|---|
| Rated Operating Voltage | 12V DC/AC (Extended factory options: 3V–480V DC/AC) |
| AC Supply Frequency | 50 Hz / 60 Hz |
| Rated Operating Current | ≤ 20 mA (Nominal 15–18 mA at 12V DC) |
| Rated Power Dissipation | Approx. 0.2 W |
| Insulation Resistance | ≥ 100 MΩ (Tested at 500V DC applied between lead wires and metal housing) |
| Dielectric Withstand Voltage | 1500V–1800V AC for 1 minute without dielectric breakdown or flashover |
| Continuous Operating Life | 50,000 to 100,000 Hours (L70 lumen maintenance threshold) |
| Ingress Protection Rating | IP65 / IP67 (Dust-tight, protected against water jets and temporary immersion) |
Component Materials & Structural Engineering
| Component Name | Material Specification | Engineering Rationale |
|---|---|---|
| Outer Shell / Body | Nickel-plated copper alloy OR Black-plated zinc-aluminum alloy | Provides extreme structural rigidity, impact resistance, thermal dissipation, and corrosion resistance. |
| Internal Lamp Holder | Polyamide 66 (PA66 Nylon) | High electrical insulation performance, thermal endurance, and mechanical stability. |
| Lampshade / Lens | Polycarbonate (PC) | Optical clarity, high impact strength, UV resistance, and laser-marking suitability. |
| Luminescent Source | High-brightness solid-state LED chip | Delivers long operating lifespan, ultra-low power consumption, and vibrant color saturation. |
| Current-Limiting Resistor | Precision carbon film resistor | Regulates current flow to protect the LED chip from voltage spikes and thermal runaways. |
| Lead Wires | PVC insulated copper stranded wire | Ensures high flexibility, reliable conductivity, and flame-retardant insulation properties. |
| Mounting Hex Nut | Machined copper alloy / Nickel-plated | Provides precise mechanical threading, vibration resistance, and robust clamping torque. |
| Sealing O-Ring | Silicone / Silica gel | Fills panel surface irregularities to achieve reliable IP65/IP67 dust and liquid protection. |
| Lock Washer | Stainless steel plum blossom gasket | Prevents nut loosening caused by continuous mechanical vibration in vehicle and machinery applications. |
Environmental Performance & Environmental Stress Testing
The FILN 8mm malfunction indicator light series is designed to maintain consistent electrical and optical performance across demanding industrial and environmental conditions. Each unit undergoes strict environmental reliability testing.
| Environmental Test Parameter | Test Conditions & Parameters |
|---|---|
| General Application Scope | General industrial switchgear, vehicle control panels, marine consoles, and power equipment |
| Operating & Storage Temperature | -40℃ to +80℃ (-40°F to +176°F) |
| Operating Relative Humidity | ≤ 85% RH at +40℃ |
| High Temperature Endurance Test | 96 hours continuous exposure at 80 ± 2℃; zero optical lens distortion or electrical degradation |
| Low Temperature Endurance Test | 96 hours continuous exposure at -40 ± 2℃; zero material embrittlement or contact failure |
| Constant Temperature & Humidity Test | 96 hours at 40 ± 2℃, 90% to 95% RH; insulation resistance maintained above 100 MΩ |
| Thermal Shock Cycling Test | Alternate between -40℃ (30 min) and +85℃ (30 min) for 5 complete cycles; no internal wire fatigue |
LED Optoelectronic Specifications
Absolute Maximum Ratings (Ta = 25°C)
| Parameter | Symbol | Maximum Limit Value |
|---|---|---|
| Maximum Forward Current | IFP | 20 mA |
| Reverse Voltage | VR | 5 V |
| Power Dissipation | PD | 60 mW |
| Operating Temperature Range | TOPR | -40°C ~ +80°C |
| Storage Temperature Range | TSTG | -40°C ~ +100°C |
| Lead-Free Soldering Temperature | TSOL | Max. 260°C for 3 seconds max |
Electro-Optical Characteristics (Ta = 25°C)
| Electro-Optical Parameter | Test Condition | Parameter Range / Value |
|---|---|---|
| Forward Voltage (VF) | IF = 20 mA | 2.8 V (Min.) ~ 3.2 V (Max.) |
| Reverse Current (IR) | VR = 5 V | 5 µA (Max.) |
| Viewing Angle (2θ1/2) | IF = 20 mA | 60° (Typical) |
| Luminous Intensity (IV) | IF = 20 mA | 500 mcd (Min.) ~ 800 mcd (Max.) |
| Recommended Forward Current (IF) | Continuous Operation | 20 mA |
| Dominant Wavelength (λd) | IF = 20 mA (Green) | 520 nm ~ 525 nm |
| Junction Temperature (Tj) | IF = 20 mA | 125°C Max |
| Thermal Resistance (RJP) | IF = 20 mA | 8°C/W (Typical) |
Standard Factory Testing Conditions
Unless specified otherwise in OEM quality agreements, all electrical, optical, and mechanical parameters reported on this datasheet are tested under the following standard laboratory atmospheric conditions:
| Environmental Conditioning Parameter | Standard Testing Range |
|---|---|
| Ambient Room Temperature | 5℃ to 35℃ (41°F to 95°F) |
| Relative Humidity | 45% to 85% RH |
| Barometric Atmospheric Pressure | 86 kPa to 106 kPa (860 mbar to 1060 mbar) |
Quality Measurement Notes: Luminous intensity and dominant wavelength measurements are calibrated in full alignment with CIE international human eye response spectral curves. Measurement tolerance for luminous intensity is ±15%, and forward voltage measurement tolerance is ±0.1V.
Automotive Applications of Malfunction Indicator Lights
A Malfunction Indicator Light is an important visual warning component used in automotive dashboards, vehicle control panels, and electrical systems. It provides drivers and technicians with an immediate visual indication when a vehicle system requires attention. From engine faults and emission-related problems to low tire pressure and electrical system warnings, indicator lights help users recognize abnormal conditions quickly and take appropriate action.
For automotive applications, a reliable indicator light is more than a simple illuminated component. It is part of the vehicle's human-machine interface, helping transform electrical signals from sensors and control systems into clear visual information. This is why a high-quality engine indicator light, warning indicator, or custom symbol indicator is widely used in passenger cars, commercial vehicles, agricultural machinery, construction equipment, and specialty vehicles.
1. Check Engine & Engine Fault Warning
One of the most recognizable automotive applications is the check engine indicator light. When the engine control system detects an abnormal condition, the warning signal can illuminate on the dashboard to alert the driver that the vehicle should be inspected.
When drivers search for “why engine indicator light on”, they are usually looking for an explanation of a warning signal that has appeared on the dashboard. A properly designed engine indicator light provides an immediate visual warning and helps drivers understand that the engine or related vehicle system may require diagnostic inspection. Depending on the vehicle design, different colors, symbols, or flashing patterns can be used to distinguish normal status, warning conditions, and potential faults.
2. Automotive Dashboard Warning Indicators
Modern vehicles use multiple dashboard indicators to communicate important operating information. A malfunction indicator can be designed with different symbols and LED colors for engine faults, braking systems, battery conditions, oil pressure, coolant temperature, lighting systems, and other vehicle functions.
When an engine indicator light is on, the illuminated symbol gives the driver an immediate visual signal without requiring access to diagnostic equipment. For vehicle manufacturers and control-panel designers, this makes the indicator light an essential component for clear and intuitive warning communication.
3. Low Tire Pressure Warning Systems
Another important application is the low tire pressure indicator light. Tire pressure monitoring systems can send warning signals to the vehicle dashboard when tire pressure falls below a defined level. The illuminated indicator gives the driver an immediate reminder to check the tire condition and tire pressure.
For automotive dashboards and control panels, a dedicated low tire pressure indicator light can use a recognizable warning symbol and high-brightness LED to provide clear visibility in both daytime and nighttime driving conditions.
4. Commercial Vehicles & Heavy-Duty Equipment
Malfunction indicator lights are also widely used in trucks, buses, agricultural machinery, construction equipment, forklifts, generators, and other heavy-duty vehicles. These machines often operate in environments involving vibration, dust, oil, moisture, and temperature changes.
A durable metal indicator light can provide reliable visual feedback for engine operation, hydraulic pressure, battery status, coolant temperature, brake warnings, lighting systems, and other critical functions. Metal housings and sealed structures can be selected when the application requires improved mechanical strength and environmental protection.
5. Custom Automotive Symbol Indicator Lights
Different vehicles require different warning symbols and electrical configurations. FILN supports customized Malfunction Indicator Light solutions with different symbols, housing finishes, LED colors, voltages, wiring configurations, and mounting specifications.
Custom symbols can be used for engine warnings, check engine functions, low tire pressure, brake system alerts, battery warnings, temperature warnings, lighting status, and other vehicle-specific applications. This makes the indicator suitable for both standard automotive dashboards and customized control panels.
Why Malfunction Indicator Lights Matter: A malfunction indicator light plays a critical role in vehicle safety, diagnostics, and driver awareness. Whether it is a check engine indicator light, an engine indicator light, or a low tire pressure indicator light, the illuminated warning provides immediate visual information when a vehicle system may require attention. A reliable indicator helps drivers recognize abnormal conditions earlier and supports faster inspection and maintenance. For automotive manufacturers, equipment manufacturers, and control-panel designers, choosing a durable and highly visible indicator light is an important part of creating a clear and dependable warning system.
FILN manufactures customizable Malfunction Indicator Lights for automotive and industrial vehicle applications. Options can include metal housing, different indicator symbols, LED colors, operating voltages, wiring lengths, terminal configurations, and customized production. For bulk orders or OEM/ODM projects, FILN can provide one-on-one technical support and customized indicator light solutions.
Complete Dashboard & Equipment Symbol Identification Guide
FILN provides full laser-etching customization for automotive and industrial malfunction indicator lights. The indexed symbol library below lists the available vehicle dashboard and fault warning symbols for 8mm panel indicators. Each entry includes the symbol code, symbol name, and a concise explanation of what the symbol communicates.

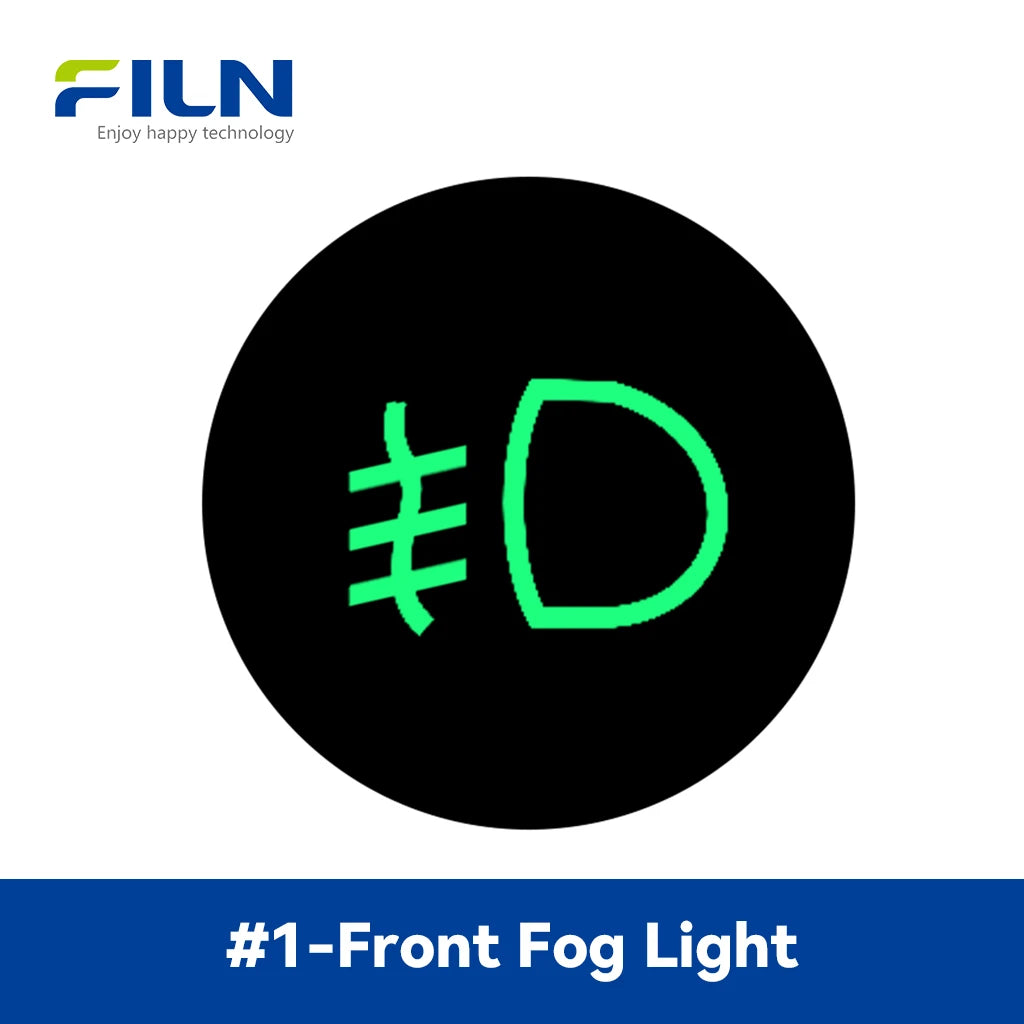

1

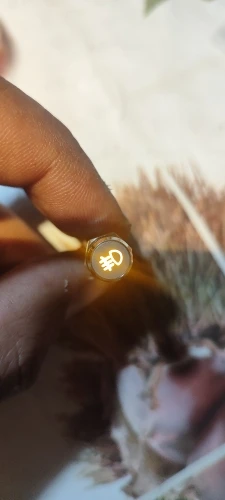

Front Fog Lights
Indicates that the vehicle's front fog lights are switched on or active.

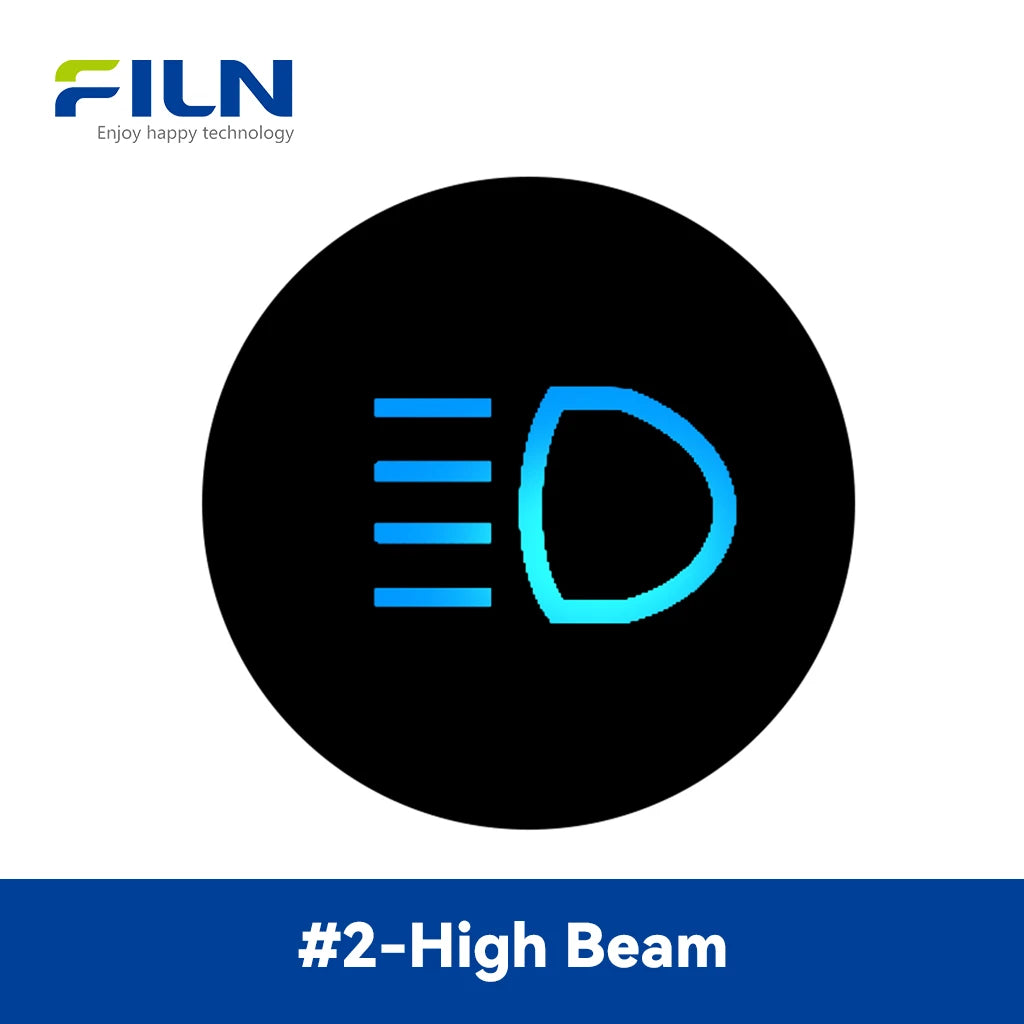

2
High Beam Headlights
Indicates that the high-beam headlights are currently activated.

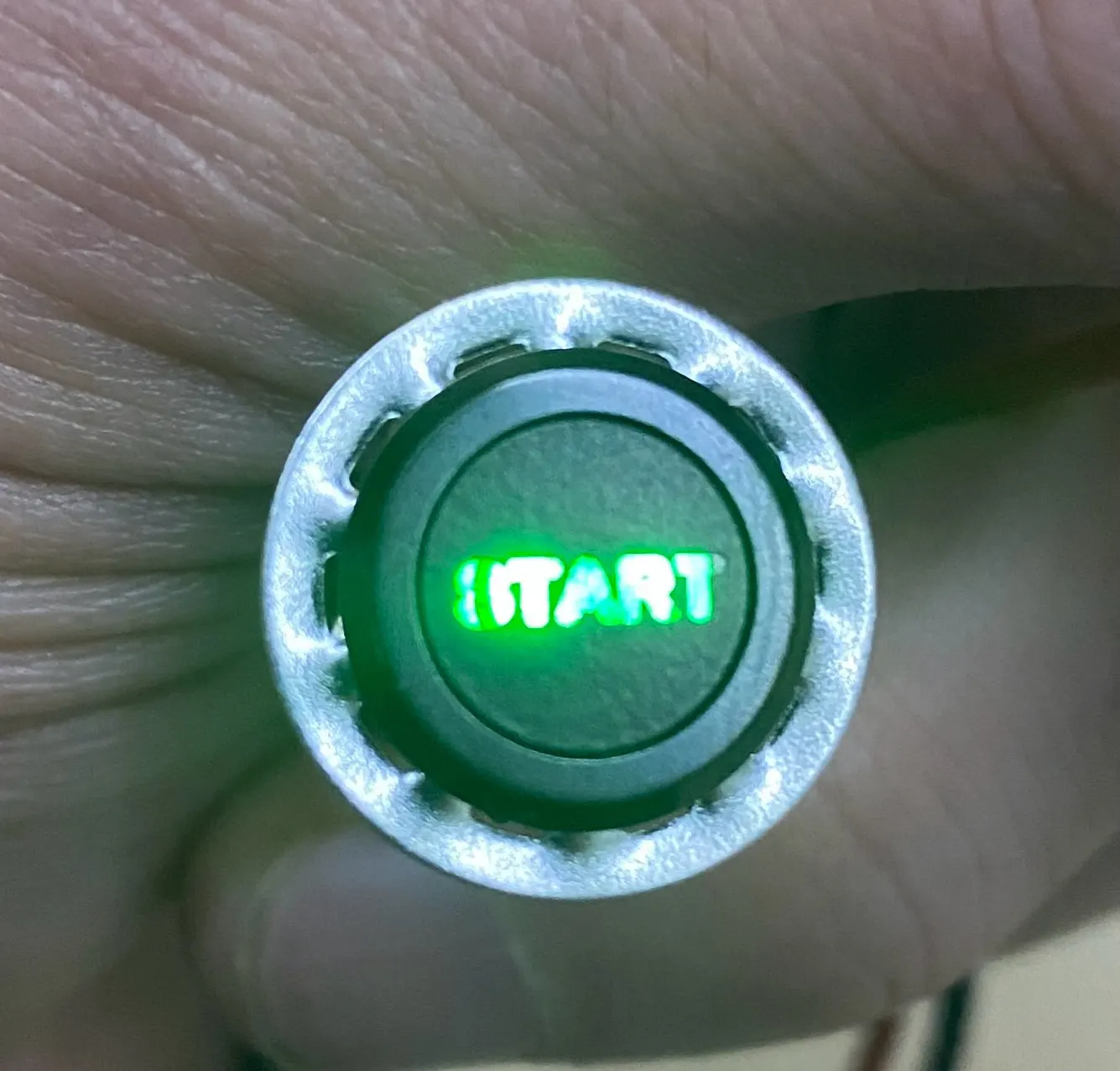

3
Engine Start / Power Indicator
Indicates engine start, ignition, or vehicle power status.
4
Fire Extinguisher / Fire Warning
Identifies a fire-extinguisher location or fire-related warning function.
5
Engine Check / Fault Warning
Indicates that the engine or related control system requires inspection.
6
Side Marker / Low Beam Lights
Indicates side-marker, position-light, or low-beam lighting status.
7
Seat Belt Unfastened Warning
Warns that a seat belt is not fastened as required.

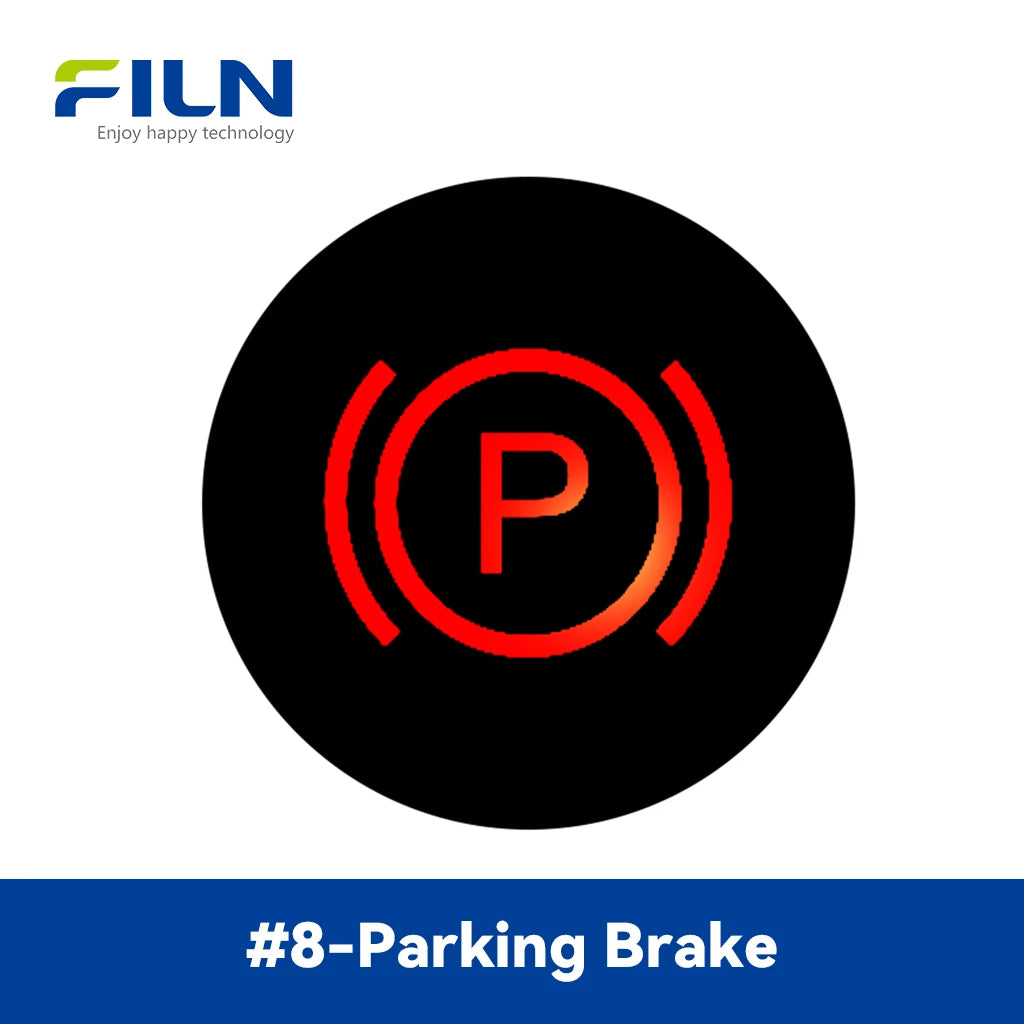

8
Parking Brake (Handbrake)
Indicates that the parking brake or handbrake is engaged.

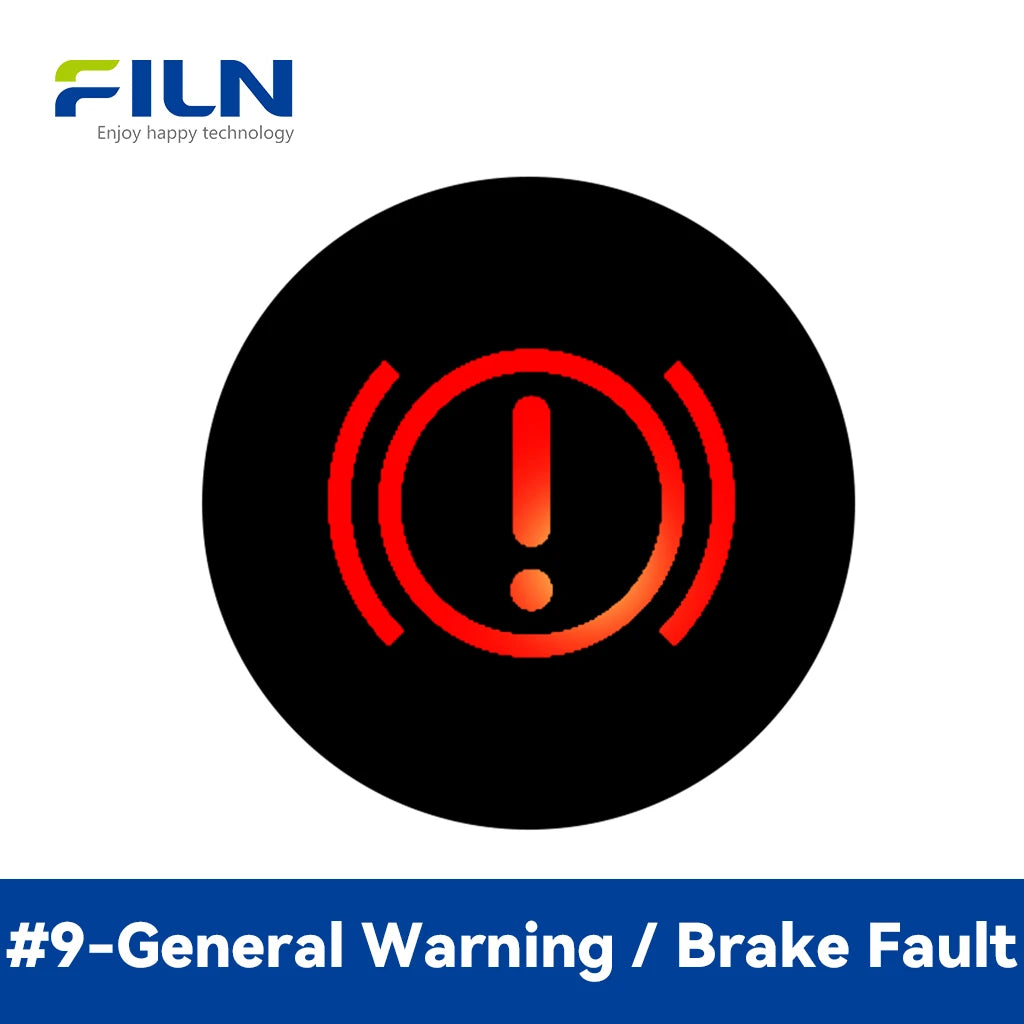

9
Brake System Warning / Low Brake Fluid
Indicates a brake-system warning or potentially low brake-fluid condition.
10
Hazard Warning Lights (Double Flashers)
Indicates the vehicle hazard warning or emergency flashers are active.

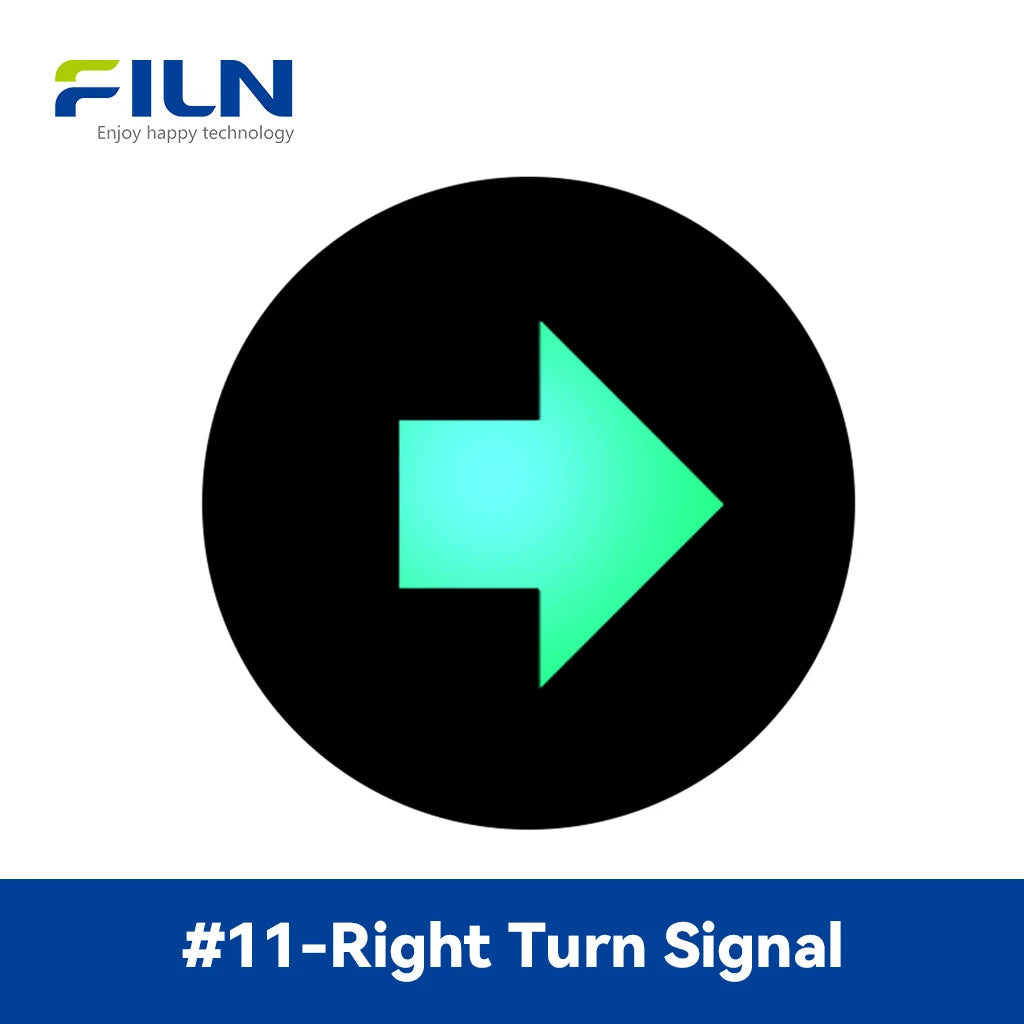

11
Right Turn Signal
Indicates that the right turn signal is operating.

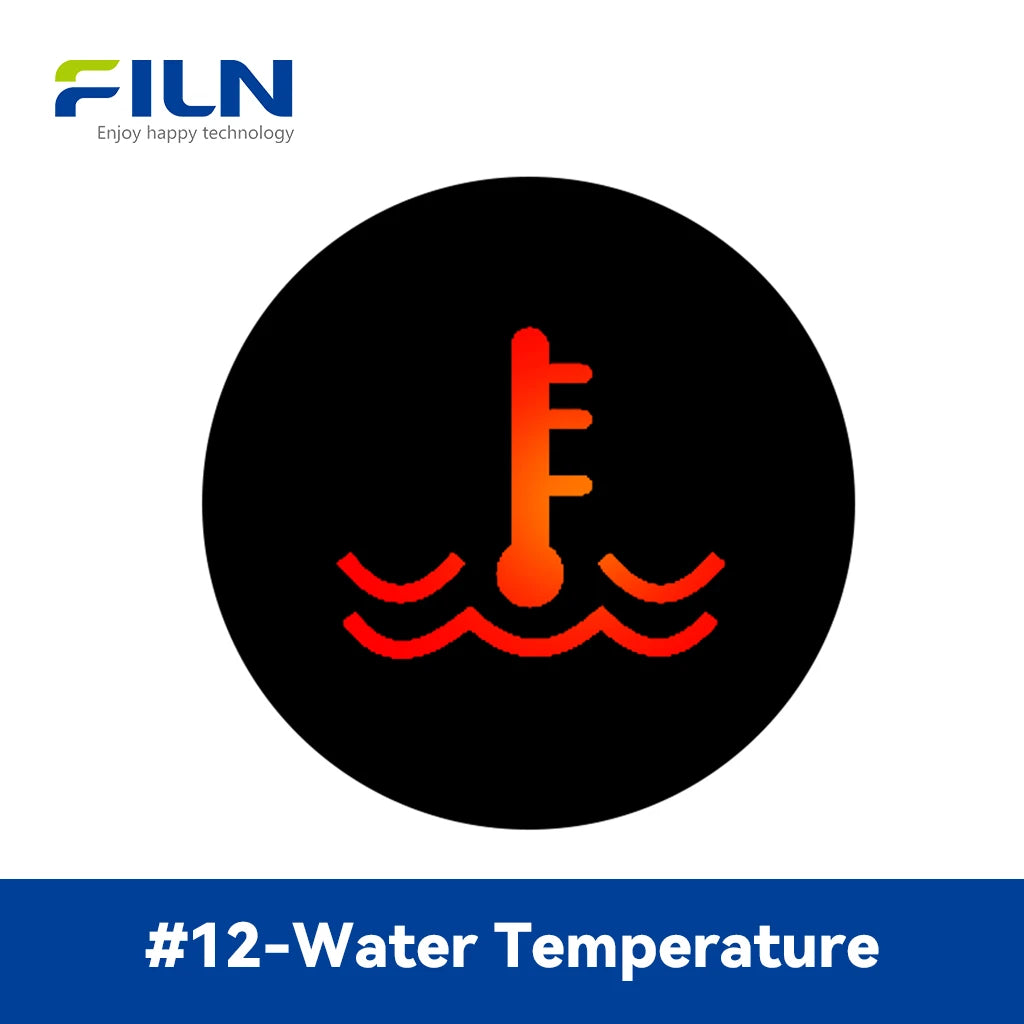

12
Coolant Overheating Warning
Warns that engine coolant temperature has reached an excessive level.
13

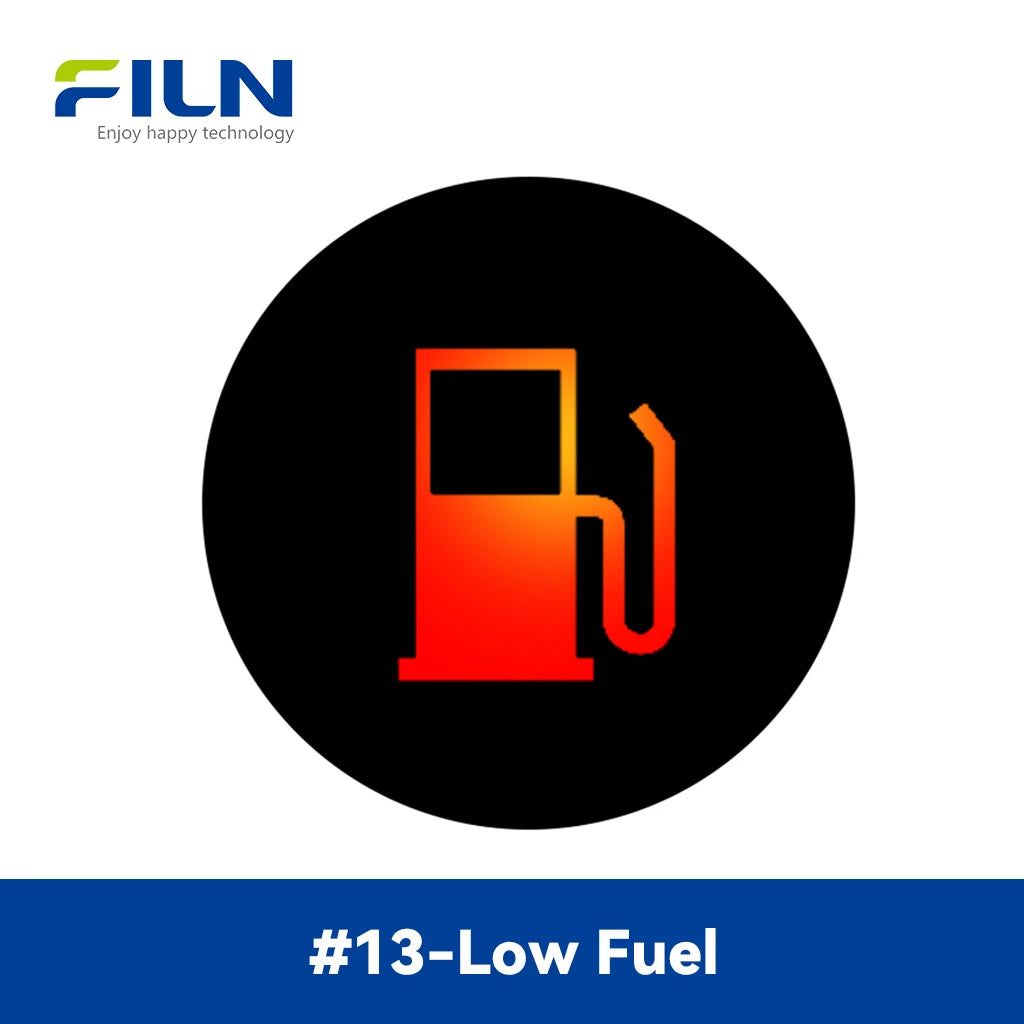

Low Fuel Level Warning
Indicates that the remaining fuel level is low and refueling may be required.
14
Dual Turn Signals
Indicates simultaneous or combined directional signal operation.
15

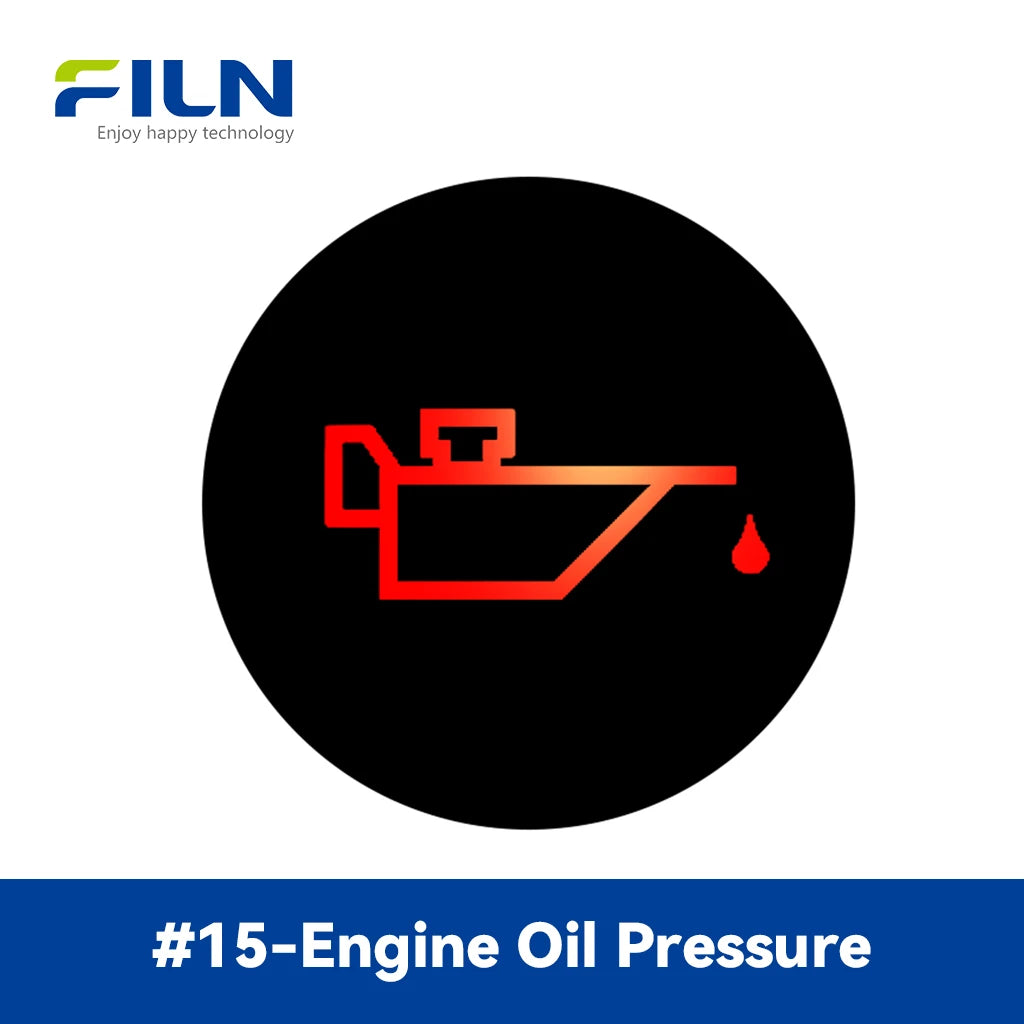

Low Engine Oil Pressure Warning
Warns that engine oil pressure may be below the required operating level.

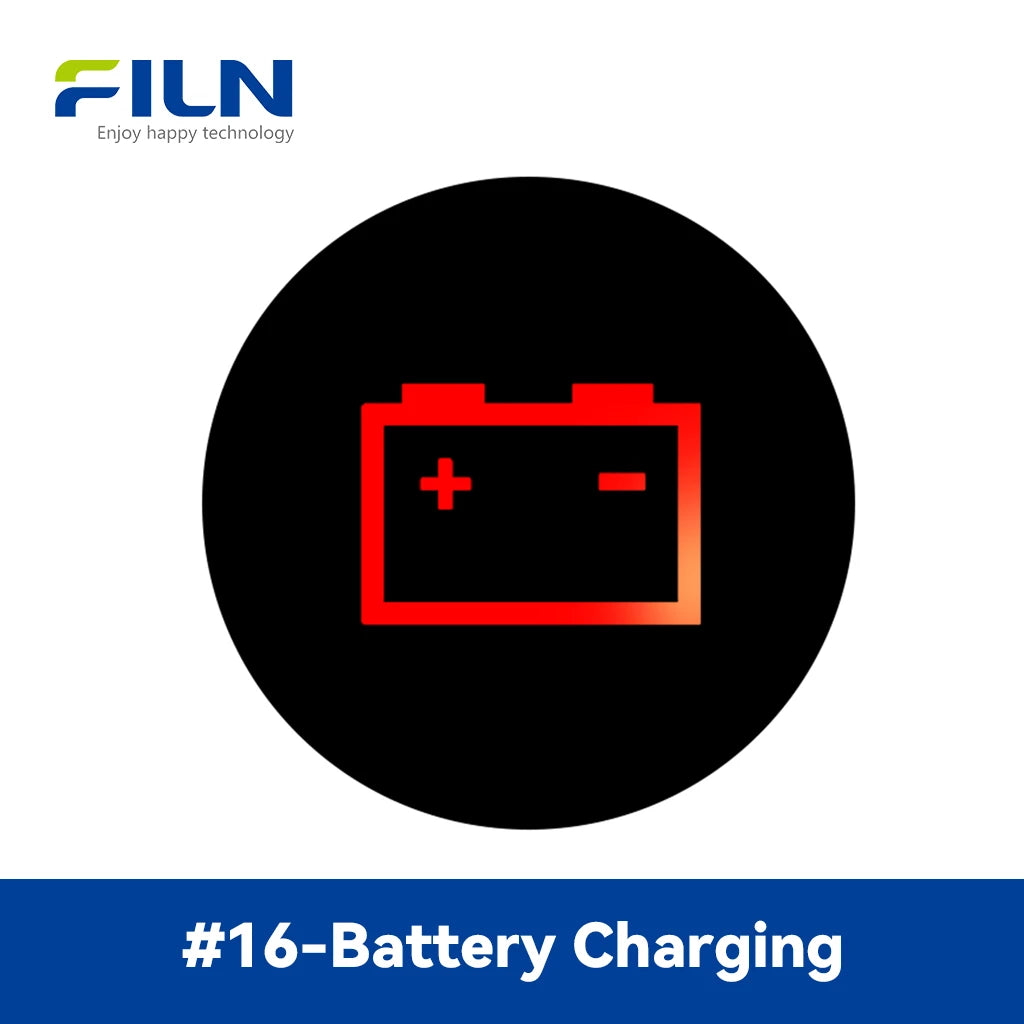

16
Battery / Charging System Fault
Indicates a possible battery, alternator, or vehicle charging-system issue.
17
Horn Indicator
Identifies the horn control or horn-related indicator function.
18
Engine Start
Indicates an engine-start or starting-system function.

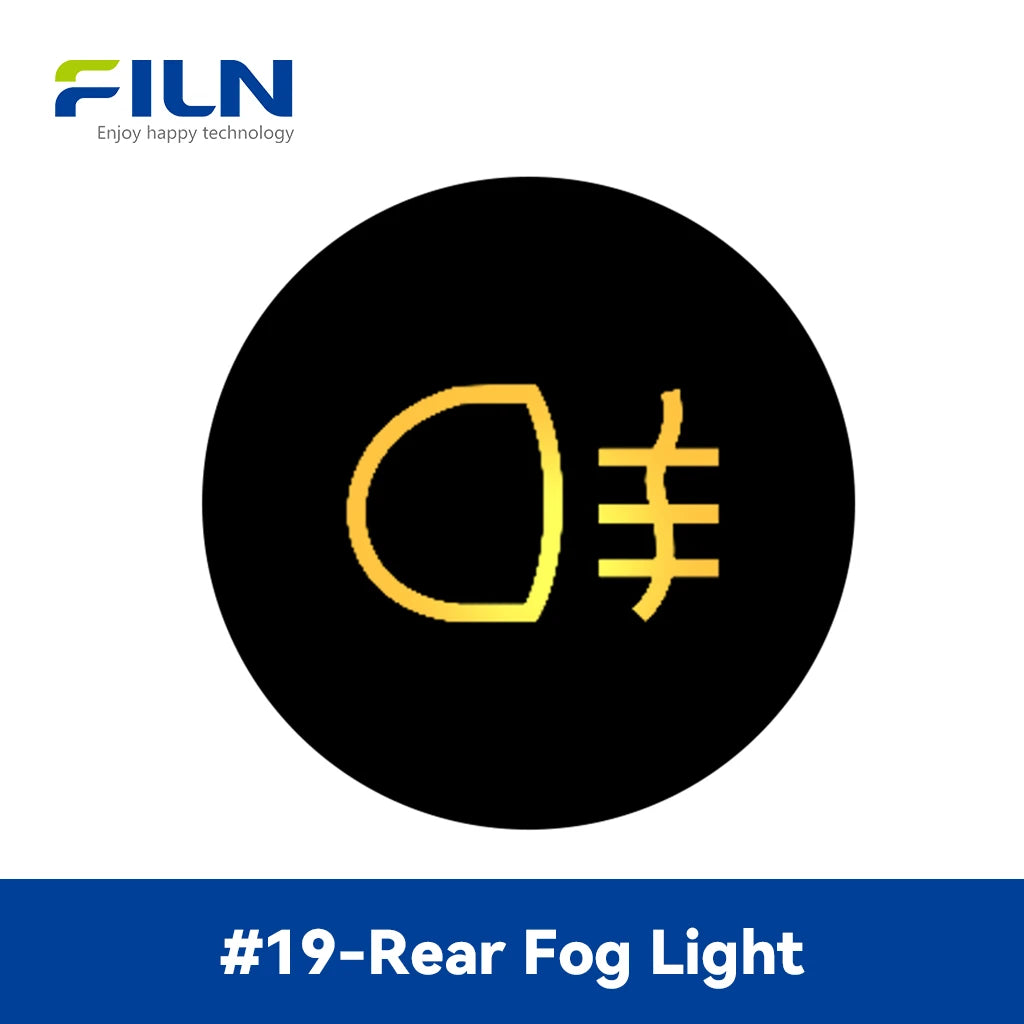

19
Rear Fog Light
Indicates that the rear fog light is switched on.
20
Right Turn Signal
Indicates operation of the vehicle's right directional signal.
21
Side Marker Lights (Position Lights)
Indicates that side-marker or vehicle-position lights are active.

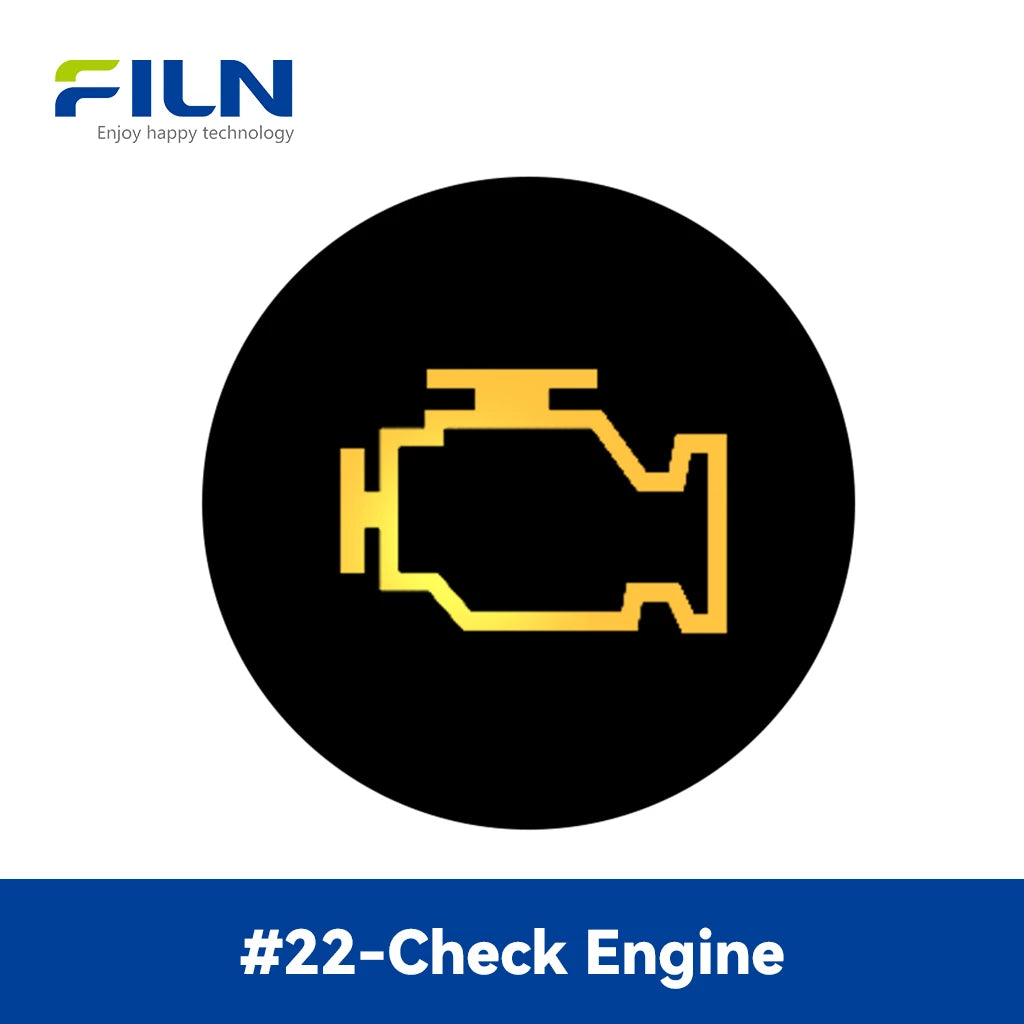

22
Check Engine Light (Exhaust Fault)
Indicates a check-engine or exhaust/emissions-related fault condition.
23
General Hazard / Warning Triangle
Provides a general warning that an abnormal or attention-required condition is present.
24
Smart Key Indicator
Indicates smart-key system status or a key-related condition.
25
Anti-lock Braking System (ABS) Fault
Indicates a fault or service condition within the ABS system.
26
Exterior Light Failure Warning
Indicates a detected failure or abnormal condition in an exterior lighting circuit.

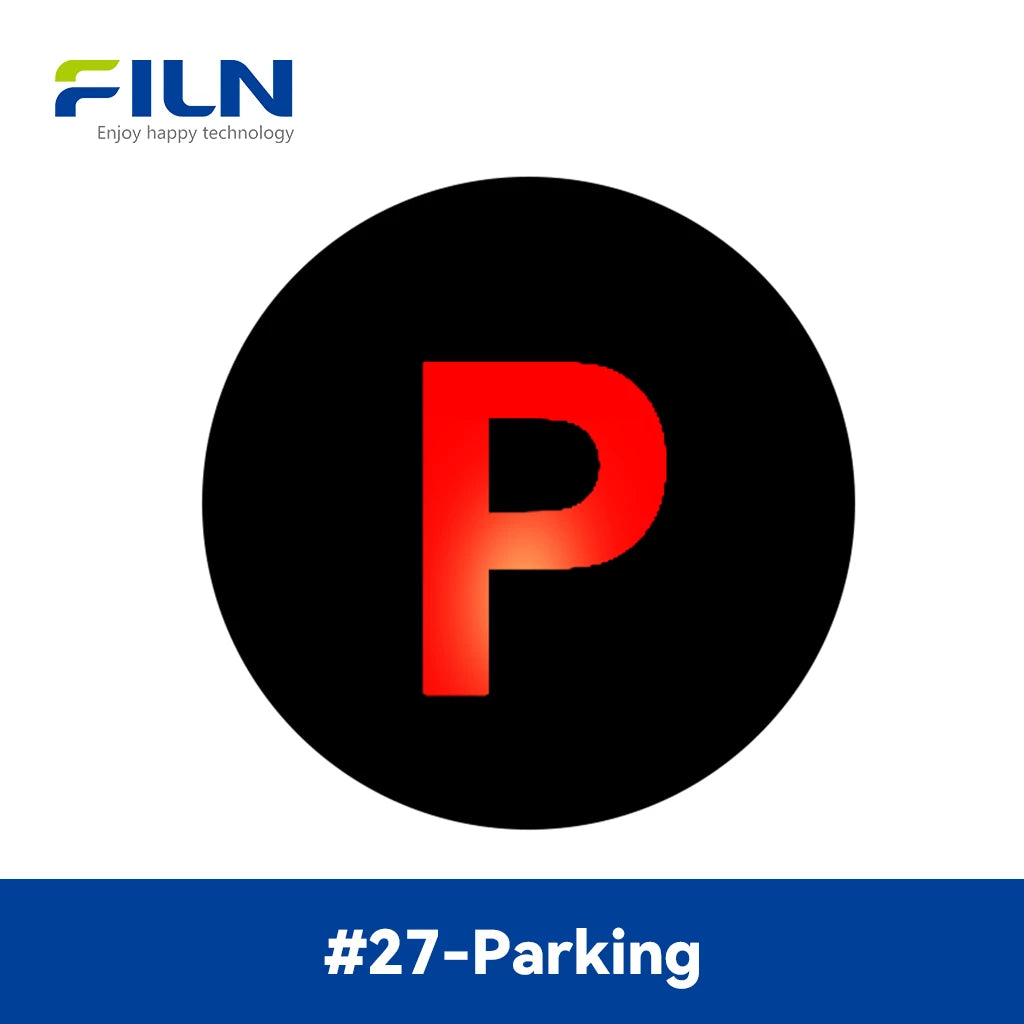

27
Park Gear (P)
Indicates that the automatic transmission is in Park.

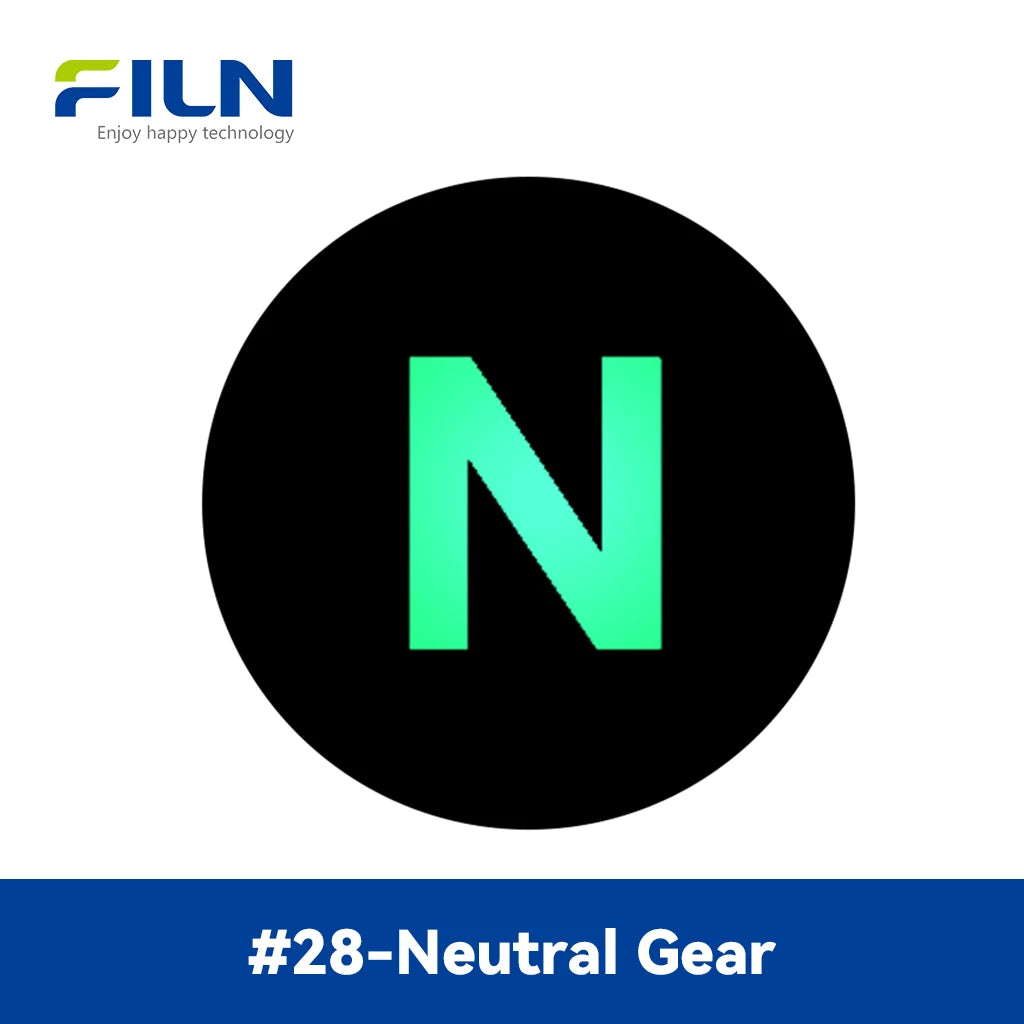

28
Neutral Gear (N)
Indicates that the transmission is in Neutral.

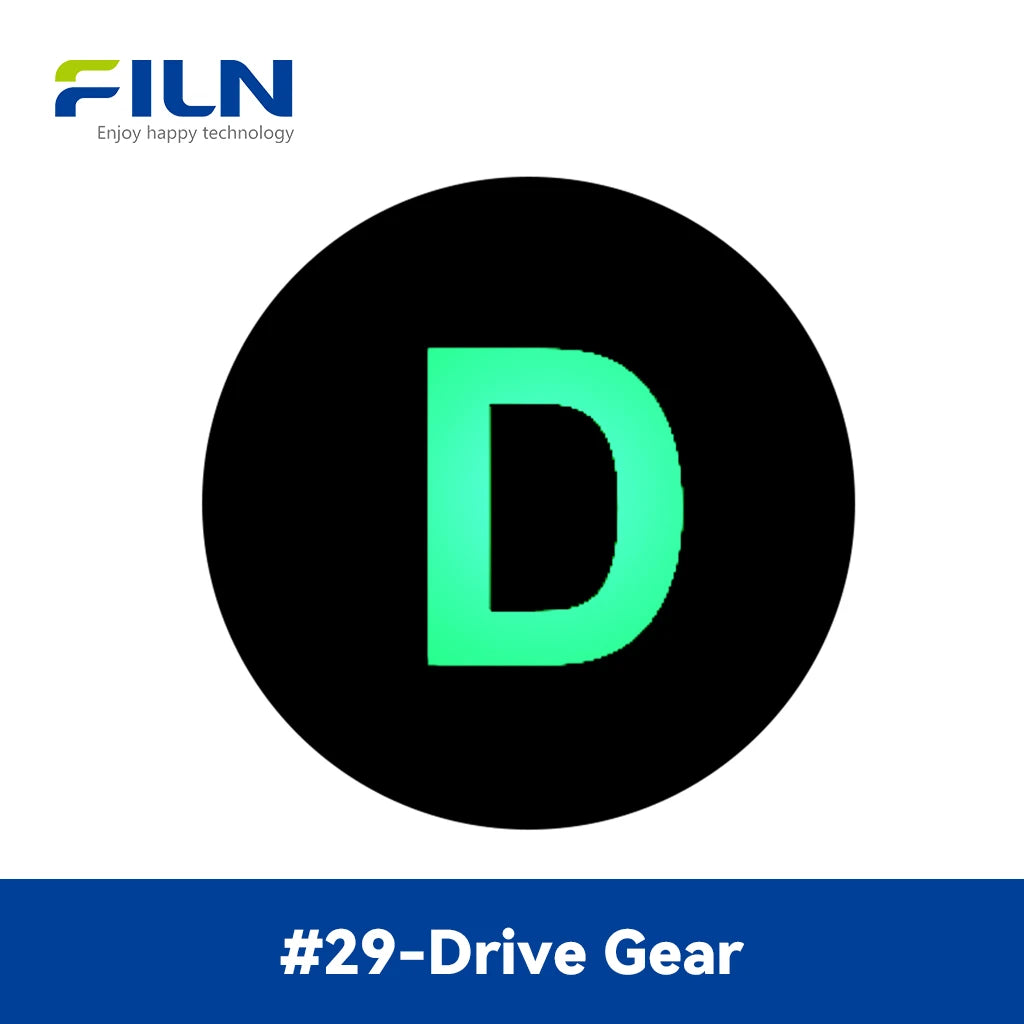

29
Drive Gear (D)
Indicates that the transmission is in Drive.

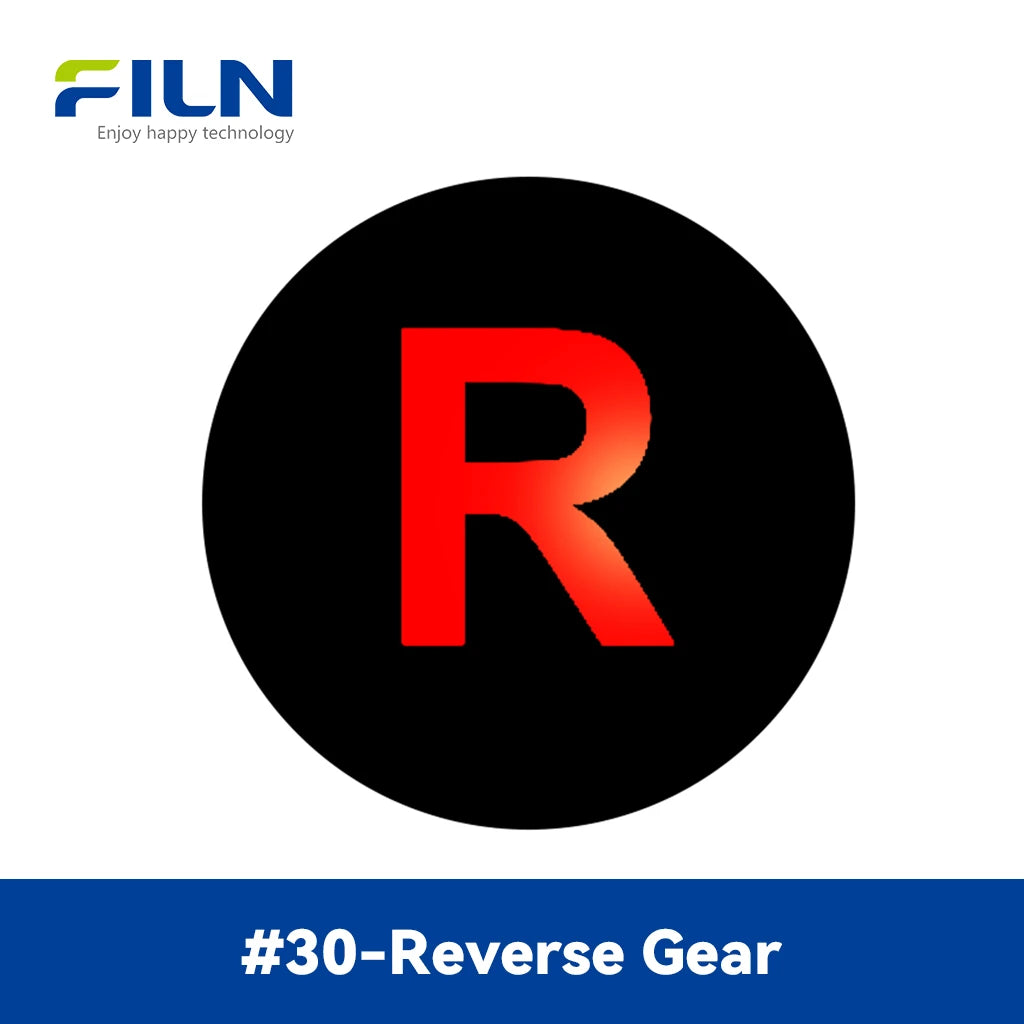

30
Reverse Gear (R)
Indicates that the transmission is in Reverse.
31
Brake Pad Wear Warning
Indicates that brake-pad wear may have reached a service threshold.
32
Four-Wheel Drive (4WD) / Differential Lock
Indicates 4WD engagement or differential-lock operation.
33
Automatic Transmission Fault
Indicates a possible fault or service condition in the automatic transmission.
34
Nitrous Oxide System (NOS) Active
Indicates that a nitrous oxide system or related function is active.
35
Purge System Indicator
Indicates the status of a vehicle purge or emissions-related system.
36
Critical Danger Warning (Skull Symbol)
Used as a critical danger or severe hazard warning symbol.

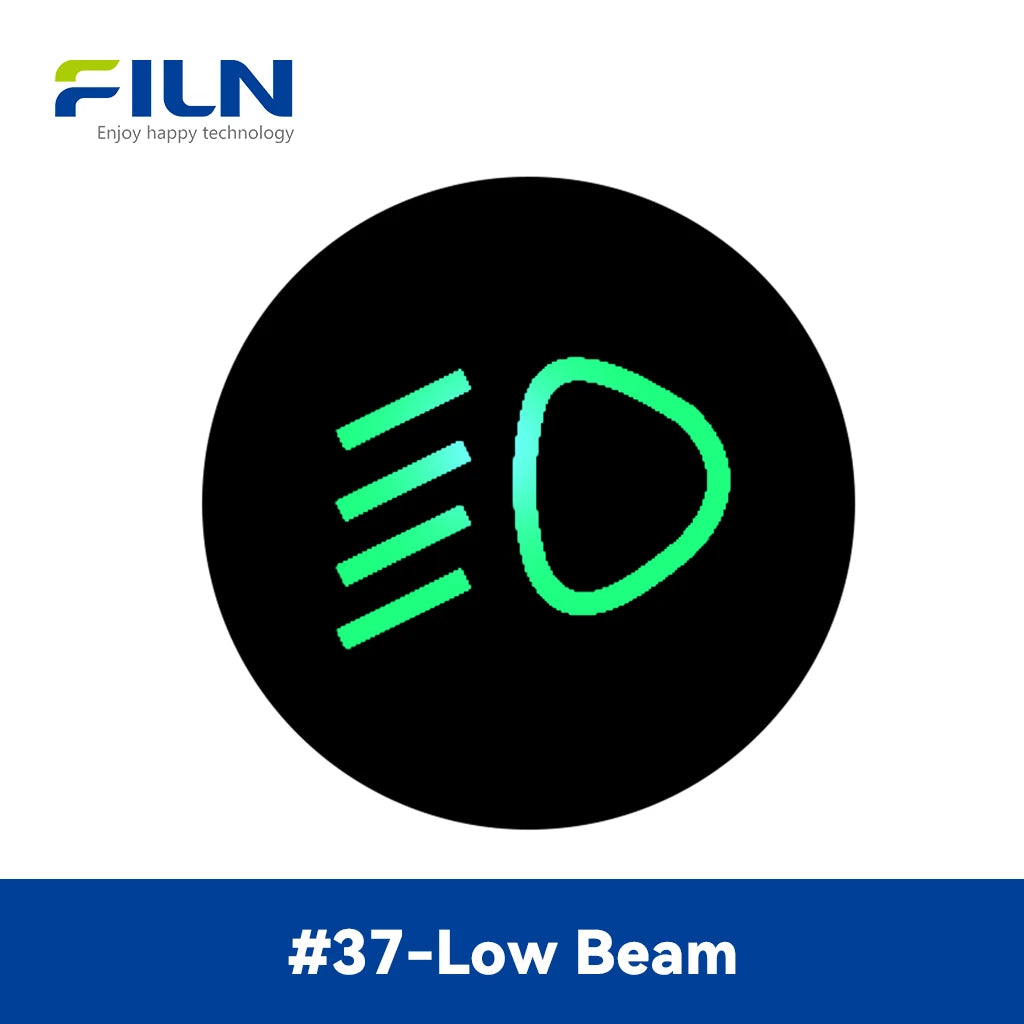

37
Low Beam Headlights
Indicates that the vehicle's low-beam headlights are active.
39
Engine Control Unit (ECU) Fault
Indicates a detected fault associated with the engine control unit or related electronics.

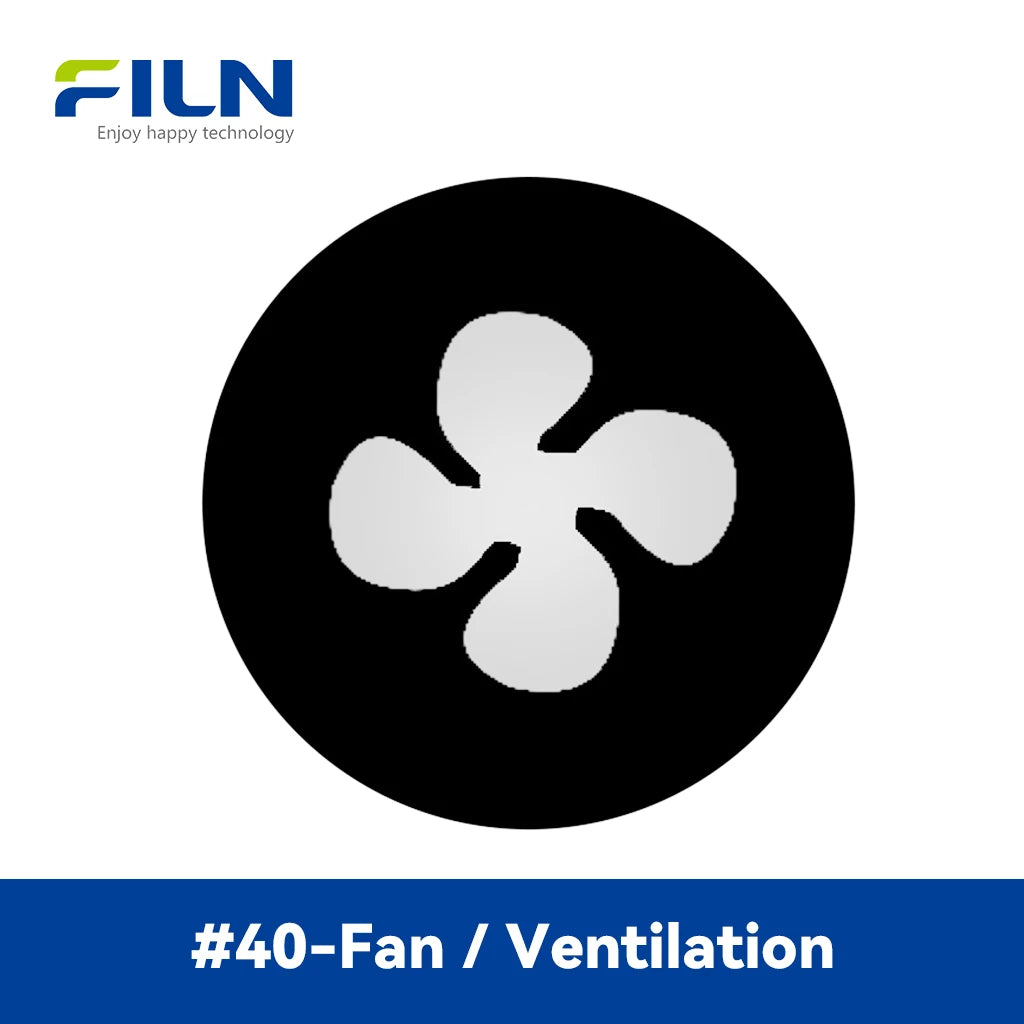

40
Blower Fan Active
Indicates that the blower or ventilation fan is operating.
41
Frost / Icy Road Warning
Warns of low-temperature or potentially icy road conditions.
42
Diesel Glow Plug / Pre-Heating Indicator
Indicates diesel engine glow-plug pre-heating or related starting preparation.
43
Windshield Defrost / Defog
Indicates that the windshield defrost or defog function is active.
44
Rear Window Defrost / Defog
Indicates that the rear-window defrost or defog function is active.
45
Electronic Stability Program (ESP) / Traction Control
Indicates electronic stability or traction-control system operation or status.
60
Airbag System Fault (SRS)
Indicates a possible fault in the supplemental restraint or airbag system.
61
Door Ajar Warning
Indicates that one or more vehicle doors may not be fully closed.
63
Overdrive Off (O/D OFF)
Indicates that the transmission overdrive function has been switched off.
82
Windshield Washer Fluid Low
Indicates that windshield washer fluid level is low.
90
Tire Pressure Monitoring System (TPMS)
Indicates a tire-pressure monitoring warning or tire-pressure-related condition.
98
Auto Hold / Brake System Fault
Indicates Auto Hold status or a related brake-system fault condition.
169
Convertible Top Unlocked / Open
Indicates that the convertible roof is open, unlocked, or not fully secured.
170
Trunk / Tailgate Open
Indicates that the trunk, rear hatch, or tailgate is open.
188
Parking Sensors / Park Assist
Indicates parking-assist or parking-sensor system status.
189
Headlight Washer System
Indicates the headlight washer system or its operating status.
190
Fuel Cap Open Warning
Indicates that the fuel-filler cap may be open or not properly secured.
207
Lighting System Malfunction
Indicates a fault or abnormal condition in the vehicle lighting system.
209
Diesel Particulate Filter (DPF) Warning
Indicates a DPF-related warning or filter condition requiring attention.
214
ECO Driving Mode Indicator
Indicates that an economy-oriented driving mode is active.

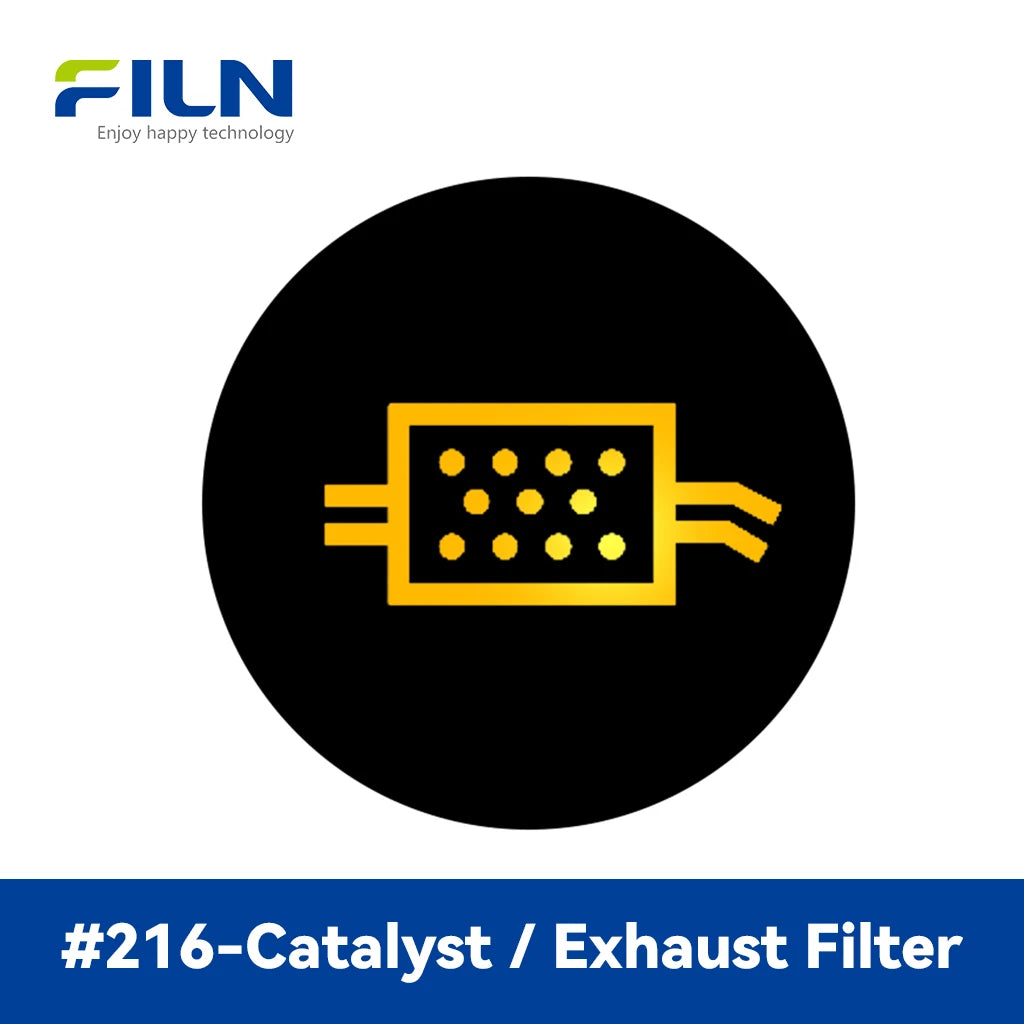

216
DPF Regeneration / Filter Status
Indicates diesel particulate filter regeneration or filter operating status.
217
Windshield Wiper Fault
Indicates a possible malfunction in the windshield-wiper system.
218
Convertible Roof Operation Warning
Indicates a warning related to convertible-roof movement or operating status.
219
Tow Hitch / Trailer Lock Indicator
Indicates tow-hitch, trailer connection, or trailer-lock status.
220
Headlight Range Control
Indicates headlight beam-level or range-control operation.
221
Adaptive High Beam / Light Angle
Indicates adaptive high-beam or automatic headlight-angle functionality.
222
Distance Warning / Forward Collision Warning
Indicates a detected distance or forward-collision warning condition.
224
Cruise Control Active
Indicates that the vehicle cruise-control function is active.
225
Hill Descent Control (HDC)
Indicates that hill-descent control is active or available.
226
Key Battery Low Warning
Indicates that the vehicle key or remote-control battery is low.
227
Press Brake Pedal Indicator
Instructs the driver to press the brake pedal for the required vehicle function.
228
Speed Limiter Indicator
Indicates that the vehicle speed-limiter function is active or set.

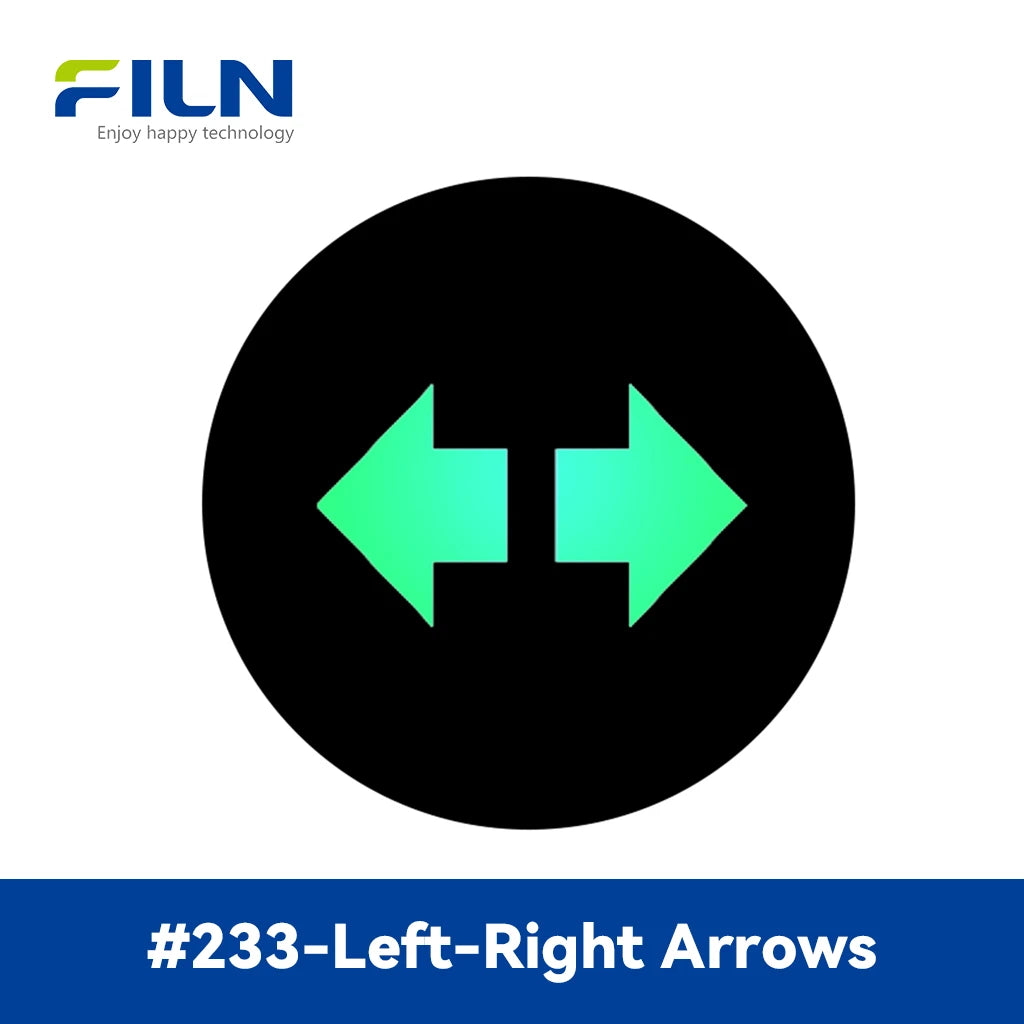

233
Directional Turn Signals
Indicates directional turn-signal operation or combined turn-signal status.
234
Service / Maintenance Required (Wrench)
Indicates that vehicle service, inspection, or scheduled maintenance may be required.
243
Electric Power Steering (EPS) Fault
Indicates a possible fault in the electric power-steering system.
244
Brake System Service Check
Indicates that the brake system should be inspected or serviced.
245
Information Indicator (i)
Provides general information or notification about vehicle system status.
246
Light Sensor / Lane Detection Sensor
Indicates light-sensor or lane-detection sensing-system status.
247
Key Not Detected / Invalid Key
Indicates that the vehicle cannot detect or validate the required key.
248
Remote Key Signal / Sensor Warning
Indicates a remote-key signal or key-related sensor condition.
249
Steering Column Lock Warning
Indicates a warning related to the steering-column locking system.
251
Door / Roof Open Warning
Indicates that a door, roof, or related closure may be open or unsecured.
252
Lane Departure Warning (LDW)
Indicates a lane-departure warning or lane-monitoring condition.
253
Hood Open Warning
Indicates that the vehicle hood may be open or not fully secured.
254
Adaptive Front-lighting System (AFS)
Indicates adaptive front-lighting system operation or status.
255
Side Airbag / Occupant Sensor Fault
Indicates a possible side-airbag or occupant-sensing-system fault.
256
Side Slip / Lane Keep Assist
Indicates side-slip detection or lane-keeping assistance status.
257
Water in Fuel Filter Warning
Warns that water may have been detected in the fuel-filter system.
258
Suspension System / Shock Absorber Fault
Indicates a possible suspension or shock-absorber system fault.
259
AUTO Rain-Sensing Wipers
Indicates automatic rain-sensing windshield-wiper operation or status.
260
Key Not Found / Engine Immobilizer
Indicates that the key is not detected or the engine immobilizer system is active.
—
Custom Vector Graphics
Custom OEM symbol artwork can be specified during the RFQ and production process.
Custom Symbol Support: If your required dashboard, equipment, warning, or function symbol is not included in the standard library, FILN can develop custom laser-etched graphics according to your vector artwork and production requirements.
LED Indicator Light Color Meanings & Selection Guide
Color selection plays a vital role in human-machine interface (HMI) design. While international standards such as IEC 60073 and ISO 7000 govern general color conventions, exact industrial meanings can vary across specific machinery codes, vehicle manufacturers, and regional standards.
| LED Color | Common Industrial Meaning | Typical System Status | Primary Applications | Important Selection Notes |
|---|---|---|---|---|
| Red | Critical Warning / Emergency / Hazard | System trip, fault, over-temperature, low oil pressure | Engine malfunction indicator light, brake system warning, emergency stop alert | Demands immediate operator intervention to prevent safety risk or hardware destruction. |
| Green | Normal Operation / System Ready / Safe | Power supply normal, pump active, system clear | Power ON indicator, automated cycle running, position clear status | Indicates normal system readiness. Note that in some electrical power codes, green indicates breaker OPEN. |
| Yellow / Amber | Caution / Abnormal Condition / Pre-Warning | Imminent parameter limit, service due, low fuel | Check engine malfunction indicator light, DPF regeneration warning, ABS alert | Prompts preventative monitoring before a critical system tripping occurs. |
| Blue | Mandatory Action / Special Function | High beam engaged, automated routine active | Vehicle high beam indicator, active cooling override, custom mode selection | Used to avoid confusion with red/green/yellow status indicators. |
| White | General Information / Neutral Status | Auxiliary circuit active, neutral gear indicator | Neutral gear (N) indicator, panel illumination, general status display | Provides high contrast through laser-etched symbols in multi-purpose control panels. |
FILN also supplies custom dual-color (e.g., Red/Green 3PIN) and tri-color LED malfunction indicator light configurations, permitting a single 8mm panel space to display multi-state operational conditions (e.g., Green = Normal, Flashing Yellow = Maintenance Due, Solid Red = Fault).
Step-by-Step Panel Installation Guide
Proper mechanical installation ensures that the FILN 8mm malfunction indicator light achieves its rated IP65/IP67 ingress protection and withstands vehicle and machine vibration.
Required Tools & Supplies
- Precision 8mm drill bit or punch die
- Deburring tool or fine round metal file
- 10mm open-end wrench or torque wrench
- Clean lint-free shop cloth and isopropyl alcohol cleaner
Installation Procedure
- Panel Preparation: Drill or punch an accurate 8.0mm to 8.2mm circular hole through the target dashboard panel. Carefully deburr both front and rear hole edges to remove sharp metal fragments that could slice the sealing gasket or wire insulation. Clean the front panel surface with alcohol.
- Sealing Ring Alignment: Slide the provided silicone O-ring over the threaded rear metal body of the malfunction indicator light until it sits flush against the rear shoulder of the front bezel lens.
- Panel Insertion: From the front face of the control panel, insert the threaded rear body (and lead wires/terminals) into the 8mm cutout. Ensure the laser-etched symbol graphic is rotated to its proper visual orientation.
- Rear Nut Fastening: From the backside of the panel, slide the stainless steel plum blossom lock washer over the body, followed by the M8 metal hex nut.
- Torque Tightening: While holding the front bezel symbol in its upright position, tighten the rear M8 nut using a 10mm wrench to a torque of 1.2 to 1.5 Nm. Ensure the silicone O-ring compresses slightly to form a watertight seal without pinching out.
- Electrical Termination: Connect the 2PIN wires or solder terminals to your 12V control circuit according to the wiring instructions below.
Wiring & Termination Guide: Wire Lead vs Pin Terminal
Safety Warning: Before carrying out any electrical wiring or panel maintenance, ensure that the main power supply is completely switched off and isolated.
The 12V FILN malfunction indicator light features non-polar internal LED circuitry. Therefore, installer wiring does not require positive and negative polarity matching—either lead wire or pin terminal can be connected to the positive (+12V) signal line, and the remaining pin/wire to the common ground (-/GND) line.
Wiring Methods for Integrated Wire Lead Model (FL1M-08FW-1)

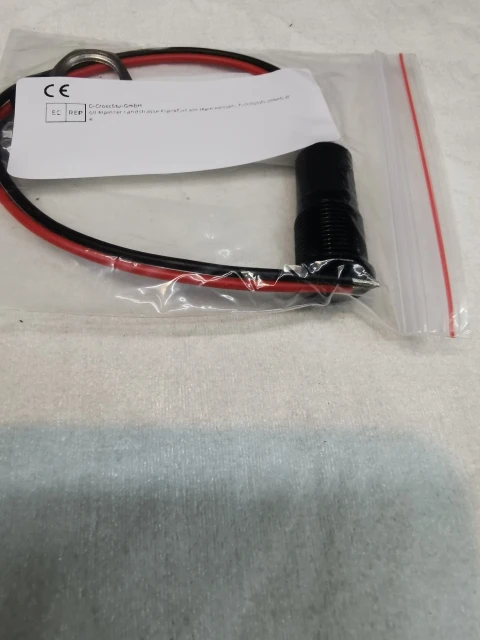

The wire lead variant comes pre-assembled with 20cm of flexible PVC insulated copper stranded wire. Installers can splice wire ends into harness assemblies using three primary technical methods:
- Quick-Splice Lever Connectors (Recommended): Strip 9mm of wire insulation and insert directly into spring-cage or lever-nut inline connectors for fast, tool-free installation.
- Soldered Splice with Heat-Shrink Tubing: Strip wire ends, twist securely with target circuit wires, solder with rosin-core solder, and seal with dual-wall adhesive-lined heat-shrink tubing for complete moistureproofing.
- Crimp Butt Connectors: Use insulated nylon butt crimp connectors and a ratchet crimping tool to secure connections in automotive wiring harnesses. Electrical tape wrapping may be used as temporary secondary insulation.
Engineering Comparison: Wire Lead (FL1M-08FW-1) vs. Pin Terminal (FL1M-08FJ-1)
| Evaluation Factor | Wire Lead Model (FL1M-08FW-1) | Pin Terminal Model (FL1M-08FJ-1) |
|---|---|---|
| Wiring Connection Style | Pre-wired 20cm stranded copper leads | Solid solder pins / PCB plug-in terminals |
| Vibration Resistance | Superior; internal epoxy potted joint absorbs lead strain | Moderate; requires secure wire strain relief near pins |
| Installation Efficiency | Faster on-site splicing into pre-existing harnesses | Requires direct soldering or specialized terminal connectors |
| Enclosure Depth Requirement | Requires depth for flexible wire bending radius | Extremely compact depth profile for shallow panels |
| Maintenance / Replacement | Simple wire splicing and harness replacement | Suitable for PCB or connector-based replacement |
Technical Engineering Center & Troubleshooting
Preventing Phantom Illumination (Faint LED Glow)
In complex 12V automotive networks or PLC switchgear outputs, operators occasionally report "phantom illumination"—where the malfunction indicator light glows faintly even when switched off. This phenomenon is caused by small stray leakage currents, high-impedance sensor monitoring loops, or induced electromagnetic interference (EMI) along parallel wiring runs. Because solid-state LEDs require minimal current to illuminate, a leakage current as low as 0.5mA can cause a faint glow.
Engineering Solution: FILN can integrate an internal bleed resistor or shunt diode inside the indicator body during production. Alternatively, design engineers can install a 1kΩ to 10kΩ ceramic parallel resistor across the indicator input terminals to bleed off stray leakage voltage below the LED forward threshold.
Troubleshooting Common Indicator Issues
| Observed Symptom | Root Cause Analysis | Corrective Action |
|---|---|---|
| Indicator fails to illuminate when energized | Supply voltage below forward threshold (<2.5V); blown inline fuse; loose wiring termination | Verify terminal voltage with multimeter; check circuit continuity; inspect crimp splices. |
| Indicator illuminates brightly then permanently shuts off | Severe over-voltage applied (e.g., 110V/220V applied to a 12V rated indicator) causing resistor burnout | Check supply voltage rating before replacement; install correct voltage indicator model. |
| Moisture droplets forming inside PC lens | Missing front silicone O-ring; loose mounting nut; panel cutout exceeds 8.2mm specification | Re-seat silicone sealing washer; verify 8mm hole tolerance; torque rear M8 nut to 1.5 Nm. |
B2B Buyer Decision Guide & Material Selection Matrix
Housing Material Selection Matrix
Selecting the proper metallic housing material ensures long-term service life in specific operating environments:
| Housing Material Option | Advantages & Strengths | Limitations | Recommended Environment |
|---|---|---|---|
| Nickel-Plated Copper Alloy (Brass) | High precision threads, excellent thermal conductivity, classic bright chrome finish | Slightly higher weight than aluminum alloys | Standard industrial machinery, power equipment panels, indoor control cabinets |
| Black-Plated Zinc-Aluminum Alloy | Sleek matte black aesthetic, corrosion resistant, cost-effective weight reduction | Plating can chip under severe chisel impacts | Automotive dashboards, vehicle modifications, tactical gear, modern instrument consoles |
| 316 Stainless Steel (Custom Option) | Ultimate marine salt-spray corrosion resistance, high chemical endurance | Higher raw material and machining unit cost | Marine yachts, offshore oil rigs, food washdown processing, medical autoclaves |
Procurement Specification Checklist (RFQ Preparation)
Providing these exact specifications in your RFQ helps FILN engineering and sales teams confirm product compatibility and deliver accurate quotation terms efficiently:
- Target Product Model: FL1M-08FW-1 (Wire Lead) OR FL1M-08FJ-1 (Pin Terminal)
- Mounting Hole Cutout: 8mm (0.315 inch)
- Operating Voltage: 12V DC/AC (or specify custom voltage: 3V, 24V, 110V, 220V)
- LED Illumination Color: Red, Green, Yellow, Blue, White, or Dual-Color
- Housing Material & Finish: Silver Nickel-Plated Brass OR Matte Black Zinc Alloy
- Symbol Identifier Code: Select from Symbol Table (e.g., Code #5 Check Engine) or attach custom vector graphic
- Wire Lead Specification: Standard 20cm PVC wire OR specify custom length / connector plug type
- Target Order Quantity: Sample batch (10–50 pcs) or OEM Mass Production volume
FILN Manufacturing Infrastructure & R&D Capabilities
FILN operates as a specialized direct manufacturer of metal indicator lights and industrial panel switches. Our in-house research and development center includes custom mold design, automated CNC metal lathe turning, laser symbol engraving, and automated ultrasonic assembly line infrastructure.
For OEM and ODM procurement managers, FILN offers rapid engineering sample prototyping within 24 to 48 hours. Our technical team handles custom wire length soldering, wire harness connector crimping (such as Molex, JST, Deutsch, or AMP terminals), specialized internal resistor tuning for non-standard supply voltages, and custom laser-engraved symbol development.
Every production batch undergoes 100% electrical continuity inspection, LED optical intensity grading, insulation withstand testing, and periodic IP67 waterproof immersion sampling to guarantee zero-defect shipments to global equipment manufacturers.
Factory Direct Supply & Global Export Services
Yueqing Yulin Electronic Co., Ltd, operating under the international brand name FILN, located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch and indicator light manufacturer integrating research, development, production, and global sales. Today, premium FILN brand products are distributed to equipment builders across over 100 countries.
FILN operates a modern 10,000 m² manufacturing facility housing 20+ advanced automated production lines, a precision tooling shop, and an independent electrical safety testing laboratory. Guided by rigorous scientific management processes and the ISO9001 quality management system, FILN ensures consistent electrical performance and product reliability.
Our comprehensive certified component line (UL, CE, VDE, RoHS, REACH, TUV, CB, ISO9001, CCC) is widely integrated into commercial kitchen appliances, industrial energy storage systems, EV charging stations, automotive dashboards, marine vessels, and security equipment.
- Core Manufacturing Portfolio: Metal indicator lights, plastic signal lamps, pushbutton switches, rocker switches, toggle switches, and customized wiring harness assemblies.
- Certified Quality Systems: ISO9001, CE, VDE, RoHS, SGS, UL, IP65/IP67, TUV.
- Direct Factory Advantage: Direct technical communication with experienced switch engineers, flexible low-MOQ sample support, and agile mass-production capability.
- Official Direct Website: www.filn.com / www.indicatorlight.com
- Direct Engineering Inquiries: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. How to prevent phantom illumination (faint glowing) in 12V LED indicators?
Phantom illumination in 12V LED indicators occurs when low-level stray leakage currents or induced voltages pass through the circuit. Because high-efficiency LEDs require minimal current to glow, installing a 1kΩ to 10kΩ ceramic shunt resistor in parallel across the indicator terminals bleeds off stray voltage below the LED forward threshold. Alternatively, FILN can supply custom indicators with built-in internal bleed resistors.
2. Can this IP67 indicator light be washed down with caustic chemicals?
The standard nickel-plated brass housing and PC lens resist water and standard commercial detergents. However, in food processing or chemical facilities subjected to aggressive caustic washdowns (such as sodium hydroxide or acid solutions), we recommend specifying FILN’s optional 316 stainless steel housing variant with fluororubber seals for complete chemical immunity.
3. What is the difference between FL1M-08FW-1 and FL1M-08FJ-1 models?
The FL1M-08FW-1 model comes with 20cm integrated PVC wire leads for quick field splicing or harness wiring. The FL1M-08FJ-1 model features solder pin terminals designed for shallow enclosures, custom PCB integration, or push-on quick-disconnect connectors. Both share identical 8mm panel cutouts and metal housing options.
4. Does a 12V DC malfunction indicator light require strict positive/negative polarity wiring?
No, FILN 8mm 12V LED malfunction indicator lights utilize non-polar internal LED driver architecture. You can connect either wire lead or terminal pin to +12V power and the other to ground without damaging the LED or affecting illumination brightness.
5. What panel thickness can the 8mm threaded body accommodate?
The standard M8 threaded barrel accommodates control panel mounting thicknesses ranging from 1mm up to 7mm. For extra-thick panel walls, FILN can supply extended threaded bodies upon request.
6. How are the dashboard symbols applied to the lens?
Symbols are precision laser-etched onto the lens material. This ensures the graphic symbol cannot peel, scratch off, or fade under heavy usage, cleaning, or UV solar exposure, unlike surface printed inks.
7. Can FILN produce custom laser-etched symbols not shown on the standard chart?
Yes, FILN provides complete OEM graphics customization. Simply send vector CAD artwork (AI, CDR, STEP, or PDF format) to our engineering team, and we will create a custom laser-etching program for your production run.
8. Are these malfunction indicator lights compatible with 24V or 110V systems?
While this specific model is calibrated for 12V system operation, FILN manufactures identical 8mm indicator bodies configured for 3V, 6V, 24V, 36V, 110V, 220V, and 380V AC/DC electrical systems.
9. What certifications do FILN indicator lights hold?
FILN indicator light series carry UL, CE, VDE, RoHS, REACH, TUV, CB, ISO9001, and CCC certifications, supporting seamless compliance for global equipment export.
10. How do I request 3D CAD files or physical samples before placing a bulk order?
You can request STEP/IGES 3D CAD models and prototype sample kits directly by emailing FILN sales engineering at inquiry@cnylin.com.cn. Prototype samples are typically dispatched within 24–48 hours.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
C
Metal Malfunction Indicator Light with Wire or Pin Terminals | FILN
J

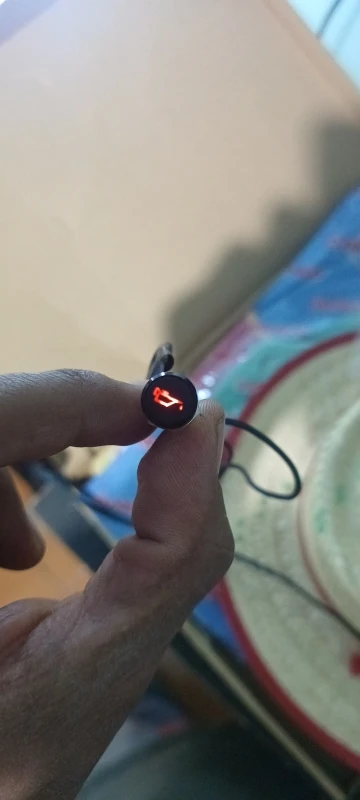

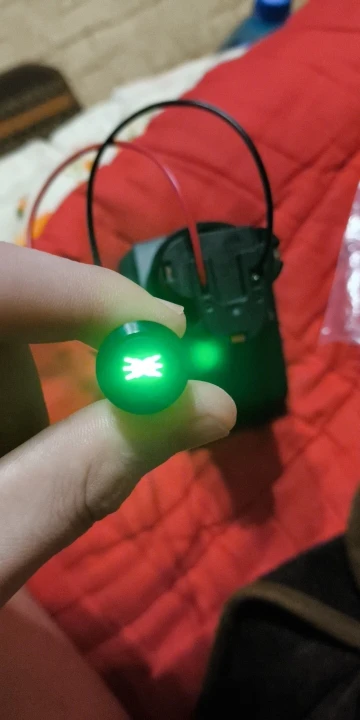

The product arrived on time, but I had to go to the post office to pick it up. The product is of good quality, but I thought it had a power button, but it seems to be just a light indicator that it's on...
Z
The product arrived on time, but I had to go to the post office to pick it up. The product is of good quality, but I thought it had a power button, but it seems to be just a light indicator that it's on...
M

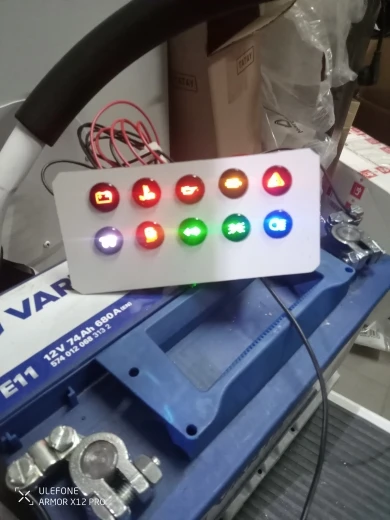

The product arrived on time, I haven't installed it on the motorcycle yet, thank you to the seller, everything works fine.
C

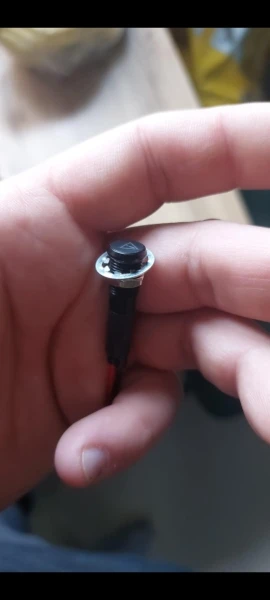

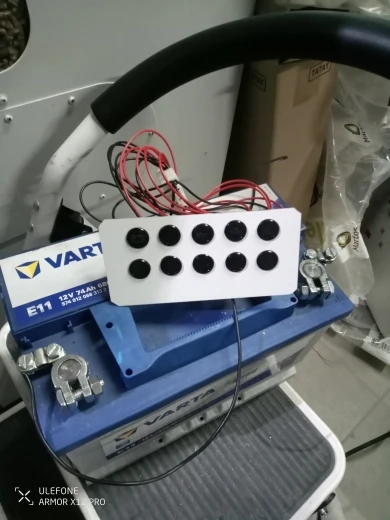

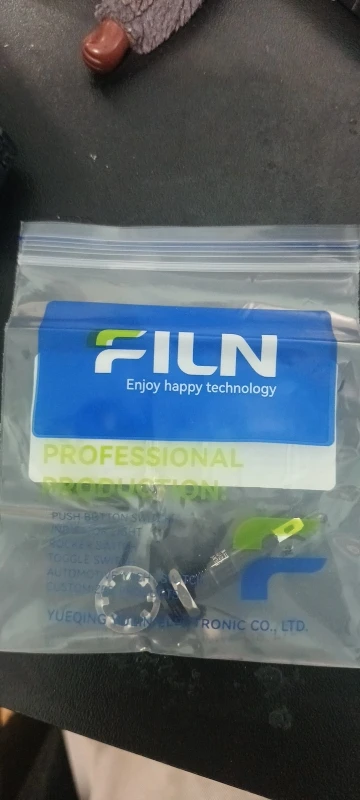

Nice small indication light. joint and screw in package. very satisfied. thank you.
R
Quality looks good and solid with a decent gauge wire size pretty happy with the product
D
Very good appearance, works perfectly. I recommend the seller, just haven't installed it on the final site yet.
J
Ok
Y
Fast efficient delivery everything works well good execution I recommend.
K
Ok
S
Functions. it is an indicator light. not a button f.y.i.
C
Great quality... it's just an indicator, not a switch...
L
Very nice, I recommend it. But the 6mm is quite small, you might need glasses. Let's see how long it lasts.
A
It's hard to read, too small so might have to get larger ones. also this one doesn't have wires it has spade plugs, no bad thing in fact could be useful, but it isn't what was in the pictures.
D
Very small
B
I bought it thinking it was a button switch, my mistake for not reading properly. It seems to be of good quality and the light looks nice. I'll see what use I can give it.
C
I like it...great...
J
Super
T
Super
J
That's okay.
M
looks good.
E
Very good, it shines and looks phenomenal.
C
All ok !
D
Very clear and small, so it fits anywhere.
M
Very clear and small, so it fits anywhere.
C
Great
K
Great
R
Only one works the other led does not work when powered up
- Choosing a selection results in a full page refresh.
