Product Overview

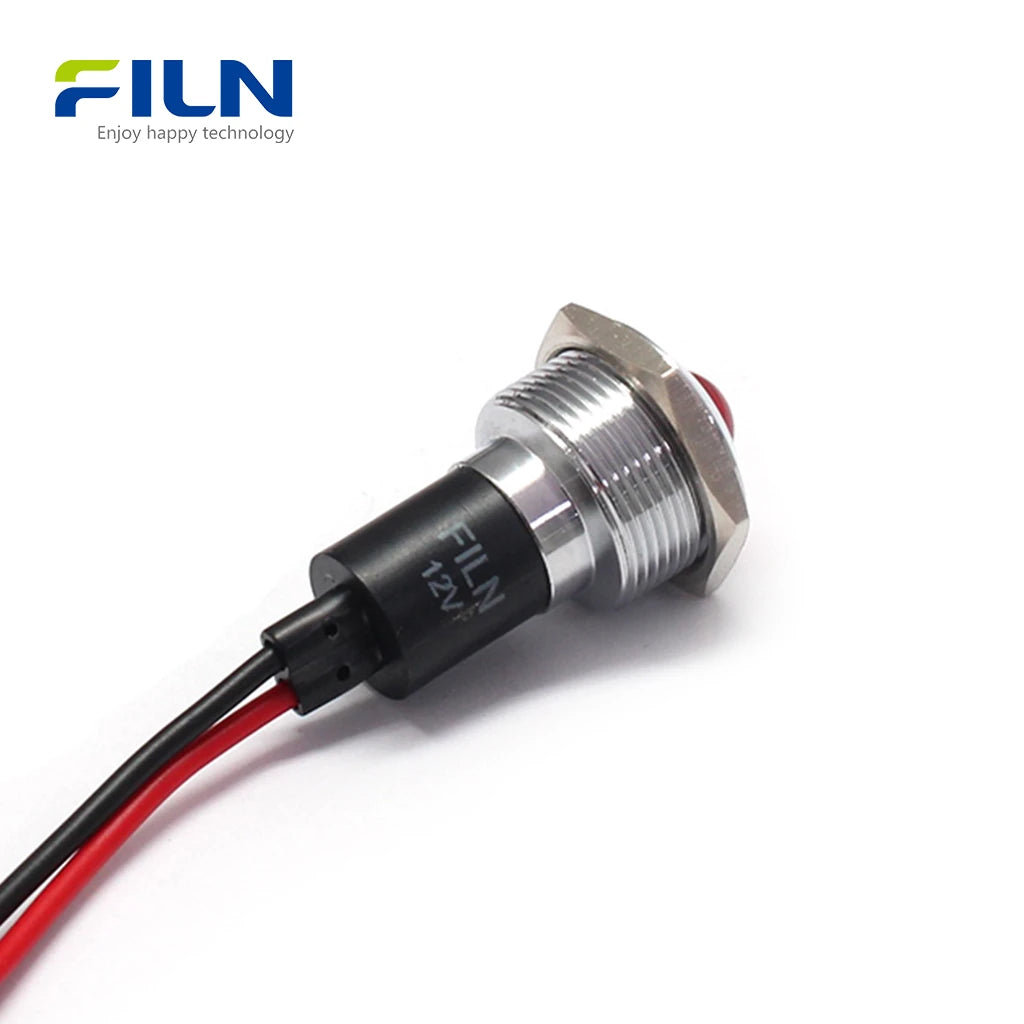

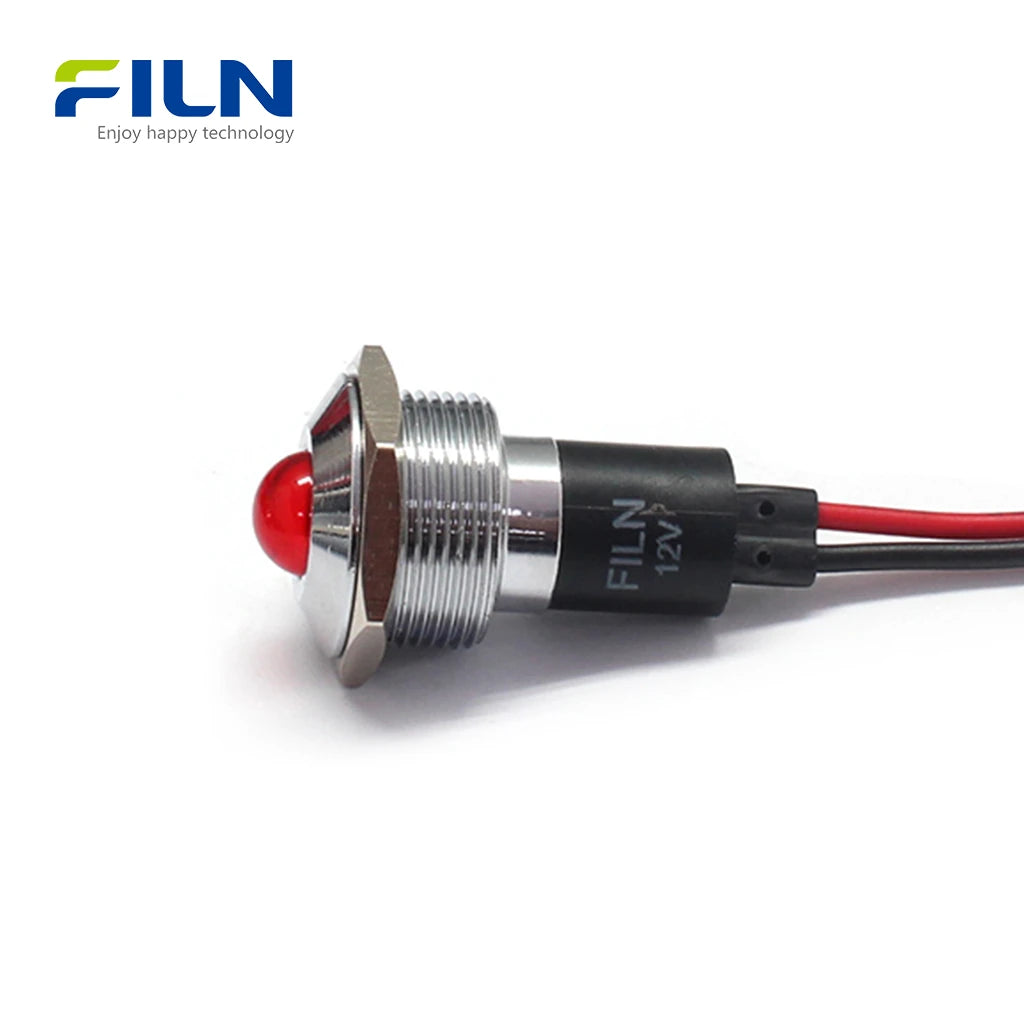

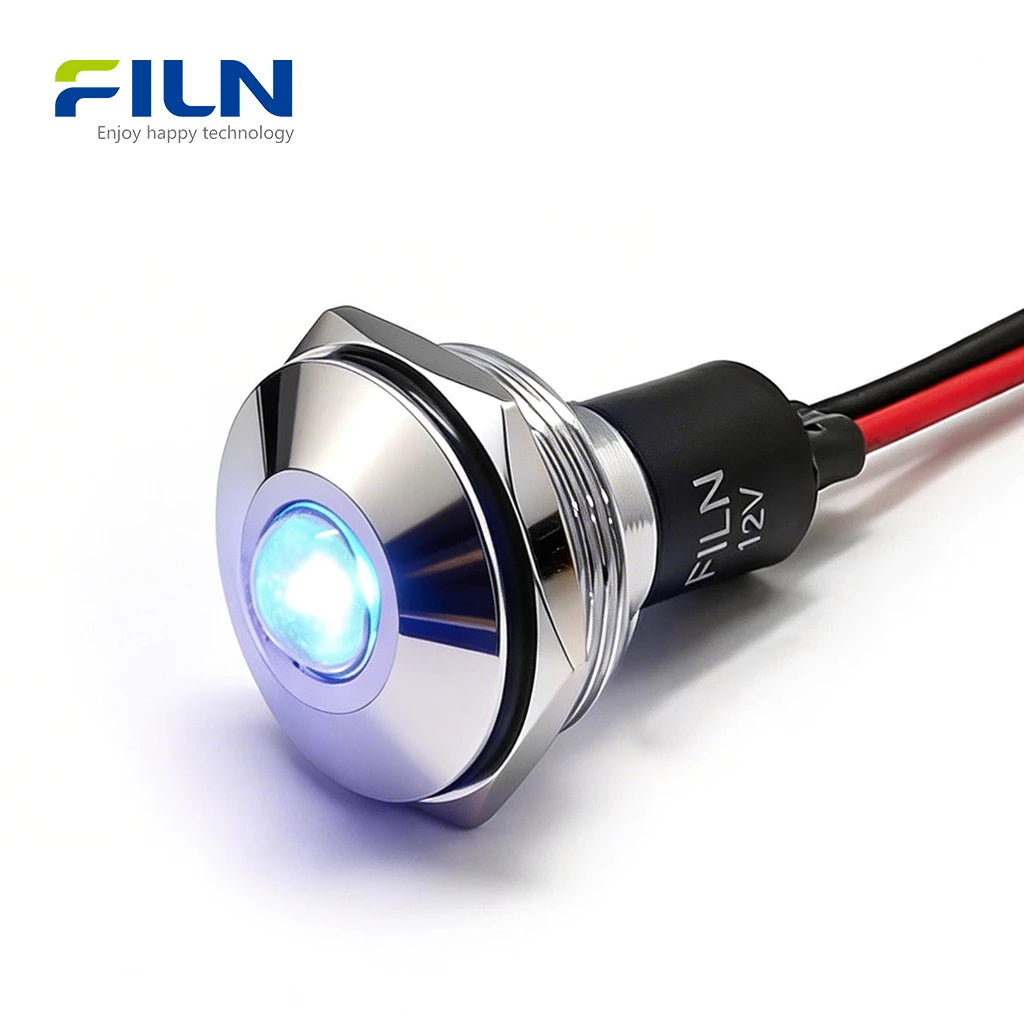

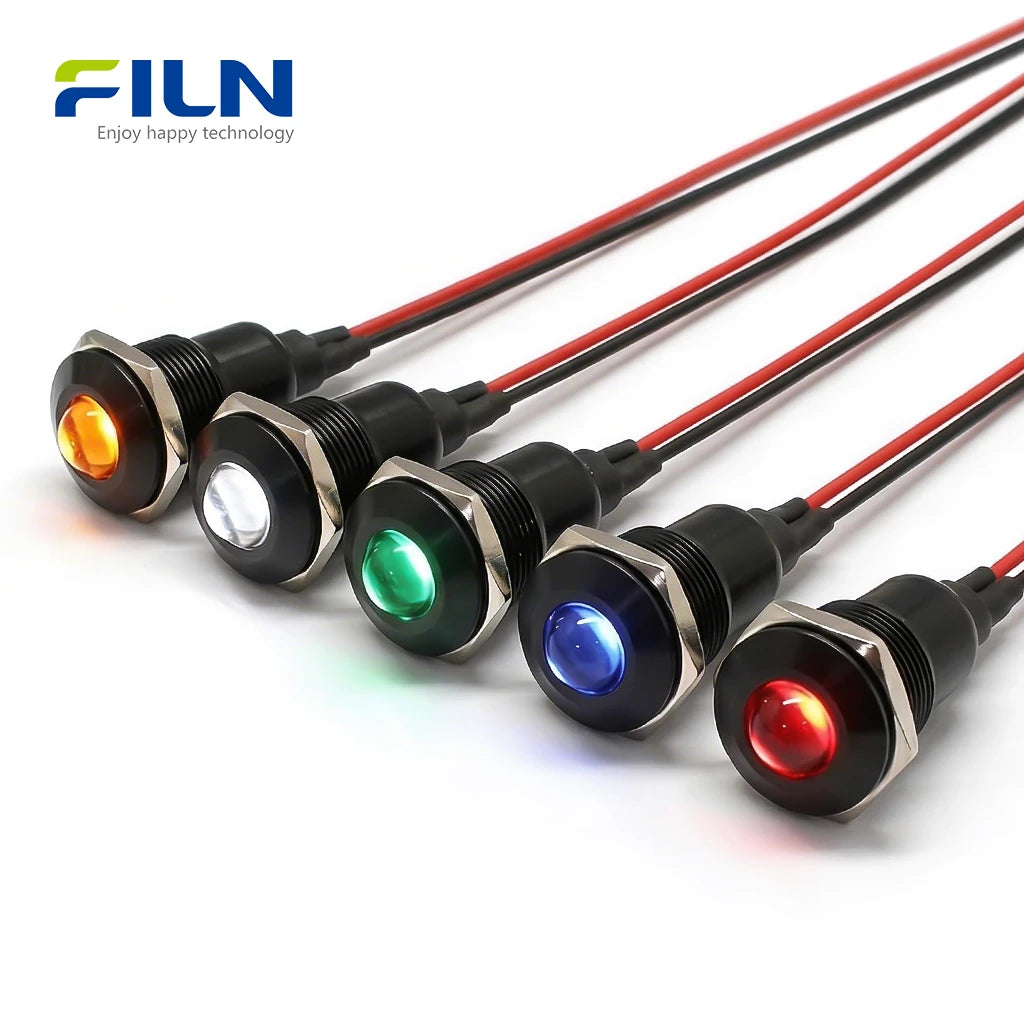

The lighting indicators (Model: FL1M-22SW-1) are professional-grade 22mm metal signal lamps now available for sale directly from the FILN factory. This 22mm large-size indicator features a prominent high head design, providing 360-degree visibility even from long distances or side angles. Built with high-brightness LED technology, these lighting indicators are ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certified. Available in a sleek silver chrome or black anodized finish, each unit comes with a 15cm pre-wired tail for instant installation. Whether for heavy-duty industrial panels, power cabinets, or automation systems, you can order online to ensure superior signal clarity and durability.
Quick Specifications
| Mounting Hole | 22mm / 0.866 inch |
| Voltage | 12V-24V, 110V-220V (Customizable) |

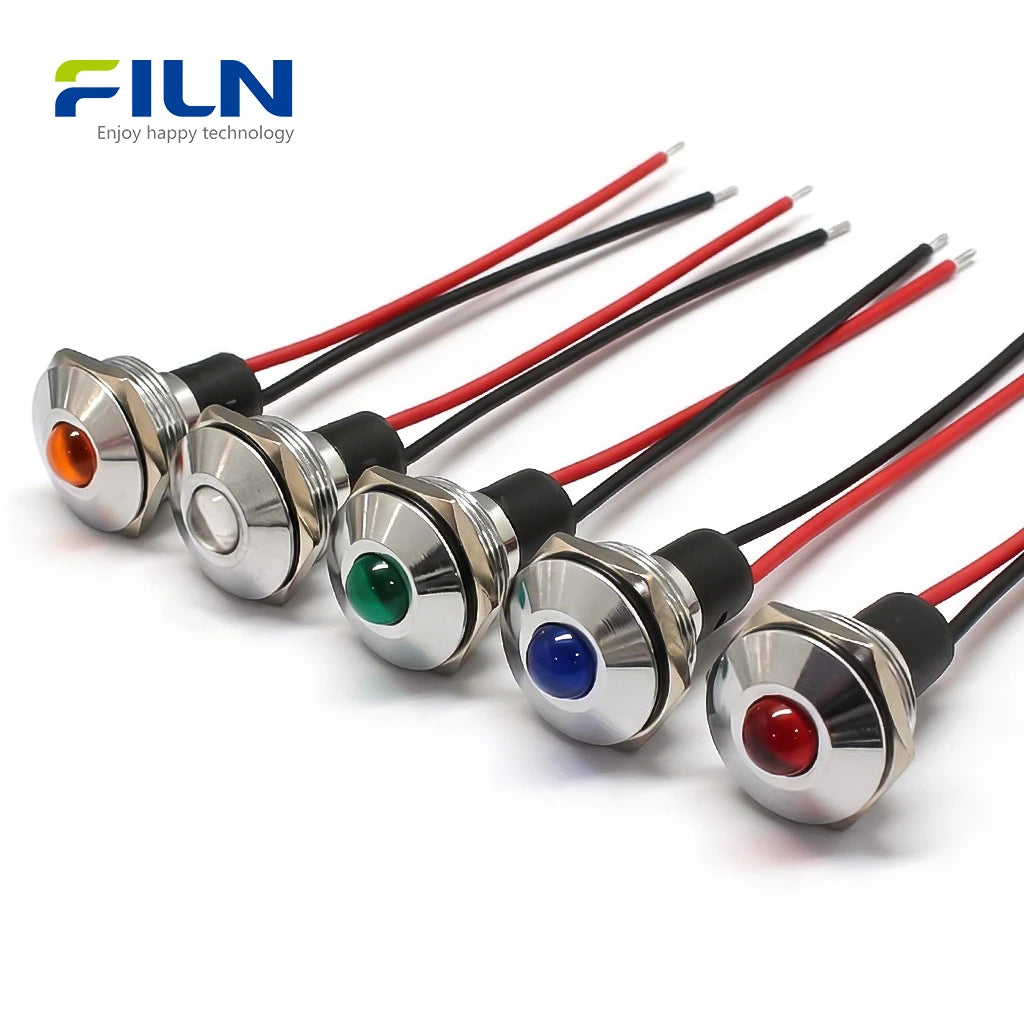

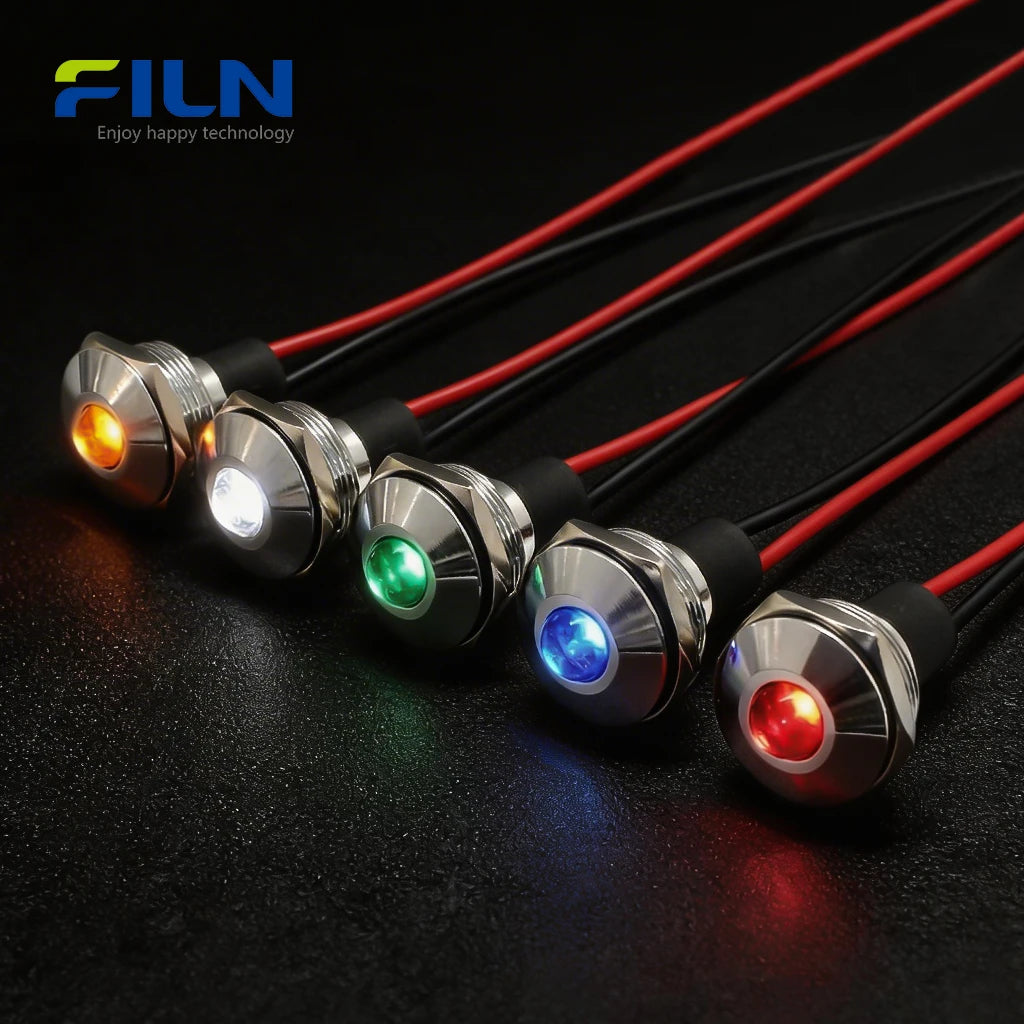

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Pre-wired Lead (15cm) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Chrome/Nickel plated or Black Anodized |
| Lamp Holder | PA66 High Strength Nylon | Excellent temperature resistance |
| Lampshade | PC Polycarbonate | High head type, high light transmittance |
| Light Source | LED | Long life, low energy consumption |
| Resistor | Carbon Film Resistance | Stable current limiting |
| Nut | Copper Alloy | M22 for panel mounting |
| O-ring | Silica Gel | Provides IP67 waterproof seal |
| Plum Gasket | Stainless Steel | Anti-loosening protection |
Rated Working Parameters
| Rated Voltage | Customized (12V/24V/110V/220V) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass/Nickel Plating or Black Anodized |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone Rubber |
| Terminal | Pre-wired Lead Out |
| Wire Material | PVC Tail Wire |
General Characteristics
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Insulation Resistance | DC500V 1 min, ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s (No breakdown) |
Durability Characteristics
| Continuous Working Life | 50,000 hours (Test Condition: 30mA 1000h) |
Resistant Performance
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
Key Features
- LED high brightness: Premium LED chips ensure visibility in bright conditions.
- Long lifespan: Reliable operation for up to 50,000 hours.
- IP67 waterproof: Excellent environmental protection with silicone sealing.
- Easy installation: Direct pre-wired leads for fast connection.
- Industrial grade: Heavy-duty metal housing and high head lens for 360° visibility.
Applications
- Industrial control panels and CNC machinery
- Power distribution units and automation equipment
- Marine systems and outdoor signal feedback
- Medical instrumentation and food service equipment
Installation Guide
- Drill a 22mm hole on your panel.
- Ensure the O-ring waterproof gasket is on the indicator body.
- Place the indicator into the hole from the front side.
- Fasten the M22 nut from the back. The smooth threads ensure a firm grip.
- Connect the 15cm tail wires to your power source.
What Are Lighting Indicators?
Lighting indicators are essential industrial signal devices that inform operators about a machine's state (power, fault, or operation). The high head design of the 22mm indicator is particularly useful because the raised lens allows light to be seen from the side, providing superior visibility compared to flat-head models.
A major distinction in industrial assembly is pre-wired (lead-out) vs pin-type terminals. Pre-wired lighting indicators are much faster to install and offer a more robust, vibration-resistant connection, which is critical for CNC machines and moving equipment. The included M22 nut and silicone O-ring provide mechanical stability and an IP67 waterproof seal, protecting the internal electronics from water ingress.
FILN Factory Direct Supply
Purchase lighting indicators directly from the source for better pricing and customization:
- Factory Direct: High quality at wholesale prices.
- Customization: Specific voltages, wire lengths, and connectors are available.
- Fast Shipping: Efficient global delivery.
Official Website: www.filn.com
Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Why choose high head lighting indicators?
They provide 360° visibility, making them easier to spot from any angle in a factory.
2. Can I use these for 12V and 24V?
Yes, our standard range covers 12-24V, and we support custom voltages up to 380V.
3. Is the metal shell corrosion-resistant?
Yes, both our nickel-plated brass and black anodized shells are highly durable.
4. What is the wire length?
The standard wire length is 15cm, but we can customize it for your needs.
5. Are these lighting indicators for sale for individuals?
Yes, we support both industrial B2B and retail online purchases.
6. Does it include the waterproof ring?

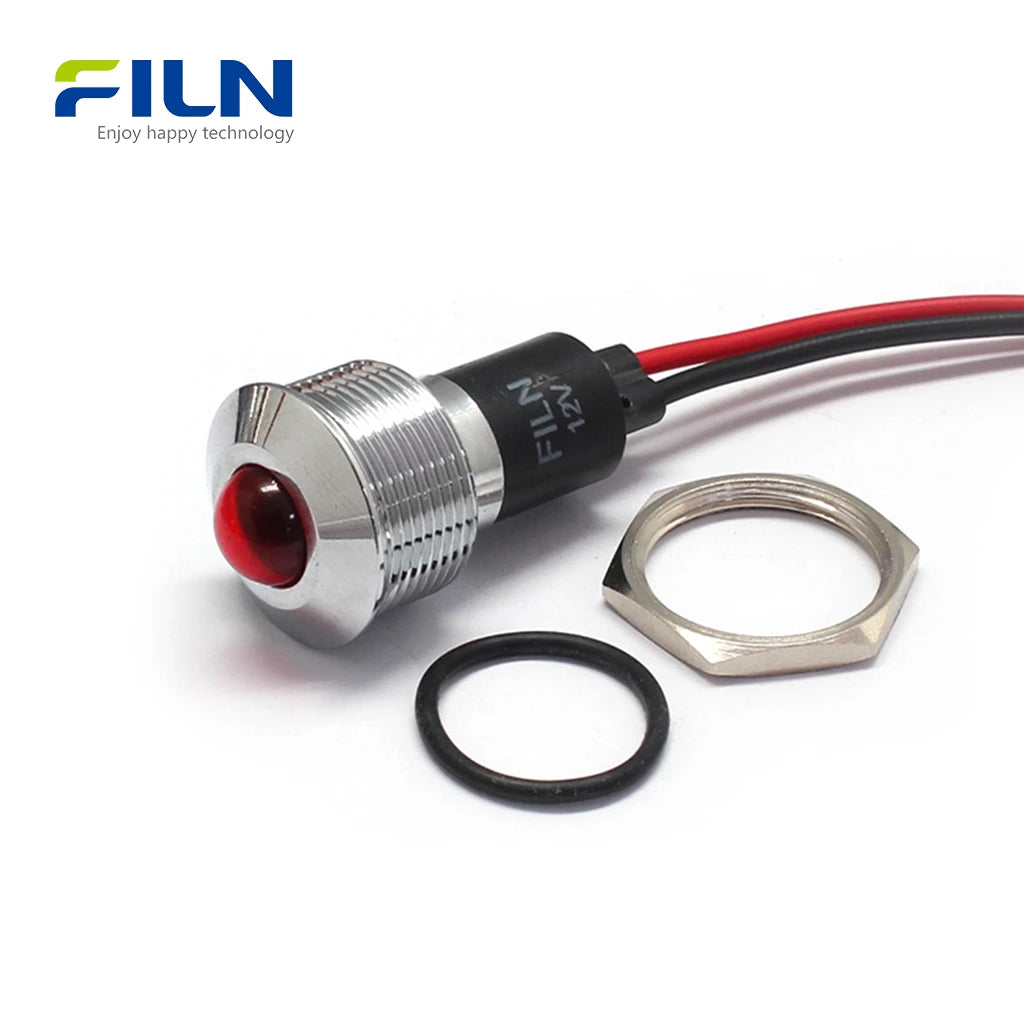

Yes, every unit comes with an M22 nut and a silicone O-ring.
7. What is the benefit of pre-wired leads?
They offer better vibration resistance and faster installation compared to pin terminals.
8. Is this IP67 rated?
Yes, when installed correctly with the O-ring, it meets IP67 standards.
9. What LED colors are available?
Red, Green, Yellow, Blue, and White.
10. Does FILN have a UL certificate?
Yes, FILN products carry UL, CE, and ISO9001 certifications.
