Rocker Switch Drawing
What is an LED Rocker Switch?
An LED rocker switch is an electromechanical control component designed to bridge or interrupt an electrical circuit using a pivoting rocking motion. This KCD4 series model integrates a high-intensity light-emitting diode (LED) to provide immediate visual status feedback, ensuring operator safety in low-light industrial environments. It typically functions as a 4-pin rocker switch, providing Double Pole Single Throw (DPST) control for simultaneous line and neutral switching.
Industrial Product Overview

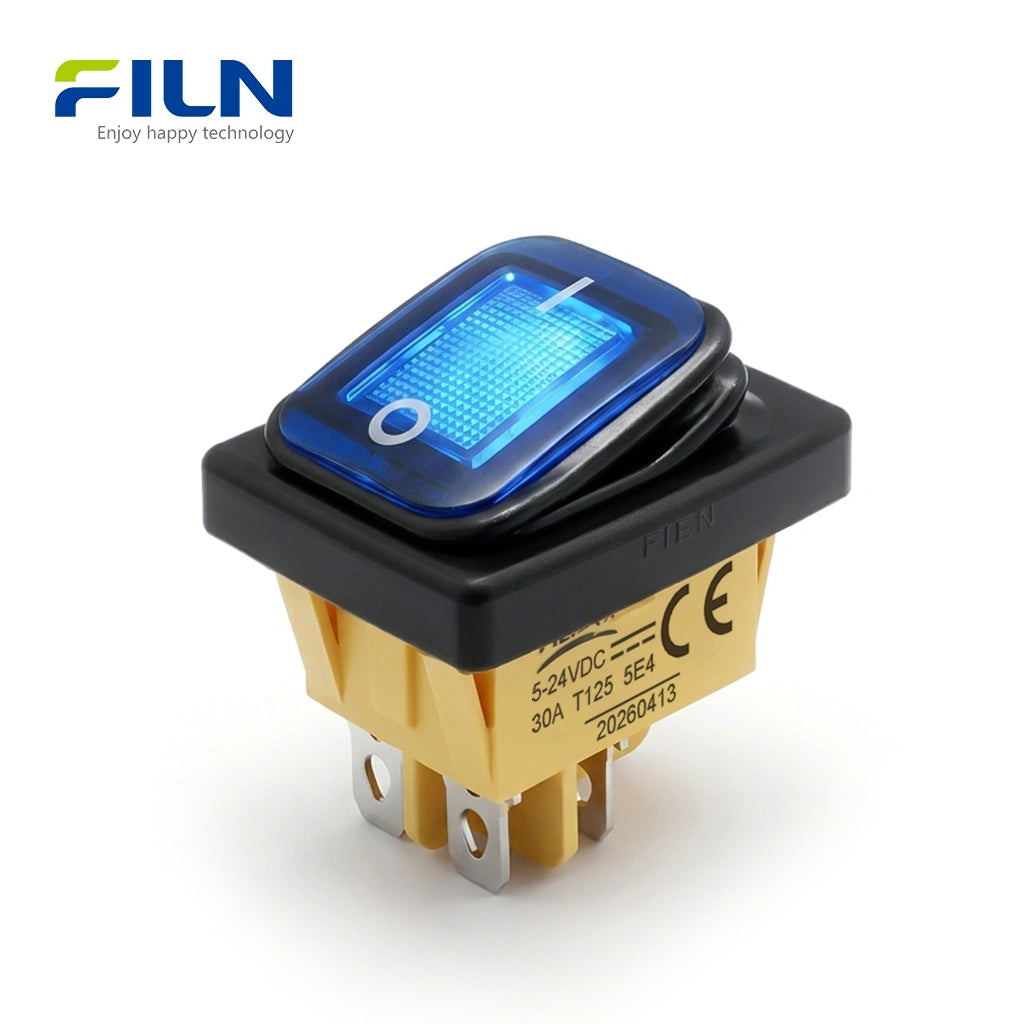

The FILN FL3-KCD4-0121-21 is a high-performance led rocker switch engineered for heavy-duty industrial applications. Featuring a standard 30x22mm mounting hole, this switch provides a reliable ON-OFF function with 4-pin spade terminals. It is built with a nylon plastic surface for superior chemical resistance and ease of cleaning. With global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and an IP65 waterproof rating, it is ideal for medical devices, commercial appliances, and marine control panels. The internal LED supports customizable voltages from 5-24V up to 110-220V in RGYBW colors.
Quick Specifications
| Model Number | FL3-KCD4-0121-21 |

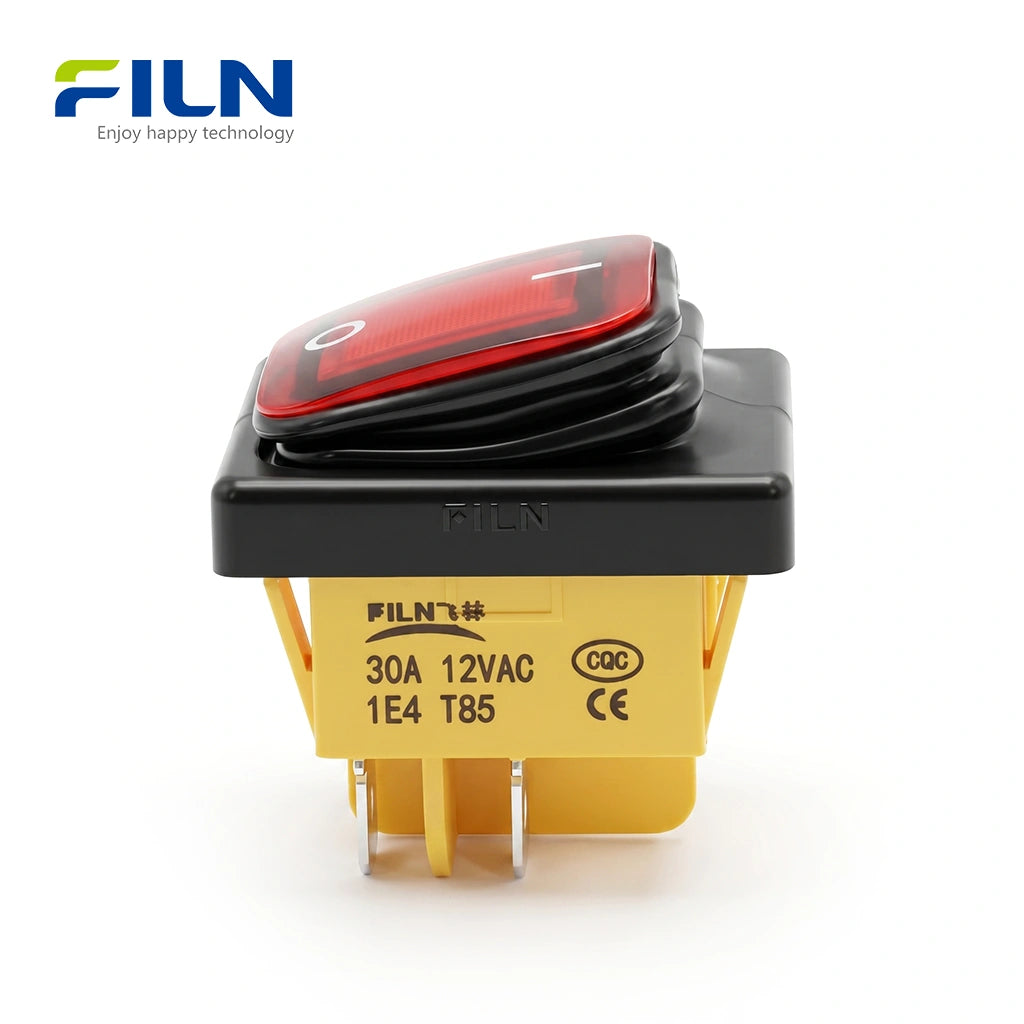

| Mounting Hole Size | 30mm x 22mm (1.18" x 0.86") |
| Circuit Function | ON-OFF (2 Position) |

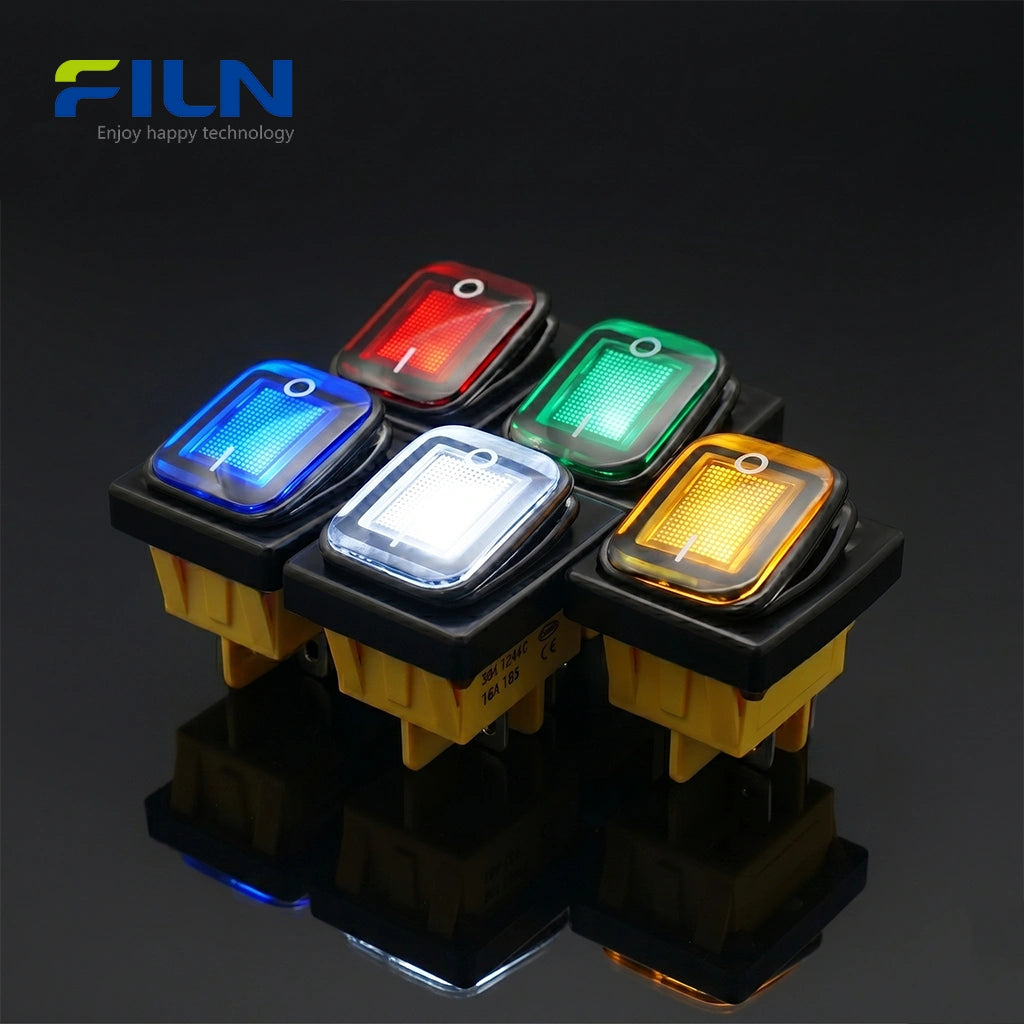

| LED Illumination | Integrated (Red, Green, Yellow, Blue, White) |

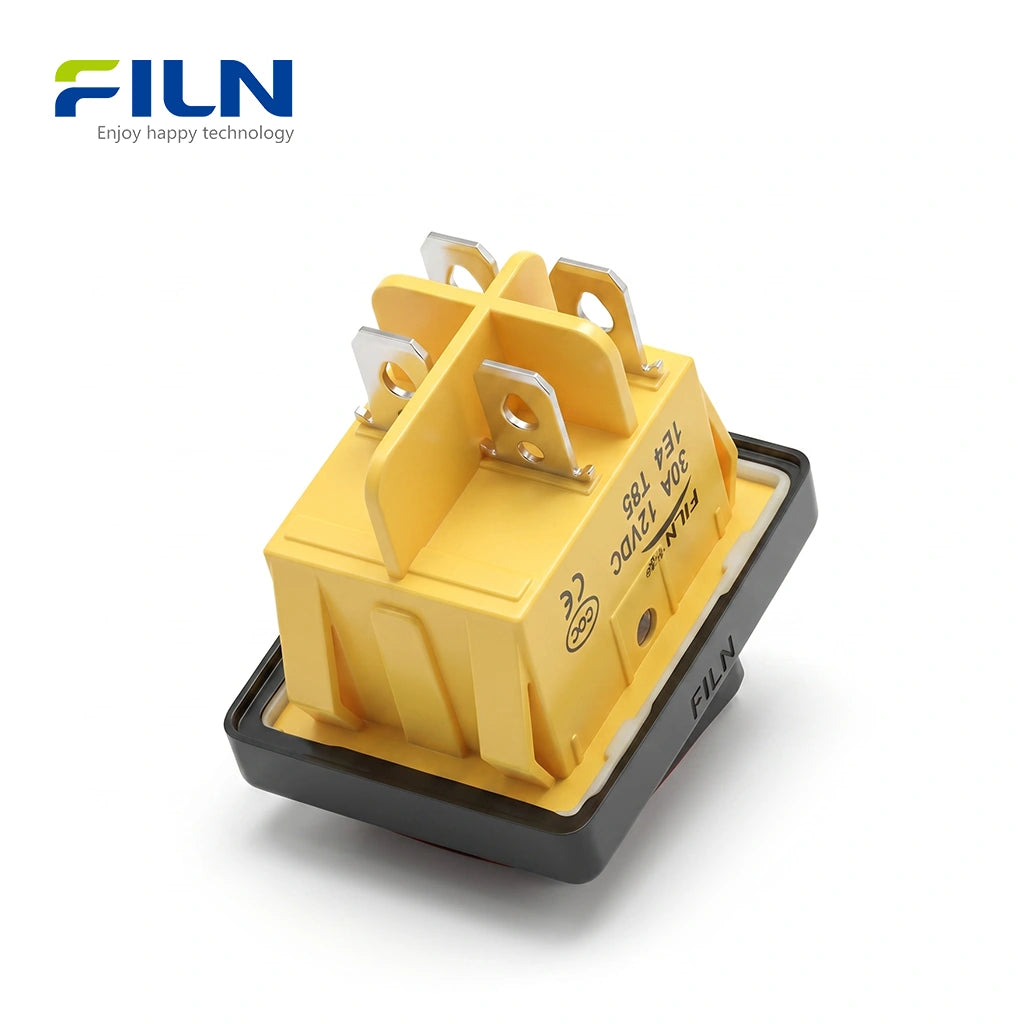

| Termination Type | 4-Pin Spade Terminals |
| Frame Type | Framed / Enhanced Stability |
Electrical Performance Parameters
| Technical Metric | Specification Value |
|---|---|
| Rated Current / Voltage |
16A 250VAC
|
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA / 60s |
| Electrical Endurance | 10,000 Cycles |
| Ambient Operating Temp | -40°C to +125°C |
| Protection Degree | IP65 / IP66 Waterproof |
Component Materials
| Part Name | Material Used |
|---|---|
| Transparent Actuator | Polycarbonate (PC) |
| Switch Base & Housing | High-Heat PA66 Nylon |
| Waterproof Components | Rubber Gaskets & Washer |
| Terminals & Pins | H62 Brass (Silver Plated) |
| Internal Contacts | AgCdO12 (Silver Alloy) |
General Characteristics & Testing
| Application Range | Standard KCD4 industrial usage range. |
| Humidity Resistance | 45%～85% Relative Humidity. |
| Test Pressure | 86～106Kpa (860～1060mbar). |
Mechanical & Durability Behavior
| Project Item | Test Condition & Requirement |
|---|---|
| Terminal Strength | 80N static load pushed inward for 60s. No damage. |
| Solderability | 235±5℃ for 3s. >90% coverage with molten tin. |
| Heat Resistance | Welding at 350±5℃ for 3s. No body deformation. |
| Mechanical Life | 20,000 operations (No load, 60 ops/min). |
| Weather Resistance | Tested for heat (125℃), cold (-40℃), and humidity. |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
The Difference Between Framed and Frameless Rocker Switches
FILN offers specialized KCD4 rocker switches in two distinct structural configurations to meet high-end industrial and standard civil requirements.
1. Framed (Enhanced) Series
Equipped with an external structural white/black frame that provides an "exoskeleton" for the switch body. This enhances structural rigidity, protecting against panel pressure and ensuring a tighter waterproof seal for the cover. Ideal for medical equipment and outdoor machinery.
2. Frameless (Standard) Series
Designed for space-saving panel layouts. Without the extra border, these switches allow for high-density array mounting. They share the same high-current internal components but offer a more cost-effective solution for climate-controlled indoor environments.
Broad Industry Applications
Due to the snap-in installation and robust 30A rating, these switches are essential for power control across various sectors:
- Home Appliances: Air fryers, humidifiers, and coffee machines.
- Office Equipment: PDU power strips, printers, and shredders.
- Industrial Machinery: Cutting machines, conveyors, and distribution box.
- Medical Devices: Centrifuges and diagnostic monitors.
- Automotive & Marine: RV light control and boat dashboard panels.
Professional Installation Guide
- Panel Cutout: Precise a 30mm x 22mm rectangular opening in the mounting panel.
- Positioning: Align the switch actuator toward the front. The nylon plastic surface is designed for high-visibility orientation.
- Snap-In Mounting: Push the switch body through the hole until the side-mounted clips click securely into place.
- Wiring: Connect your wires to the 4-pin terminals using standard 6.3mm spade connectors.

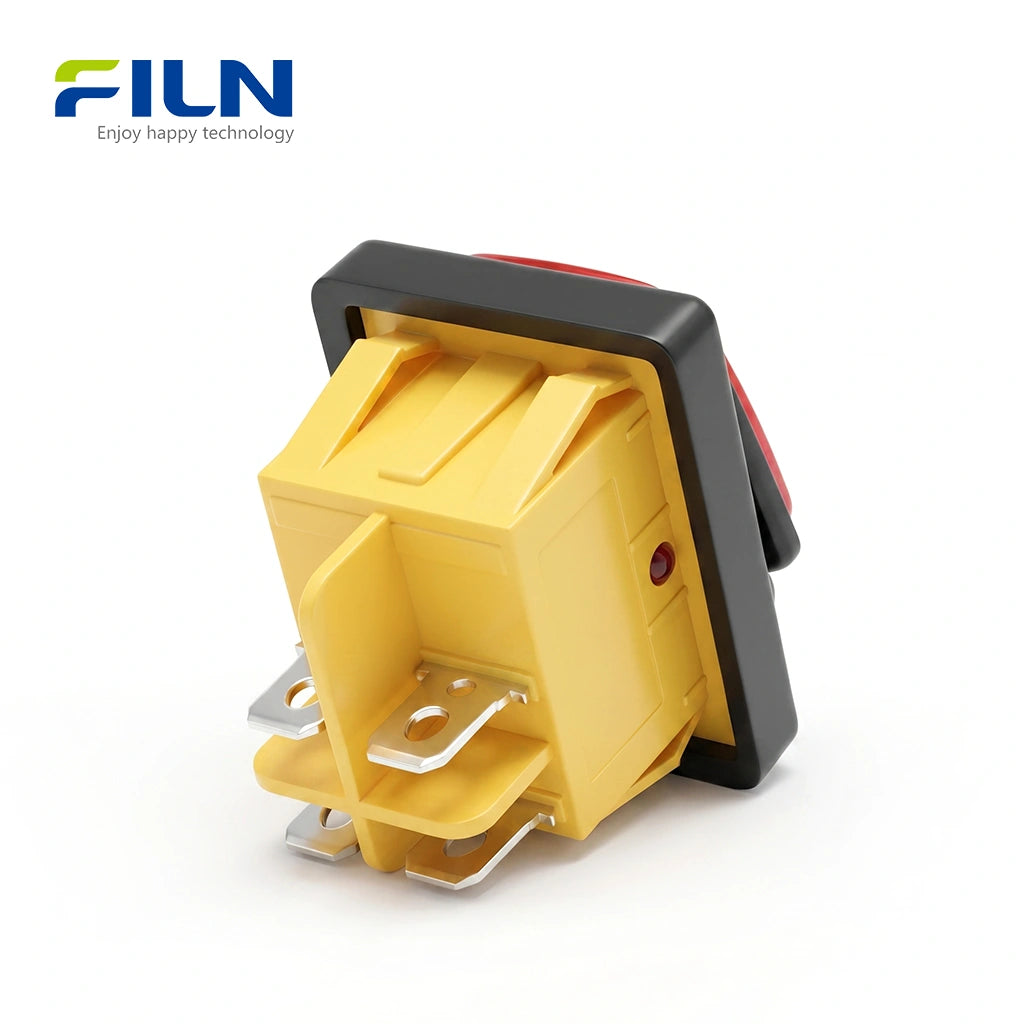

4-Pin Complete Rocker Switch Wiring Diagram and Connection Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Industry Knowledge: How Rocker Switches Work
The internal mechanism of a rocker switch utilizes a fulcrum-and-seesaw principle. When an operator presses one side, the movable contact pivots and makes connection with the stationary brass pin. Using AgCdO12 silver contacts ensures high conductivity and prevents contact welding during high-current surges. The 30x22mm KCD4 series is particularly popular because it balances high current capacity with a standardized footprint that fits most international industrial panels. The addition of a waterproof IP65 rating expands its lifespan in humid or outdoor settings significantly.
FILN Factory Direct Supply & Customization
FILN is a premier manufacturer specializing in button and rocker switch technology. We provide end-to-end solutions for global B2B clients.
- Zero MOQ Requirement
- Fast Global Delivery
- Voltage Customization (5V-380V)
- Custom Wire Harness & Connectors
- CE / UL / RoHS Certified
Contact us directly: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)

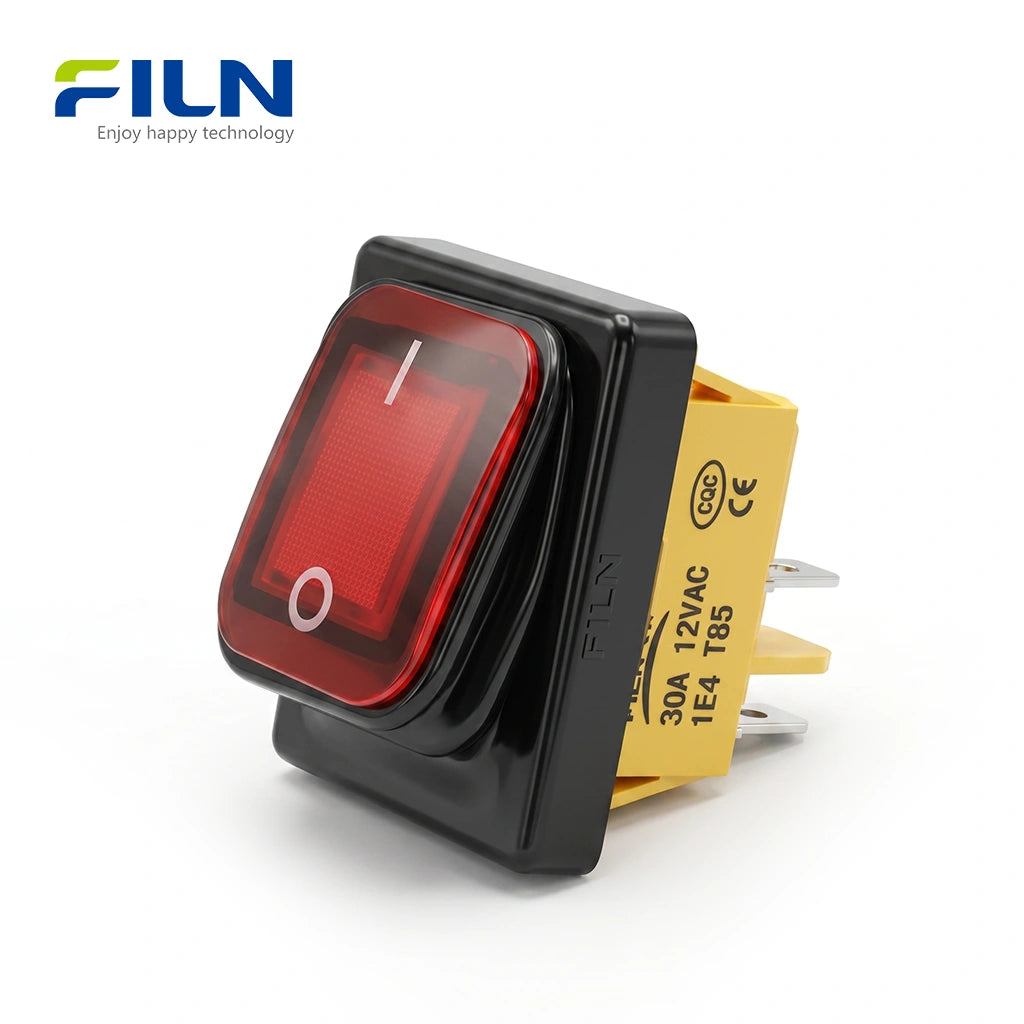

Q1: Does this 4-pin rocker switch support 220V AC?
A: Yes, it is rated for up to 30A 250VAC. The internal LED can be customized for either low voltage (12V/24V) or high voltage (110V/220V).
Q2: Can I install this switch without a frame?
A: We provide both framed and frameless options. Use the frameless version for tight spaces or the framed version for better structural stability and sealing.
Q3: Is the nylon surface easy to clean?
A: Yes, the smooth nylon plastic actuator is highly resistant to oils and dirt, making it very easy to wipe down in kitchen or industrial settings.
Q4: What is the benefit of a 4-pin over a 2-pin switch?
A: A 4-pin switch (DPST) can disconnect both the hot and neutral lines simultaneously for maximum safety, and it accommodates the internal LED indicator circuit.
Q5: Can I get custom wire lengths for my order?
A: Absolutely. FILN provides full factory customization for lead wires, connectors, and terminal types to match your assembly line requirements.
