Button Switch Drawing
Product Overview

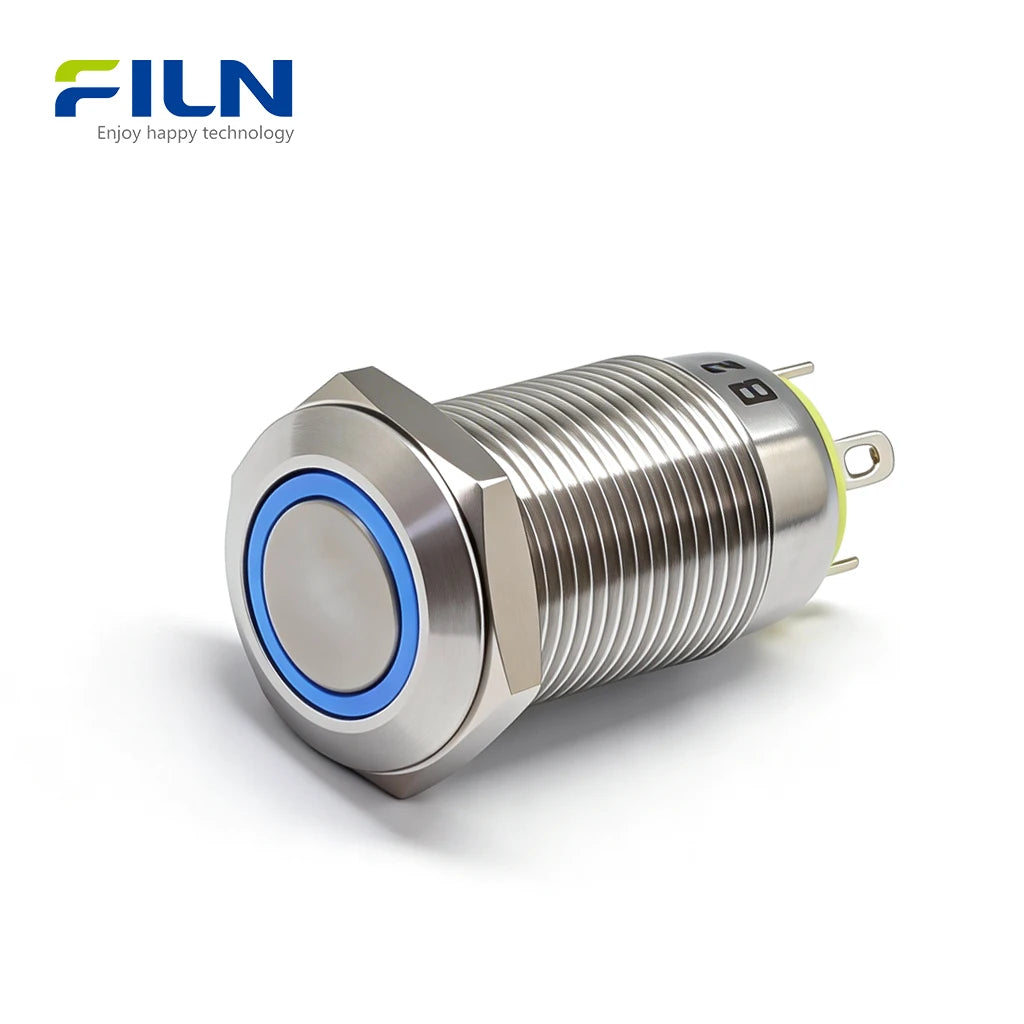

The led push button switch 12v (Model: FLM12-FJ-1-E) is a high-durability industrial control component manufactured by FILN. This 12mm metal push button switch features a premium 304 Stainless Steel housing and a vibrant ring LED indicator. Designed for extreme reliability, it carries ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications. Its 4-pin terminal design facilitates rapid integration into industrial control panels, automation equipment, and marine systems. Whether used as a power starter or a functional signal button, this switch provides superior tactile feedback and a 500,000-cycle mechanical life, ensuring consistent performance in the most demanding B2B applications.
Quick Specifications
| Model Number | FLM12-FJ-1-E |
|---|---|
| Mounting Diameter | 12mm (0.47 inch) |
| Switch Function | Latching / Momentary (Optional) |
| LED Color Options | Red (R), Green (G), Yellow (Y), Blue (B), White (W) |
| Button Type | Flat Round Head with Ring LED |
| Termination Style | 4-PIN Pin Terminal (2.8x0.5mm) |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC |
|---|---|
| Rated Current | 5A DC / 5A AC |
| Contact Resistance | < 50mΩ |
| Insulation Resistance | ≥ 1000MΩ |
| LED Rated Voltage | 12V-24V / 110V-220V / Custom |
| Certifications | ISO9001, CE, UL, RoHS, SGS, IP65 |
Component Materials
| Key Button | 304 Stainless Steel / 6063 Aluminum |
|---|---|
| Shell Housing | H59 Brass / 304 Stainless Steel |
| Pins | H62 Copper Alloy (Gold/Silver Plated) |
| Base Material | PA66+GF20% Flame Retardant Nylon |
| Contact Point | Silver Alloy AgCdO12 |
Comparison of Termination Types
| Feature | Pin Terminal (4-PIN) | Screw Terminal / Wired |
|---|---|---|
| Installation Speed | Fast (Plug-in/Solder) | Slow (Requires screwing/crimping) |
| Space Efficiency | Compact (Ideal for dense panels) | Bulky (Takes more depth) |
| Reliability | High (Stable vibration resistance) | Moderate (Screws may loosen) |
Key Features
- Premium Stainless Steel: Offers excellent anti-corrosion, rust resistance, and mechanical strength.
- High Load Rating: Supports 5A 250V, reducing the need for intermediate relays.
- IP65 Protection: Sealed design for reliable operation in wet or dusty environments.
- Visual Ring LED: Provides clear 360° status feedback with high-intensity light.
- Efficient 4-PIN Terminal: Standard 2.8mm pins for quick soldering or terminal block connection.
LED Color Status Indicators
RED: Stop / Emergency / Fault Alarm.
GREEN: Start / Normal Operation / Go.
YELLOW: Warning / Standby / Pre-heat.
BLUE: Information / Remote Control / Custom.
WHITE: Power Status / High Visibility Lighting.
Installation Guide
- Drill a 12mm hole on your panel board.
- Insert the switch through the hole from the front.
- Thread the metal nut from the back and tighten securely.
- Connect your wiring to the 4-PIN terminals.
4-PIN LED Wiring Methods
A 4-PIN switch consists of the Switch Contact and the LED Terminals. Below are the two synchronized ways to wire the LED.
Method 1: LED Turns ON When Pressed
The ring LED acts as a status indicator, lighting up only when the device is running.
Method 2: LED Always ON (Backlight)
The ring LED stays lit constantly, allowing for easy location of the switch in dark environments.
FILN Factory Direct Supply
- ✅ No MOQ: Small batch orders and samples are supported.
- ✅ Fast Global Shipping: Rapid lead times for industrial projects.
- ✅ Custom Solutions: Voltage, laser etching, and wiring harness customization.
Official Website: www.filn.com
Inquiries: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
Q1: Is this led push button switch 12v waterproof?
A: Yes, it is IP65 rated, making it resistant to water splashes, rain, and dust.
A: Yes, it is IP65 rated, making it resistant to water splashes, rain, and dust.
Q2: Can I use this 12mm switch on a 220V circuit?
A: Yes, the switch contacts handle up to 250V. Please specify if you need the 220V LED version.
A: Yes, the switch contacts handle up to 250V. Please specify if you need the 220V LED version.
Q3: What is the difference between momentary and latching?
A: Momentary resets once released; Latching stays in position after being pressed.
A: Momentary resets once released; Latching stays in position after being pressed.
Q4: Why choose stainless steel over aluminum?
A: Stainless steel offers better durability and chemical resistance in marine and industrial environments.
A: Stainless steel offers better durability and chemical resistance in marine and industrial environments.
Q5: Does the ring LED require a resistor?
A: No, our 12V switches have built-in resistors for plug-and-play use.
A: No, our 12V switches have built-in resistors for plug-and-play use.
Q6: What is the maximum current rating?
A: This 12mm switch is rated for 5A DC/AC.
A: This 12mm switch is rated for 5A DC/AC.
Q7: Can I get a pre-wired version of FLM12-FJ-1-E?
A: Yes, FILN provides custom wiring harness and connector assembly.
A: Yes, FILN provides custom wiring harness and connector assembly.
Q8: What is the mechanical life of this switch?
A: It is tested for over 500,000 mechanical operations.
A: It is tested for over 500,000 mechanical operations.
Q9: Are dual-color LEDs available?
A: Yes, we support custom Red/Green or other dual-color configurations.
A: Yes, we support custom Red/Green or other dual-color configurations.
Q10: Is there a mounting panel thickness limit?
A: It supports panels typically up to 8mm thick.
A: It supports panels typically up to 8mm thick.
