Product Overview

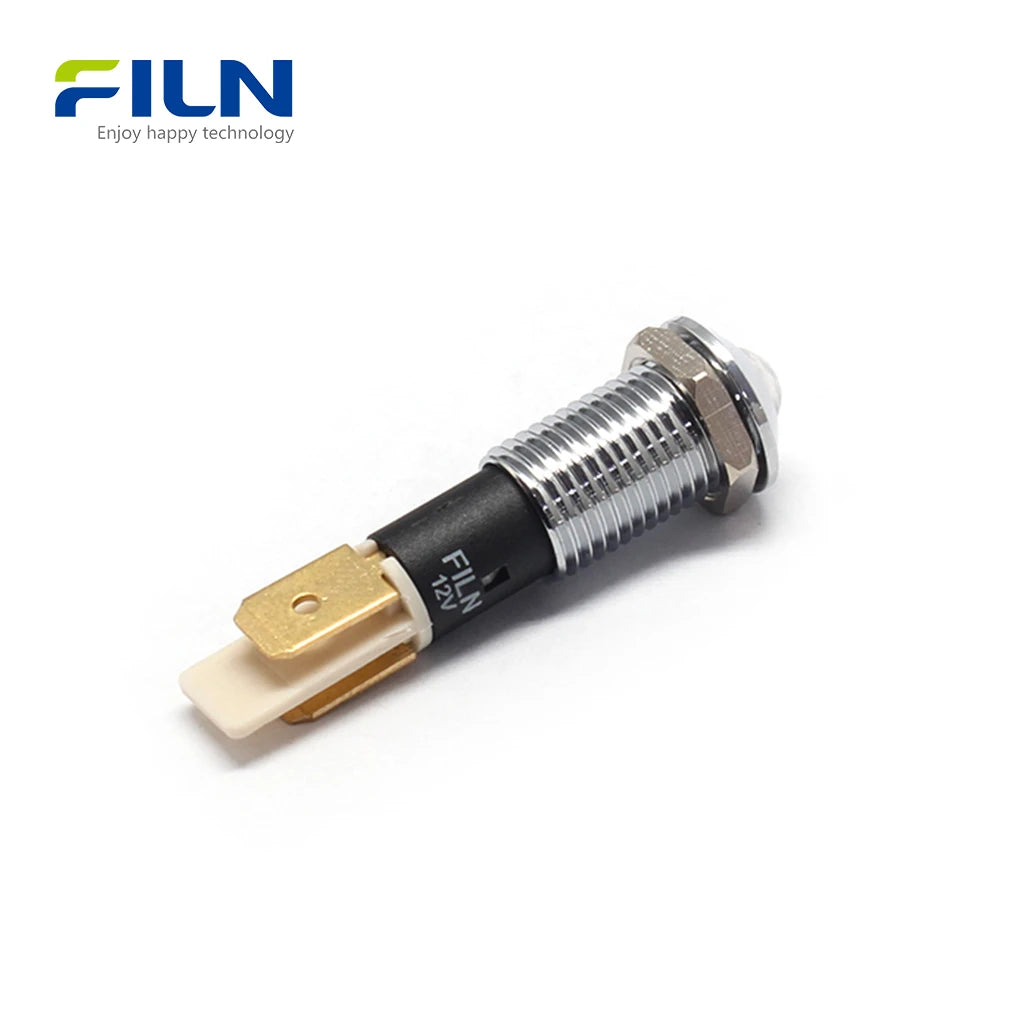

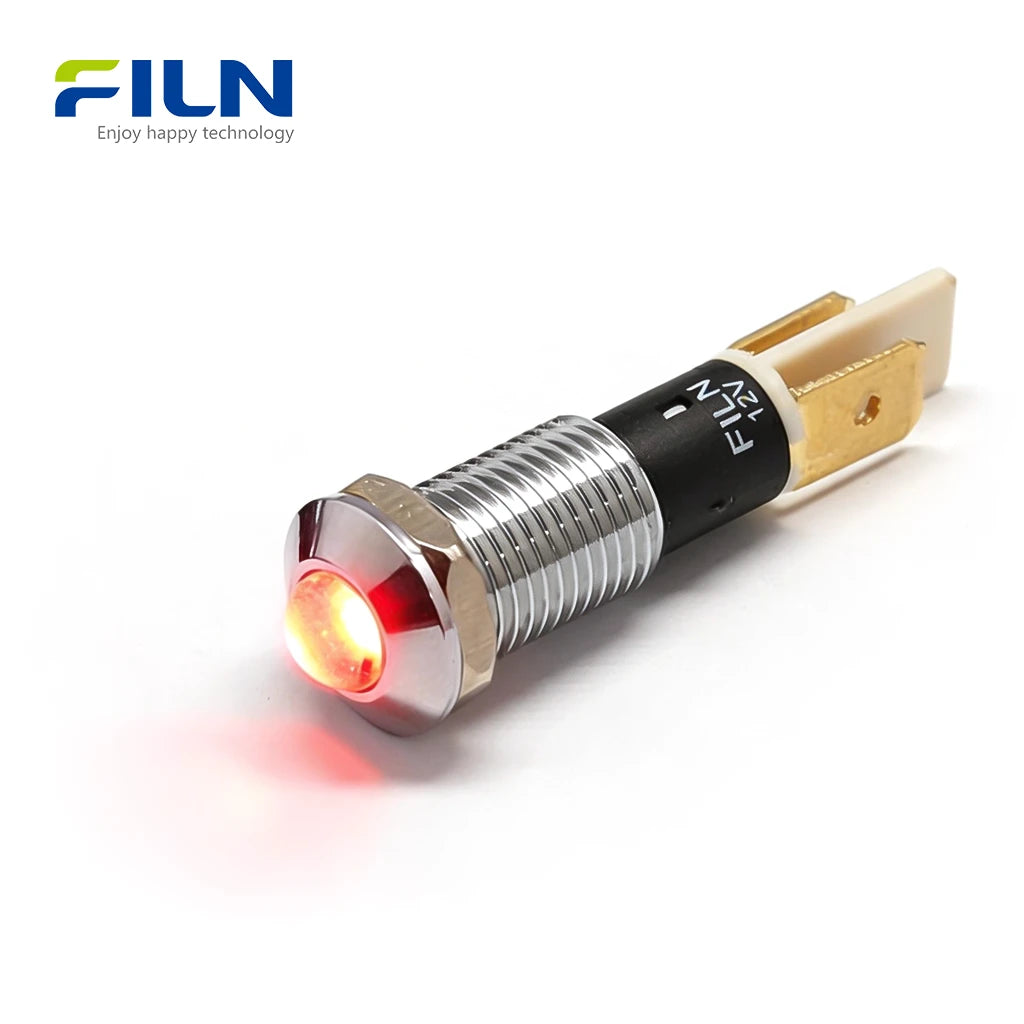

The FL1M-10SJ-1 LED indicator light red is a premium 10mm metal high-head signal lamp designed for demanding environments. Manufactured by FILN, this indicator features world-class certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67. With its robust metal housing available in silver chrome or black aluminum, it provides industrial-grade reliability for industrial control panels, CNC machinery, automation systems, and marine equipment. Its high-head design ensures 360-degree visibility, while the pin-terminal connection offers a secure, vibration-resistant interface compared to standard wire leads. This 12V-24V and 110V-220V compatible LED ensures a lifespan of over 50,000 hours.
Quick Specifications
| Mounting Hole | 10mm (0.39 inch) |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red (Green, Yellow, Blue, White available) |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥50,000 Hours |
| Wiring Type | Pin Type (Plug-in) |
Rated Working Parameters
| Rated Voltage | Customized (AC/DC) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials

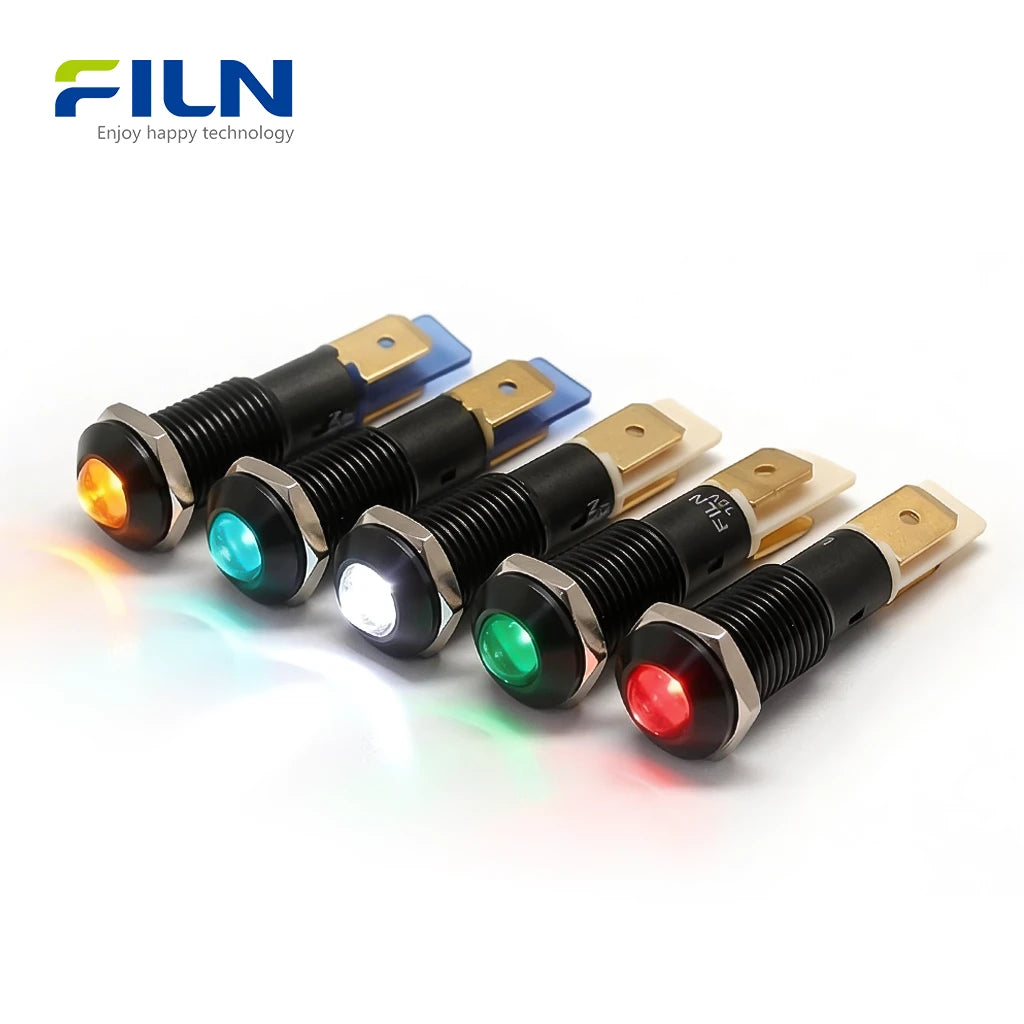

| Housing | Chrome-plated Brass / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silica Gel |
| Terminal | Silver-plated Brass Pin |
General Characteristics
| Operating Temperature: -40℃～80℃ | Relative Humidity: ≤85% at +40℃ |
| Ambient Temperature: 5~35℃ | Air Pressure: 86~106Kpa |
| Waterproof Rating: IP67 | Part Name: FL1M-10SJ-1 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability & Weather Resistance
| Continuous Life | 30mA 1000h Test | 50,000 Hours Rated |
| High Temp | 80℃ 96h | Stable Performance |
| Moisture Resistance | 40℃ 95%RH 96h | No Corrosion |
Key Features
- LED High Brightness: Superior visibility even in brightly lit environments.
- Industrial Metal Housing: Available in sleek silver or matte black finishes.
- IP67 Waterproof: Fully protected against dust and temporary water immersion.
- High-Head Design: Provides better viewing angles compared to flat-head indicators.
- Precision Installation: Includes smooth M10 threading, a durable nut, and a premium O-ring.
Applications
- Industrial control panels and electrical cabinets.
- CNC machining centers and automation equipment.
- Marine systems and outdoor power equipment.
- Medical diagnostic devices and laboratory instruments.
- Coffee machines, commercial appliances, and EV chargers.
Installation Guide
- Drill a 10mm (M10) hole in your application panel.
- Remove the M10 nut and ensure the O-ring is seated on the indicator head.
- Insert the indicator through the hole from the front side of the panel.
- From the rear, slide the M10 nut onto the threads and tighten securely.
- Connect the circuit to the pin terminals (soldering or quick-connect recommended).
What Is a 10mm LED Indicator Light Red?
A 10mm LED indicator light red is a critical visual signaling component used to relay machine status or warnings to operators. Unlike standard flat indicators, the high-head design protrudes from the panel, offering "side-view" visibility which is essential for safety in busy industrial plants.
The pin-terminal (plug-in) style provides a distinct advantage over wire-lead indicators by allowing for faster replacement and more rigid connections in high-vibration environments like CNC machines. Combined with an IP67 rating, these lights are indispensable for ensuring operational safety and system diagnostics across global manufacturing sectors.
FILN Factory Direct Supply
- ✅ Global Certifications: UL, CE, RoHS, VDE, ISO9001
- ✅ Full Customization: Custom Voltage (3V-380V), Wire Length & Connectors
- ✅ Durable Construction: High-quality M10 smooth threading and O-ring seals
- ✅ Fast Shipping: Global logistics for B2B procurement
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the advantage of a high-head LED indicator?
A: High-head indicators protrude from the panel, providing better visibility from the side compared to flush-mounted flat-head types.
Q2: Can I get this 10mm indicator in 220V?
A: Yes, we support 12V, 24V, 110V, and 220V as standard, and custom voltages upon request.
Q3: Is the housing made of plastic or metal?
A: This model uses a premium metal housing (Chrome-plated brass or Black Aluminum) for industrial durability.
Q4: What is the difference between pin terminals and wire leads?
A: Pin terminals allow for quick-connect or soldering directly to the base, making them more compact and easier to replace in modular systems.
Q5: Is this indicator suitable for marine use?
A: Yes, the IP67 rating and metal construction make it resistant to moisture and salt spray.
Q6: Does it come with mounting accessories?

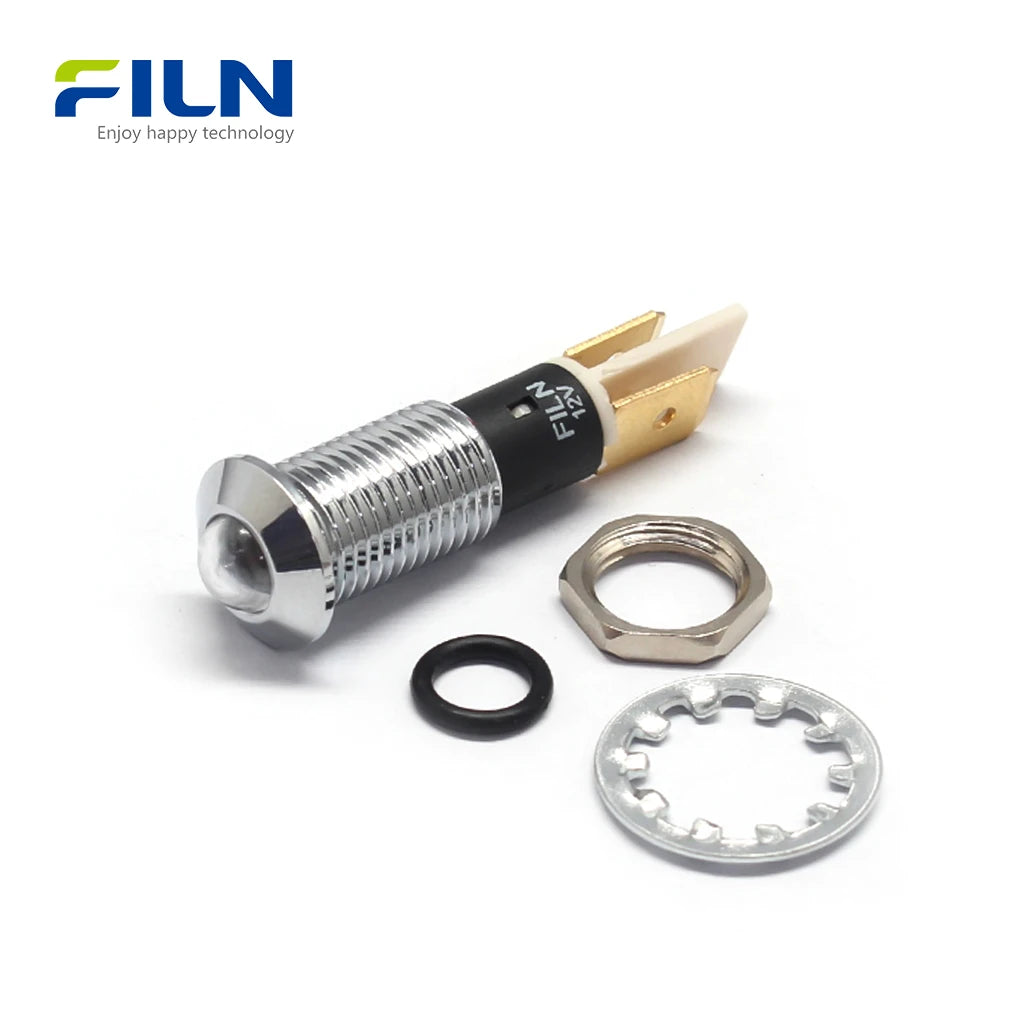

A: Yes, each indicator includes one M10 nut and one waterproof O-ring.

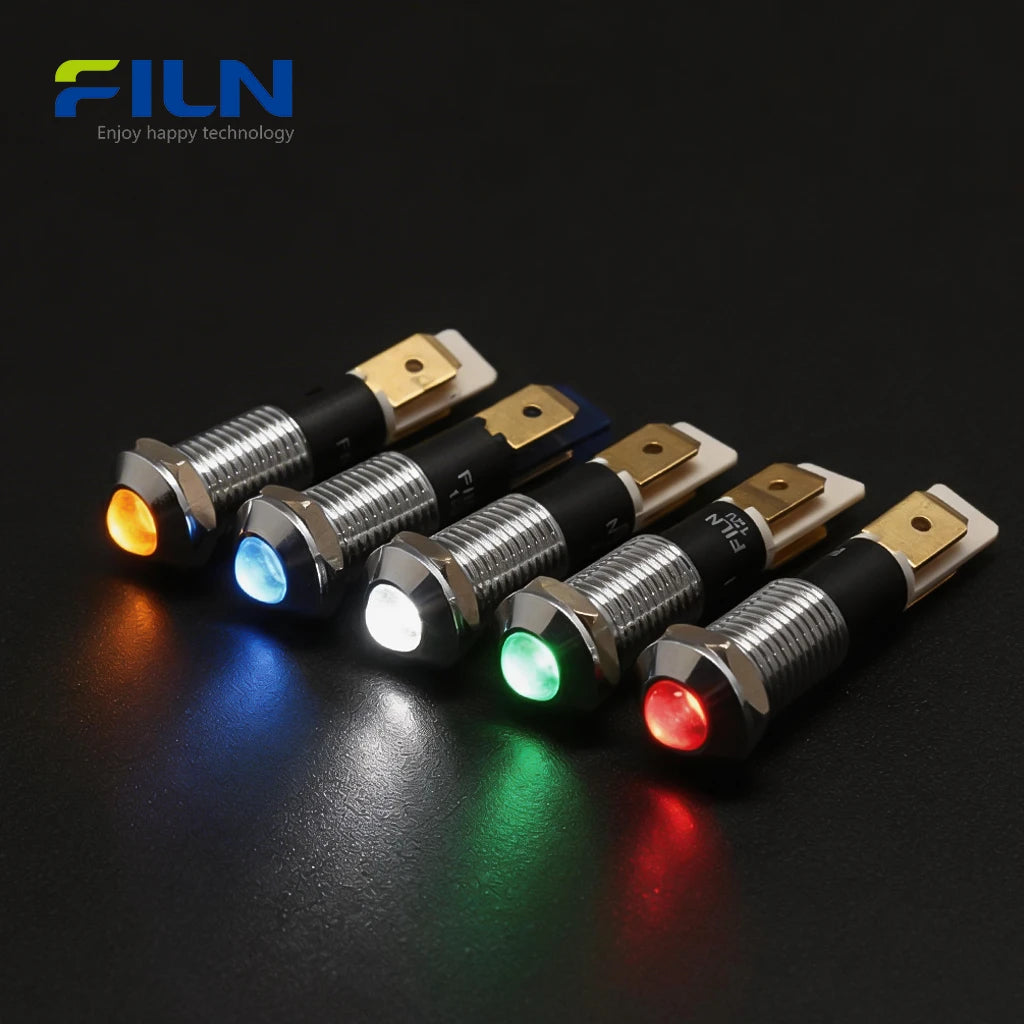

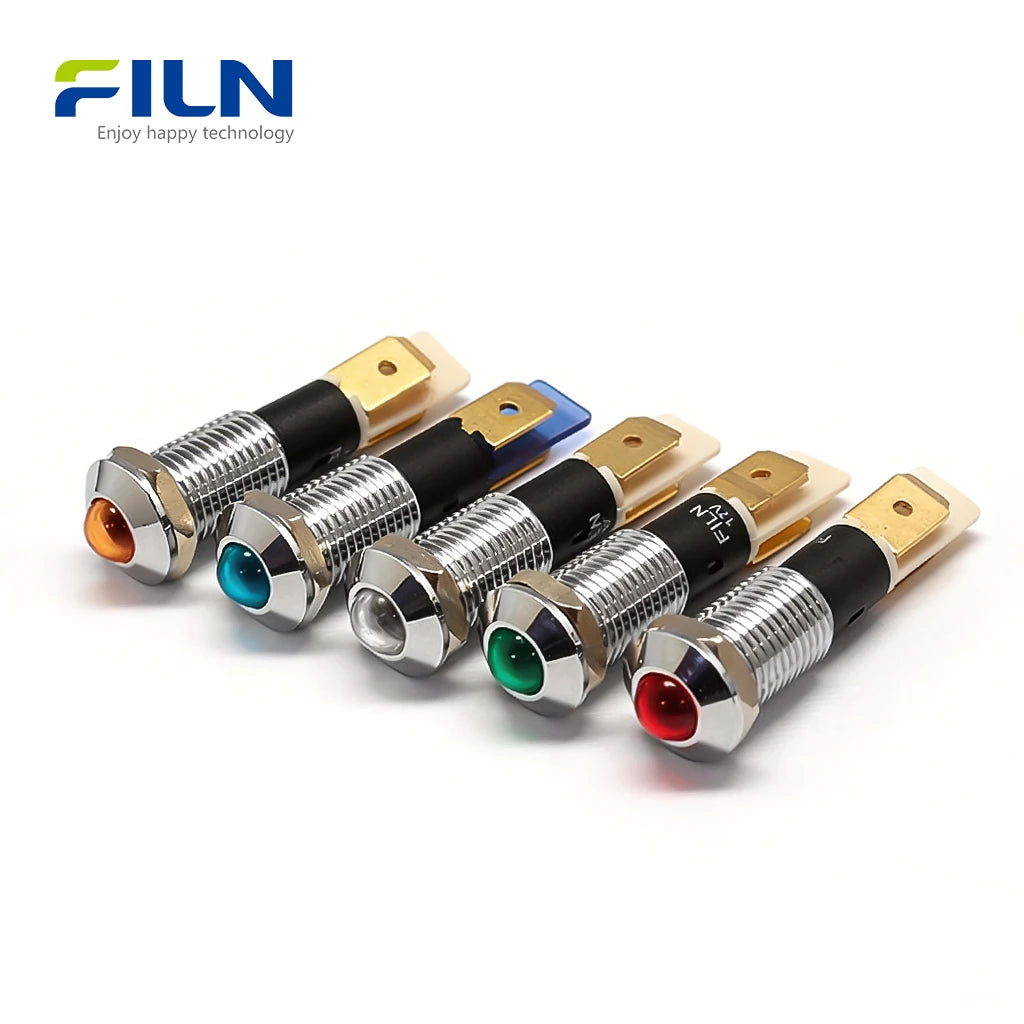

Q7: What colors are available for the 10mm series?
A: We offer Red, Green, Yellow, Blue, and White LEDs.
Q8: Is it UL certified?
A: Yes, FILN indicators carry UL, CE, and RoHS certifications for international compliance.
Q9: How long is the lifespan of the LED?
A: Our industrial LEDs are rated for over 50,000 hours of continuous use.
Q10: Can I customize the wire length if I don't want pin terminals?
A: Absolutely, FILN specializes in customization; we can provide pre-soldered wires with any length or connector type.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
