Button Switch Drawing
PRODUCT OVERVIEW

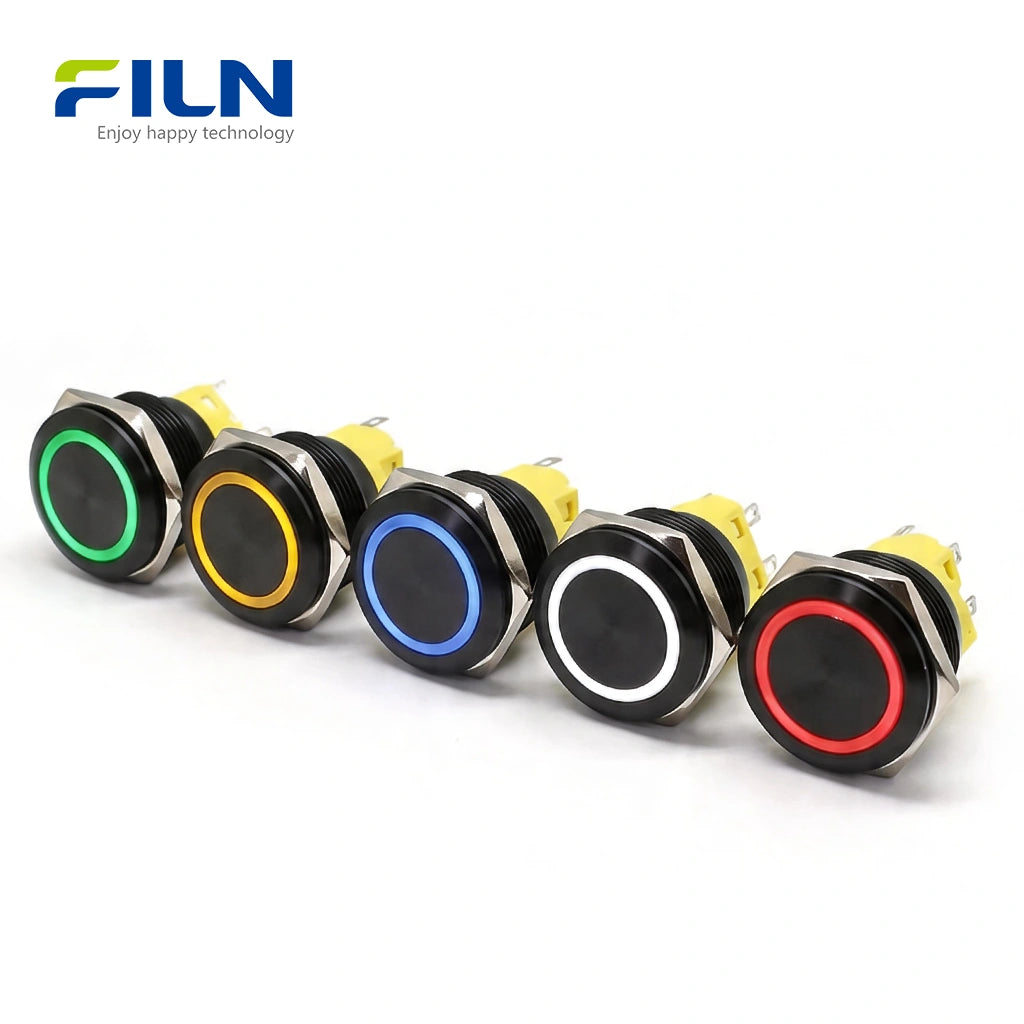

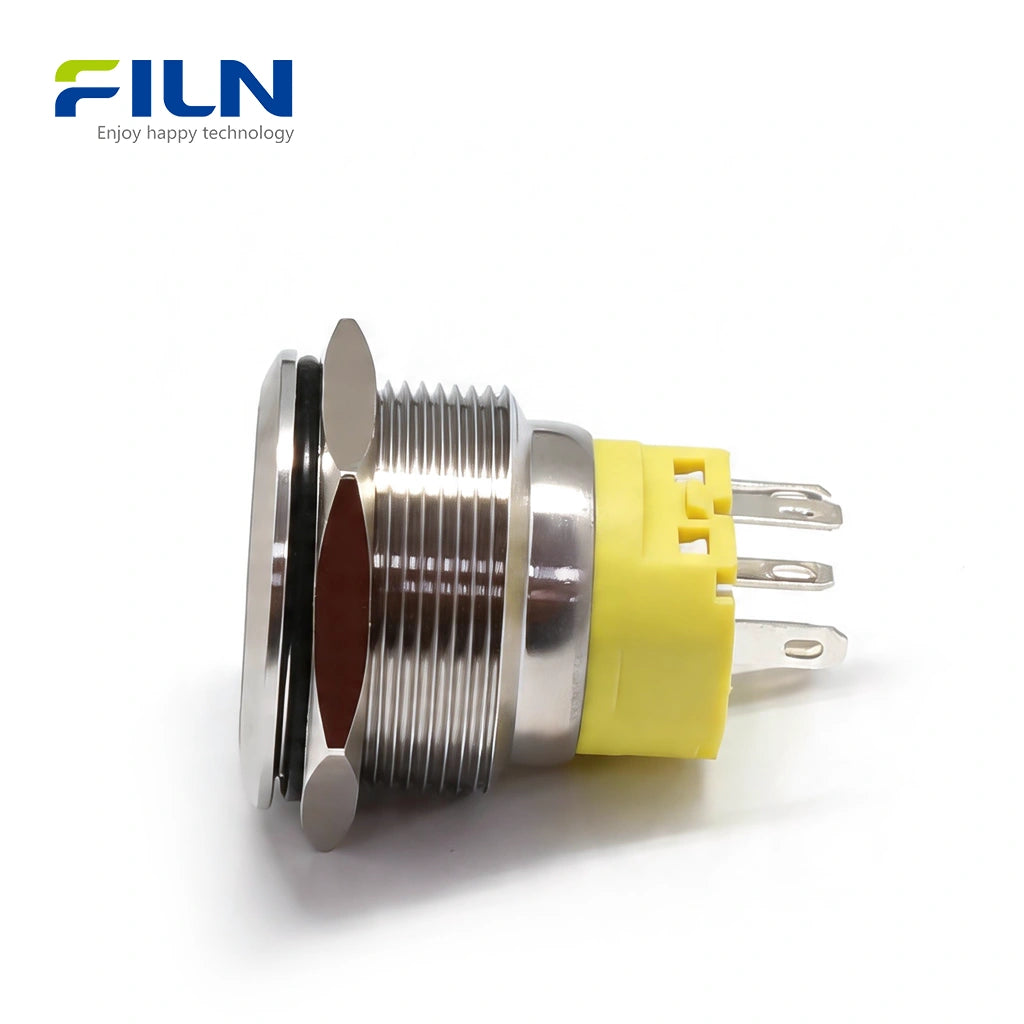

The latching switch push button FLM25-FJ-1-E by FILN is a premium 25mm industrial-grade control component designed for high-performance environments. Crafted from 304 stainless steel or black anodized aluminum, this waterproof LED push button switch offers superior durability and aesthetic appeal. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it is engineered for safety and reliability. Whether used in industrial control panels, CNC machines, or marine systems, our 5-pin illuminated push button wiring system ensures a stable connection. As a leading manufacturer, FILN provides metal push button switch 220v and 12v options with customizable LED colors (R/G/Y/B/W) to meet specific industrial-control-panel-push-switch requirements.
QUICK SPECIFICATIONS
| Specification Item | Details |
|---|---|
| Model Number | FLM25-FJ-1-E |
| Mounting Size | 25mm (approx. 1 inch) |

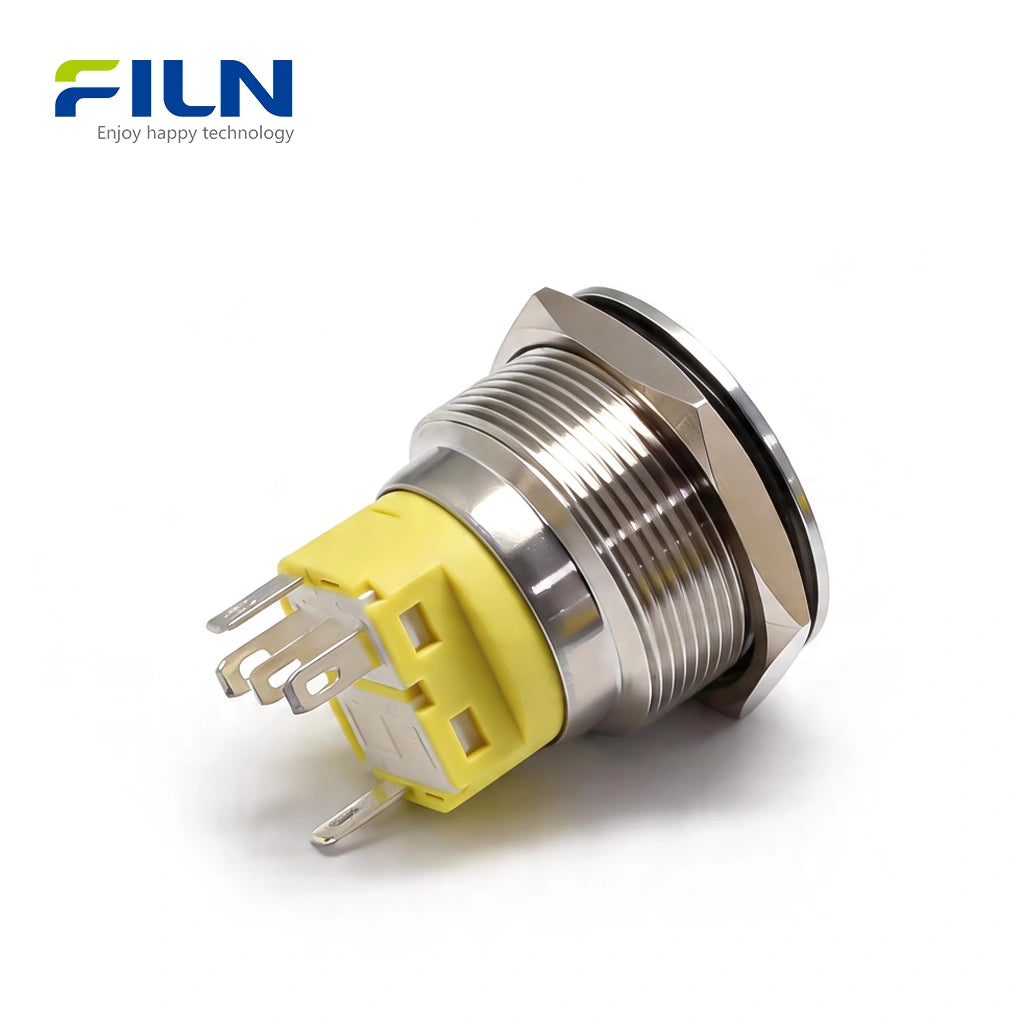

| Operation Function | Latching (Self-locking) / Momentary (Self-reset) |

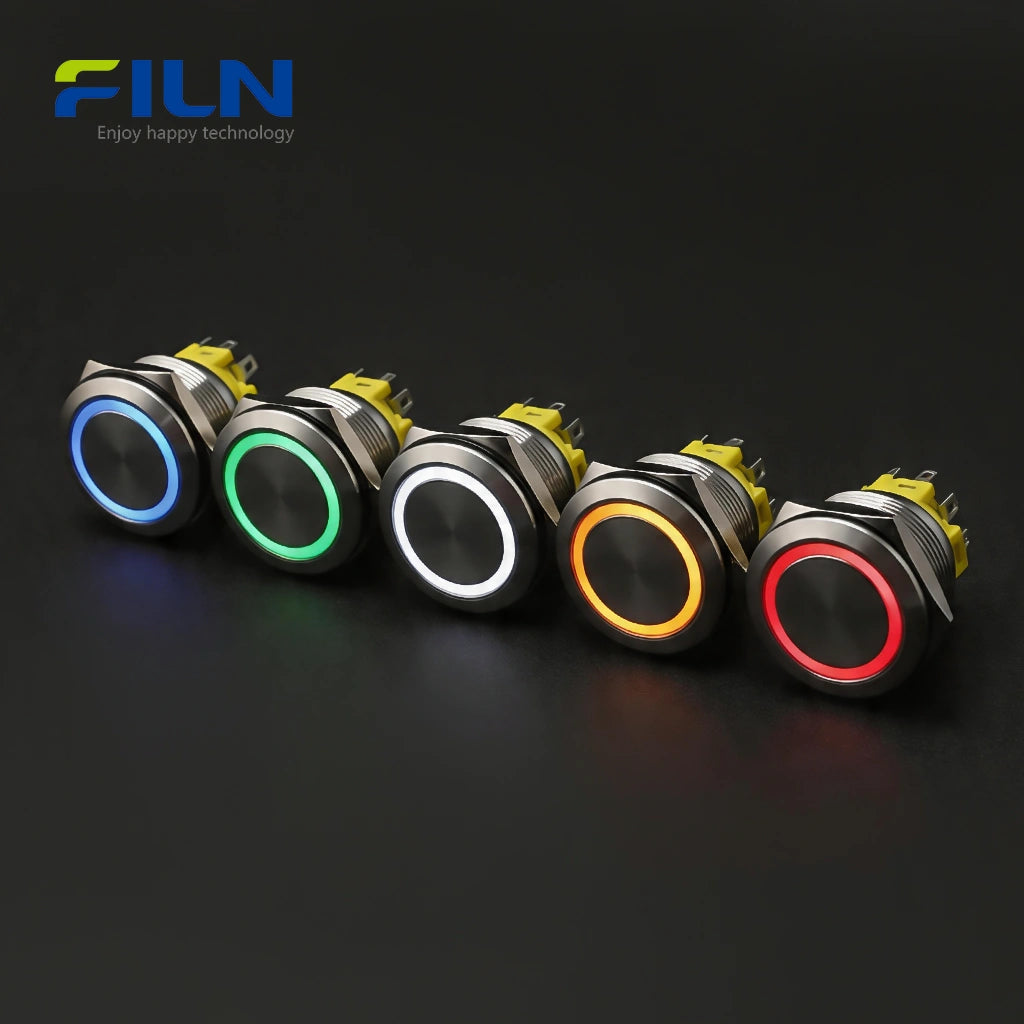

| LED Color Options | Red, Green, Yellow, Blue, White (Dual/Triple Color Custom) |
| Button Head Type | Flat Head with Ring LED |

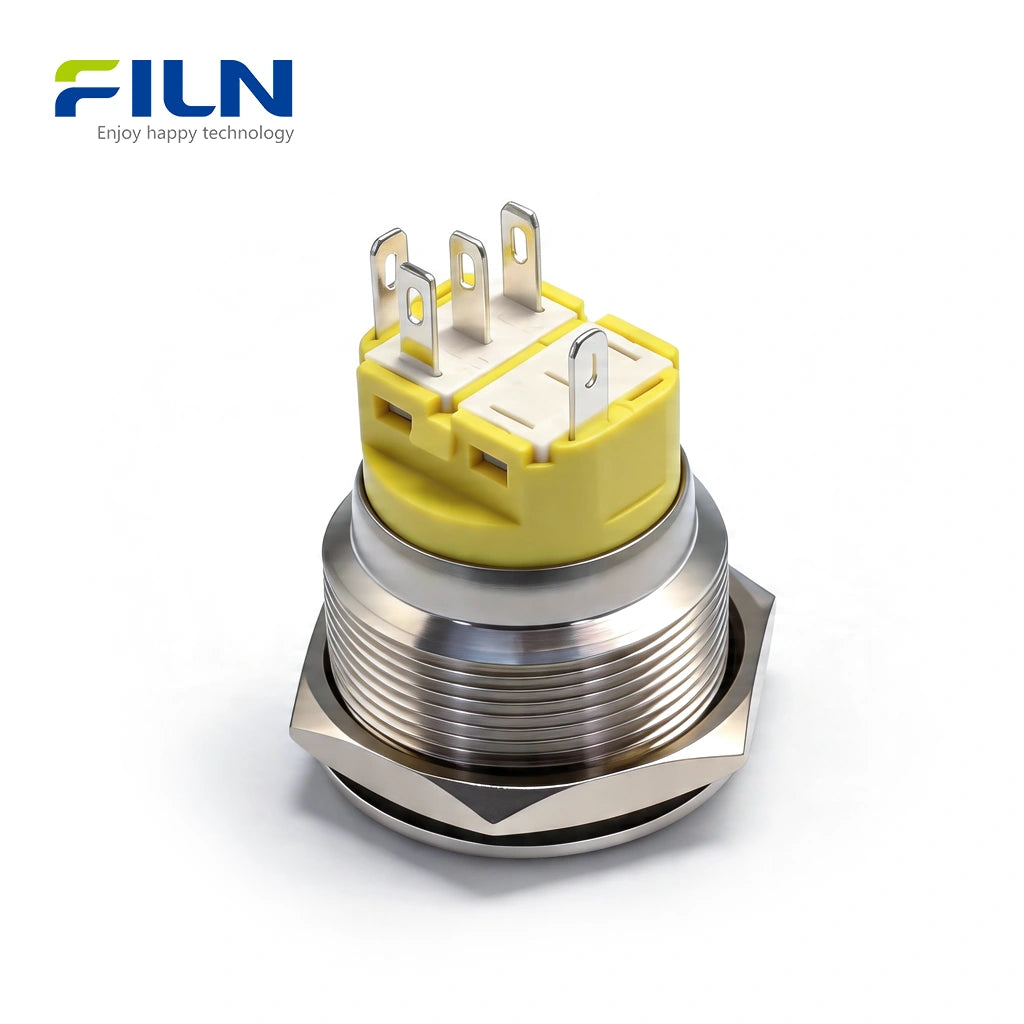

| Terminal Type | 5-Pin Solder/Plug-in Terminal |
ELECTRICAL PERFORMANCE PARAMETERS
| Rated Voltage | 36V DC / 250V AC | Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) | Insulation Voltage | 1800V |
| Contact Resistance | < 50mΩ | LED Voltage Range | 3V - 220V (12V/24V/110V/220V) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL, IP65 | ||
COMPONENT MATERIALS
| Component | Material Selection |
|---|---|
| Button Head | 304 Stainless Steel / 6063 Aluminum Alloy |
| Shell Sleeve | H59 Brass / 304 Stainless Steel / 6063 Aluminum Alloy |
| Contact Point | Silver Contact (AgCdO12) for high conductivity |
| Base Material | PA66+GF20% Flame Retardant Nylon |
| Seal Ring | SIL Silicone (IP65 Grade) |
LED SPECIFICATIONS & OPTICAL CHARACTERISTICS
| Light Intensity | 1000 mcd | Main Wavelength | 520.7 nm |
| Luminous Flux | 4.8 lm | Color Temperature | 8400K |
| Luminous Power | 0.32 mW | Forward Current | 20.00 mA |
KEY FEATURES & ADVANTAGES
- 1. Superior Protection (IP65 & IK08): Unlike standard IP40 switches, FILN's waterproof led push button switch is rated IP65 and IK08, making it resistant to water, dust, and physical impact.
- 2. High Electrical Load: Rated at 5A 250V, this 25mm latching switch push button handles higher power directly without needing additional relays.

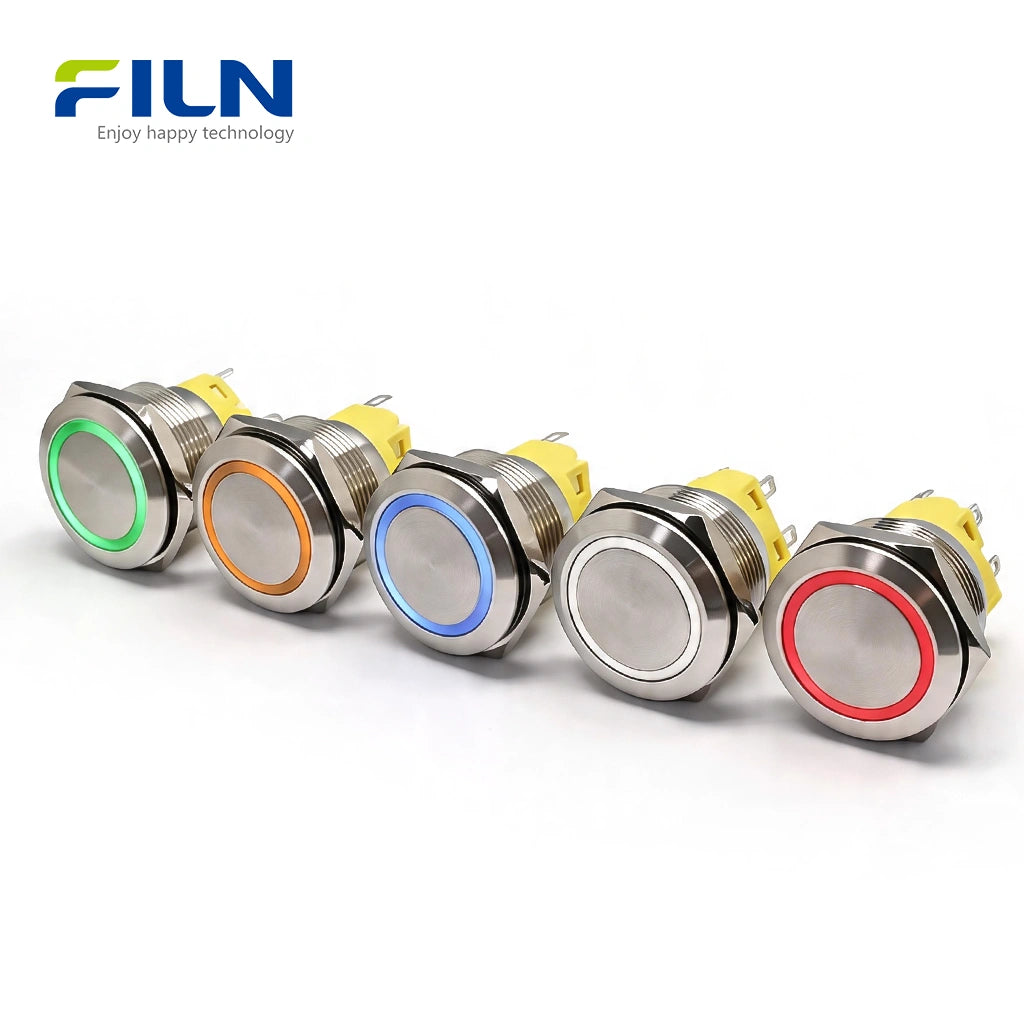

- 3. Premium Material Variety: Available in stainless-steel-momentary-push-button or aluminum versions, providing excellent corrosion resistance for medical and marine industries.
- 4. Visual Ring LED Feedback: The 12v led ring light button provides clear status indication, essential for dark industrial environments or complex control boards.
- 5. Compact Solder Pin Design: The 5-pin 2.8x0.5mm terminal allows for quick 5-pin illuminated push button wiring or use with dedicated wire harnesses.
💡 Pro Tip: Optimize your assembly time!
We recommend using our customized wire harness for a plug-and-play experience.
Buy Matching Push Button Wire Connector →APPLICATION SCENARIOS
The versatility of the industrial-control-panel-push-switch makes it suitable for various sectors:
- Industrial control panels & Distribution boxes
- CNC Precision Machinery
- Marine systems & Outdoor equipment
- Medical diagnostic devices
- Automotive dashboard modifications
INSTALLATION GUIDE

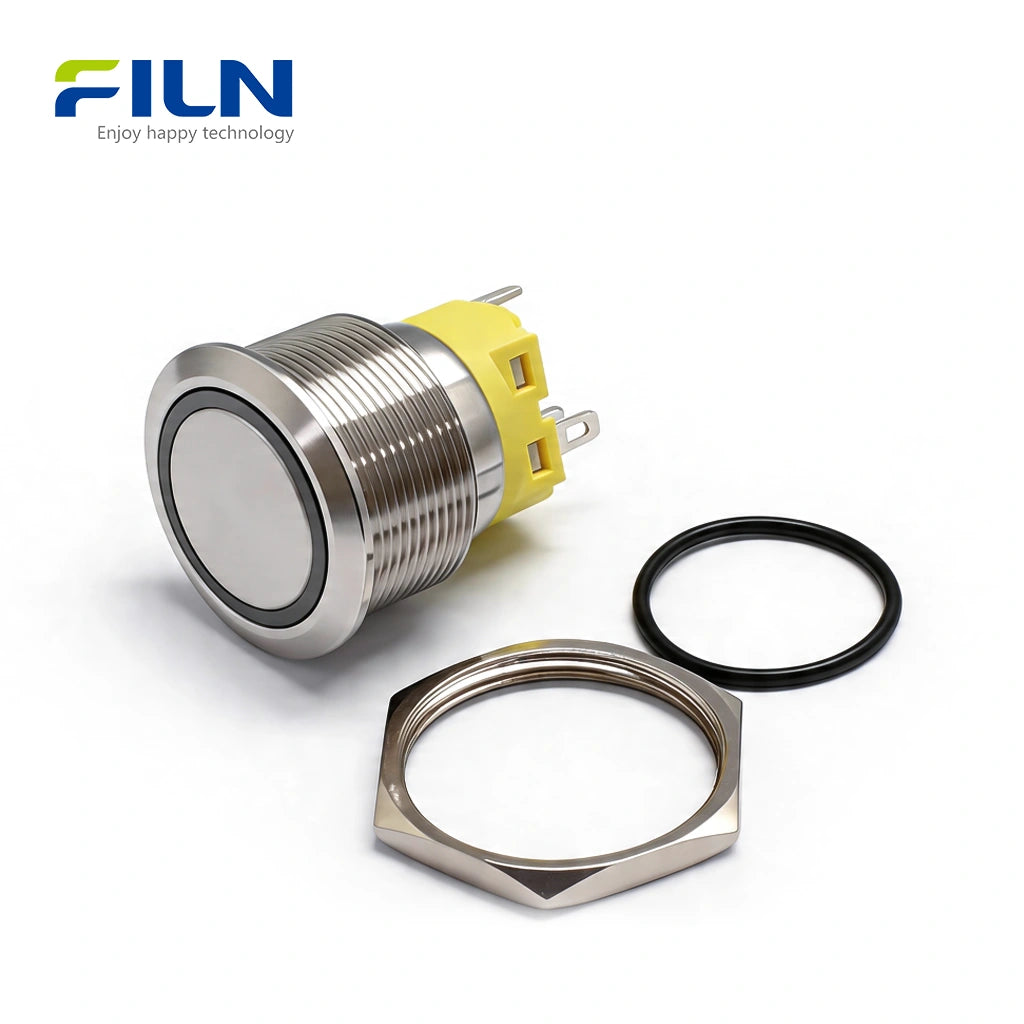

- Drill: Create a 25mm diameter hole on the control panel.
- Insert: Pass the metal-push-button-switch-220v through the hole from the front.
- Secure: Tighten the metal hex nut from the back to fix the switch firmly.
- Wiring: Connect the 5-pin terminals according to the NO/NC logic.
- Test: Turn on the power and verify the LED and device operation.
5 Pin Push Button Switch Wiring Diagram
A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.
1. Normal OFF, Sync LED (NO Connection)
Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.
- Application: Standard start switches where the light indicates the system is running.
- State: Static (LED Out, Device Off) → Pressed (LED On, Device On).
2. Normal ON, Sync LED (NC Connection)
Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.
- Application: Stop buttons or emergency cut-off switches.
- State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).
3. Normal OFF, Constant LED (NO Connection)
Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.
- Application: Power switches in dark environments or access control buttons.
- State: Static (LED On, Device Off) → Pressed (LED On, Device On).
4. Normal ON, Constant LED (NC Connection)
Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.
- Application: Monitoring systems or security alarms that require constant power indication.
- State: Static (LED On, Device On) → Pressed (LED On, Device Stop).
| Mode | LED Behavior | Device (Idle) |
|---|---|---|
| NO Sync | Lights up when pressed | OFF |
| NC Sync | Turns off when pressed | ON |
| Constant | Always ON (Backlight) | User Choice |
INDUSTRY KNOWLEDGE

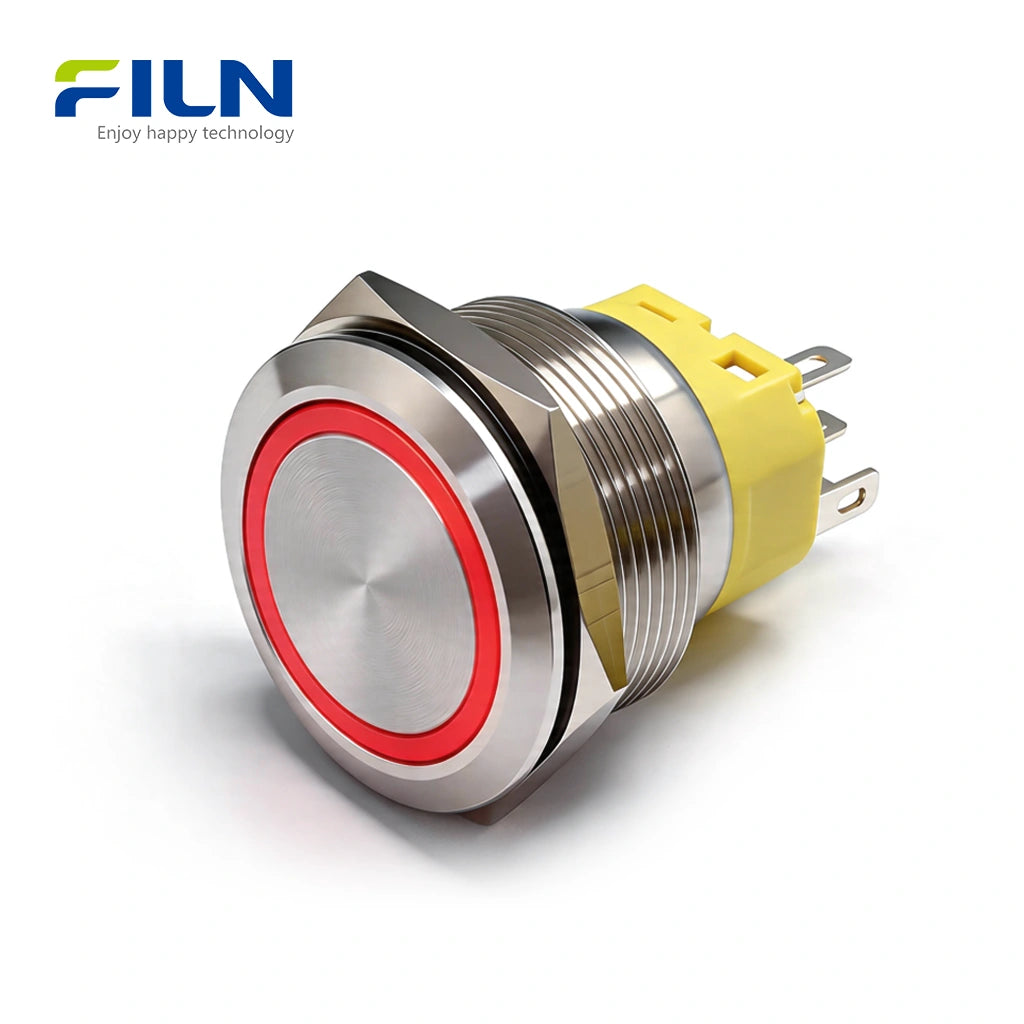

What is a Latching Switch Push Button?
A latching switch push button (also known as self-locking) remains in its new state after being pressed. To return it to its original state, you must press it again. This is essential for power switches where the device needs to stay "ON" without constant human interaction.
Latching vs. Momentary: Which one do you need?
| Feature | Latching (Self-Locking) | Momentary (Self-Reset) |
|---|---|---|
| Action | Stays depressed/active | Springs back immediately |
| Usage | Power ON/OFF switches | Doorbell, PC Power, Horns |
FACTORY DIRECT SUPPLY & CUSTOMIZATION
FILN is a specialized manufacturer of metal push button switches. We offer:
- No MOQ: Small orders and samples are welcome.
- Fast Lead Time: Global shipping within days.
- Full Customization: Voltage, Wire Length, and Connectors.
- Direct Support: Get technical advice straight from the engineers.
Website: www.filn.com
Email: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
Q1: What is the benefit of a 5-pin illuminated push button wiring?
A: The 5-pin design separates the LED circuit from the switch circuit, allowing you to choose if the light stays on always or only when the button is active.
Q2: Can I get a 220V LED ring for this 25mm latching switch?
A: Yes, FILN supports 3V, 12V, 24V, 110V, and 220V customizations for our metal buttons.
Q3: Is the stainless steel version suitable for outdoor use?
A: Absolutely. The 304 stainless steel combined with the IP65 seal makes it perfect for rain and humid environments.
Q4: What do the different LED colors represent?
A: Generally: Red (Stop/Fault), Green (Run/Start), Blue/White (Status/Backlight), Yellow (Warning).
