Button Switch Drawing
Product Overview

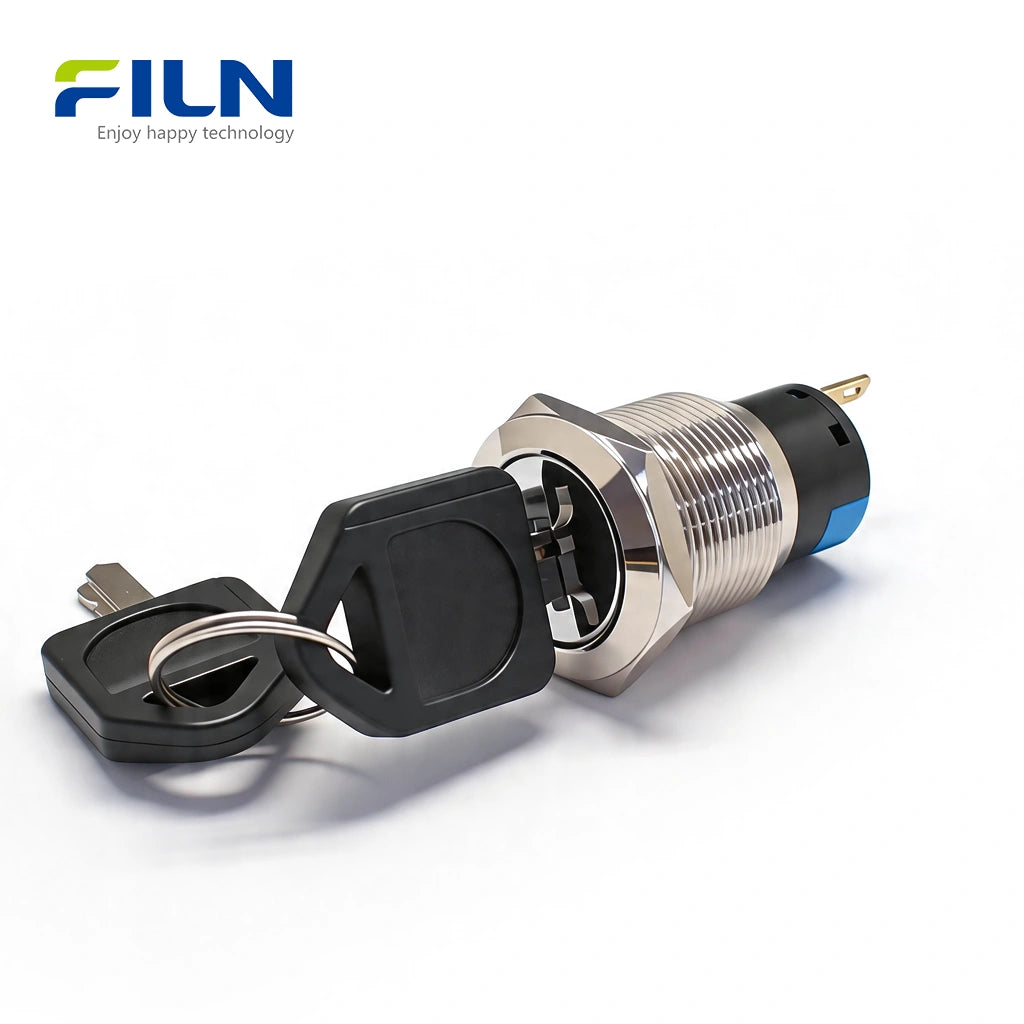

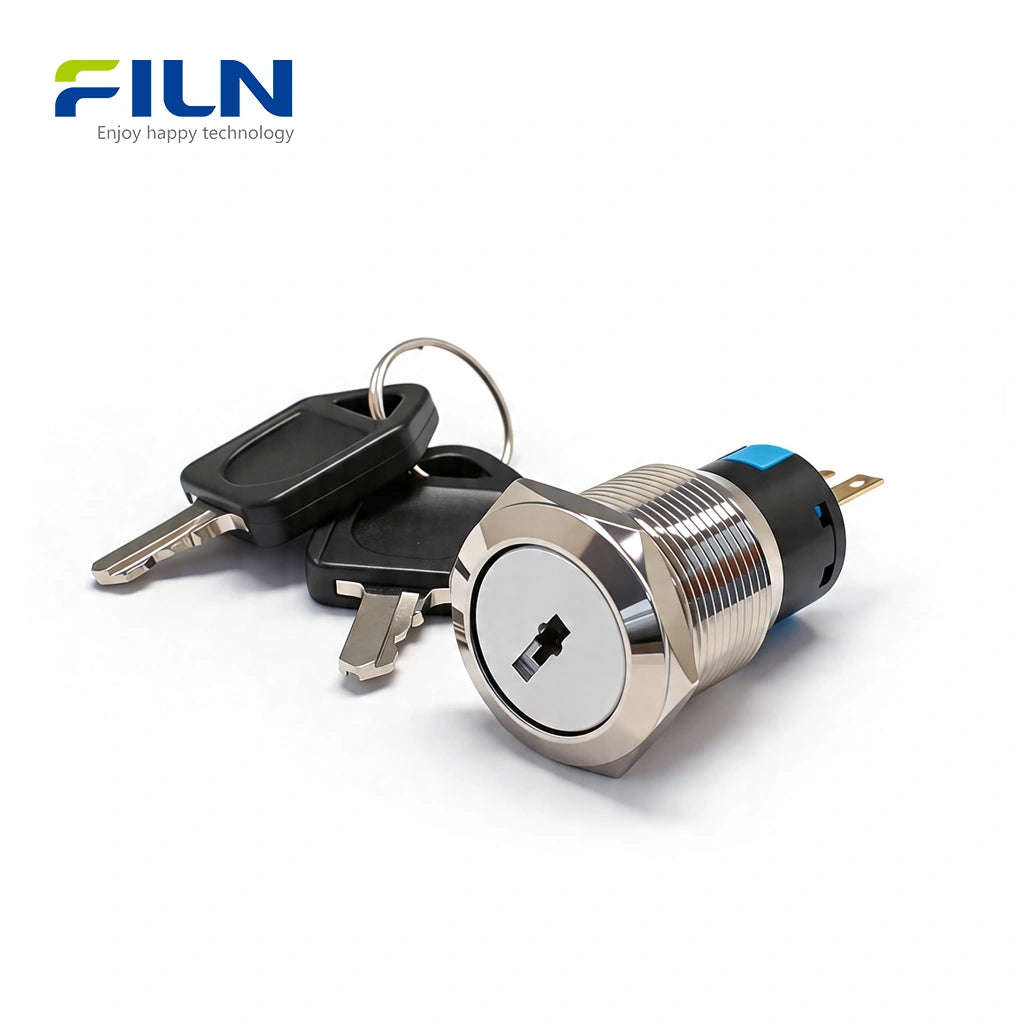

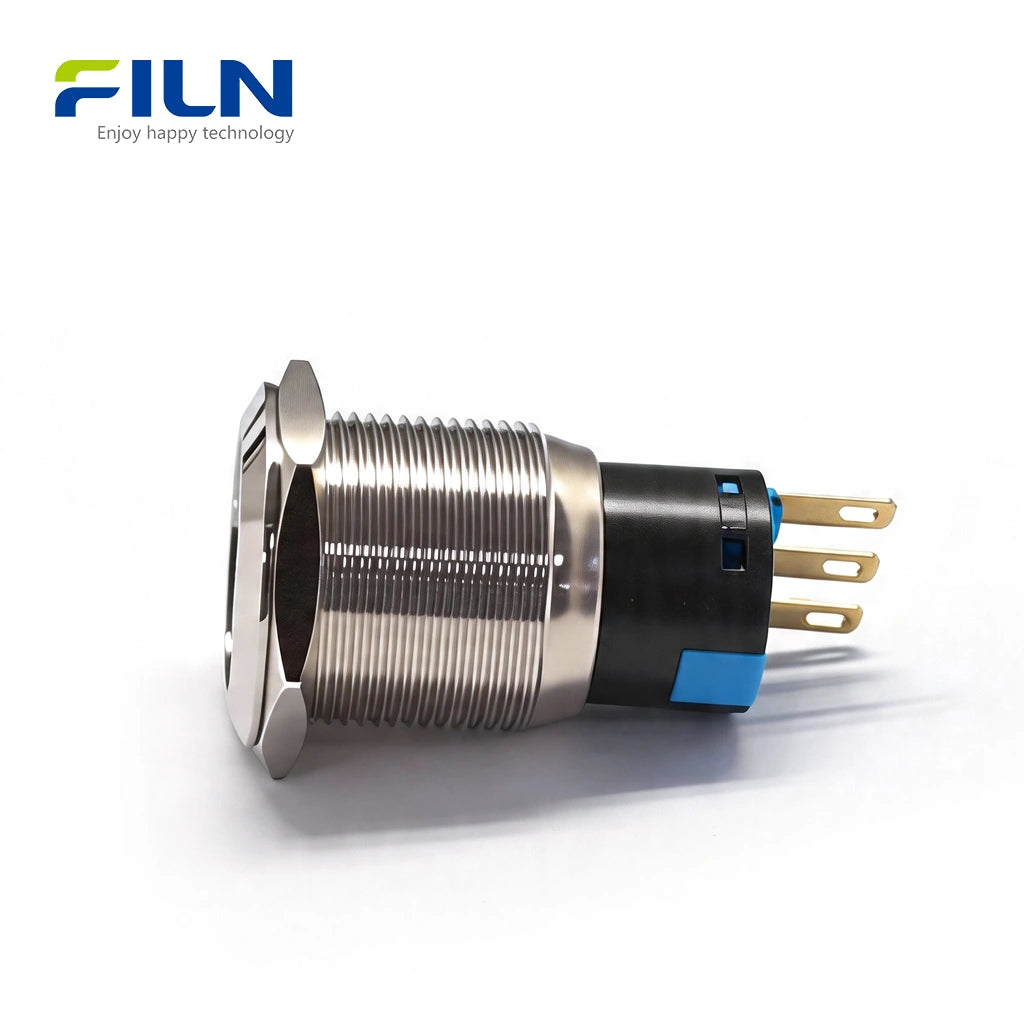

The FILN 19mm key push button switch (FLM19-KJ-1) is a high-performance industrial control component designed for security and precision. Built with a 304 stainless steel shell, this 3-pin key operated push button provides a robust alternative to standard switches by requiring a physical key for operation. Unlike traditional momentary or latching buttons, this 2-position key selector switch ensures authorized access for critical systems. Certified with ISO9001, CE, VDE, RoHS, SGS, and UL, it offers an IP65 waterproof rating, making it ideal for industrial-panel-mount-key-switch applications in automation, marine systems, and electrical cabinets. As a leading factory, FILN provides high-security metal key switch solutions with full customization support.
Quick Specifications
| Model Number | FLM19-KJ-1 |
|---|---|
| Mounting Hole Size | 19mm (0.75 inch) |
| Operation Function | 2-Position Key Operated (ON/OFF) |
| LED Lighting | None (Non-Illuminated) |
| Head Type | Flat Head with Keyhole |

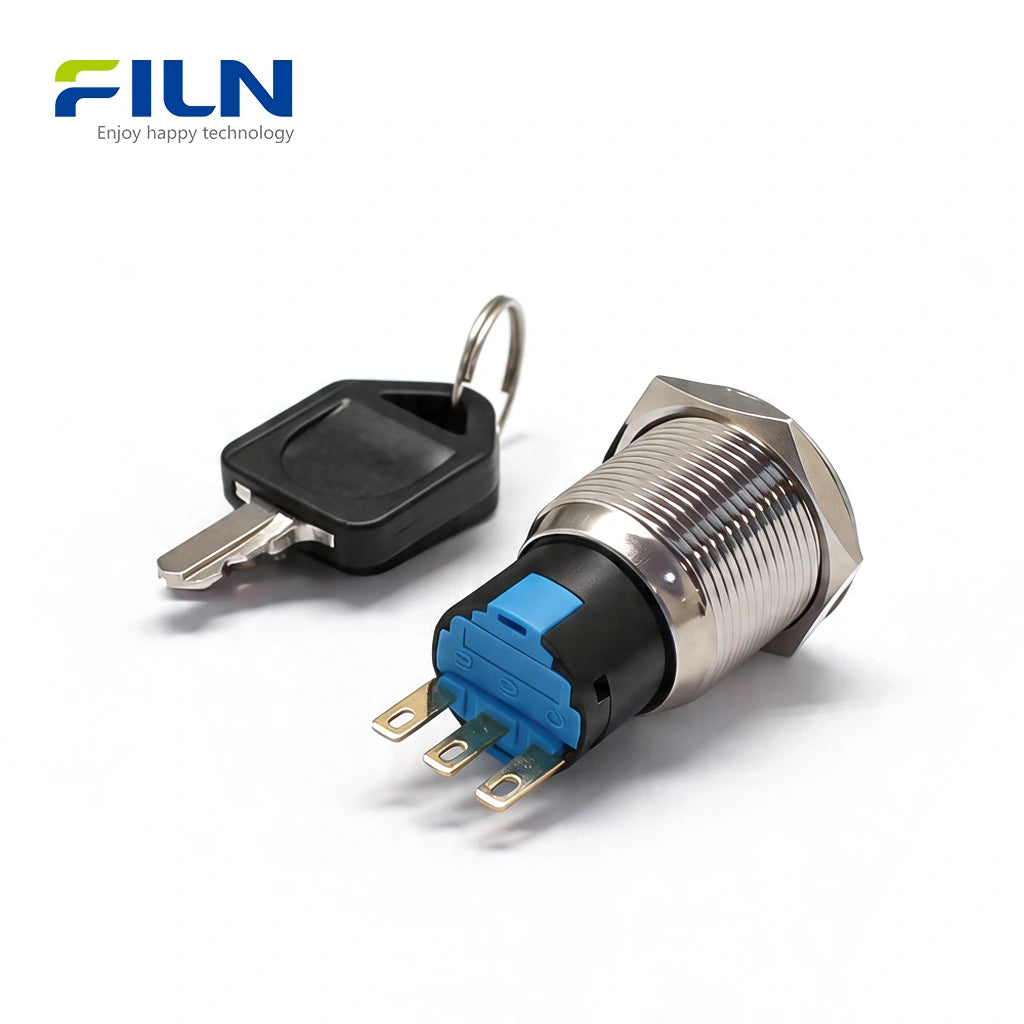

| Terminal Type | 3-Pin Solder/Plug-in Terminal |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC |
|---|---|
| Rated Current | 5A |
| Insulation Resistance | ≥ 1000MΩ |
| Contact Resistance | < 50mΩ |
| Dielectric Strength | 1800V |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Button/Shell | 304 Stainless Steel / H59 Brass |
|---|---|
| Terminals | H62 Copper Alloy |
| Base | PA66+GF20% Flame Retardant Nylon |
| Contacts | Silver Alloy AgCdO12 |
| Sealing | Silicone Waterproof Ring |
General Characteristics
| Operating Temperature | -25°C to +85°C |
|---|---|
| Protection Level | IP65, IK08 |
| Mechanical Life | 500,000 cycles |
| Electrical Life | 50,000 - 100,000 cycles |
Key Features
- Enhanced Security: Unlike standard buttons, the stainless-steel-rotary-key-switch requires a key, preventing unauthorized tampering.
- Extreme Durability: With IP65 & IK08 ratings, it withstands moisture, dust, and physical impact.
- High Load Capacity: Supports up to 5A 250V, allowing direct control of heavy equipment without extra relays.
- Premium Materials: The silver contact (AgCdO12) ensures low resistance and long-term conductivity.
- Compact Design: A short-body structure (approx. 26.5mm) makes it perfect for metal-key-switch-for-control-panel setups with limited space.
Applications
This waterproof-key-actuated-switch-ip65 is widely used in:
- Industrial control panels and CNC machines.
- Security systems and emergency power cut-offs.
- Medical equipment and food processing machinery.
- Automotive and marine dashboard controls.
Installation Guide

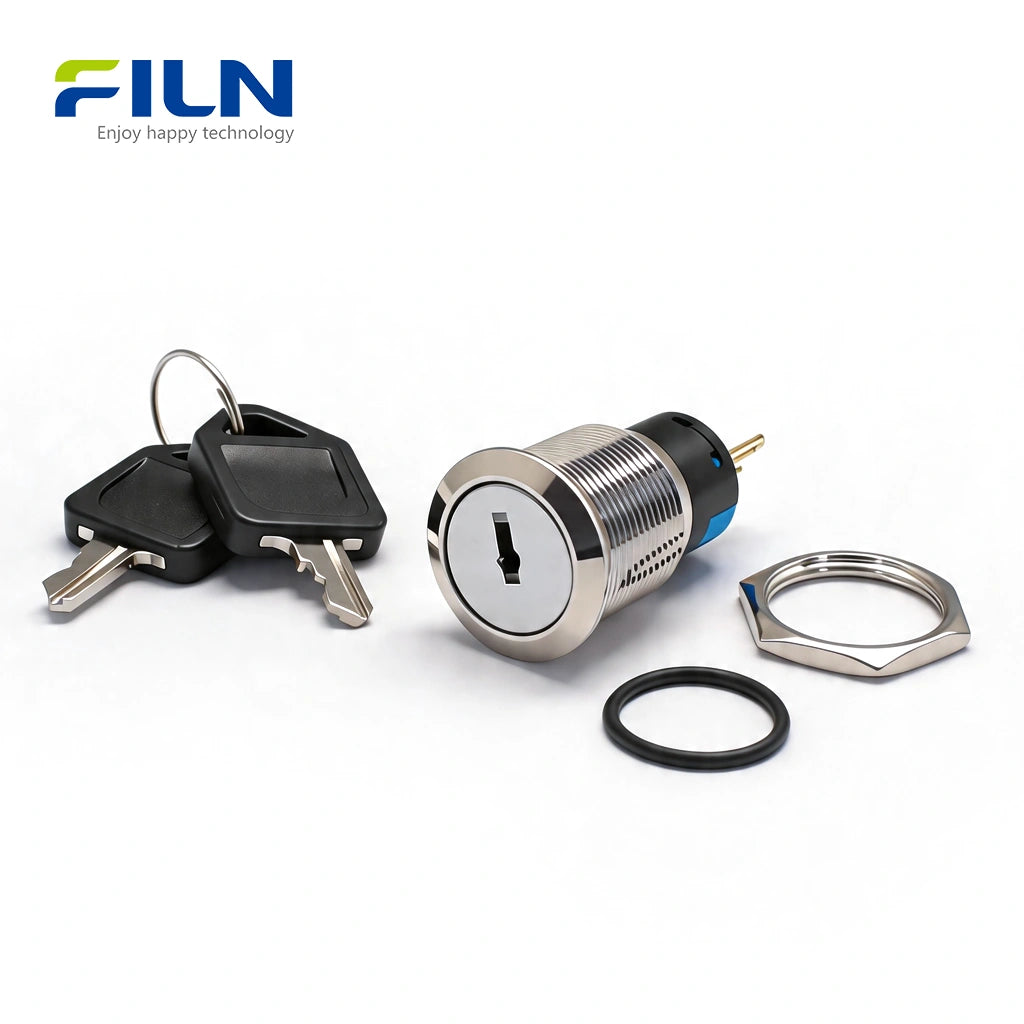

- Drill a 19mm diameter hole in your control panel.
- Place the silicone waterproof ring onto the switch body.
- Insert the switch through the panel hole from the front.
- Secure the switch by tightening the M19 metal nut from the back.
- Connect the 3-pin terminals according to your circuit requirements.
3-PIN Key Switch Wiring Methods

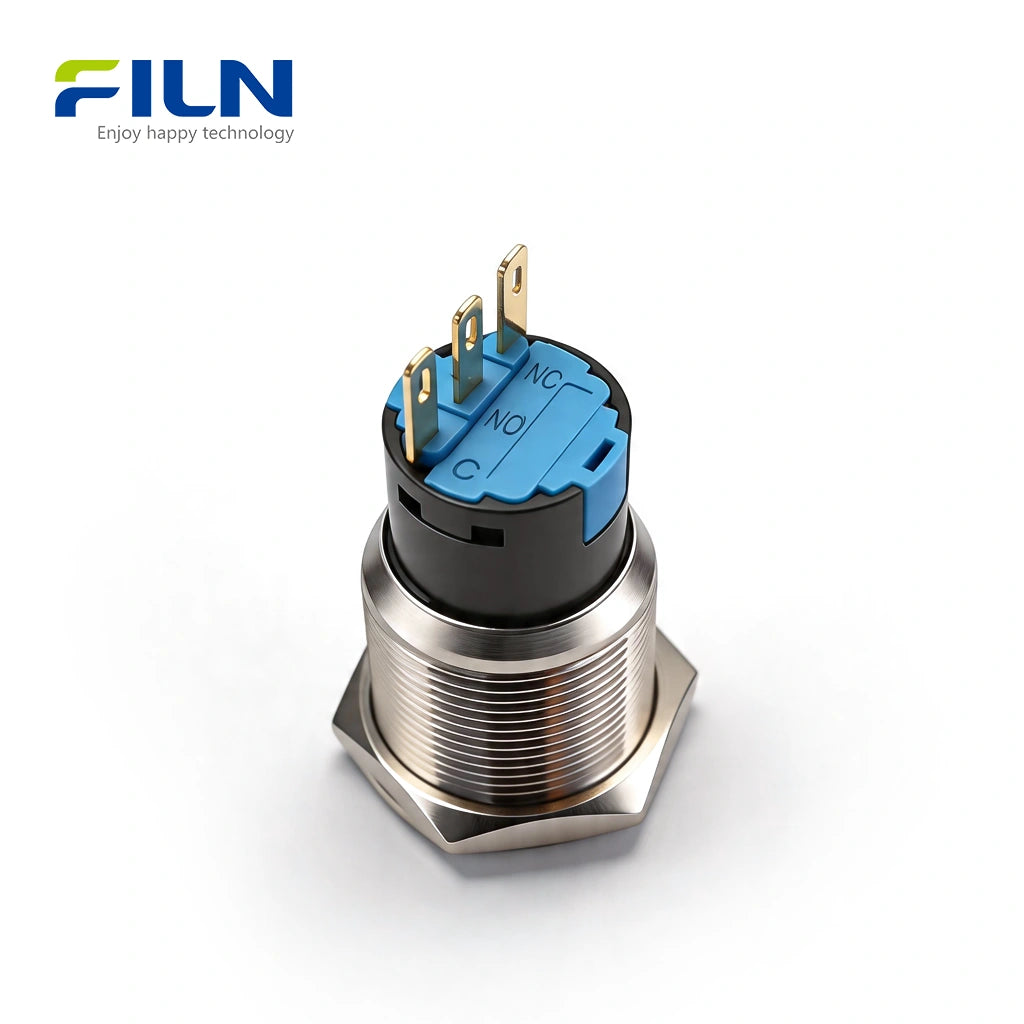

A 3-PIN switch consists of a Common (C), Normally Open (NO), and Normally Closed (NC) terminal. Use these connections to control the circuit state via the key.
- C (Common): Power input terminal.
- NO (Normally Open): Connects only when the key is turned to the ON position.
- NC (Normally Closed): Disconnects when the key is turned.
Method 1: Normally Open (NO) Connection
Logic: Device stays OFF by default and turns ON only when the key is rotated.
- Wiring: Power (+) to C, Device (+) to NO.
- Applications: Machinery start, secure ignition.
Method 2: Normally Closed (NC) Connection
Logic: Device stays ON by default and turns OFF when the key is rotated.
- Wiring: Power (+) to C, Device (+) to NC.
- Applications: Emergency stops, security lockout.
Industry Knowledge
1. What is a 19mm Key Push Button Switch?
A 19mm-key-lock-switch-wiring setup is used for high-security environments. It functions as a rotary selector but requires a physical key. This is essential for industrial-panel-mount-key-switch needs where only authorized personnel should toggle power to hazardous or sensitive machinery.
2. Comparison: Key Switch vs. Regular Push Button
| Feature | Standard Push Button | FILN Key Switch |
|---|---|---|
| Security | Low (Anyone can press) | High (Requires physical key) |
| Functions | Momentary/Latching | 2-Position (ON/OFF) |
| Installation | Threaded Mount | Threaded Mount (M19) |
| Durability | Standard | Enhanced Mechanical Stability |
Factory Direct Supply
FILN is a professional manufacturer offering high-security metal key switch solutions with the following benefits:
- No MOQ (Start with 1 piece)
- Fast Global Shipping
- CE / RoHS / UL Certified
- Voltage Customization
- Wire Length Customization
- Connector Customization
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
Q1: Is this 19mm key switch waterproof?
Yes, it has an IP65 rating, making it a waterproof-key-actuated-switch-ip65 suitable for outdoor or wet environments.
Yes, it has an IP65 rating, making it a waterproof-key-actuated-switch-ip65 suitable for outdoor or wet environments.
Q2: Does the 3-pin version come with an LED indicator?
This specific model (FLM19-KJ-1) is non-illuminated. If you need a 4-pin or 5-pin LED version, please contact our factory.
This specific model (FLM19-KJ-1) is non-illuminated. If you need a 4-pin or 5-pin LED version, please contact our factory.
Q3: What material is used for the keys?
The keys are typically made of durable brass with a nickel coating for corrosion resistance.
The keys are typically made of durable brass with a nickel coating for corrosion resistance.
Q4: Can I use this for 220V AC systems?
Absolutely. It is rated for up to 250V AC with a 5A load capacity.
Absolutely. It is rated for up to 250V AC with a 5A load capacity.
Q5: Can the key be removed in both positions?
Standard models allow key removal in both the ON and OFF positions for security.
Standard models allow key removal in both the ON and OFF positions for security.
Q6: How many pins does this key switch have?
It features a 19mm-3-pin-terminal-key-switch configuration (Common, NO, NC).
It features a 19mm-3-pin-terminal-key-switch configuration (Common, NO, NC).
Q7: Is the 304 stainless steel shell corrosion resistant?
Yes, the stainless-steel-rotary-key-switch is perfect for medical and marine industries.
Yes, the stainless-steel-rotary-key-switch is perfect for medical and marine industries.
Q8: Can FILN customize the wire harness?
Yes, we offer wire length and connector customization for easy 19mm-key-lock-switch-wiring.
Yes, we offer wire length and connector customization for easy 19mm-key-lock-switch-wiring.
Q9: What is the mechanical life of this switch?
It is designed for up to 500,000 cycles, ensuring long-term industrial reliability.
It is designed for up to 500,000 cycles, ensuring long-term industrial reliability.
Q10: Does this switch have a momentary function?
No, this model is a 2-position fixed switch. For momentary key switches, please inquire about custom production.
No, this model is a 2-position fixed switch. For momentary key switches, please inquire about custom production.
