What is a Junction Box Electric with Rocker Switch?

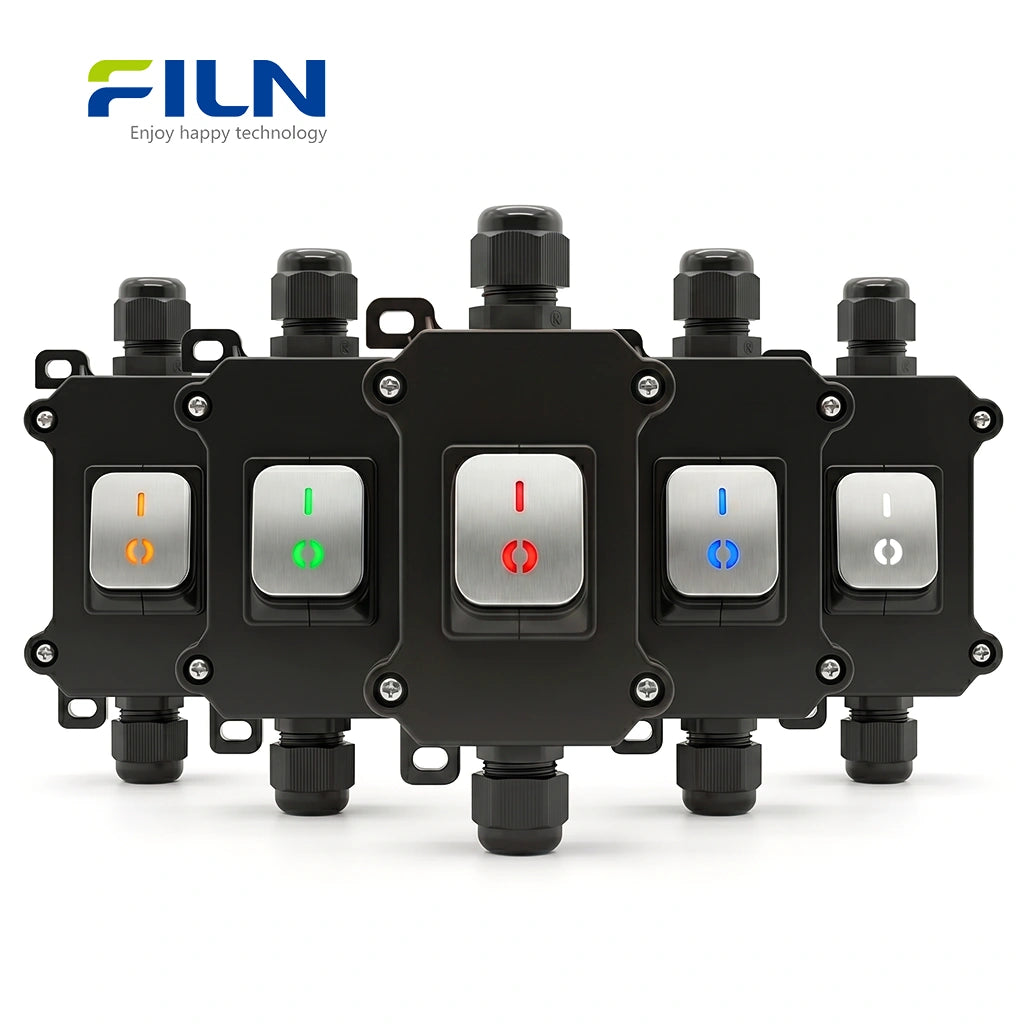

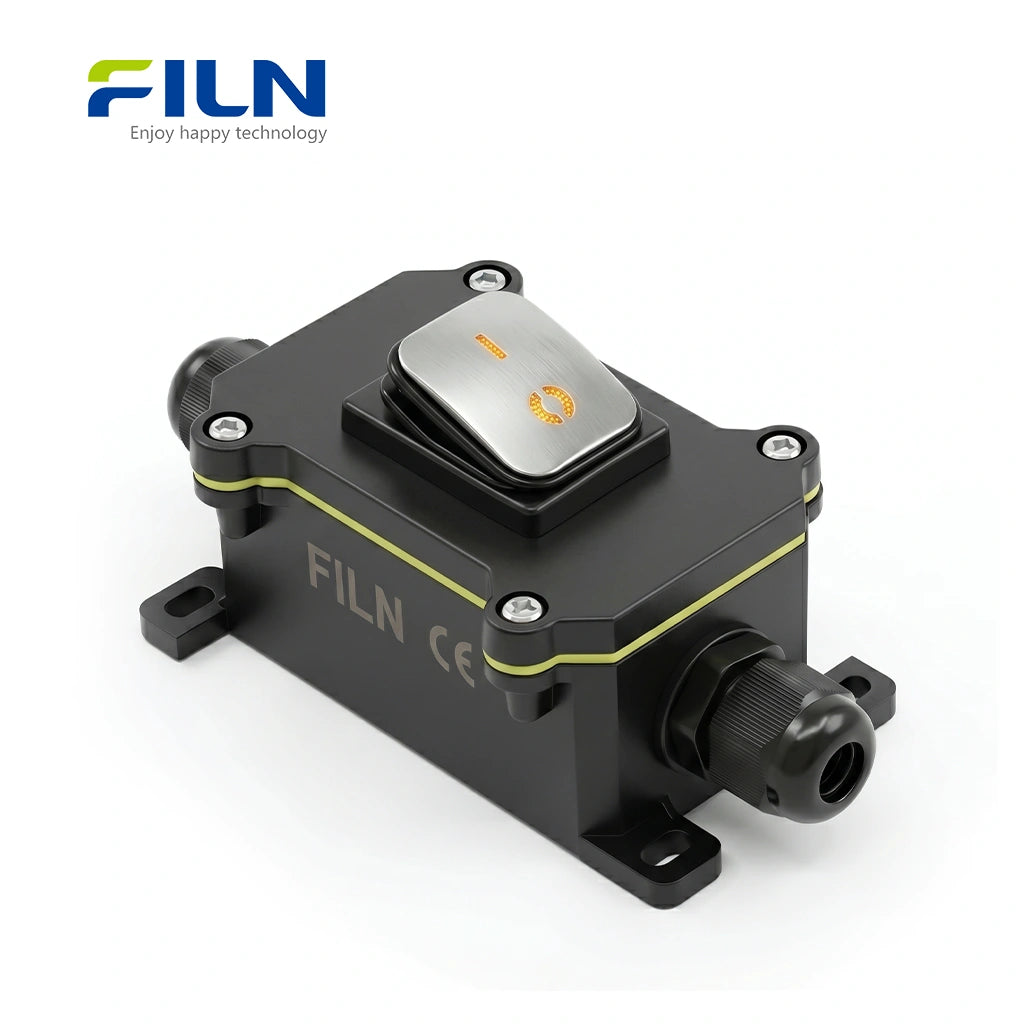

A junction box electric unit integrated with a rocker switch is a specialized protective enclosure designed to house electrical connections and provide a manual control interface. The WB1-2T-D401-0324-21 model specifically features a KCD4 rocker switch mounted on a durable housing, protecting internal wiring from environmental hazards such as moisture, dust, and physical impact. This configuration is essential for industrial and outdoor applications where high-current switching (up to 30A) and environmental sealing are required.
Product Overview
The FILN junction box electric series utilizes the industry-standard KCD4 rocker switch, known for its high-performance 30A 250VAC rating and stainless steel metal face button. This product is engineered for heavy-duty environments, featuring ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications. The rectangular yacht switch design fits a 22x30mm mounting hole and provides a bright LED indicator for status visibility in dark environments. Ideal for marine, industrial machinery, and outdoor power distribution, this unit ensures a secure 4-pin screw terminal connection for maximum reliability.
Quick Specifications
| Model Number | WB1-2T-D401-0324-21 |
|---|---|

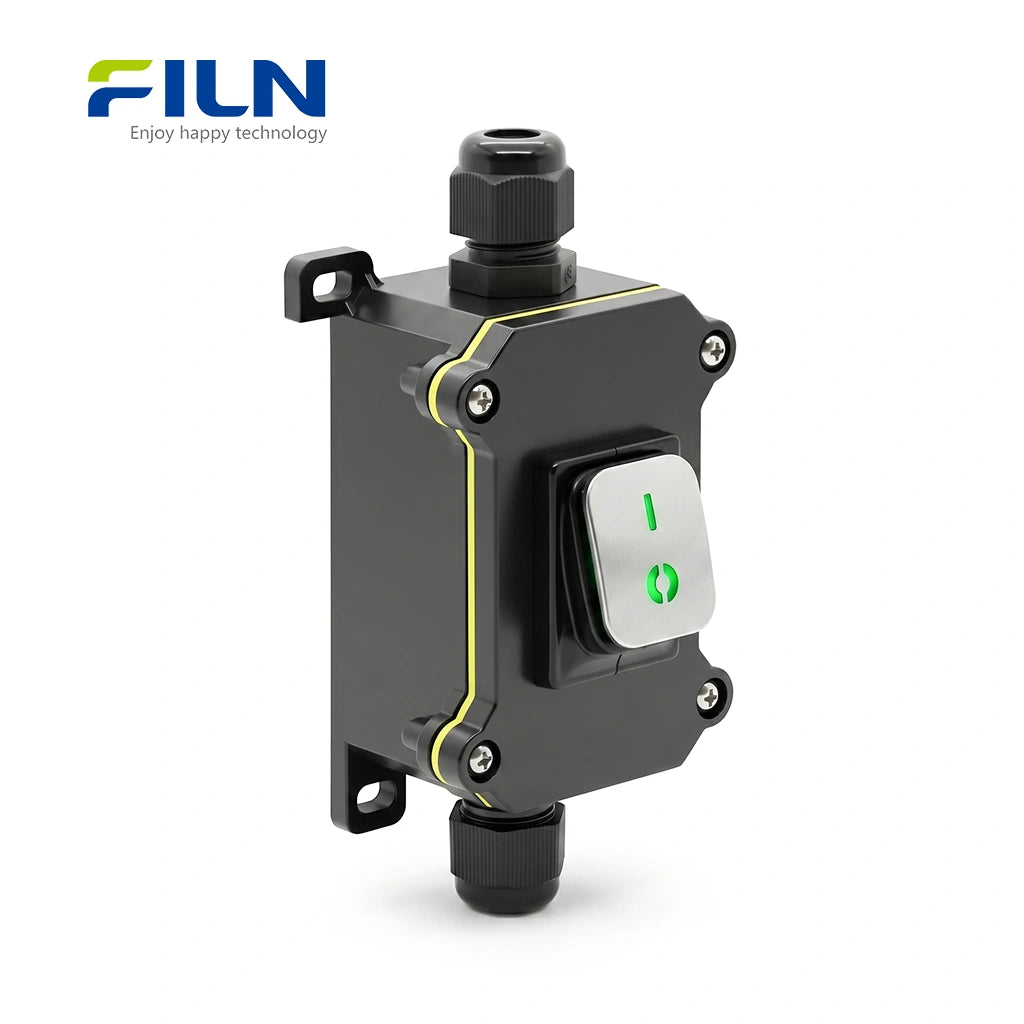

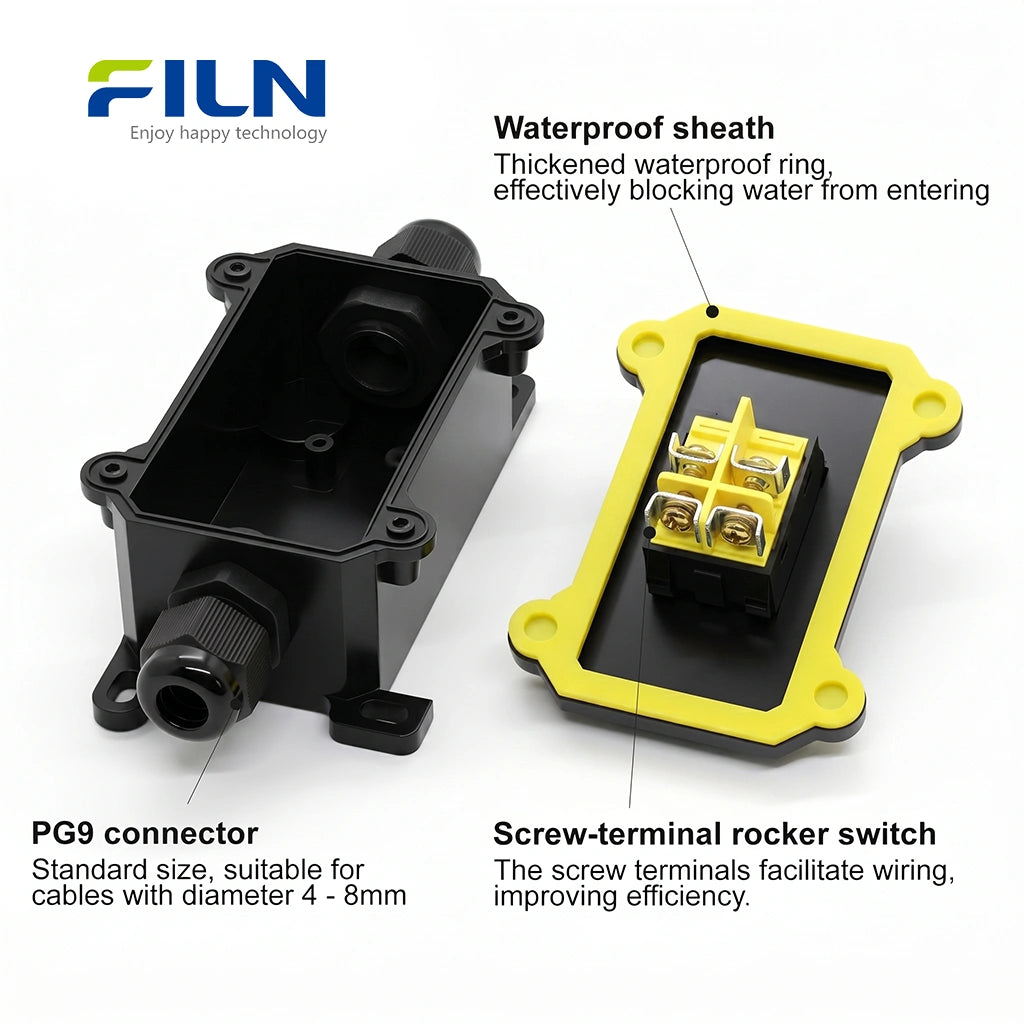

| Waterproof Connector | PG9 |
| Wiring Configuration | Line-in / Line-out (L-in, L-out) |
| Mounting Size | 22 x 30 mm (0.86 x 1.18 inch) |
| Switch Function | ON-OFF (2-Position) |
| LED Colors | R / G / Y / B / W |
| Terminal Type | 4-PIN Screw Terminals |
Performance Parameters
| Rated Voltage/Current | 30A 250VAC / 18(12)A 125VAC |
|---|---|
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Electrical Endurance | 10,000 Cycles |
| Protection Degree | IP65 |
| Certifications | UL, CE, VDE, RoHS, SGS |
Component Materials
| Accessories Name | Material |
|---|---|
| Transparent Sheet / Light Guide | PC |
| Holder / Up Base / Middle Base | ABS |
| Bottom Base | PA66 |
| Waterproof Cover / Washer | Rubber |
| Pin / Spring Board | Brass H62 |
| Contact Points | AgCdO12 (Silver Alloy) |
| Light Source | High-Brightness LED |
General & Environmental Characteristics
| Operating Temp | -40℃ to +125℃ |
|---|---|
| Atmospheric Conditions | 86–106Kpa, 45%–85% RH |
| Mechanical Life | 20,000 Operations (No Load) |
| Solderability | 235±5℃ for 3s (>90% coverage) |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
How to Install and Wire a KCD4 Rocker Switch in a Waterproof Junction Box
1. Installing the KCD4 Rocker Switch into the Panel
The KCD4 rocker switch is designed for quick panel mounting with a secure snap-in structure. Follow these steps to properly install the switch into your waterproof junction box panel:
- Locate the standard 22×30mm cut-out on the junction box panel.
- Align the rocker switch with the opening, ensuring correct orientation (ON/OFF marking direction).
- Press the switch firmly into the cut-out until the side retaining clips snap into place.
- Check that the switch sits flush with the panel and does not move or loosen.
This snap-fit design ensures a stable installation without additional screws, making it ideal for industrial and DIY electrical applications.
2. Wiring the 4-Pin Screw Terminal Rocker Switch
This 4-pin KCD4 rocker switch uses screw terminals for secure and reliable electrical connections. It is suitable for AC power control, appliances, and equipment requiring stable current transmission.
- Insert the electrical wires through the PG9 waterproof cable gland before wiring.
- Strip approximately 5–7mm of insulation from each wire to expose the conductor.
- Loosen the screw terminals using a screwdriver.
- Wrap or insert the exposed wire firmly around the metal terminal post.
- Tighten each screw securely to ensure strong electrical contact and vibration resistance.
- Double-check wiring configuration (Line/Load) according to your circuit requirements.
The screw terminal design provides excellent conductivity and is safer than push-fit connections, especially in high-load or outdoor environments.

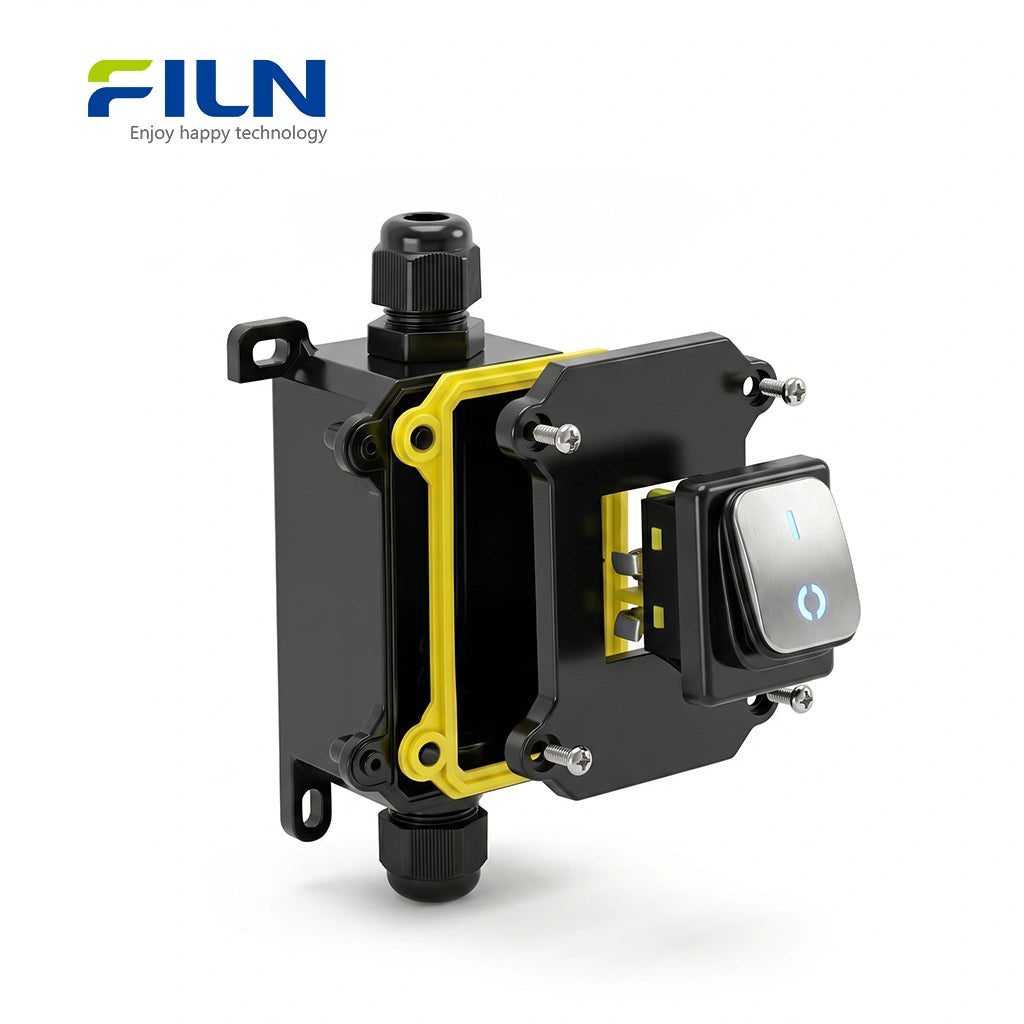

3. Assembling the Waterproof Junction Box (IP65)
After installing and wiring the rocker switch, complete the assembly of the waterproof junction box to ensure full protection against dust and water.
- Carefully arrange all internal wiring to avoid pinching or interference.
- Place the gasket correctly along the enclosure edge to maintain waterproof sealing.
- Close the junction box lid securely.
- Tighten all enclosure screws evenly to ensure uniform pressure on the seal.
- Firmly tighten the PG9 cable gland nut to compress the sealing ring around the cable.
- Verify that the enclosure meets IP65 waterproof standards with no visible gaps.
Proper assembly is critical to ensure long-term durability, especially in outdoor, humid, or industrial environments.
Industry Knowledge: How Junction Boxes Work
A junction box electric enclosure serves as the critical nexus for electrical distribution. It functions by isolating electrical connections from the external environment, preventing short circuits caused by moisture or dust. The mechanical principle of the integrated KCD4 rocker switch relies on a "rocking" actuator that pivots on a central point to bridge or break the contact between the silver alloy terminals. In high-current industrial settings, the use of 4-pin screw terminals is preferred over spade terminals to prevent vibration-induced loosening, ensuring a stable 30A flow without overheating.
FILN Factory Direct Supply
FILN is a leading manufacturer specializing in industrial switches and enclosures. We offer:
- ✅ No MOQ: Small orders welcome for testing and prototyping.
- ✅ Customization: Voltage (5V-220V), wire length, and connector types.
- ✅ Global Shipping: Fast delivery with CE/RoHS compliance.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
KCD4 Rocker Switch & Junction Box FAQ
Q: What is a KCD4 rocker switch 4-pin screw terminal?
A: A KCD4 rocker switch is a high-current (30A) industrial switch featuring 4-pin screw terminals for secure wiring in electrical enclosures.
Q: Is the junction box electric IP65 waterproof?
A: Yes, it features an IP65 rating, ensuring protection against dust ingress and low-pressure water jets from any direction.
Q: What are the common functions of a 2-position rocker switch?
A: The standard function is ON-OFF, allowing simple power control for connected devices.
Q: Can I customize the LED voltage for the illuminated KCD4 switch?
A: Yes, we provide 5V, 12V, 24V, 110V, and 220V options to suit various power systems.
Q: What mounting size is required for the KCD4 rocker switch?
A: It requires a standard 22x30mm (0.86 x 1.18 inch) rectangular cutout.
Q: What material is used for the KCD4 switch contacts?
A: We use AgCdO12 silver alloy contacts for maximum conductivity and durability up to 10,000 electrical cycles.
Q: How do you install a snap-in KCD4 rocker switch?
A: Simply align the switch with the 22x30mm hole and press down; the side clips will lock it into the panel automatically.
Q: What certifications does the FILN junction box have?
A: All components are certified with UL, CE, VDE, and RoHS for international compliance.
Q: Why use screw terminals instead of quick-connect terminals?
A: Screw terminals are ideal for heavy-gauge wire and high-vibration environments where a spade connector might slip off.
Q: What is the difference between red, green, and blue LED rocker switches?
A: The function remains the same; color choices are primarily for user preference or to differentiate between multiple control circuits.
