What is a Junction Box Electric with Rocker Switch?
A junction box electric is a protective enclosure designed to house electrical connections and control devices like the KCD4 rocker switch. It serves as a central hub for wiring, shielding internal components from environmental factors such as moisture, dust, and physical impact. The integrated 30A high current rocker switch allows users to manually open or close a circuit with a rocking motion, providing a reliable interface for high-power industrial and marine applications.
Product Overview

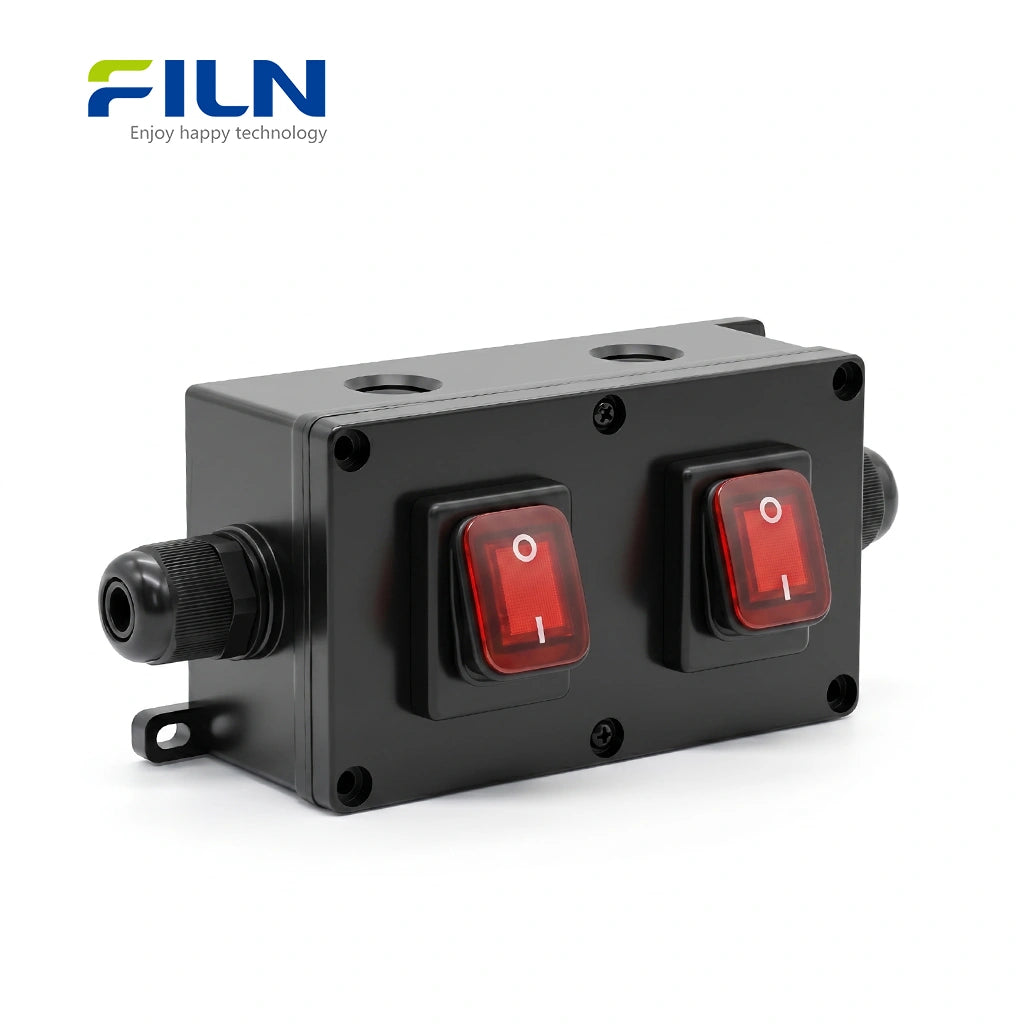

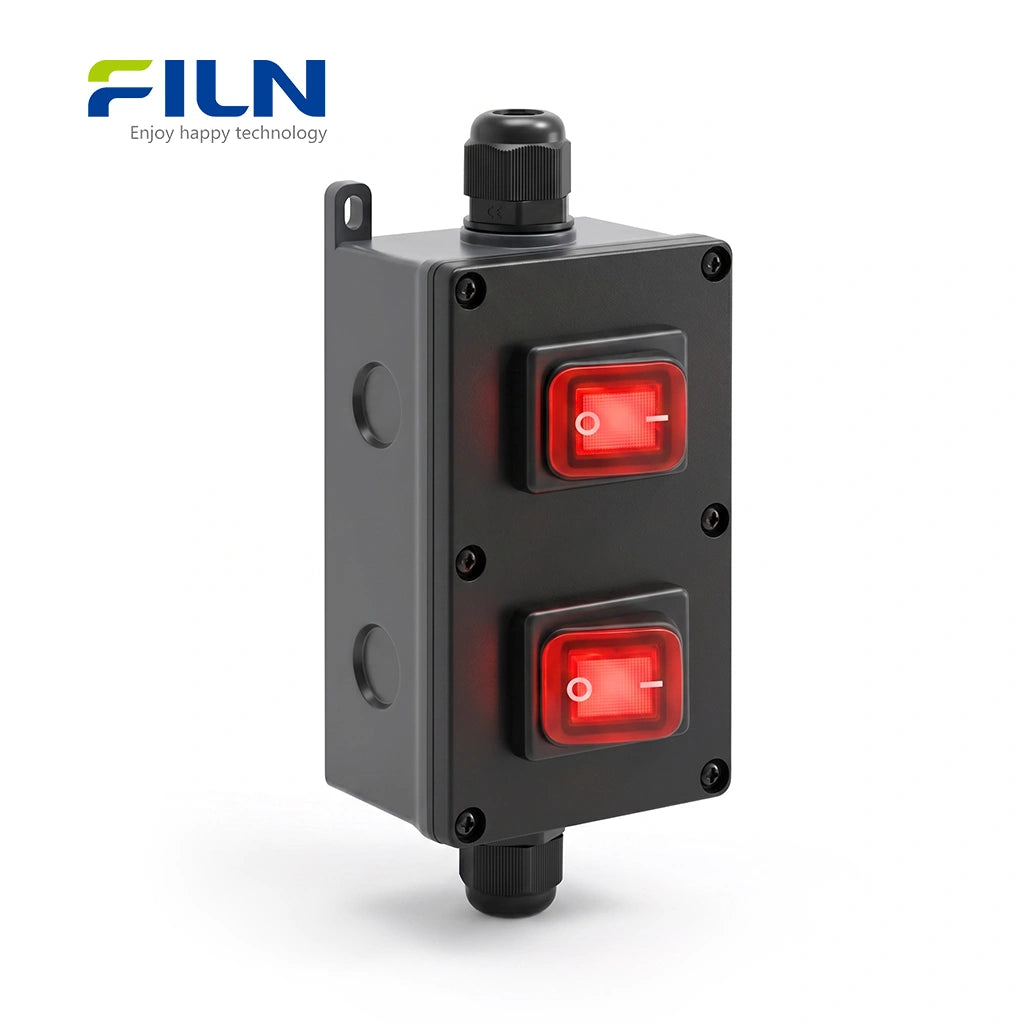

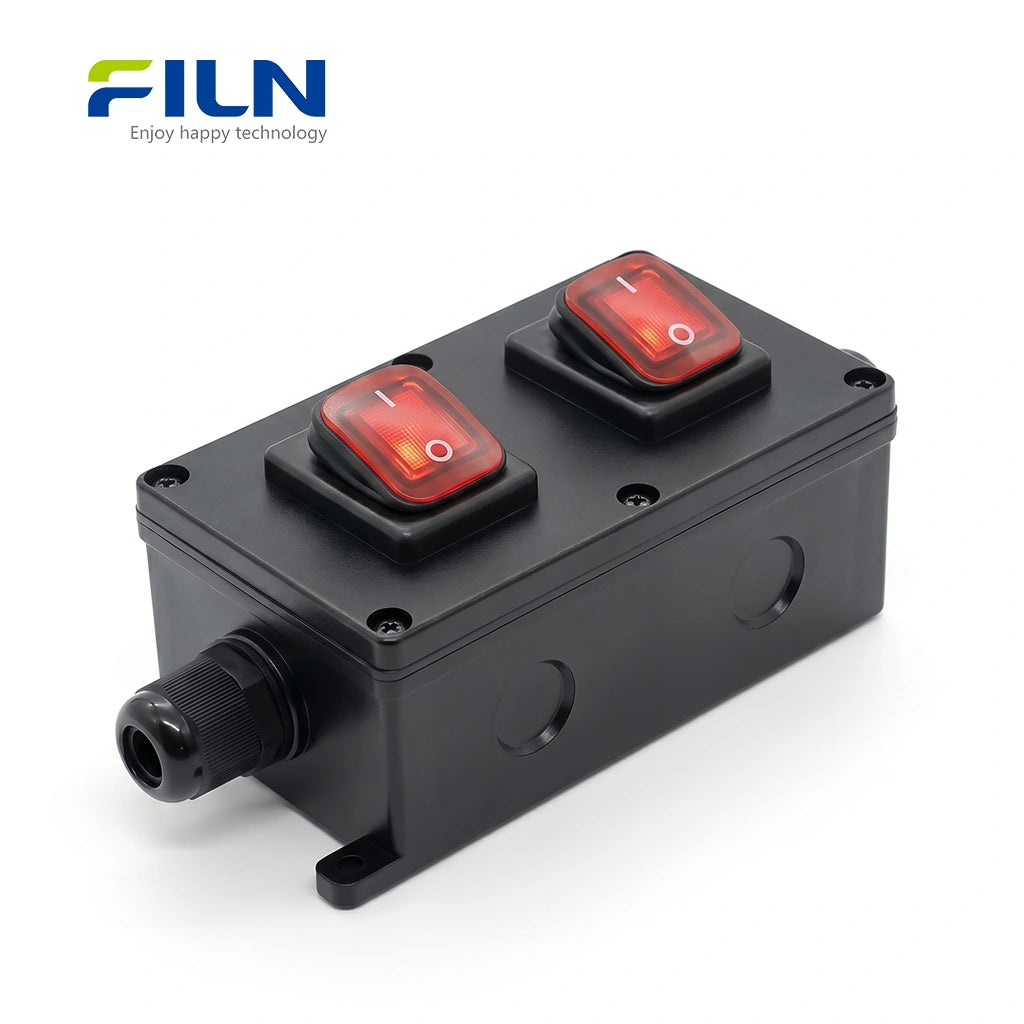

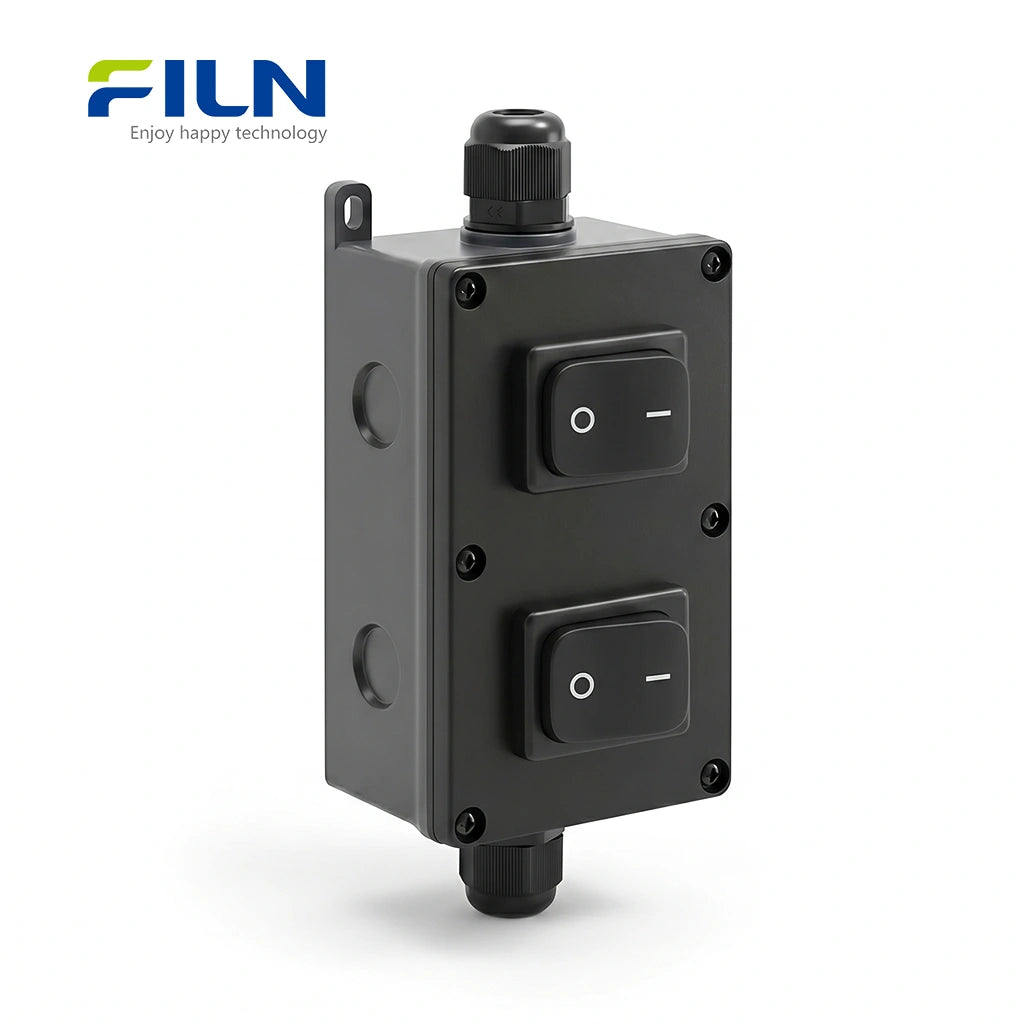

The WB3-2T-2D401 is a premium double switch weatherproof enclosure engineered for demanding environments. This junction box electric features two kcd4 illuminated power switches with a 22x30mm panel mount size. Built by the FILN factory, it carries certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Designed for 30A high current loads, it is ideal for marine-grade rocker switch panel setups and outdoor electrical switch box requirements. The transparent plastic surface ensures the LED indicator is visible even in bright conditions, making it a top-tier industrial control enclosure box.
Quick Specifications
| Model Number | WB3-2T-2D401 |
|---|---|

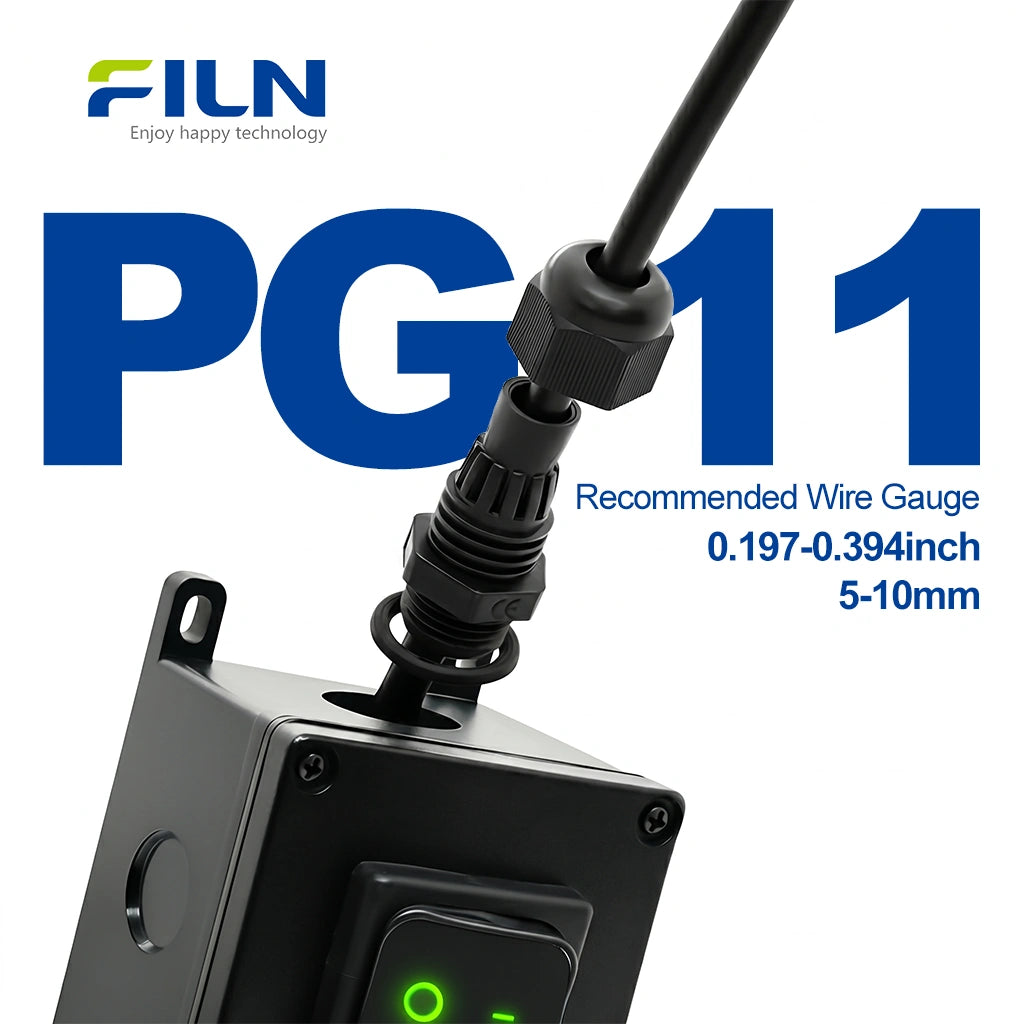

| Waterproof Connector | PG11 Cable Gland |
| Wiring Configuration | Line-in / Line-out (L-in, L-out) |
| Switch Function | ON-OFF (2 Positions) |

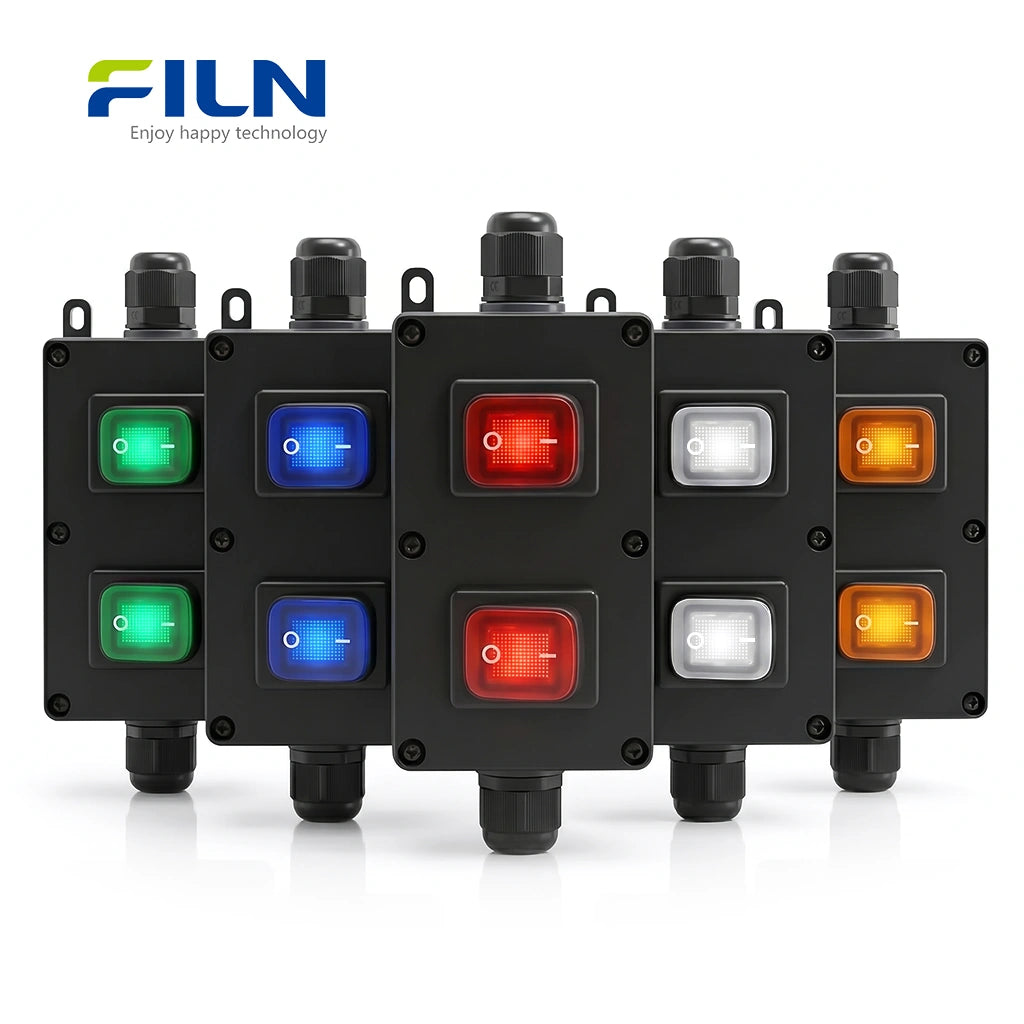

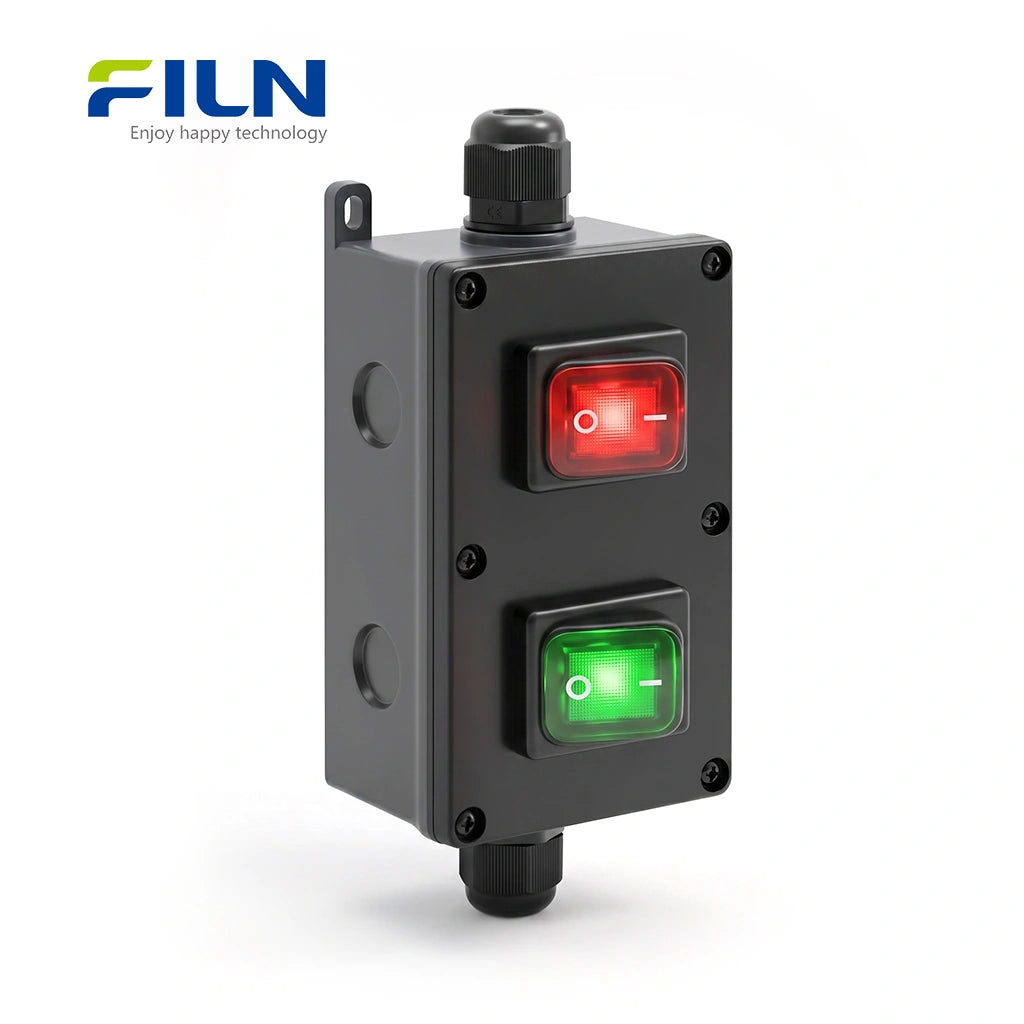

| LED Colors Available | Red, Green, Yellow, Blue, White,Black |
| Termination Type | 4PIN Screw Terminals |
Electrical Performance Parameters
| Rated Voltage/Current | 30A 250VAC / 18(12)A 125VAC |
|---|---|
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Protection Degree | IP65 |
| Certification | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Part Name | Material |
|---|---|
| Transparent Sheet | PC |
| Housing (Base/Up) | ABS / PA66 |
| Terminals | Brass H62 |
| Contacts | Silver Alloy (AgCdO12) |
| Seal/Washer | NBR Rubber |
General Characteristics
| Operating Temp | -40℃ to +125℃ |
|---|---|
| Relative Humidity | 45% to 85% RH |
| Air Pressure | 86 to 106 Kpa |
Rocker Switch Function Configuration Guide
| Function Type | Mechanism Description | Common Application |
|---|---|---|
| ON-OFF (Latching) | Stays in the selected position (Standard). | Power tools, lighting. |
| (ON)-OFF (Momentary) | Springs back to OFF after pressing. | Horn, reset buttons. |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Applications
- Outdoor Lighting: Control for landscaping, lawn lights, and fountain pumps.
- RV & Marine: Bilge pump control and 12V/24V power distribution in saltwater environments.
- Industrial Machinery: Emergency stop or power toggles for high-pressure washers and conveyors.
- Agriculture: Ventilation fans and irrigation solenoids in high-humidity greenhouses.
How to Install and Wire a Junction Box Electric
- Locate the standard 22×30mm cut-out on the junction box panel.
- Align the rocker switch with the opening, ensuring correct orientation (ON/OFF marking direction).
- Press the switch firmly into the cut-out until the side retaining clips snap into place.
- Check that the switch sits flush with the panel and does not move or loosen.
- Insert the electrical wires through the PG11 waterproof cable gland before wiring.
- Strip approximately 5–7mm of insulation from each wire to expose the conductor.
- Loosen the screw terminals using a screwdriver.
- Wrap or insert the exposed wire firmly around the metal terminal post.
- Tighten each screw securely to ensure strong electrical contact and vibration resistance.
- Double-check wiring configuration (Line/Load) according to your circuit requirements.
- Carefully arrange all internal wiring to avoid pinching or interference.
- Place the gasket correctly along the enclosure edge to maintain waterproof sealing.
- Close the junction box lid securely.
- Tighten all enclosure screws evenly to ensure uniform pressure on the seal.
- Firmly tighten the PG11 cable gland nut to compress the sealing ring around the cable.
- Verify that the enclosure meets IP65 waterproof standards with no visible gaps.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
1. Installing the KCD4 Rocker Switch into the Panel
The KCD4 rocker switch is designed for quick panel mounting with a secure snap-in structure. Follow these steps to properly install the switch into your waterproof junction box panel:
This snap-fit design ensures a stable installation without additional screws, making it ideal for industrial and DIY electrical applications.

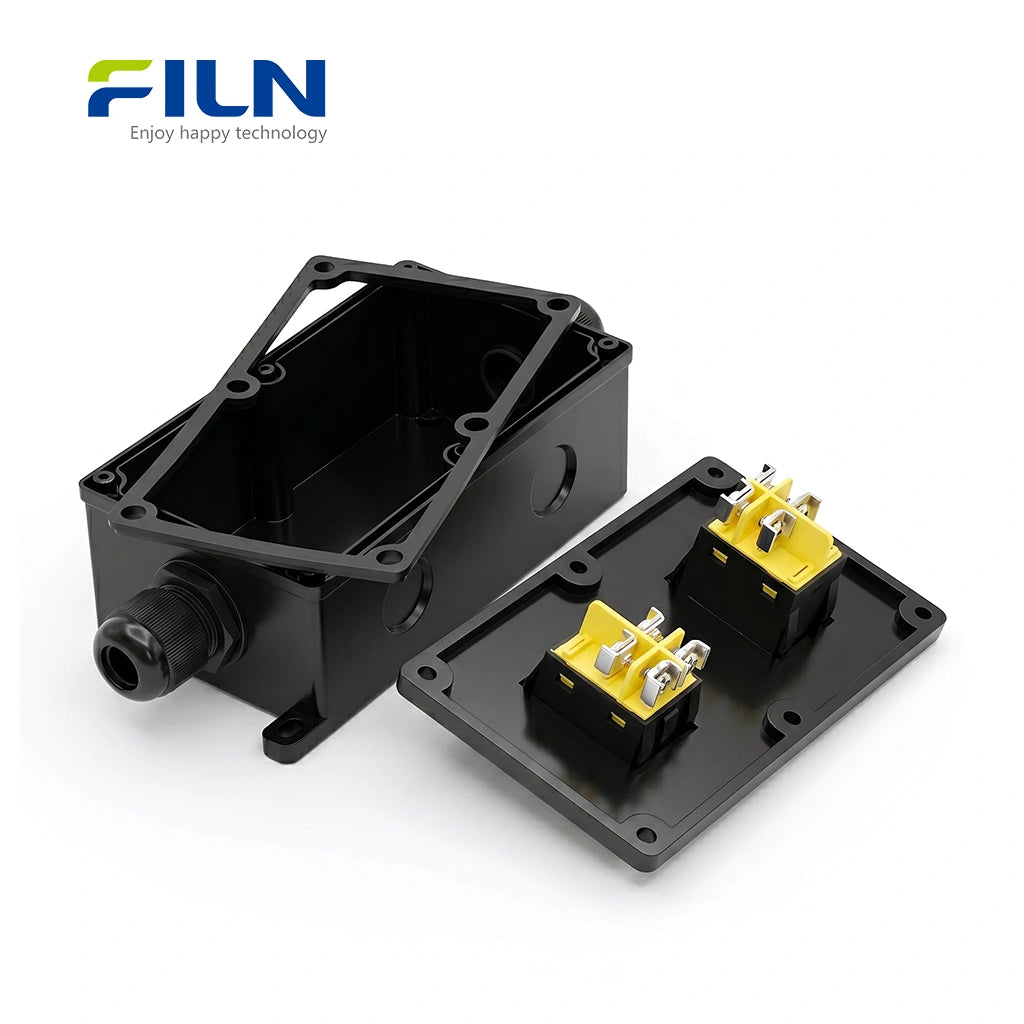

2. Wiring the 4-Pin Screw Terminal Rocker Switch
This 4-pin KCD4 rocker switch uses screw terminals for secure and reliable electrical connections. It is suitable for AC power control, appliances, and equipment requiring stable current transmission.
The screw terminal design provides excellent conductivity and is safer than push-fit connections, especially in high-load or outdoor environments.
3. Assembling the Waterproof Junction Box (IP65)
After installing and wiring the rocker switch, complete the assembly of the waterproof junction box to ensure full protection against dust and water.
Proper assembly is critical to ensure long-term durability, especially in outdoor, humid, or industrial environments.
How to Wire a Junction Box: Step-by-Step Installation Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
Industry Knowledge: How Junction Boxes Work
A junction box electric works by creating a mechanical and environmental barrier. In industrial settings, the double switch weatherproof enclosure prevents arc flashes from interacting with combustible dust or water. The screw terminal rocker switch 4pin design ensures a high-torque mechanical bond, which is vital for vibration-heavy environments like ships or factories where push-on terminals might fail over time.
FILN Factory Direct Supply
FILN is a global leader in industrial switches. We offer custom voltage junction boxes (5V-220V) and wire length customization with NO Minimum Order Quantity (MOQ).
FILN Official Website: www.filn.com
Contact Email: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. What is the standard mounting size for the KCD4 rocker switch?
The standard panel cutout size is 22x30mm.
2. Is the WB3-2T-2D401 suitable for marine use?
Yes, it features an IP65 rated enclosure and corrosion-resistant brass terminals.
3. Can I customize the LED color for the 4pin rocker switch?
Yes, we offer Red, Green, Yellow, Blue, and White LED options.
4. Does the switch handle 30A high current continuously?
Yes, it is rated for 30A at 250VAC, making it suitable for heavy-duty appliances.
5. What is the benefit of screw terminals over quick-connect terminals?
Screw terminals provide a more secure, vibration-resistant connection for industrial wiring.
6. What certifications does the FILN rocker switch hold?
Our products are CE, UL, VDE, and RoHS certified.
7. Is the junction box UV resistant?
The ABS and PC materials are designed for outdoor durability against sunlight exposure.
8. Can I order a junction box with a single switch instead of a double?
Yes, FILN offers various configurations including single and triple switch layouts.
9. What is the lead time for custom voltage orders?
Standard customization usually ships within 7-10 business days.
10. How do I ensure the IP65 rating is maintained?
Ensure the PG11 gland is tightened and the rubber gasket is properly seated before closing the box.
