Rocker Switch Drawing

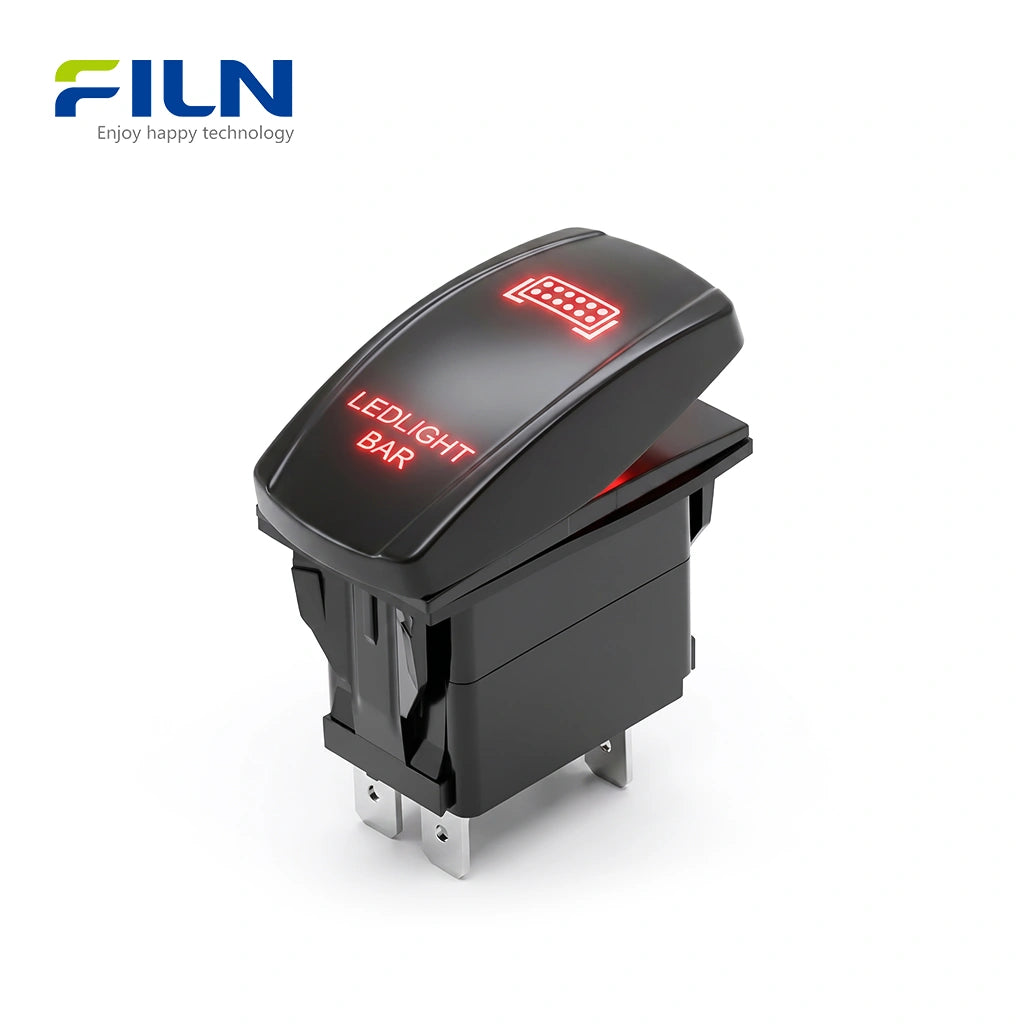

What is a Boat Rocker Switch?
A boat rocker switch is a heavy-duty electrical toggle designed specifically for marine environments, such as yachts and ships. The KCD4 series features a robust rectangular body and a SIDE LIGHTS symbol illuminated surface, allowing operators to identify functions quickly via laser-etched icons that glow when active. This 5-pin configuration is optimized for 12V-24V systems, ensuring reliable power management for bilge pumps, lighting, and navigation equipment.

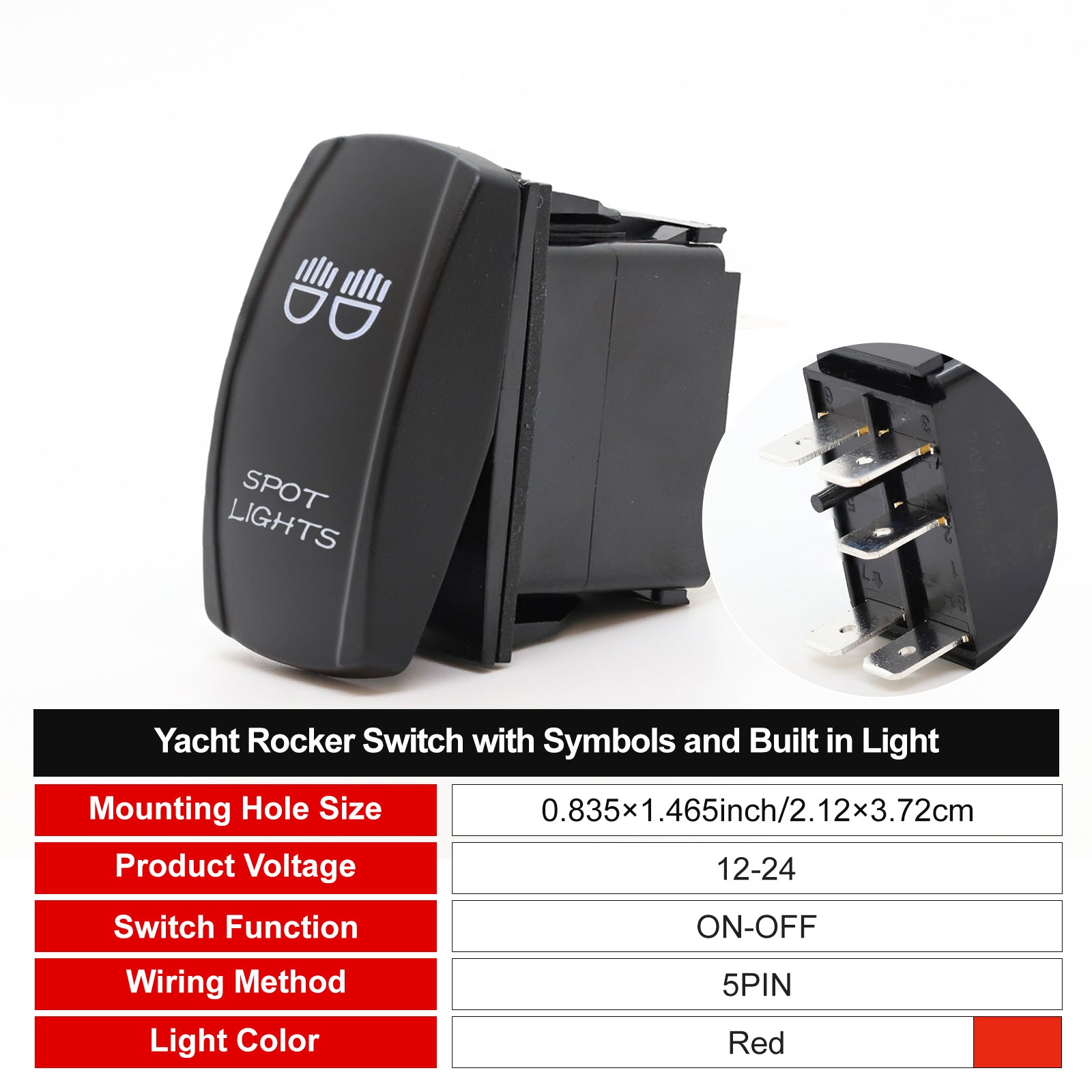

Industrial Yacht Switch Overview
The FILN FL3-KCD4-0401-21L is a premium boat rocker switch featuring a standard 1.46"×0.83" (37mm×21mm) mounting cutout. This model is distinguished by its high-quality ABS+PC black actuator surface with a SIDE LIGHTS laser-etched symbol that illuminates in a brilliant Blue Dual LED. Built for the marine industry, it offers a 2-position ON-OFF SPST function with a 5-pin terminal layout at the rear. The illuminated KCD4 design provides critical visibility in dark cabins or night-time sailing, while the smooth surface is fashionable and easy to clean, resisting salt spray and industrial grime.
Guide to 2-Position Switch Functions
| Function Type | Circuit Logic | Typical Yacht Usage |
|---|---|---|
| Latching ON-OFF | Stays in the pressed position. | Side lights, cabin lighting, navigation lights, and GPS systems. |
| Momentary (ON)-OFF | Springs back to OFF when released. | Boat horns, anchor winches, or engine starters. |

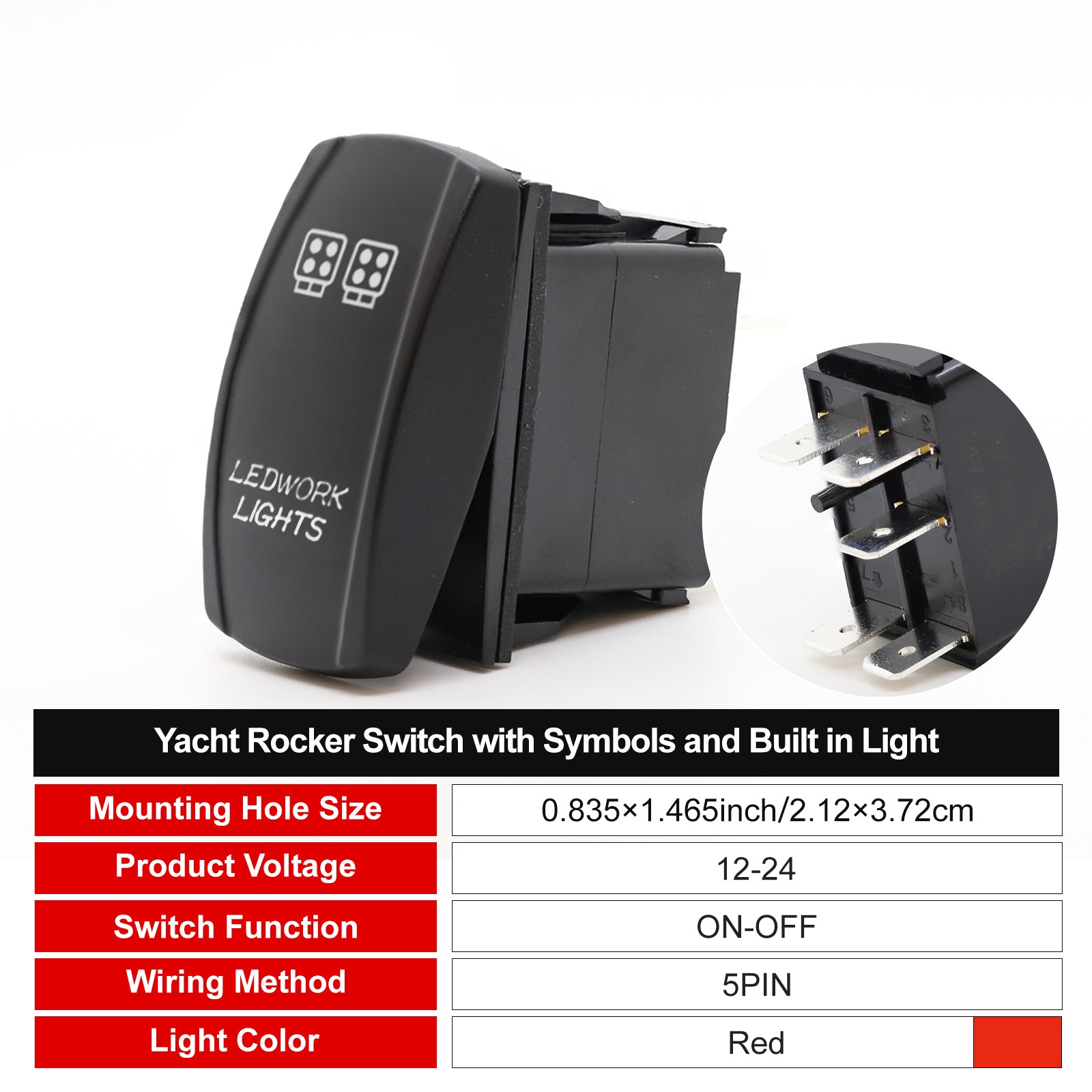

Technical Specifications
| Actuator Symbol | SIDE LIGHTS |
| Material | ABS + PC |
| Panel Cutout Size | 1.46" × 0.83" (37mm × 21mm) |
| Switch Function | ON-OFF SPST (2-Position) |
| Terminal Configuration | 5 PIN Terminals (Quick Connect 6.3mm×0.8mm) |
| LED Configuration | Blue/Red |
| Voltage & Rating | 20A 12VDC; 10A 24VDC |
| Protection Grade | Waterproof IP65 for Marine Use |
| Included Wiring | 134mm Wire (2×14AWG and 1×18AWG) |
| Service Life | Over 10,000 Electrical Cycles |

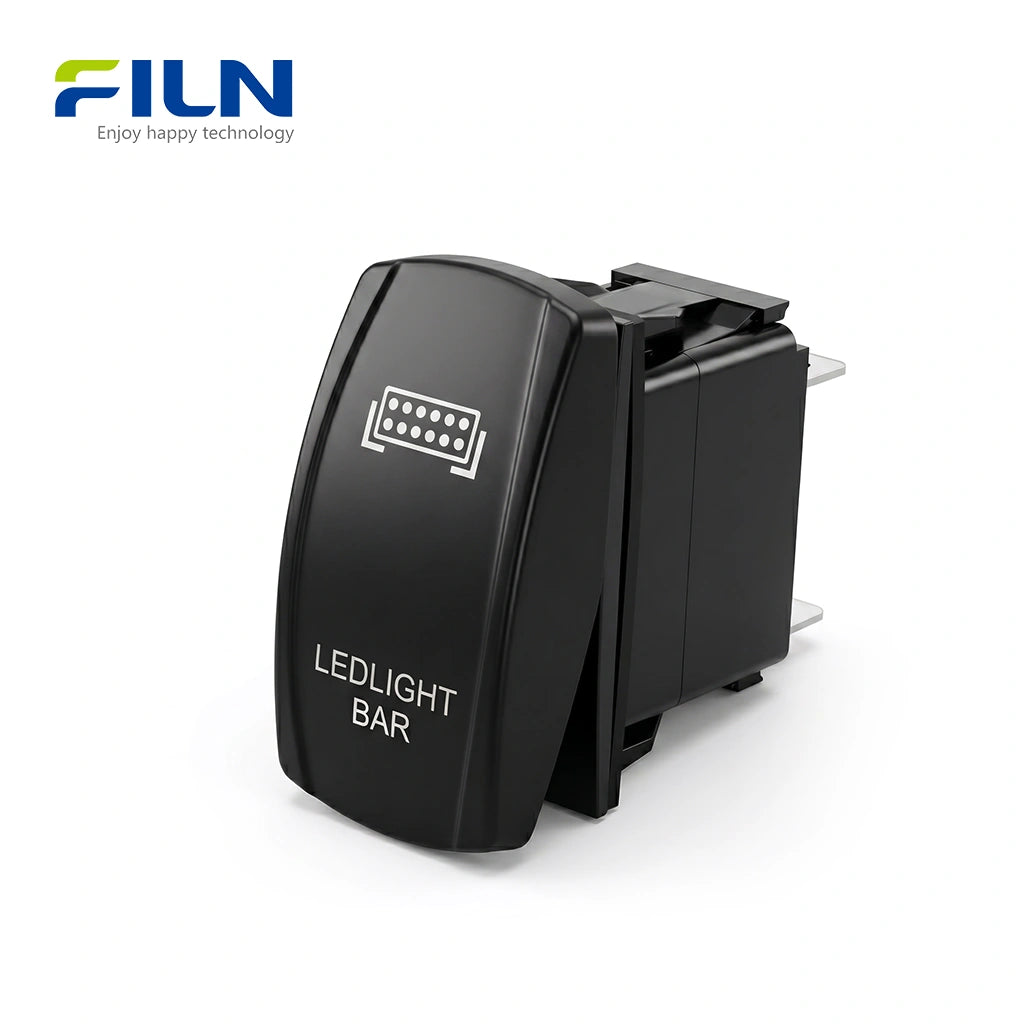

Details: Internal Switch Mechanism
This rocker switch is made from high-quality ABS and PC materials and features a strong internal mechanism designed for long-lasting performance. It has been tested to endure 10,000 presses during normal use, ensuring reliable and consistent operation for your accessories.
Professional Installation Steps
- Cutout Preparation: Create a 37mm x 21mm (1.46" x 0.83") rectangular hole in the yacht's dashboard.
- Switch Positioning: Align the switch actuator with the "SIDE LIGHTS" symbol facing the desired orientation.

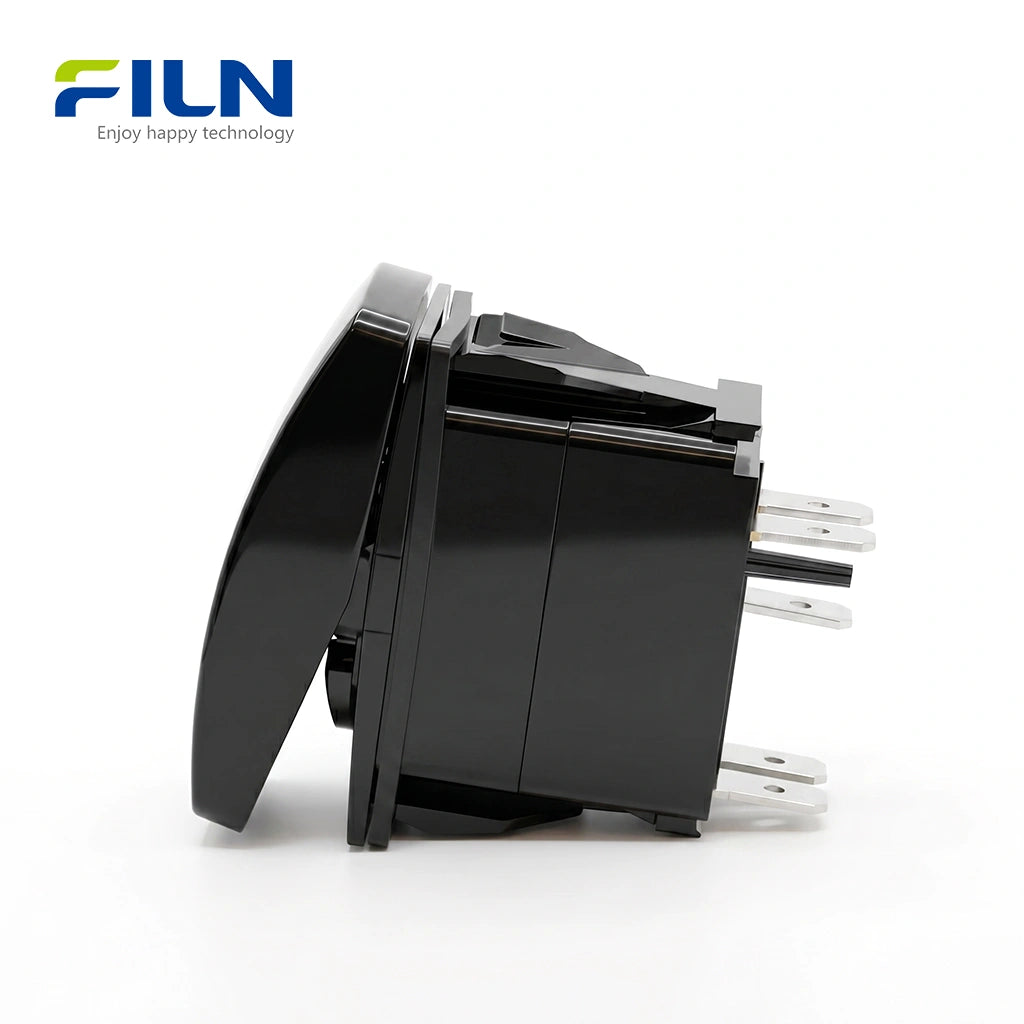

- Snap-In Mounting: Push the switch body into the hole from the front. The side-mounted dual clips will lock the switch firmly.
- Wiring: Connect your wires to the 5-pin terminals. Use the provided 14AWG wires for high-current paths.
Professional 5 Pin Rocker Switch Wiring Diagram Guide

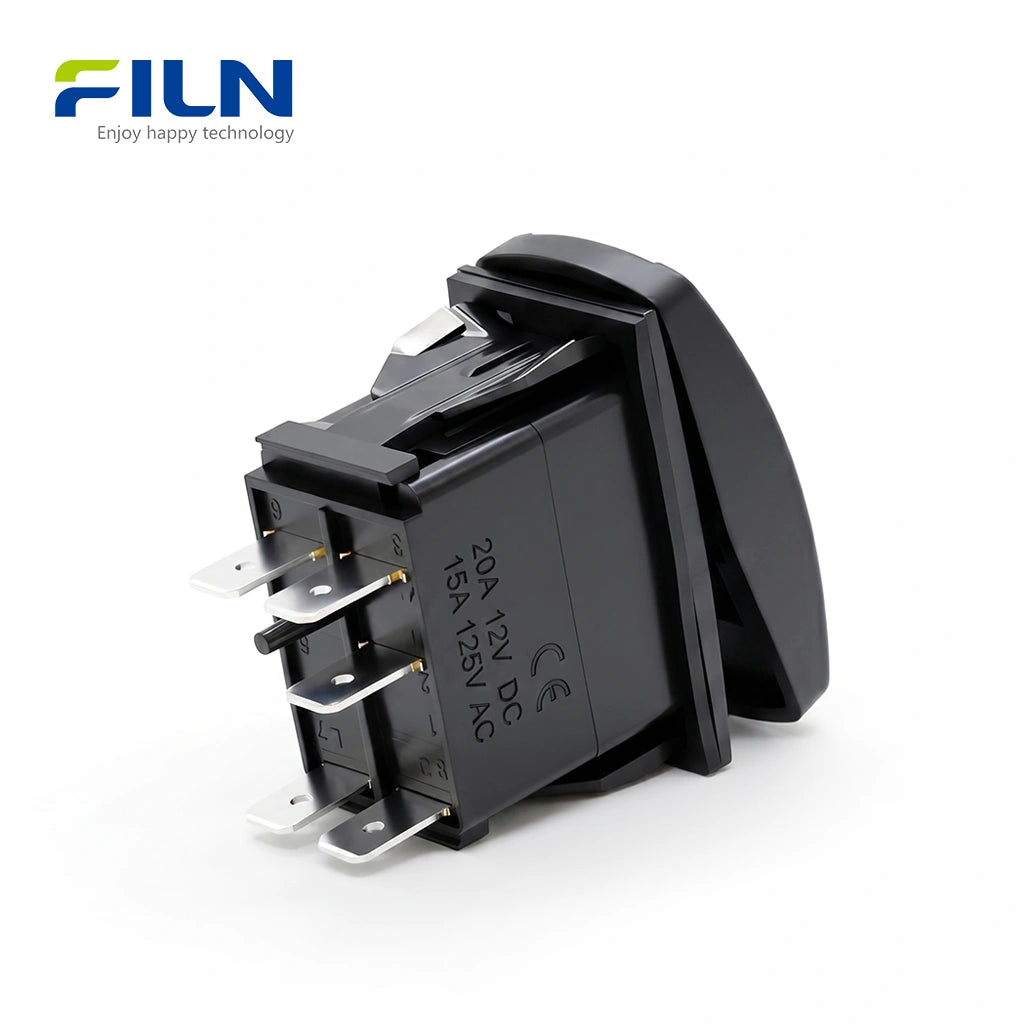

A 5-pin rocker switch is a versatile Single Pole Double Throw (SPDT) switch commonly used in marine and automotive applications. It features built-in LEDs that can be configured to act as status indicators or dashboard backlights. Below is the technical breakdown of the pin layout and the two primary wiring methods.
Pin Terminal Layout Definitions:
- Pin 2: Main Power Input (+)
- Pin 3: Load Output to Device (+)
- Pin 6: Positive Terminal for LED Indicator (+)
- Pin 7: Ground Terminal for LED (-)
- Pin 8: Jumper Terminal (Commonly jumped to Pin 7 for dual LED grounding)
Option 1: Light On with Switch
In this configuration, the switch LED only illuminates when the connected device is powered ON. This is ideal for identifying active loads.
- Connect the Power (+) source to Pin 2.
- Connect Pin 3 to the positive terminal of your device.
- Bridge Pin 6 to Pin 3. This ensures the LED only receives power when the switch is closed.
- Connect Pin 7 to the Negative/Ground (-) terminal.
- Jump Pin 8 to Pin 7 to complete the internal LED circuit.
Option 2: Constant Background Light
The LED remains illuminated as long as the battery is connected. This is perfect for "Background Lighting" to locate switches in total darkness.
- Connect the Power (+) source to Pin 2.
- Connect Pin 3 to the positive terminal of your device.
- Bridge Pin 6 to Pin 2. This provides the LED with constant power regardless of switch position.
- Connect Pin 7 to the Negative/Ground (-) terminal.
- Jump Pin 8 to Pin 7 to ensure both internal icons have a ground path.
Technical Note: Always use a 14-16 AWG wire for high-current accessories and ensure an inline fuse is installed between the power source and Pin 2 for maximum safety compliance (UL/CE standards).
Global Marine Solutions
FILN switches are used globally in the production of yachts, speedboats, and commercial ships. Our switches are designed to control power for any onboard electrical device.
- No MOQ for Standard Models

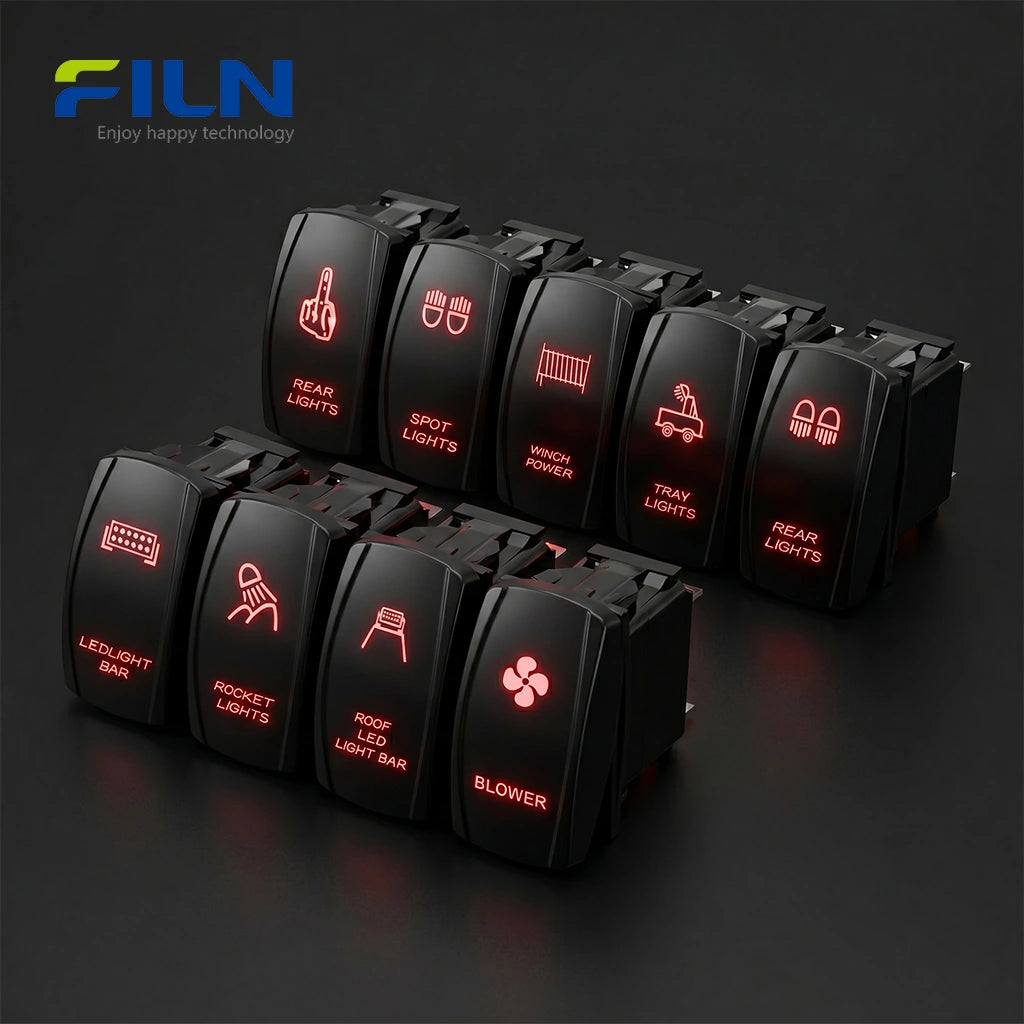

- Custom Laser Etching Available
- Voltage Support: 12V, 24V, 110V, 220V
- CE / UL / ISO9001 Certified
- Fast Global Shipping
Frequently Asked Questions (FAQ)
Q1: Why does this boat rocker switch have 5 pins?
A: The 5-pin configuration allows for independent control of the dual LEDs and load grounding, supporting different lighting logic (Sync vs. Constant).
Q2: Is the 37mm x 21mm size compatible with standard marine panels?
A: Yes, the 1.46"x0.83" cutout is a global standard for professional yacht dashboards.
Q3: Can I order a specific symbol for my boat's bilge pump?

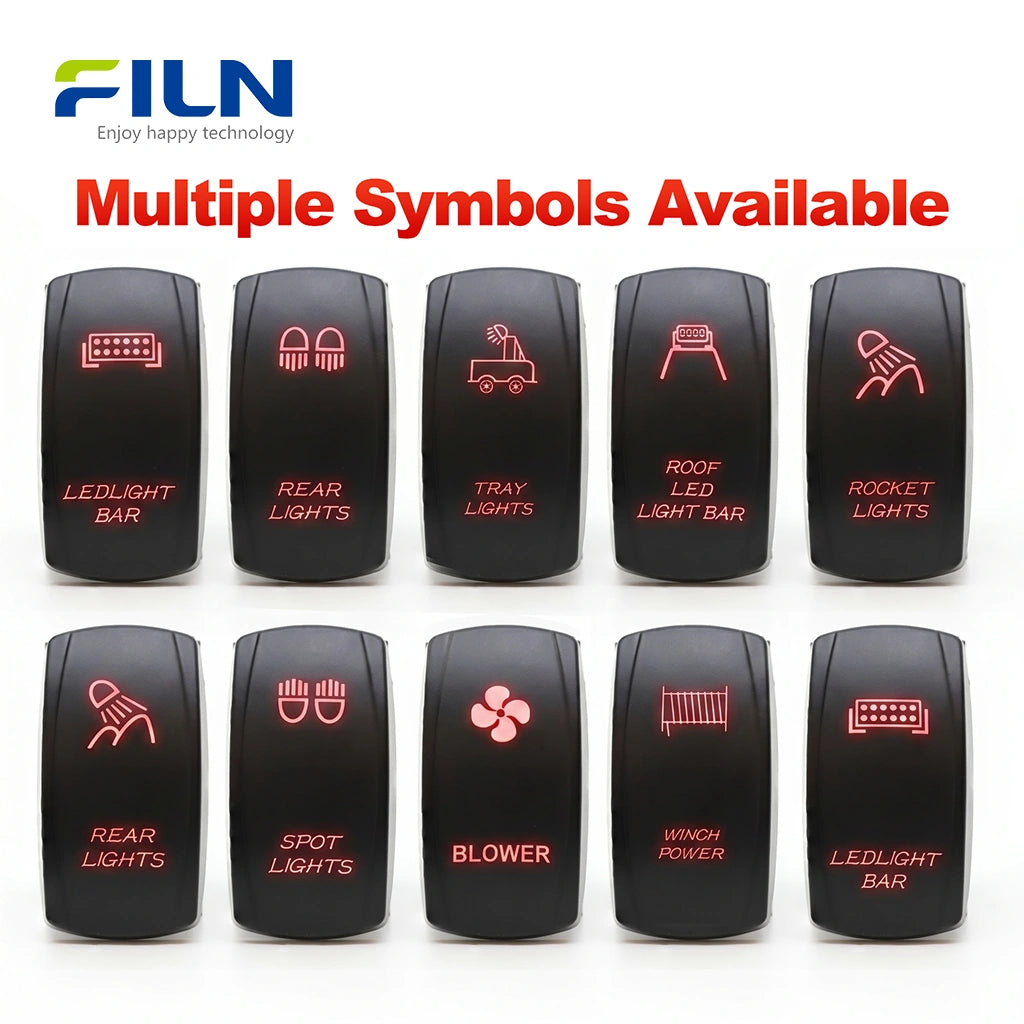

A: Absolutely. While this model features "SIDE LIGHTS", FILN provides custom laser-etching for any icon.
Q4: Is this switch waterproof for open deck use?
A: Yes, it features an IP65 protection rating, making it splash-proof and suitable for marine dashboards.
Q5: What is the maximum current this switch can handle?
A: This heavy-duty model is rated for 20A at 12VDC and 10A at 24VDC.
Q6: How do I know if the switch is ON in the dark?
A: The high-brightness Blue Dual LEDs will illuminate the "SIDE LIGHTS" symbol, providing clear status visibility.
Q7: Can I use this for a 12V automotive project?
A: Yes, it is perfect for RVs, trucks, and off-road vehicles requiring a 20A illuminated toggle.
Q8: What are the materials used?
A: The body and actuator are made from high-quality ABS and PC for flame retardancy and durability.
Q9: Does it include wiring?
A: Yes, it comes with a 134mm wire harness including 14AWG and 18AWG wires for easy installation.
Q10: What is the service life of the switch?
A: It is designed for industrial durability, tested for over 10,000 electrical cycles.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
