Button Switch Drawing
Product Overview

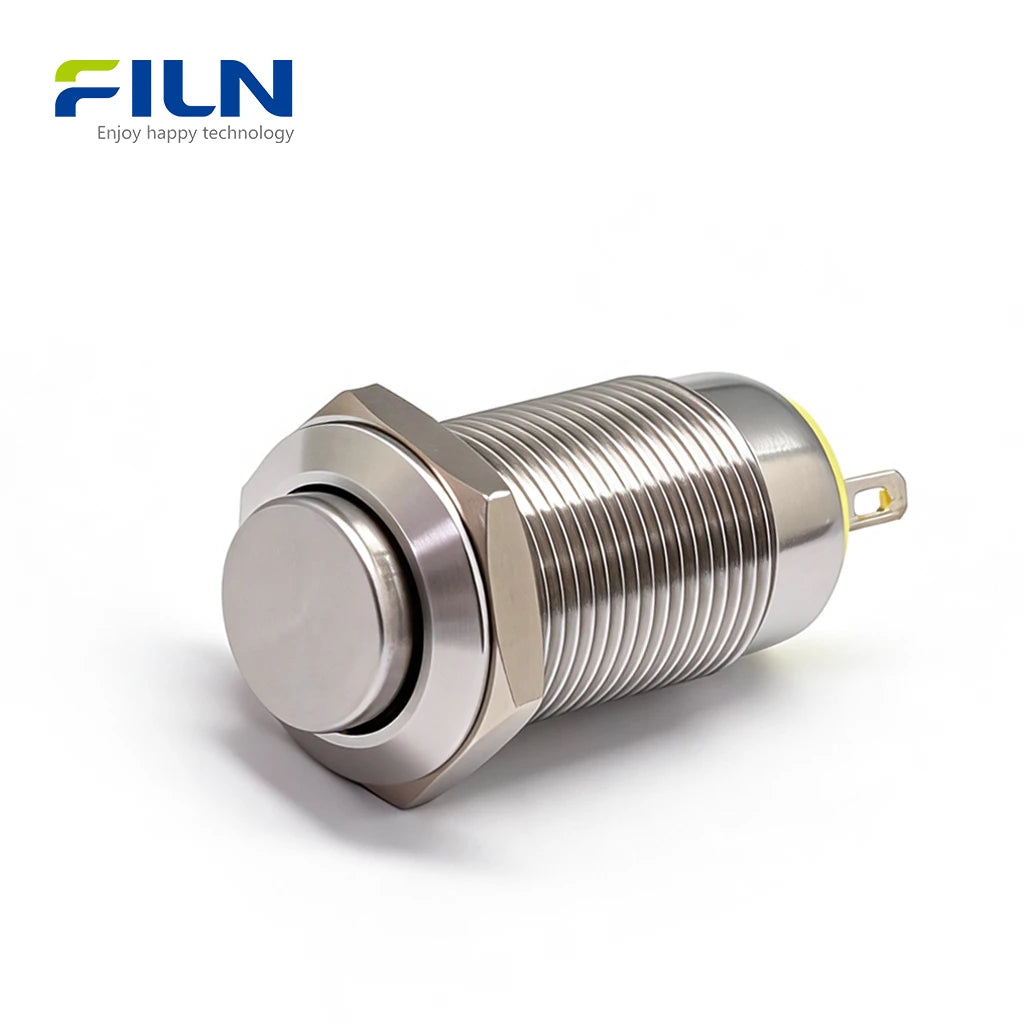

The push button switch mini (Model: FLM12-HJ-1) is a precision-engineered 12mm metal high head button designed for demanding industrial applications. Manufactured by FILN, a leading factory in switch technology, this product carries prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Built from premium stainless steel, it serves as a critical component in industrial control panels, CNC machinery, and automation equipment. Its momentary high-head design provides excellent tactile feedback, ensuring reliable circuit control. As a corrosion resistant metal button, it excels in harsh environments where plastic switches fail, offering a long service life and easy 2 pin terminal wiring for rapid deployment.
Quick Specifications
| Model Number | FLM12-HJ-1 |
| Mounting Diameter | 12mm (0.47 inch) |
| Actuator Style | High Head (Round Actuator) |
| Function | Momentary / Latching |
| LED Lighting | Non-Illuminated |
| Terminal Configuration | 2-Pin Solder/Plug-in Terminal |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC |
| Rated Current | 5A DC / 5A AC |
| Insulation Resistance | ≥ 1000MΩ |
| Contact Resistance | < 50mΩ |
| Dielectric Strength | 1800V |
| Certifications | UL, CE, RoHS, ISO9001 |
Component Materials
| Button/Actuator | 304 Stainless Steel / 6063 Aluminum |
| Shell Body | Stainless Steel / H59 Nickel-Plated Brass |
| Base Housing | Flame Retardant PA66 Nylon |
| Internal Contacts | Silver Alloy AgCdO12 |
| Terminals | Silver-Plated H62 Copper |
General Characteristics
| Operating Temp | -25°C to +85°C |
| Protection Level | IP65 Waterproof, IK08 Impact-Proof |
| Mechanical Life | 500,000 operations |
| Electrical Life | 100,000 operations (Full Load) |
Terminal Type Comparison
| Terminal Type | Installation Speed | Reliability | Best For |
|---|---|---|---|
| Pin Terminal (Plug-in) | Very Fast | High (Stable) | Factory Assembly / PCB Connection |
| Screw Terminal | Slow (Manual) | Medium | Field Repair / Heavy Vibration |
| Pre-wired Leads | Instant | Highest (Sealed) | Waterproof Deep Sealing |
Key Features
- High Head Actuator: The protruding high head design allows for easy operation even while wearing gloves, providing clear tactile feedback.
- Compact 12mm Design: Ideal for high-density control panels where space is a premium.
- Stainless Steel Durability: Offers superior resistance to corrosion, oxidation, and physical wear compared to standard aluminum or plastic switches.
- Silver Contacts: Utilizes AgCdO12 contacts to ensure low electrical resistance and a long life cycle of up to 500,000 presses.
- Simplified Wiring: The 2-pin terminal design supports standard 2.8mm connectors or soldering, making it incredibly easy to connect.
Applications
This push button switch mini is widely utilized across various sectors:
- Industrial Control: Perfect for starting/stopping machinery.
- Automotive: Used in dash panels, horn buttons, and accessory triggers.
- Medical Devices: Ideal for sterile environments due to stainless steel's ease of cleaning.
- Marine Equipment: Resists salt spray and moisture with IP65 protection.
Installation Steps
- Drilling: Drill a precise 12mm mounting hole in your control panel.
- Insertion: Push the button actuator through the hole from the front side of the panel.
- Fastening: Slide the metal hex nut onto the threaded body from the back and tighten securely.
- Wiring: Attach your 2-pin connectors or solder the wires to the terminals to complete the circuit.
Wiring Connection Logic
Logic: Device stays OFF by default and turns ON only when pressed.
- Wiring: Connect Power (+) to Pin 1, and Device Input to Pin 2.
- Applications: PC power buttons, car horns, momentary starters. [cite: 3]
Industry Knowledge
What is a Push Button Switch Mini?
A push button switch mini is a compact electrical mechanism used to control the flow of current. In industrial machinery, it often serves as a primary interface for humans to trigger specific machine functions. The metal construction ensures it can handle high-frequency use without the cracking or fading seen in plastic variants.
Latching vs. Momentary: Which do you need?
| Function | Behavior | Use Case |
|---|---|---|
| Momentary | Springs back when released | Reset buttons, horns |
| Latching | Clicks and stays in place | Power toggles, lights |
Factory Direct Supply - FILN Advantage
- ✔ No Minimum Order Quantity (MOQ)
- ✔ Global Fast Delivery
- ✔ Custom Wire Lengths & Connectors
- ✔ Certified Quality (CE/UL/RoHS)
Official Site: www.filn.com | Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Is this switch momentary or latching?
The FLM12-HJ-1 is a momentary switch, meaning it only activates when pressed.
2. What is the benefit of the high head design?
The high head allows for easier activation when using gloves or in low-visibility conditions.
3. Can I get a customized wire harness for this 12mm button?
Yes, FILN provides wire length and connector customization services.
4. What material is the body made of?
We primarily use 304 Stainless Steel for maximum corrosion resistance.
5. Is there a minimum order quantity?
No, FILN supports industrial customers with no MOQ requirements.
6. How do I install this on a panel?
Simply drill a 12mm hole, insert the button, and tighten the included metal nut from the back.
7. What is the current rating?
This switch is rated for 5A DC / 5A AC current.
8. Can this be used outdoors?
Yes, with its IP65 rating, it is suitable for outdoor and marine environments.
9. Are silver contacts better than copper?
Yes, silver contacts provide better conductivity and resist oxidation, ensuring a longer life.
10. How quickly can you ship?
We offer fast global shipping, typically within 3-7 business days for standard items.
