Button Switch Drawing
Product Overview

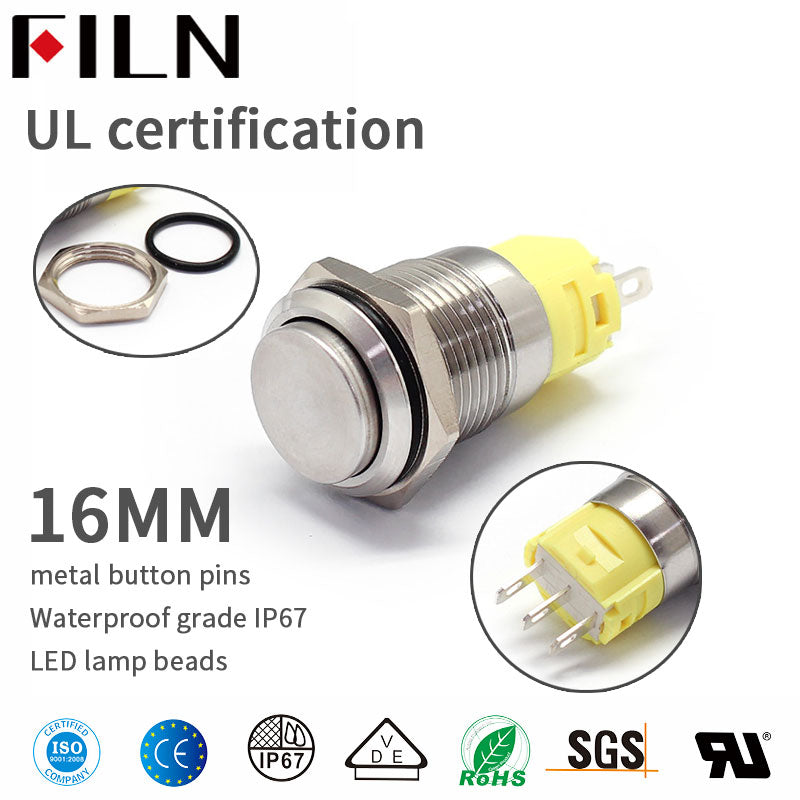

The FLM16-HJ-1-X is a premium normally closed push button switch specifically designed for industrial reliability and ergonomic ease. This 16mm high head switch features an elevated actuator, making it exceptionally easy to operate, even for users with larger hands or those wearing gloves in heavy-duty environments. As a high-quality stainless steel push button, it is certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you need a momentary push button for emergency stops or a latching metal switch for circuit control, the FILN factory ensures world-class performance. Its 3-PIN configuration allows for seamless integration as a normally closed push button switch, providing consistent safety and control in industrial control panels, automation equipment, and power systems.
Quick Specifications
| Model Number | FLM16-HJ-1-X |
| Mounting Size | 16mm (0.63 inch) |
| Switch Function | Latching / Momentary (Normally Closed support) |
| LED Lighting | None (Non-illuminated) |
| Button Type | High Head (High Actuator) |
| Terminal Type | 3-PIN Pin Terminal |
Electrical & Performance Parameters
| Rated Voltage | 36V DC / 250V AC |
| Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) |
| Dielectric Strength | 1800V |
| Contact Resistance | < 50mΩ |
| Insulation Resistance | ≥ 1000MΩ |
| Product Certification | CE, UL, VDE, RoHS, SGS, ISO9001 |
Component Materials
| Actuator (Button) | 304 Stainless Steel / 6063 Aluminum Alloy |
| Housing Shell | H59 Brass / 304 Stainless Steel / 6063 Aluminum |
| Contact Material | Silver Contact AgCdO12 |
| Base Material | PA66+GF20% Flame Retardant Nylon |
| Terminals | H62 Copper Alloy |
| Waterproof Seal | SIL Silicone (IP65) |
General Characteristics
| Operating Temperature | -25°C to +85°C |
| Protection Rating | IP65 (Waterproof), IK08 (Impact Resistant) |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles (3A) / 50,000 Cycles (5A) |
Comparison: Pin vs. Screw vs. Pre-wired Terminals
| Pin Terminal | Screw Terminal | Pre-wired Terminal |
|---|---|---|
| Fastest assembly using quick-connect sockets; compact design. | No soldering required; highly resistant to high-vibration environments. | Ready to use immediately; provides the best moisture sealing. |
💡 Pro Tip: Pair with our Quick-Connect Wire Harness for efficient plug-and-play installation.
Key Features
1. High Head Design: Specifically optimized for ease of use. The protruding actuator ensures positive tactile feedback and is perfect for industrial operators wearing safety gear.
2. Extreme Durability: Rated IP65 for dust and water resistance and IK08 for impact resistance, this switch is built for longevity in harsh conditions.
3. High-Grade Materials: Available in 304 Stainless Steel or Black Aluminum, offering superior anti-corrosion properties and a professional finish.
4. Silver Contact Technology: Features AgCdO12 silver contacts for reduced electrical resistance and high reliability over 100,000 electrical cycles.
Industrial Applications
A normally closed push button switch is vital for safety-critical circuits where the default state must be "connected." Common uses include:
- Emergency Stop Circuits
- Industrial Control Panels
- CNC Machine Safeguards
- Medical Equipment Fail-safes
- Marine Navigation Systems
Installation Steps
- Cutout: Prepare a 16mm hole on your control panel.
- Insertion: Insert the switch through the panel from the front side.
- Securing: Use the included metal nut to tighten the switch from the back.
- Wiring: Connect the 3-PIN terminals to your circuit as per the NC/NO guide.
3-PIN Push Button Switch Wiring Guide
A 3-PIN switch consists of a Common (C), Normally Open (NO), and Normally Closed (NC) terminal. Use these connections to control whether a device turns on or off when pressed.
- C (Common): Power input terminal.
- NO (Normally Open): Connects only when pressed.
- NC (Normally Closed): Disconnects when pressed.
Method 1: Normally Open (NO) Connection
Logic: Device stays OFF by default and turns ON only when pressed.
- Wiring: Power (+) to C, Device (+) to NO.
- Applications: Door bells, PC power buttons, car horns, momentary starters.
Figure 1: Normally Open (NO) Wiring Diagram
Method 2: Normally Closed (NC) Connection
Logic: Device stays ON by default and turns OFF only when pressed.
- Wiring: Power (+) to C, Device (+) to NC.
- Applications: Emergency stops, limit switches, fridge door light control.
Figure 2: Normally Closed (NC) Wiring Diagram
| Terminals | Default | Action (Pressed) |
|---|---|---|
| C + NO | Device OFF | Device ON |
| C + NC | Device ON | Device OFF |
Industry Knowledge
What is a Normally Closed (NC) Switch?
A normally closed push button switch is a circuit component where the default electrical state is "connected." Pressing the button interrupts the flow of electricity. This is essential for safety applications like emergency stops, where pressing the button must immediately kill power to the system.
LED Color Reference (For Illuminated Versions)
- Red: Stop, Danger, or Emergency.
- Green: Go, Safe, or Normal Operation.
- Yellow: Warning or Standby.
- Blue: Information or Auxiliary function.
- White: Power Indicator or General Backlight.
FILN Factory Direct Supply
- ✅ No MOQ: We support prototypes and small batch orders.
- ✅ Global Fast Shipping: Door-to-door delivery across the globe.
- ✅ Full Customization: Custom voltages, wire lengths, and laser logos.
Official Website: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the main advantage of the high head actuator?
A: It provides a larger surface area and better tactile feedback, making it ideal for operators wearing gloves.
Q2: Is the normally closed push button switch waterproof?
A: Yes, it is rated IP65, meaning it is protected against dust and low-pressure water splashes.
Q3: Can I use this for a 12V DC system?
A: Absolutely. While rated up to 250V AC, it is perfectly suited for 12V and 24V DC industrial systems.
Q4: What is the difference between momentary and latching?
A: Momentary resets when you let go; Latching stays in the state until you press it again.
Q5: Does FILN provide custom wiring harnesses?
A: Yes, we offer pre-wired solutions and quick-connect sockets for all 16mm switches.
Q6: Is stainless steel better than aluminum?
A: Stainless steel offers better chemical and corrosion resistance, while aluminum is lightweight and available in black.
Q7: What does IK08 impact resistance mean?
A: It means the switch can withstand a 5-joule impact, making it "vandal-proof" in public or industrial spaces.
Q8: Can I get my company logo laser-etched on the button?
A: Yes, FILN factory provides custom laser engraving for logos and functional symbols.
Q9: What certifications do FILN switches carry?
A: Our switches are fully certified with CE, UL, RoHS, VDE, and REACH.
Q10: How long is the mechanical service life?
A: These switches are tested for over 500,000 mechanical operations.
