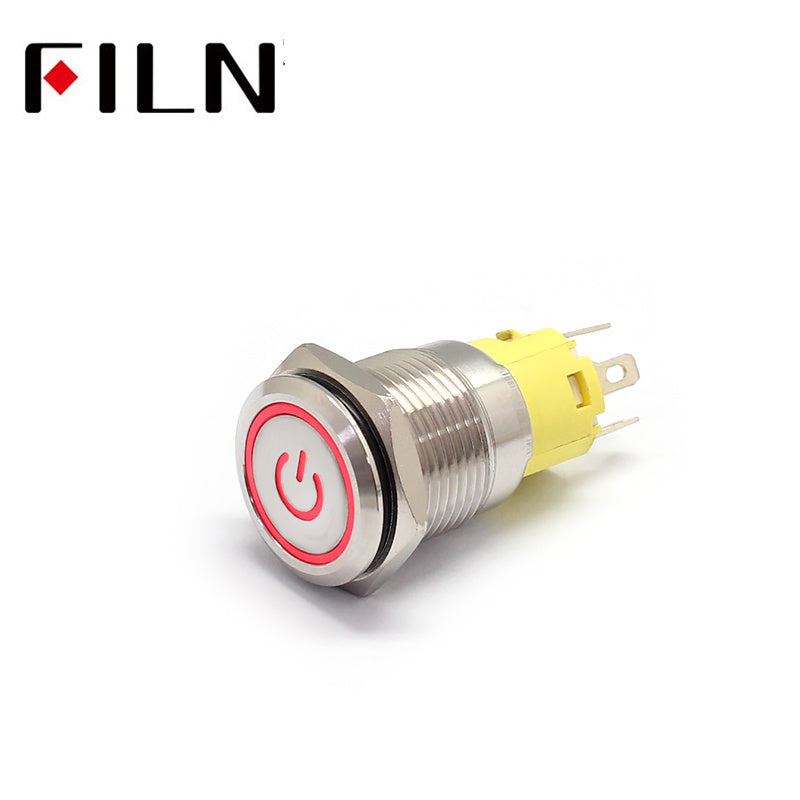

Filn 16mm 6V 12V 110V 220V LED waterproof Push Button Switch with Power symbol

Size
Voltage
Function

Description

  • 100% money back guarantee
  • Quickly customize products in 21 days
  • Fast delivery
  • FLM16-10FEJ Push Button Switch Product Introduction
  • The metal shell of the push button switch is processed by NUMERICAL control technology, which ensures the product is beautiful and high precision.

    The indicator light used by the push button switch is non-polar LED, with a service life of 50000 hours.

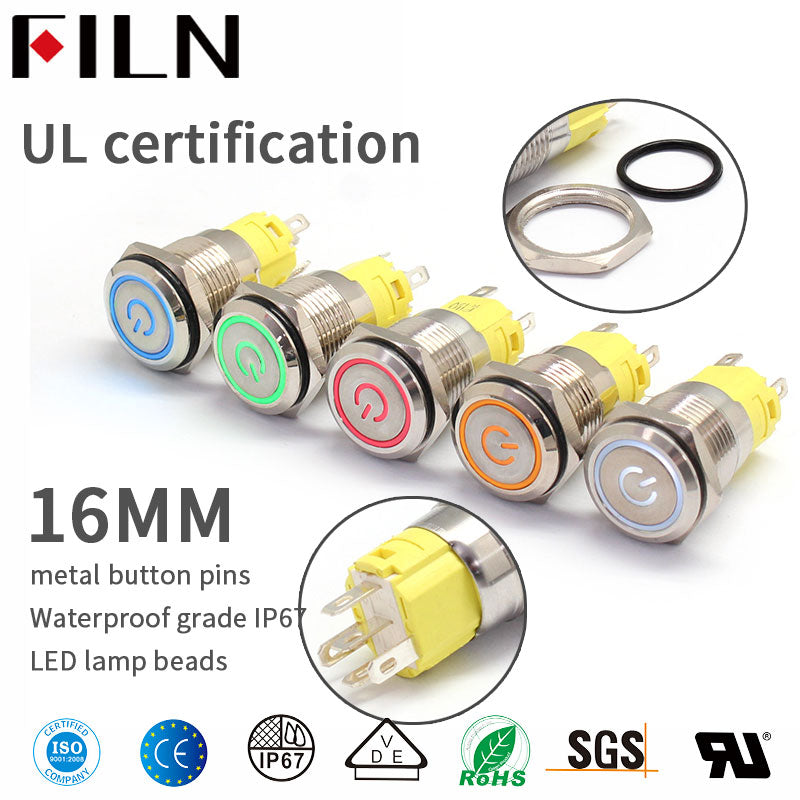

    The waterproof rating of the push button switch is IP67, and the mounting hole size is 16MM.

    The voltage of the push button switch can be 6V, 12V, 24V, 110V, 220V, etc.

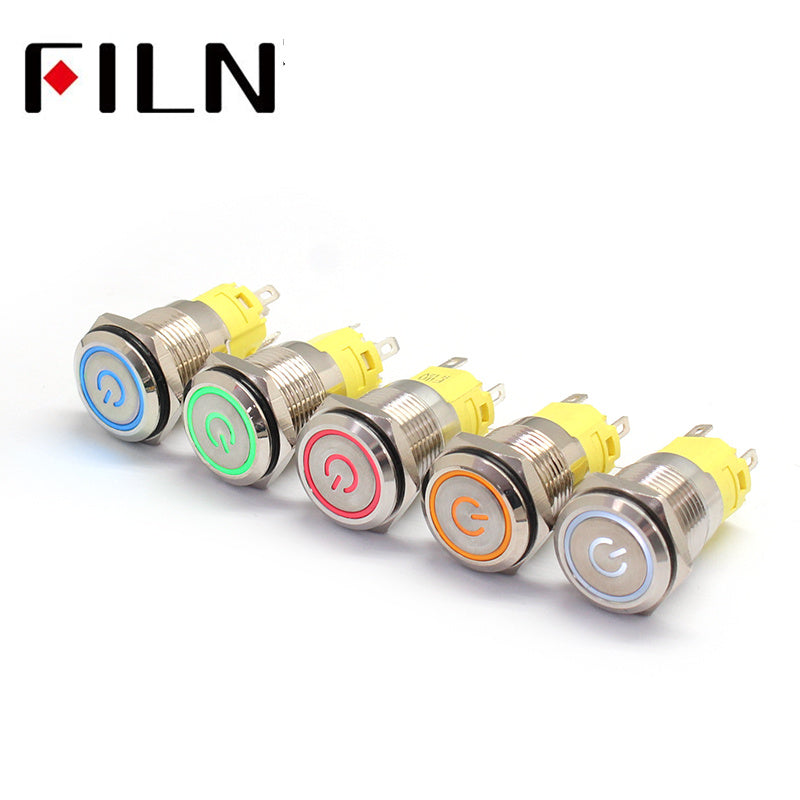

    16MM metal push button switch can make five colors of light: red, yellow, blue, green, and white.

    You can also customize the button switch for two-color lights and three-color lights.

Product specifications

Production series FLM16-10FEJ Light guide button PC plastic
button shape round actuator 304 Stainless steel
button led color Red blue green yellow white Housing sleeve H59 nickel plated brass/304Stainless steel
Mechanical life The 500 thousand time Button pin H62 copper alloy
electrical life The 100 thousand time rubber ring SIL silica gel
protection level IP67 IK09 nut H59 nickel plated brass
Rated voltage 36V(DC) 250(AC) housing PA66+GF20% nylon
rated current 5A(DC)5A(AC) Light source LED
rated power 180W(DC)1250W(AC) Resistor Metal film
Operating temperature -25℃~+85℃ contact AgCdO12
