Product Overview

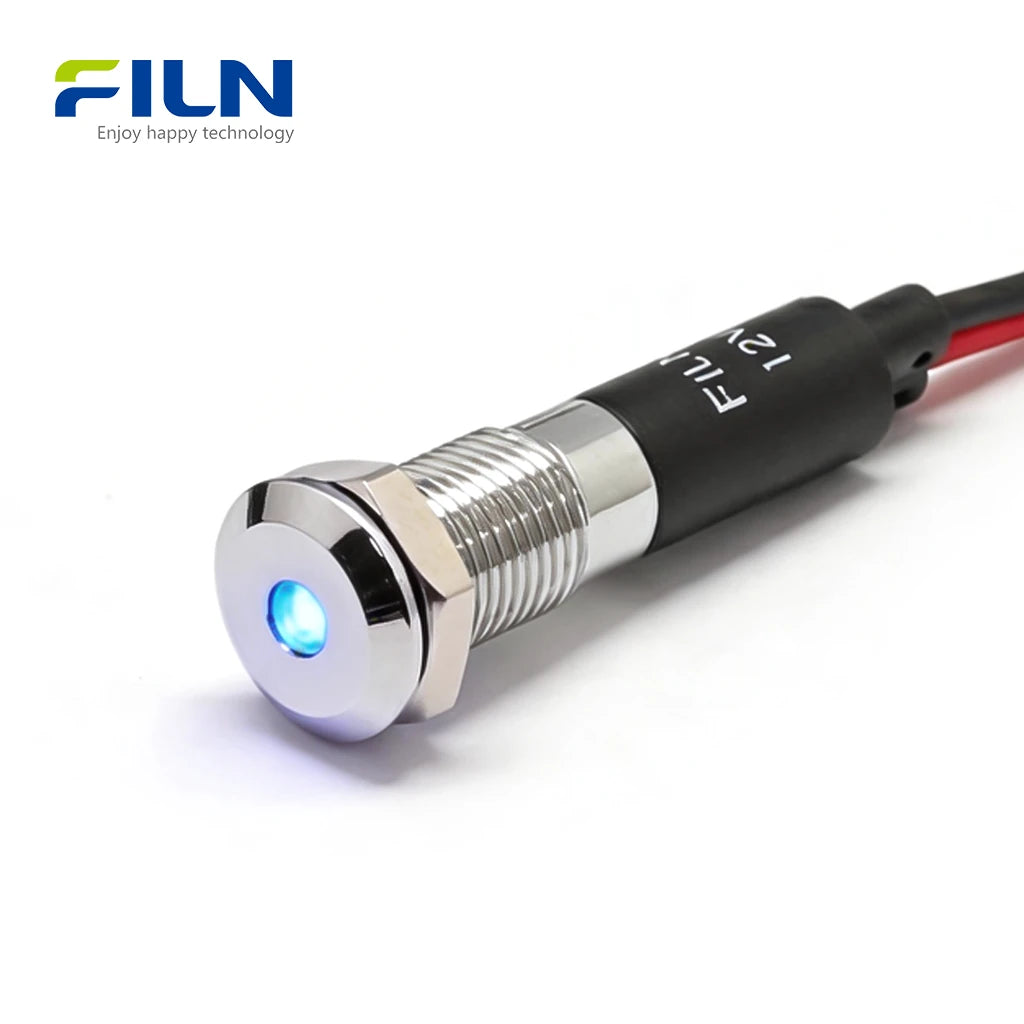

The Equipment Panel Indicator (Model: FL1M-08DW-1) is a high-performance 8mm metal flat-head LED signal lamp designed for demanding industrial environments. Featuring a pre-wired lead design and an IP67 waterproof rating, this indicator provides reliable visual feedback for CNC machines, automation equipment, and electrical cabinets. Its unique small circular light-emitting surface ensures precise status signaling without excessive glare. Available in Red, Green, Yellow, Blue, and White, it supports universal voltages from 12V to 220V, making it a versatile choice for global industrial applications.
Quick Specifications
| Mounting Hole | 8mm / 0.31 inch |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |

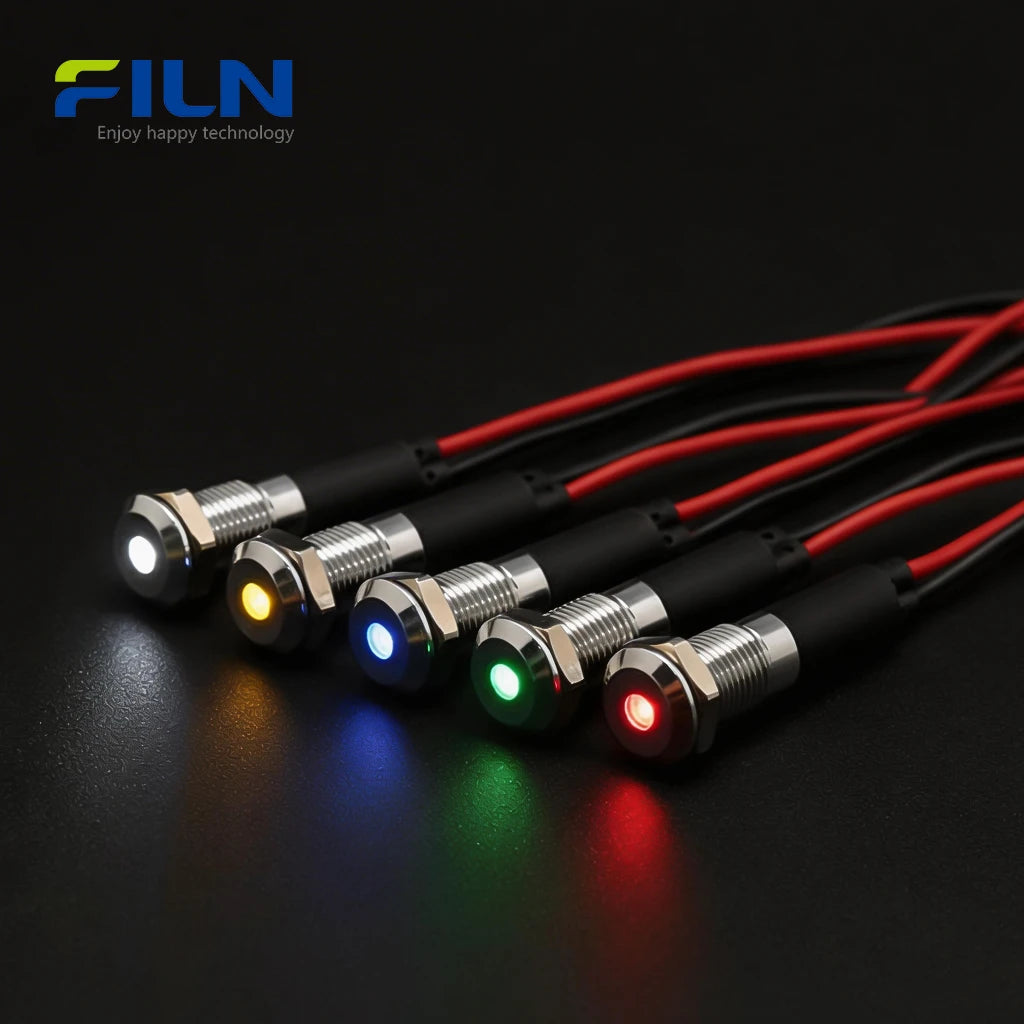

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |

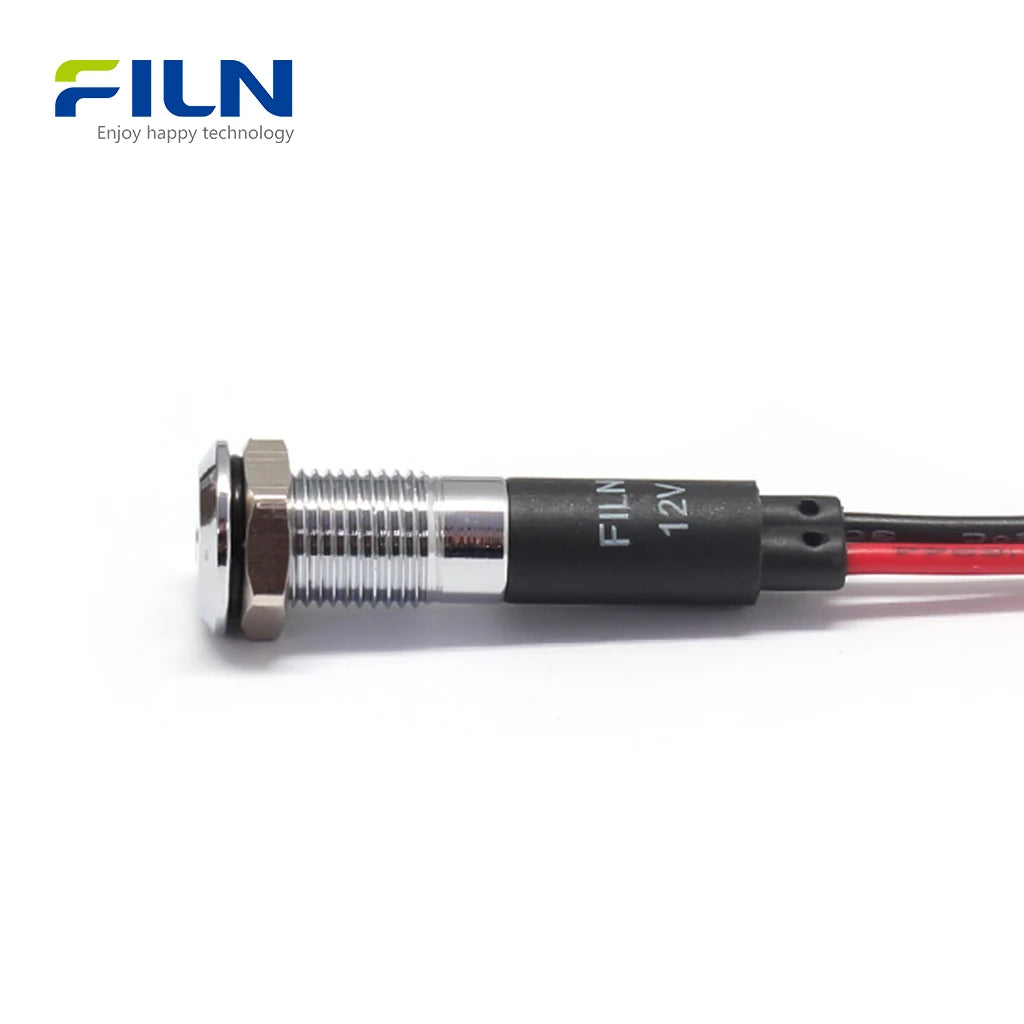

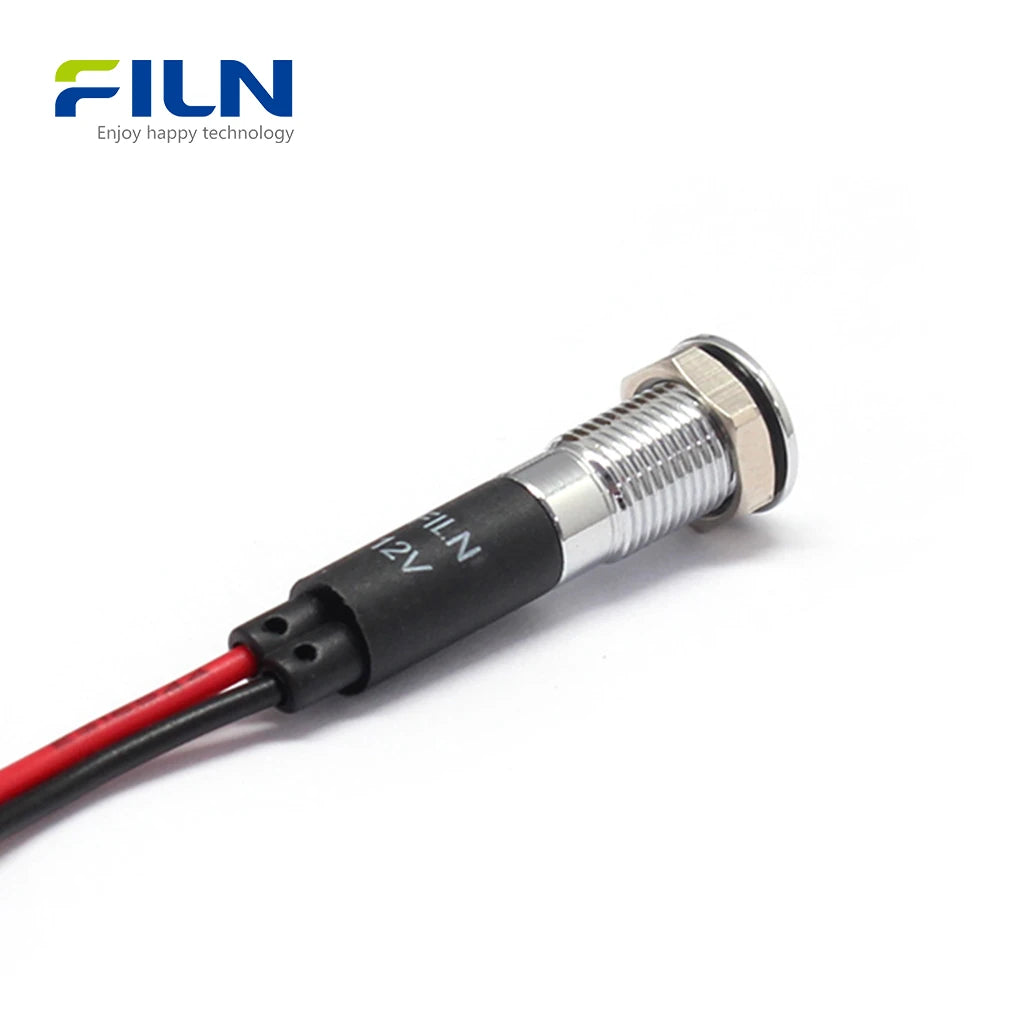

| Wiring Type | Wire Lead Type |
Rated Working Parameters
| Rated Voltage | 12-220V (Customized) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Stainless Steel (Silver or Black) |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone Rubber (O-ring) |
| Wire Material | UL Standard Copper Wire |
General Characteristics
| Part Name | Equipment Panel Indicator |
|---|---|
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Parameter | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Key Features
- High Brightness LED: Concentrated light through a small circular aperture for clear signaling.

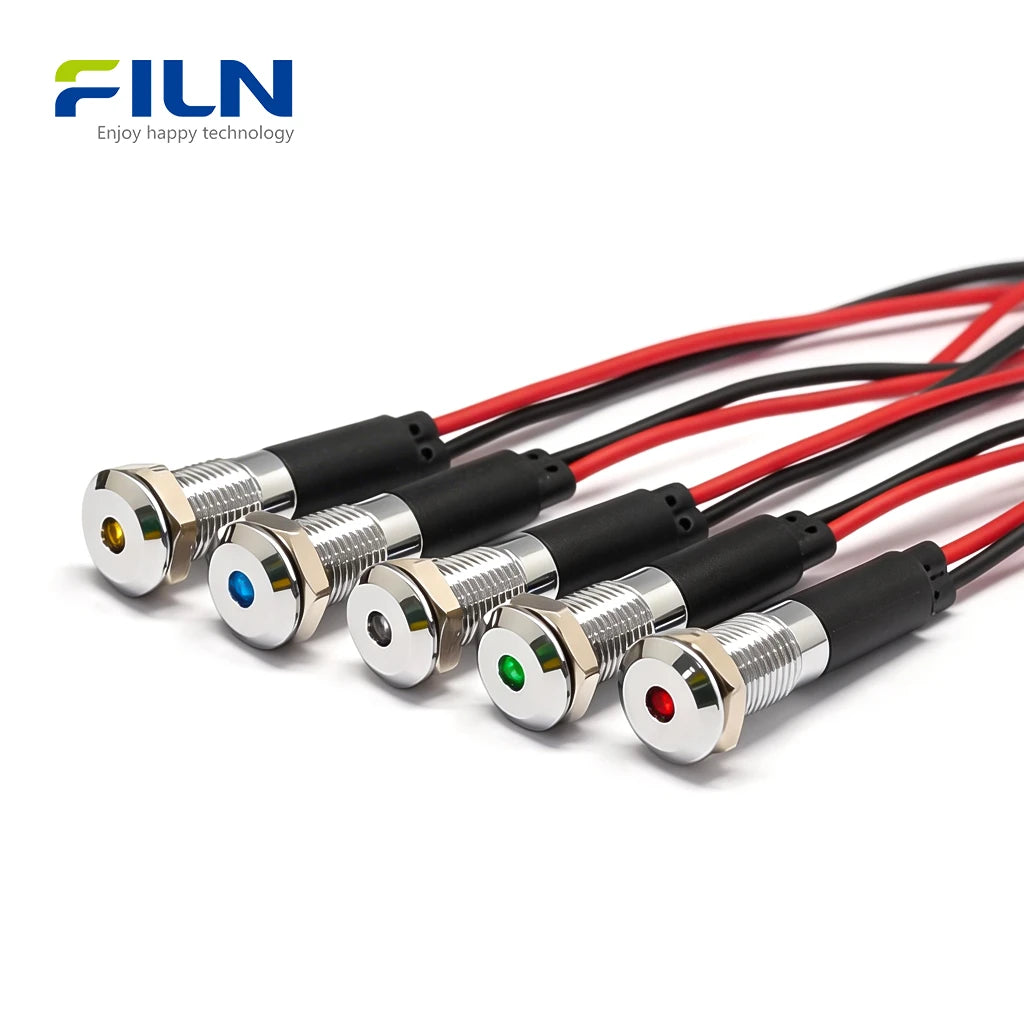

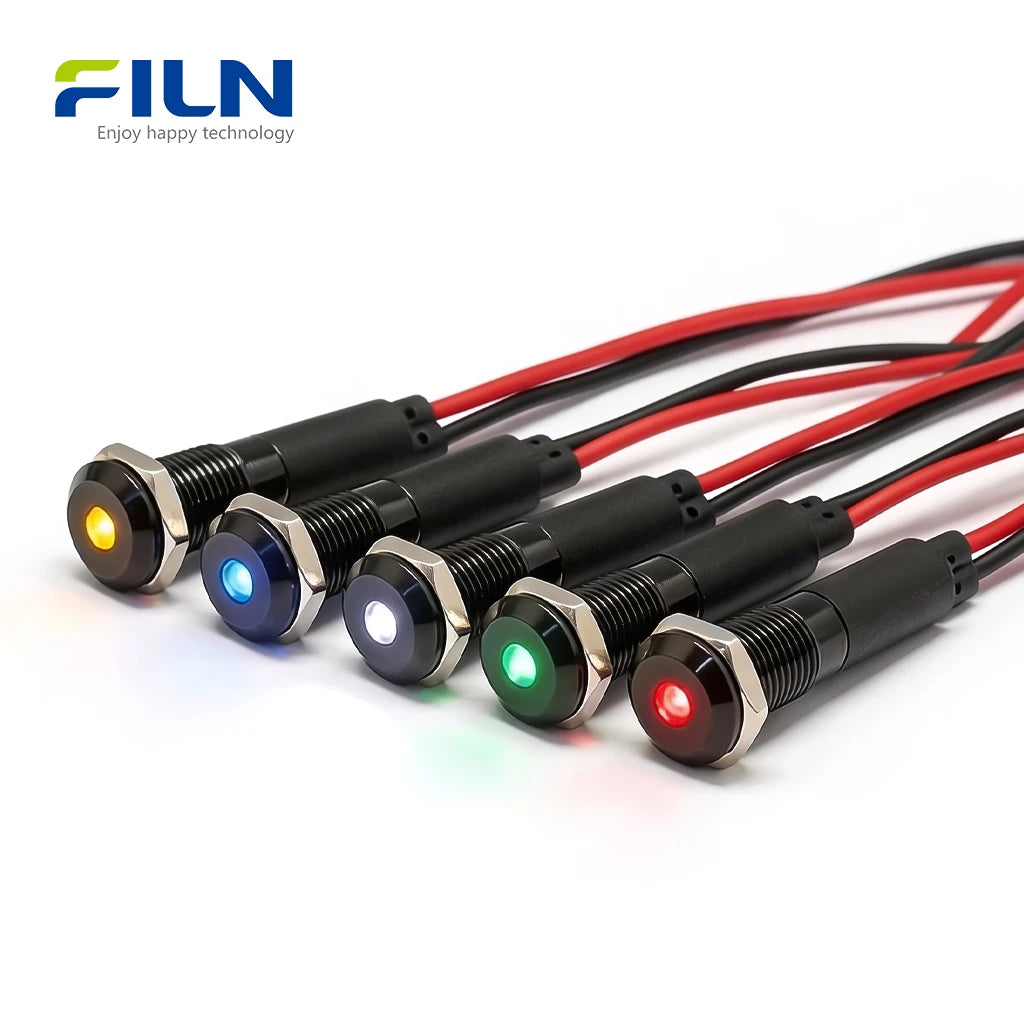

- Dual Color Housing: Available in sleek silver or professional black finishes.
- IP67 Waterproofing: Includes a premium O-ring to prevent dust and water ingress.
- Non-Polarized LED: Easy wiring as the LED beads are not restricted by positive/negative polarity.
- Robust Durability: Industrial-grade lifespan exceeding 50,000 hours.
Applications
- Industrial control panels and distribution boards
- High-precision CNC machines and lathes
- Automated assembly line status monitoring
- Marine and outdoor equipment signaling
- Medical diagnostic devices and power indicators
Installation Guide
- Drill an 8mm diameter hole in the equipment panel.
- Insert the Equipment Panel Indicator from the front of the panel.
- Slide the M8 nut and waterproof O-ring onto the indicator body from the back.
- Tighten the nut securely to ensure a waterproof seal against the panel.
- Connect the wire leads to your power source (non-polarized design allows for flexible connection).
What Is an Equipment Panel Indicator?
An Equipment Panel Indicator is a specialized LED signal light used to provide real-time status updates on industrial control interfaces. Unlike standard indicators, these metal-housed lights are built for "set and forget" reliability. The FL1M-08DW-1 model features pre-wired leads, which offer significant advantages over pin-type terminals in vibration-heavy environments like CNC machines, as they eliminate the risk of loose connections or soldering failures during installation. Its small light-emitting surface is specifically designed for high-density control panels where precise, non-distracting status identification is critical.
FILN Factory Direct Supply
As a professional manufacturer with over 180 employees, FILN provides high-quality industrial components directly from our Wenzhou facility.
- Custom Voltage: 3V to 380V support.
- Customization: Specialized wire lengths and connectors available.
- Fast Shipping: Global logistics with UPS/FedEx/DHL support.
Website: www.filn.com
Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I use this indicator with AC and DC power?
Yes, the LED is non-polarized and works with both AC and DC voltages.
2. Is the 8mm size standard for most panels?
Yes, 8mm is a standard industrial mounting size for compact control panels.
3. Can FILN customize the wire length?
Absolutely. We offer customization for lead lengths to fit your specific cabinet layout.
4. What is the difference between silver and black housing?
The silver is nickel-plated brass, while black is usually an anodized or oxidized finish; both offer high durability.
5. Is this indicator waterproof enough for outdoor use?
With an IP67 rating and the included O-ring, it is fully protected against rain and temporary immersion.
6. What is the lifespan of the FL1M-08DW-1?
It is rated for over 50,000 hours of continuous operation.
7. How do I wire this equipment panel indicator?
Since the LED is non-polarized, simply connect the two wires to your power circuit.
8. Do you provide 110V versions for the US market?
Yes, we support 110V and 220V for international power standards.
9. Is the LED brightness adjustable?
Brightness is fixed based on voltage, but we can customize the internal resistance for your required luminosity.
10. Does it come with mounting hardware?

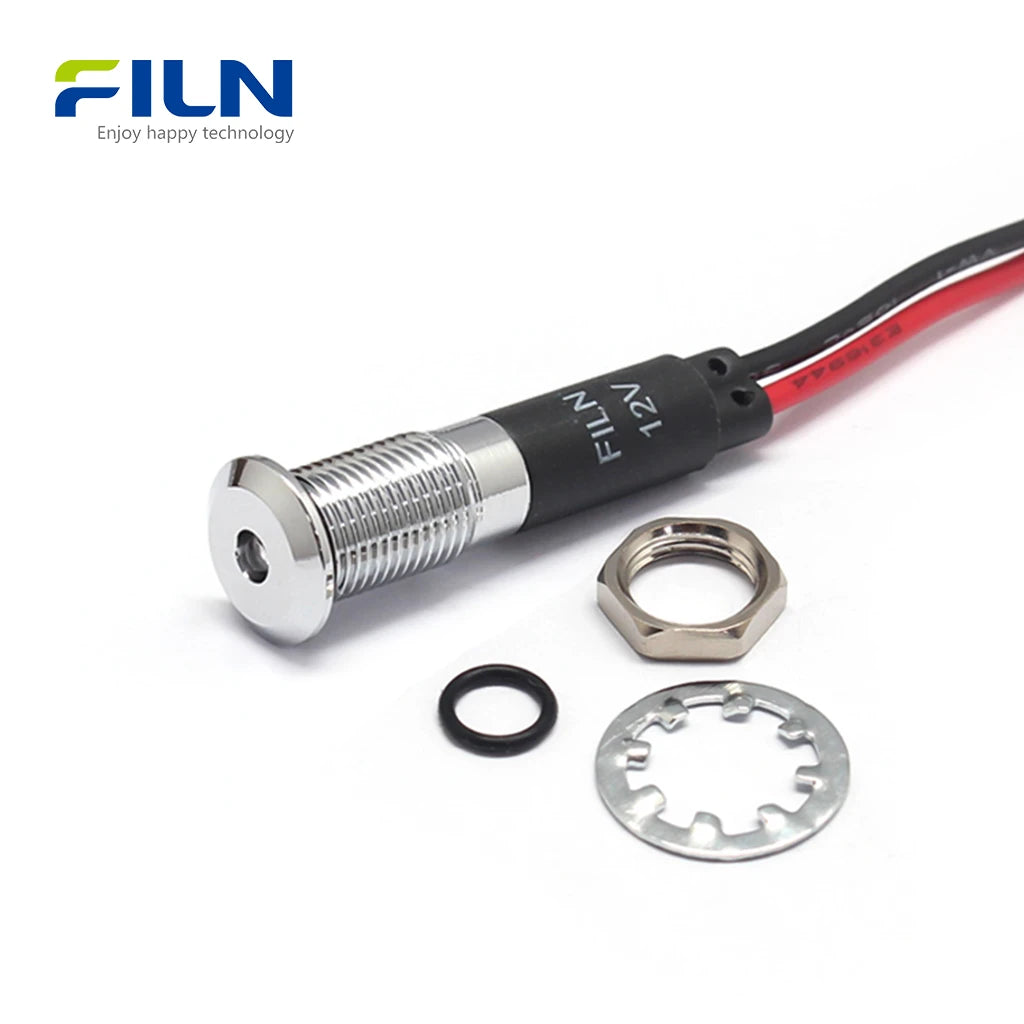

Each indicator includes one M8 nut and one waterproof O-ring for immediate installation.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
