Product Summary
The 16mm Dash-Warning-Indicator-Light manufactured by FILN is a heavy-duty metal pilot lamp engineered for automotive dashboards, industrial control panels, and specialized machinery. Operating at a standard 12V voltage with versatile 2PIN pin terminal or 20cm pre-wired lead options, this metal indicator light features custom laser-etched dashboard symbols on a flat head design. Built with robust black-plated zinc-aluminum alloy or silver copper alloy housings and paired with a silicone waterproof O-ring, it achieves an IP65 protection rating against dust and moisture. Designed for OEM buyers, control panel builders, and bulk wholesale distributors, FILN provides comprehensive factory-direct manufacturing support, custom symbol engraving, and rigorous electrical testing to ensure long-term operational reliability in demanding environments.
16MM METAL SYMBOL INDICATOR LIGHT
Dashboard Symbol Indicator Light: Symbol Names, Meanings & Illumination Logic
A symbol indicator light does more than illuminate. The engraved symbol tells the operator what system or condition is being represented, while the electrical circuit determines when the indicator should illuminate. For the 16mm metal indicator light, FILN can provide automotive dashboard symbols, warning symbols, status symbols, and custom laser-etched graphics.
FACTORY DIRECT
Custom Symbol + LED + Voltage
OEM / ODM production available for bulk projects.

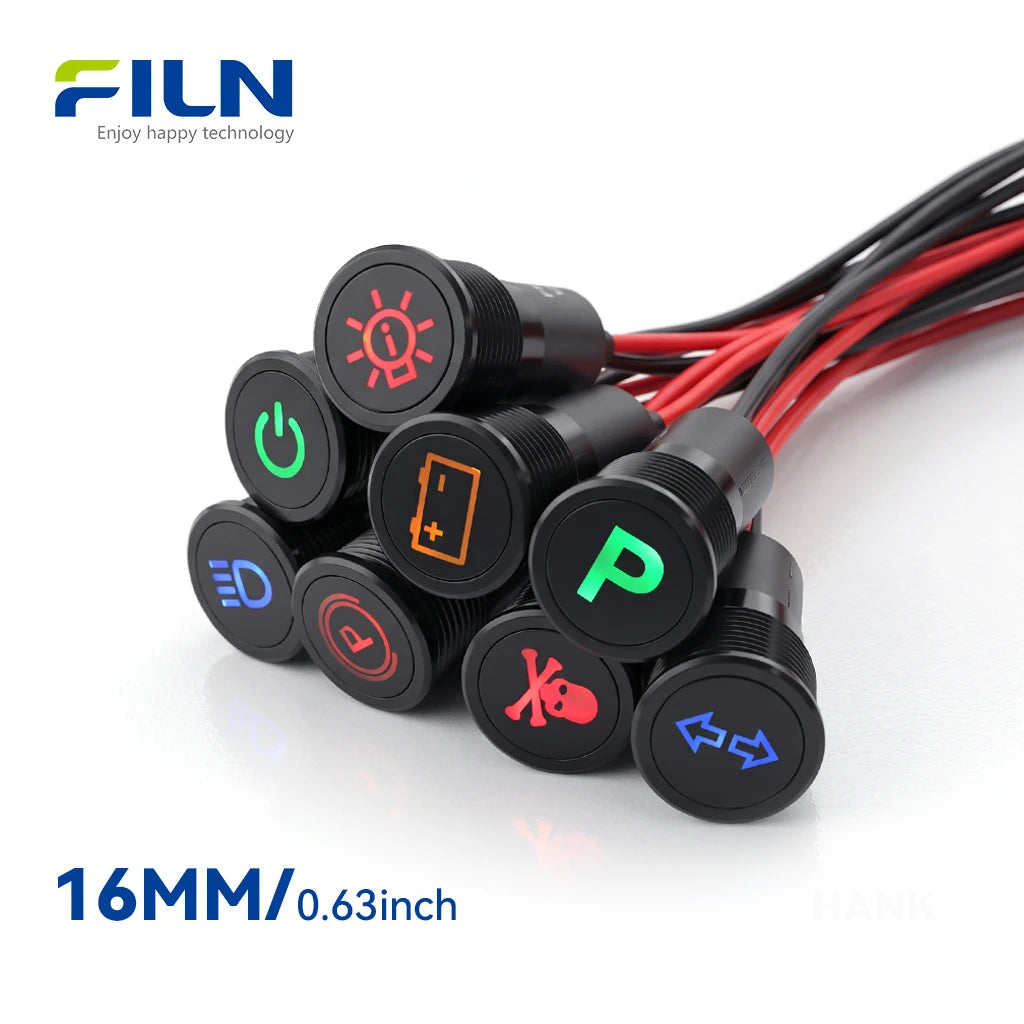

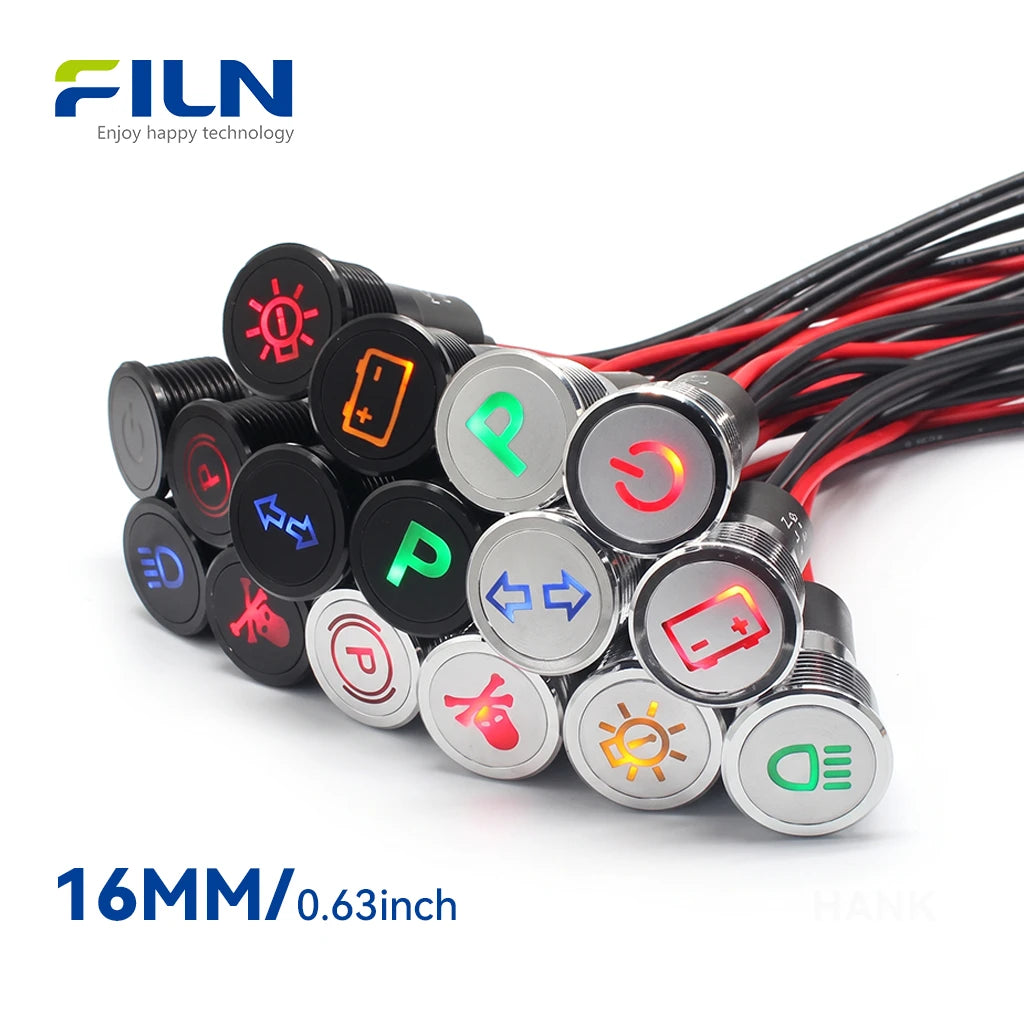

Symbol reference image for custom laser-etched 16mm metal indicator lights. Symbol availability and final artwork should be confirmed with FILN before production.
01 · SYMBOL
What does it mean?
The etched icon identifies the vehicle, machine function, status, or warning being communicated.
02 · SIGNAL
What triggers it?
A switch, sensor, ECU, PLC, body-control module, or other controller determines when the LED receives its illumination signal.
03 · ILLUMINATION
Why does it light?
The LED illuminates when the connected electrical logic reaches the configured ON condition for that symbol.
What does a symbol indicator light actually mean?
The symbol itself is a visual language. For example, an ABS symbol communicates that the anti-lock braking system is the subject of the indication; it does not by itself define the exact electrical fault threshold. The connected vehicle or equipment controller decides whether the symbol represents normal status, an active function, a warning, or a detected fault. Exact meanings and illumination thresholds can vary by vehicle, machine, controller, and manufacturer.

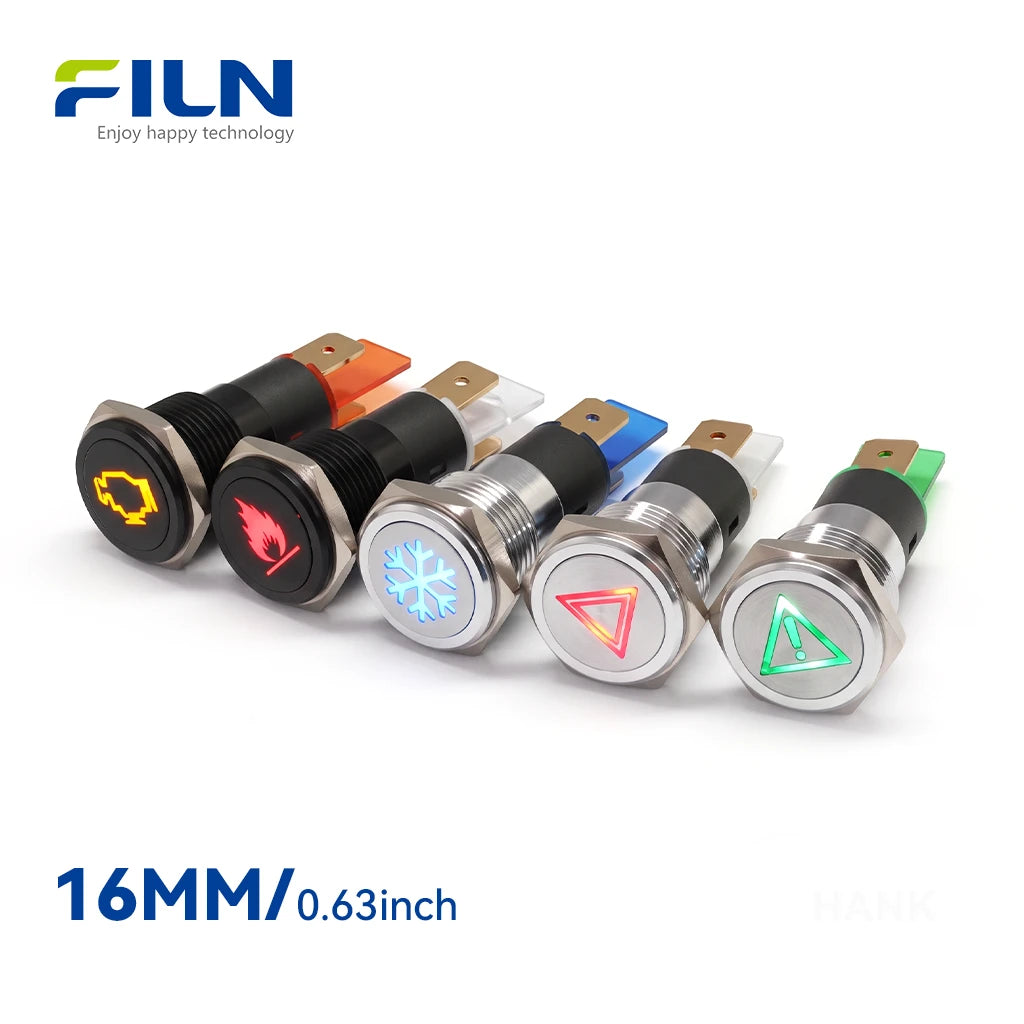

FILN Custom Symbol Indicator Light Service
FILN can customize the symbol artwork/code, LED color, operating voltage, flat/convex/concave head style, metal housing finish, wiring method, wire length and other specifications according to project requirements. For OEM/ODM projects, send your symbol drawing, reference image, code list, electrical requirements and target quantity for engineering confirmation.
Purchase & Image Verification Notice
Please purchase carefully and verify the supplier before placing an order. Some companies in the market may reproduce or use FILN product images without authorization. Product photos alone should not be treated as proof of factory identity or product origin. For bulk orders or OEM projects, please confirm the manufacturer, model, specifications and quotation directly with FILN.
16mm Dashboard Symbol Reference: Name, Meaning & Why the Indicator Illuminates
The table below keeps the original symbol codes and names from this product page while adding a practical explanation of what each symbol communicates and the typical condition that causes its indicator light to illuminate.
| Code | Symbol Name | What Does This Symbol Mean? | Why Does the Symbol Indicator Light Illuminate? |
|---|---|---|---|
| 1 | Front Fog Lights | Front fog lamps are selected for improved visibility in fog, mist, snow, or other low-visibility conditions. | The vehicle or control switch commands the front fog-light circuit ON. |
| 2 | High Beam Headlights | The high-beam function is active, providing long-range forward illumination. | The high-beam circuit is switched ON, typically by the lighting stalk or control module. |
| 3 | Engine Start / Power Indicator | The vehicle or machine ignition/start system is powered and ready for operation. | The ignition, start authorization, or main power circuit reaches the indicator's ON condition. |
| 4 | Fire Extinguisher / Fire Warning | A fire-related warning or fire-protection condition requires attention. | A connected fire-detection or suppression system sends a warning signal. |
| 5 | Engine Check / Fault Warning | The engine management system has detected a condition that requires inspection. | The ECU detects a stored or active engine/emissions-related fault. |
| 6 | Side Marker / Low Beam Lights | The exterior lighting system is using the indicated marker or low-beam lighting function. | The corresponding lighting circuit is switched ON. |
| 7 | Seat Belt Unfastened Warning | A seat belt is not detected as fastened for an occupied seating position. | A seat-occupancy/seat-belt circuit detects an unfastened belt under the vehicle's warning logic. |
| 8 | Parking Brake (Handbrake) | The parking brake is applied or its status is being indicated. | The parking-brake switch or electronic parking-brake control reports an applied state. |
| 9 | Brake System Warning / Low Brake Fluid | The braking system has a warning condition, such as low fluid or another detected brake-system issue. | The brake-fluid level sensor, brake control system, or parking-brake logic requests a warning. |
| 10 | Hazard Warning Lights (Double Flashers) | The hazard-warning function is active and both turn-signal sides are commanded to flash. | The hazard switch or body-control module activates the hazard circuit. |
| 11 | Right Turn Signal | The vehicle is signaling a right-hand turn or lane change. | The right turn-signal circuit is commanded ON or flashing. |
| 12 | Coolant Overheating Warning | Engine coolant temperature has reached a high-temperature warning range. | The coolant-temperature sensor and control system detect an overheating condition. |
| 13 | Low Fuel Level Warning | The fuel level has fallen to the vehicle's configured low-fuel threshold. | The fuel-level sender reports a level below the warning threshold. |
| 14 | Dual Turn Signals | Both directional indicators are operating together, commonly for hazard signaling. | The hazard or dual-indicator circuit commands both left and right turn signals. |
| 15 | Low Engine Oil Pressure Warning | Engine oil pressure is below the required operating range. | The oil-pressure switch or sensor reports pressure below the configured threshold. |
| 16 | Battery / Charging System Fault | The battery charging system is not maintaining the expected electrical condition. | The alternator, charging-control module, or battery-monitoring system detects a charging fault. |
| 17 | Horn Indicator | The horn function or horn circuit is being indicated. | The horn control circuit is activated. |
| 18 | Engine Start | The engine-start command or starting function is active. | The start switch, push-button, or control module issues a start request. |
| 19 | Rear Fog Light | The rear fog lamp is active to improve vehicle visibility in poor visibility conditions. | The rear-fog-light circuit is switched ON. |
| 20 | Right Turn Signal | The vehicle is signaling a right-hand turn or lane change. | The right turn-signal circuit is commanded ON or flashing. |
| 21 | Side Marker Lights (Position Lights) | The vehicle's side/position lighting is active for visibility and identification. | The corresponding position-light circuit is switched ON. |
| 22 | Check Engine Light (Exhaust Fault) | The engine/emissions system has detected a condition that may affect exhaust performance or emissions. | The engine-control system detects an emissions or exhaust-related diagnostic fault. |
| 23 | General Hazard / Warning Triangle | A general warning or caution condition has been detected. | A control unit or warning system sends a general-alert request. |
| 24 | Smart Key Indicator | The smart-key system is communicating with or reporting the status of the electronic key. | The keyless-entry/start system detects a key-related status or event. |
| 25 | Anti-lock Braking System (ABS) Fault | The anti-lock braking system has detected a fault and may not provide normal ABS operation. | The ABS control unit stores or detects an ABS-related fault. |
| 26 | Exterior Light Failure Warning | An exterior lamp circuit may be failed, disconnected, or drawing an abnormal current. | The lighting control system detects an abnormal lamp load or diagnostic condition. |
| 27 | Park Gear (P) | The automatic transmission is in Park. | The transmission range sensor reports the P position. |
| 28 | Neutral Gear (N) | The automatic transmission is in Neutral. | The transmission range sensor reports the N position. |
| 29 | Drive Gear (D) | The automatic transmission is in Drive. | The transmission range sensor reports the D position. |
| 30 | Reverse Gear (R) | The automatic transmission is in Reverse. | The transmission range sensor reports the R position. |
| 31 | Brake Pad Wear Warning | Brake-pad wear has reached a service threshold or the wear circuit reports a warning. | A brake-wear sensor or monitoring circuit detects the configured wear condition. |
| 32 | Four-Wheel Drive (4WD) / Differential Lock | Four-wheel drive or a differential-lock function is engaged. | The drivetrain control system confirms the selected 4WD or differential-lock state. |
| 33 | Automatic Transmission Fault | The automatic transmission control system has detected a fault or abnormal operating condition. | The transmission control unit detects a diagnostic or protection condition. |
| 34 | Nitrous Oxide System (NOS) Active | A nitrous-oxide system is enabled or active on a vehicle equipped with that system. | The NOS control circuit reports the system as active. |
| 35 | Purge System Indicator | A purge or vapor-management function is active or being monitored. | The relevant purge-control circuit or controller requests the indicator. |
| 36 | Critical Danger Warning (Skull Symbol) | A critical danger or severe hazard condition is being indicated. | A connected safety or control system sends a critical warning signal. |
| 37 | Low Beam Headlights | The low-beam headlamps are active for normal forward road illumination. | The low-beam lighting circuit is switched ON. |
| 39 | Engine Control Unit (ECU) Fault | The engine control unit or its monitored system has detected a fault. | The ECU or related diagnostic network issues a fault indication. |
| 40 | Blower Fan Active | A ventilation, HVAC, or blower fan is operating. | The blower-fan control circuit is energized. |
| 41 | Frost / Icy Road Warning | Low outside temperature may create frost or icy-road conditions. | The outside-temperature sensor reaches the configured frost/ice warning threshold. |
| 42 | Diesel Glow Plug / Pre-Heating Indicator | A diesel engine's glow plugs or pre-heating system are active before or during cold starting. | The engine controller activates the glow-plug/preheat circuit. |
| 43 | Windshield Defrost / Defog | The front windshield defrost or defog function is active. | The HVAC/defrost control is switched to the windshield defrost mode. |
| 44 | Rear Window Defrost / Defog | The rear-window heating/defogging function is active. | The rear-window defogger circuit is energized. |
| 45 | Electronic Stability Program (ESP) / Traction Control | Electronic stability or traction-control intervention is active, or the system has detected a related condition. | The stability-control module requests the indicator during intervention, system status, or a detected fault. |
| 60 | Airbag System Fault (SRS) | The supplemental restraint system has detected a fault that may affect airbag or restraint operation. | The SRS control unit detects a diagnostic fault. |
| 61 | Door Ajar Warning | One or more vehicle doors are not fully closed. | A door-ajar switch or body-control module detects an open/ajar condition. |
| 63 | Overdrive Off (O/D OFF) | The transmission overdrive function has been disabled. | The transmission control system receives or confirms the O/D OFF command. |
| 82 | Windshield Washer Fluid Low | The windshield washer reservoir is below its configured low-fluid level. | The washer-fluid level sensor detects a low level. |
| 90 | Tire Pressure Monitoring System (TPMS) | One or more tires has low pressure or the tire-pressure monitoring system is reporting a status/fault. | A TPMS sensor/control unit detects pressure outside the configured range or a monitoring fault. |
| 98 | Auto Hold / Brake System Fault | Auto Hold is active, or the brake-control system is reporting a related status/fault. | The brake control unit or Auto Hold function requests the indicator. |
| 169 | Convertible Top Unlocked / Open | The convertible roof is open, unlocked, or not fully secured. | The roof position/lock sensors report an open or unsecured condition. |
| 170 | Trunk / Tailgate Open | The trunk, hatch, or tailgate is not fully closed. | The trunk/tailgate latch sensor reports an open condition. |
| 188 | Parking Sensors / Park Assist | The parking-assistance system is active or detecting nearby obstacles. | The park-assist control unit is enabled or reports an object within its configured detection range. |
| 189 | Headlight Washer System | The headlamp washer function is active or its status is being indicated. | The headlight-washer circuit is commanded ON. |
| 190 | Fuel Cap Open Warning | The fuel filler cap is open, loose, or not detected as properly closed. | The fuel-cap detection system reports an open or unsecured condition. |
| 207 | Lighting System Malfunction | A lighting-system fault has been detected. | The lighting control module detects an abnormal lamp circuit or diagnostic fault. |
| 209 | Diesel Particulate Filter (DPF) Warning | The diesel particulate filter requires attention because soot loading or system status has reached a warning condition. | The engine/emissions controller detects a DPF loading or related fault threshold. |
| 214 | ECO Driving Mode Indicator | An economy-oriented driving mode is selected or active. | The vehicle control system confirms ECO mode selection. |
| 216 | DPF Regeneration / Filter Status | The diesel particulate filter is undergoing or requesting regeneration, or its filter status is being displayed. | The engine-control system commands or monitors DPF regeneration/status. |
| 217 | Windshield Wiper Fault | The windshield wiper system has detected a malfunction or abnormal operating condition. | The wiper control module detects a motor, switch, position, or circuit fault. |
| 218 | Convertible Roof Operation Warning | The convertible roof system requires attention during opening, closing, or locking. | Roof position, motor, or locking sensors report an abnormal operating state. |
| 219 | Tow Hitch / Trailer Lock Indicator | The trailer/tow-hitch connection or lock status is being indicated. | A trailer or tow-hitch detection/locking circuit reports its status. |
| 220 | Headlight Range Control | The headlight leveling/range-control function is active or its status is being displayed. | The headlight-leveling system commands or confirms a range-adjustment state. |
| 221 | Adaptive High Beam / Light Angle | Adaptive headlight beam direction or high-beam control is active. | The adaptive-lighting control system changes or confirms beam angle/high-beam operation. |
| 222 | Distance Warning / Forward Collision Warning | The vehicle detects insufficient following distance or a potential forward collision risk. | The driver-assistance system detects a configured distance/collision warning condition. |
| 224 | Cruise Control Active | Cruise control is enabled and maintaining or preparing to maintain a set speed. | The cruise-control system confirms an active/standby cruise state. |
| 225 | Hill Descent Control (HDC) | Hill Descent Control is enabled to help manage vehicle speed on a steep descent. | The drivetrain/brake control system activates HDC. |
| 226 | Key Battery Low Warning | The electronic key's battery is running low and may require replacement. | The keyless system detects a low key-battery condition. |
| 227 | Press Brake Pedal Indicator | The system requires the brake pedal to be pressed before a requested operation can proceed. | A start, shift, or control interlock requests brake-pedal input. |
| 228 | Speed Limiter Indicator | A vehicle speed-limiting function is active or selected. | The speed-limiter control system confirms an active or selected limit. |
| 233 | Directional Turn Signals | Directional indicators are operating to communicate a turn or lane change. | The relevant turn-signal circuit is commanded ON or flashing. |
| 234 | Service / Maintenance Required (Wrench) | Scheduled service or maintenance is due, or the system requests inspection. | A maintenance timer, diagnostic system, or service monitor reaches its configured threshold. |
| 243 | Electric Power Steering (EPS) Fault | The electric power steering system has detected a fault or abnormal condition. | The EPS control unit detects a diagnostic or protection condition. |
| 244 | Brake System Service Check | The braking system requires inspection or service. | A brake-control or maintenance system requests a service check. |
| 245 | Information Indicator (i) | General vehicle or system information is available for the operator. | A control module generates an information message or status event. |
| 246 | Light Sensor / Lane Detection Sensor | A light-sensing or lane-detection function is active or reporting status. | The corresponding sensor/control system is enabled or generates a status signal. |
| 247 | Key Not Detected / Invalid Key | The vehicle cannot detect a valid authorized key for the requested operation. | The immobilizer/keyless system fails to authenticate or detect the expected key. |
| 248 | Remote Key Signal / Sensor Warning | The remote-key or related sensor system is reporting a status or communication issue. | The keyless/remote receiver detects a signal, communication, or sensor condition. |
| 249 | Steering Column Lock Warning | The steering-column lock is engaged, not released, or has detected a fault. | The steering-lock control system reports its lock/unlock status or a fault. |
| 251 | Door / Roof Open Warning | A monitored door or roof/opening is not fully closed. | The relevant position or latch sensor reports an open condition. |
| 252 | Lane Departure Warning (LDW) | The vehicle is approaching or crossing a lane boundary without the expected maneuver signal. | The lane-detection/driver-assistance system detects a configured lane-departure condition. |
| 253 | Hood Open Warning | The hood is not fully closed or latched. | The hood latch/position sensor reports an open condition. |
| 254 | Adaptive Front-lighting System (AFS) | The adaptive front-lighting system is active or reporting its operating status. | The AFS control system adjusts or confirms the headlight direction/distribution. |
| 255 | Side Airbag / Occupant Sensor Fault | A side-airbag or occupant-detection system has detected a fault. | The SRS/occupant-sensing controller detects a diagnostic condition. |
| 256 | Side Slip / Lane Keep Assist | The vehicle's stability or lane-keeping system is actively correcting or monitoring lateral movement. | The stability/lane-keeping control system detects a configured lateral-control condition. |
| 257 | Water in Fuel Filter Warning | Water has been detected in the fuel filter or fuel-water separator and may require draining. | A water-in-fuel sensor reaches its detection threshold. |
| 258 | Suspension System / Shock Absorber Fault | The suspension or electronically controlled shock-absorber system has detected a fault. | The suspension control unit or sensor network detects an abnormal condition. |
| 259 | AUTO Rain-Sensing Wipers | Automatic rain-sensing wiper control is active. | The rain sensor detects moisture and the wiper controller activates or requests automatic wiping. |
| 260 | Key Not Found / Engine Immobilizer | The authorized key is not detected or the engine immobilizer is preventing normal start authorization. | The immobilizer/keyless system cannot authenticate the required key. |
Technical note: symbol definitions and illumination thresholds are application-dependent. The descriptions above explain the intended visual meaning of the symbol and the typical control logic; the final circuit behavior should be confirmed against the target vehicle, machine, controller and wiring specification.
Key Takeaways
- Product Identity: 16mm Dash-Warning-Indicator-Light (Models: FL1M-16FW-1 with wire leads / FL1M-16FJ-1 with pin terminals).
- Mounting Specification: Standard 16mm mounting hole diameter suitable for single-nut panel installation.
- Operating Voltage: Standard 12V DC configuration utilizing a non-polar LED module.
- Housing Material: High-durability black-plated zinc-aluminum alloy or silver copper alloy options providing superior mechanical strength over plastic alternatives.
- Protection Rating: IP65 waterproof and dustproof performance when installed correctly with the provided silicone O-ring gasket.

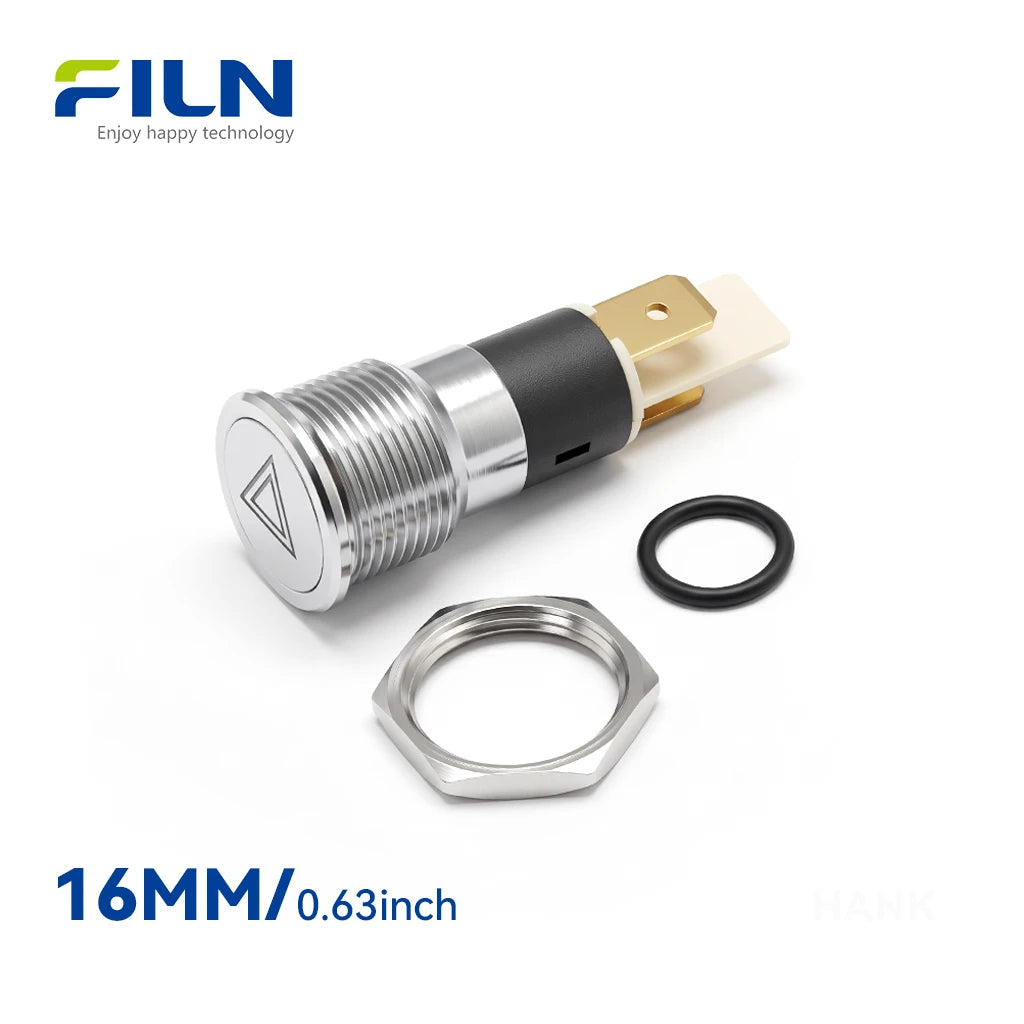

- Wiring Options: Available with 20cm pre-wired PVC leads or 2pin soldering/plug-in terminals.
- Head Configuration: Flat head profile featuring custom laser-etched automotive and industrial warning symbols.
- Target Applications: Automotive instrument clusters, industrial control cabinets, electrical test equipment, and marine control consoles.
- Manufacturer Support: Factory-direct wholesale supply from FILN with OEM/ODM customization capabilities for bulk buyers and panel builders.
- Certifications: Manufactured under ISO9001 quality systems with CE, VDE, RoHS, and CCC compliance.
What is a Dash-Warning-Indicator-Light?

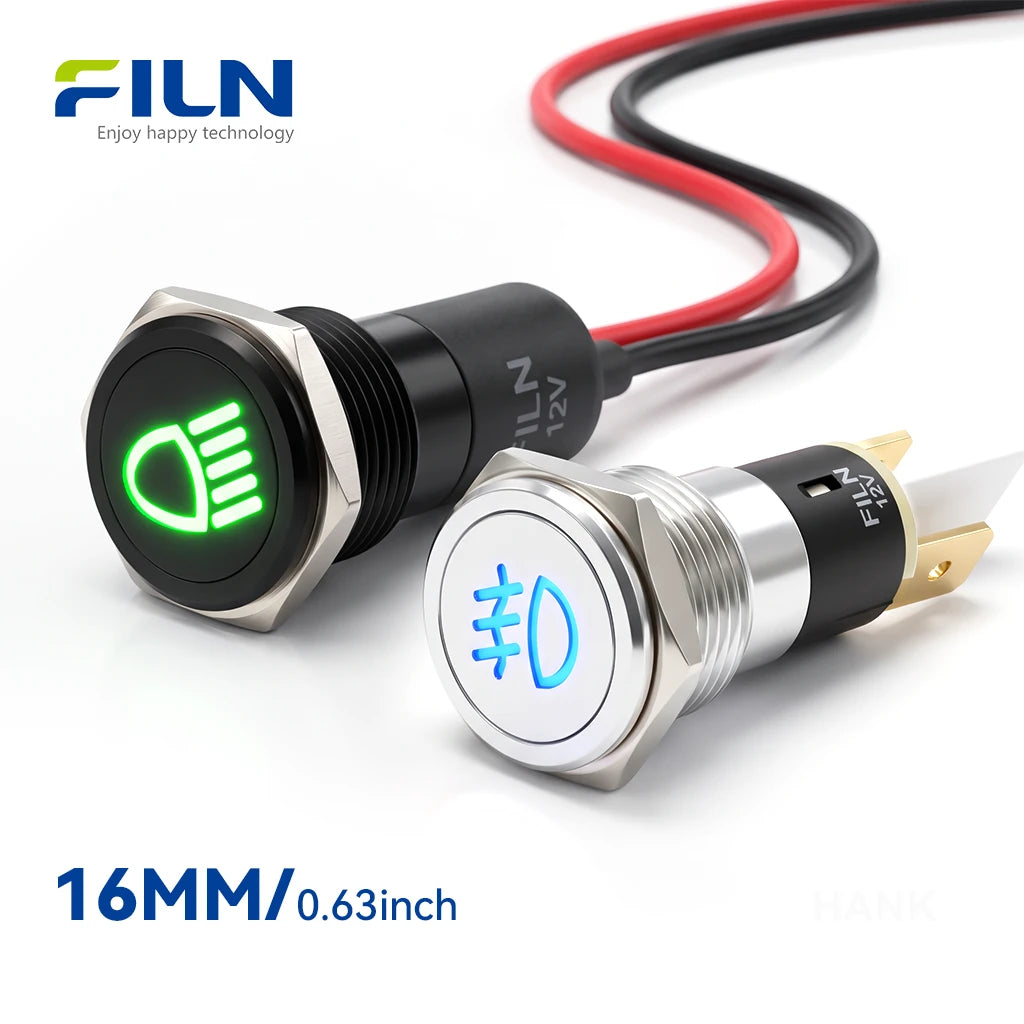

A Dash-Warning-Indicator-Light is a specialized panel-mounted signal device designed to communicate real-time operational status, system alerts, and fault warnings to equipment operators and drivers. Structurally composed of a threaded metal housing, an internal high-brightness LED luminescent source, a protective lens with laser-etched symbols, and sealing gaskets, it serves a critical role in human-machine interfaces. Its primary industrial value lies in translating electrical signals into clear visual cues, thereby preventing equipment damage and improving operator reaction times in high-vibration environments.
Indicator lights are available in various material choices including metal and plastic, spanning standard mounting sizes from 6mm to 30mm. Depending on installation requirements, they can be configured with pin terminals or direct wire leads. Metal indicator lights specifically offer three distinct head styles—flat head, convex head, and concave head—allowing engineers to select the optimal aesthetic and functional profile for their control surfaces. FILN produces robust metal indicator lights engineered specifically to outlast standard plastic alternatives in rigorous industrial and automotive settings.
Product Overview & Engineering Principles
The FILN 16mm dash warning indicator light operates on low-voltage DC power to illuminate internal solid-state semiconductor LED chips. Mechanically, the assembly relies on a precision-machined threaded barrel secured by a metallic hex nut against control panels, locking the unit firmly in place. Electrically, current flows through integrated dropping resistors designed to regulate voltage and protect the LED junction from overcurrent damage during operation.

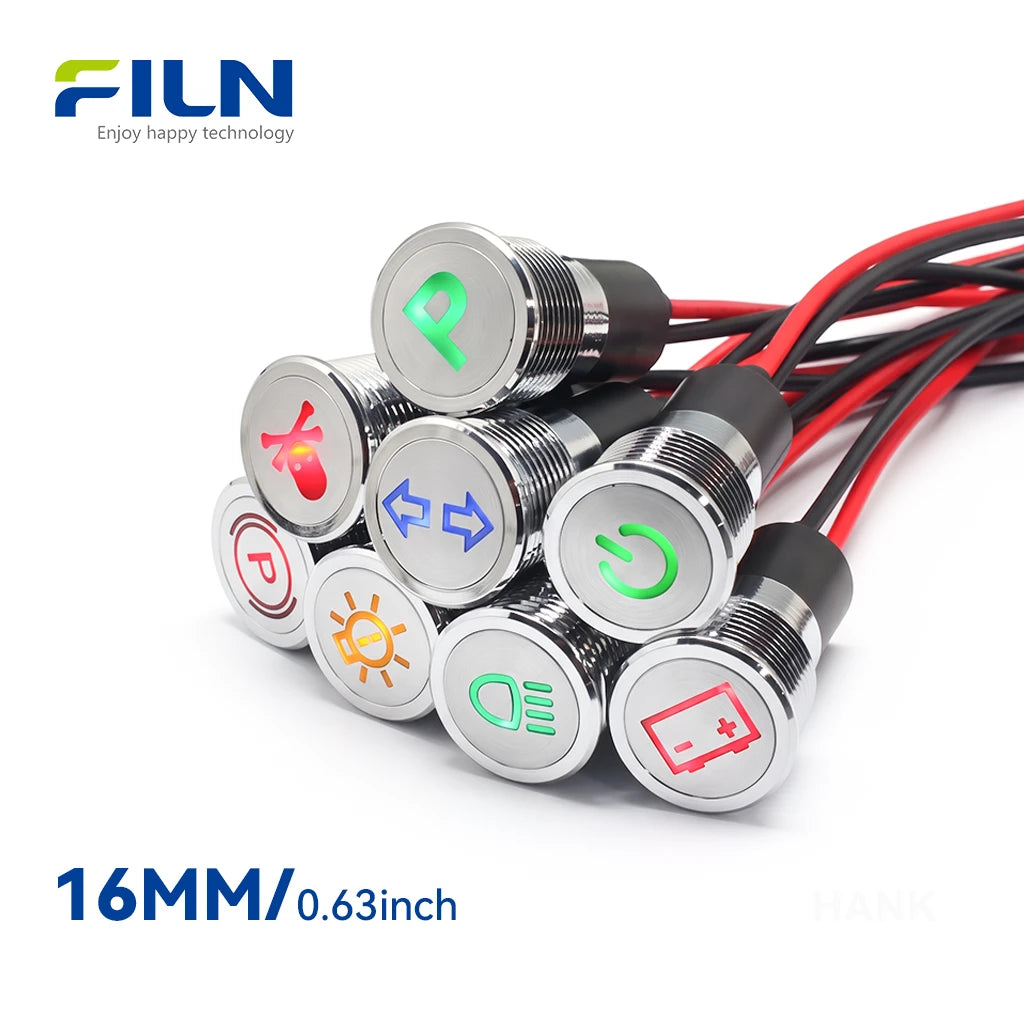

Mainly deployed in automotive instrument clusters, heavy machinery, and electrical switchboards, these indicators deliver exceptional industrial advantages such as high mechanical impact resistance, vibration dampening, and long operational lifespan exceeding 50,000 hours. Built using copper alloy and black-plated zinc-aluminum shells paired with PA66 lamp holders and silicone O-rings, they maintain structural integrity and ingress protection under harsh operating conditions. Certifications including CE, VDE, RoHS, and ISO9001 underscore compliance with international electrical safety standards.
Quick Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Description | Metal indicator light with wires / pin terminals |
| Indicator Light Model | FL1M-16FW-1 (Wire lead) / FL1M-16FJ-1 (Pin terminal) |
| Mounting Hole Size | 16 mm (approx. 0.63 inches) |
| Rated Voltage | 12V DC/AC (Customizable ranges available) |
| LED Color Options | Red, Green, Yellow, Blue, White, Bi-color, Tri-color |
| Waterproof Rating | IP65 / IP67 (Configuration dependent) |
| Wiring Type | 2PIN Pin terminal or 20cm PVC wire lead |
| Head Type | Flat head with laser-etched dashboard symbol |
| Surface Quality | Smooth and flat finish without burrs, oxidation, cracks, or visible defects. |
| Assembly Requirements | Head assembly and base assembly fitted securely, ensuring no rotation, detachment, tilt, or deformation. |
Performance Parameters
| Performance Metric | Technical Specification |
|---|---|
| Rated Operating Voltage | 3V–480V DC/AC (Standard model configured for 12V) |
| AC Frequency | 50/60 Hz |
| Rated Operating Current | ≤ 20 mA |
| Rated Power | Approx. 0.2 W |
| Insulation Resistance | ≥ 100 MΩ (Tested at 500 V DC between lead wires and housing) |
| Dielectric Strength / Voltage Proof | 1500V–1800V AC, no breakdown or flashover |
| Operating Life | 50,000 to 100,000 hours |
| Ingress Protection Rating | IP65 / IP67 |
Component Materials & Engineering Rationale
| Component Part | Material Specification | Engineering Function |
|---|---|---|
| Shell | Copper alloy / Black-plated zinc-aluminum alloy | Provides mechanical rigidity, impact resistance, and corrosion protection. |
| Lamp Holder | PA66 | Offers high thermal stability and electrical insulation. |
| Lampshade / Lens | Polycarbonate (PC) | Ensures high light transmission and shatter resistance. |
| Luminescent Source | High-brightness LED | Delivers energy-efficient illumination with long operating life. |
| Resistor | Carbon film resistor | Regulates voltage input and protects the internal diode. |
| Wire / Lead Wire | PVC | Flexible insulation for secure circuit connection. |
| Nut | Copper alloy | Secures the threaded body tightly against mounting panels. |

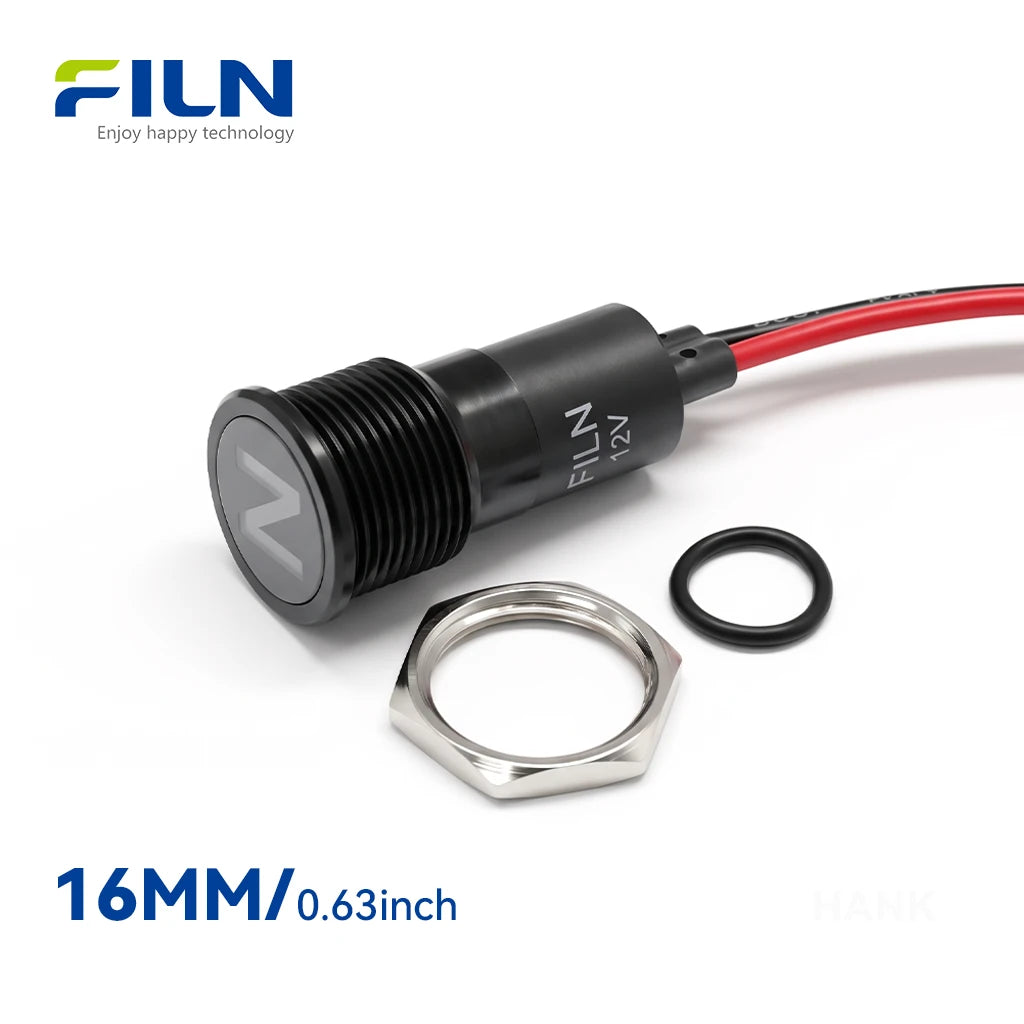

| O-Ring | Silicone / Silica gel | Seals panel gap to achieve IP65/IP67 waterproof protection. |
| Lock Washer | Stainless steel | Prevents fastener loosening under continuous vibration. |
Environmental Performance Specifications
This specification outlines the operational boundaries and environmental resilience standards for the dash warning indicator light series.
| Environmental Test | Testing Parameters & Conditions |
|---|---|
| Operating & Storage Temperature | -40℃ ~ +80℃ |
| Operating Relative Humidity | ≤85% at +40℃ |
| High Temperature Test | 96 hours at 80±2℃ |
| Low Temperature Test | 96 hours at -40±2℃ |
| Constant Temperature & Humidity Test | 96 hours at 40±2℃, 90%~95% RH |
| Temperature Cycling Test | Alternate between -40℃ (30 min) and 85℃ (30 min), 5 cycles total |
LED Technical Specifications
Absolute Maximum Ratings (Ta = 25°C): Maximum safe operating limits of the internal LED chip include a Maximum Forward Current (IFP) of 20 mA, Reverse Voltage (VR) of 5 V, Power Dissipation (PD) of 60 mW, Operating Temperature (TOPR) from -40°C to +80°C, Storage Temperature (TSTG) from -40°C to +100°C, and Lead-Free Soldering Temperature (TSOL) of Max. 260°C for 3 seconds.
Electro-Optical Characteristics (Ta = 25°C): Forward Voltage (VF) measured at IF = 20 mA ranges from 2.8 V (Min.) to 3.2 V (Max.). Reverse Current (IR) at VR = 5 V is restricted to 5 µA (Max.). Viewing Angle (2θ₁/₂) is typically 60°. Luminous Intensity (Iv) ranges from 500 mcd to 800 mcd at IF = 20 mA. Dominant Wavelength (λd) spans 520 nm to 525 nm for green variants, with junction temperature (Tj) reaching a maximum of 125°C and thermal resistance (RJP) at 8°C/W.
Standard Test Conditions
Unless otherwise specified, all electrical and optical parameters are measured under controlled standard atmospheric conditions: Ambient Temperature of 5℃ ~ 35℃, Relative Humidity of 45% ~ 85%, and Air Pressure between 86 ~ 106 kPa (860 ~ 1060 mbar).
Notes: Luminous intensity and dominant wavelength are calibrated in accordance with CIE international standards for human eye response curves. Measurement tolerances include ±15% for luminous intensity and ±0.1V for operating voltage.
Applications by Industry
Metal indicator lights utilize high-strength copper alloy or stainless steel exterior housings to deliver exceptional impact resistance and IP67 waterproof/dustproof protection, making them ideal for industrial and heavy-duty commercial environments. While plastic indicators are prone to aging, cracking, and thermal deformation over time, metal indicator lights excel in harsh operating conditions characterized by frequent mechanical operation and strict reliability requirements.
1. Industrial Automation & Machinery Manufacturing
This sector represents the largest and most critical application environment for metal indicator lights, where continuous mechanical vibration, oil contamination, and physical impacts are prevalent.
- CNC Machine Tools & Machining Centers: Control panels utilize red, green, and yellow metal indicators where green indicates normal operation, yellow signifies standby/warning, and red denotes emergency stop or fault conditions. Metal shells effectively resist cutting fluids and metallic debris.
- Automation Production Line Control Cabinets: Large distribution and PLC control cabinets integrate 6mm and 8mm metal indicators operating at AC220V or DC24V to display power status across circuits.
- Hydraulic & Pneumatic Equipment: Deployed for pump start/stop and pressure limit alerts. Integrated wire-lead metal indicators feature securely anchored internal LEDs that resist wire breakage and loosening under heavy vibration.
2. Outdoor Power & Renewable Energy Distribution Systems
Outdoor equipment subjected to intense UV exposure, precipitation, and extreme temperature fluctuations demands exceptional weather resistance and thermal stability.
- Electric Vehicle Charging Stations: Outdoor DC and AC charging piles incorporate flat head metal status indicators where flashing blue/green lights indicate active charging, solid lights indicate completion, and flashing red alerts users to ground faults. IP67 sealing ensures high durability in public spaces.
- Outdoor Distribution Boxes & Photovoltaic Combiner Boxes: Solar power stations and municipal electrical boxes use indicators to display high-voltage closing and inverter operating status across a -40℃ to 80℃ temperature range.
3. Railway Transportation, Commercial Vehicles & Marine Equipment
Vehicles and marine vessels experience severe mechanical shock, vibration, and corrosive high-salinity marine environments.
- Commercial Vehicle Cockpits: Excavators, cranes, and bulldozer dashboards utilize indicators for oil pressure, coolant temperature, headlamp status, and braking faults under heavy dust and shock conditions.
- Marine & Port Control Equipment: Shipboard instrument panels and deck control boxes use plated metal indicator lights to resist saltwater corrosion, supported by silicone sealing rings to prevent liquid ingress.
4. Commercial Vending & Public Security Facilities
Public equipment is frequently exposed to physical impacts and vandalism, where plastic components break easily.
- Vending & Ticketing Machines: Paired with vandal-resistant metal push buttons to indicate coin insertion, dispensing, and change status.
- Gas Station Fuel Dispensers: Hazardous area classifications require explosion-safe electrical isolation, which metal indicator housings provide safely.
5. Medical Equipment & Food Processing Machinery
These industries require frequent high-pressure washdowns and chemical sanitization, demanding strict cleanliness standards.
- Food Filling & Packaging Equipment: Daily high-pressure hot water and chemical cleaning make IP67 metal indicators essential for resisting spray corrosion.
- Medical Sterilization Equipment: High-temperature autoclaves use indicator lights to differentiate heating, sterilizing, and exhaust phases.
LED Indicator Color Meanings and Application Guide
Indicator light colors convey critical operational status across industrial equipment. Understanding standard color assignments ensures safe and intuitive control panel design. Note that color conventions can vary by manufacturer, control system design, and industry standard.
| Color | Common Meaning | Typical Status | Typical Application | Recommended Environment |
|---|---|---|---|---|
| Red | Danger, Stop, Fault | Emergency stop, error, active alarm | Machine shutoff, brake warning | All industrial control panels |
| Green | Normal, Safe, Go | System running, power active | Power indicator, motor start | Standard operating consoles |
| Yellow / Amber | Caution, Standby, Warning | Pre-check, warning state | Temperature limit, low fuel | Monitoring dashboards |
| Blue | Mandatory Action, Status | Charging, active mode | EV chargers, cooling systems | EV & machinery panels |
| White | Neutral, Power ON | General illumination, standby | Control cabinet lighting status | General electrical boards |
Installation Guide
Proper installation ensures mechanical stability and maintains the IP65 waterproof rating of your 16mm dash warning indicator light. Follow these systematic steps for correct panel mounting:
- Required Tools: Prepare a drill with a 16mm step drill bit or hole punch, wire strippers, crimping pliers, and a wrench.
- Panel Preparation: Measure and mark the exact mounting location on the control panel or dashboard surface.
- Drilling Mounting Hole: Drill a clean 16mm circular hole in the panel. Remove all metal burrs and sharp edges to prevent gasket damage.
- Gasket Placement: Slide the silicone waterproof O-ring gasket onto the threaded shaft of the indicator light.
- Inserting Indicator: Insert the metal indicator light from the front side of the panel through the 16mm hole, ensuring correct symbol orientation.
- Securing Fastener: From the rear side of the panel, thread the metal locking nut onto the shaft and tighten securely with a wrench. Do not overtighten.
- Electrical Connection: Connect the 2PIN wire leads or pin terminals to your power source following the wiring guidelines.
- Post-Installation Inspection: Verify mechanical rigidity, check that the indicator does not rotate or tilt, and test electrical continuity before powering on.
Wiring Guide & Terminal Comparison
FILN offers two distinct wiring configurations for the 16mm dash warning indicator light: pin terminal models (FL1M-16FJ-1) and pre-wired models (FL1M-16FW-1). Selecting the correct wiring method depends on your assembly workflow and vibration environment.
| Wiring Type | Advantages | Disadvantages | Recommended Use |
|---|---|---|---|
| 2PIN Pin Terminal (FL1M-16FJ-1) | Flexible wire length customisation, neat disconnect capability with receptacle connectors. | Requires soldering or spade terminals; exposed pins need insulation. | Modular control panels, custom wire harnesses. |
| 2PIN Wire Lead (FL1M-16FW-1) | Pre-stripped 20cm PVC leads, factory-sealed vibration resistance, ready for instant connection. | Fixed wire length; requires splicing if extended. | Automotive dashboards, high-vibration machinery. |
Wiring Best Practices: Direct wire-lead indicators can be connected to circuits using quick-link terminal blocks, soldered joints, or insulated electrical tape to ensure connection stability. Featuring a non-polar internal LED module, these indicators do not require strict positive and negative polarity matching during standard 12V hookup. Safety Note: Always disconnect power and verify zero energy state before performing electrical wiring.
Industry Knowledge Center
Selecting high-reliability electrical components requires a thorough understanding of operating principles, material science, and industry standards. Indicator lights serve as the primary visual interface between complex electronic control systems and human operators. Proper selection prevents false signaling, reduces maintenance downtime, and ensures regulatory compliance across industrial and automotive sectors. Engineering teams must evaluate ingress protection, operating voltage stability, and thermal limits during the initial design phase to guarantee long-term system integrity.
Buyer Decision Guide & Material Selection
Choosing the right metal indicator light involves evaluating environmental conditions, mechanical stresses, and aesthetic requirements. FILN provides three primary metal housing materials tailored to distinct operational environments:
| Housing Material | Advantages | Disadvantages | Ideal Application Environment |
|---|---|---|---|
| Black-Plated Zinc-Aluminum Alloy | High hardness, sleek matte black appearance, excellent cost-to-performance ratio. | Moderate corrosion resistance compared to stainless steel. | Automotive dashboards, indoor control panels, machinery. |
| Nickel-Plated Brass | Robust mechanical strength, highly conductive, durable bright metallic finish. | Heavier weight than aluminum alloys. | General industrial switchgear, electrical distribution boxes. |
| Stainless Steel | Superior corrosion resistance, anti-rust, extreme chemical and salt-spray tolerance. | Higher material and machining cost. | Marine equipment, food processing machinery, chemical plants. |
RFQ (Request for Quotation) Checklist
Providing complete specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements efficiently. Please include the following details in your inquiry:
- Product Type & Model (e.g., FL1M-16FW-1 or FL1M-16FJ-1)
- Mounting Hole Size (e.g., 16mm)
- Operating Voltage & Type (e.g., 12V DC/AC)
- LED Color (Red, Green, Yellow, Blue, White, Bi-color, Tri-color)
- Head Type & Symbol Code (e.g., Flat head with symbol #5 Engine Check)
- Housing Material (Black zinc-aluminum alloy or nickel-plated brass)
- Waterproof Requirement (IP65 / IP67)
- Wiring Method & Length (2PIN wire leads with 20cm cable or pin terminals)
- Target Market & Certifications Required (CE, RoHS, UL, VDE)
- Order Quantity, Packaging Requirements, and OEM Customization Needs
FILN Manufacturing and Engineering Capabilities
As an established electrical component manufacturer, FILN maintains advanced R&D and production capabilities to support global B2B clients. Our engineering team provides custom design support, mold development, and rapid prototyping for OEM and ODM projects. Operating dedicated assembly lines and automated testing labs, FILN ensures strict quality control across every production batch, meeting rigorous international certification standards for industrial and automotive applications.
Factory Direct Supply & Company Profile
Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN and located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, development, production, and sales. Premium FILN products are distributed across more than 100 countries worldwide. FILN operates a modern 10,000 m² facility equipped with over 20 advanced production lines and an independent testing laboratory. Driven by scientific processes and ISO9001 quality management systems, FILN ensures exceptional innovation and electrical performance.
Our certified product lines—including indicator lights, push button switches, rocker switches, and toggle switches—are widely utilized in home appliances, energy storage systems, EV charging stations, automotive dashboards, marine equipment, and security systems. FILN holds major international certifications including ISO9001, CE, VDE, RoHS, SGS, UL, IP65, and TUV, serving global markets with professional engineering support and custom manufacturing solutions.
Explore our complete range of metal indicator lights on the FILN LED Indicator Light Category Page.
Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn
Frequently Asked Questions
How to prevent phantom illumination (faint glowing) in 12V LED indicators?
Phantom illumination or faint glowing in 12V LED indicator lights is typically caused by residual leakage currents from solid-state outputs, PLC transistor outputs, or long parallel wiring capacitance. To eliminate this issue, install a suitable bleeder resistor (resistor in parallel) across the indicator terminals to shunt the leakage current away from the LED diode.
Can this IP65 indicator light be washed down with caustic chemicals?
While the IP65 rating protects against water jets and dust ingress, exposure to harsh caustic chemicals or strong industrial solvents can degrade the PVC wire insulation or polycarbonate lens over time. For chemical-heavy washdown environments, stainless steel housing variants and chemical-resistant cabling are strongly recommended.
What is the difference between FL1M-16FW-1 and FL1M-16FJ-1 models?
Model FL1M-16FW-1 features factory-attached 20cm PVC wire leads providing pre-sealed vibration resistance and quick installation. Model FL1M-16FJ-1 utilizes 2PIN solder/plug-in pin terminals, which allow custom wire length termination and connector pairing depending on your harness assembly requirements.
Does the 12V metal indicator light require correct polarity connection?
No. FILN metal indicator lights incorporate an internal non-polar circuit design, allowing them to function correctly regardless of whether the positive and negative wires are reversed during 12V DC installation.
What panel thickness is compatible with the 16mm mounting thread?
The 16mm threaded metal shaft accommodates panel thicknesses ranging from 1mm up to 6mm, secured tightly from the rear using the provided copper alloy hex nut and stainless steel lock washer.
Can FILN customize laser-etched symbols for automotive dashboards?
Yes. FILN provides professional OEM/ODM customization services to laser-etch specific automotive, ISO, or custom graphical symbols onto the flat head lens according to client specifications for bulk orders.
What certifications do FILN metal indicator lights carry?
FILN metal indicator lights are manufactured under ISO9001 quality standards and hold international certifications including CE, VDE, RoHS, CCC, and SGS compliance, ensuring suitability for global export markets.
How should the indicator light be secured to maintain waterproof performance?
Ensure the silicone O-ring gasket is positioned correctly between the front bezel flange and the outer panel surface before tightening the rear locking nut. Avoid overtightening to prevent thread stripping or gasket deformation.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
- Choosing a selection results in a full page refresh.
