Note: The default wiring for the dual-color indicator lights is Common Cathode. If you require Common Anode, please leave a note or contact us.

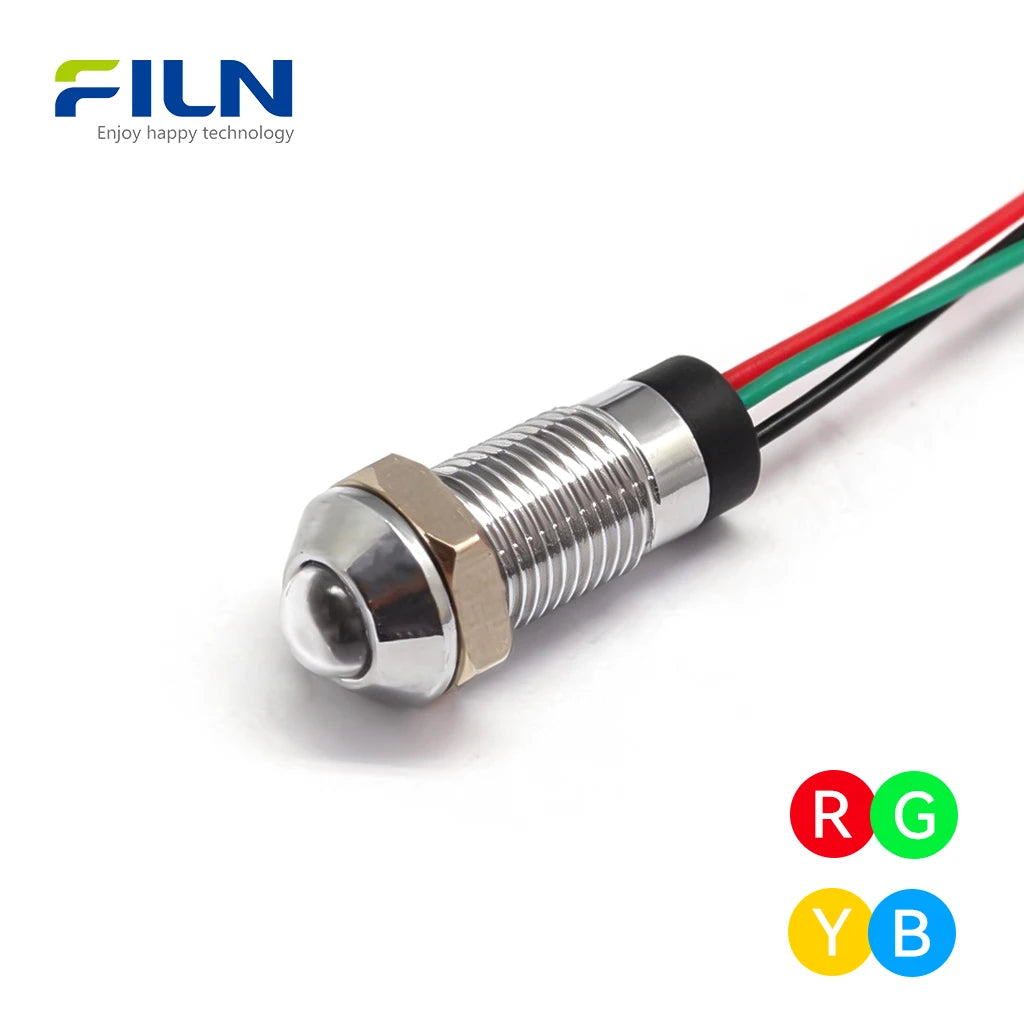

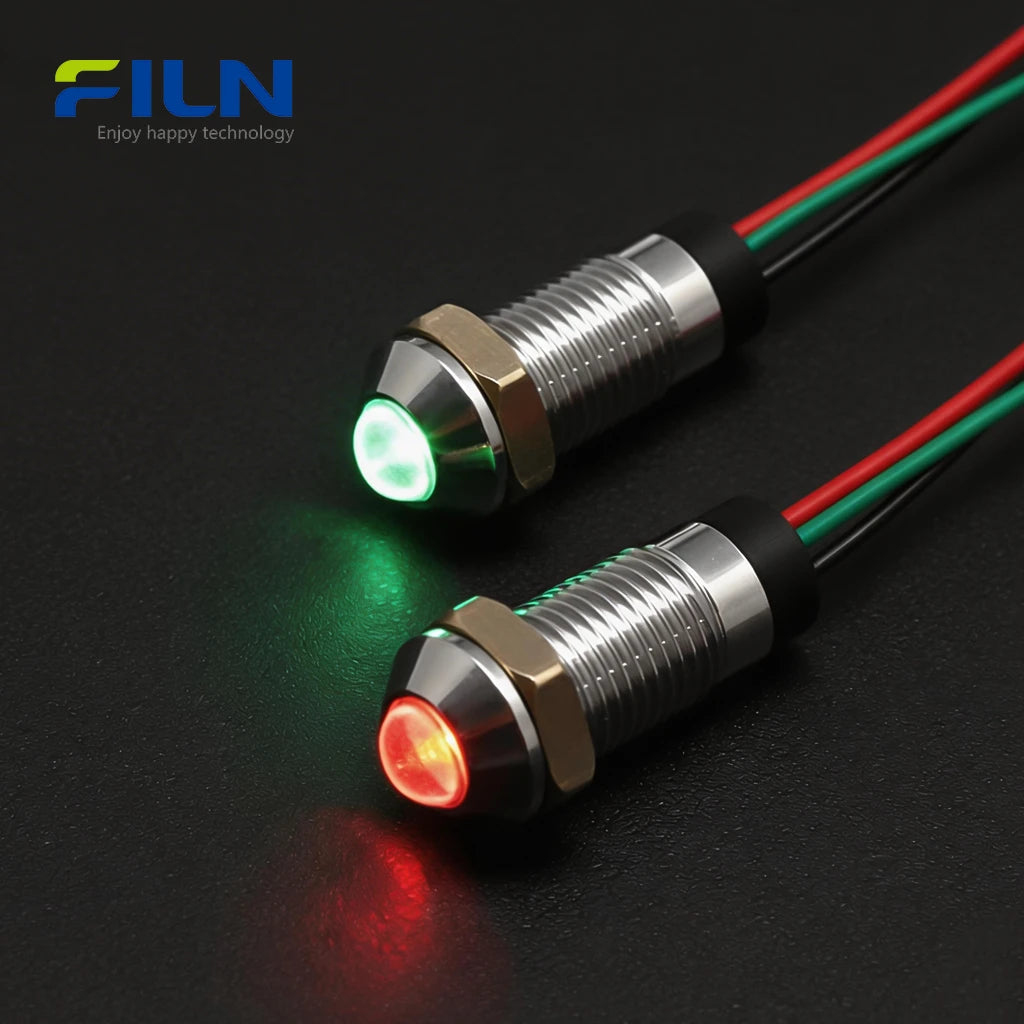

Product Overview
The Common Cathode/Anode 2-color Panel Mount Indicator (Model: FL1M-08SW-D-2) is a premium industrial signaling solution featuring a distinctive high head metal design for enhanced visibility. This 8mm indicator supports versatile Red, Green, Yellow, Blue, and White dual-color combinations. Engineered for durability, it boasts an IP67 waterproof rating and comes pre-wired with 15cm leads for effortless installation. Whether you require a common cathode or common anode circuit configuration, this high-precision component provides reliable status feedback for CNC machinery, automation panels, and heavy-duty electrical systems.
Quick Specifications
| Mounting Hole | 8mm (0.31 inch) |
|---|---|
| Voltage | 12-24V / 110-220V (Supports Customization) |
| LED Color | Dual-color (Red/Green/Yellow/Blue/White) |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Pre-wired Leads (15cm Length) |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | Customized |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Metal (Silver or Black Options) |
|---|---|
| Lens | High Head Polycarbonate |
| Seal Ring | 8mm O-type Waterproof Ring |
| Terminal | Pre-wired Direct Exit |
| Wire Material | PVC / Teflon UL Standard |
General Characteristics
| Part Name | FL1M-08SW-D-2 |
|---|---|
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP65 / IP67 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Key Features
- LED High Brightness: Superior illumination for multi-status signaling.
- Long Lifespan: Industrial-grade LED rated for 50,000 operational hours.
- IP67 Waterproof: Reliable performance in wet and dusty environments.
- Easy Installation: Pre-wired 15cm leads and smooth M8 threads for quick panel mounting.
- Industrial Grade Reliability: Robust high-head metal shell available in silver chrome or black.
Applications
- Industrial control panels and CNC machines
- Automation equipment and robotics
- Electrical cabinets and power distribution
- Marine and outdoor signaling systems
- Medical and laboratory diagnostic devices
Installation Guide
- Drill an 8mm hole in your panel at the required location.
- Place the 8mm silicone O-ring onto the indicator body.
- Insert the indicator through the hole from the top side of the panel.
- Slide the M8 nut from the rear and tighten securely along the smooth threads.
- Connect the 15cm pre-wired leads to your power source (Common Cathode or Common Anode configuration).
What Is a Common Cathode/Anode 2-color Panel Mount Indicator?
A Common Cathode/Anode 2-color Panel Mount Indicator is a space-saving signaling device that integrates two LED colors into one unit. This allows for clear multi-state feedback (e.g., Red for "Error" and Green for "Ready"). Pre-wired indicators offer a distinct advantage over pin terminals: the direct-wire exit provides a more secure, vibration-proof connection and significantly reduces labor time during mass assembly. The "high head" design ensures the light is visible from wider angles compared to flat or recessed models, making it ideal for safety-critical industrial equipment.
FILN Factory Direct Supply
Buy directly from the manufacturer to ensure quality and customization:
- Factory Direct: Competitive pricing and technical support from Wenzhou.
- Full Customization: Tailored voltage, wire lengths, and connector types.
- Fast Global Shipping: Rapid delivery for global B2B industrial projects.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the difference between Common Cathode and Common Anode?
Common Cathode means both LEDs share a negative wire, while Common Anode means they share a positive wire. This depends on your specific circuit control logic.

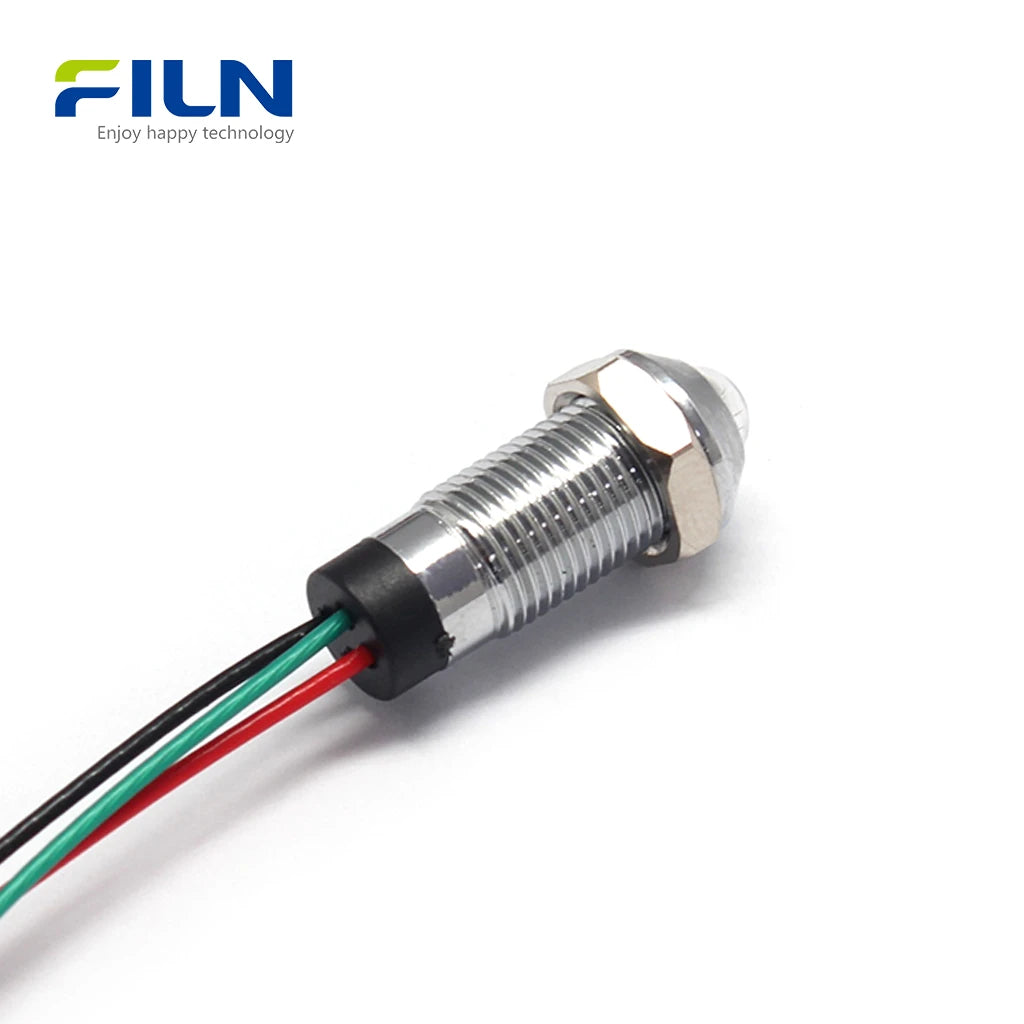

Q2: Why choose pre-wired leads over pin terminals?
Pre-wired leads (15cm) offer easier installation in tight spaces and eliminate the need for manual soldering or crimping on the production line.
Q3: Is this indicator suitable for outdoor use?
Yes, with its IP67 rating and silicone O-ring, it is fully protected against dust and water immersion.

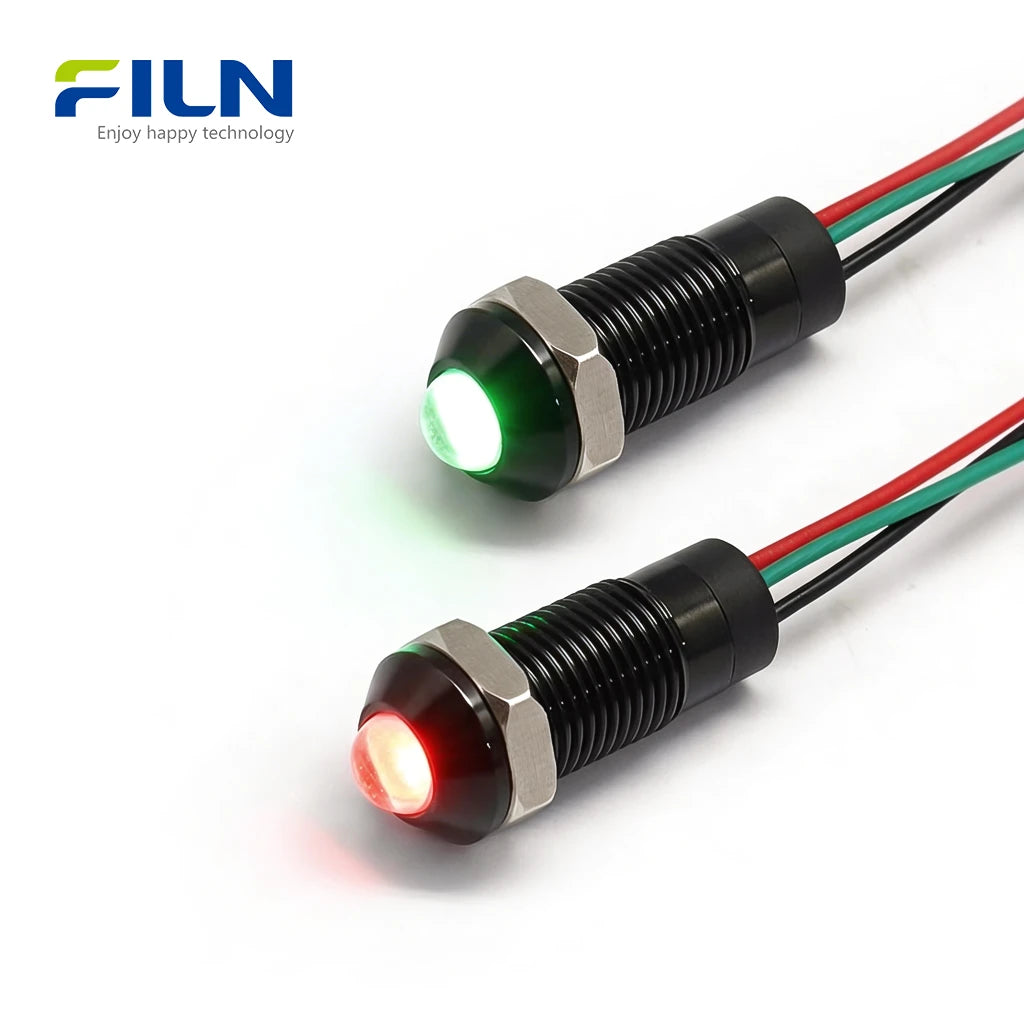

Q4: Can I get a black shell instead of silver?
Yes, we offer both silver chrome plated and black anodized metal housings.
Q5: What is the mounting hole size?
This model is designed for a standard 8mm (M8) mounting hole.
Q6: What colors are available for the 2-color indicator?
We provide any combination of Red, Green, Yellow, Blue, and White.
Q7: Does it come with mounting hardware?

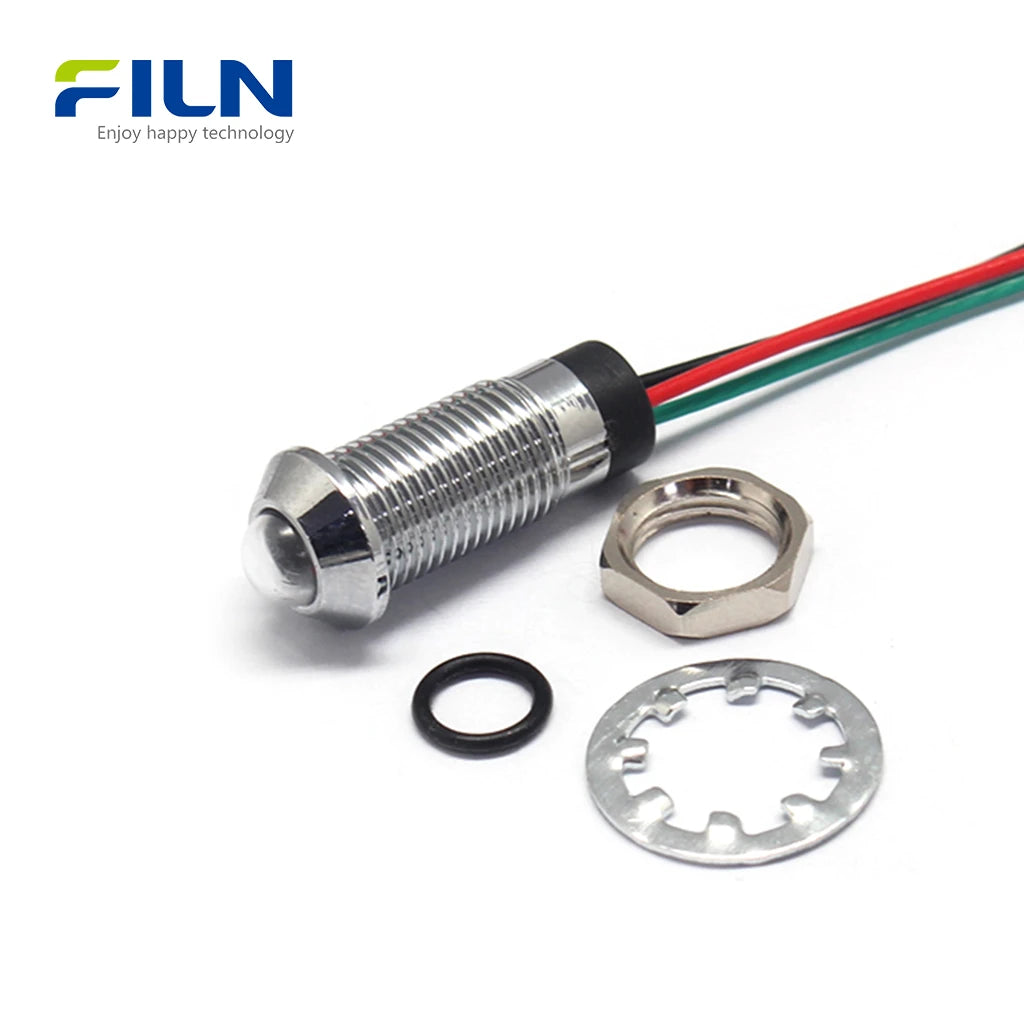

Yes, each unit includes one high-quality M8 nut and one 8mm silicone waterproof ring.
Q8: Can the voltage be customized for 220V AC?
Absolutely. We support both low voltage DC (12V-24V) and high voltage AC (110V-220V).
Q9: How long is the lifespan?
Our industrial LEDs are rated for 50,000 hours of continuous working life.

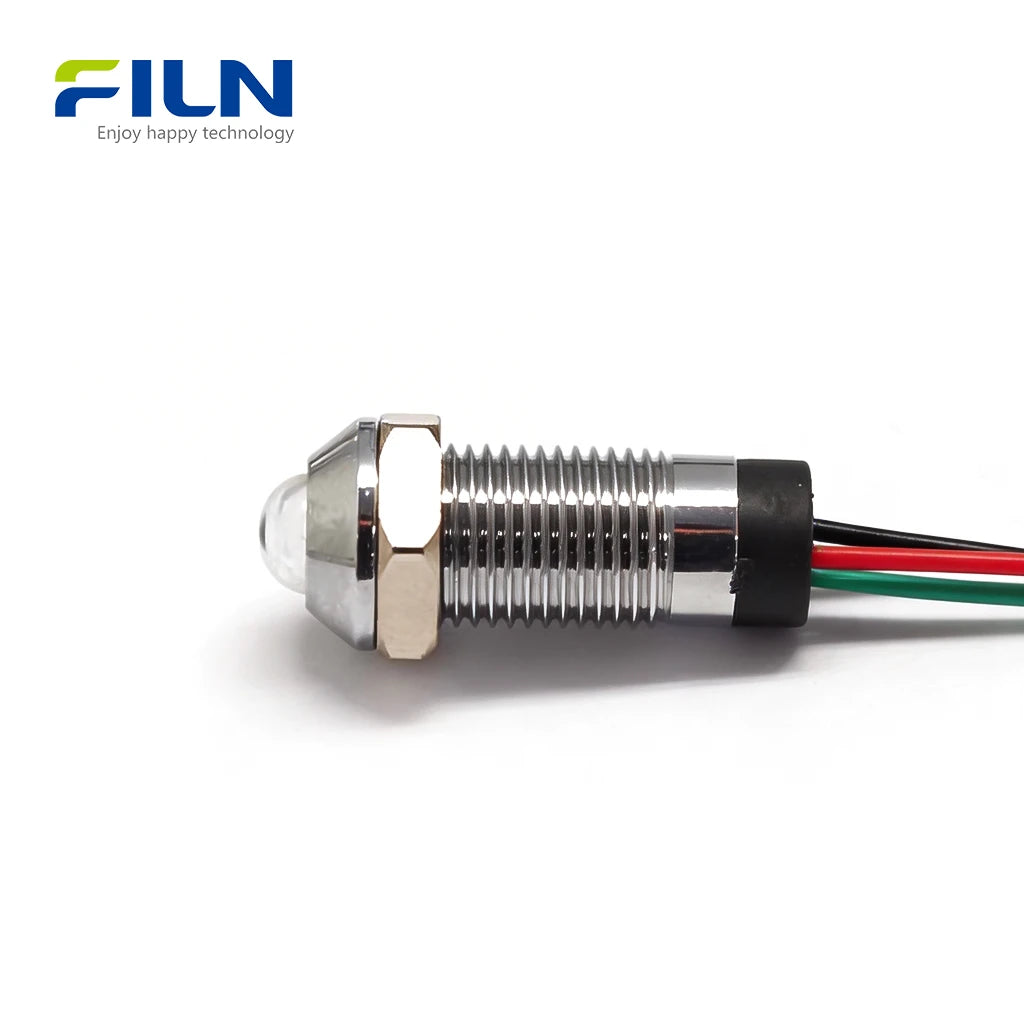

Q10: Is the head flat or raised?
This is a "high head" design, meaning the lens protrudes slightly for better side-angle visibility.
