The FILN AC-14-13 is a high-performance, integrated power entry module combining a standard IEC 320 C14 male socket and a 4-pin rocker switch. Designed for industrial equipment, 3D printers, and lab instruments, this snap-in module streamlines your panel design by reducing wiring complexity and saving installation space.
| Parameter | Details |
|---|---|
| Model Number | AC-14-13 |
| Socket Type | IEC 320 C14 (3-Pin Male) |
| Switch Type | 4-Pin Rocker Switch (DPST) |
| Rated Load | 10A 250V AC / 15A 125V AC |

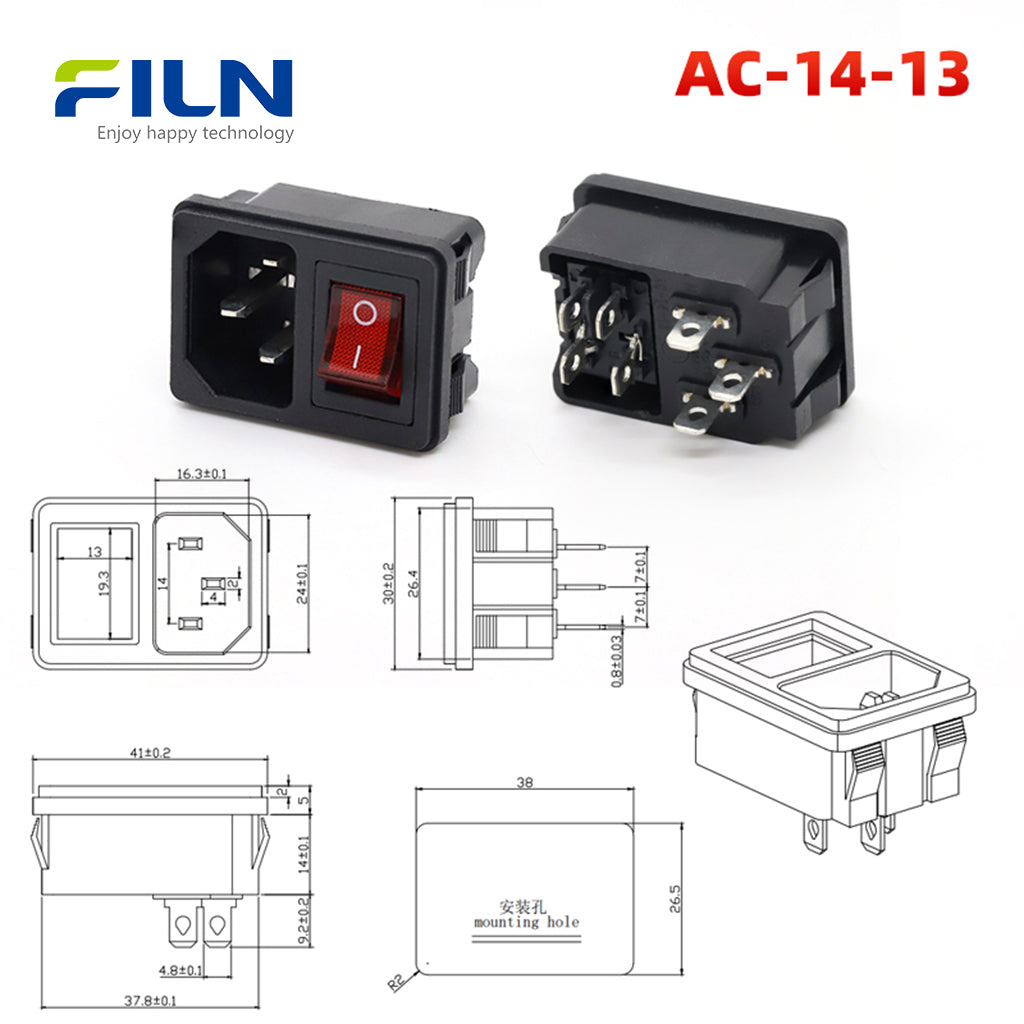

| Panel Cutout Size | 38 mm x 26.5 mm |
| Terminal Material | Brass (0.8mm Thickness) |
1. How do I wire the FILN AC-14-13 socket and switch?
The C14 inlet has 3 pins (Live, Neutral, Ground). To control the power, you need to connect the Live (L) from the socket to the rocker switch, and then from the switch to your device. The terminals are 4.8mm, compatible with standard quick-connect crimps.
2. Can the rocker switch be customized with different colors?
Yes. While red is our standard stock color, we offer green, blue, yellow, and white rockers. We can also provide switches with or without built-in LED indicators depending on your requirements.
3. What is the maximum panel thickness for the snap-in installation?
The AC-14-13 is designed for standard panel thicknesses between 1.0mm and 2.0mm. The side clips ensure a tight fit to prevent wobbling during plug insertion.
4. Is this power socket compliant with international safety standards?
Absolutely. All FILN AC power sockets are CE and RoHS certified, ensuring they meet the safety and environmental standards required for the EU and US markets.
5. What material are the terminals made of?
We use high-quality brass for all terminals with a thickness of 0.8mm. This ensures superior electrical conductivity and prevents overheating under 10A full-load conditions.
6. Does FILN support OEM or bulk customization for B2B clients?
Yes, as a professional manufacturer in Wenzhou, we support custom wiring harnesses, logo laser etching, and specific electrical ratings for bulk orders. Please contact our sales team for a custom quote.
As a leading B2B manufacturer based in Wenzhou, FILN specializes in customized electrical components. Our AC-14-13 series undergoes rigorous quality testing to ensure 50,000+ electrical life cycles. Whether you are an OEM looking for specific voltage ratings or a distributor requiring bulk packaging, our factory provides rapid prototyping and global shipping support.
Keywords: FILN AC-14-13, C14 power socket with switch, 10A 250V AC inlet, 3D printer power module, industrial rocker switch socket, Wenzhou FILN electronics, IEC 320 C14 manufacturer.
