8mm Miniature Push Button Switch | Pre-wired Micro Metal Button | FILN

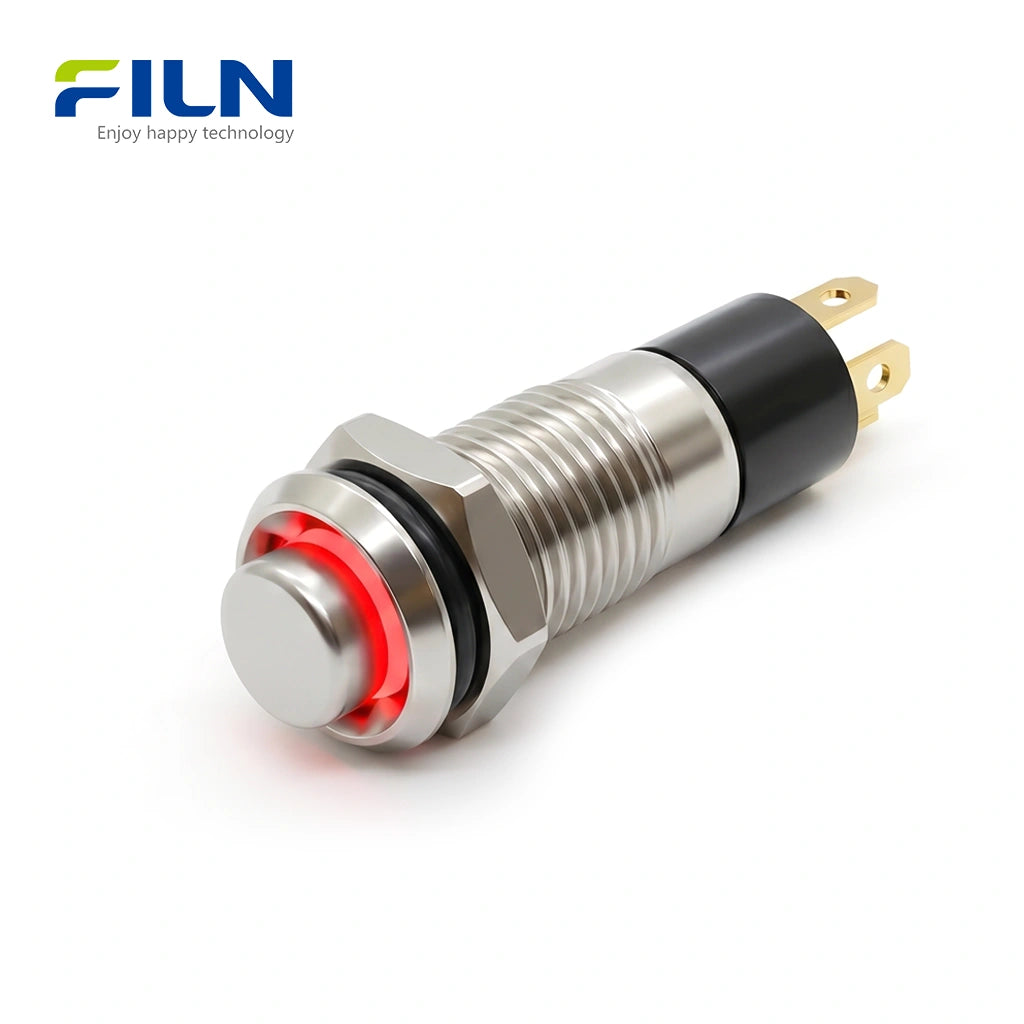

The FILN FLSM8-HJ-1-EX000 is an ultra-compact miniature push button switch meticulously engineered for tight spaces where reliability cannot be compromised. Featuring a tiny 8mm mounting hole diameter, this micro metal switch boasts a brilliant ring-lit LED illumination that ensures excellent status visibility in low-light environments. Built with a premium silver stainless steel housing and a high actuator profile, it provides a distinctive, tactile click that is easy to press, even for operators with larger hands. This 4-pin momentary device offers universal compatibility across multiple electrical applications and holds comprehensive international certifications including ISO9001, CE, VDE, RoHS, SGS, and UL.

Our miniature push button switch sets a high standard for micro-sized interface controls through careful engineering:

• Optimized High Head Design: The protruding high head actuator is specifically developed to provide crisp tactile feedback, allowing users with larger fingers to control small control panels smoothly and without accidental adjacent presses.

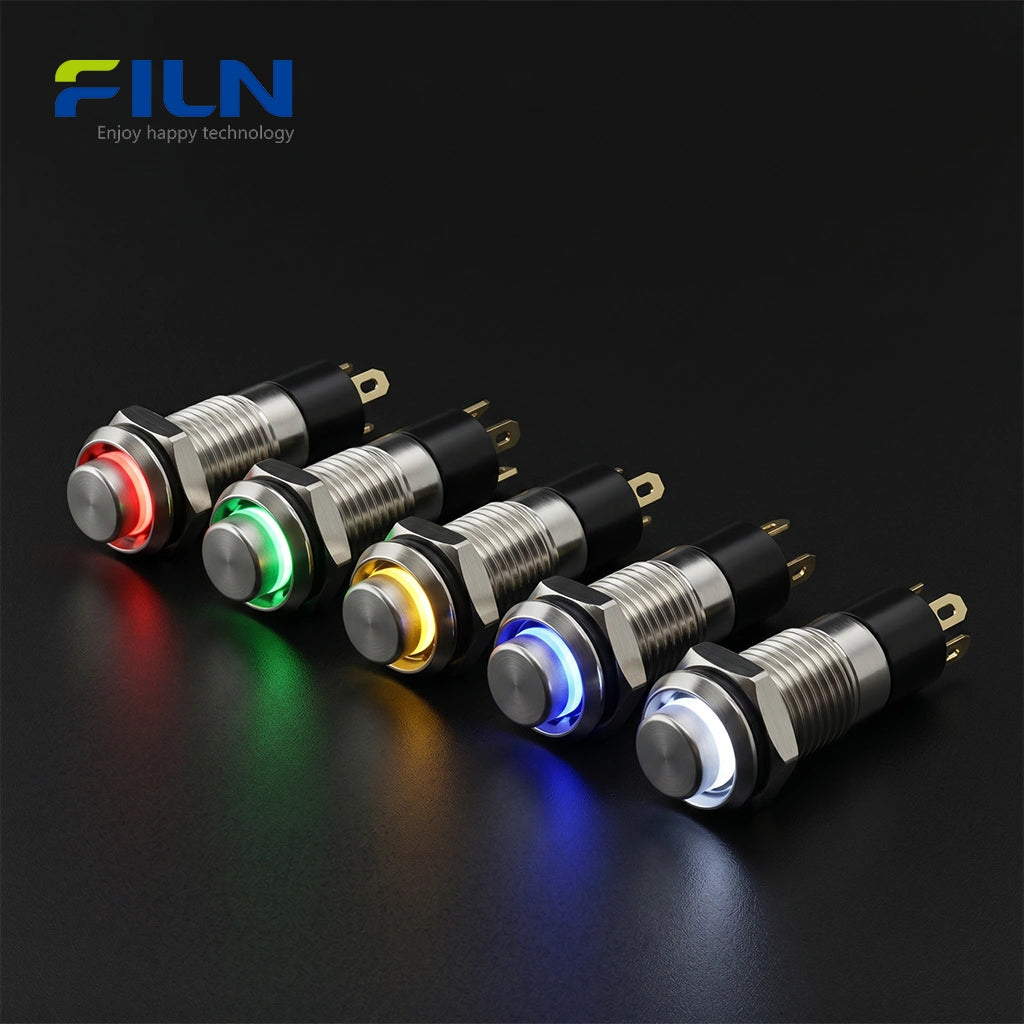

• Luminous Environment Visibility: Equipped with a bright integrated ring LED, this button creates a sharp, radiant halo that enables effortless operation and clear visual conformation inside pitch-black or dimly lit industrial environments.
• Space-Saving Engineering: The micro 8mm body structure frees up critical layout space on high-density instrumentation boards and compact hand-held controls.
• Durable Metallic Construction: The protective silver metal housing provides superior mechanical strength and a professional aesthetic finish suitable for cleanroom or commercial gear.

This micro-scale panel component offers versatile deployment across an extensive variety of modern electronic systems:

• Precision medical equipment
• Handheld testing instruments
• High-density distribution control panels
• Custom automotive interior switches
• Smart home electronic devices
• Industrial robotic controllers

The FLSM8-HJ-1-EX000 features a highly reliable nut-fastened mounting assembly that makes wiring quick and straightforward:

1. Confirm that the mounting panel or junction box has a clean, pre-drilled 8mm circular cutout.
2. Gently insert the 4-pin switch body through the top/front side of the panel opening.
3. Slide the provided metal hex nut onto the threaded body from behind the panel.
4. Tighten the metal nut firmly against the panel underside to prevent spinning.
5. Proceed with normal electrical connection by soldering leads onto the 4-pin tail pins.

4 Pin Push Button Switch Wiring Diagram

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Understanding Switch Actions: Momentary vs. Latching

When sourcing control components, choosing the correct mechanical electrical function is essential. Here is a breakdown of the two primary operations:

• Momentary Function (Self-Resetting): A momentary electrical control only remains active while there is physical pressure on the actuator. Once the operator releases the button, an internal spring mechanism pushes the button back to its resting state, instantly breaking the connection. This operation is standard for horn signals, reset triggers, or pulsed machinery commands.
• Latching Function (Maintained Action): A latching control alters its electrical circuit state upon being pressed and locks into that configuration. It will physically stay down or remain in the modified position until pressed a second time to unlock. This action behaves like a typical household light wall control or a continuous main system power toggle.

Discover More Interface Solutions

In need of premium control panels or different sizing variations? Browse through our comprehensive industrial catalog.

FACTORY DIRECT SUPPLY

FILN stands as a globally recognized manufacturer specializing in advanced indicator lighting and control switch hardware. Buying directly from our manufacturing facilities delivers essential strategic advantages:

• ⚡ Zero MOQ Constraints: We happily support custom prototype sampling and minor project runs.
• ⚡ Expedited Lead Times: Rapid distribution channels ensure prompt direct global shipment.
• ⚡ Custom Configuration Services: Tailor-made wire harnesses, custom volt inputs, or distinct laser engraving.

Contact for Immediate Volume Pricing

Global Homepage: www.filn.com
Corporate Email: inquiry@cnylin.com.cn

1. How many total pins does the FLSM8-HJ-1-EX000 feature, and are they illuminated?
This model is a 4-pin terminal design that comes fully equipped with a built-in bright LED indicator ring. Two pins control the circuit switch, and two pins power the light ring.

2. Can this 4-pin miniature push button switch operate directly on a 12V DC power grid?
Yes, this versatile micro control component can be built to natively support 3V, 12V, 24V, or 110V operating circuits depending on your exact order specification.

3. What exactly does the momentary switching function mean for this model?
It means the switch is self-resetting. The internal contact closes and completes the circuit only while you hold the high actuator down; it springs back and turns off when released.

4. What advantage does the high head metallic button design offer?
The raised high head profile provides extra clearance and distinct tactile feedback, ensuring operators with large fingers can actuate the 8mm switch easily and accurately.

5. Is the silver metallic finish prone to tarnishing or rust?
No, the high-quality nickel-plated brass silver shell provides great corrosion resistance and maintains a clean aesthetic in professional instruments.

6. Does this 4-pin illuminated switch carry certified electrical approvals?
Yes, the manufacturing run is fully certified with international quality benchmarks including ISO9001, CE, VDE, RoHS, SGS, and UL safety marks.

7. How does the integrated ring indicator light help in field operations?
The bright LED ring provides sharp visual status feedback, ensuring operators can spot and manage critical controls safely in pitch-black or low-visibility settings.

8. Can I order this miniature push button switch with a customized wire connector?
Yes, FILN provides complete factory customization. We can supply pre-soldered wire leads, custom harness layouts, and terminal snap connectors directly from our workshop.

9. What is the expected mechanical service life of this micro component?
Thanks to high-performance internal springs and premium silver alloy contacts, this switch is rated to withstand up to 1,000,000 physical cycles.

10. How is this 8mm mini button switch secured onto a mounting surface?
It uses a straightforward nut-fastened mounting step. Slip the threaded 8mm cylinder through the front panel hole and lock it into place from behind using the included hex nut.
