Product Overview

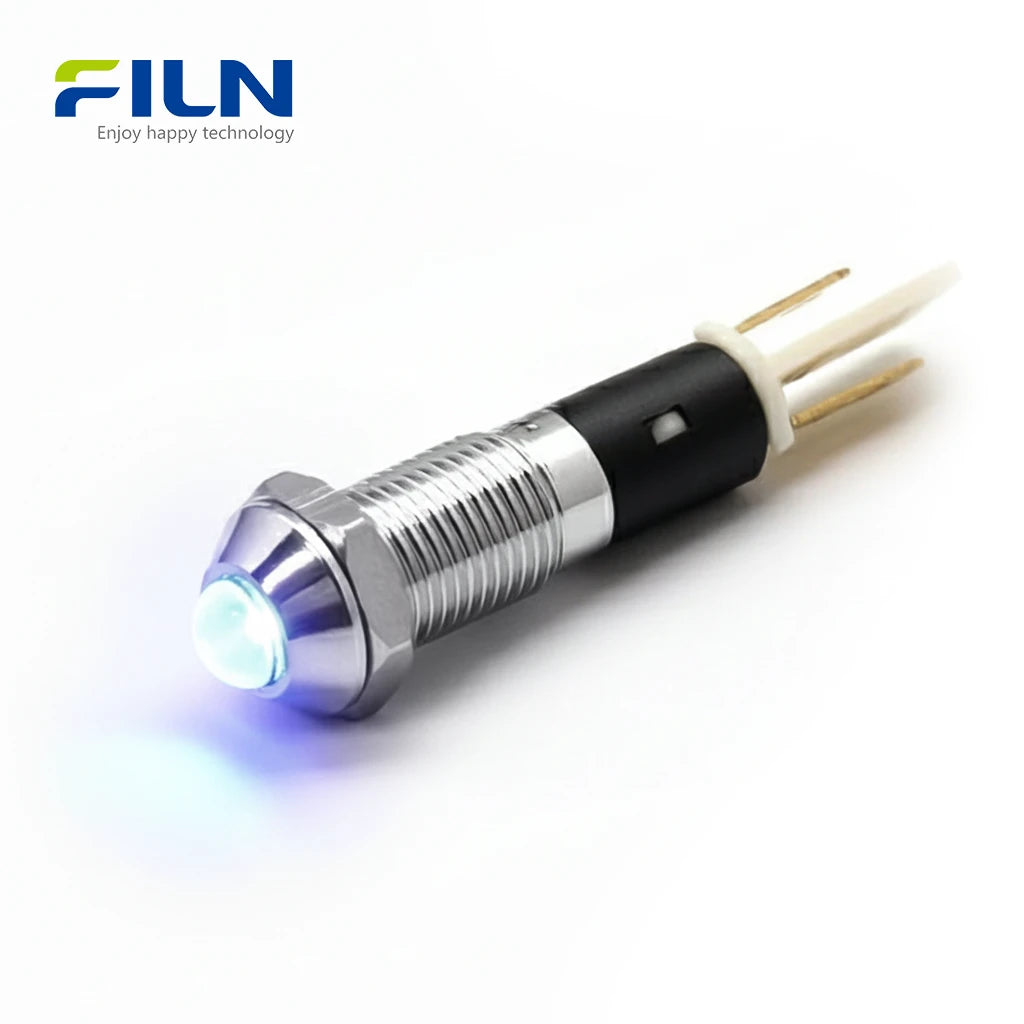

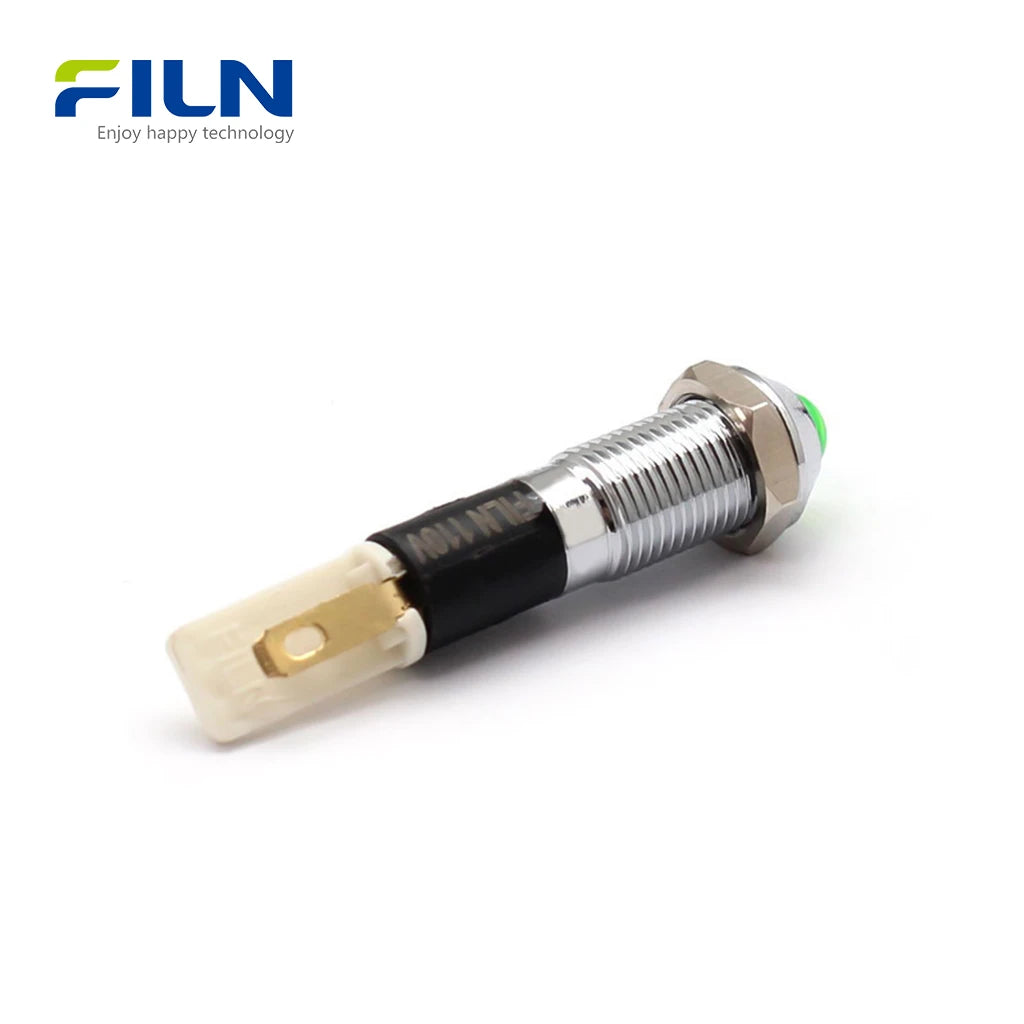

The Machine Indicator Lights (Model: FL1M-08SJ-1) represent a high-performance 8mm metal signal lamp solution engineered for modern manufacturing excellence. Designed specifically for CNC machines, industrial control panels, and automated systems, these 24V indicator lights feature a rugged metal housing available in silver or black finishes and carry a superior IP67 waterproof rating. The flat-head design and pin-type terminals ensure easy installation and secure electrical connections. Utilizing advanced bi-polar LED technology, these lights function without polarity restrictions, offering an exceptional long lifespan of 50,000 hours and industrial-grade reliability in the most demanding environments.
Quick Specifications
| Mounting Hole | 8mm (0.31 inch) |
|---|---|
| Voltage | 12V-24V / 110V-220V (Customizable) |

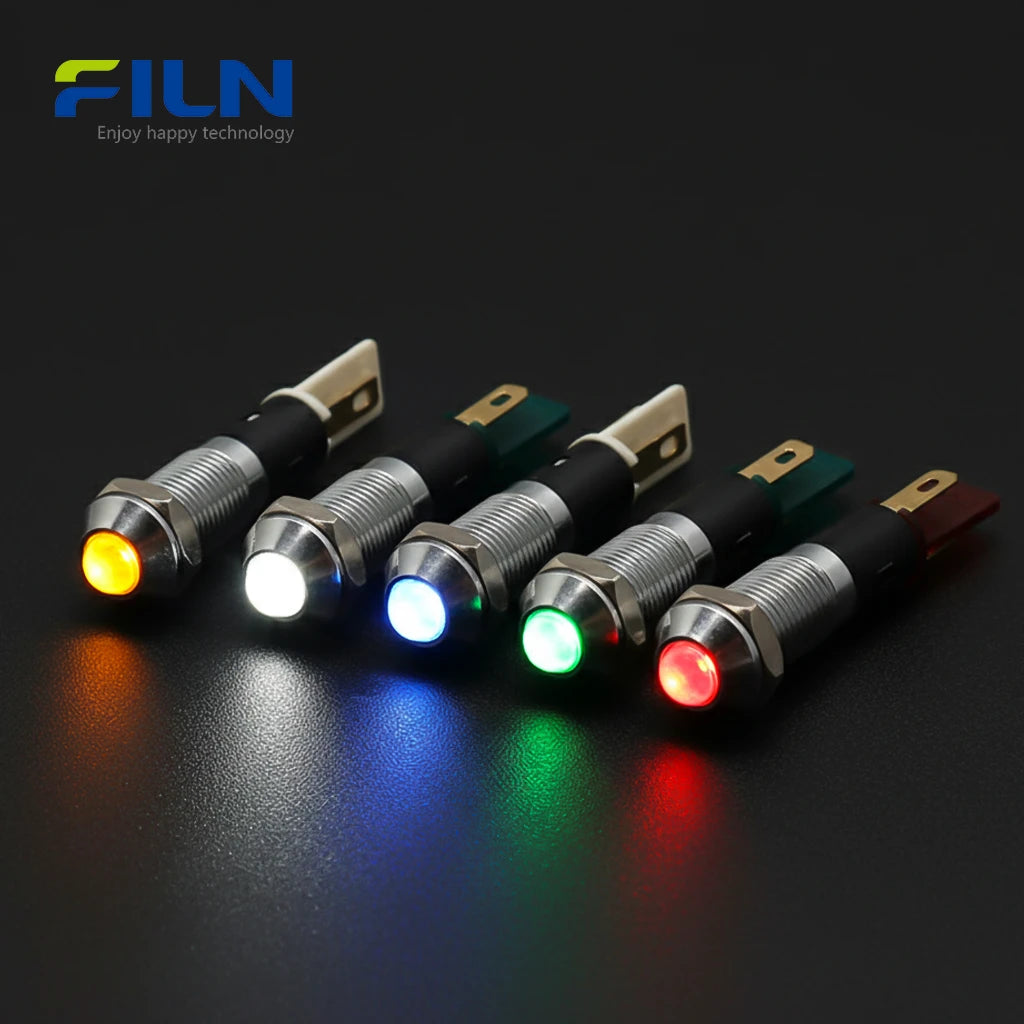

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |

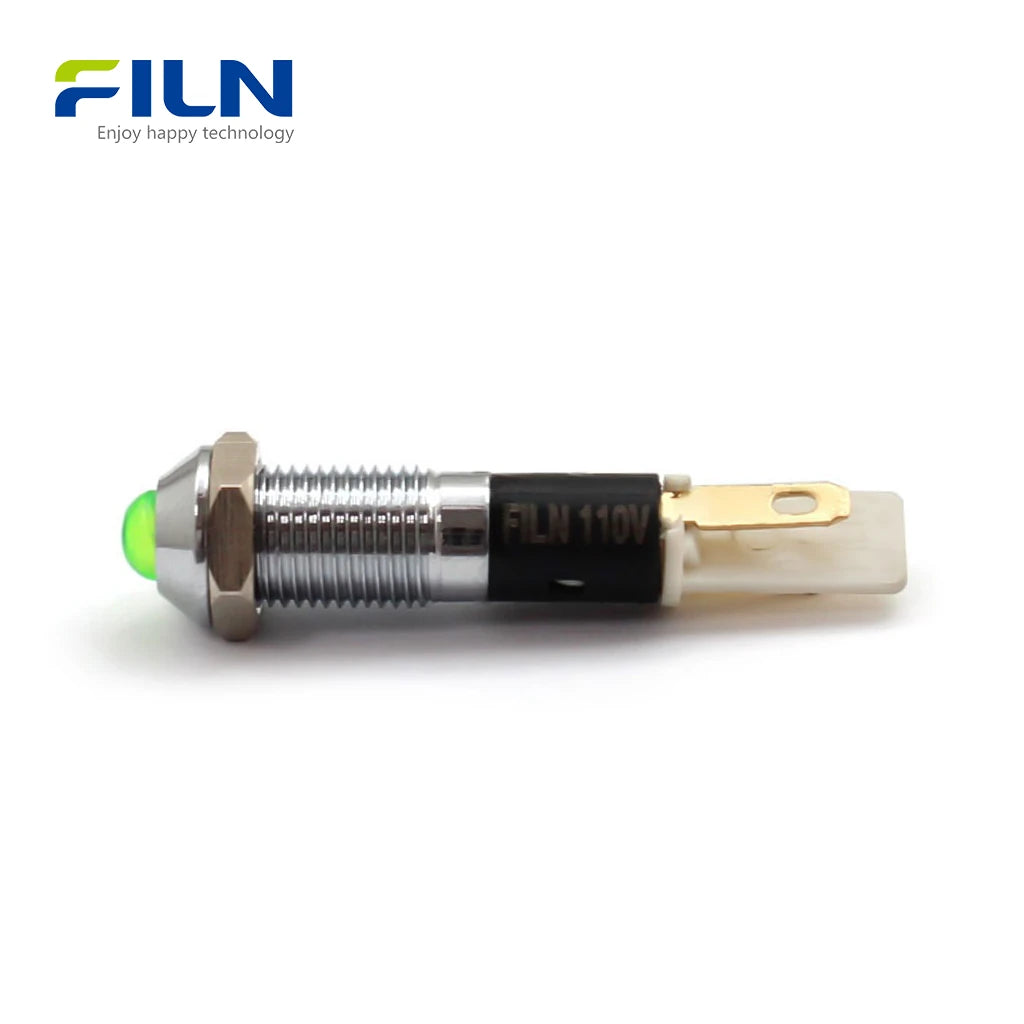

| Wiring Type | Pin Type (Terminal Leads) |
Rated Working Parameters
| Rated Voltage | Customized |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing Material | Chrome-plated Brass (Silver) / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone O-ring |
| Terminal Material | Copper with Silver Plating |
General Characteristics
| Application Scope | Industrial Control / CNC Machines |
|---|---|
| Part Name | Machine Indicator Lights |
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Ambient Temperature | 5~35℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Key Features
- LED High Brightness: Utilizes premium light beads to provide superior visibility even in high-glare industrial environments.
- Extended Lifespan: Engineered for durability with a rated 50,000-hour continuous working life.
- Advanced Waterproofing: IP67 rated to ensure total protection against dust and temporary water immersion.
- Easy Installation: Features a flat-head metal design with pin terminals for efficient panel mounting.
- Industrial Grade Reliability: Built with high-strength metal to withstand vibration, impact, and chemical exposure.
Applications
- Industrial control panels and monitoring stations
- Precision CNC machines, lathes, and milling centers
- Automated robotic cells and assembly equipment
- Electrical distribution cabinets and server racks [cite: 3]
- Marine navigation systems and shipboard control consoles
- Medical diagnostic devices and laboratory apparatus
Installation Guide
- Panel Preparation: Drill a precise 8mm diameter hole in the target mounting panel.

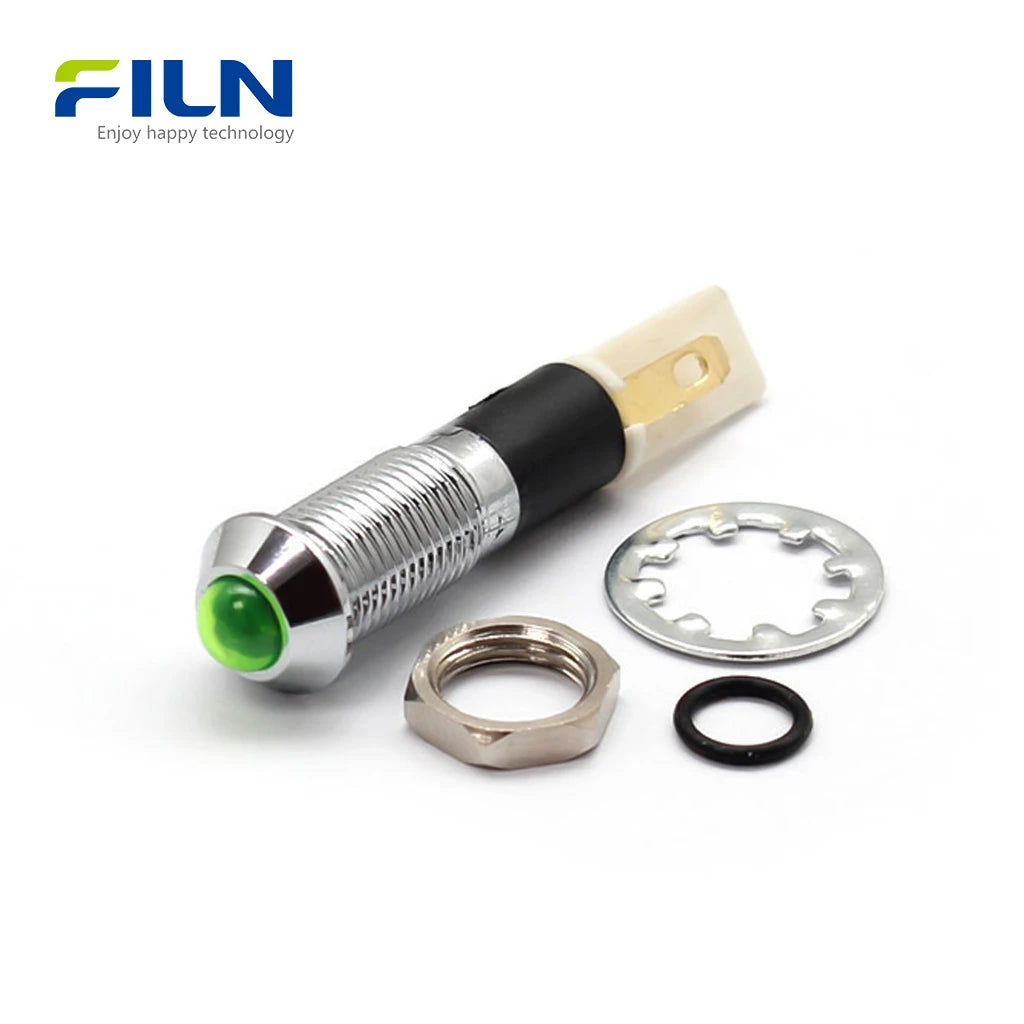

- Positioning: Place the provided O-type waterproof silicone ring onto the indicator body.
- Insertion: Insert the indicator through the prepared hole from the front side of the panel.
- Securing: Fasten the unit securely from the rear using the provided M8 hex nut.
- Wiring: Connect your power source to the pin terminals; the bi-polar design means no polarity orientation is required.
FILN Factory Direct Supply
Maximize your project efficiency by partnering directly with the manufacturer:
- Factory Direct: Eliminate middleman costs with direct-from-factory pricing.
- Voltage Customization: We support a wide range of voltages from 3V up to 380V.
- Lead Length Customization: Tailored wire lengths to meet your specific internal cabinet layouts.
- Connector Integration: Custom plug-and-play connectors available upon request.
-
Global Logistics: Fast international shipping to keep your production lines running.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q: What is the mounting size for these machine indicator lights?
A: The mounting hole size required for this model is 8mm.
Q: Are the 24V indicator lights waterproof?
A: Yes, these lights carry an IP67 rating for superior environmental protection.
Q: Do I need to worry about positive and negative polarity?
A: No, the LED beads are non-polarized for easier wiring.
Q: Can I use these lights on a 220V circuit?
A: Yes, we support custom voltage requests including 110V and 220V.
Q: What housing colors are available?

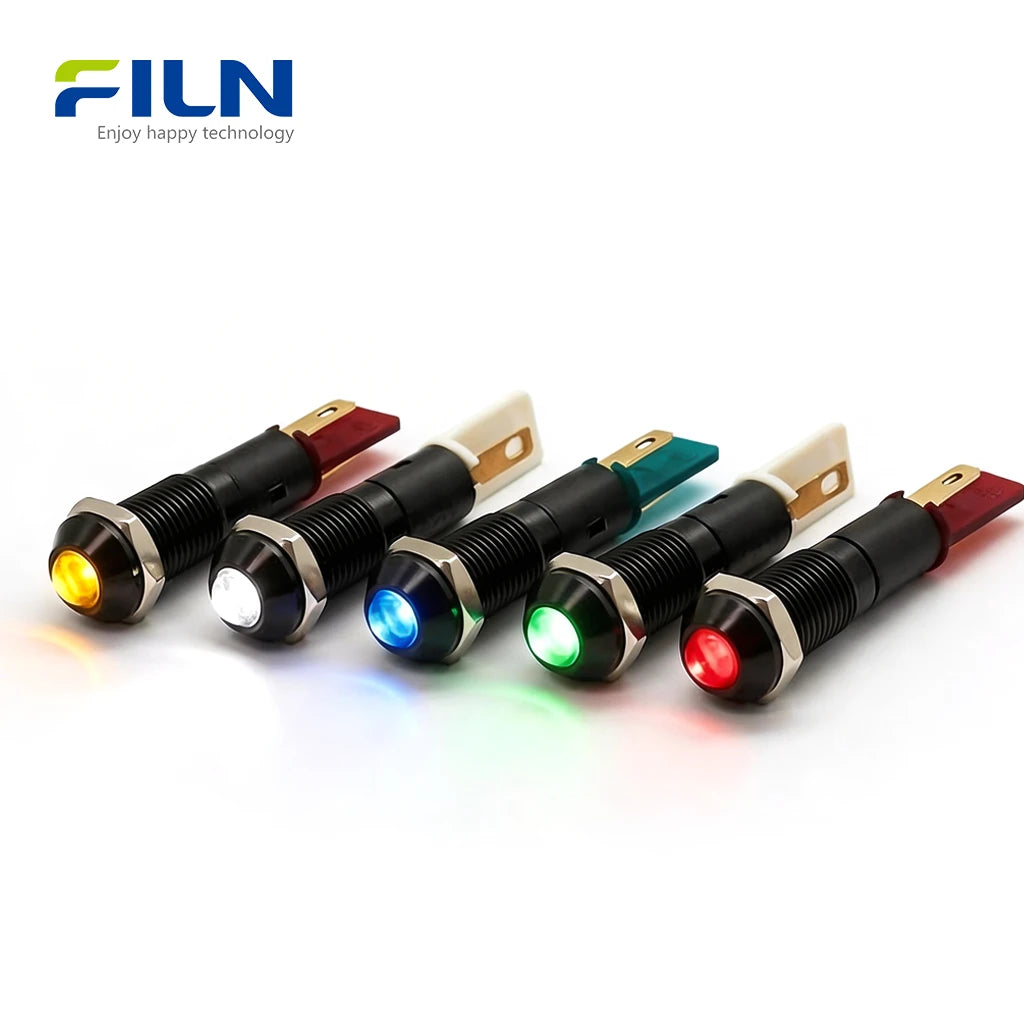

A: You can choose between silver chrome-plated brass or black aluminum.
