Indicator Light Drawing
Product Overview

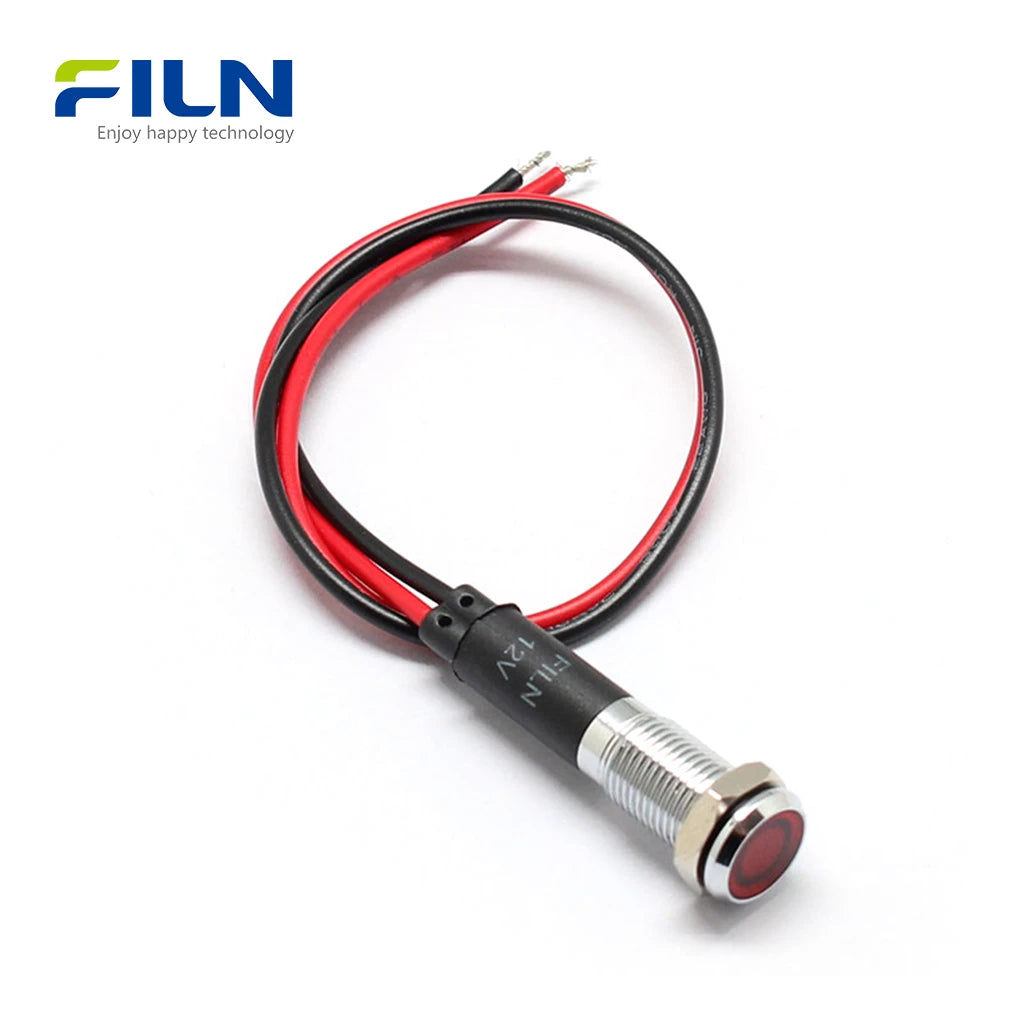

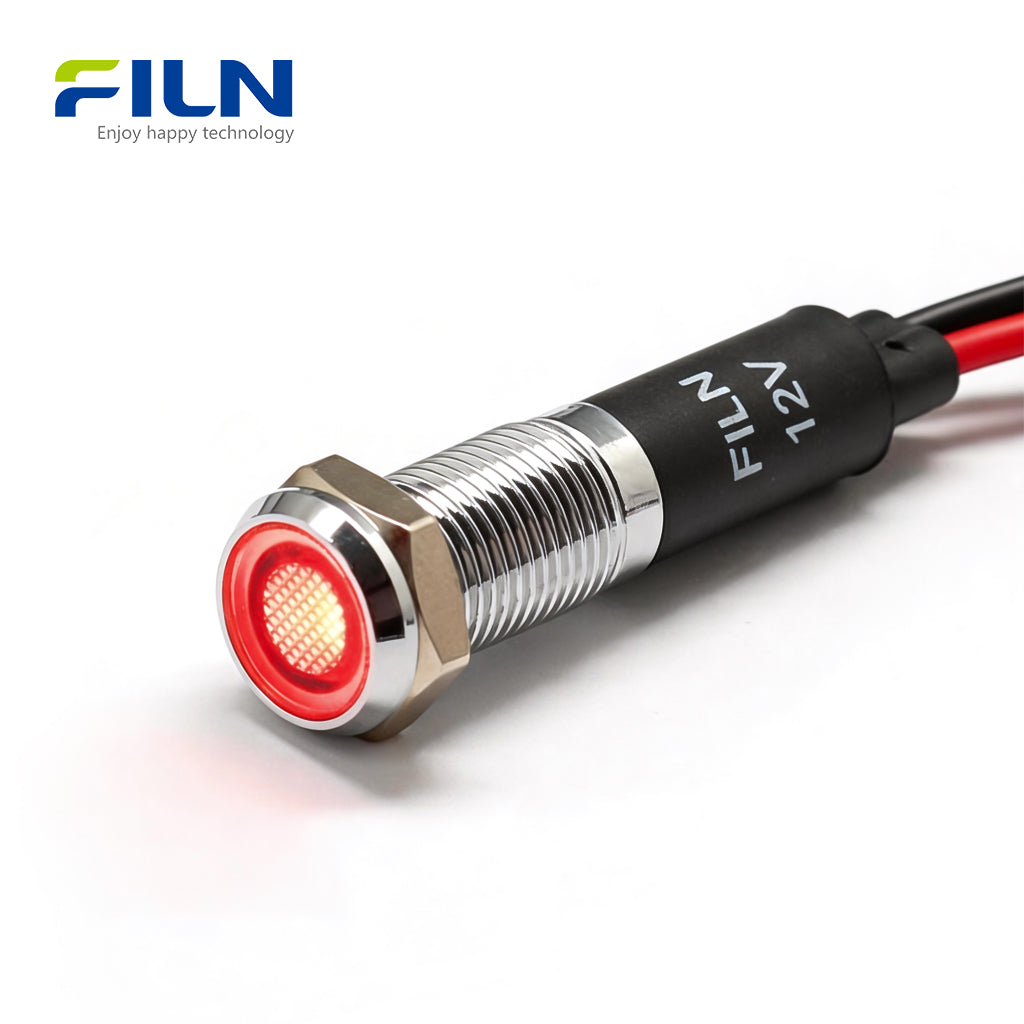

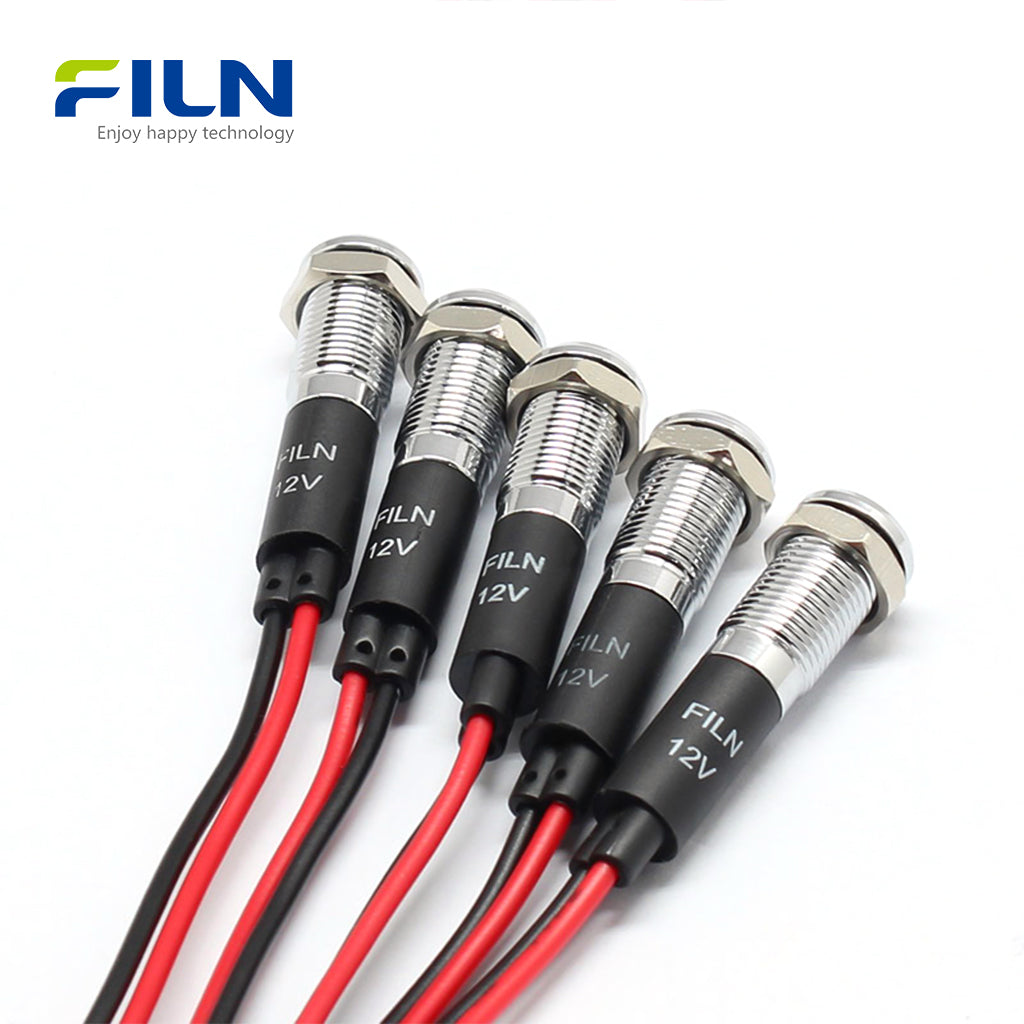

The 8mm LED indicator light (Model: FL1M-08FW-1) is a classic industrial-grade signal lamp now for sale directly from the FILN factory. This premium 8mm metal indicator light features a sleek flat-head design and comes pre-wired with 15cm leads for instant connectivity. As a leading manufacturer, FILN ensures all products meet rigorous global standards including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 ratings. These lights are widely used in CNC machines, automation panels, and marine equipment. Whether you need a 12V, 24V, or 220V version, we provide full customization. Order online today for reliable factory-direct supply and high-performance signaling solutions.
Quick Specifications
| Mounting Hole | 8mm (5/16 inch) |
| Voltage | 12V, 24V, 110V, 220V (Customizable) |

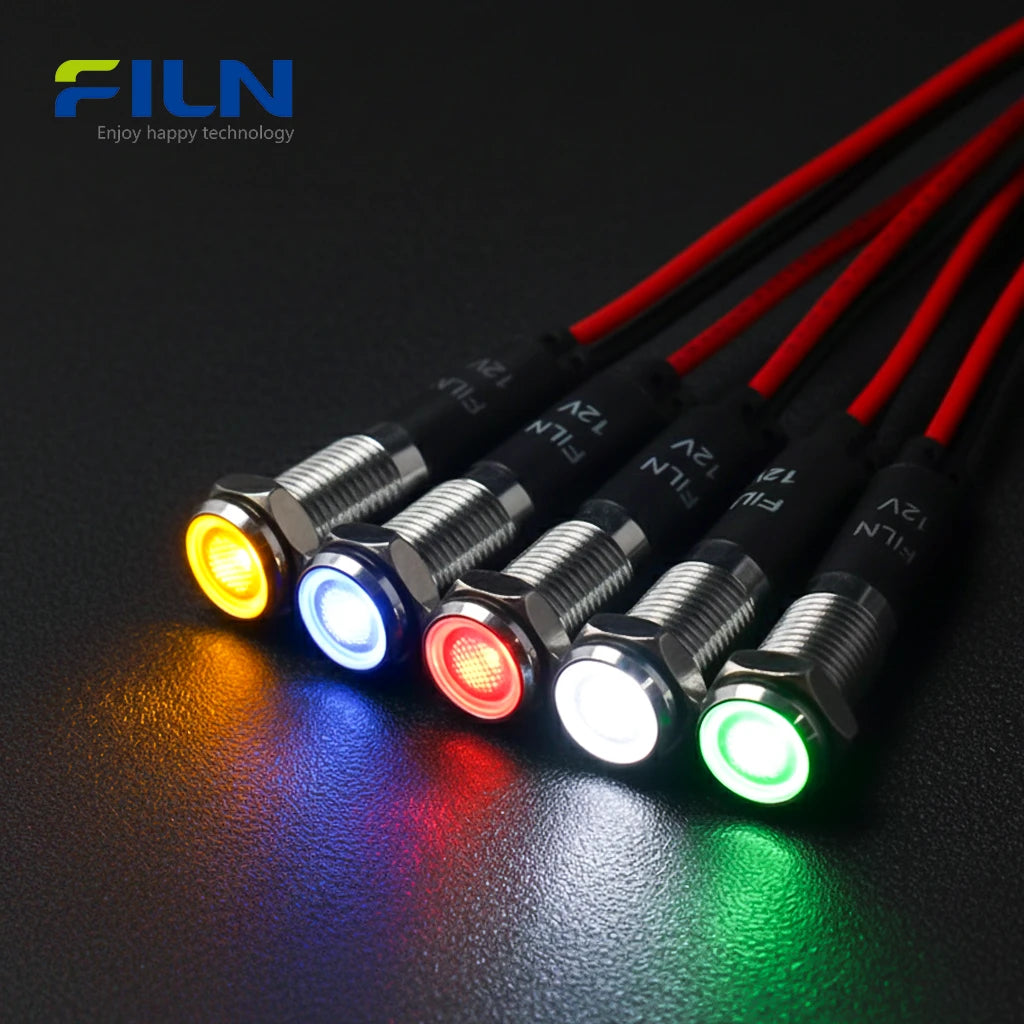

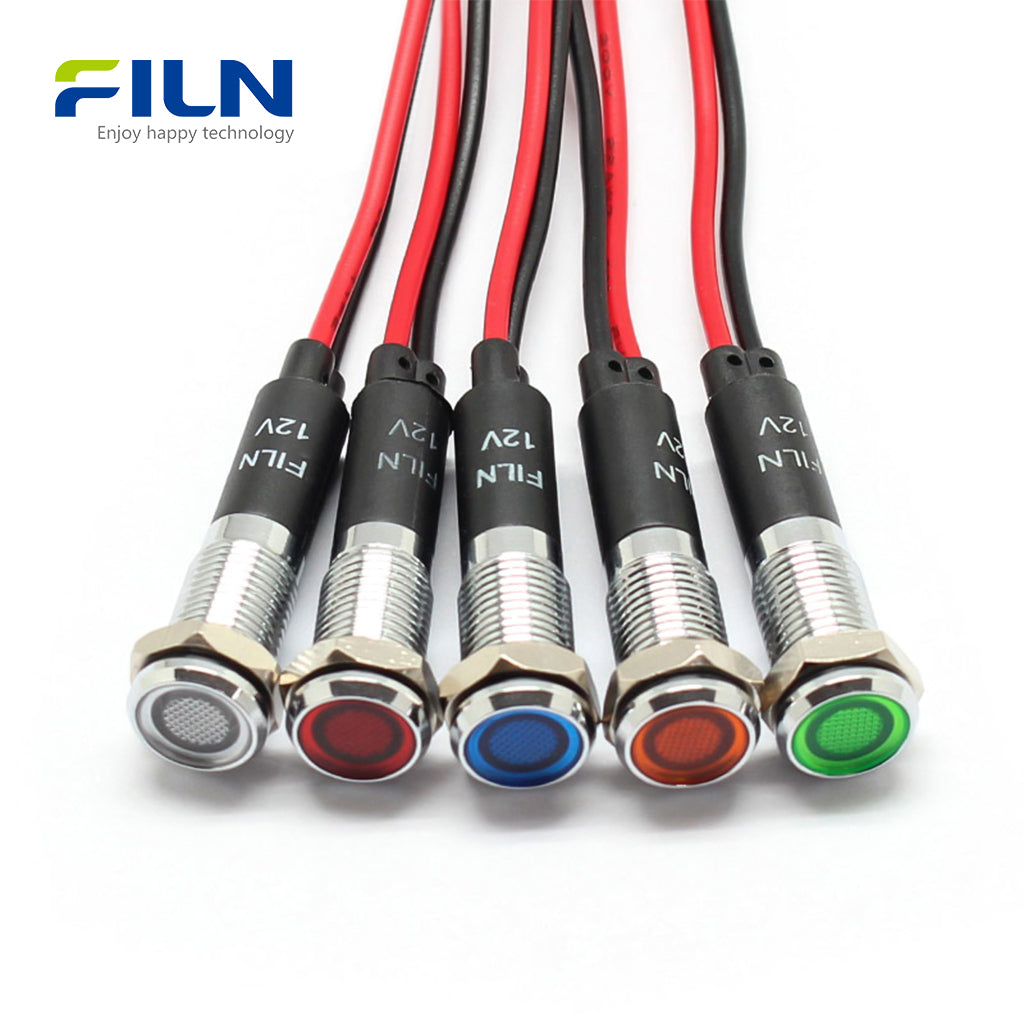

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead Type (15cm Standard) |
| Certifications | UL, CE, VDE, RoHS, ISO9001 |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel or Chrome plated |
| Lampshade | PC Polycarbonate | High impact resistance |
| Light Source | LED | Long life, low energy |
| O-ring | Silica Gel | IP67 waterproof sealing |
| Nut | Copper Alloy | M8 standard thread |
Rated Working Parameters
| Rated Voltage | 3V - 380V Customized |
| Frequency (AC) | 50Hz ～ 60Hz |
| Rated Current | ≤ 20mA |
Component Materials
| Housing | Chrome-plated brass / Stainless Steel |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone |
| Terminal/Wire | UL1007 PVC Cable |
General Characteristics
| Operating Temperature | -40℃ ～ +80℃ |
| Storage Temperature | -40℃ ～ +85℃ |
| Relative Humidity | ≤ 85% at +40℃ |
| Air Pressure | 86 ～ 106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Test Item | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC 500V for 1 min | ≥ 100MΩ |
| Dielectric Strength | 1500V AC / 60s | No flashover |
Durability Characteristics
| Continuous Working Life | ≥ 50,000 Hours (at 30mA test) |
Resistant Performance
| High Temp Resistance | 80℃ for 96h |
| Low Temp Resistance | -40℃ for 96h |
| Moisture Resistance | 40℃, 90-95% RH for 96h |
Key Features
- LED High Brightness: Utilizes high-lumen LED chips for clear visibility even in daylight.
- Long Lifespan: Rated for over 50,000 hours of continuous operation.
- IP67 Waterproof: Includes a high-grade silicone O-ring for superior liquid protection.
- Easy Installation: Features smooth M8 threading and pre-wired 15cm cables.
- Industrial Reliability: Robust metal shell (Chrome or Black) for harsh environments.
Applications
- Industrial Control Panels & Signal Displays
- CNC Machinery and Heavy Equipment Monitoring
- Automotive Dashboard and Marine Lighting
- Electrical Cabinets and Home Automation Units
- Medical Diagnostics and Lab Equipment
Installation Guide
- Drill an 8mm diameter hole in the desired mounting panel.
- Insert the 8mm LED indicator light through the front of the panel.
- Place the silicone O-ring and metal gasket onto the threaded body from the back.
- Secure and tighten with the M8 hex nut to ensure a waterproof seal.
- Connect the pre-wired leads to your power source (match rated voltage).
What Is an 8mm LED Indicator Light?
An 8mm LED indicator light is a compact electrical component used to provide visual status feedback on industrial and consumer equipment. The "8mm" refers to the diameter of the mounting hole. Unlike traditional pin-type lamps, the pre-wired (lead wire) design offers significantly easier installation, especially in tight spaces. The flat-head design is preferred for its aesthetic appeal and ease of cleaning on flat control panels. These lights act as critical "eyes" for operators, indicating power status, errors, or operational cycles in everything from coffee machines to large-scale CNC factories.
Factory Direct Supply from FILN
As a specialized manufacturer, FILN provides unmatched flexibility for B2B procurement:
- Factory Direct Pricing
- Voltage Customization (3V-380V)
- Wire Length Customization
- Connector Integration
- Fast Global Shipping
- Free Technical Support
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy these 8mm LED indicator lights online directly?
Yes, they are available for sale directly through our online shop with worldwide delivery.
2. What is the difference between lead wire and pin type?
Lead wire (pre-wired) is easier for DIY and quick installs; pin type is better for PCB or socket mounting.
3. Are these lights truly waterproof?
Yes, with the O-ring and nut installed, they achieve an IP67 rating, suitable for marine and outdoor use.
4. Do you offer black shell options?

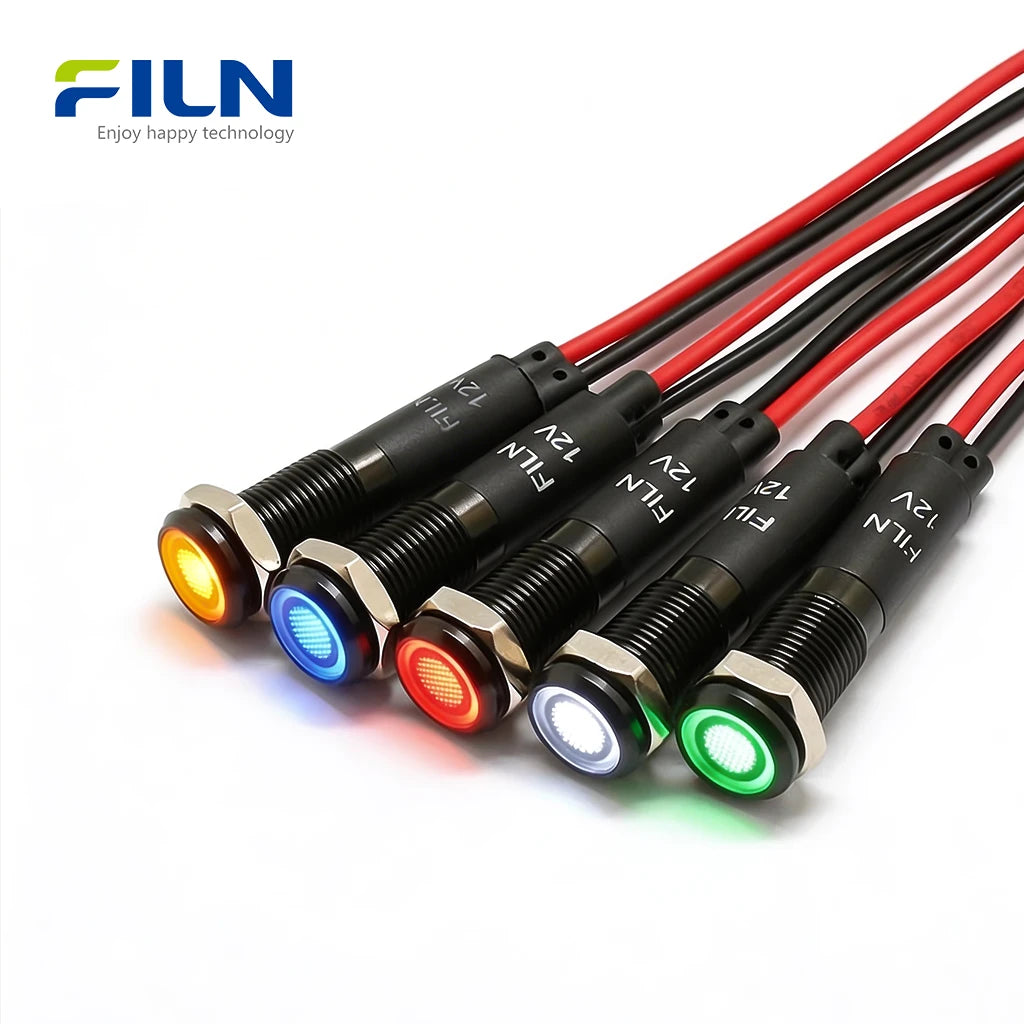

Yes, we provide both classic chrome (silver) and black anodized shells.
5. What voltages are available?
Standard 12V, 24V, 110V, and 220V are in stock; other voltages can be customized.

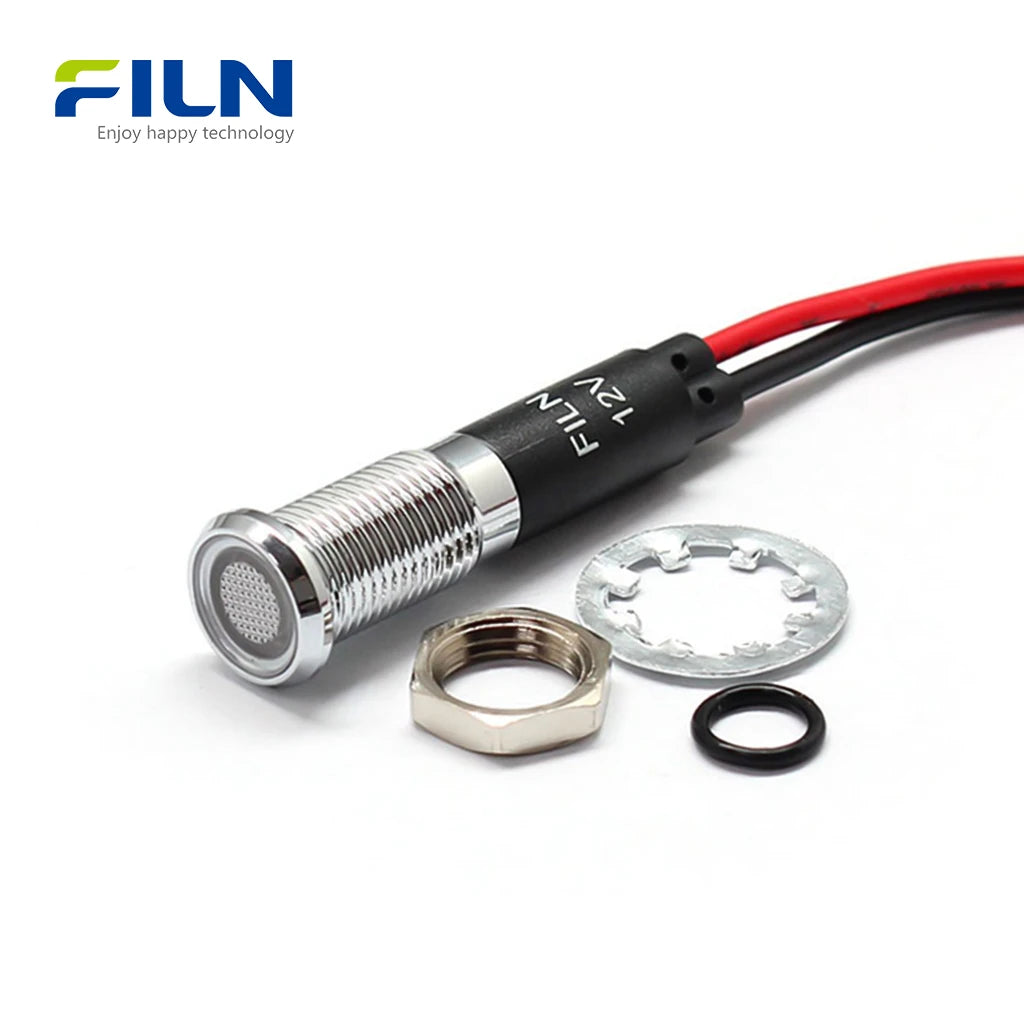

6. Does the 8mm indicator include accessories?
Every light comes with a silicone waterproof ring, an M8 nut, and a metal gasket.
7. How long is the standard wire length?
The standard length is 15cm (approx. 6 inches), but we can customize this to any length.
8. Is the LED light dimmable?
Brightness can be controlled by varying the input voltage or using PWM, within rated limits.
9. Are there UL certifications?
Yes, FILN products carry UL, CE, and RoHS certifications for global compliance.
10. What is the MOQ for customized wire lengths?
Please contact our sales team at inquiry@cnylin.com.cn for specific OEM/ODM MOQ details.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
J
I checked every light with a battery and they all work. Some of the threads in the nuts are very loose on the threaded light stems. These lights worked great for my project. If any of the LED lights stop working, I will do an update to this review.
C
Cheap and well built. They worked perfect for my application. At 12v they are nice and bright as indicators on a panel and dialing up to 24vbrightened them up quite a bit. Great value for the money.
D
Very small. Smaller than they are portrayed and indeed very dim as well. They got me, don't let them get you to.. I was not able to use the product at all,straight in the garbage.
V
Mounted these Red and Amber in my Rough Country fender flares on my F-150. Worked great.Update - it’s only been two months with these installed and two have already gone out. Unfortunately, I need to stick with same ones as a replacement so they look the same. Just unfortunate that I must pay to have the flares removed to replace a cheap part.
S
I bought these to use as indication lights of when my line locks was engaged in my classic car. They were the perfect choice. All you need is a 1/4" hole and they'll fit like a glove. Very happy with these. Nice and bright for how small they are. Would highly recommend.
c
The base was a little bit long for what I needed. The display look good, so I gave it to a friend of mine who was interested in them.
L
Although they look cheaply made, the ones I used worked well
S
Very well made, nice product.
S
Very well made, nice product.
V
Work as described!
J
Bright, small, easy to install perfect for the application you want them for.
J
Bright, small, easy to install perfect for the application you want them for.
p
good product
p
good product
E
Buen producto
E
Buen producto
M
Looks like high quality. I have used comparable lamps before. These are a good value
M
Looks like high quality. I have used comparable lamps before. These are a good value
R
Perfect for the application I'm using them for
M
These indicator lights are excellent quality. The metal housings feel solid and well finished with the black anodized coating, and they give a clean, professional look when installed. The dual red and green LEDs are bright and easy to see, even in daylight, making them perfect for control panels or project boxes.They wire up easily and work perfectly on both 12V and 24V setups. The IP67 waterproof rating is a nice touch for outdoor or automotive use, and they’ve held up great so far with no flicker or moisture issues.For the price, this 5-pack is a great value. The lights look sharp, perform flawlessly, and add a polished finish to any electrical project. I’d definitely order them again.
N
Excellent accent lights for vehicle interior.
N
Excellent accent lights for vehicle interior.
D
Perfect
C
Purchased for work to see if prox sensor are v working on top of an oven and v they are functioning well
C
Purchased for work to see if prox sensor are v working on top of an oven and v they are functioning well
p
with 12v dc they are great for indicator lights, not too bright, not too dim. I like the nut on the back, the other ones probably work ok with a push in, but the nut for me is better.
b
Works well, looked odd on older model car
R
Works great easy to install.
R
These LEDs have a metal housing that sits about 1.5mm proud of the panel surface, once installed. The black finish looks great with the red lens and LED. Installation requires nothing more than a 6mm hole. The O-ring and retaining nut included with each LED makes a water-tight seal. Each LED housing also includes a 5.1kΩ (±5%) resistor wired in series with the LED. That limits current to a little less than 2.5mA with a 12V supply or 5mA with a 24V supply. The description omits the 'm' and accidentally claims 5A of current, which would be up to 120 Watts, depending on voltage. At the actual current level of 2.5mA at 12V (30mW) the red LED is easily bright enough to see from across a well-lit room.The components included in each lamp are all good quality, with everything fitting tightly together in a neat assembly. At the time of this review, the price works out to $1.70 per LED. That may feel like a lot, but the included hardware is excellent quality. Each lamp has a good resistor (1/4W, which is twice the maximum power dissipation that could be required) and approximately 9" lead wires already soldered, with the joints covered with heat shrink tubing (strangely, not actually shrunken, so it's easily removed if needed). The total price is still pretty inexpensive, unless you need quite a lot of them, and the quality certainly matches the price.
B
Bright only complains the wire could be a little bit thicker
