Professional 5V Indicator Light Solutions

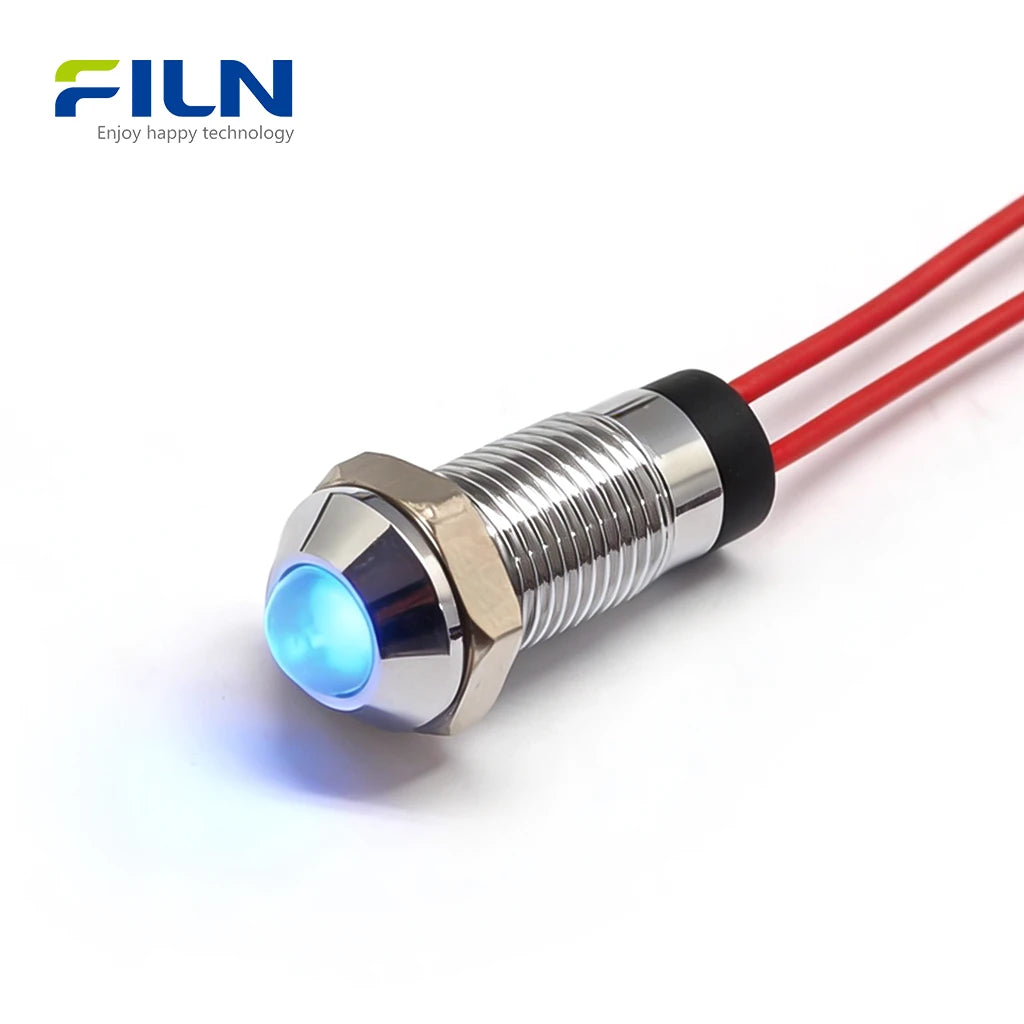

The FILN 5V indicator light (Model: FL1M-08SW-2) is a high-performance 8mm LED signal lamp engineered for precision industrial signaling. Featuring a robust metal high-head design and IP67 waterproof protection, this compact component ensures high visibility and durability in harsh environments. Unlike standard models, its shortened body is specifically designed for small space installation within industrial control panels, CNC machinery, and automation equipment. With support for 12-24V, 110-220V, and custom voltages, these pre-wired indicator lights offer non-polar LED beads and seamless integration for global B2B manufacturing needs.
Quick Specifications
| Mounting Hole | 8mm / 0.315 inch |
|---|---|
| Voltage | 5V, 12-24V, 110-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | Pre-wired Lead Type |
Rated Working Parameters
| Rated Voltage | 5V DC / Customized |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silicone |
| Terminal | Lead Wire |
| Wire Material | PVC / Teflon UL Wire |
General Characteristics
| Application | Signal Indication |
|---|---|
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Ambient Temperature | 5~35℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Item | Test Condition | Requirement |
|---|---|---|
| Continuous Working Life | 30mA 1000h | 50,000 hours |
Resistant Performance
| Test Item | Condition |
|---|---|
| High Temperature | 80℃ for 96h |
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Rounds) |
Key Features
- LED High Brightness: Crystal clear signal visibility in industrial lighting conditions.
- Long Lifespan: Rated for over 50,000 hours of continuous operation.
- IP67 Waterproof: Full protection against dust and temporary immersion in water.
- Compact Installation: Shortened body design (FL1M-08SW-2) optimized for small spaces.
- Industrial Grade Reliability: Durable metal housing with smooth threading and secure M8 nut fixation.
Applications
- Industrial control panels and dashboards
- CNC machines and precision manufacturing tools
- Automation equipment status monitoring
- Electrical cabinets and power distribution units
- Marine systems and outdoor equipment
- Medical devices and laboratory instruments
Installation Guide
- Drill an 8mm (M8) mounting hole in your control panel.
- Insert the indicator light from the front of the panel.
- Place the O-type waterproof ring behind the head for a seal.
- Thread the M8 nut from the back and tighten securely.
- Connect the pre-wired leads to your power source (non-polar LED).
What Is a 5V Indicator Light?
A 5V indicator light is a critical low-voltage signaling component used to provide visual feedback on the operational status of electronic circuits and industrial systems. In the context of industrial automation, these lights act as "status messengers," informing operators if a machine is powered on, in standby, or experiencing a fault. By utilizing high-efficiency LEDs within a metal high-head housing, these 8mm lights provide a tactile and visual interface that can withstand vibration, moisture, and temperature fluctuations common in factory environments.
FILN Factory Direct Supply
- ✅ Factory Direct: Original manufacturer pricing and quality control.
- ✅ Voltage Customization: Support for 5V, 12V, 24V, 110V, 220V, and 380V.
- ✅ Wire Length Customization: Tailored lead lengths for your specific assembly.
- ✅ Connector Customization: Pre-installed connectors for plug-and-play use.
- ✅ Fast Global Shipping: Rapid fulfillment for international B2B orders.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can this 5V indicator light be used with 12V or 24V systems?
Yes, while this model is optimized for 5V, we offer versions compatible with 12V-24V and 110V-220V as well.
2. Is the 8mm mounting hole standard?
Yes, 8mm (M8) is a standard industrial size for compact signal lights.
3. What is the difference between FL1M-08SW-1 and FL1M-08SW-2?
The FL1M-08SW-2 has a shorter body, making it ideal for shallow panels and small space installations.
4. Does the LED have a positive and negative polarity?
No, our LED beads are non-polar, which makes wiring faster and easier for technicians.
5. Is the housing available in different colors?
Yes, we provide both silver (nickel-plated) and black aluminum housing options.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
