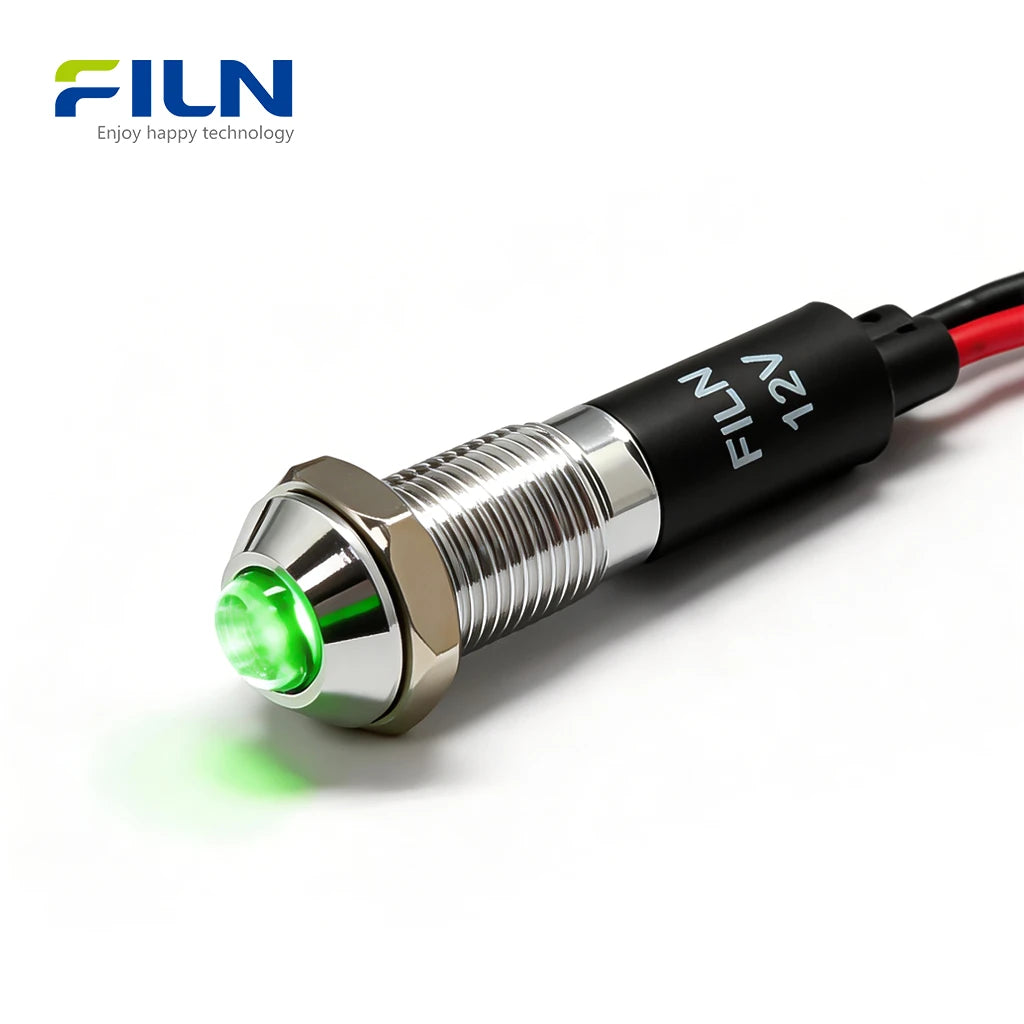

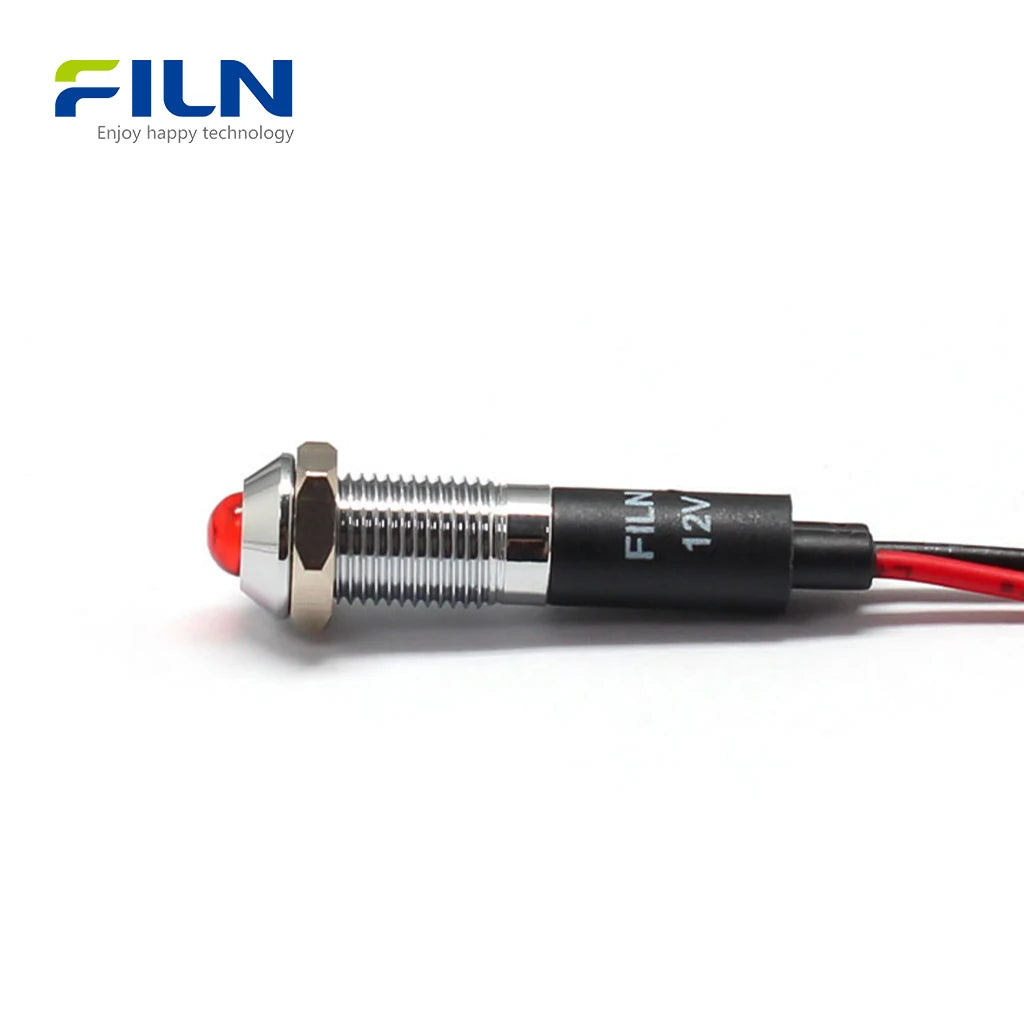

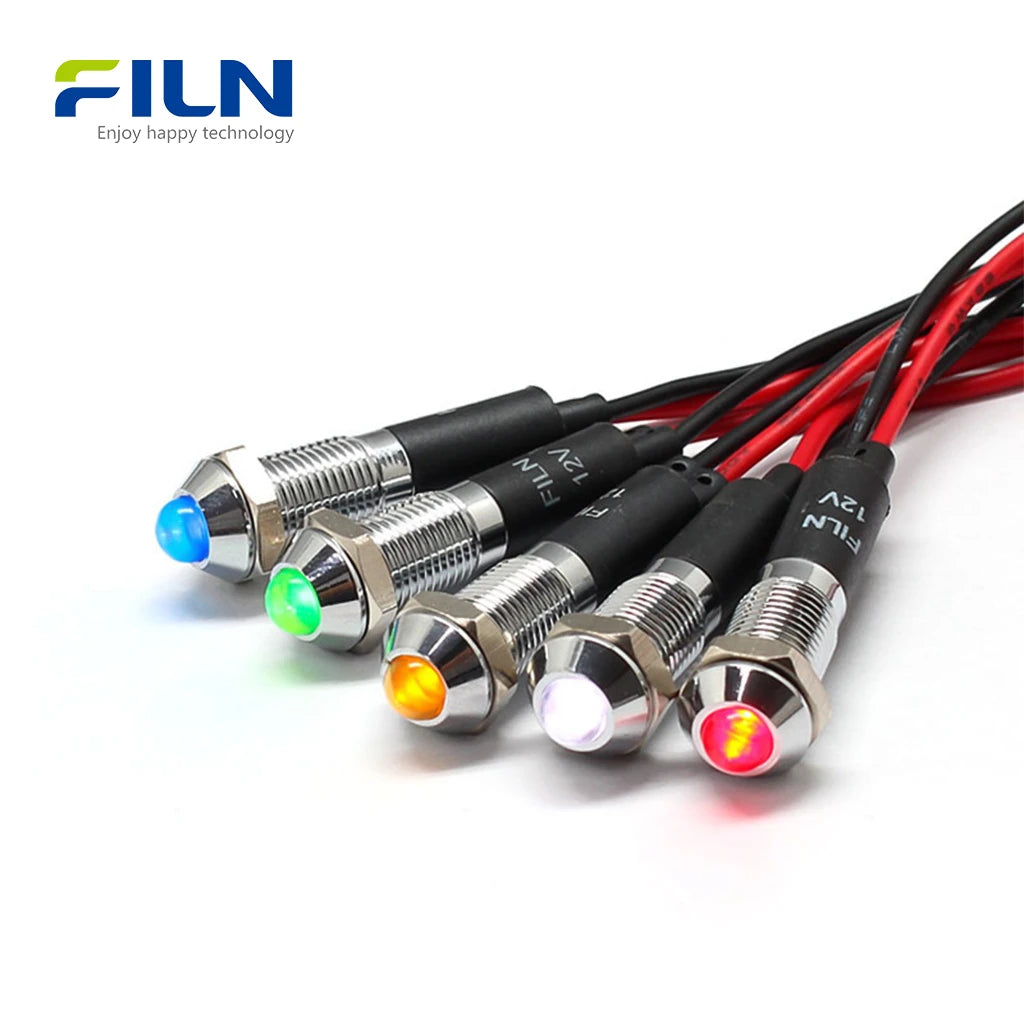

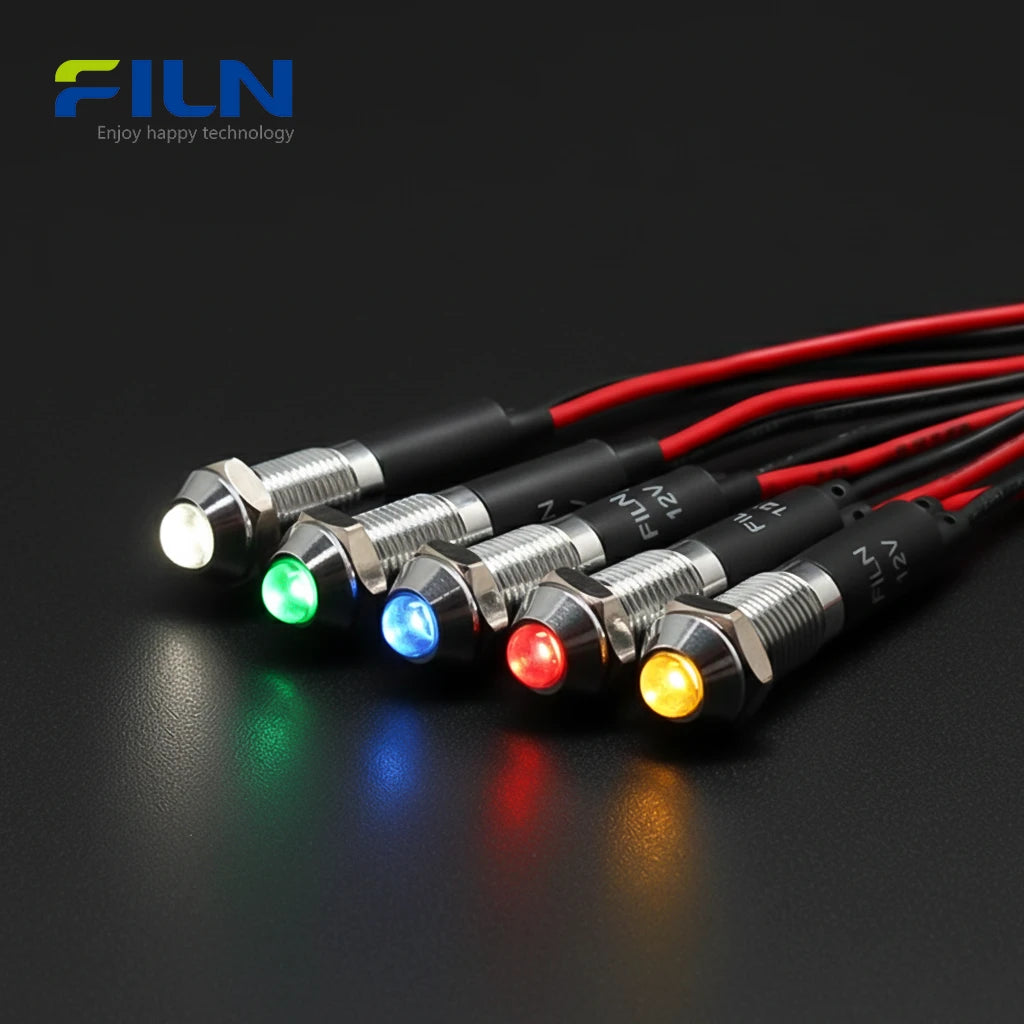

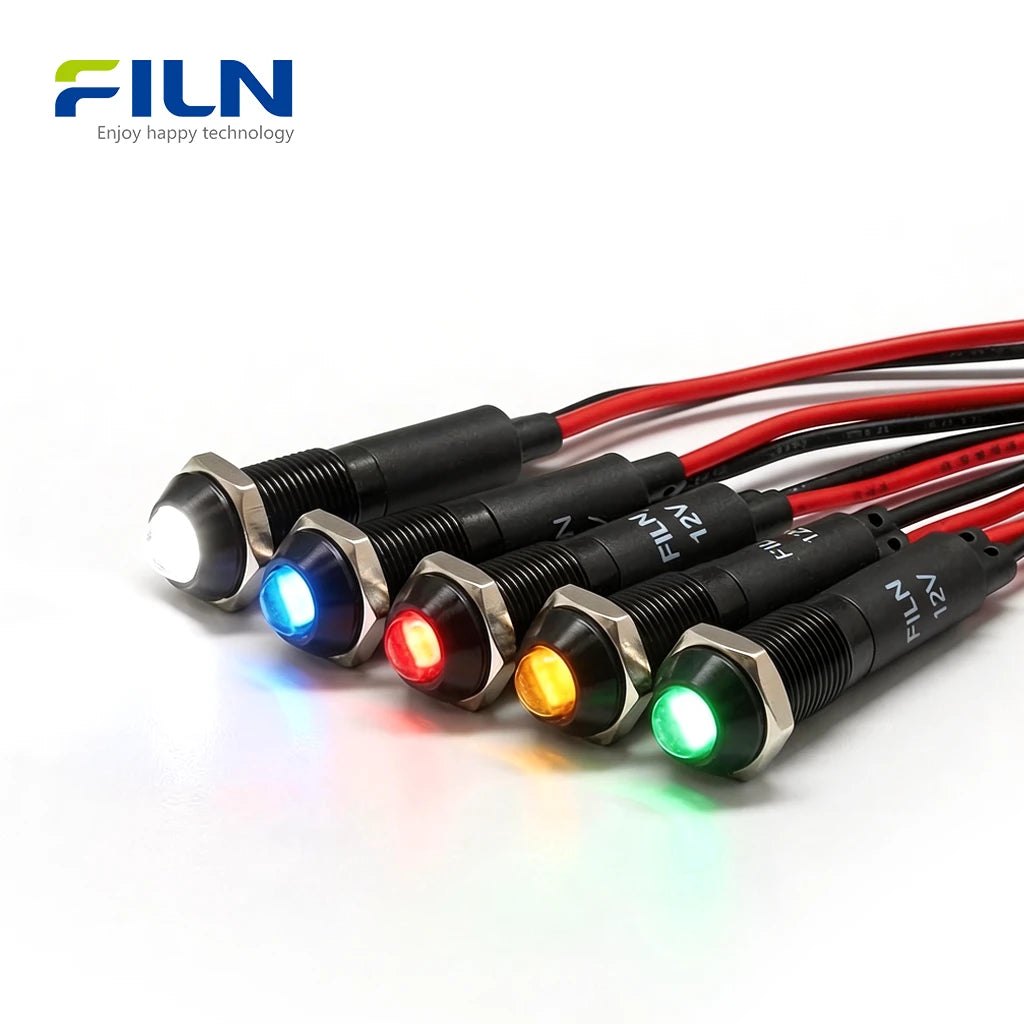

The FILN 8mm 12V indicator light is a high-performance industrial signaling solution designed for demanding environments. This metal LED indicator features a robust IP67 waterproof rating, making it resistant to dust and moisture ingress. Engineered with a high-head design and available in both silver and black anodized finishes, it offers superior visibility for industrial control panels and CNC machinery. Its non-polar LED beads allow for flexible wiring without worrying about positive or negative poles, while the 15cm pre-wired leads ensure a fast, reliable installation. Whether you require 12-24V or 110-220V configurations, this 8mm signal lamp provides long-lasting durability for automation and electrical cabinets.
Quick Specifications
| Mounting Hole | 8mm |
|---|---|
| Voltage Options | 12-24V, 110-220V (Supports Customization) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP67 |
| Lifespan | Long service life |
| Installation Type | Threaded fixing |
Component Materials
| Housing | Metal (Silver or Black) |
|---|---|
| Seal Ring | Waterproof Ring included |
| Terminal | Customizable Terminals |
| Wire Material | 15cm Tail Wire |
Performance Parameters
| Operating Voltage | 12-24V / 110-220V |
|---|---|
| LED Feature | Non-polar (no positive/negative) |
| Waterproof Rating | IP67 |
Key Features
- High-Brightness LED: Provides clear signaling in any industrial environment.
- Long Service Life: Designed for durability and reduced maintenance costs.
- IP67 Waterproof Design: Features a high-quality seal for wet or dusty conditions.
- Easy Installation: Pre-wired with 15cm leads and included nut/washer for fast setup.
- Industrial Grade Quality: Robust metal housing available in silver and black.
Installation Guide
- Drill an 8mm diameter hole in the mounting panel.
- Place the waterproof ring onto the metal housing of the indicator light.
- Insert the indicator through the hole from the front.
- Secure the light from the back using the provided mounting nut.
- Connect the 15cm wires to your power source (non-polar design simplifies wiring).
Applications
- Industrial control panel
- CNC machine
- Automation equipment
- Electrical cabinet
- Marine system
- Medical device
What Is an Indicator Light?
An indicator light is a crucial component in industrial equipment used to provide visual feedback regarding the status of a system. Whether signaling power, faults, or operational cycles, these lights ensure safety and efficiency. A high-quality 8mm metal indicator provides a compact yet highly visible solution for dense control panels where space is limited but reliability is paramount.
FILN Factory Direct Supply
- Factory Direct: Direct sourcing from the FILN brand for the best quality control.
- Voltage Customization: Support for specific voltage requirements beyond standard ranges.
- Wire Customization: Wire lengths can be adjusted to meet your cabinet specifications.
- Connector Customization: Tail ends can be fitted with custom terminals for plug-and-play use.
- Global Shipping: Reliable worldwide logistics for industrial projects.
Frequently Asked Questions
Q: Can these lights work with both AC and DC?
A: Yes, our LED beads are designed to be versatile; please specify your requirements for 12-24V or 110-220V use.
Q: Do I need to worry about positive and negative wires?
A: No, these indicators feature non-polar LED beads for convenient wiring.
Q: What is the standard wire length provided?
A: The standard length is 15cm, but we can customize this at the factory level.
Q: Is the housing made of plastic or metal?
A: This model features a high-quality metal housing available in silver or black finishes.

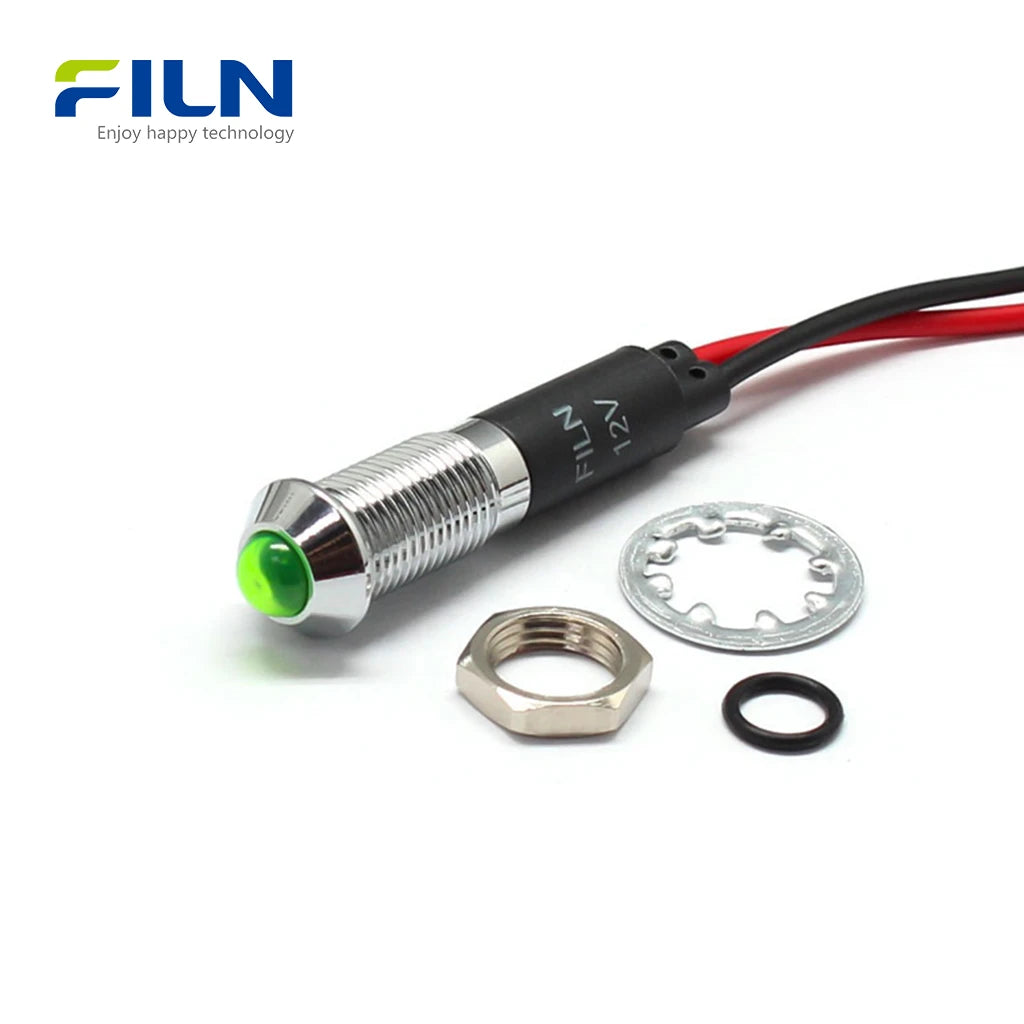

Q: What accessories are included?
A: Each indicator light comes with one waterproof ring and one nut for secure installation.
Q: Can I use these for outdoor equipment?
A: Yes, the IP67 waterproof rating makes them suitable for outdoor and marine applications.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
