Product Overview
This premium 12v panel mount led (Model: FL1P-06QW-1) is now for sale directly from the FILN factory. Featuring a compact 6mm mounting hole and a sleek round-head plastic design, this indicator light is optimized for space-saving industrial applications. Our plastic indicator light offers exceptional durability with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, ensuring global compliance and safety. Designed with a snap-in installation method and 15cm pre-soldered wire leads, it simplifies assembly in electrical cabinets and automation equipment. Whether you need 12-24V or 110-220V, we provide full customization to meet your specific industrial requirements.
Quick Specifications
| Mounting Hole | 6mm (0.24 inch) |
|---|---|
| Voltage Range | 12V-24V / 110V-220V (Customizable) |

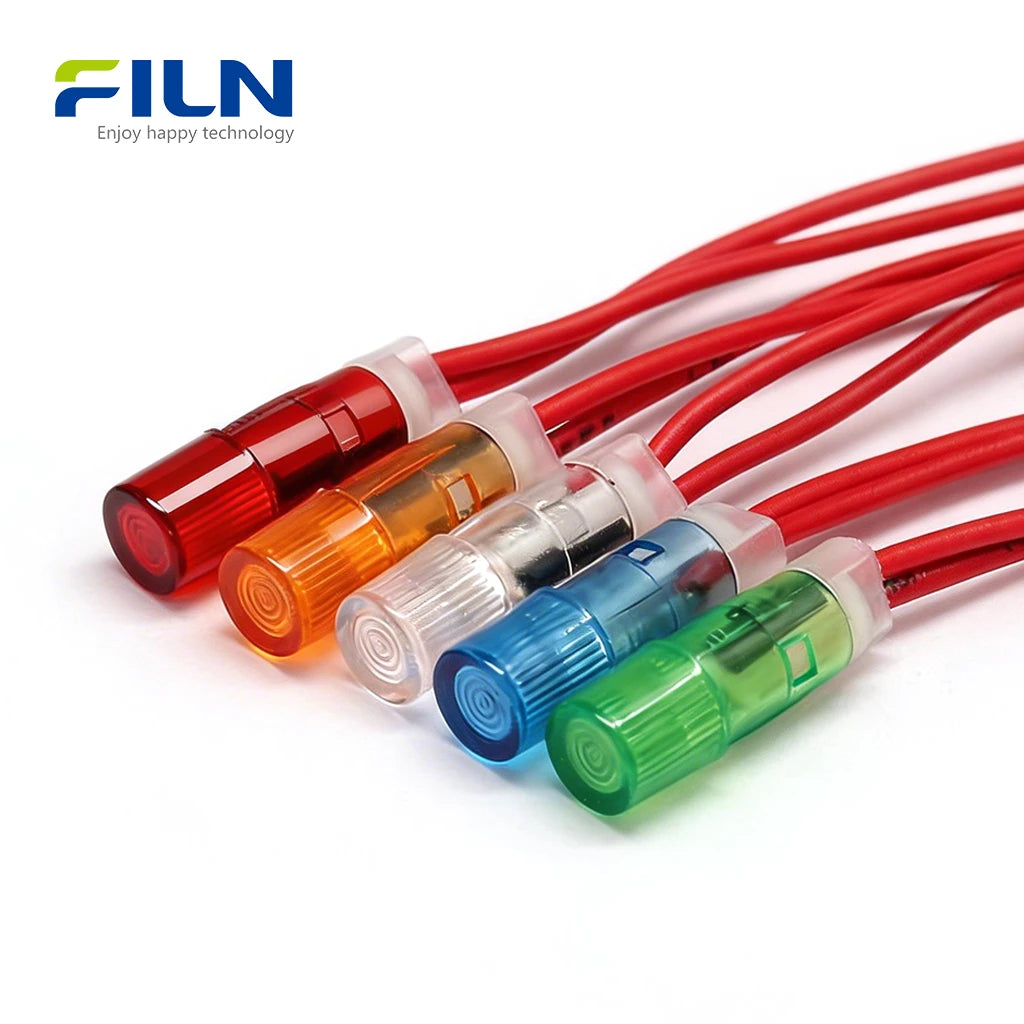

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 (Threaded) / Non-waterproof (Snap-in) |
| Wiring Type | Wire Lead (15cm) or Pin Type (2.8mm) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Component Name | Material Specification |
|---|---|
| Shell (Housing) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | High-transparency PC |
| Luminescent Source | LED |
| Resistance | Carbon Film Resistance |
| 2.8mm Terminal | H59 Copper / Brass |
| Wire Specification | PVC Insulated Wire |
General Characteristics
| Project Items | Technical Parameter |
|---|---|
| Rated Power | 0.2W |
| Insulation Resistance | 1800V/5s |
| Working Life | 60,000 Hours |
| Operating Temp | -40℃ to +80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric & Durability Property
| Test Category | Condition | Requirement |
|---|---|---|
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
| Continuous Life | 30mA @ 1000h | 50,000+ hours |
| High/Low Temp | 80℃ / -40℃ for 96h | Normal function |
Key Features
- LED High Brightness: Crystal clear visibility even in high-ambient light environments.
- Long Lifespan: Rated for over 60,000 hours of continuous operation.
- Snap-in Mounting: Extremely easy installation without the need for additional nuts.
- Industrial Grade Reliability: Built with PA66 and PC materials for heat and cold resistance.
- Direct Factory Supply: High-quality 6mm plastic indicator light for sale with wholesale pricing.
Applications
- Industrial control panels and distribution boxes.
- CNC machines and automation production lines.
- Marine electrical systems and boat dashboards.
- Medical diagnostic devices and equipment.
- Power supplies and electrical cabinets.
Installation Guide
- Drill a 6mm (0.24") diameter hole in your application panel.
- Insert the snap-in led panel indicator from the front of the panel.
- Press firmly until the side clips lock securely into place.
- Connect the 15cm wire leads to your 12V power source (Red for Positive, Black for Negative).
What Is a 12v Panel Mount LED?
A 12v panel mount led is a critical signaling component used in industrial automation to provide visual status feedback. Unlike 2.8mm pin terminals which require soldering or connectors by the user, the wire lead indicator light features pre-attached PVC cables, significantly reducing labor costs and assembly time. The round-head plastic indicator light is preferred for its lightweight nature and cost-effectiveness compared to metal versions, while the snap-in design ensures a fast, tool-free mounting process on industrial control panels.
FILN Factory Direct Supply
FILN is a leading manufacturer specializing in customized indicator solutions for global B2B clients.
- Customization: Voltage (3V-250V), Wire Length, and Connector types.
- Quality Assurance: UL, CE, and ISO9001 certified production.
- Fast Shipping: Global logistics for rapid delivery.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Is the 6mm plastic indicator light waterproof?
A: Snap-in versions are generally not waterproof; for IP65 rating, please choose our threaded 12v-panel-mount-led-indicator-light models.
Q2: Can I get a 110v plastic pilot lamp in this 6mm size?
A: Yes, FILN supports 110v-220v-plastic-pilot-lamp customization for all 6mm models.
Q3: What is the benefit of a snap-in design?
A: It allows for extremely fast assembly on industrial-control-panel-led-indicator systems without needing tools.
Q4: Do you offer bulk discounts for the 6mm-plastic-indicator-light-for-sale?
A: Absolutely, as a factory, we provide wholesale pricing for B2B orders.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
