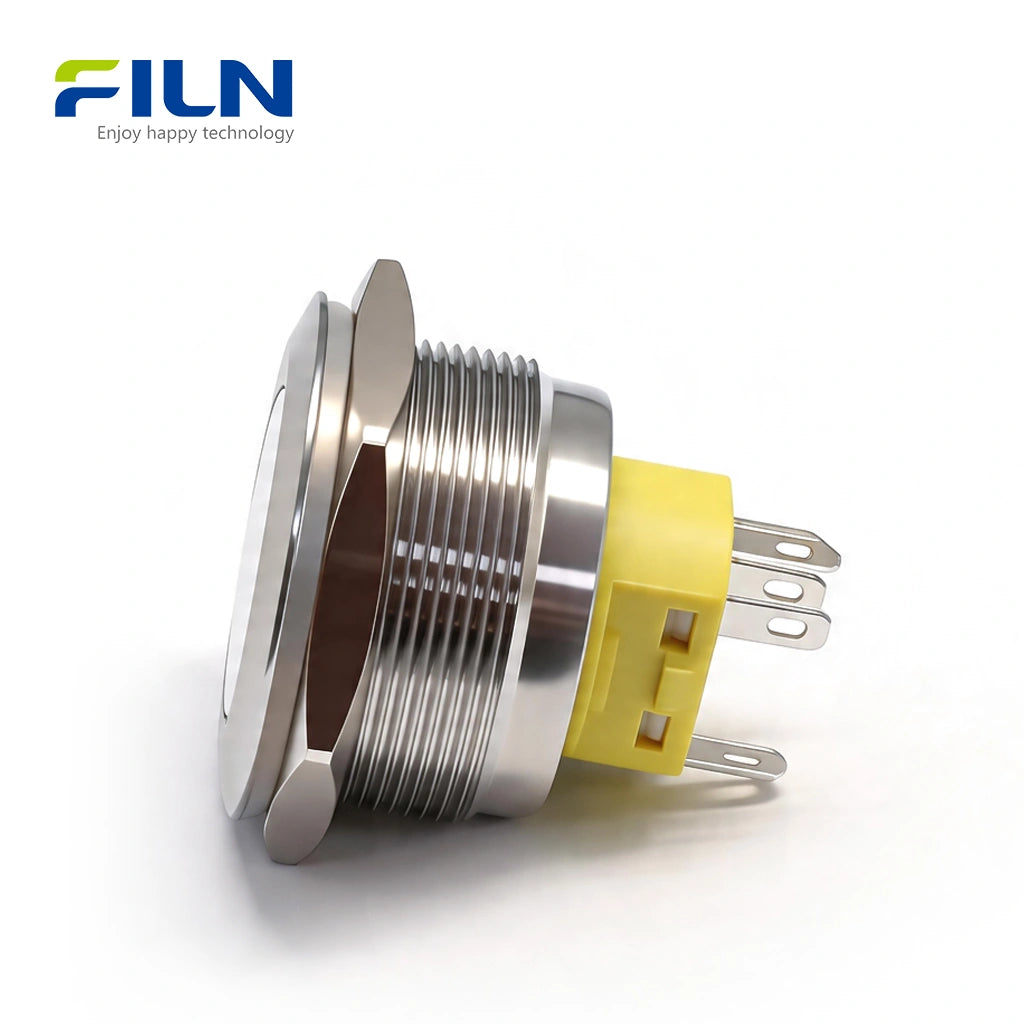

LED Light Push Button Switch 30mm Stainless Steel Power Symbol Momentary/Latching FILN

SKU: FLM30-FJ-1-EC003-L-R-1224V
Availability: In Stock
Product Type: PUSH BUTTON SWITCH
$5.87
$5.87
Please hurry! Only 2000 left in stock
Switch Function: Silver Housing-Latching
Light Color: Red
Voltage: 12-24V
Subtotal: $5.87
10 customers are viewing this product

Shipment by DHL/UPS

Enjoy points to reduce shipping fees

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

LED Light Push Button Switch 30mm Stainless Steel Power Symbol Momentary/Latching FILN

LED Light Push Button Switch 30mm Stainless Steel Power Symbol Momentary/Latching FILN

$5.87

LED Light Push Button Switch 30mm Stainless Steel Power Symbol Momentary/Latching FILN

$5.87
Switch Function: Silver Housing-Latching
Light Color: Red
Voltage: 12-24V

Button Switch DrawingPRODUCT OVERVIEW

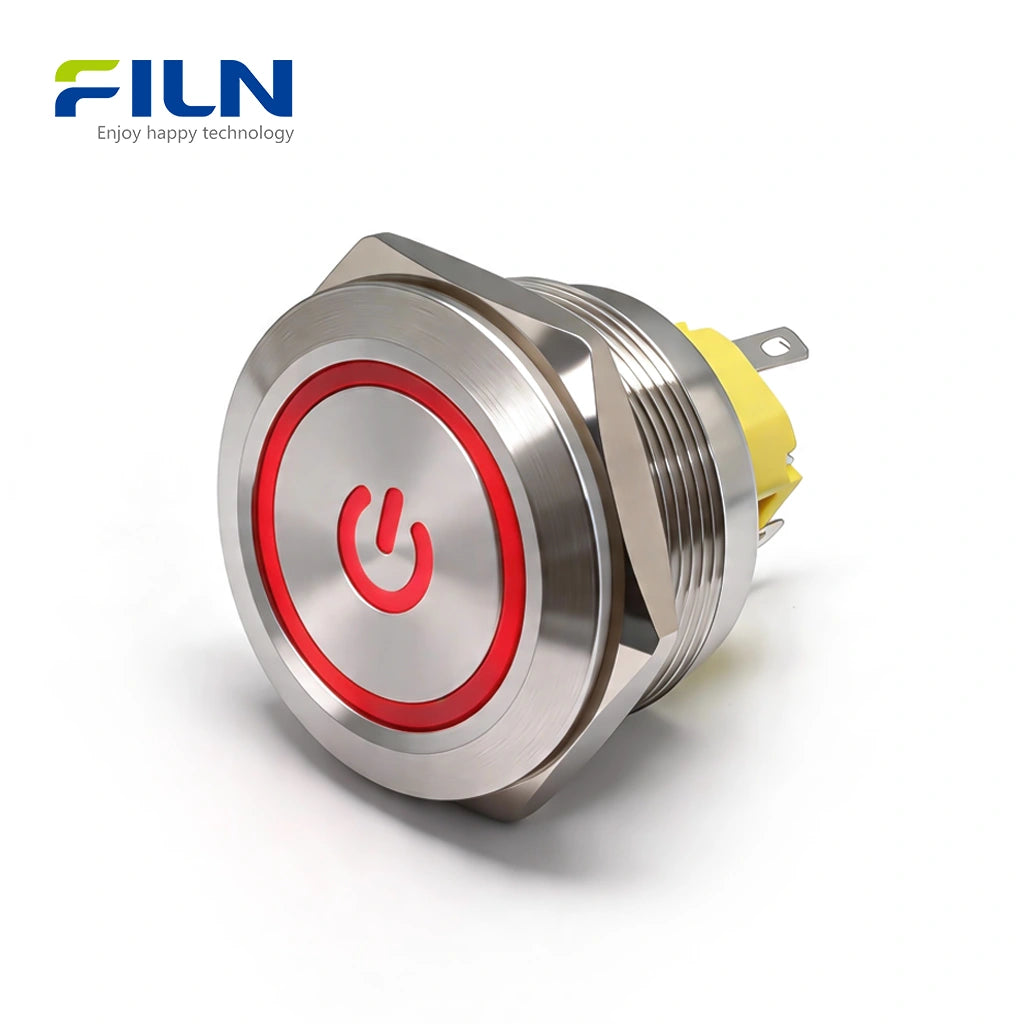

The led light push button switch (Model: FLM30-FJ-1-EC) is a high-end 30mm industrial control solution designed by FILN. Featuring a robust 304 stainless steel shell and a distinctive ring LED with power symbol, this switch provides superior tactile feedback and clear visual status. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it is engineered for reliability in industrial control panels, automation systems, and high-power electrical cabinets. This 5-pin terminal switch supports both momentary and latching functions, making it a versatile choice for any 12V to 220V application requiring an illuminated metal interface.

QUICK SPECIFICATIONS

Feature Value
Model Number FLM30-FJ-1-EC
Mounting Size 30mm (1.18 inch)
Function Momentary / Latching (Optional)
LED Design Ring + Power Symbol
LED Color R/G/Y/B/W / Bi-color / Tri-color

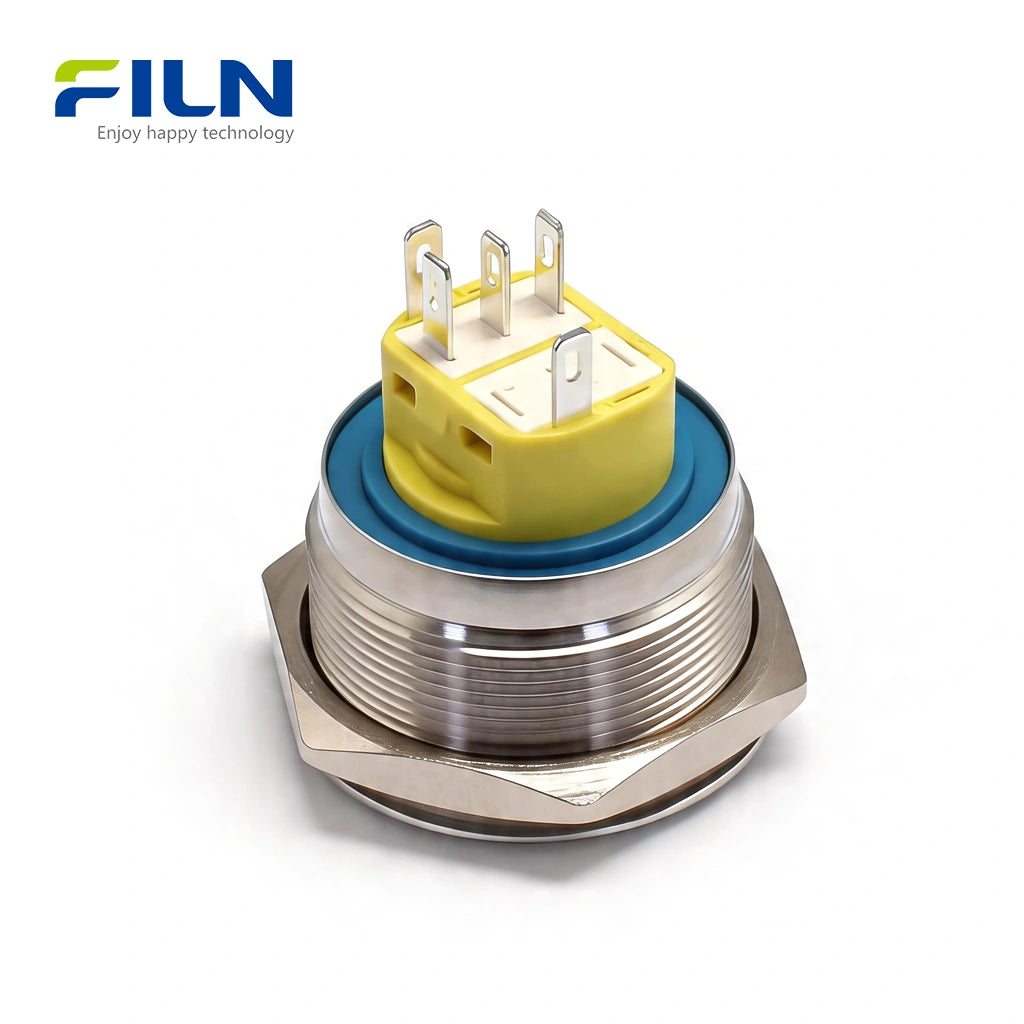

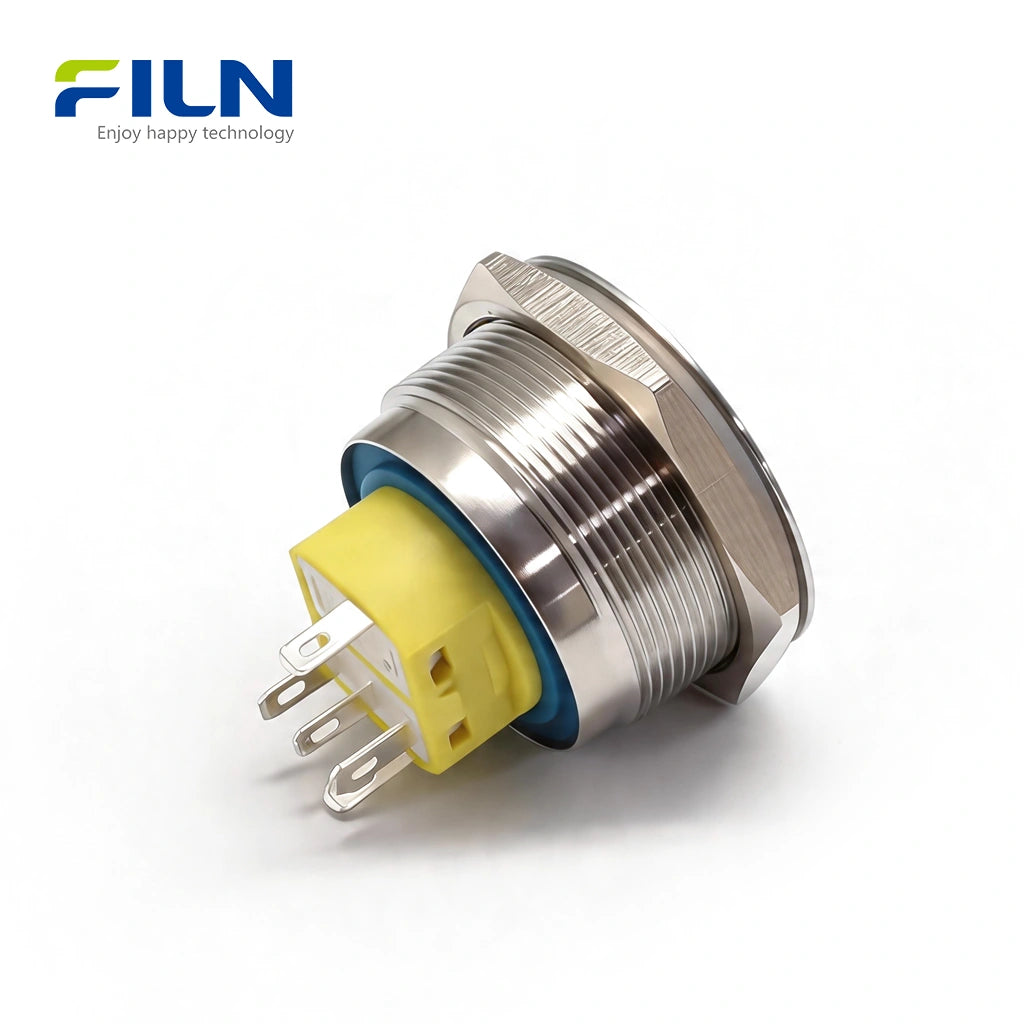

Terminal Configuration 5-Pin (C, NO, NC, LED+, LED-)

ELECTRICAL PERFORMANCE

Rated Voltage 36V DC / 250V AC
Rated Current 5A DC / 5A AC
Rated Power 180W (DC) / 1250W (AC)
Dielectric Strength 1800V
Contact Resistance < 50mΩ
LED Voltage 3V - 220V
Certifications ISO9001, CE, VDE, RoHS, SGS, UL, IP65
Product-Certifications

COMPONENT MATERIALS

Actuator/Shell 304 Stainless Steel / 6063 Aluminum Alloy
Light Lens PC Plastic (Flame Retardant)
Terminals H62 Copper Alloy
Contact Material Silver Contact AgCdO12
Base PA66+GF20% Fireproof Nylon

KEY FEATURES & ADVANTAGES

  • Enhanced Visibility: The combination of a ring light and power symbol ensures the switch is easily identifiable in dark environments.
  • Extreme Durability (IP65 & IK08): Built for outdoor and harsh industrial sites, providing waterproof and impact protection.
  • 5A High Current Load: Capable of direct circuit control without the need for additional relays in most 5A applications.
  • Premium Silver Contacts: Ensures minimal contact resistance and long electrical life span.
  • Versatile 5-Pin Setup: Includes NO/NC logic plus dedicated LED pins for flexible circuit design.
💡 Installation Tip: Use our matching wire connector to save time and ensure a secure connection.
Order 5-Pin Wire Harness Here →

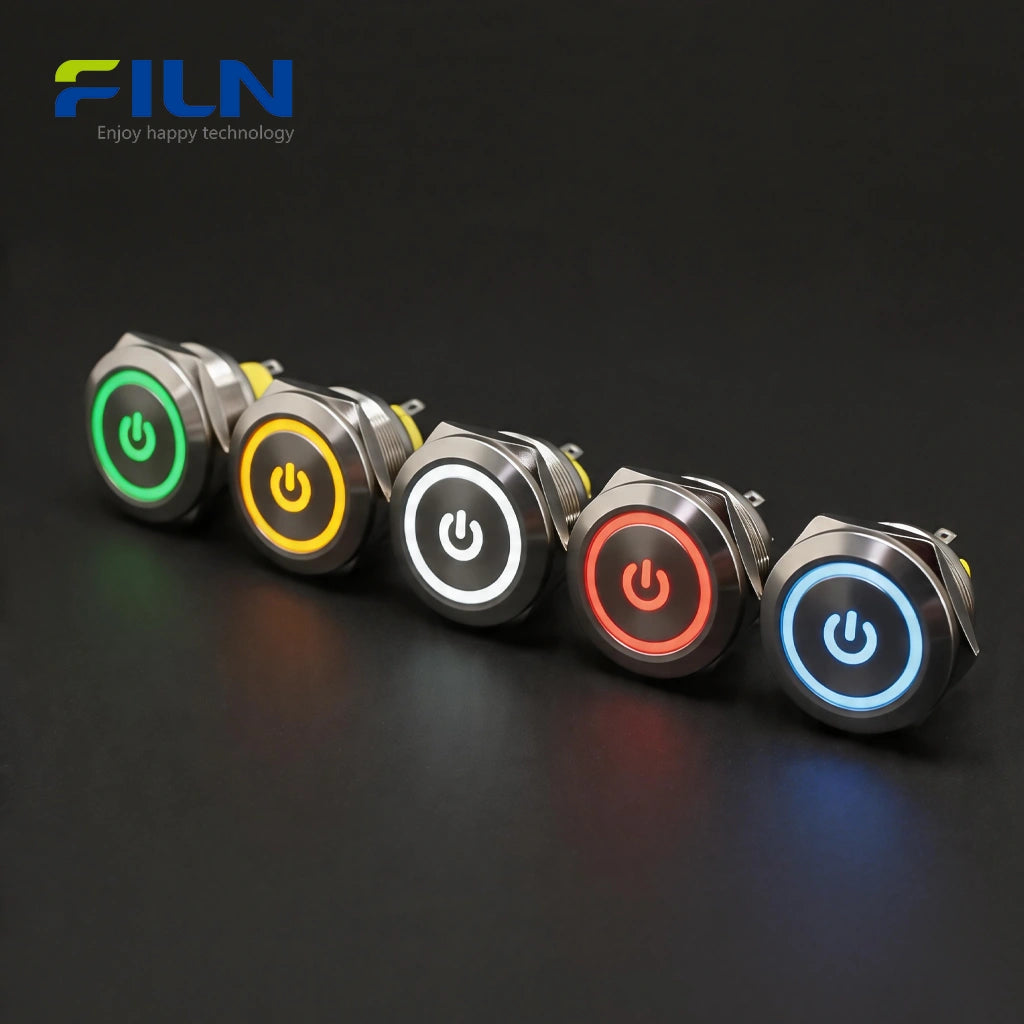

LED COLOR INDICATOR MEANINGS

Choose the color that best fits your industrial safety protocol:

  • RED: Danger or Stop status.
  • GREEN: Normal operation or System Start.
  • YELLOW/ORANGE: Warning or Standby mode.
  • BLUE: Auxiliary function or specific manual mode.
  • WHITE: Neutral backlight for visibility in dark workspaces.

INDUSTRIAL APPLICATIONS

The led light push button switch is critical for circuit management in:

  • CNC Machinery
  • Automation Lines
  • Power Distribution Boxes
  • Marine Navigation
  • Medical Equipment
  • Access Control Systems
Industrial-Applications-FILN

INSTALLATION STEPS

  1. Drill a 30mm diameter hole on your control panel.
  2. Insert the metal push button from the front side.
  3. Screw the metal hex nut from the back to secure the switch.
  4. Wiring: Connect your power and load wires to the 5-pin terminals (C, NO, NC, LED+/LED-).
30mm-switch-installation

TERMINAL TYPE COMPARISON

Terminal Type Wiring Ease Service Life Best For
Pin Terminal High (Plug-in) Very Long Fast mass production
Screw Terminal Medium Long On-site wiring
Pre-wired Highest Standard Quick DIY setup

5 Pin Push Button Switch Wiring Diagram

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

  • Application: Standard start switches where the light indicates the system is running.
  • State: Static (LED Out, Device Off) → Pressed (LED On, Device On).
5PIN NO Sync Wiring

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

  • Application: Stop buttons or emergency cut-off switches.
  • State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).
5PIN NC Sync Wiring

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

  • Application: Power switches in dark environments or access control buttons.
  • State: Static (LED On, Device Off) → Pressed (LED On, Device On).
5PIN NO Constant Wiring

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

  • Application: Monitoring systems or security alarms that require constant power indication.
  • State: Static (LED On, Device On) → Pressed (LED On, Device Stop).
5PIN NC Constant Wiring
Mode LED Behavior Device (Idle)
NO Sync Lights up when pressed OFF
NC Sync Turns off when pressed ON
Constant Always ON (Backlight) User Choice

INDUSTRY KNOWLEDGE

What is an LED Light Push Button Switch?

In industrial automation, an illuminated push button is more than just a power toggle; it's a critical safety component. The LED light provides real-time feedback on machine status, which is vital in noisy or dark manufacturing environments. These switches are built from metal to withstand mechanical impact (IK08) and chemical exposure.

Momentary vs. Latching Explained

Function Logic Typical Use
Momentary Returns to original state on release Reset, Doorbell, Horn
Latching Locks in position after press Main Power, Light Control

FACTORY DIRECT SUPPLY - FILN

  • No MOQ: Samples available for testing.
  • Global Fast Shipping: Fast lead times from our factory.
  • Full Certification: CE, UL, RoHS, and ISO9001.

Official Website: www.filn.com

Contact Us: inquiry@cnylin.com.cn

FILN-Factory-Showcase

FAQ - LED PUSH BUTTON SWITCH

Q1: Is the 30mm 5-pin LED switch waterproof?
Yes, it is IP65 rated, meaning it is protected against dust and water spray.

Q2: Can I get the led light push button switch in 110V?
Yes, we provide custom LED resistors for 12V, 24V, 110V, and 220V applications.

Q3: What does the power symbol indicate?
It helps users quickly identify the main power control button on a complex panel.

Q4: Do you offer the momentary 30mm metal switch?
Yes, both momentary and latching versions are available in the FLM30 series.

Q5: Can I use this for outdoor equipment?
Absolutely. The 304 stainless steel shell is highly resistant to corrosion and weather.

Q6: Is it possible to have a bi-color LED?
Yes, we can customize Red/Green or other bi-color combinations for status feedback.

Q7: What is the benefit of 5 pins over 3 pins?
A 5-pin switch provides separate control for the LED and offers both NO and NC circuit options[cite: 1].

Q8: What are the silver contacts for?
Silver contacts provide superior conductivity and prevent oxidation, extending the switch's life.

Q9: Can the LED stay on without the button being pressed?
Yes, by wiring the LED terminals to a constant power source (Constant LED mode)[cite: 9].

Q10: Is FILN a manufacturer?
Yes, FILN is a professional factory supporting customization and direct supply.
