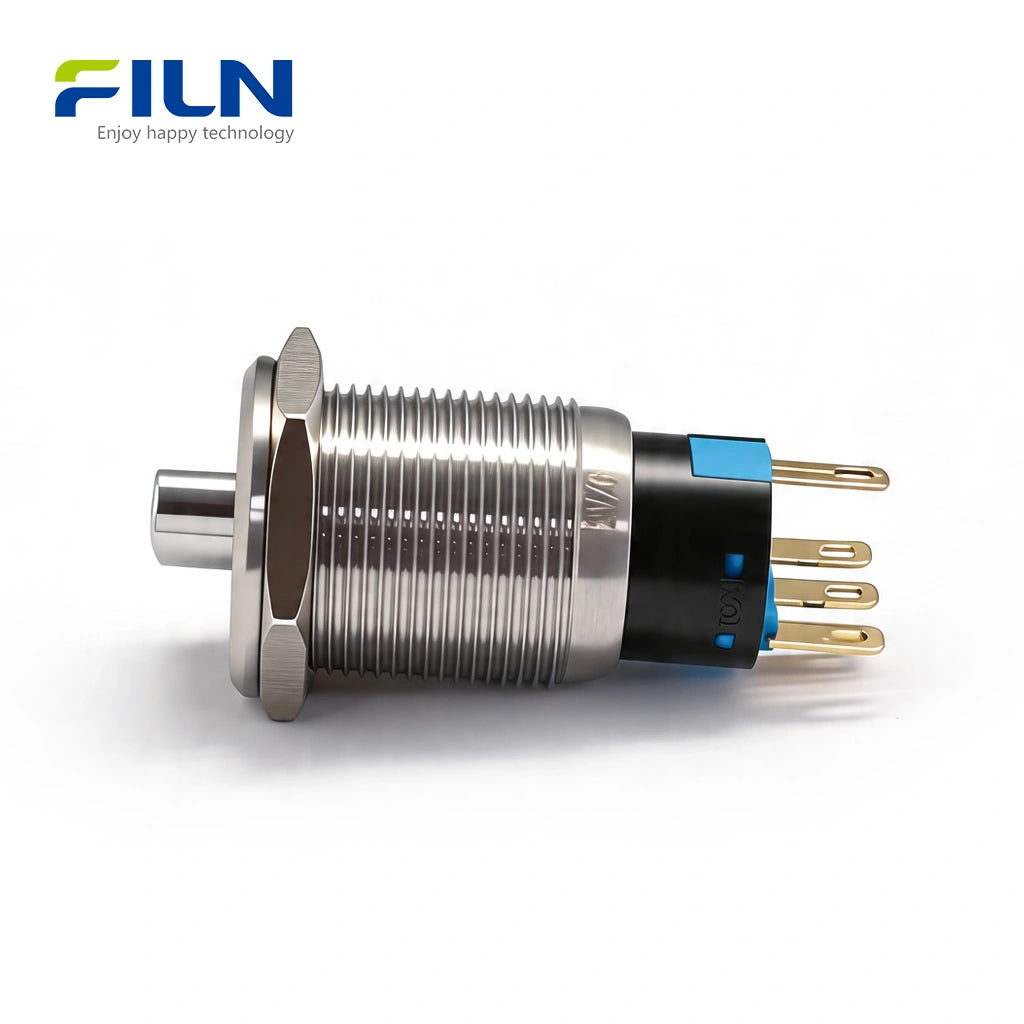

Product Overview

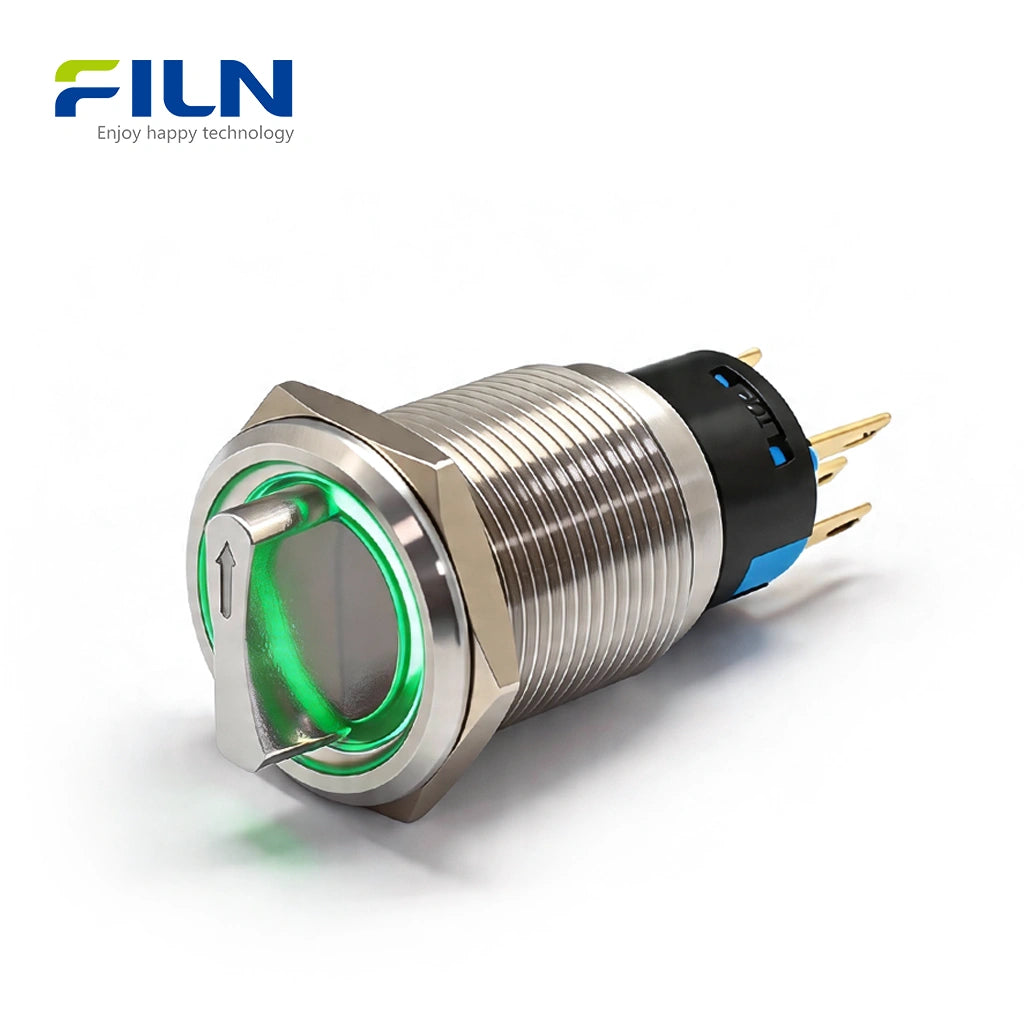

The FILN 19mm 3 way push button switch (FLCM19-RJ-1-E) is a premium stainless-steel-3-position-rotary-switch designed for advanced industrial control. Unlike standard momentary or latching buttons, this model utilizes a rotary handle to manage 2-position or 3-position circuitry. Featuring a sleek 19mm-metal-selector-switch-led design with a vibrant ring indicator, it is widely used in automation, electrical cabinets, and CNC machinery. With full certifications including ISO9001, CE, VDE, RoHS, SGS, and UL, and an IP65 waterproof rating, this industrial-illuminated-selector-switch-12v ensures reliable performance in harsh environments. As a direct FILN factory product, we offer high-security flcm19-rj-1-e-selector-switch-specification standards with global support.
Quick Specifications
| Model Number | FLCM19-RJ-1-E |
|---|---|
| Mounting Size | 19mm |
| Function Type | Rotary Selector (2-Pos / 3-Pos) |
| Terminal Config | 2-Pos (5-Pin) / 3-Pos (8-Pin) |

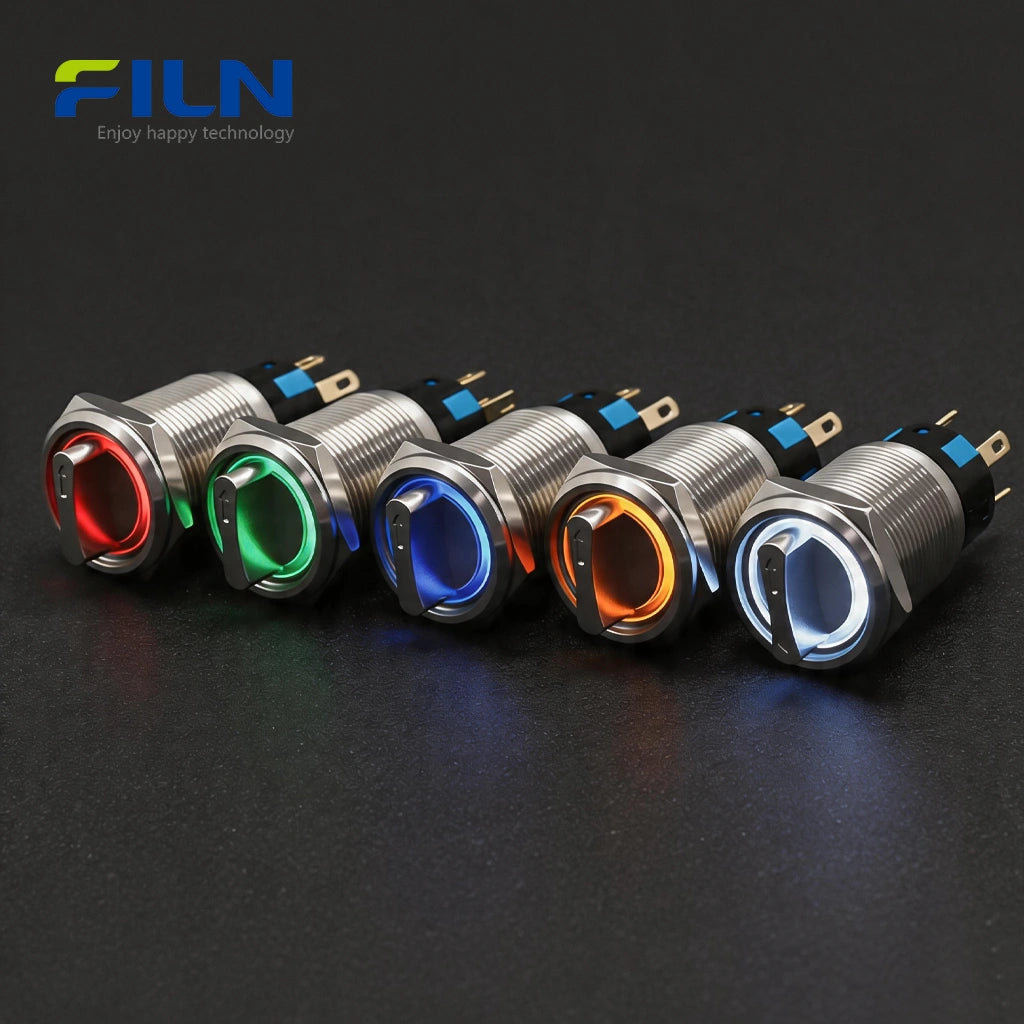

| LED Colors | Red, Green, Yellow, Blue, White |
| Shell Material | Stainless Steel / Chrome Brass |
Performance Parameters
| Rated Voltage | 12V / 24V (Support up to 250V AC) |
|---|---|
| Rated Current | 5A AC/DC |
| Insulation Resistance | ≥ 1000MΩ |
| Dielectric Strength | 1800V |
| LED Rated Current | < 20mA |
Component Materials
| Actuator | 304 Stainless Steel / 6063 Aluminum |
|---|---|
| Shell Sleeve | H59 Brass / Stainless Steel |
| Pins | H62 Copper Alloy |
| Base | PA66+GF20% Flame Retardant |
| Contact | Silver Contact AgCdO12 |
General Characteristics
| Temperature Range | -25°C to +85°C |
|---|---|
| Protection Level | IP65, IK08 |
| Mechanical Life | 500,000 times |
| Electrical Life | 100,000 times |
LED Specification
| Forward Current | 20mA (Typical) |
|---|---|
| Peak Wavelength | 632.2 nm (Red) / 520.7 nm (Green) |
| Light Intensity | 1000 mcd |
Key Features
- Rotary Precision: Unlike standard buttons, the rotary handle provides distinct tactile feedback for 3-way-rotary-push-button-switch-wiring.
- Visual Feedback: The 19mm-led-ring-selector-switch-24v offers clear status indication even in dark environments.
- High-Level Protection: IP65 waterproof and IK08 impact resistance ensure longevity in outdoor and industrial settings.

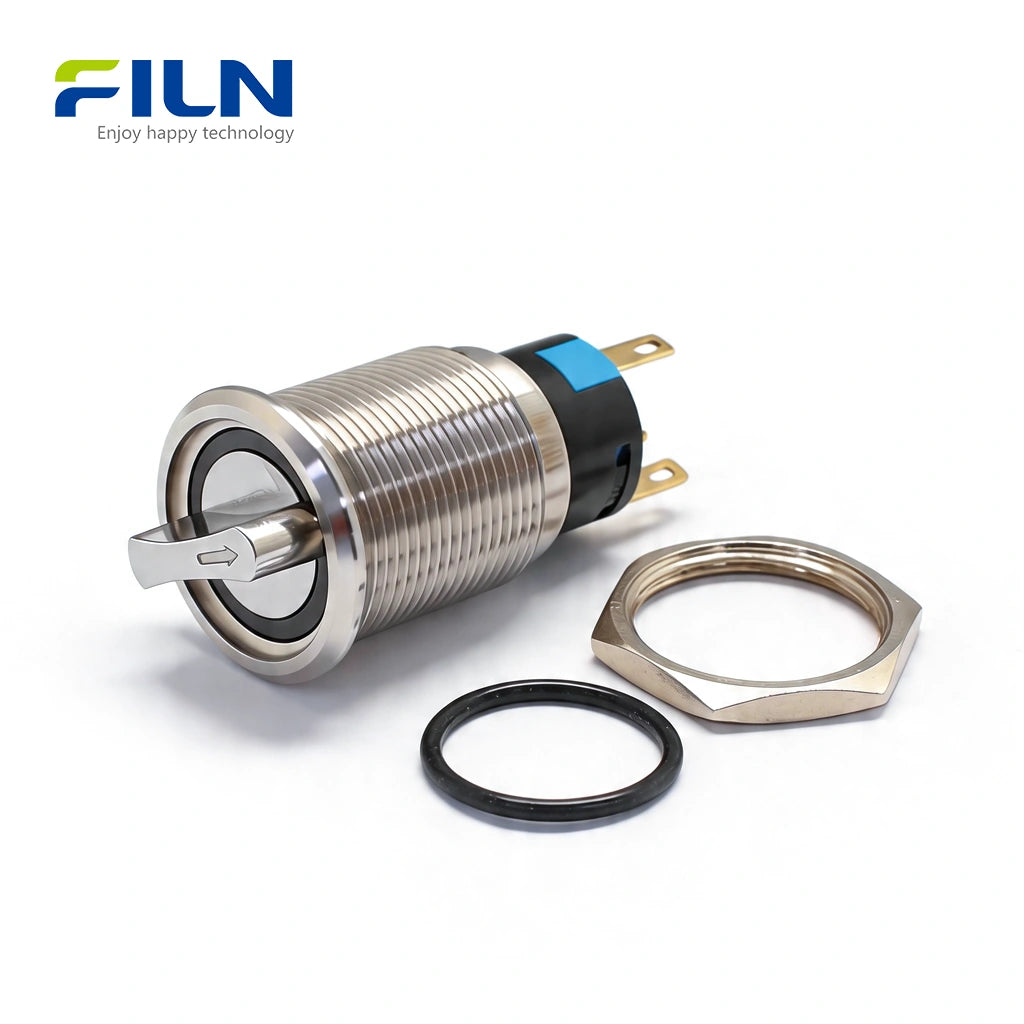

- Versatile Mounting: Simple threaded installation with M19 nut and silicone rubber gasket for a perfect seal.
- Space Efficiency: Compact 8-pin-3-position-push-button-switch design manages complex circuits within a small panel footprint.
Applications
The waterproof-panel-mount-rotary-switch-ip65 is essential for:
- CNC Machinery Mode Selection (Manual/Auto).
- Industrial Control Panels and Electrical Cabinets.
- Marine Dashboard Systems and Automotive Function Control.
- Automation Equipment requiring multi-state logic.
Push Button vs. Rotary Switch
| Feature | Standard Push Button | FILN Rotary Selector |
|---|---|---|
| Operation | Press (Momentary/Latching) | Rotate (2 or 3 Position) |
| Circuit Control | Simple On/Off | Multi-circuit Selection |
| Visual Status | Depends on LED | Physical Handle Position + LED |
Installation Guide
- Drill a 19mm hole in the control panel.
- Place the rubber gasket onto the switch body.
- Insert the rotary switch through the hole from the front.
- Tighten the M19 metal nut from the back to secure the unit.

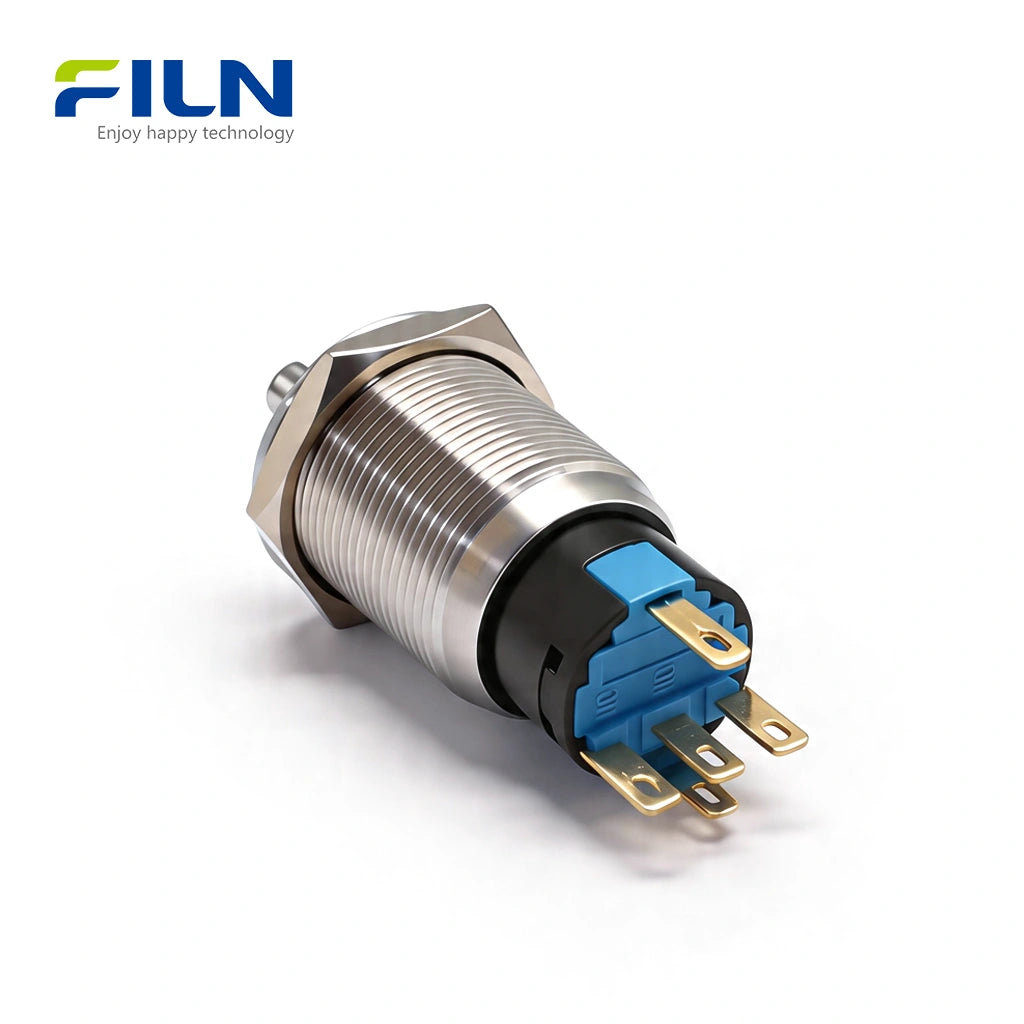

- Connect the pins (5-pin for 2-pos, 8-pin for 3-pos) as per the wiring diagram.
Wiring & Pin Configuration
A 5-PIN switch consists of a Common (C), Normally Open (NO), and Normally Closed (NC) terminal. [cite: 1] Use these connections to control whether a device turns on or off when pressed. [cite: 2]
- C (Common): Power input terminal. [cite: 3]
- NO (Normally Open): Connects only when rotated/pressed. [cite: 3]
- NC (Normally Closed): Disconnects when rotated/pressed. [cite: 3]
Factory Direct Supply
FILN offers professional customization for B2B procurement:
- MOQ: 1 Piece Available
- Fast Lead Time & Global Shipping
- Voltage & Wire Length Customization
- Free Samples Available
Official Website: www.filn.com
Contact Email: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
Q1: How many pins does the 3-position switch have?
The 3-position version uses an 8-pin terminal layout to support complex 3 way switch wiring.
The 3-position version uses an 8-pin terminal layout to support complex 3 way switch wiring.
Q2: Is the LED ring available in multiple voltages?
Yes, our 19mm-led-ring-selector-switch-24v supports 12V and 24V, and can be customized for up to 220V.
Yes, our 19mm-led-ring-selector-switch-24v supports 12V and 24V, and can be customized for up to 220V.

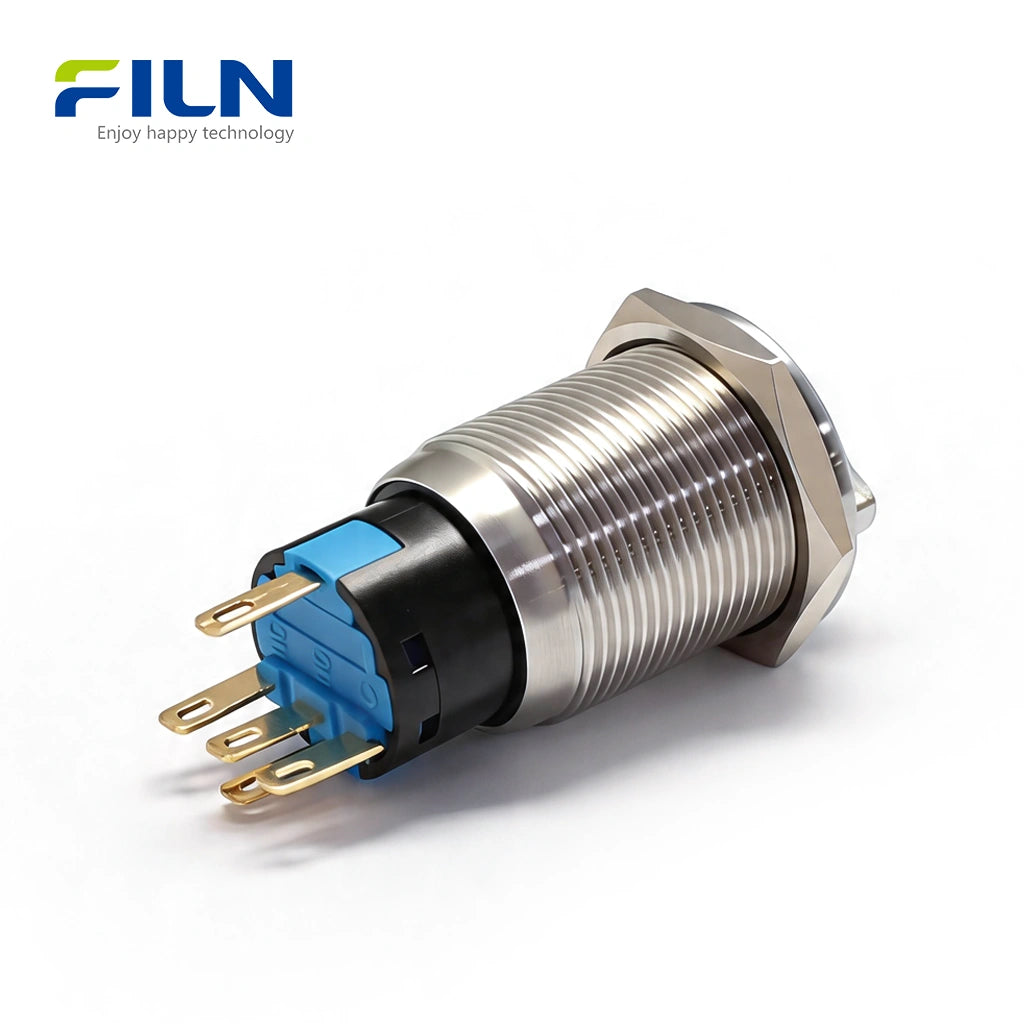

Q3: Can I get a 5-pin 2-position switch?
Yes, the 2-position rotary selector uses a standard 5-pin configuration (1NO1NC + LED pins).
Yes, the 2-position rotary selector uses a standard 5-pin configuration (1NO1NC + LED pins).
Q4: Is the housing made of real stainless steel?
Yes, the shell is crafted from 304 Stainless Steel for maximum corrosion resistance.
Yes, the shell is crafted from 304 Stainless Steel for maximum corrosion resistance.
Q5: What is the protection rating for this switch?
It is rated IP65, meaning it is dust-tight and protected against water jets.
It is rated IP65, meaning it is dust-tight and protected against water jets.
Q6: Can I customize the wire harness length?
Yes, FILN factory provides custom wire lengths and connectors for all 3-way-rotary-push-button-switch-wiring orders.
Yes, FILN factory provides custom wire lengths and connectors for all 3-way-rotary-push-button-switch-wiring orders.
Q7: Does this switch have a momentary function?
No, this model is a rotary selector (fixed position) and does not have momentary action.
No, this model is a rotary selector (fixed position) and does not have momentary action.
Q8: What LED colors are available for the 19mm selector?
We offer Red, Green, Yellow, Blue, and White (R/G/Y/B/W).
We offer Red, Green, Yellow, Blue, and White (R/G/Y/B/W).
Q9: How do I install this on a panel?
It uses a simple thread-mount system with an M19 nut and a rubber waterproof gasket.
It uses a simple thread-mount system with an M19 nut and a rubber waterproof gasket.
Q10: Is there a warranty for industrial use?
Our switches have a mechanical life of 500,000 cycles and carry full CE/UL certifications for industrial safety.
Our switches have a mechanical life of 500,000 cycles and carry full CE/UL certifications for industrial safety.
