Product Overview

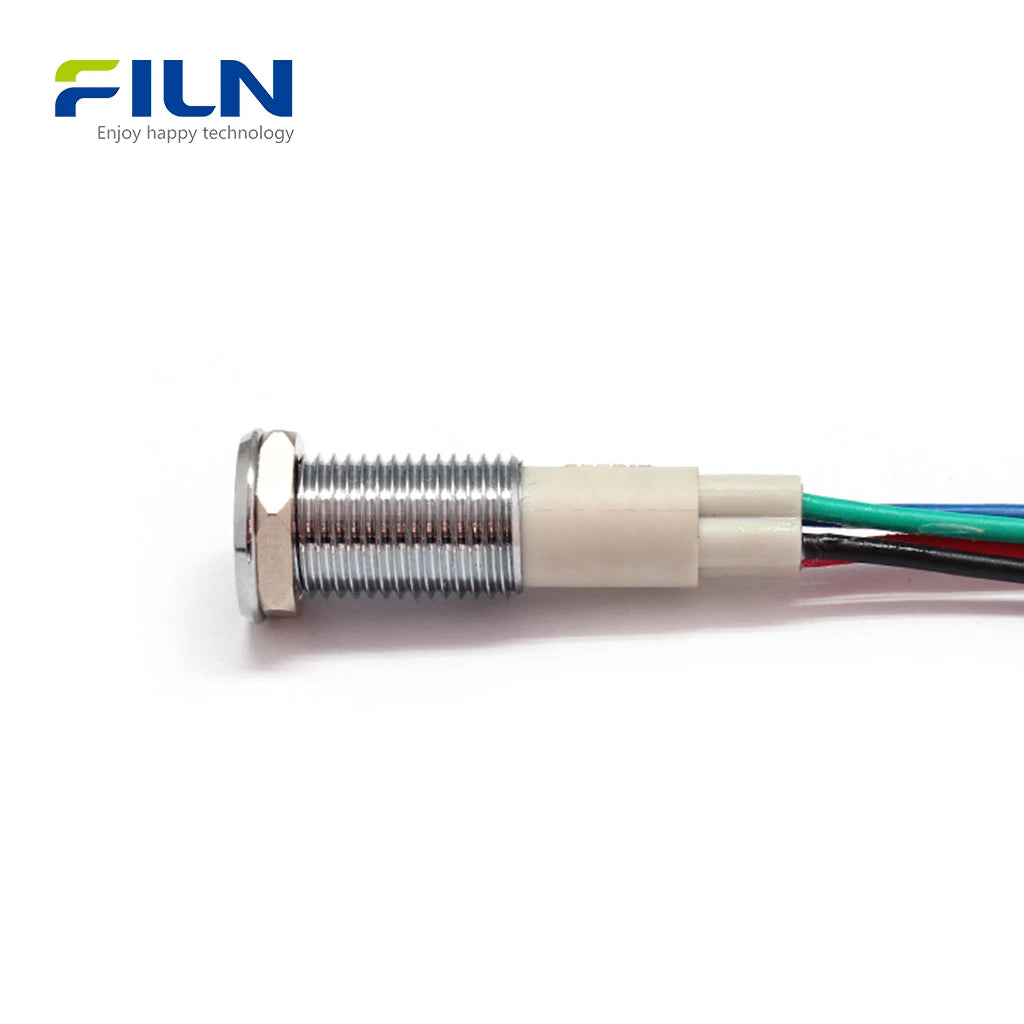

The 3 color indicator light is a high-performance 10mm tri-color LED solution engineered for complex status signaling. Manufactured by FILN [cite: 1], these indicators boast comprehensive certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67[cite: 1]. Available in Flat, High-dome, and Concave head types, they offer distinct visual advantages for industrial control, automation, medical devices, and smart appliances. Featuring a robust metal housing (Silver or Black) and pre-wired leads, these lights provide long lifespan and easy installation for multi-state monitoring in a compact M10 footprint.
Quick Specifications
| Mounting Hole | 10mm / 0.39 inch |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Tri-color (Red/Green/Blue/Yellow/White Combinations) |

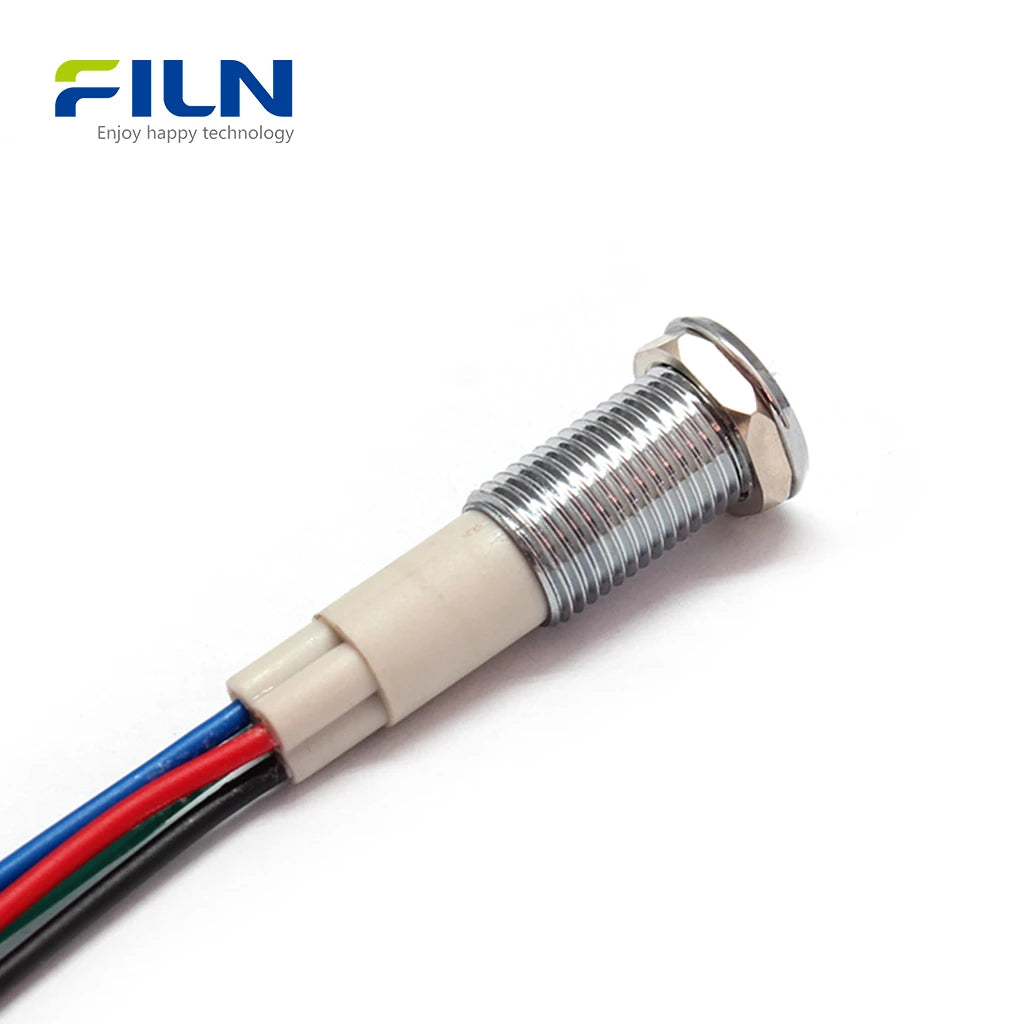

| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | Pre-wired Lead Type |
Rated Working Parameters
| Rated Voltage | Customized |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Stainless Steel / Nickel-plated Brass (Silver/Black) |
|---|---|
| Lens | High-transparency PC |
| Seal Ring | 10mm O-ring Silicone |
| Terminal | Pre-wired Leads |
| Wire Material | UL Standard Copper Wire |
General Characteristics
| Part Name | FL1M-10FW/SW/CW-T |
|---|---|
| Operating Temp | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Ambient Temp | 5~35℃ |
| Air Pressure | 86~106Kpa |
Key Features & Advantages
-
Triple Head Options:

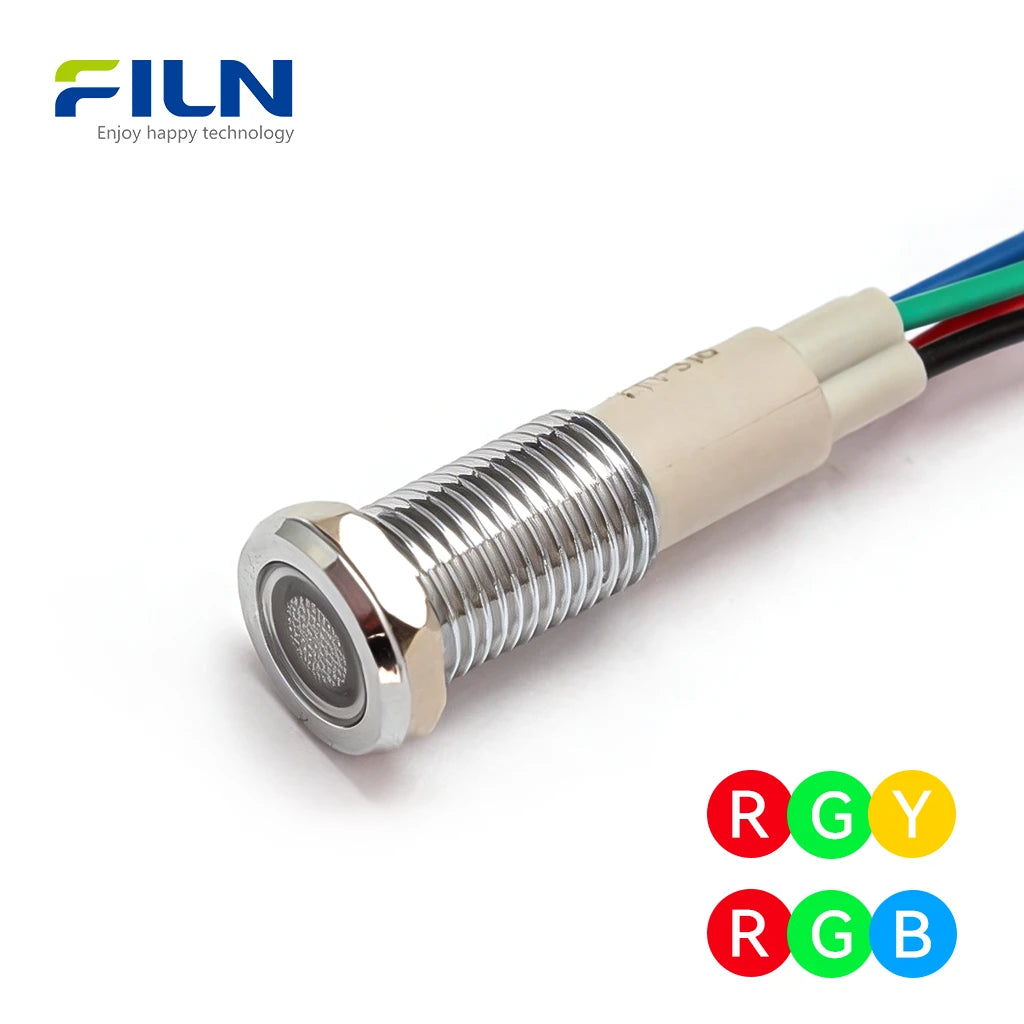

- Flat Head (FW): Sleek, flush mount design for easy cleaning and a modern aesthetic.

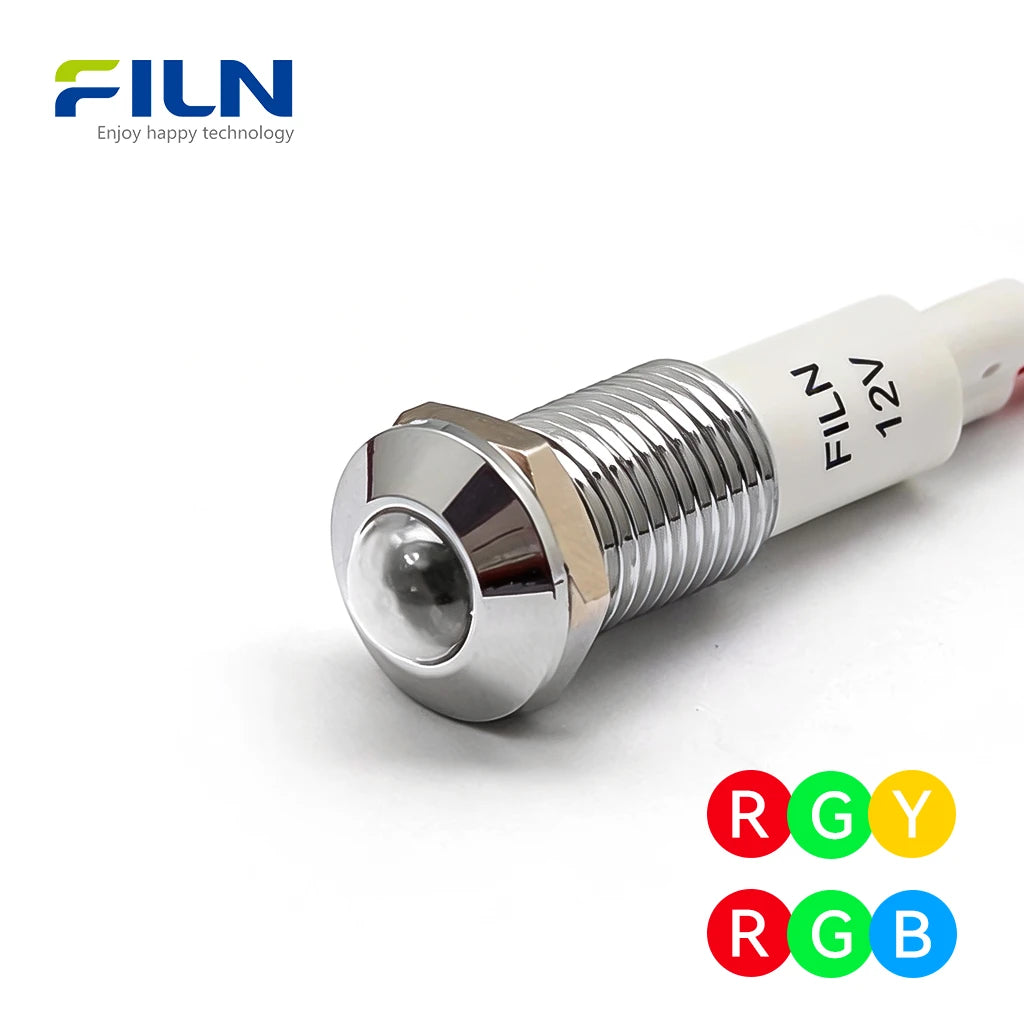

- High-dome (SW): Superior 180° side visibility, perfect for safety critical signals.

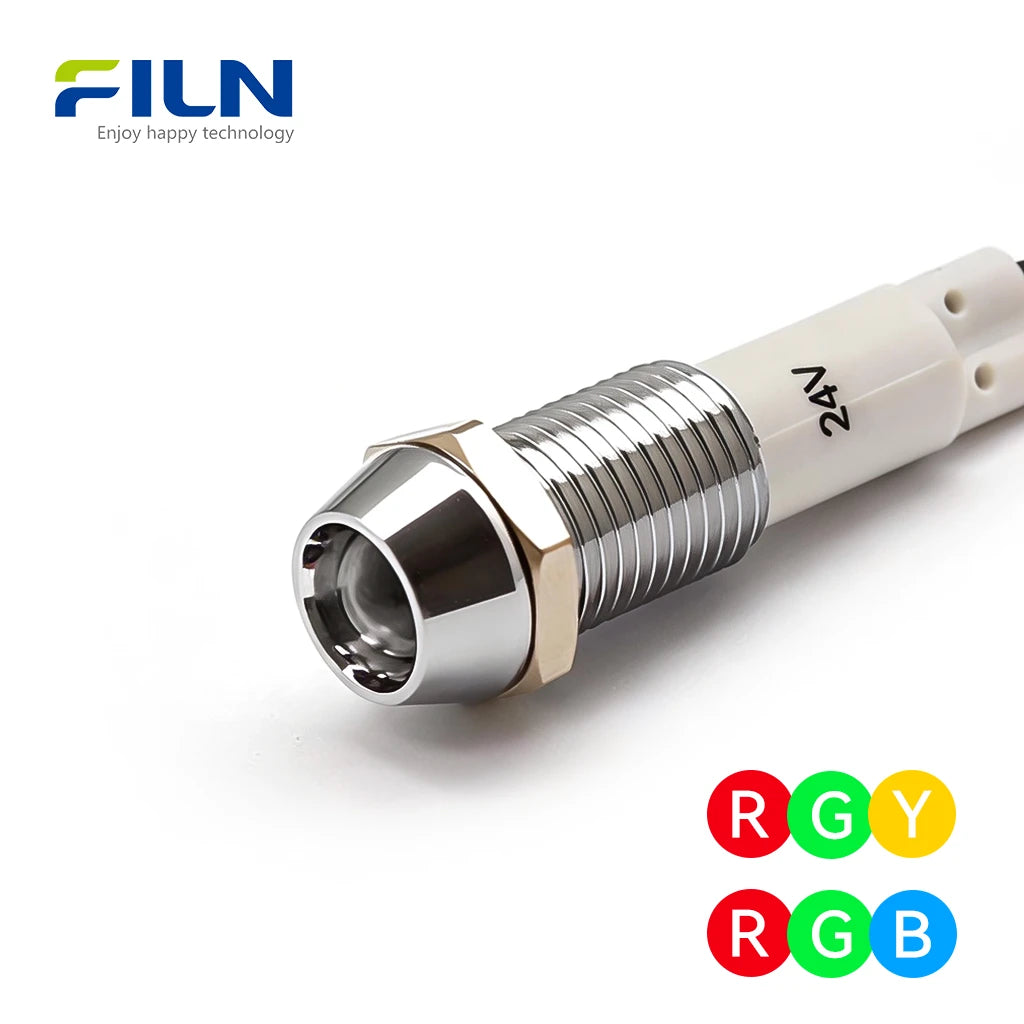

- Concave Head (CW): Recessed lens prevents accidental damage and reduces glare.

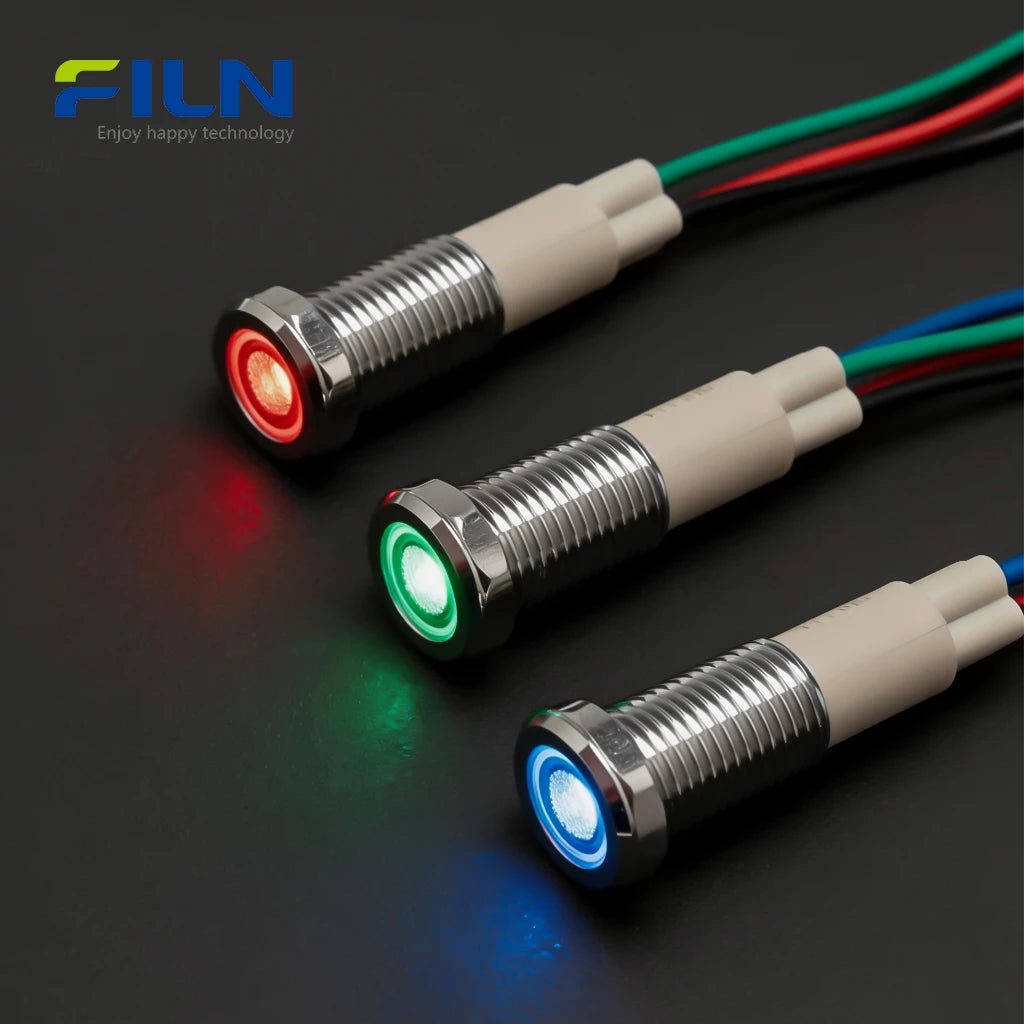

- Advanced Tri-color Signaling: Three LED colors in one 10mm unit provide complex status feedback (e.g., Red-Error, Green-Normal, Blue-Process) without multiple panel holes.
- Superior Wiring: Pre-wired leads offer better vibration resistance and faster installation compared to standard pin terminals.

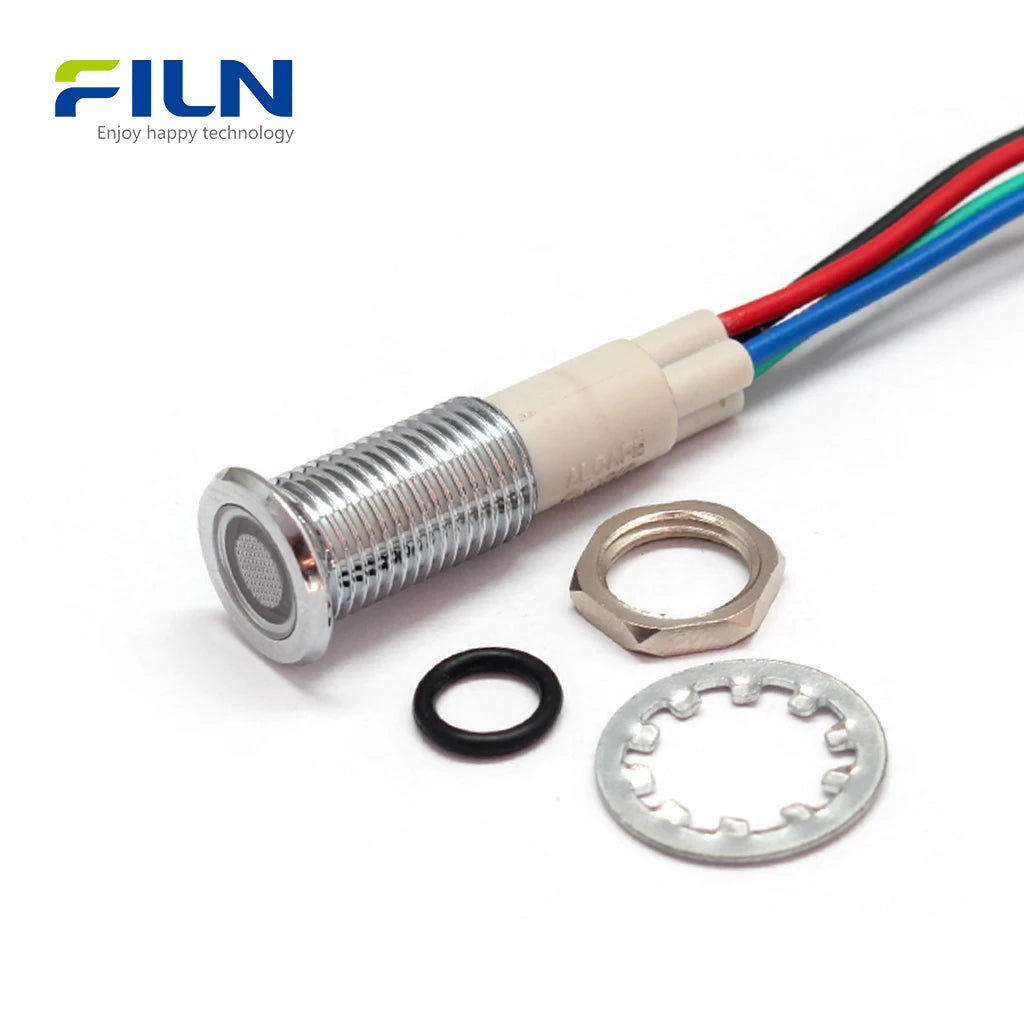

- Robust Hardware: Includes a smooth M10 thread, 10mm O-ring, and hex nut for a perfect, waterproof seal.
- Industrial Durability: Metal housing with high-brightness LEDs ensures a 50,000-hour lifespan.
Versatile Applications
- Industrial: CNC control panels, automation lines, electrical cabinets.
- Commercial: High-end coffee machines, professional kitchen equipment.
- Transportation: Marine dashboards, automotive status displays, EV chargers.
- Consumer: Smart home interfaces, gaming consoles, custom PC builds.
- Medical: Patient monitoring equipment, lab diagnostic tools.
Installation Steps
- Drill a 10mm hole in the mounting panel.
- Place the silicone O-ring onto the indicator light base.
- Insert the 3-color indicator light through the hole from the front.
- Thread the M10 nut onto the back of the indicator and tighten to secure against the panel.
- Connect the color-coded wires to your power supply and control circuit.
What Is a 3 Color Indicator Light?
A 3 color indicator light (often RGB or tri-color) is an advanced signaling component that integrates three different LED chips into a single housing. In modern equipment, it acts as a space-saving communication interface. Unlike pin terminals, which require soldering and can be brittle, pre-wired lead indicators provide a flexible, ready-to-use solution that excels in high-vibration environments. These lights are essential for displaying multiple machine states—such as "Safe," "Warning," and "Emergency"—within a single visual point, significantly improving operator efficiency and safety.
FILN Factory Direct Supply
- ✅ Factory Direct: Direct sourcing for the best B2B value[cite: 4].
- ✅ Voltage Customization: Tailored for 12V, 24V, 110V, 220V, etc[cite: 4].
- ✅ Custom Leads: Wire length and connector customization available[cite: 4].
- ✅ Fast Global Shipping: Rapid delivery for global engineering projects[cite: 4].
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What are the benefits of the different head shapes?
Flat is for aesthetic flush mounting; High-dome offers the best visibility; Concave prevents accidental activation/damage.
Q2: Can I get 3 colors in one light?
Yes, our tri-color series allows for three distinct signals (e.g., RGB) in a single 10mm unit.
Q3: Is the wiring difficult?
Not at all. The pre-wired design is ready for immediate connection, saving you time and cost.
Q4: Do you offer black housing?

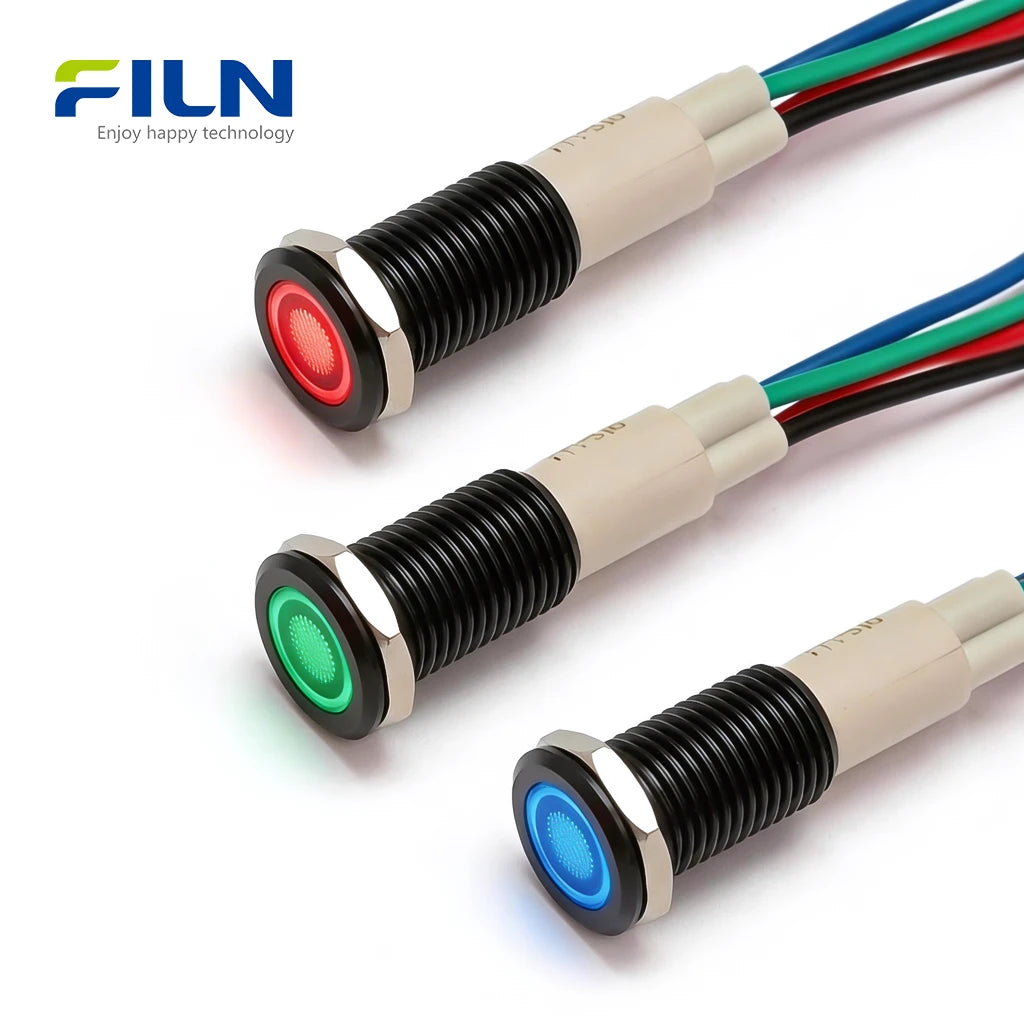

Yes, we provide both silver nickel-plated and professional black anodized finishes.
Q5: Can I use these on a boat?
Yes, the IP67 waterproof rating and metal housing make them perfect for marine environments.
Q6: Are samples available?
Please contact inquiry@cnylin.com.cn for sample requests for your B2B project.
Q7: What is the mounting size?
It fits a standard 10mm (M10) hole.
Q8: Is the thread smooth for installation?
Yes, our high-precision machining ensures the M10 nut threads on smoothly for secure mounting.
Q9: Does it come with a seal?
Every light includes a custom-fit 10mm O-ring to ensure a waterproof front-panel seal.
Q10: Can I get custom wire connectors?
Yes, as a factory, we can add specific connectors to the leads per your requirements.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
