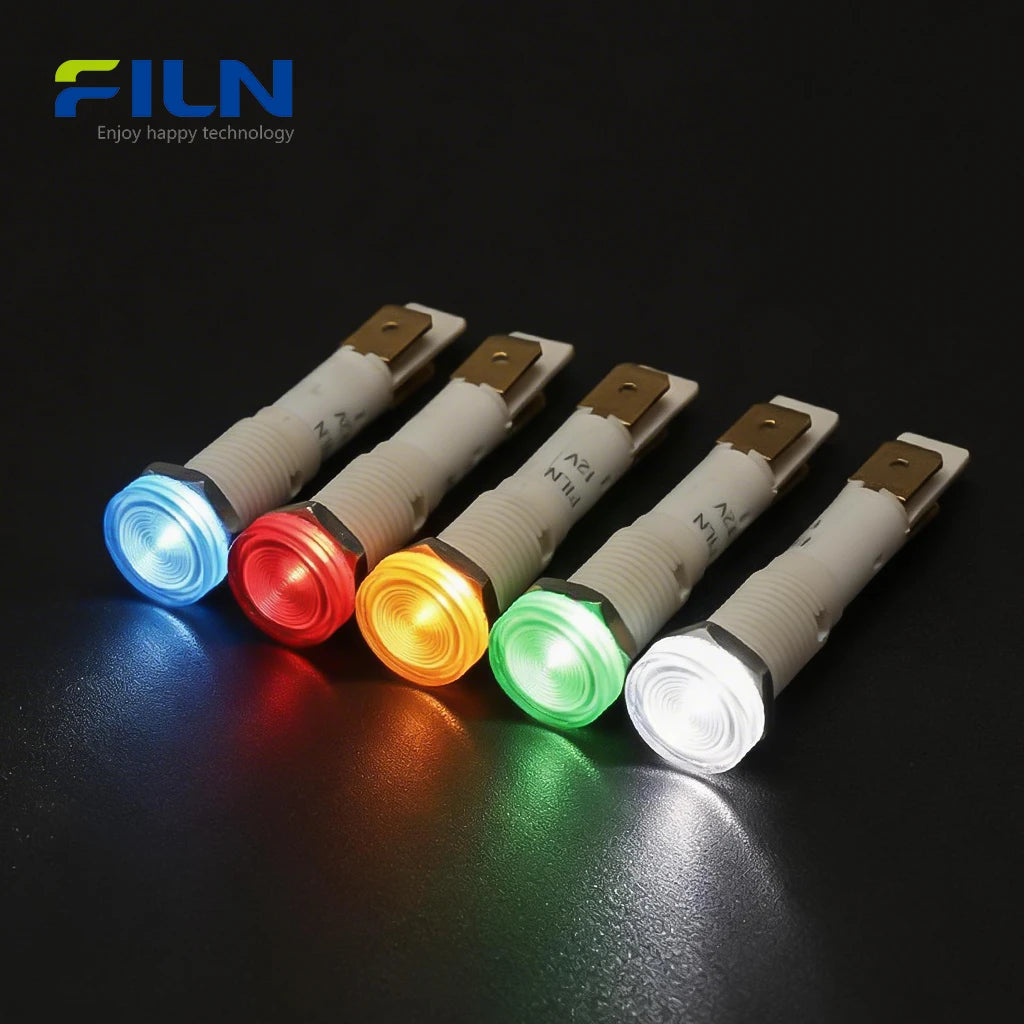

Product Overview
The 24v led indicator lamp (Model: FL1P-10NJ-5) is a high-performance 10mm plastic indicator light factory solution engineered for demanding industrial environments. Featuring a high-brightness LED and a sleek durable pa66 plastic indicator lamp body, this signal light offers an exceptionally bright output and a professional aesthetic. It is widely used as a kitchen equipment status indicator due to its heat resistance and long lifespan. This red green 24v led indicator lamp is currently available for sale, allowing B2B buyers to purchase directly from the factory. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, FILN ensures every 2-pin terminal signal lamp meets global safety standards.
Quick Specifications
| Mounting Hole Size | 10mm (0.39 inch) |
| Voltage Range | 12V-24V, 110V-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Head IP65 (Screw Mount) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Wiring Type | 2.8mm Pin Terminal (2-Pin) |
| Product Certification | ISO9001, CE, VDE, RoHS, SGS, UL |
| Component Name | Material |
| Shell (Outer Case) | PA66 |
| Lamp holder | PA66 |
| Lampshade | PC |
| Luminescent Source | LED |
| Resistance | Carbon film resistance |
| Nut | Metal (Zinc Alloy/Brass) |
| 2.8mm Terminal | H59 Copper |
| O-ring | Silicone |
Rated Working Parameters
| Rated Voltage | Customized (e.g. 24V) |
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | PA66 Nylon |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone O-ring |
| Terminal | Brass with Silver/Nickel Plating |
| Wire Material | PVC (for wire-lead models) |
General Characteristics
| Items | Parameter |
| Voltage | 3V～250V |
| Insulation resistance | 1800V/5s |
| Working Life | 60,000h |
| Heat-Resistant | +80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | 50,000 hours (Test Condition: 30mA 1000h) |
Resistant Performance
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
Key Features
- Extra Bright LED: Optimized luminescent source for clear visibility in bright kitchen environments.
- Premium Aesthetic: Sleek circular design with a robust PA66 plastic body for an upscale look.
- Long Lifespan: Industrial grade reliability with a working life of up to 60,000 hours.
- Efficient 2-Pin Terminal: Features a 2.8mm pin design for stable and fast electrical connection.
- Durable Construction: Combines a heat-resistant plastic shell with a secure metal nut for heavy-duty mounting.
Applications
- Kitchen Equipment: Commercial ovens, fryers, and dishwashers.
- Industrial Automation: Status feedback on CNC control panels.
- Electrical Cabinets: Power on/off signaling.
- Medical Devices: Reliable warning indicators for hospital equipment.
Installation Guide
- Drill a 10mm hole in your control panel.
- Insert the screw mount 24v indicator lamp from the front side of the panel.
- Place the metal nut from the rear and tighten securely to fix the lamp in place.
- Connect your circuit wires to the 2.8mm pin terminals at the base.
What Is a 24V LED Indicator Lamp?
A 24v led indicator lamp is a vital signal component used to monitor the status of machinery. Unlike traditional metal indicators, plastic indicator light factory products use PA66 nylon, which offers superior insulation and chemical resistance, making them perfect for food processing and kitchen environments.
The primary difference between wire-lead indicators and pin terminal indicators lies in installation efficiency; pin terminals (like our 2.8mm 2PIN design) allow for quick-connect female terminals, reducing labor costs. While metal indicators offer a rugged feel, durable pa66 plastic indicator lamps are lighter, corrosion-proof, and provide exceptional value without sacrificing visual appeal.
Factory Direct Supply
FILN is a professional manufacturer offering global B2B supply. Our filn 10mm led indicator lamp series is ready for direct purchase with the following advantages:
- ✅ Competitive Pricing - Factory direct sales without agents.
- ✅ Rapid Customization - Tailored voltage, wire length, and color options.
- ✅ Global Shipping - Reliable logistics to any country.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy this 24v led indicator lamp for sale directly?
Yes! We support online direct ordering for global industrial buyers.
2. Why is PA66 plastic used instead of standard plastic?
PA66 (Nylon) offers high-temperature resistance and mechanical strength, essential for kitchen equipment.
3. What is the benefit of the 2-pin terminal signal lamp design?
The 2.8mm pin terminals allow for rapid assembly and easy maintenance compared to fixed wires.
4. Is the 10mm plastic indicator light factory certified?
Yes, all FILN indicators carry CE, UL, and RoHS certifications.
5. Can the voltage be customized for 220V AC?
Absolutely. We provide a custom voltage plastic warning light service for any requirement.
6. How does the brightness compare to other signal lights?
Our filn 10mm led indicator lamp uses high-lumen LEDs for superior visibility even in brightly lit rooms.
7. Is a metal nut better than a plastic one?
A metal nut provides more torque resistance and a more secure lock on the panel for long-term use.
8. Is the head of the light waterproof?
Yes, it is rated IP65, protecting against water splashes and dust.
9. Are plastic indicators better than metal ones for food equipment?
Yes, plastic is corrosion-proof and offers better electrical insulation in humid kitchen environments.
10. What colors can I choose from?
We offer Red, Green, Yellow, Blue, and White LED options.
