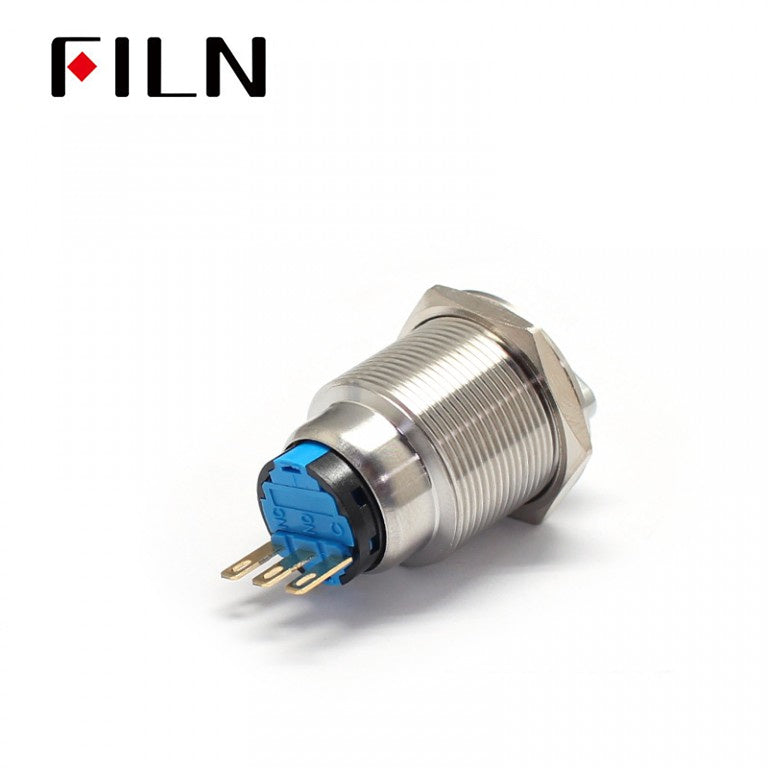

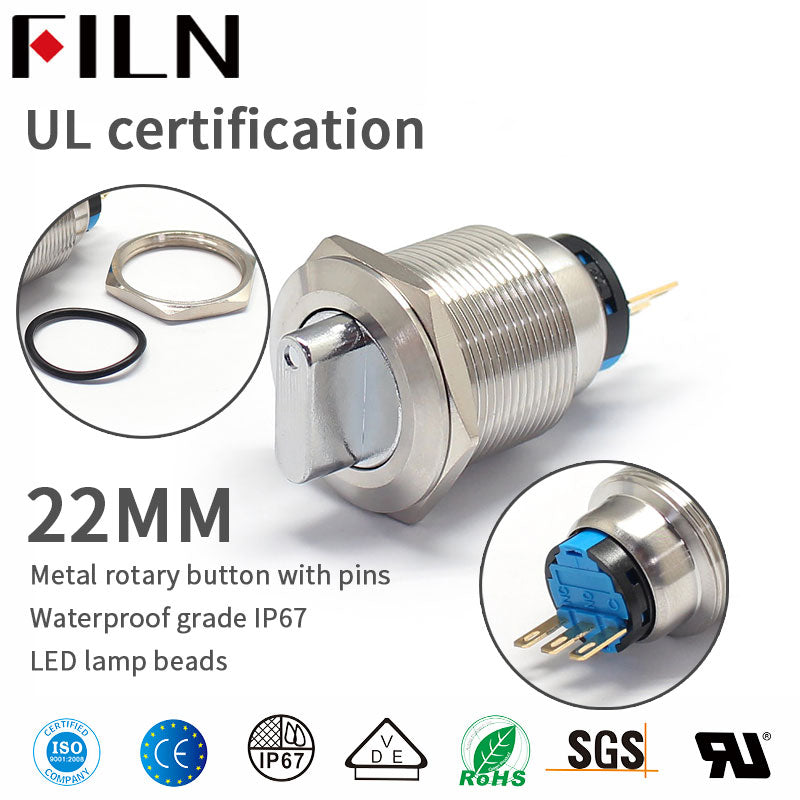

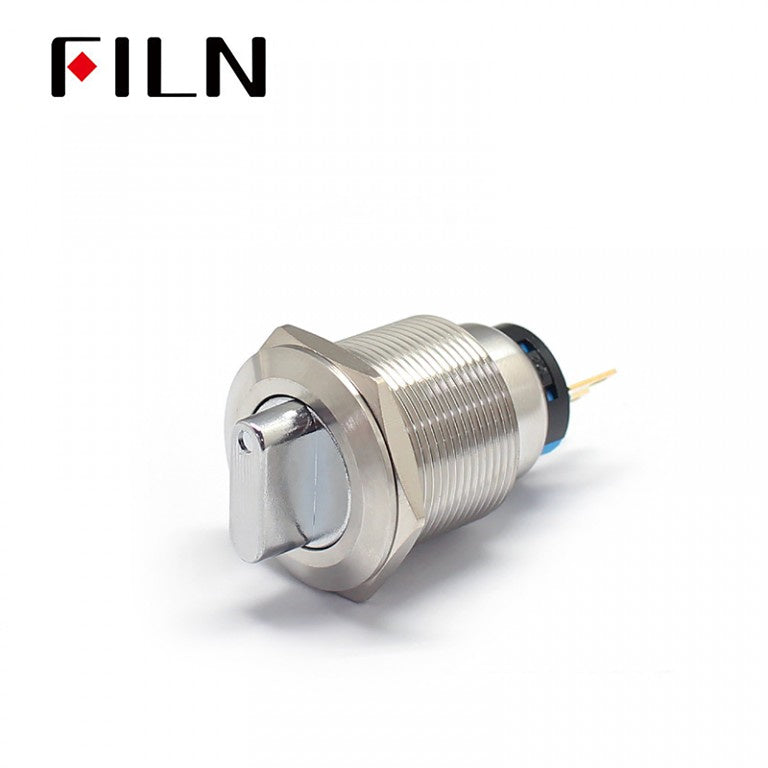

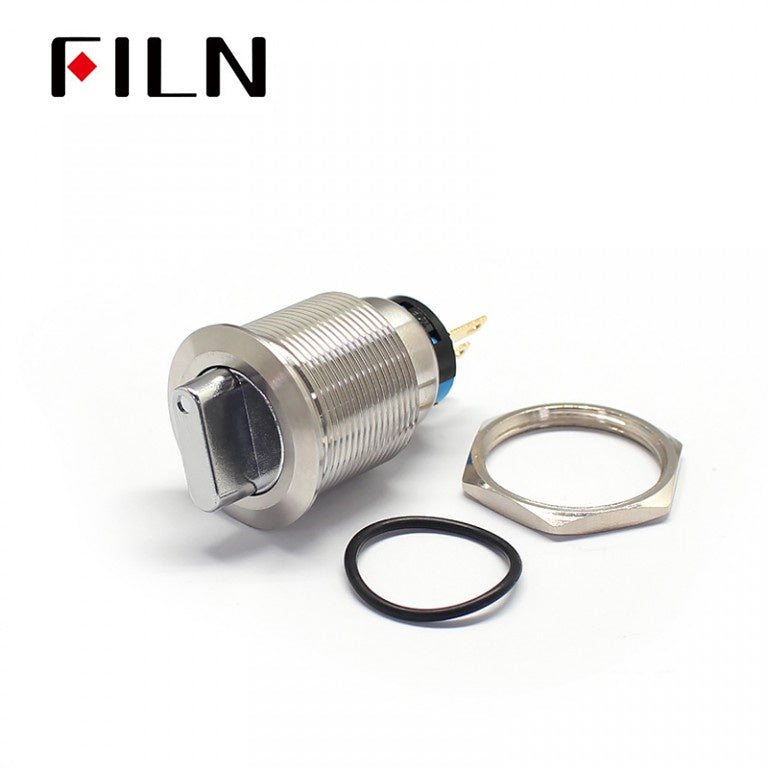

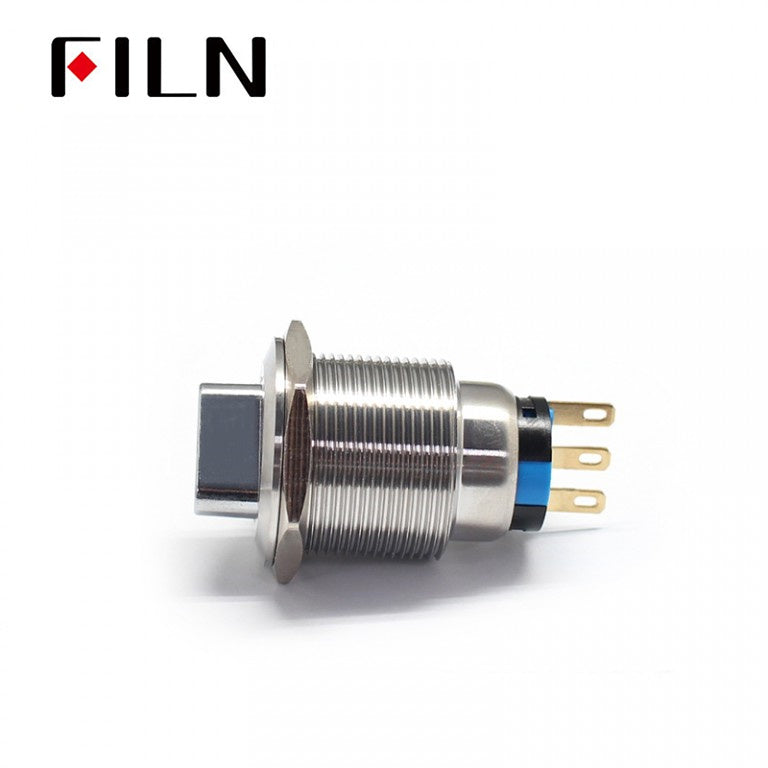

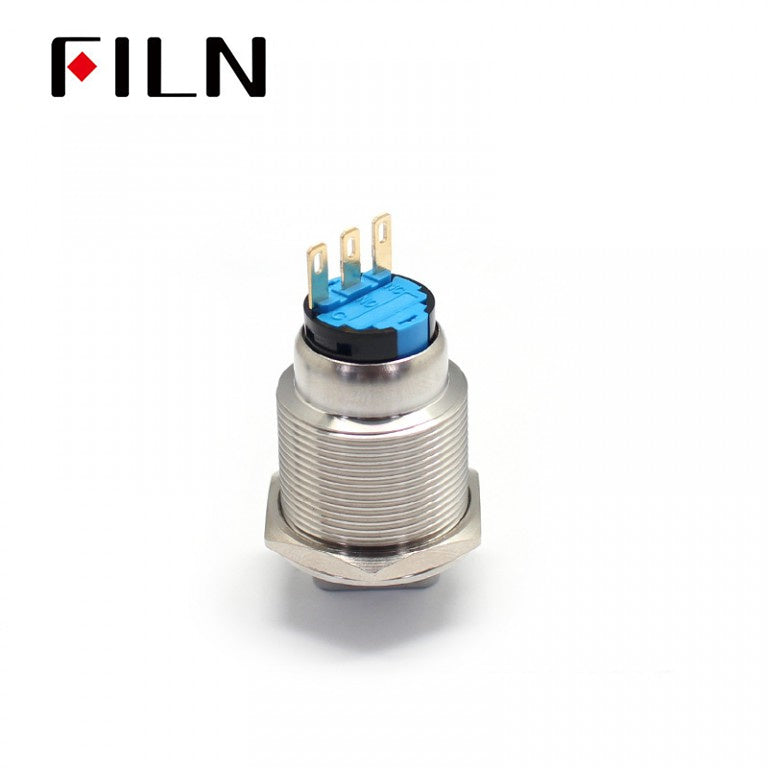

22MM LED Metal Rotary Latching 2 Step Push Button Switch

Material
Voltage

Description

Production Series FLM22-11RE Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC)250V(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)5A(AC) Light Source LED
Rated Power 180W(DC)1250W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12
