Product Overview

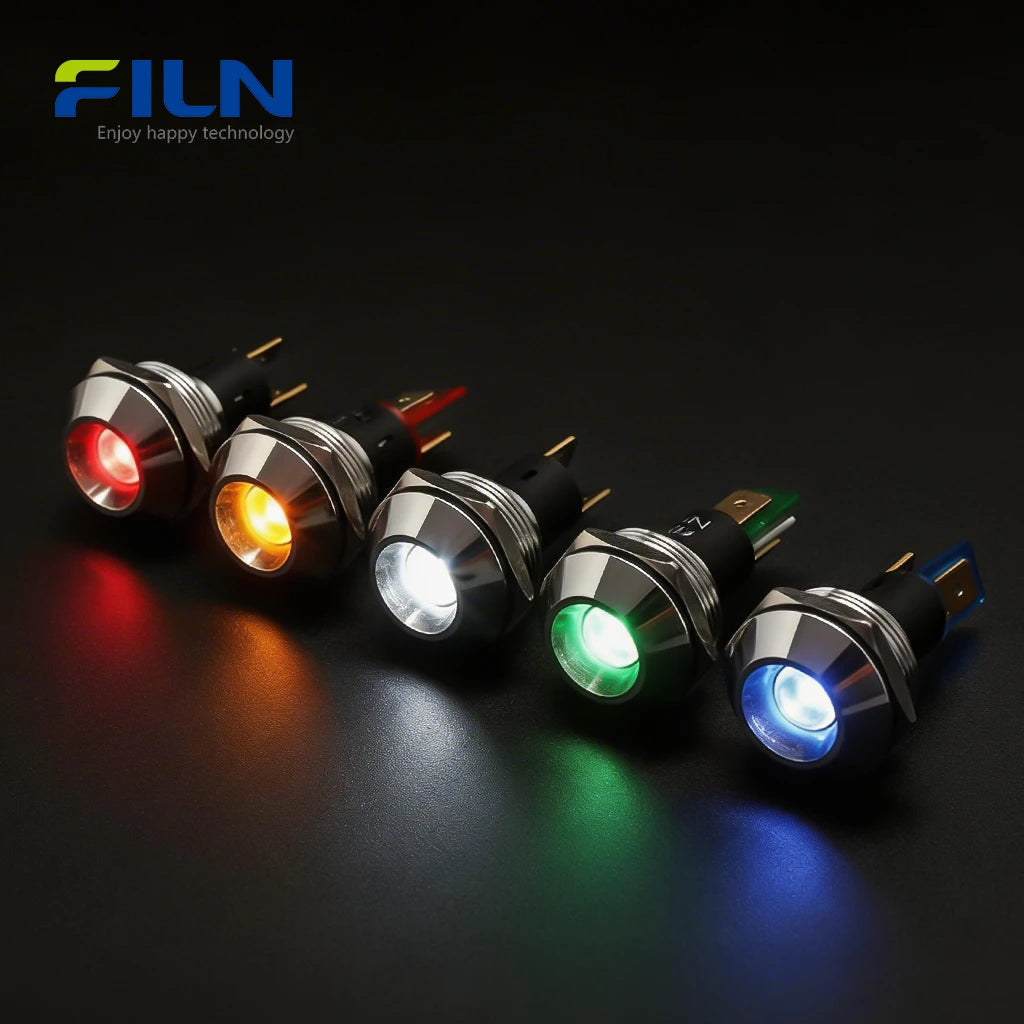

The indicator led manufactured by FILN is a premium industrial signaling solution designed for high-end machinery. Featuring a robust 22mm mounting size and a distinctive concave head design, this indicator provides superior visibility and mechanical protection. Our products are fully certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, ensuring compliance with global safety standards. Primarily used in industrial control panels, CNC machines, and automation equipment, these lights offer a long lifespan of 50,000 hours. The FL1M-22CJ-1 model supports multiple voltages from 12V to 220V and comes in various LED colors including Red, Green, Yellow, Blue, and White.
Quick Specifications
| Mounting Hole | 22mm (0.87 inch) |
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥50,000 Hours |
| Wiring Type | 2-Pin Type (Fast Connection) |
| Product Certification | UL, CE, VDE, RoHS, ISO9001 |
Component Material List
| Component Name | Material | Note |
| Shell | Copper Alloy | Nickel or Chrome plated for corrosion resistance |
| Lamp Holder | PA66 Nylon | High strength and temperature resistance |
| Lampshade | PC Polycarbonate | High light transmission and impact resistance |
| Light Source | LED | Energy efficient, long life |
| Resistor | Carbon Film | Stable current protection |
| Pin | Brass | Excellent electrical conductivity |
| Nut | Copper Alloy | Secures light to the panel |
| O-ring | Silica gel | IP67 waterproof sealing |
| Plum Gasket | Stainless Steel | Anti-loosening reinforcement |
Rated Working Parameters
| Rated Voltage | Customized (3V to 380V) |
| Frequency (AC) | 50Hz～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Metal (Silver/Black available) |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone Rubber |
| Terminal | 2-Pin Terminal |
| Wire Material | Not applicable (Direct Pin Connection) |
General Characteristics
| Application | Signal Indication / Control Panels |
| Part Name | FL1M-22CJ-1 |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Waterproof Rating | IP65 / IP67 |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Parameter | Test Condition | Requirement |
| Continuous Working Life | 30mA 1000h | 50,000 hours |
Resistant Performance
| Test Type | Condition | Result |
| High Temperature | 80℃ 96h | No Damage |
| Low Temperature | -40℃ 96h | No Damage |
| Moisture Resistance | 40℃ 90-95%RH 96h | Stable Operation |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) | Passed |
Key Features

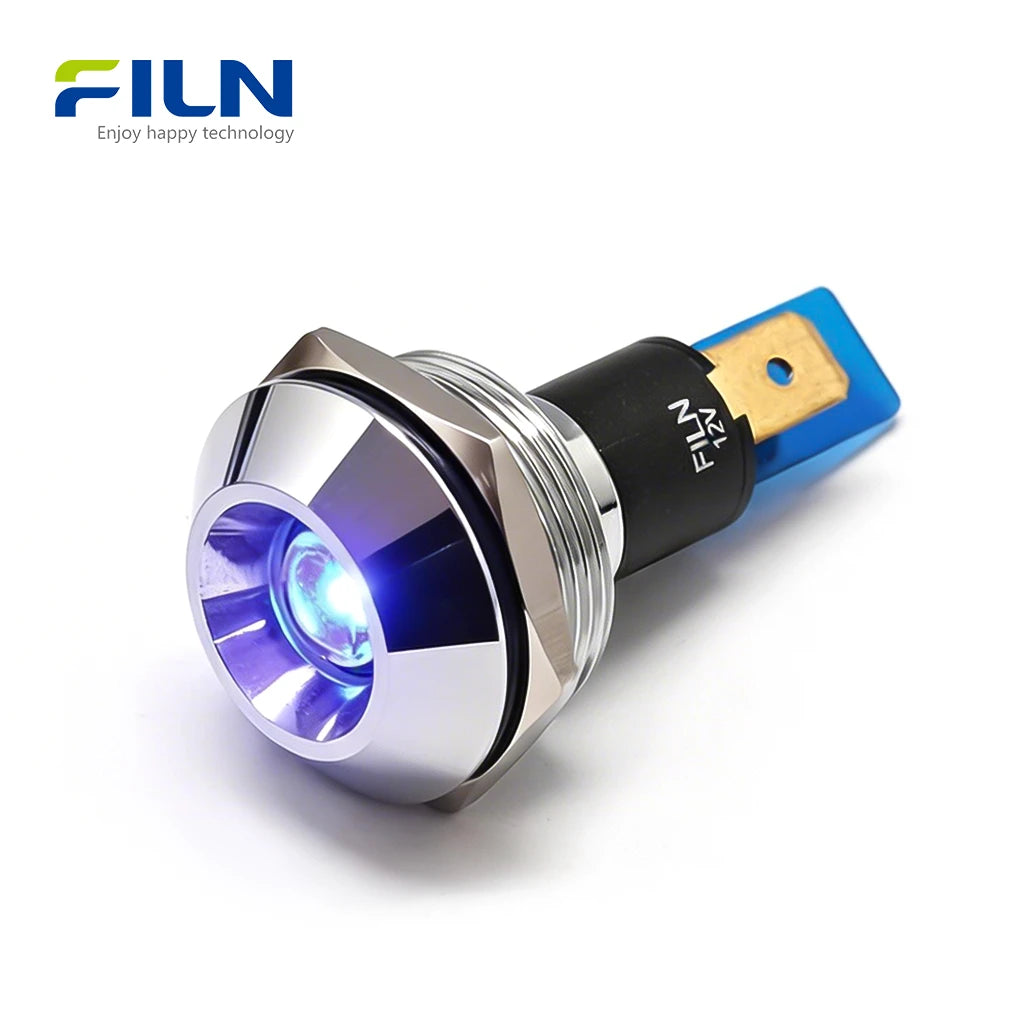

- LED High Brightness: Large 22mm concave head design for enhanced light diffusion.

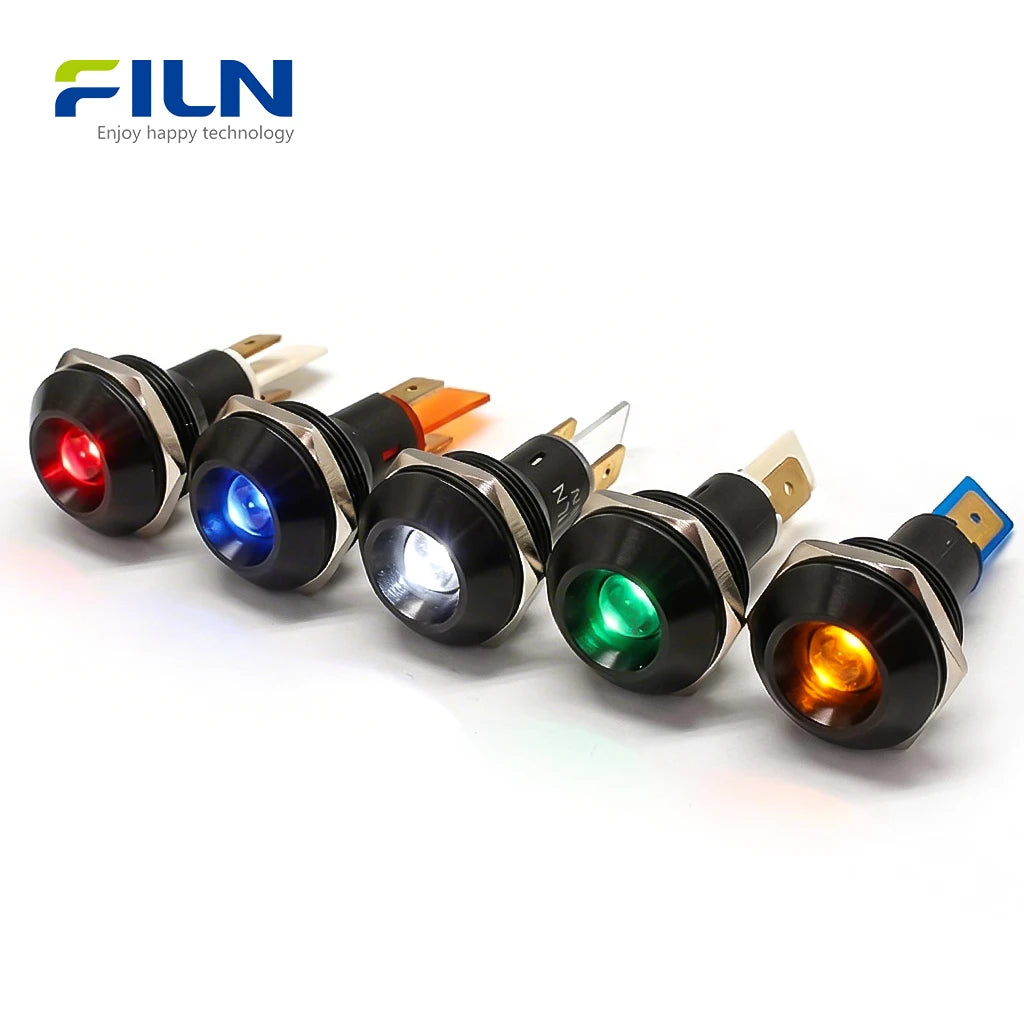

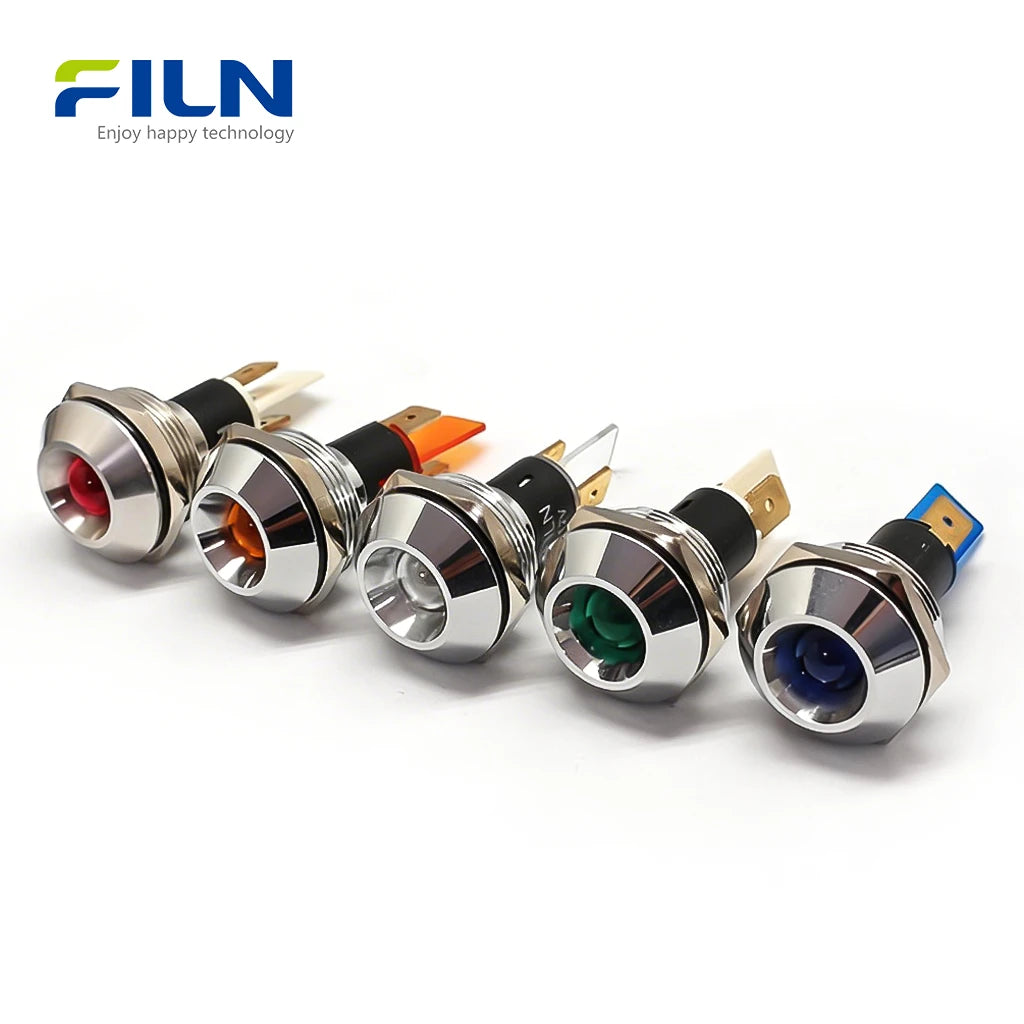

- Industrial Durability: Metal housing available in silver or black chrome finish.

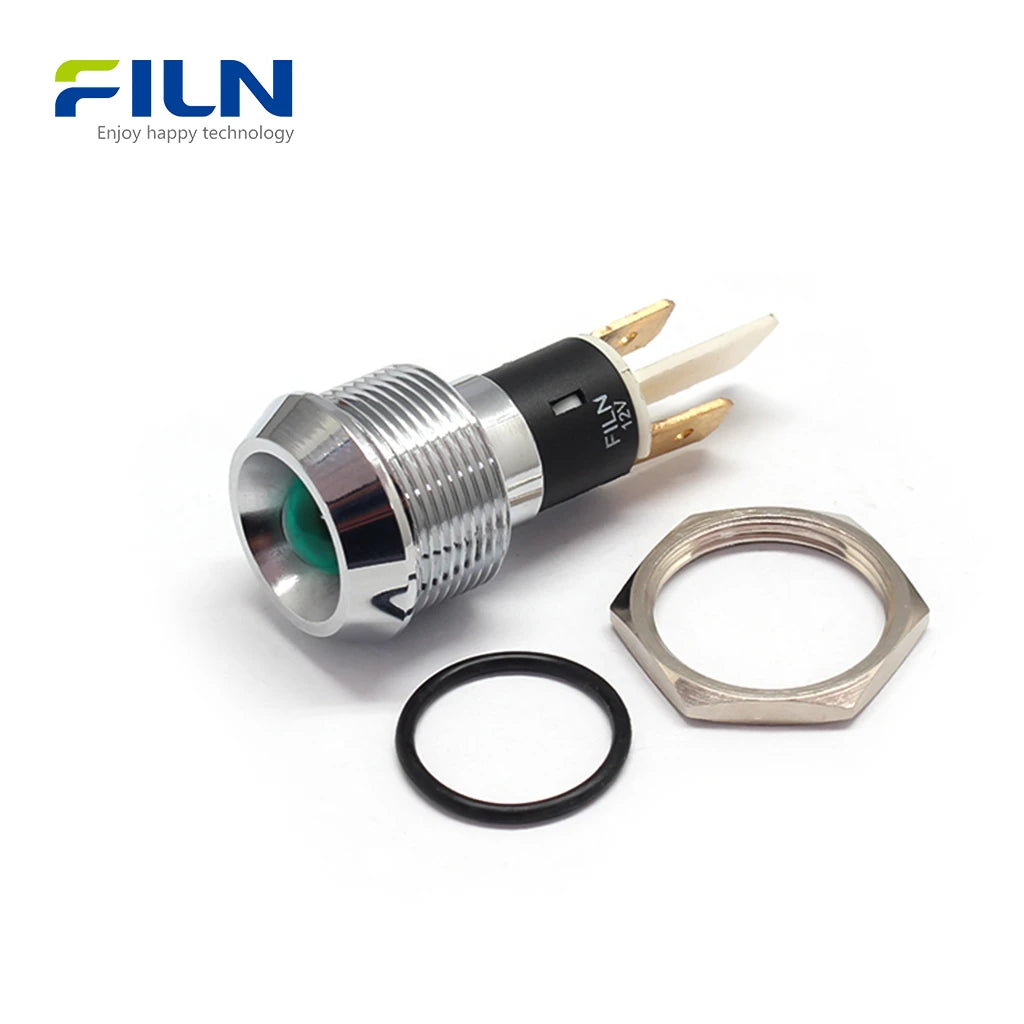

- IP67 Waterproof: Includes a 22mm O-ring to prevent dust and water ingress.

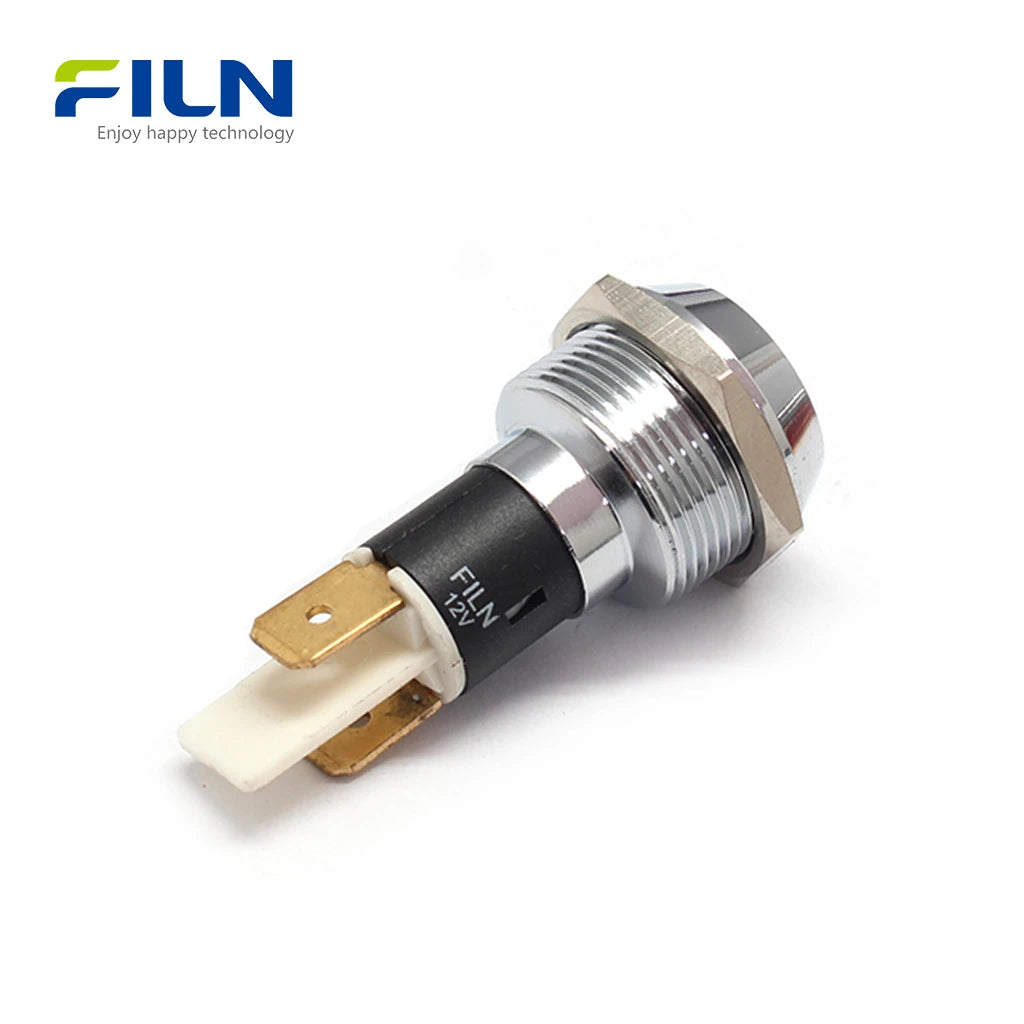

- Fast Connection: 2-pin terminal design for quick and secure electrical installation.
- Easy Mounting: Smooth M22 threads with a high-quality nut for stable panel fixation.
Applications
- Industrial control panels and distribution boards
- CNC machines and heavy-duty manufacturing equipment
- Automation systems and robotic workstations
- Electrical cabinets for infrastructure projects
- Marine systems and outdoor weather-exposed panels
- Medical devices requiring high-reliability status indicators
Installation Guide
- Drill a 22mm (7/8") hole in the target control panel.
- Insert the indicator LED through the hole from the front side.
- Ensure the 22mm O-ring is positioned between the panel and the light head for a waterproof seal.
- From the back of the panel, screw on the M22 nut.
- Tighten the nut securely using a wrench to prevent rotation.
- Connect your 12V-220V power source to the 2-pin terminals.
What Is an Indicator LED?
An indicator led is a critical visual signaling device used to convey the operational status of machinery and electronic systems. Unlike standard bulbs, industrial-grade LEDs provide vibration resistance and high energy efficiency. The 22mm variant is particularly popular in B2B applications because its large size allows operators to monitor machine status from a distance. The concave head design of this product is engineered to protect the lens from accidental impacts while reducing glare, making it ideal for bright factory environments.
Factory Direct Indicator LED for Sale
Purchase directly from the FILN factory to benefit from professional manufacturing and wholesale pricing. We specialize in custom solutions for global industrial clients.
- Factory Direct: No middlemen, direct-to-customer pricing.
- Voltage Customization: We support any voltage from 3V to 380V.
- Wire Length & Connector: Custom wiring and plug-and-play connectors available.
- Fast Global Shipping: Reliable logistics for bulk orders.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the difference between pin terminal and wire lead indicator LEDs?
Pin terminals allow for quick blade connectors or soldering, whereas wire leads come pre-wired for direct splicing into a circuit.
2. Can I get a 220V indicator LED in blue?
Yes, FILN offers 220V options in Red, Green, Yellow, Blue, and White.
3. Is the 22mm indicator led suitable for outdoor use?
With an IP67 rating and a silicone O-ring, this light is fully protected against heavy rain and dust.
4. Does FILN support custom branding for B2B orders?
Absolutely. We provide OEM/ODM services including laser-etched logos and custom housing colors.
5. What is the benefit of a concave head design?
The concave head protects the lens from physical damage and provides a focused signal light that is easy to see under industrial lighting.
6. What materials are used in the indicator LED shell?
We use high-quality copper alloy with nickel or chrome plating for maximum corrosion resistance.
7. How do I install the 22mm signal light?
Simply drill a 22mm hole, insert the light with the O-ring, and tighten the rear M22 nut.
8. Does the indicator light come with a resistor?
Yes, high-quality resistors are built-in to handle specific voltages like 12V, 24V, or 220V safely.
9. Are these indicators UL certified?
Yes, FILN indicator lights carry UL, CE, and RoHS certifications for global export.
10. Can I order black shells instead of silver?
Yes, we offer both silver nickel-plated and black anodized/plated finishes for the 22mm indicator led.
